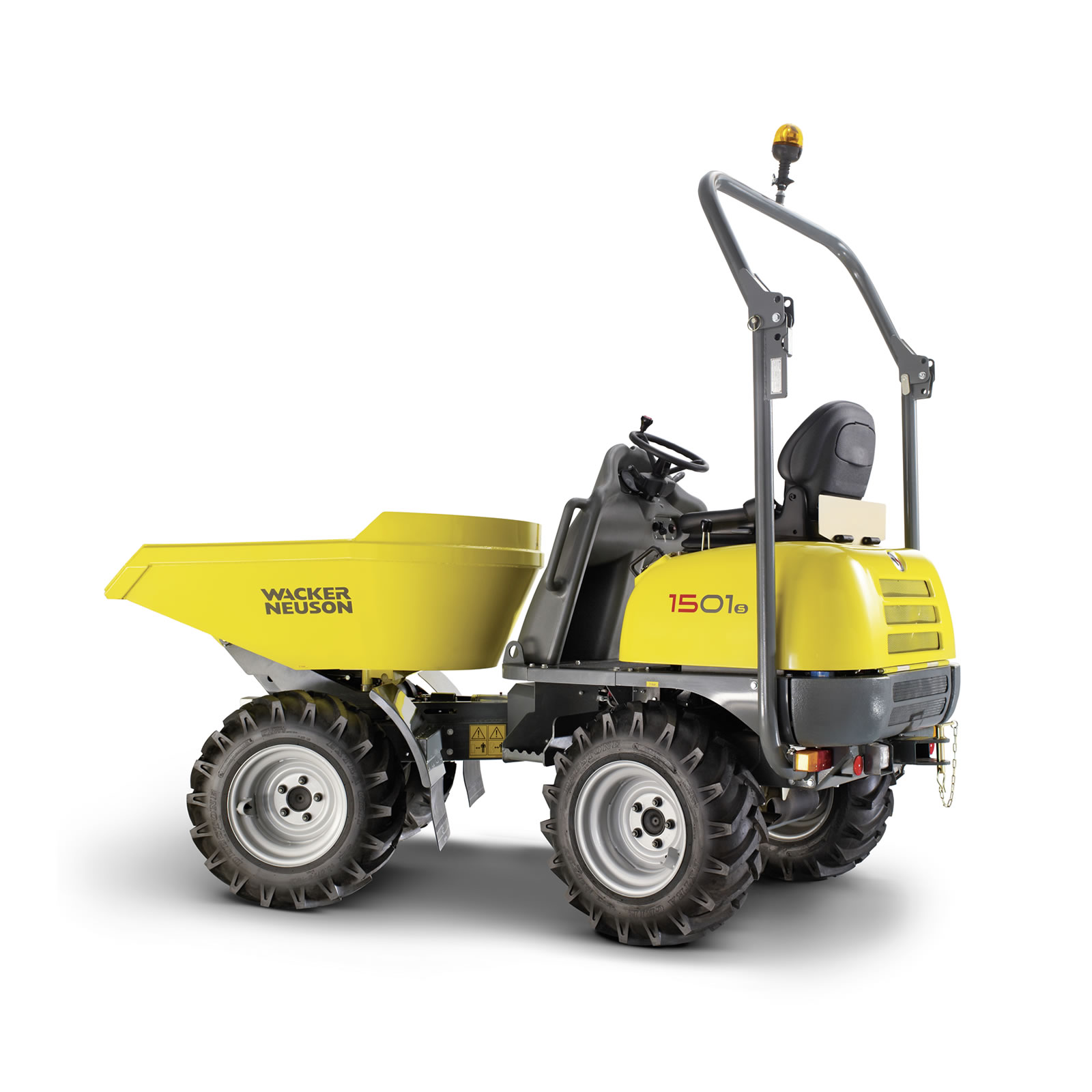

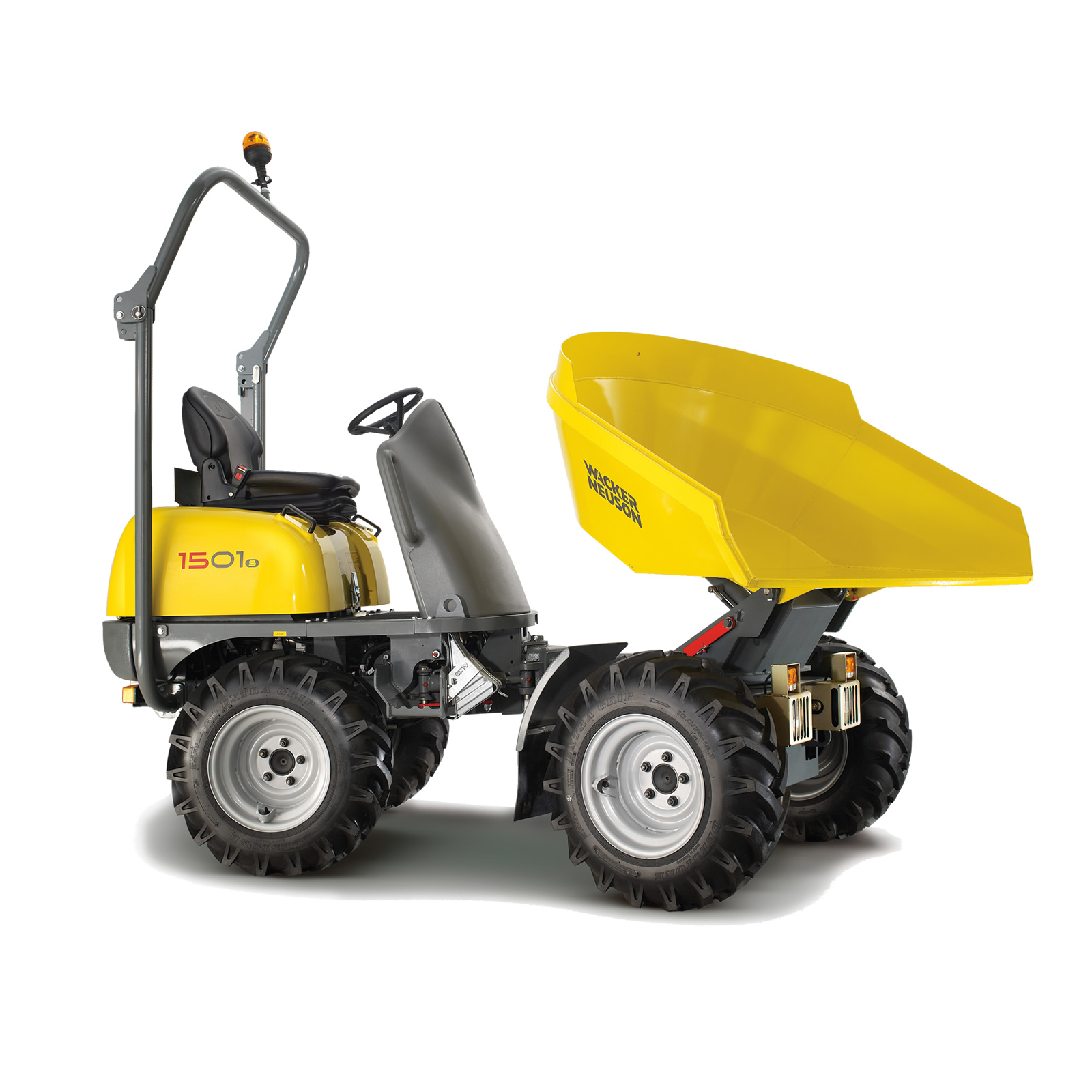

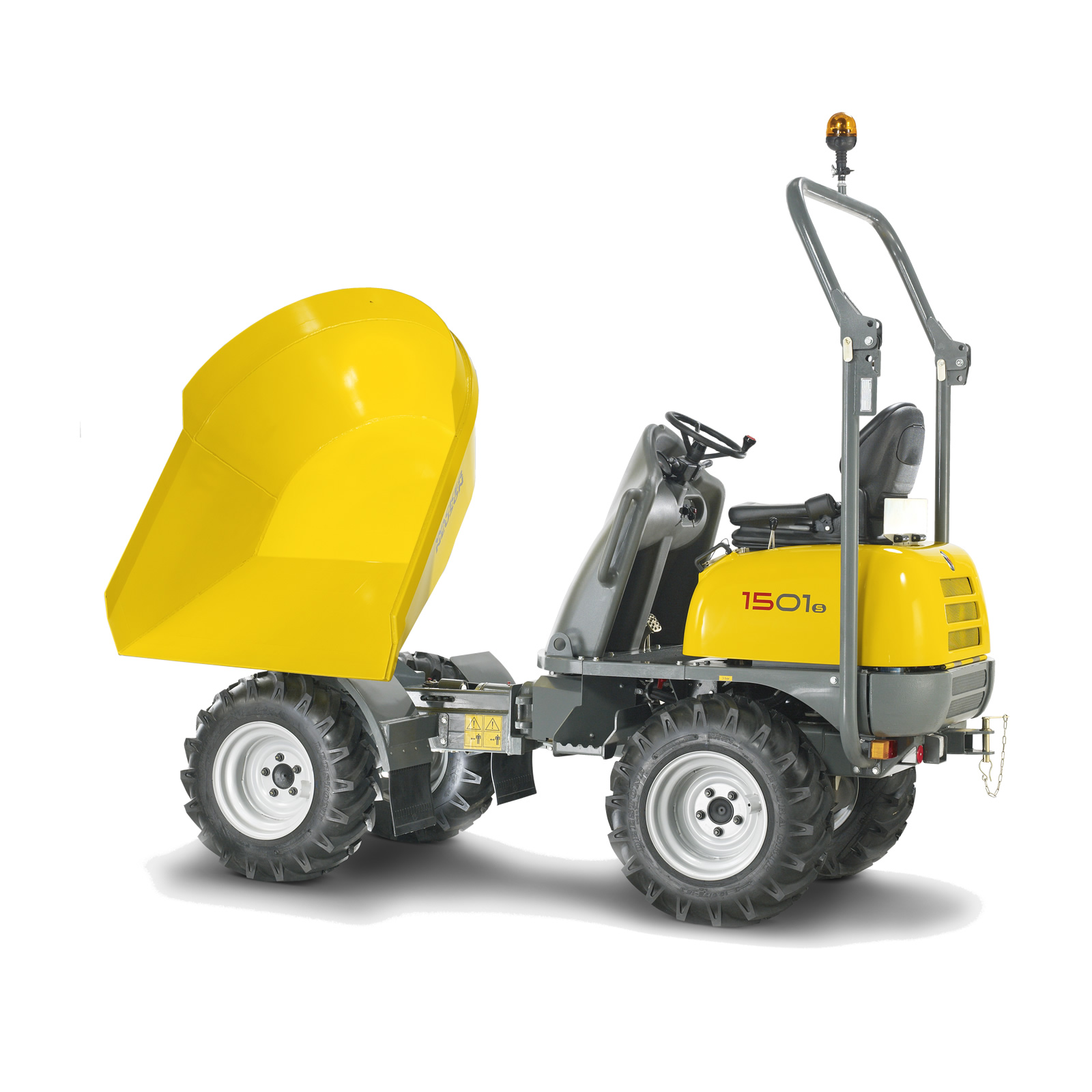

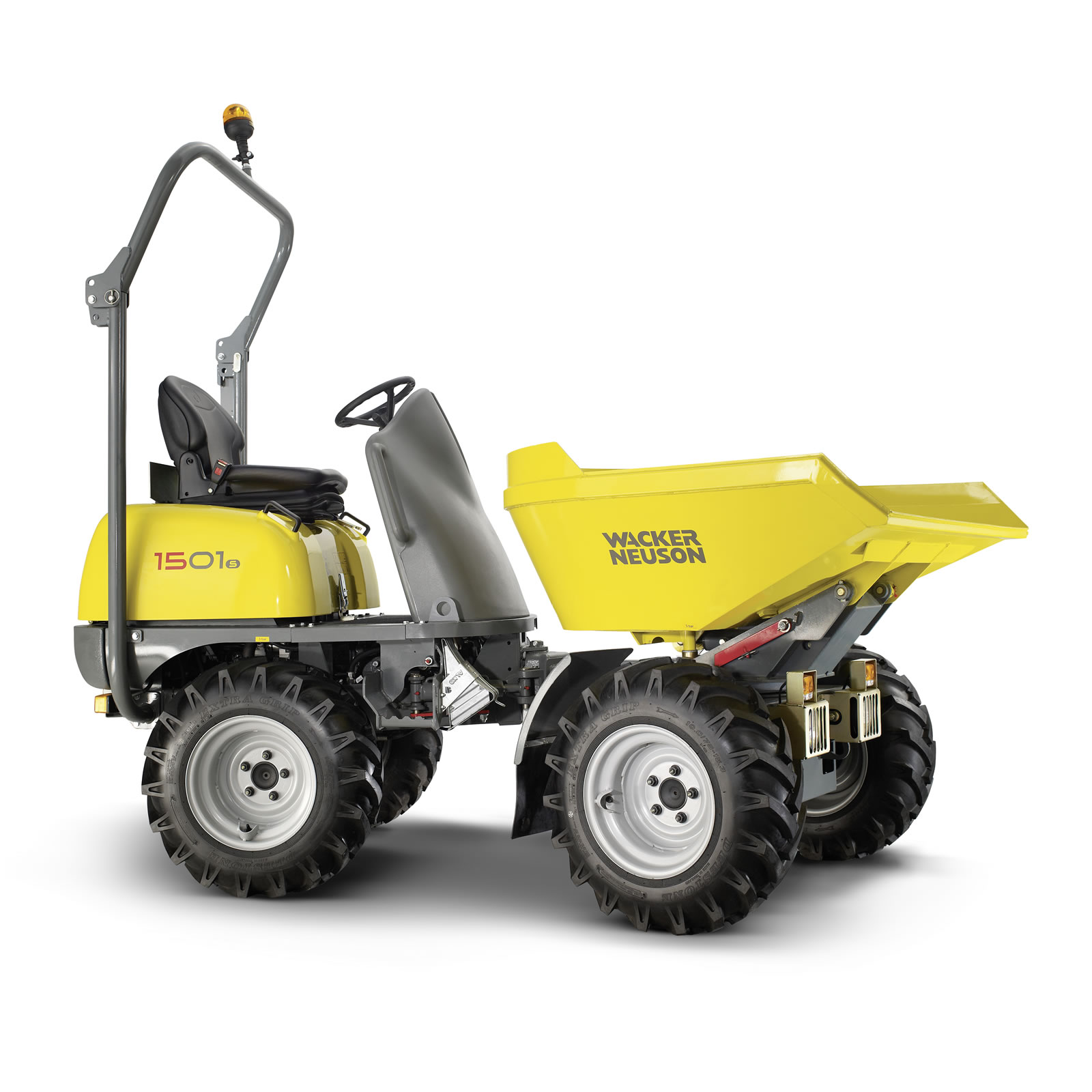

Wacker Neuson 1501 - All-Wheel Dumper

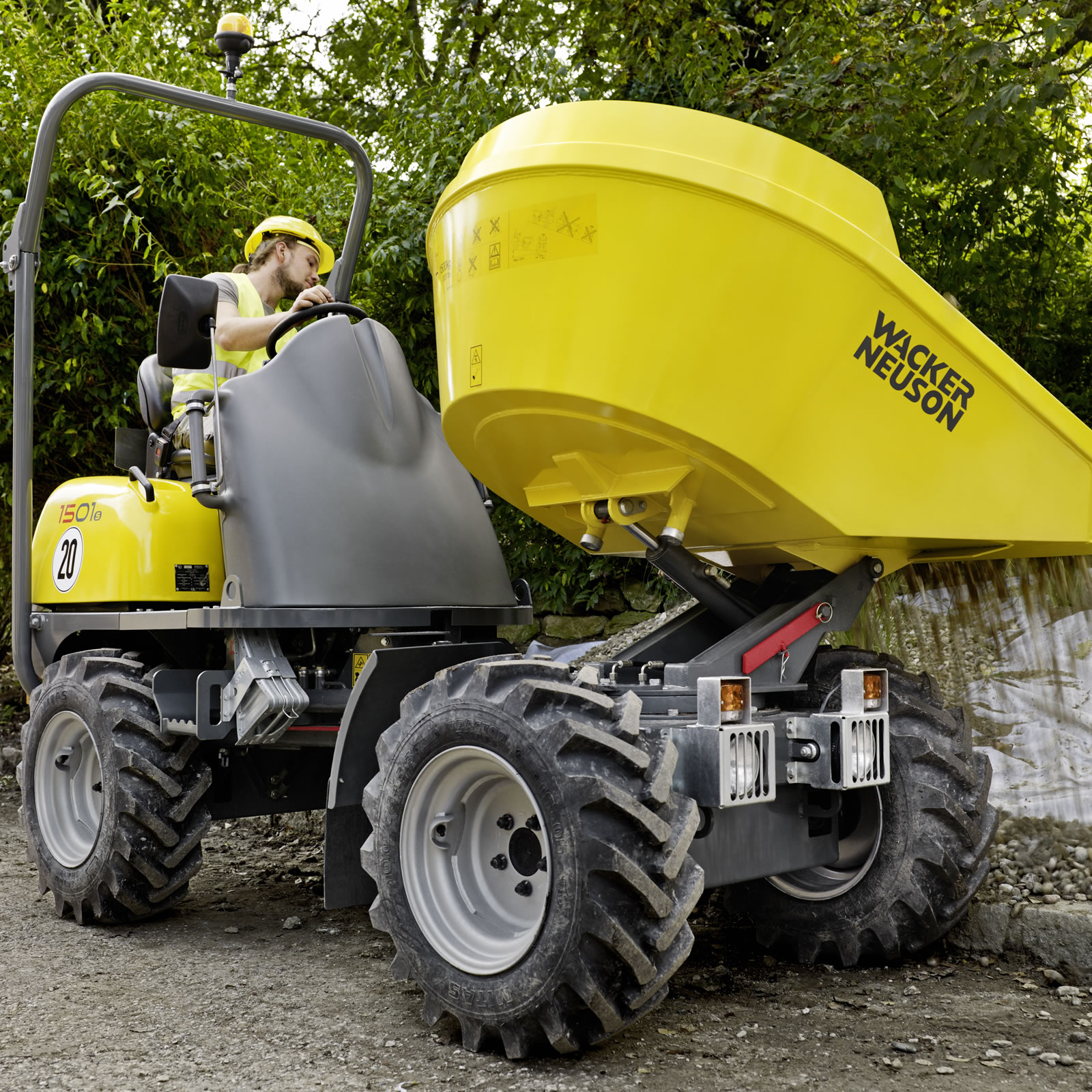

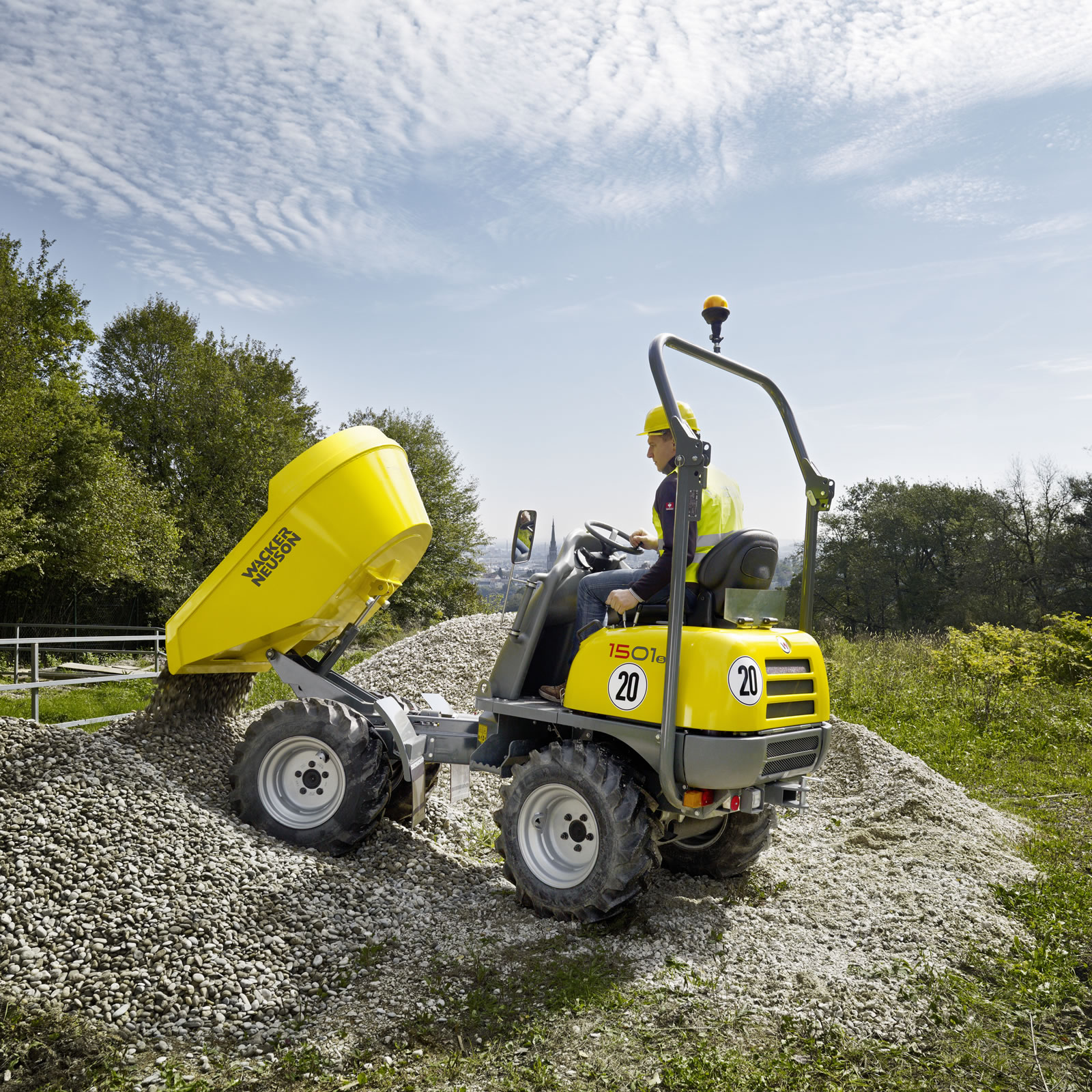

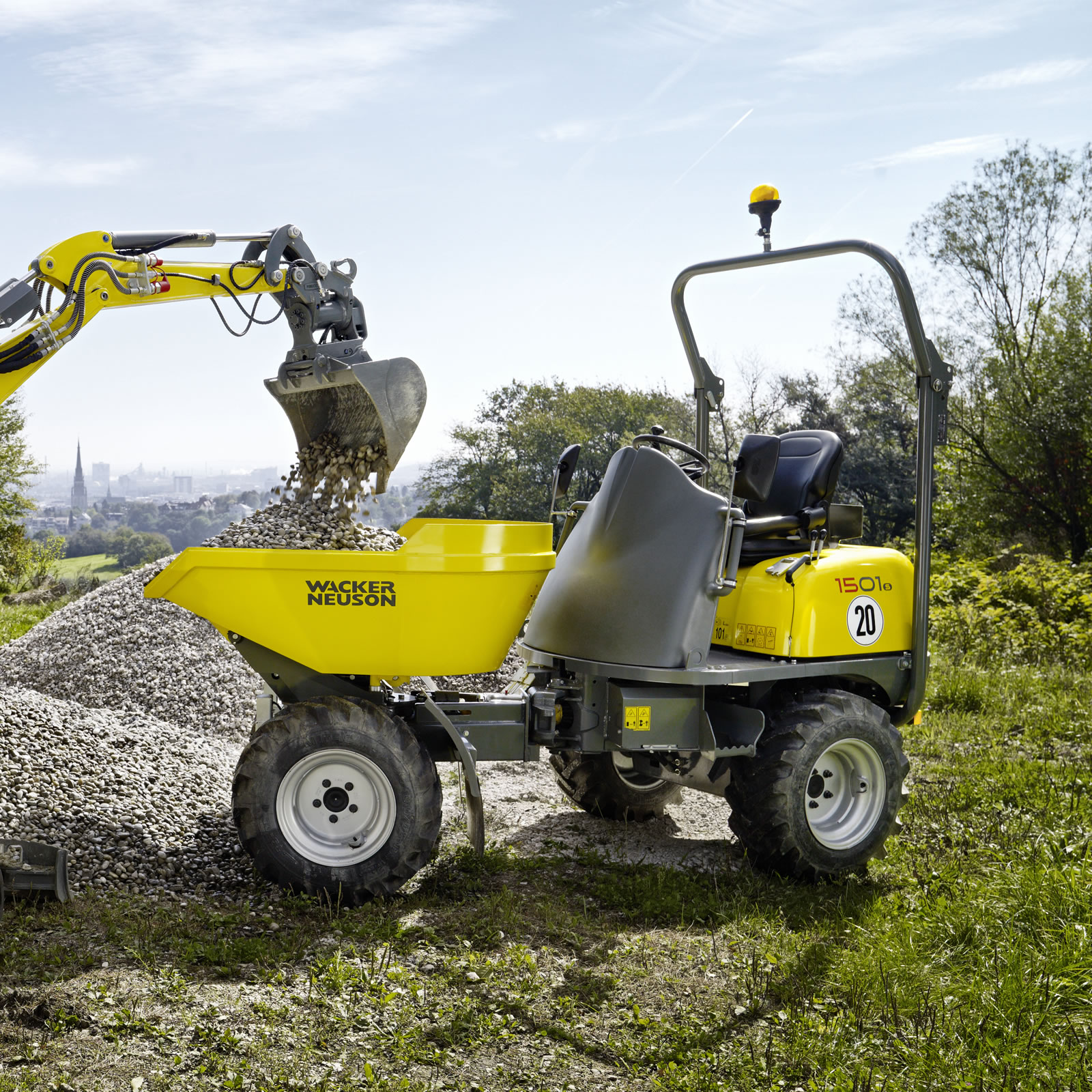

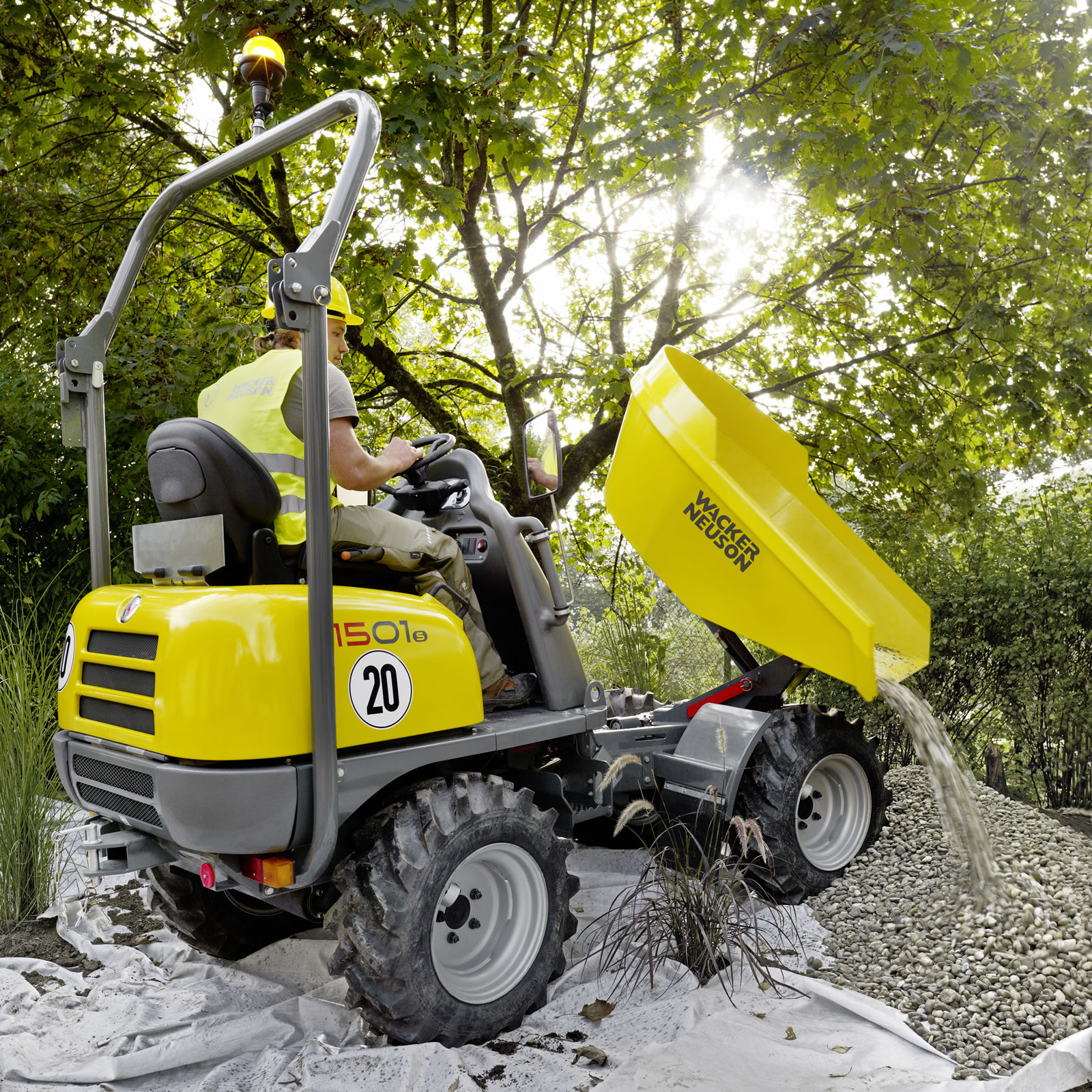

Powerful, manoeuvrable, compact and great in off-road conditions. Continuous all-wheel drive coupled with full articulating and oscillating steering drive make this the perfect dumper for off-highway use. The 1501 comes standard with a swivel tip skip for dumping at any angle.

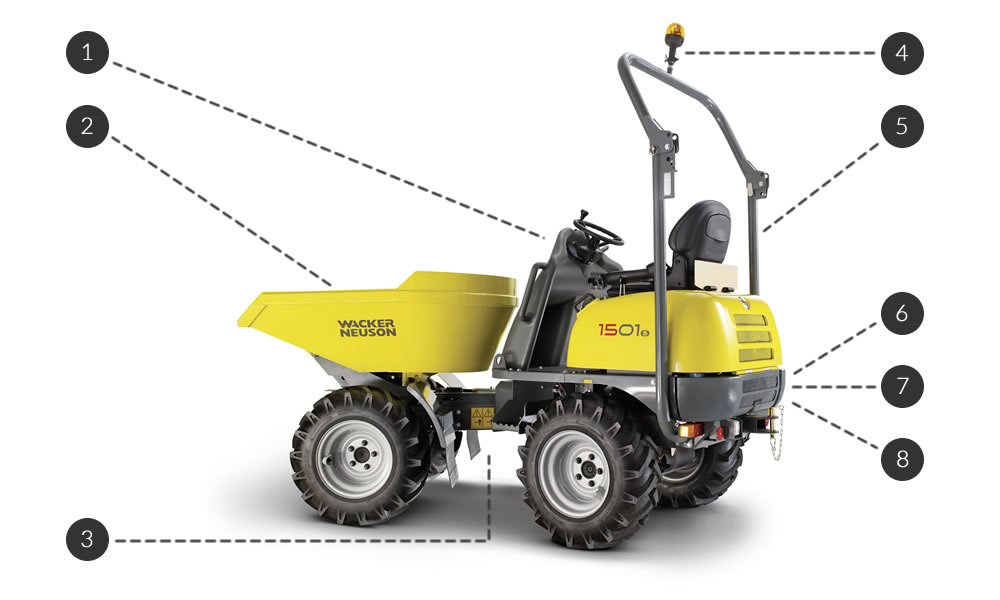

Key Features:

1.	Vision	Tapered control panel for excellent visibility. Left and right rear view mirrors.
2.	Skip	0.8 cubic metre skip. Swivel-Tip skip standard.

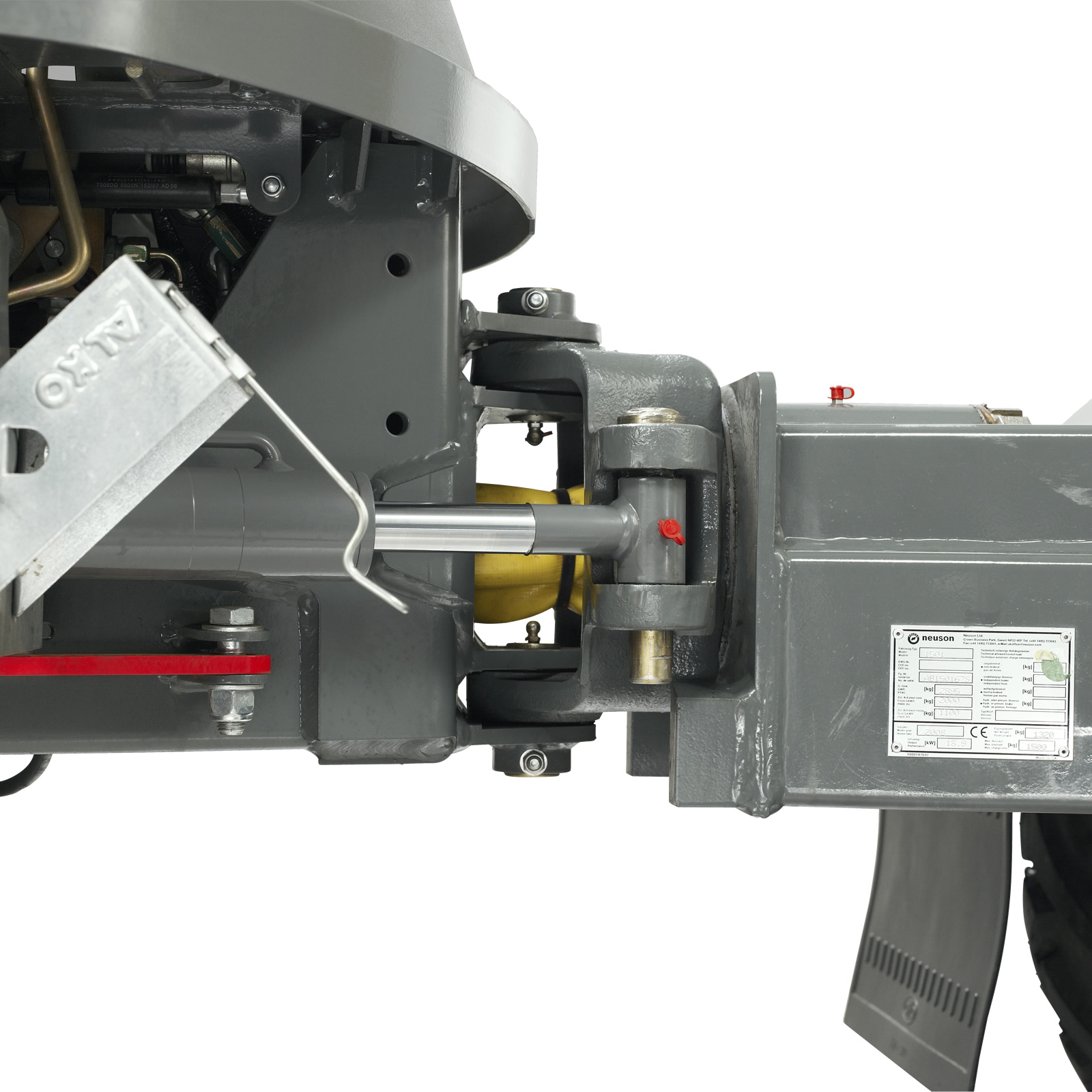

3.	Versatility	Articulated steering to 33 degrees. Oscillated steering to 15 degrees. High ground clearance. Swivel tip skip perfect for backfilling trenches.
4.	Safety	Folding ROPS bar. Full leg and foot protection. Factory fitted beacon light and reverse beeper. Rear-view mirrors.
5.	Comfort	Comfortable suspension seat. Ergonomically designed operators station.
6.	Power	High HP Yanmar 3 Cylinder diesel engine. 17kW (23HP). 1500kg payload. Hydrostatic drive with twin lock continuous 4WD.
7.	Cooling	Large cooler and overflow bottle for efficient engine and hydraulic cooling. Designed to keep cool in the harshest of Australian conditions.

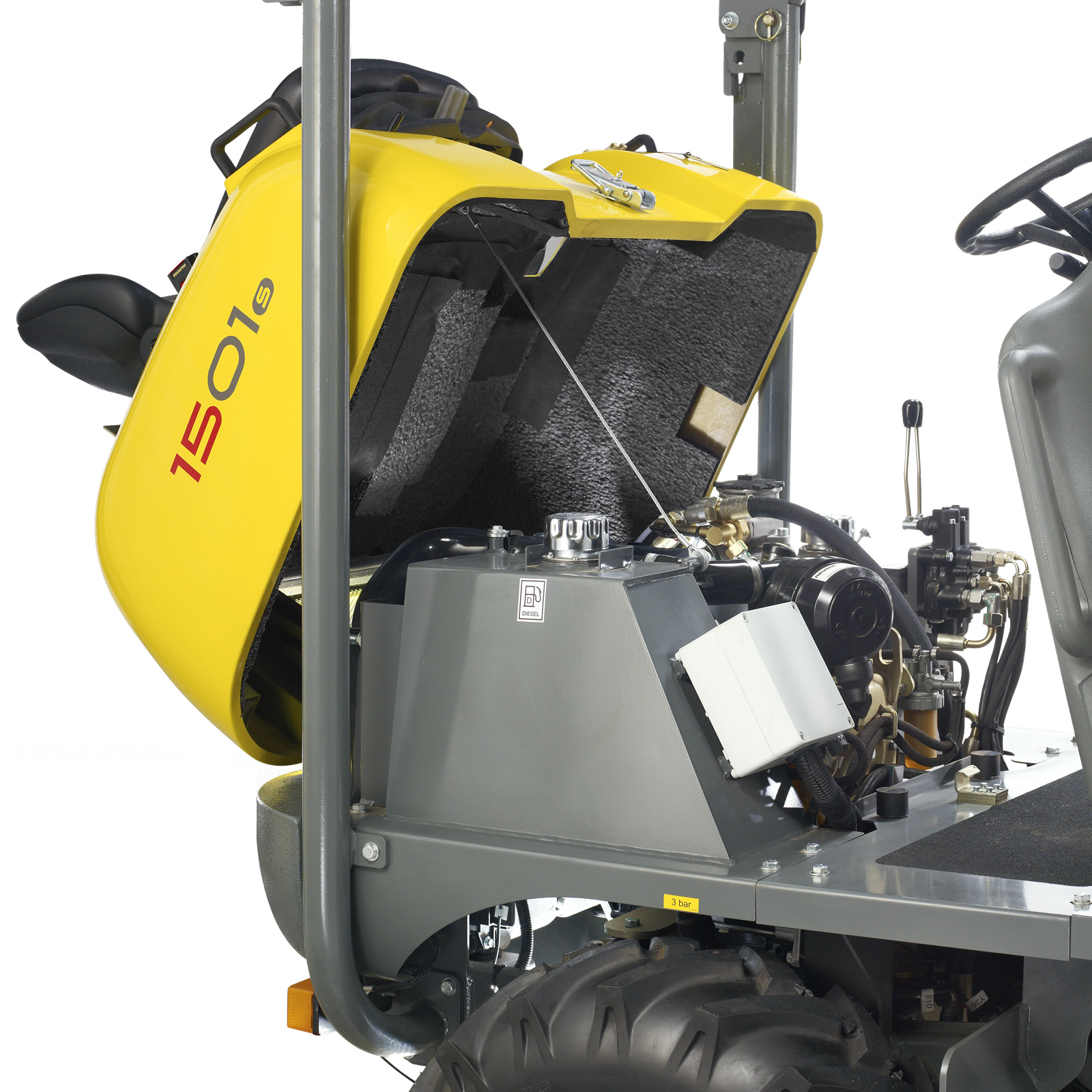

8.	Maintenance	Robust scratch and dent resistant operators station. Integrated hose guide keeps hoses hidden from damage in off road conditions. One-piece bonnet for easy maintenance access.

(1501)

General:

Tare weight	1,261 kg
Payload	1,500 kg
Skip capacity (leveled)	650 L (0.65 m3)
Skip capacity (heaped)	800 L (0.8 m3)
Skip capacity (water leveled)	325 L (0.325 m3)

Engine:

Manufacturer	Yanmar
Model	3TNV76
Construction	Liquid-cooled, 3-cylinder diesel
Displacement	1,116 cm3
Engine speed	3,000 rpm
Engine output according to ISO	17 kW (23 HP)
Battery voltage / capacitance	12 V / 45 Ah

Drive Characteristics:

Drive speed	0 - 16 km/h
Steering angle	+/- 33°
Oscillation	+/- 15°
Turing radius (outside)	3,300 mm
Gradeability	50%

Drive:

Drive type	4WD, hydrostatic Twin-Lock
Steering	Hydrostatic articulated frame
Standard tyres	10.00 / 75-15 Tractor profile
Service brake	Hydrostatic
Park brake	Hydraulic

Hydraulics:

Drive pump	Axial piston pump
Flow rate	84 L/min
Operating pressure	360 bar
Work pump	Gear pump
Flow rate	25 L
Operating pressure	170 bar

Capacities:

Hydraulic tank	20 L
Fuel Tank	20 L

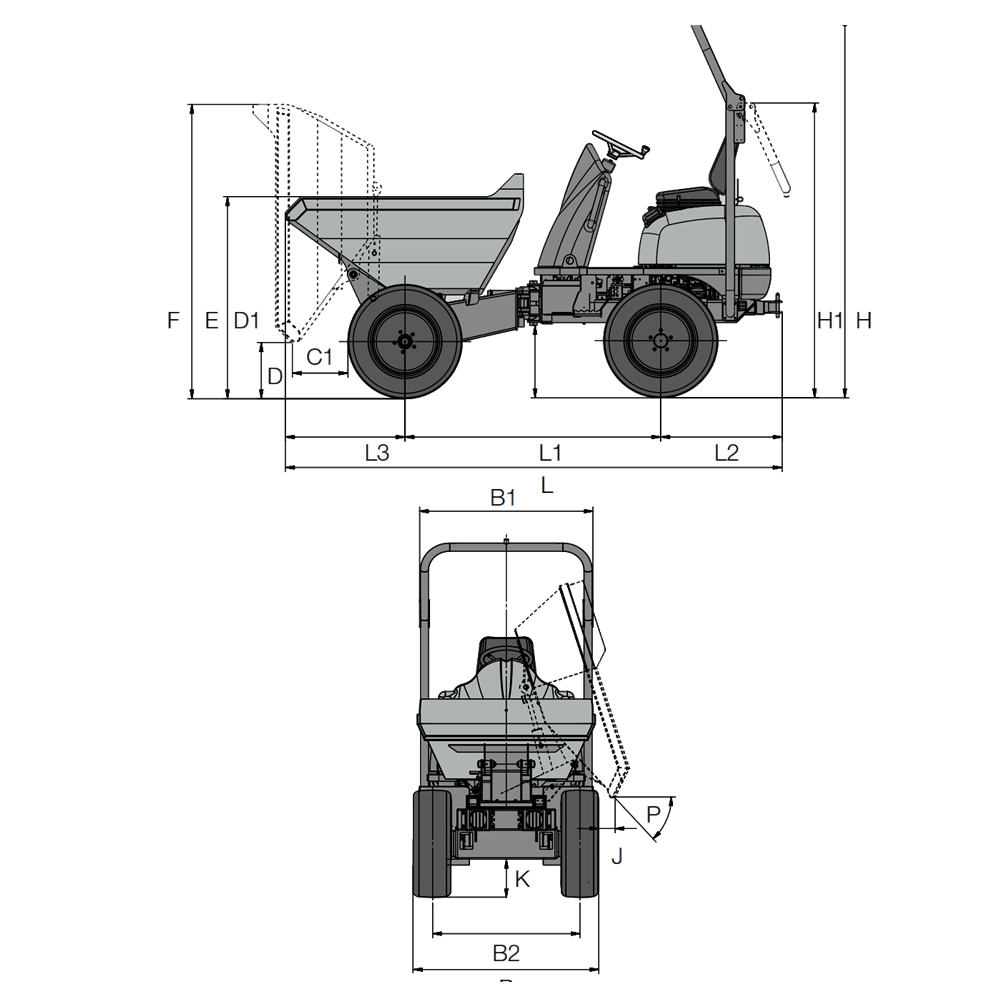

Working Dimensions:

B	Width (wheel to wheel)	1,305 mm
B1	Width (chassis)	1,225 mm
B2	Width (wheel centres)	1,050 mm
C1	Front wheel to skip leading edge	280 mm
D	Clearance (edge of tipped skip to ground)	680 mm
D1	Height (front edge of skip to ground)	1,140 mm
E	Height (top of skip to ground)	1,300 mm
F	Max. dumping height	2,250 mm
H	Height (including ROPS)	2,550 mm
H1	Height (ROPS folded)	1,960 mm
J	Chassis to skip lip clearance (swivelled)	100 mm
K	Clearance (driveline to ground)	260 mm
L	Length (overall)	3,220 mm
L1	Length (wheel centres)	1,700 mm
L2	Length (rear wheel centre to rear)	810 mm
L3	Length (front wheel centre to front)	710 mm
P	Max. tipping angle	47°
