NEW Wacker Neuson DV60 Dual View Rail Dumper For Sale

Enquiry/Quote

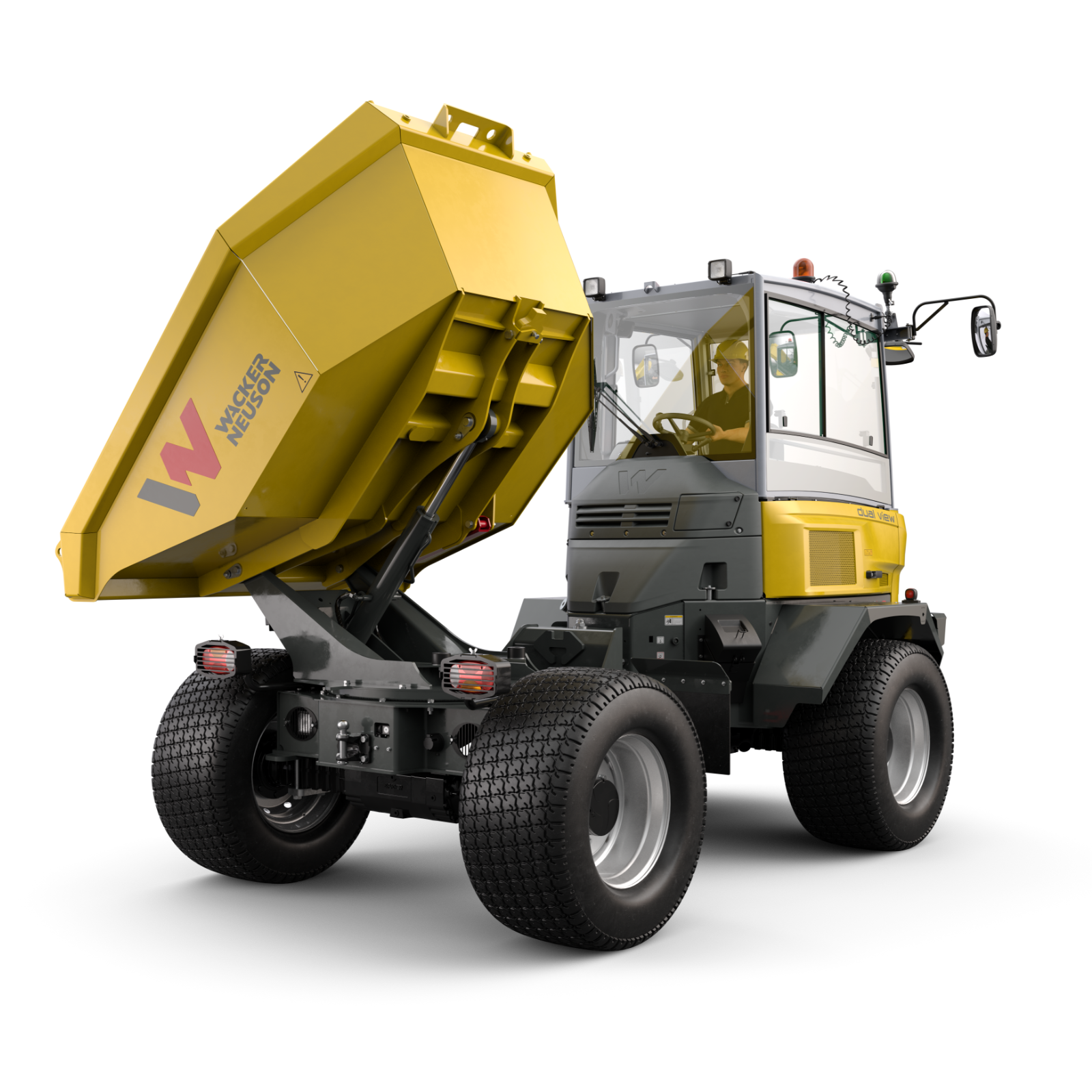

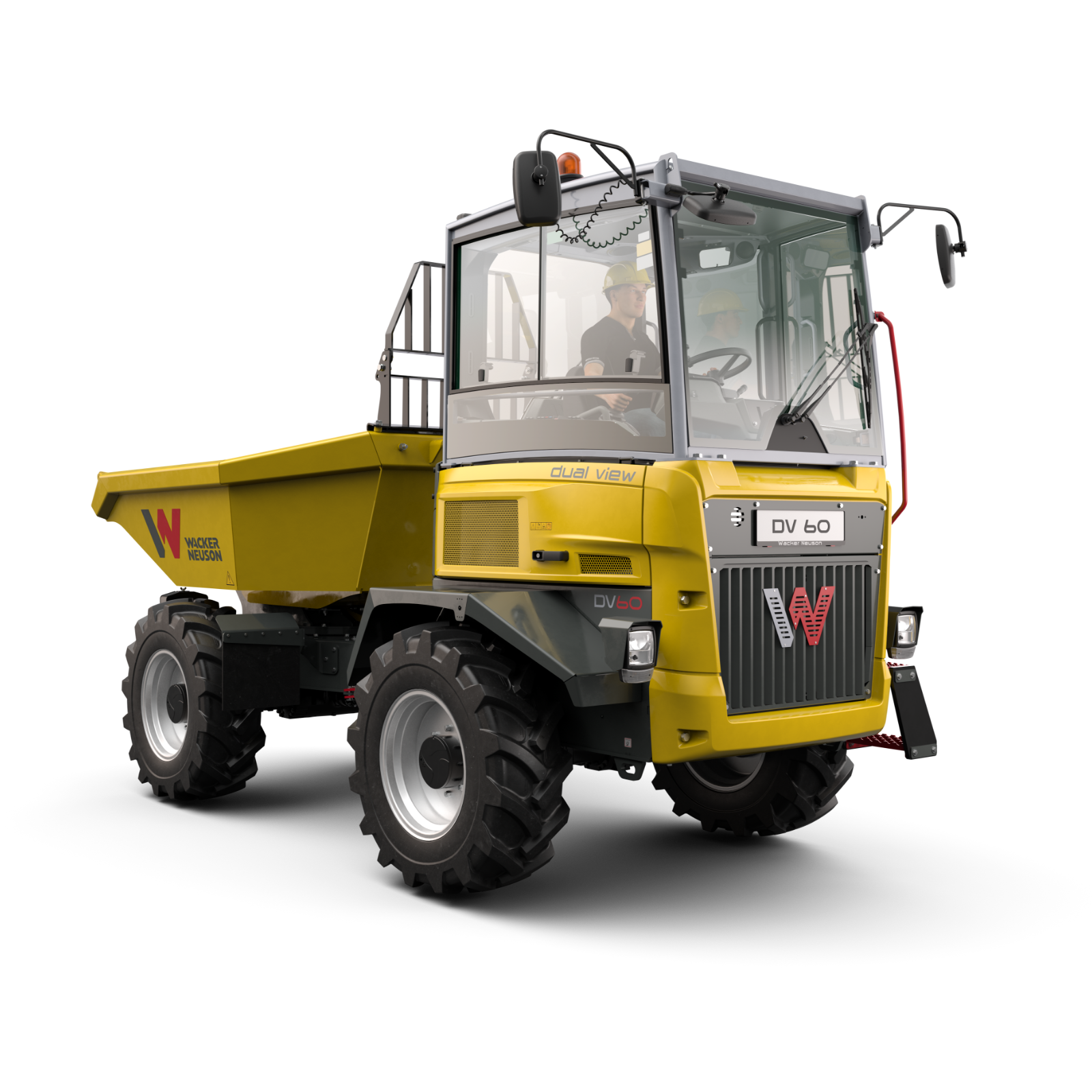

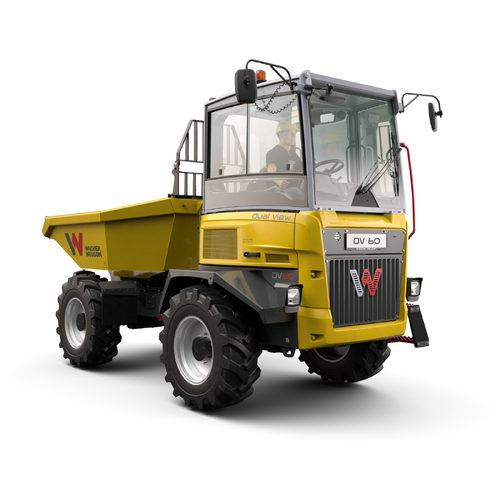

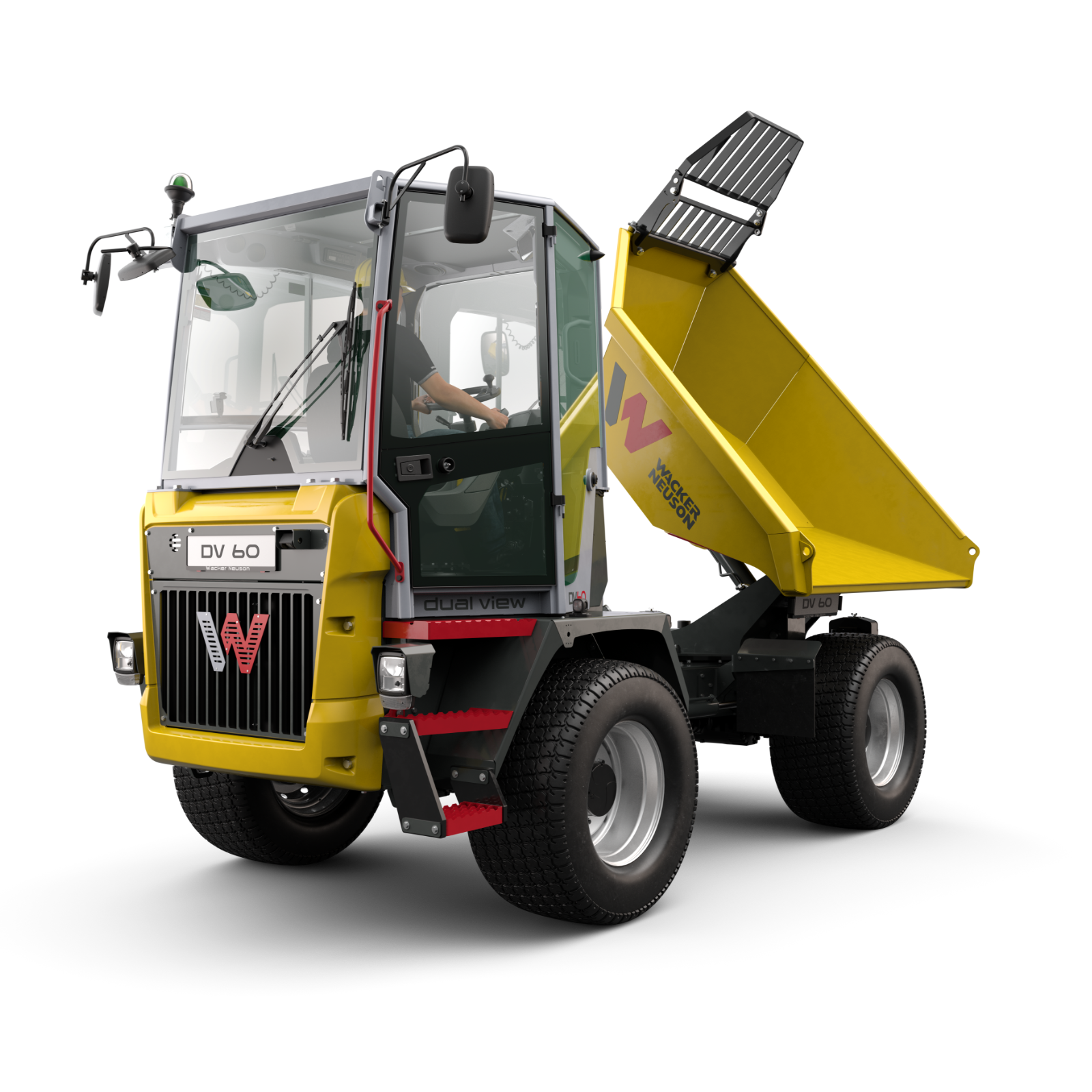

Wacker Neuson DV60 - Dual View Wheeled Dumper

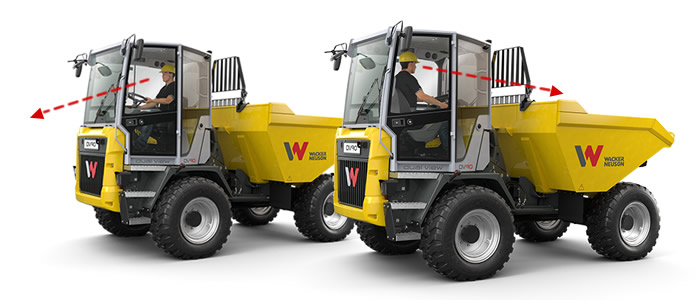

DV60 Dual View dumpers from Wacker Neuson allow 180 degree cab rotation, operator always driving forward. Dual View functionality not only improves safety through superior vision but improves efficiency as there is no need for the dumper to turn around, or drive in reverse.

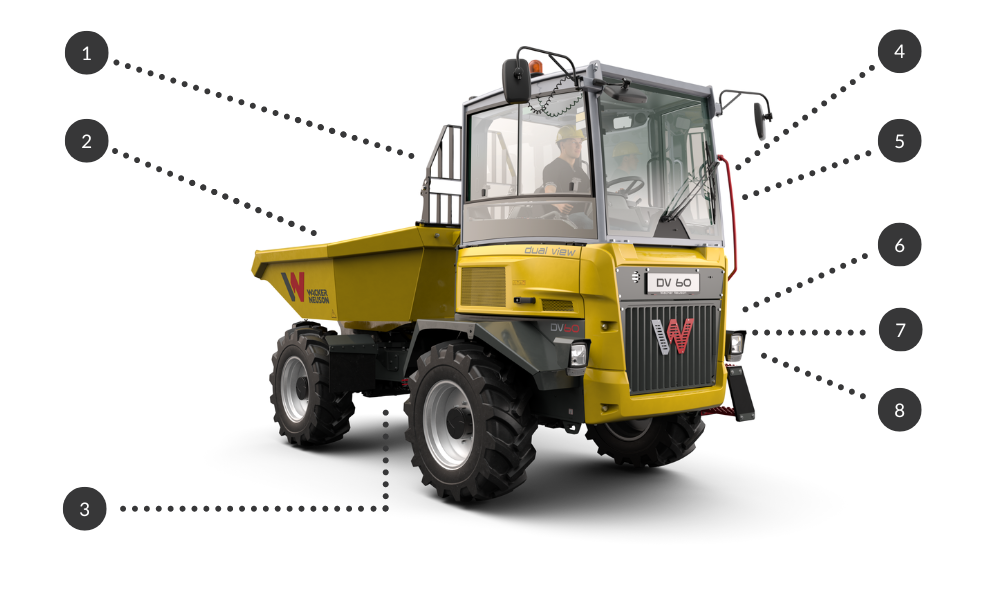

Key Features:

1.	Safety	ROPS Cabin. Full leg and foot protection on canopy model (canopy model optional). Factory fitted beacon light and reverse beeper. Rear-view mirrors. Front and Rear cameras. Cabin guarding (on skip) to protect against impact from loading excavator. Dual View: Always looking forward, no reversing necessary.
2.	Skip	3.2 cubic metre skip. Swivel-Tip skip standard.
3.	Versatility	Articulated steering to 29 degrees. Oscillated steering to 11 degrees. 30km/h travel speed. High ground clearance. Swivel tip skip perfect for backfilling trenches. Dual View: Always driving forward, no reversing or 3 point turns necessary.
4.	Vision	Tapered control panel for superior visibility. Left and right rear view mirrors. Front and Rear cameras. Dual View: 180 Degree operator station swivel, always looking forward. Always looking forward.
5.	Comfort	Comfortable suspension seat. Ergonomically designed operator’s station. ISO soft touch joystick controls Easy reach switches and controls. Air-Conditioned cabin standard.
6.	Power	High HP Deutz 4 Cylinder diesel engine. 54.4kW (74.3HP). 6000kg payload. Hydrostatic drive.
7.	Cooling	Large cooler and overflow bottle for efficient engine and hydraulic cooling. Designed to keep cool in the harshest of Australian conditions.
8.	Maintenance	Robust scratch and dent resistant panelling between skip and cabin.. Integrated hose guide keeps hoses hidden from damage in off-road conditions. Easy maintenance access.

(DV60)

Weights:

Transport weight	4,000 kg
Maximum payload	6,000 kg

Engine:

Manufacturer	Deutz
Model	T2.9 L4
Power	74 kW (55 HP)
Torque
Displacement	2,924 cm3
Speed	2,200 RPM
Construction	4-cylinder, turbo diesel, liquid-cooled

Operating Data:

Max. travel speed	25 km/h
Max. width	2,328 mm
Turning radius	6,110 mm

Skip:

Skip capacity (levelled)	2.59 m2
Skip capacity (heaped)	3.43 m2

Hydraulics:

Construction
Maximum flow rate (system)	180 L/min
Drive flow rate	123 L/min
Drive pressure	500 Bar
Work pump flow rate	73 L/min
Work pump pressure	240 Bar

Drive:

Construction	Hydrostatic Transmission to 4 x Wheel Motors
Wheel motors
Standard tyres	405/70-20
Parking brake	Hydraulic

Capacities:

Hydraulic tank	48 L
Fuel Tank	60 L
Battery	12V / 95Ah

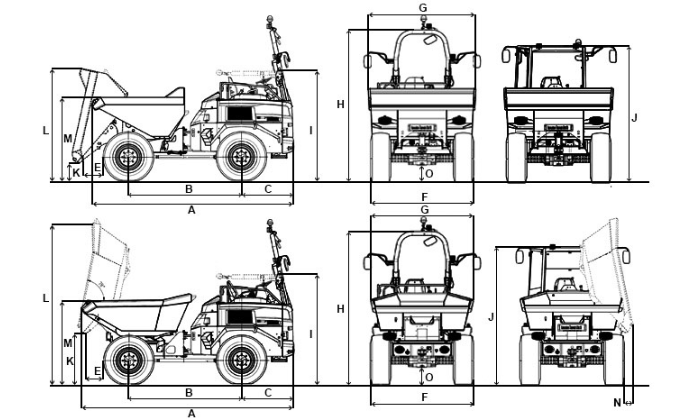

Working Dimensions:

Key	Description	Front tip skip	Swivel tip skip
A	Height ROPS	3,435 mm	3,435 mm
A	Height ROPS with rotating beacon	3,545 mm	3,545 mm
A	Height of ROPS tilted	2,425 mm	2,425 mm
A	Height of cab with rotating beacon	3,091 mm	3,091 mm
B1	Width of cab	1,629 mm	1,629 mm
B2	Width of vehicle	2,196 mm	2,196 mm
B3	Width of skip	2,328 mm	2,217 mm
C	Total length ROPS	4,448 mm	4,699 mm
D	Wheel base	2,485 mm	2,485 mm
E	Rear overhang	1,157 mm	1,157 mm
F	Dumping width	581 mm	599 mm
G	Dumping height max.	368 mm	1,092 mm
H1	Skip height	2,033 mm	2,002 mm
H2	Skip height tilted	2,402 mm	3,632 mm
I	Ground clearance	362 mm	362 mm
J	Dumping angle	50°	48°
