Wacker Neuson DT10

1.0T Payload - Tracked Dumper

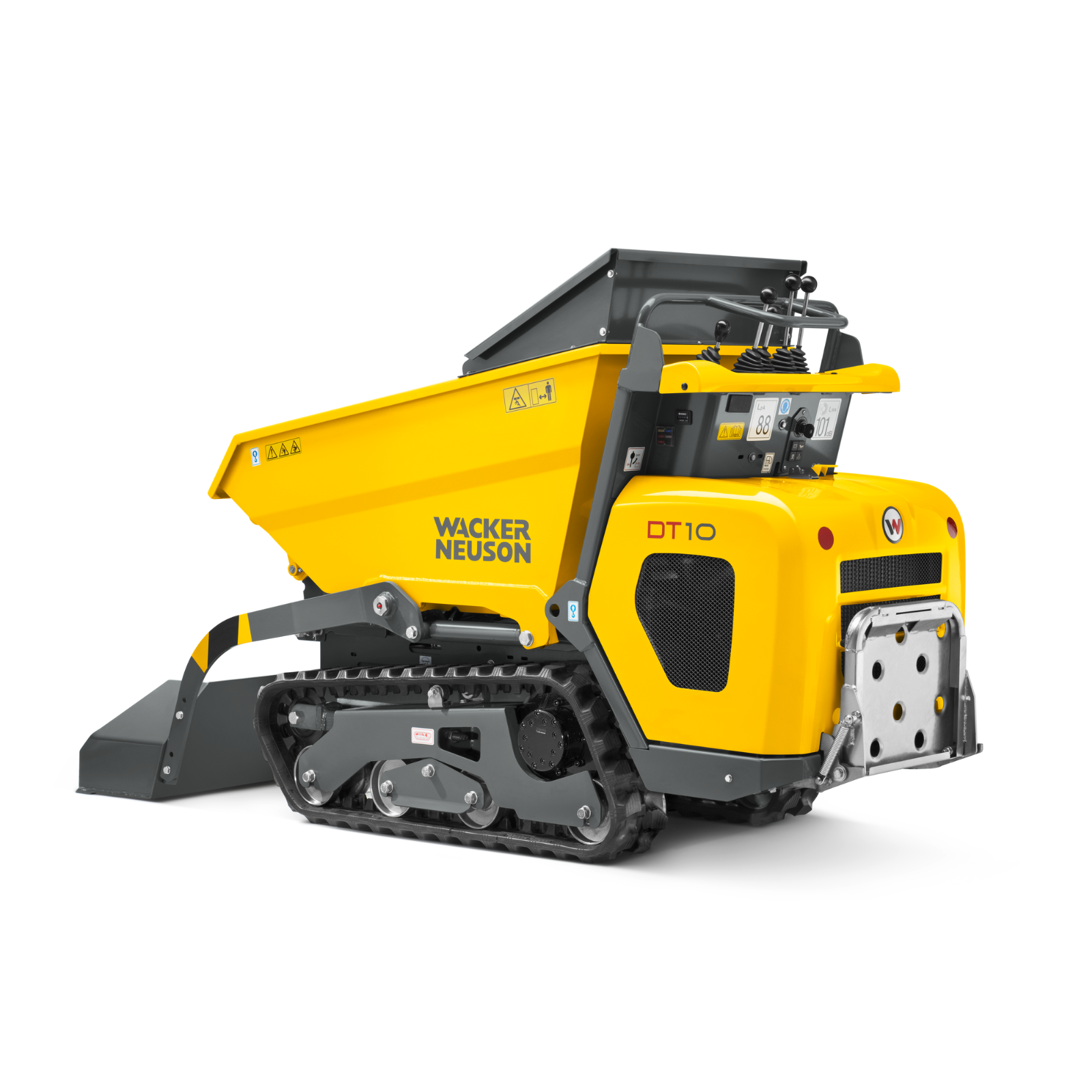

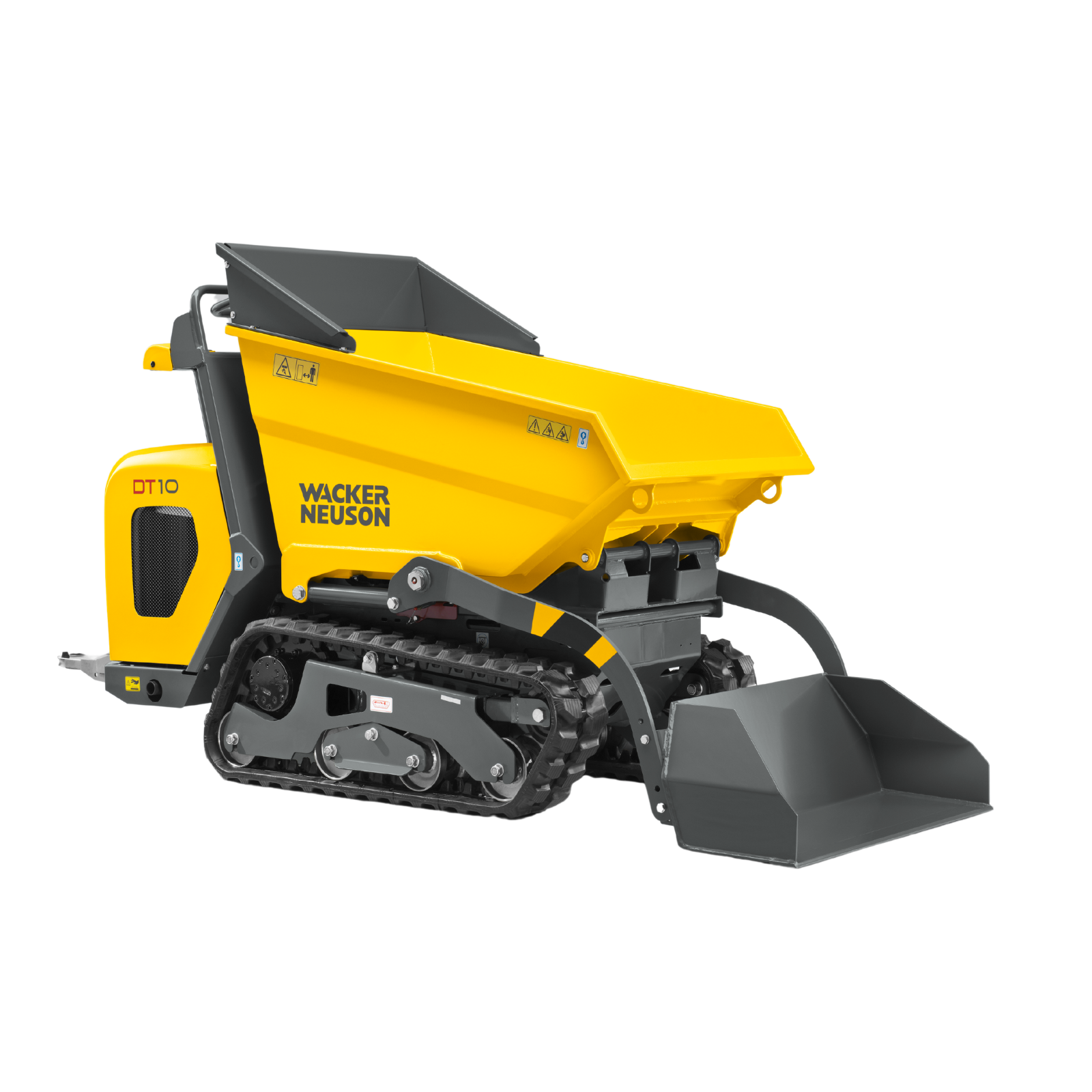

Wacker Neuson DT10 - Tracked Site Dumper

Highly manoeuvrable over any surface due to its compact design and well-engineered drive train heavy duty drive train. Perfect when you need to shift material into tight spaces, as with so many sites across Australia.  Available with high lift skip or swivel tip skip this is the dumper of choice for the pool building industry.  Backed by a 5 year / 5000 hour warranty.

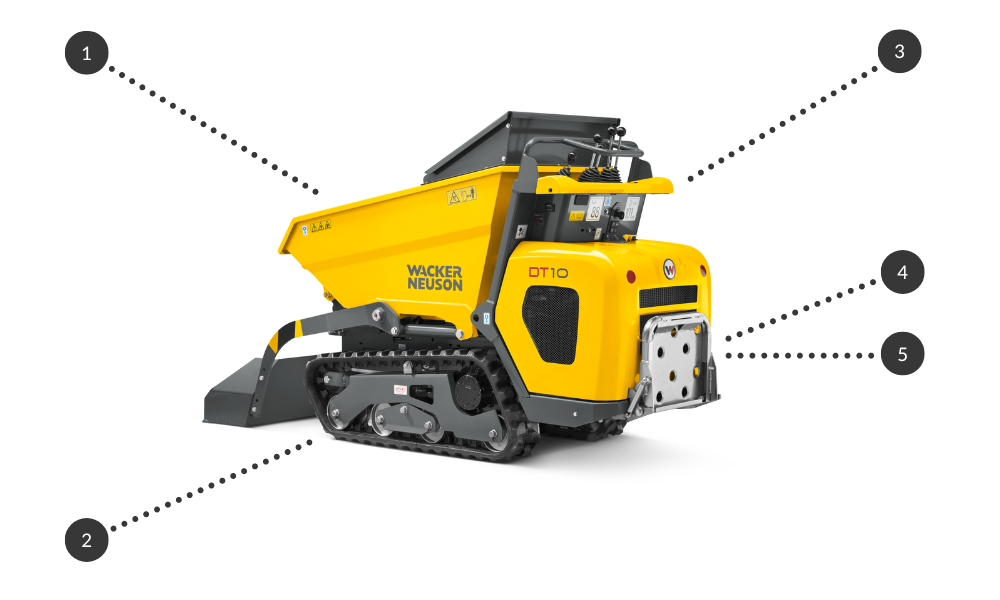

Key Features:

1. Skip
  • Swivel Tip standard
  • High Tip (optional)
  • High capacity skips.
  • Heavy duty design and materials.
  • Perfect visibility
2. Versatility
  • High ground clearance.
  • Excellent traction.
  • Low ground pressure with less disturbance on delicate surfaces.
  • Nimble on tight sites, with great manoeuvrability.
3. Safety
  • Well-designed grab rails for stability.
  • Soft touch, smooth pilot controls.
  • Slip resistant operator platform.
4. Power
  • Kubota diesel engine.
  • 2 speed Hydrostatic Drive.
  • Planetary reduction drive motors.
5. Maintenance

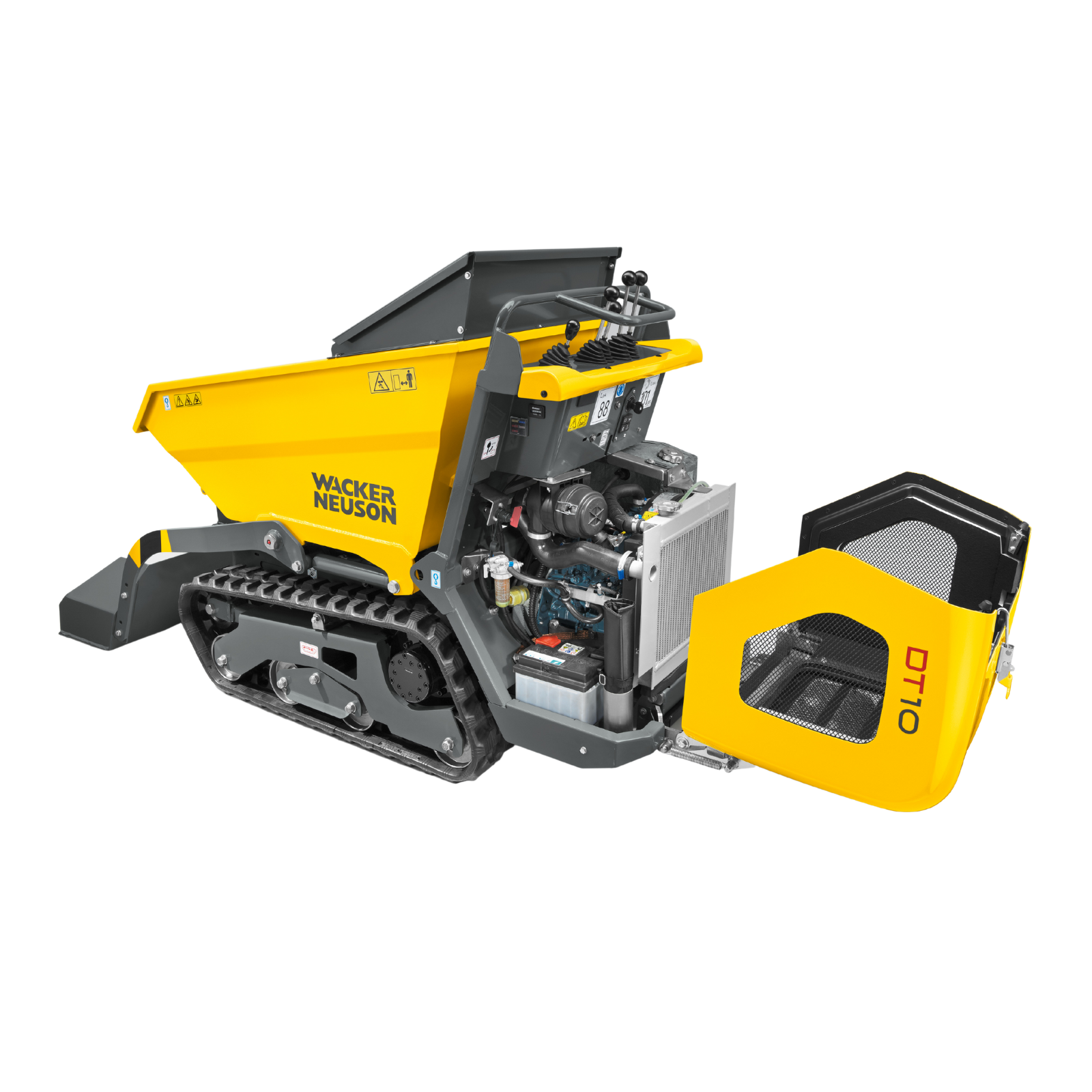

  • Single piece bonnet for easy access.
  • Minimal maintenance required.
  • High rise sprockets for minimal wear
  • Heavy duty rollers.

(DT10)

General:

Shipping weight 740 - 820 kg
Payload 1000 kg
Skip capacity (leveled) 0.431 m3
Skip capacity (heaped) 0.460 m3
Skip capacity (water leveled) 0.240 m3

Engine:

Manufacturer Kubota
Model Z482-E
Construction Liquid Cooled 2-Cylinder Diesel
Displacement 479 cm3
Engine speed 3,600 rpm
Engine output according to ISO 9.7 kW (13.2 HP)
Battery voltage / capacitance 12 V / 55 Ah

Drive Characteristics:

Drive speed 0 - 4 km/h
Ground pressure 0.180 kg/cm2
Gradeability 36 %

Hydraulics:

Pump 2 x Variable displacement +1 x Gear pump
Flow rate 57 L/min
Operating pressure (work) 160 bar
Operating pressue (drive) 250 bar

Capacities:

Hydraulic tank 22.1 L
Fuel Tank 9.7 L

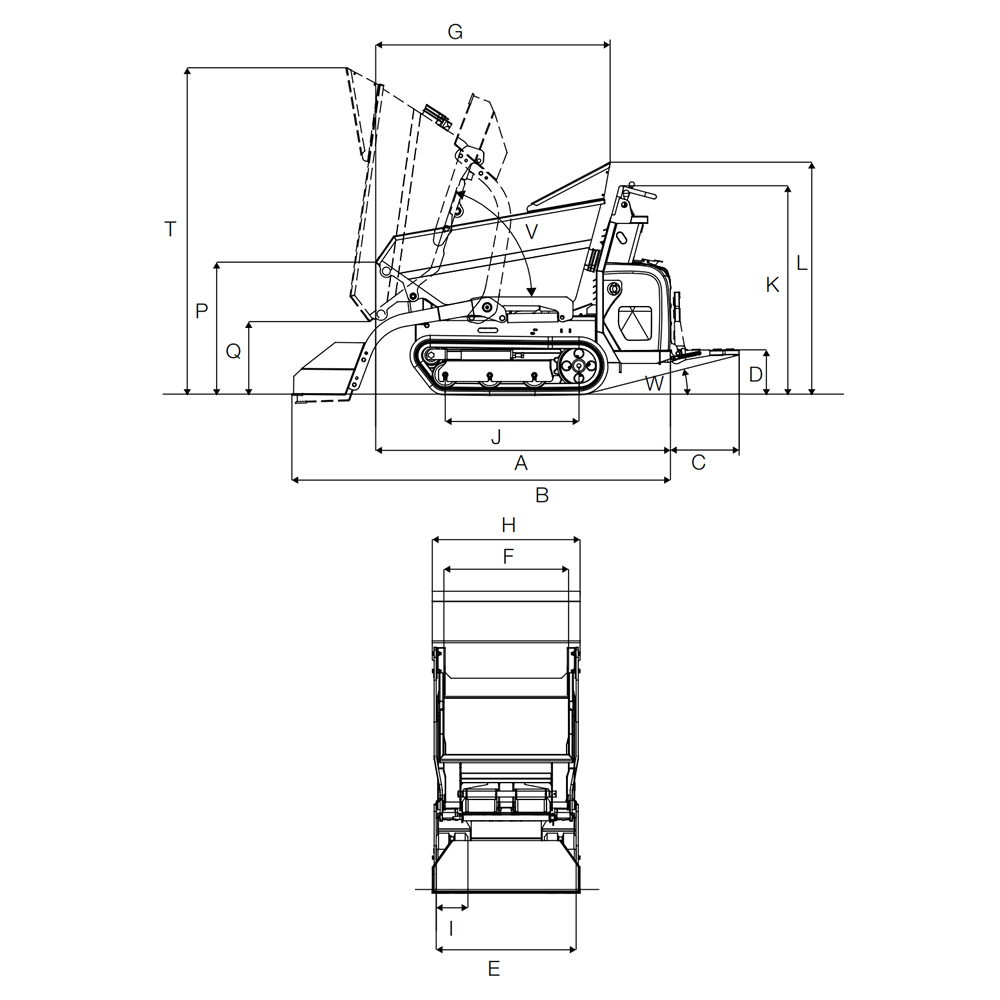

Working Dimensions:

A Length (without running board) 1,960 mm
C Length of running board 393 mm
D Height over running board 265 mm
E Undercarriage width 790 mm
F Skip width 730 mm
G Skip length 1,427 mm
I Track width 180 mm
J Track length 875 mm
K Height over control console 1,280 mm
L Height over skip hand protector 1,301 mm
P Height of skip front edge 1,045 mm
Q Dumping Height 650 mm
T Max. height, skip raised (high tip option) 1,688 mm
V Skip dumping angle 56°
W Running board retraction angle 14°
Y Ground clearance 172 mm

Specifications subject to change without notice due to continual product development.
