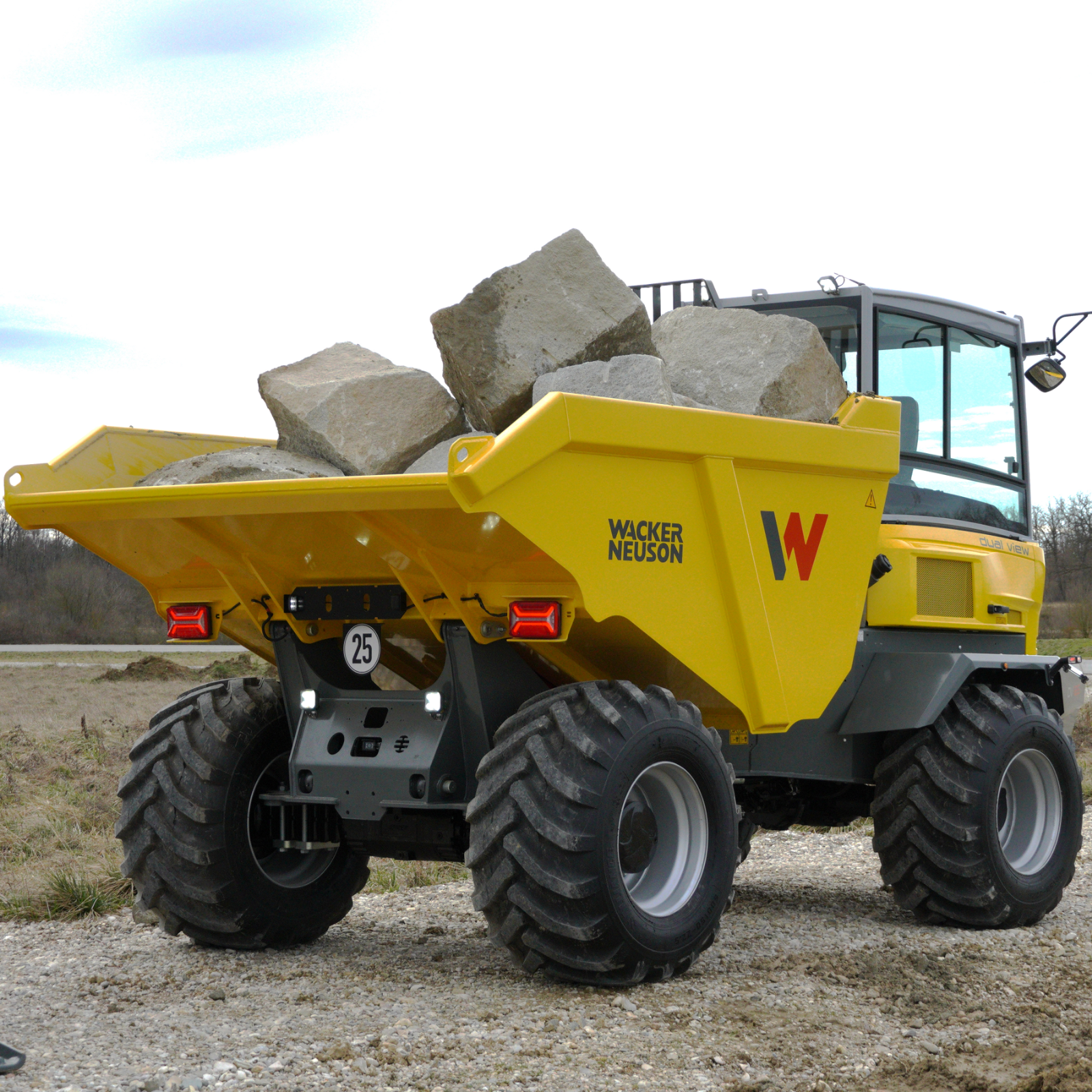

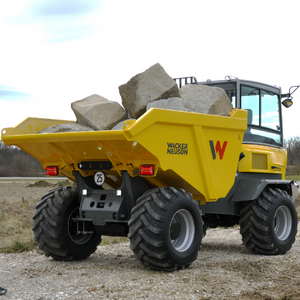

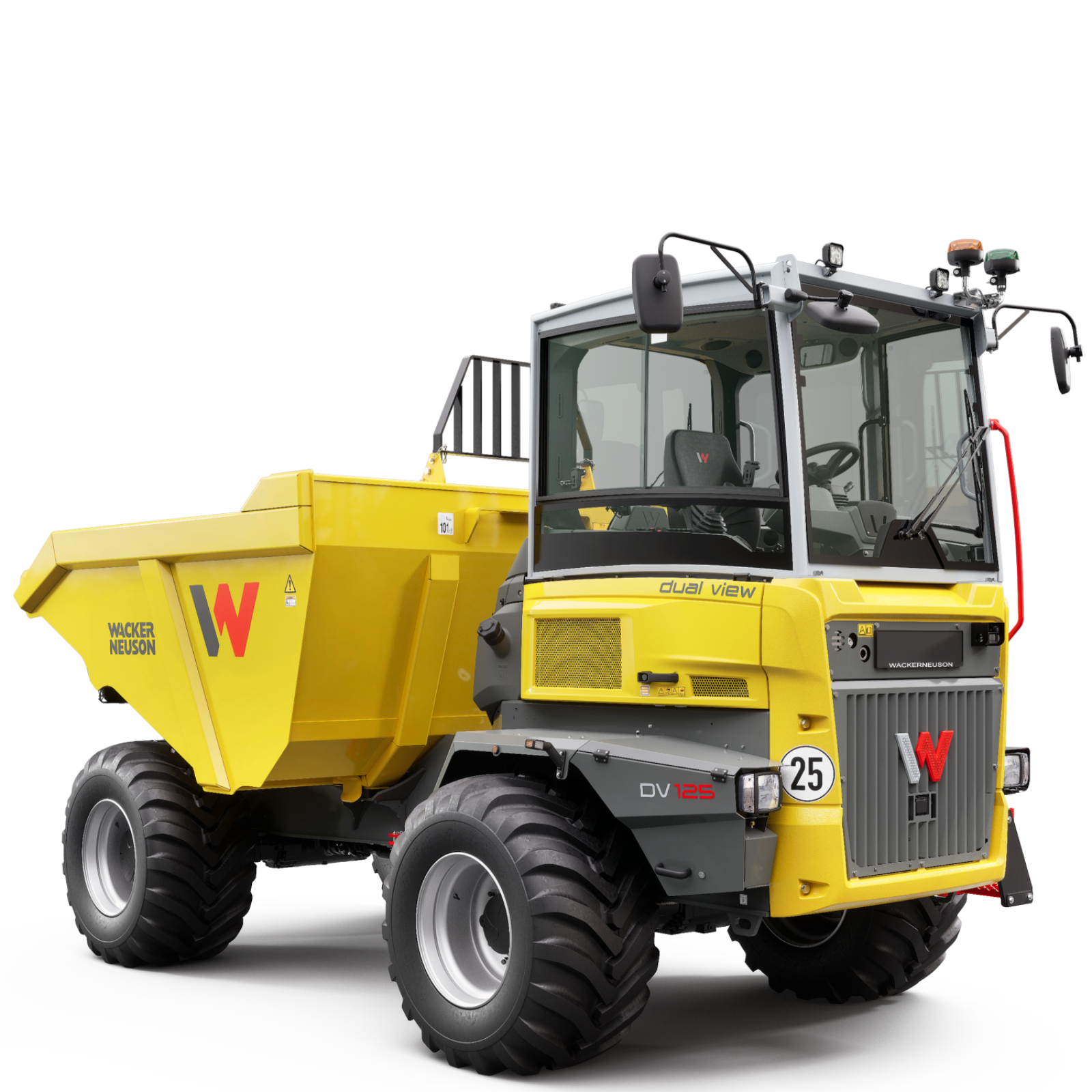

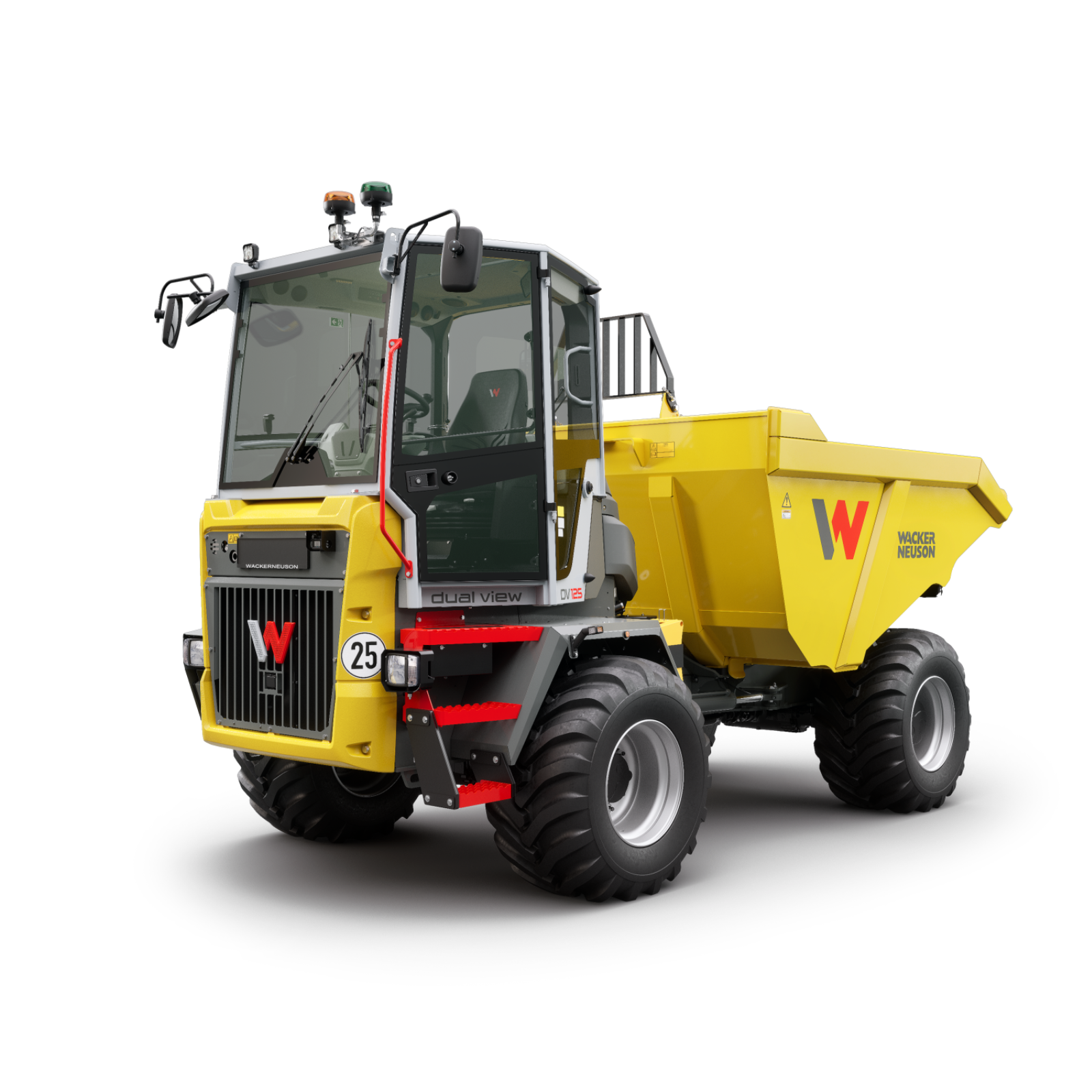

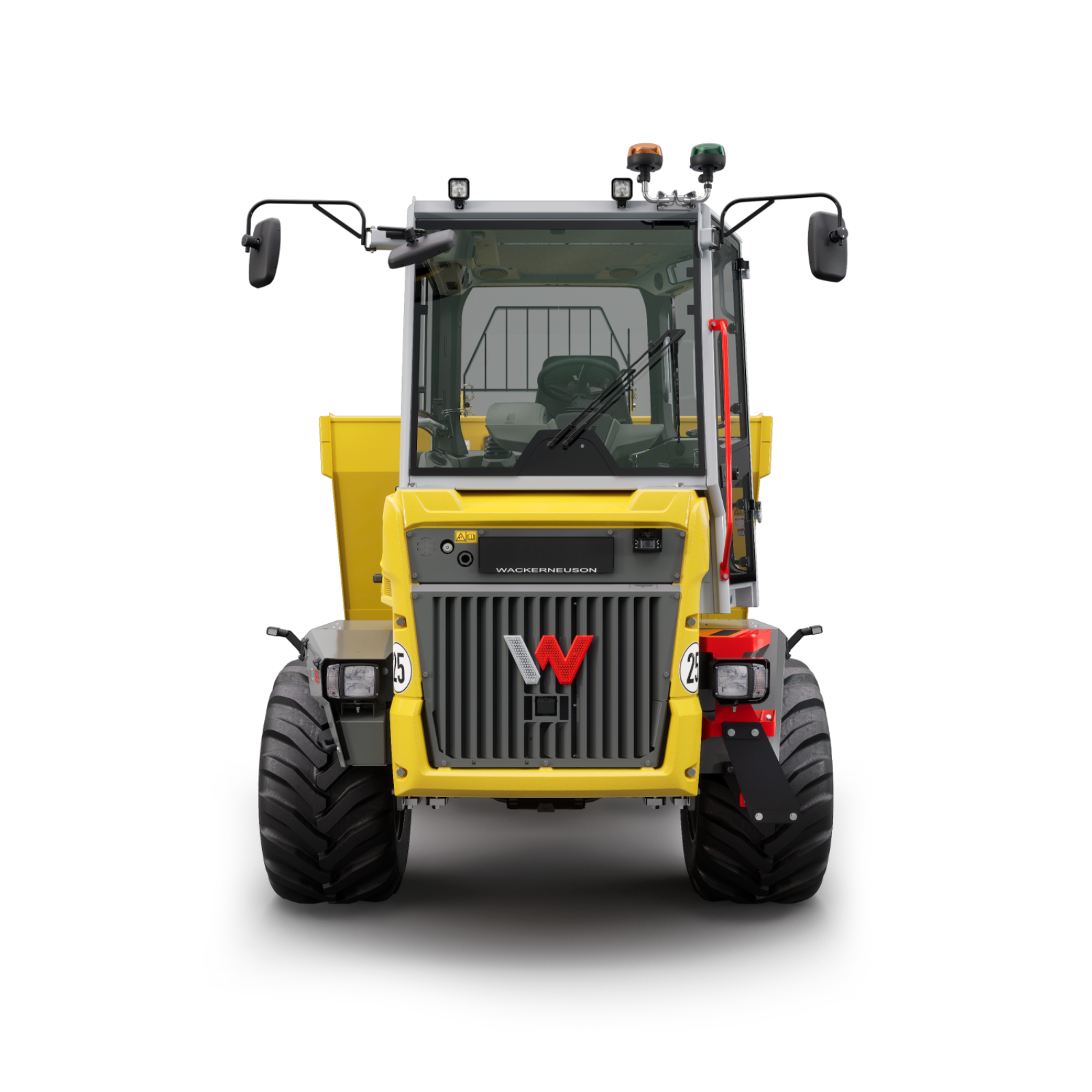

Wacker Neuson DV125 - Dual View Wheeled Dumper

Dual View dumpers were an innovation from Wacker Neuson setting the current industry standard in safety and productivity. DV125 is the first of its kind 12.5t Dual view dumper globally with outstanding maneuverability, versatile all-terrain transport capabilities, and a combination of compactness and power. Far superior to more traditional style 12t articulated machines found around the globe. Standard with a 5 Year / 5000 hour warranty.

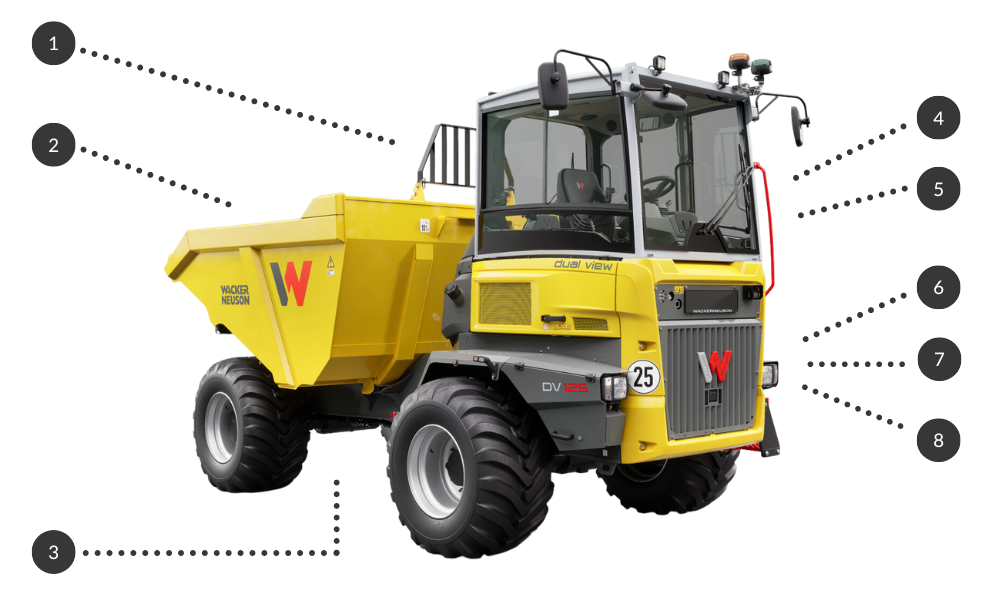

Key Features:

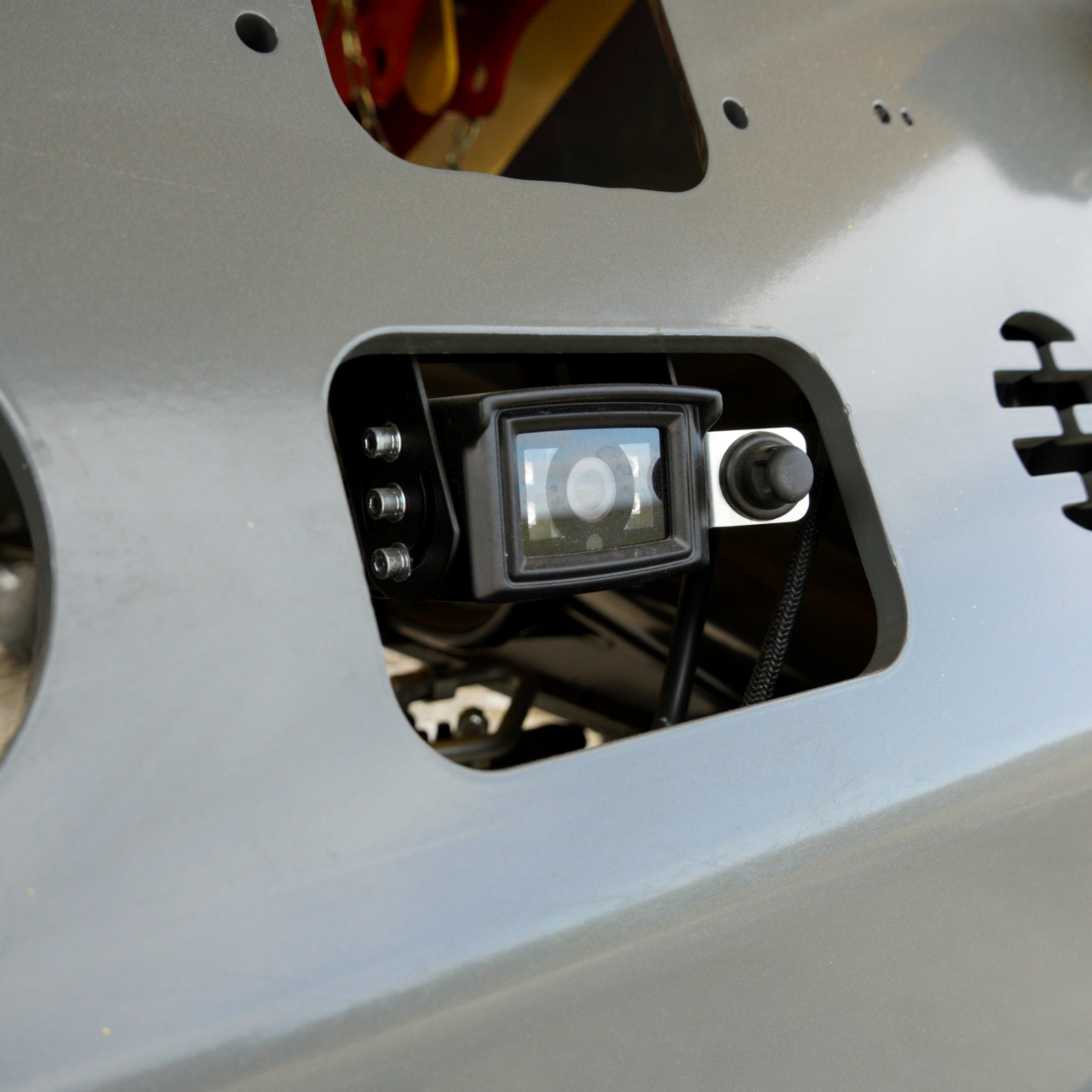

1.	Safety	ROPS Cabin. Factory fitted beacon light and reverse beeper. Rear-view mirrors. Front and Rear cameras. Water spray on cameras for cleaning without leaving the cab. Cabin guarding (on skip) to protect against impact from loading excavator. Dual View: Always looking forward, no reversing necessary.

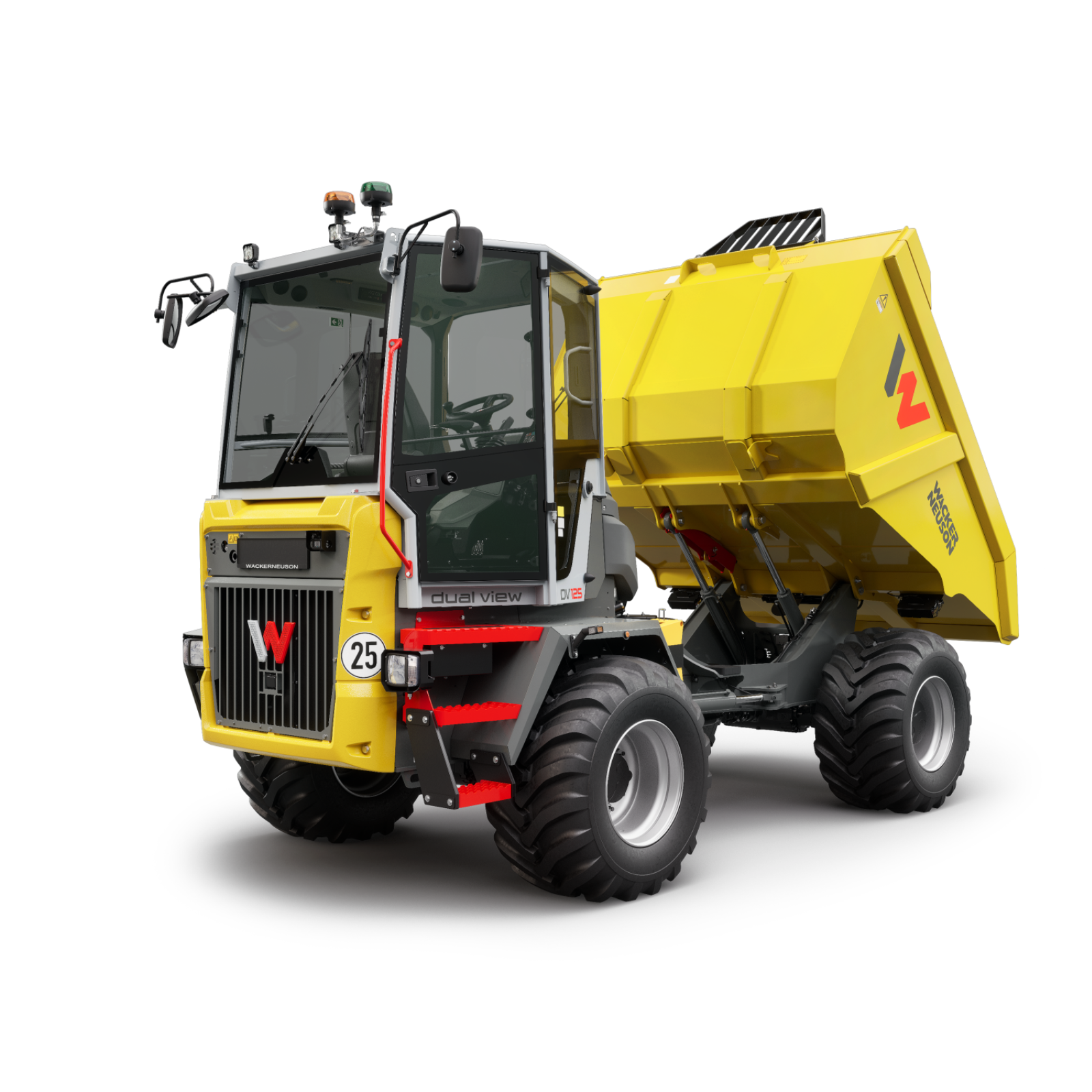

2.	Skip	3.2 cubic metre skip. Swivel-Tip skip standard.
3.	Versatility	Articulated steering to 28 degrees. Oscillated steering to 11 degrees. 25km/h travel speed. High ground clearance. Large capacity front tip skip.. Dual View: Always driving forward, no reversing or 3 point turns necessary.

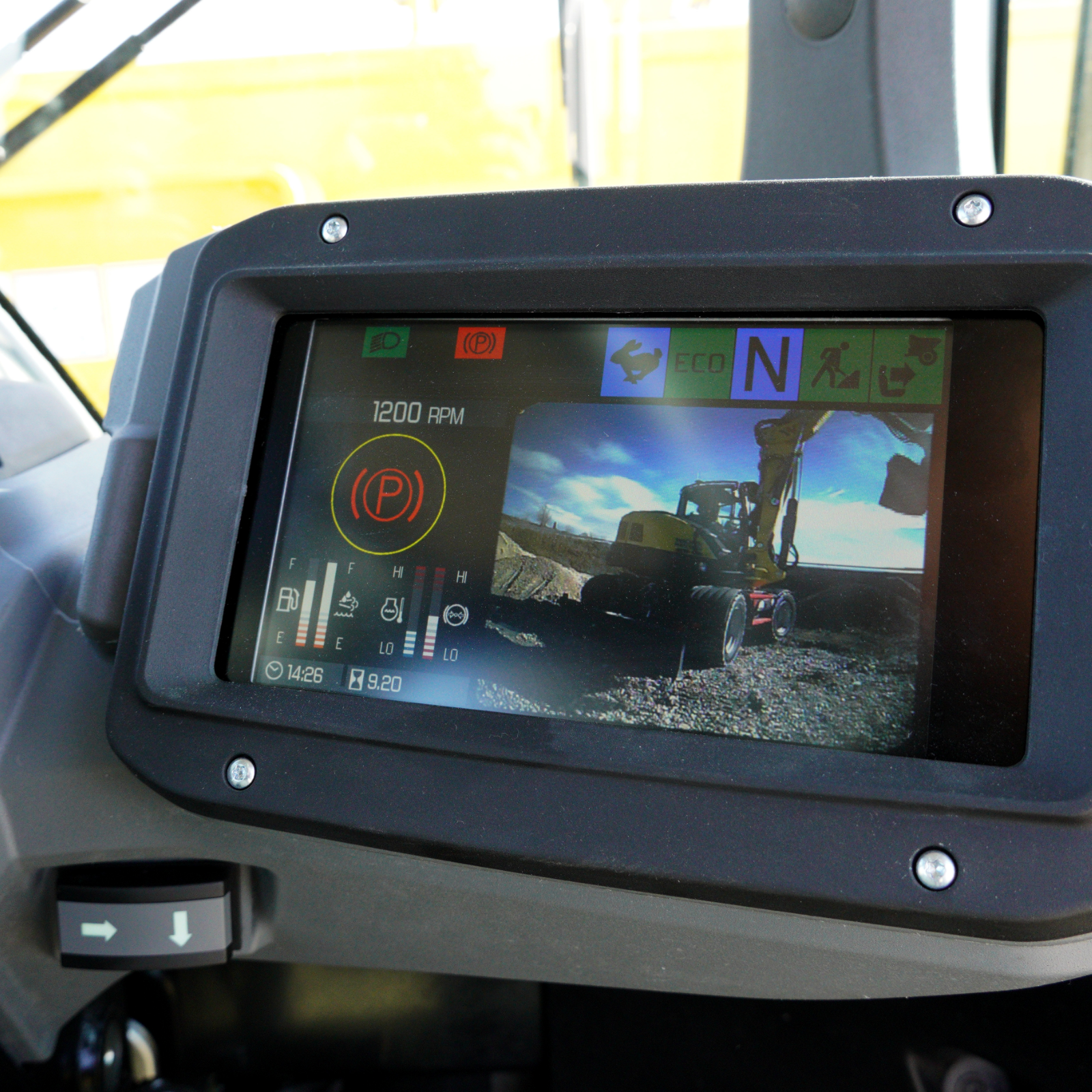

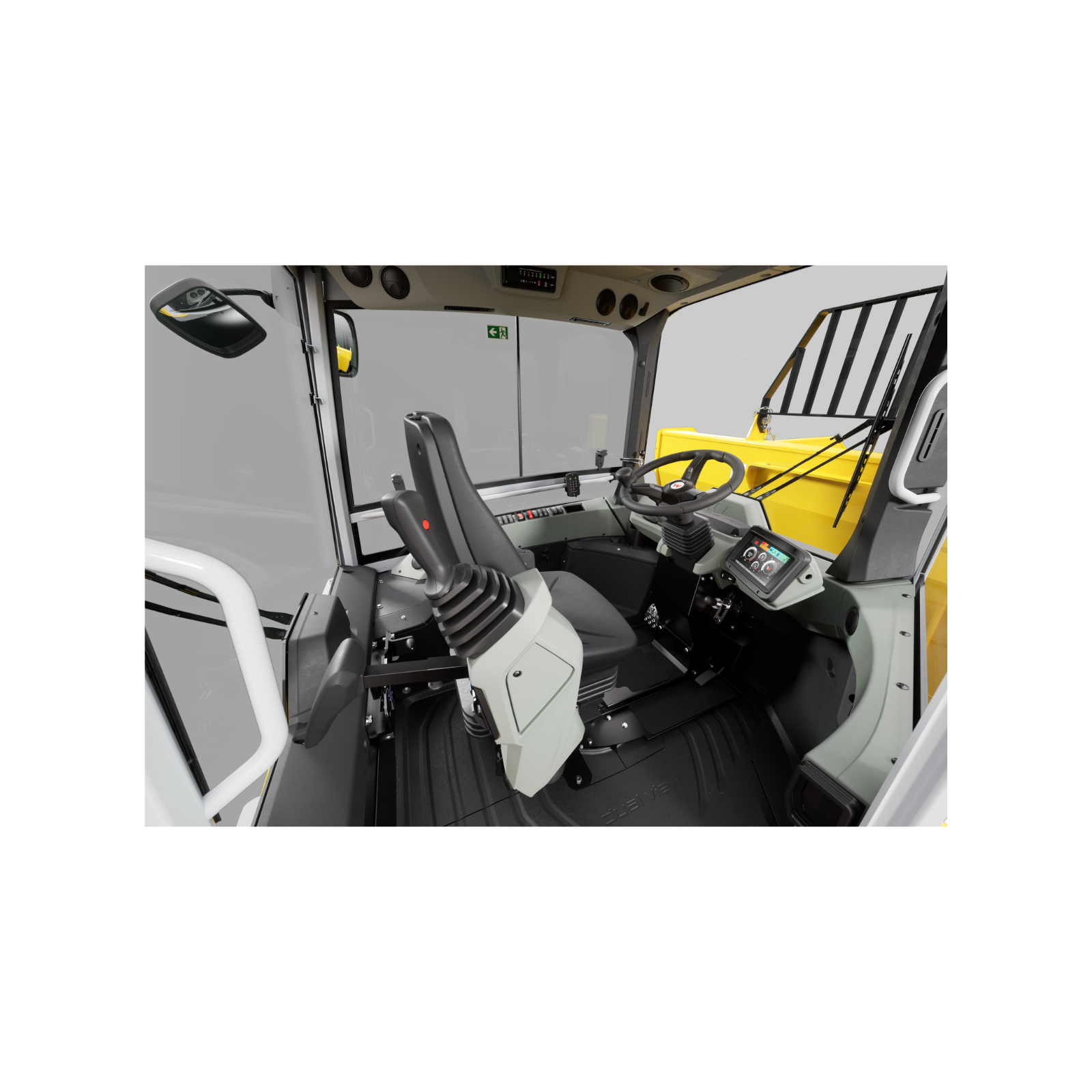

4.	Vision	Tapered control panel for superior visibility. Left and right rear view mirrors. Front and Rear cameras. Dual View: 180 Degree operator station swivel. Always looking forward.

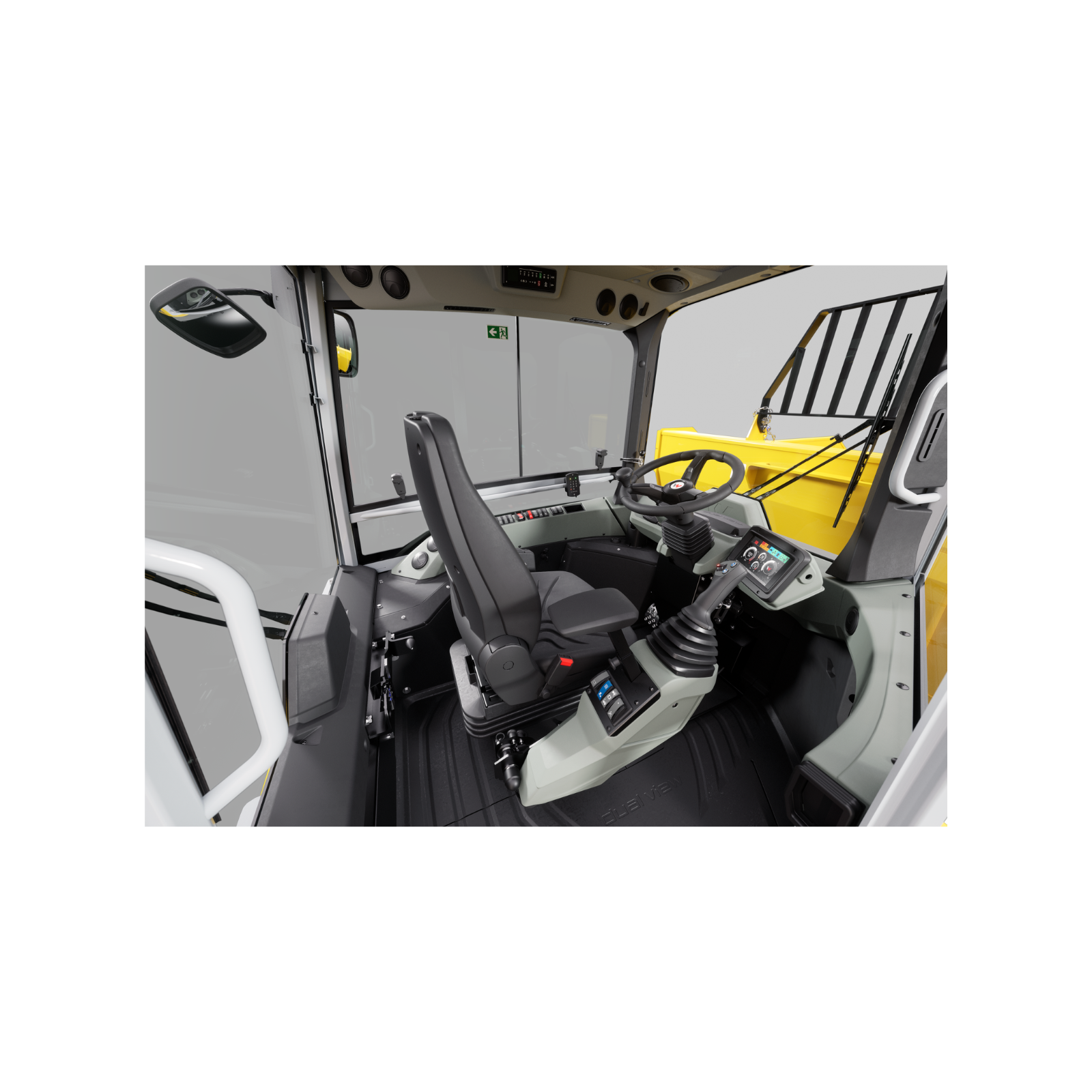

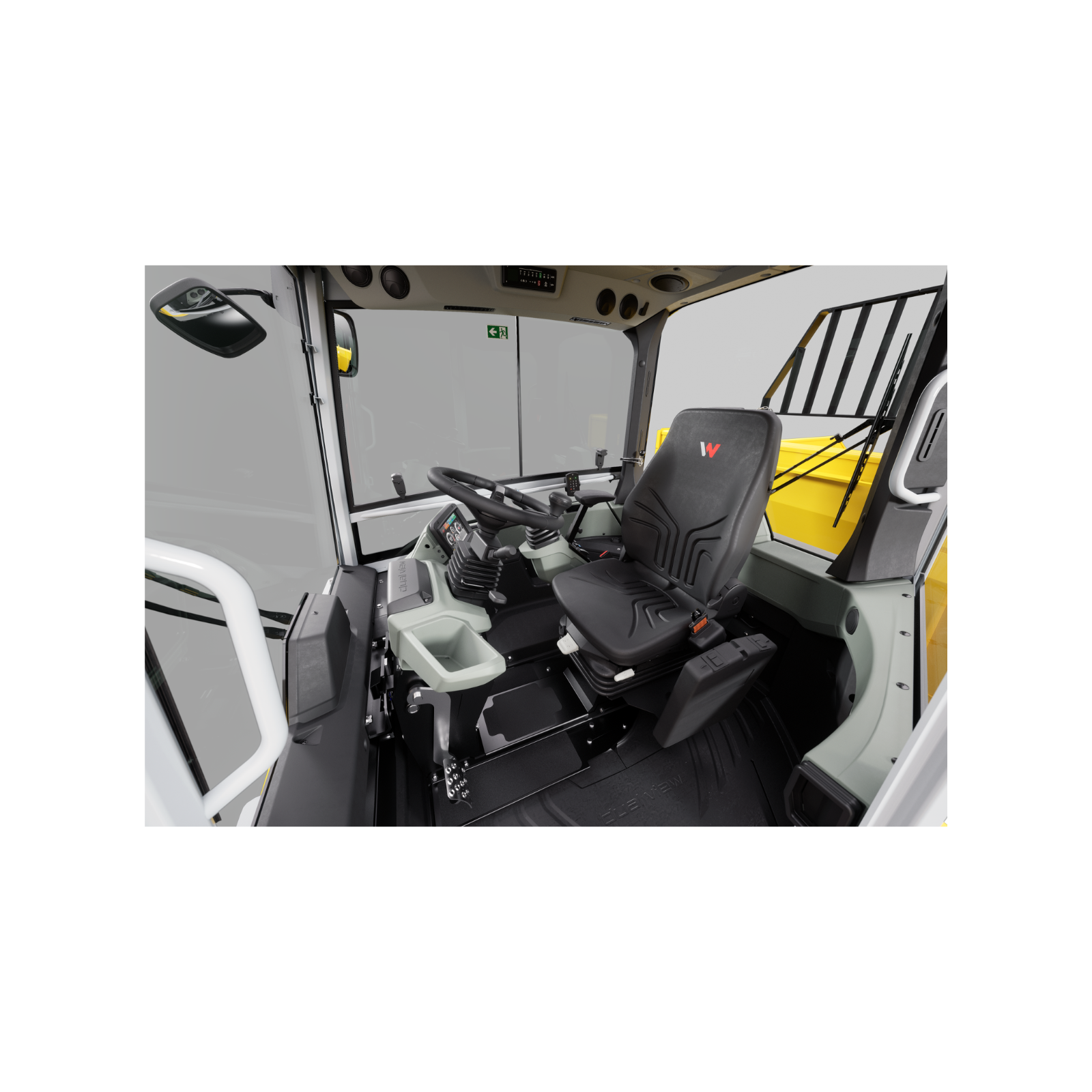

5.	Comfort	Comfortable air-suspension seat. Ergonomically designed operator’s station. ISO soft touch joystick controls Easy reach switches and controls. Air-Conditioned cabin standard.
6.	Power	High HP Deutz 4 Cylinder diesel engine. 100kW (134HP). 12500kg payload. Hydrostatic drive.
7.	Cooling	Large cooler and overflow bottle for efficient engine and hydraulic cooling. Designed to keep cool in the harshest of Australian conditions.
8.	Maintenance	Robust scratch and dent resistant panelling between skip and cabin.. Integrated hose guide keeps hoses hidden from damage in off-road conditions. Easy maintenance access.

(DV125)

Weights:

Transport weight	6,376 kg
Max. payload	12,500 kg

Engine:

Manufacturer	Deutz
Model	TD3.6
Power	100 kW (135.9 HP)
Torque	500 Nm
Displacement	3,600 cm3
Speed	2,000 RPM
Construction	4-cylinder, EFI turbo diesel, liquid-cooled

Operating Data:

Max. travel speed	25 km/h
Max. width	2,540 mm
Turning radius	7,188 mm

Skip:

Skip capacity (levelled)	5.90 m2
Skip capacity (heaped)	7 m2

Hydraulics:

Construction	Hydrostatic Drive + Single Gear Pump
Maximum flow rate (system)	250 L/min
Drive flow rate	180 L/min
Drive pressure	473 Bar
Work pump flow rate	70 L/min
Work pump pressure	240 Bar

Drive:

Construction	Hydrostatic Transmission to centrally located Piston Motor and Drive Shafts
Wheel motors	Central Piston Motor to Driveshaft and Differential
Standard tyres	600 / 50-22.5 Flotation
Parking brake	Hydraulic

Capacities:

Hydraulic tank	60 L
Fuel Tank	150 L
Battery	12V

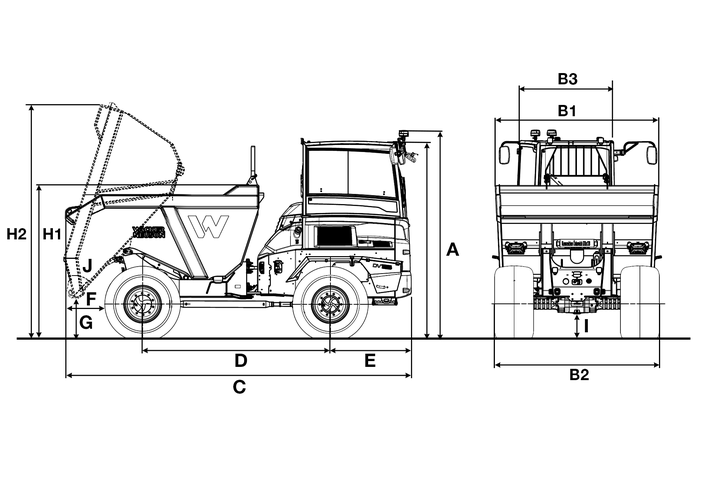

Working Dimensions:

A	Height with cab	3,063 mm
A	Height of cab with rotating beacon	3,227 mm
B1	Width of skip	2,519 mm
B2	Width of vehicle	2,540 mm
B3	Width of cab	1,629 mm
C	Total Length	5,342 mm
D	Wheel Base	2,900 mm
E	Rear overhang	1,252 mm
F	Dumping width	628 mm
G	Dumping height max.	615 mm
H1	Skip height	2,384 mm
H2	Skip Skip height tilted	3,659 mm
I	Ground clearance	388 mm
J	Dump angle	48°
