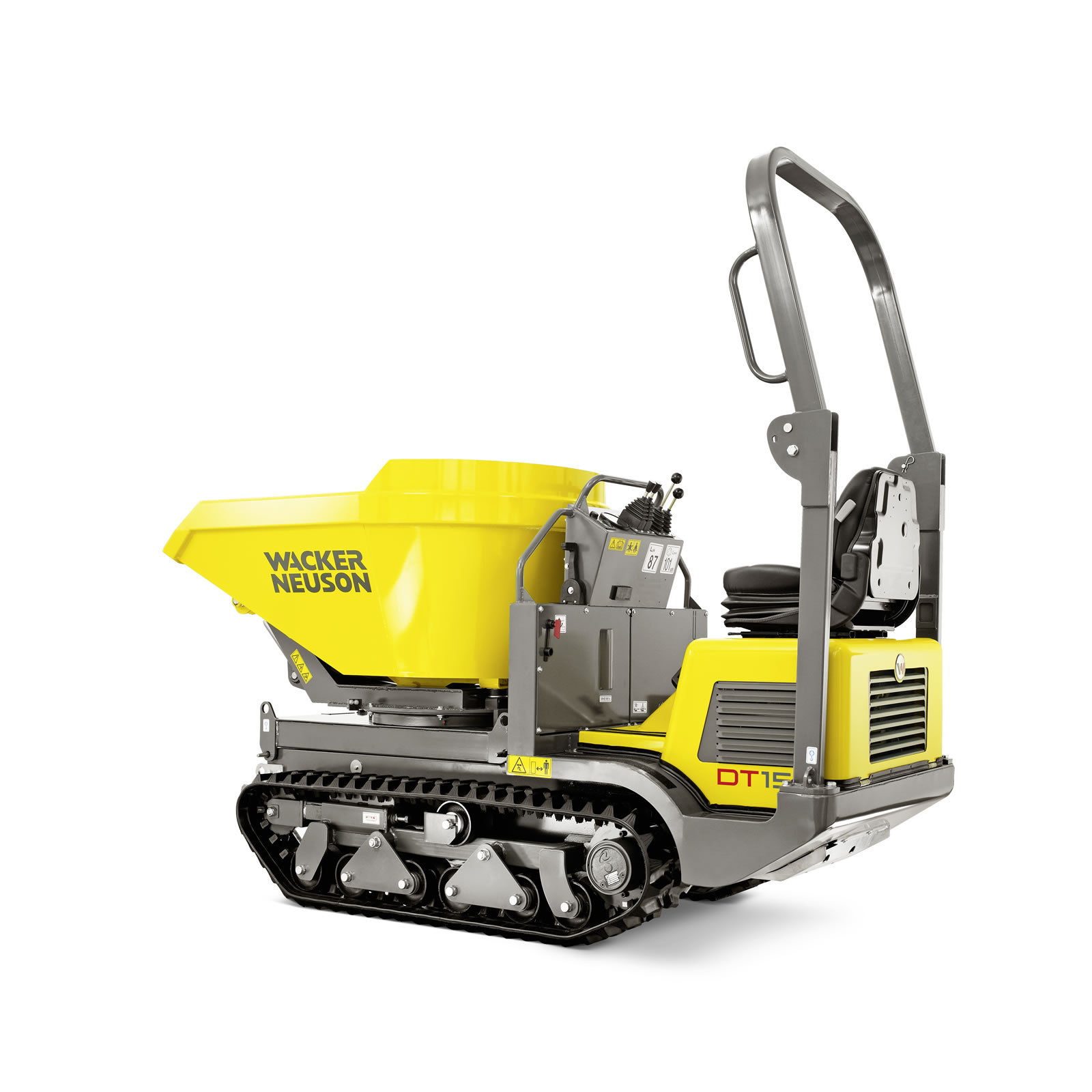

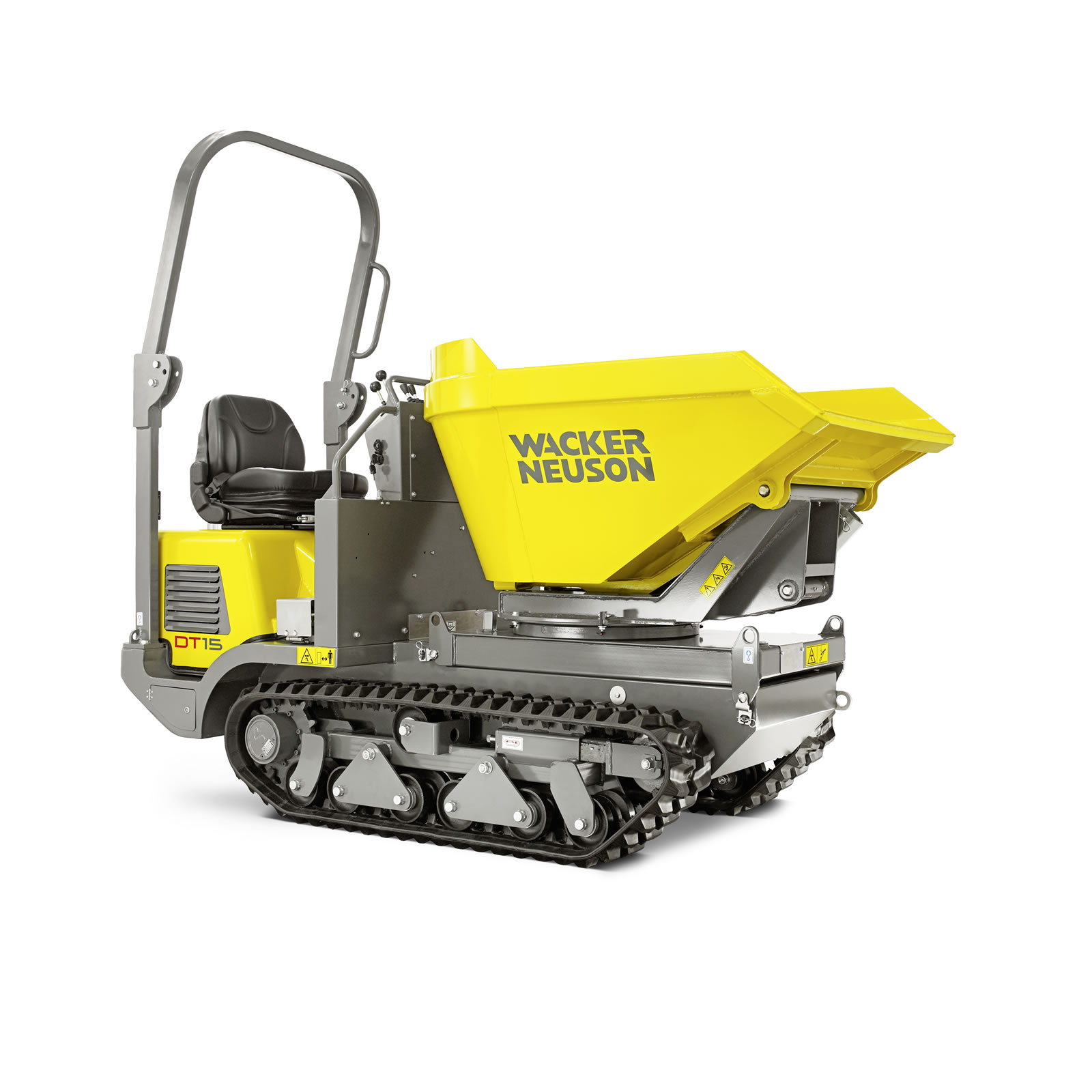

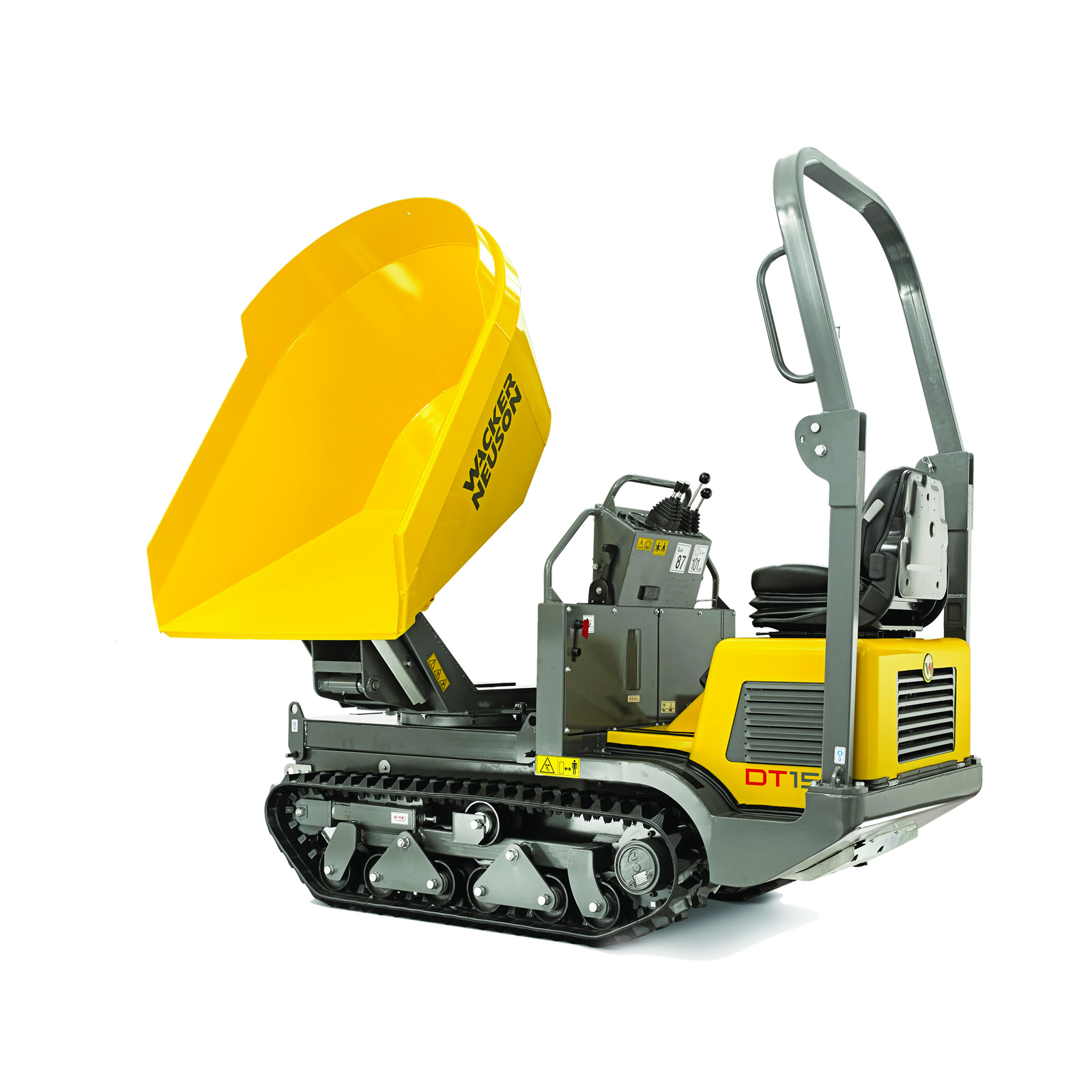

Wacker Neuson DT15 - Tracked Site Dumper

The most compact ride-on tracked dumper in the Wacker Neuson range and also the hardest working. Designed to be the ultimate workhorse, this dumper is easily towable, small enough to fit on tight access job sites, yet large enough to shift 1.5 tonnes of material. Add to this a 20L/min auxiliary power pack and this machine adds value to any site.

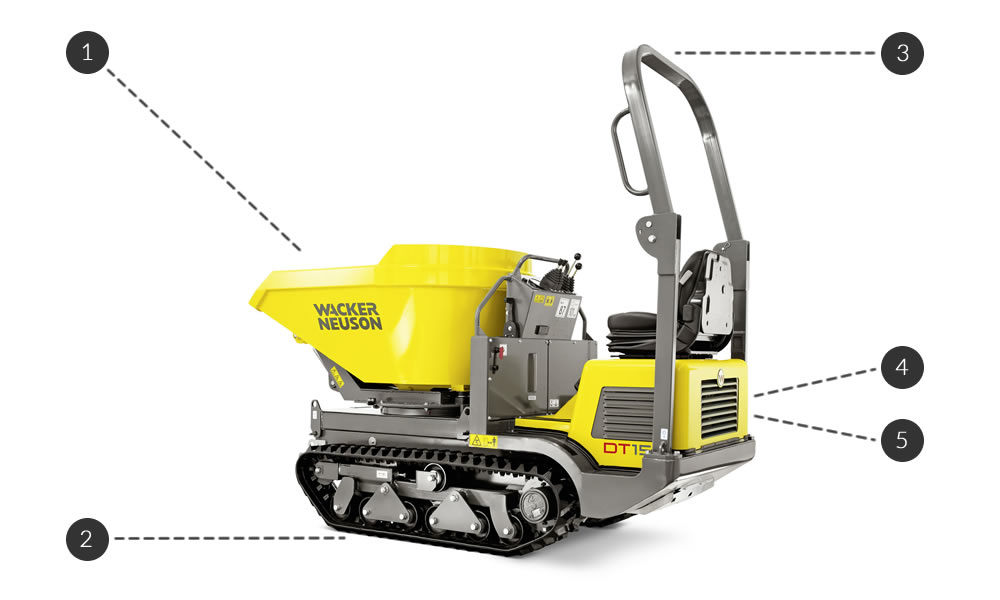

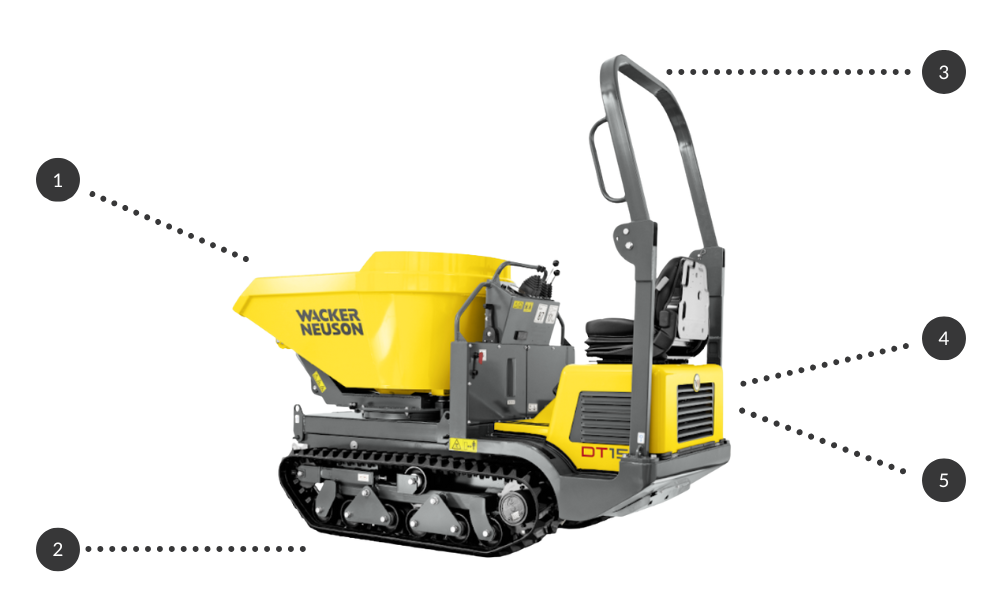

Key Features:

1.	Skip	Front tipping 0.76 metre capacity.

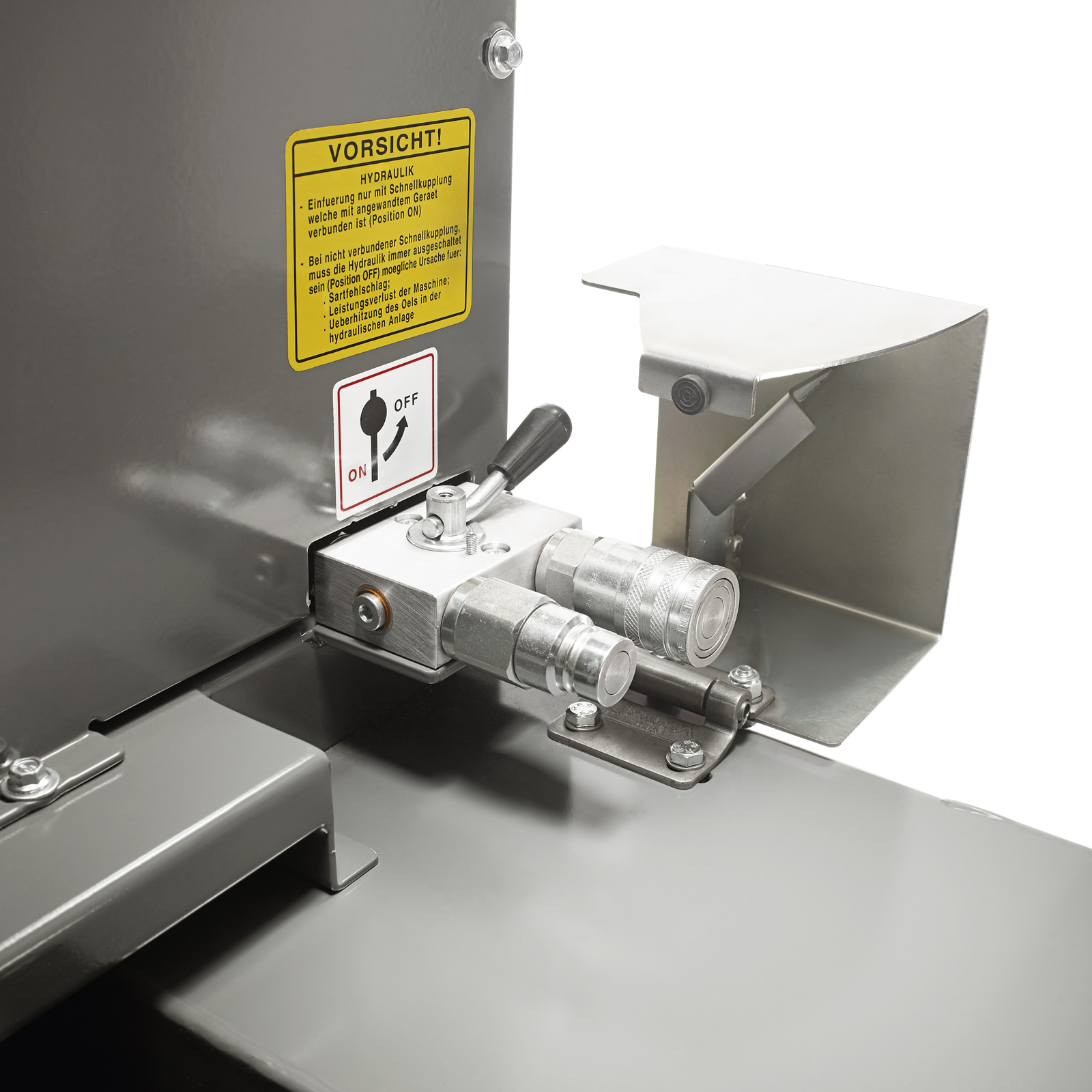

2.	Versatility	High ground clearance. Angled undercarriage for smooth operation. Swivel tip skip for trench backfilling. Two Speed Travel. 1500kg capacity. 20L/min auxiliary powerpack.
3.	Safety	Foldable ROPS bar. Reverse Beeper and Beacon Light.
4.	Power	Powerful Kubota 3 Cylinder Diesel Engine. Hydrostatic Drive. Planetary gearboxes on drive motors.

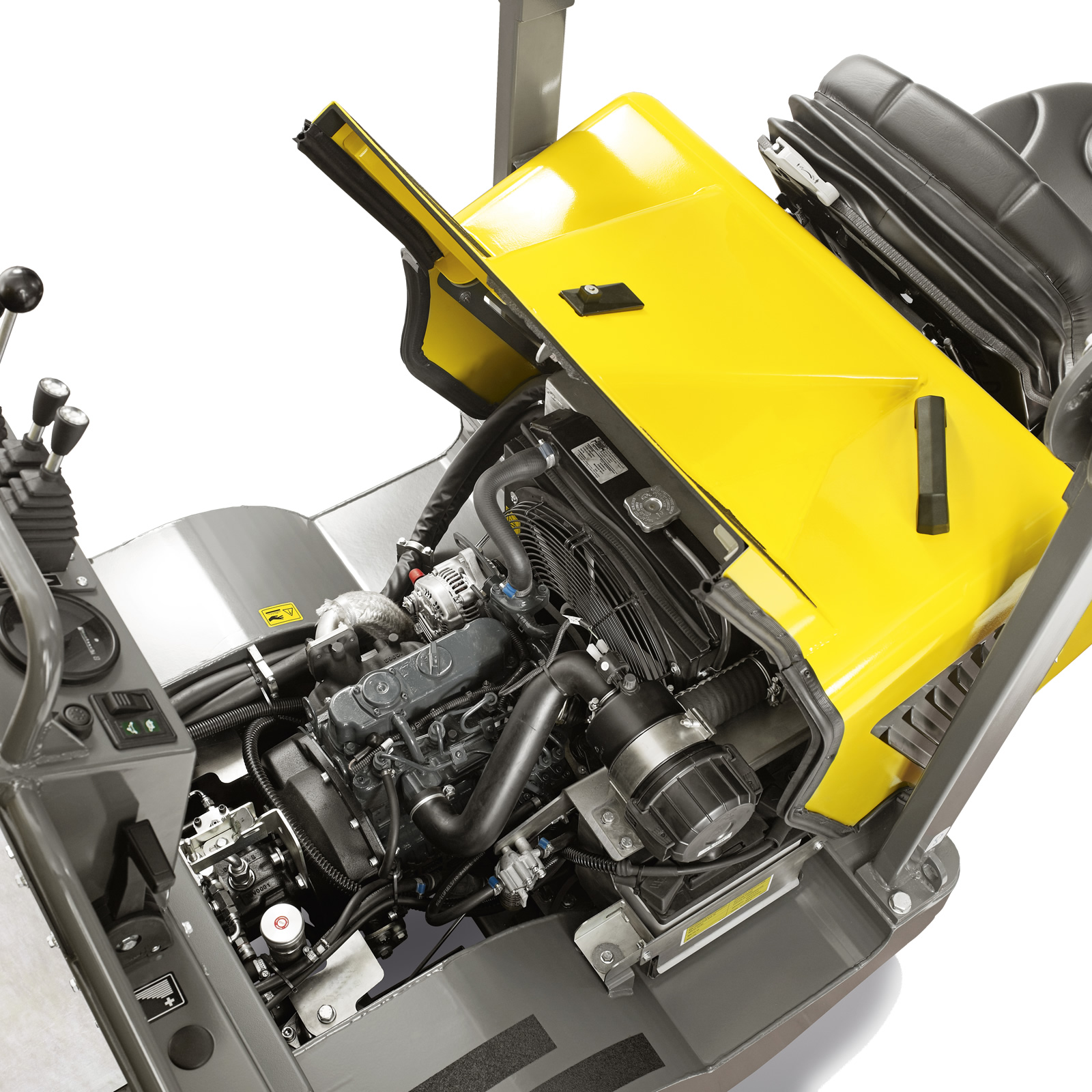

5.	Maintenance	Single piece bonnet for easy access. Minimal maintenance required. High Drive Sprocket for longer life.

(DT15)

Weights:

Transport weight	1,270 kg
Operating weight	1,345 kg - 1,695 kg
Maximum payload	1,500 kg

Engine:

Manufacturer	Kubota
Model	Z-902
Power	15.5 kW (20 HP)
Torque	72.2 Nm
Displacement	898 cm3
Construction	3-cylinder, diesel, liquid-cooled

Operating Data:

Max. travel speed	7.5 km/h
Max. lift height to pivot pin
Max. width	1,102 mm

Skip:

Skip capacity (levelled)	632 L
Skip capacity (heaped)	760 L

Hydraulics:

Construction	Hydrostatic Drive + Twin Gear Pump
Maximum flow rate (system)	95 L/min
System Pressure

Undercarriage:

Track width	1,102 mm
Construction	Raised Drive with Planetary Gear Reduction System
Number of track rollers	4 per side + Raised Idler Wheel + Central Carrier
Ground clearance	224 mm
Ground pressure	1 kg/cm2
On ground track length	1,100 mm

Capacities:

Fuel Tank	50 L
Hydraulic Tank	20 L
Battery	12V / 30Ah

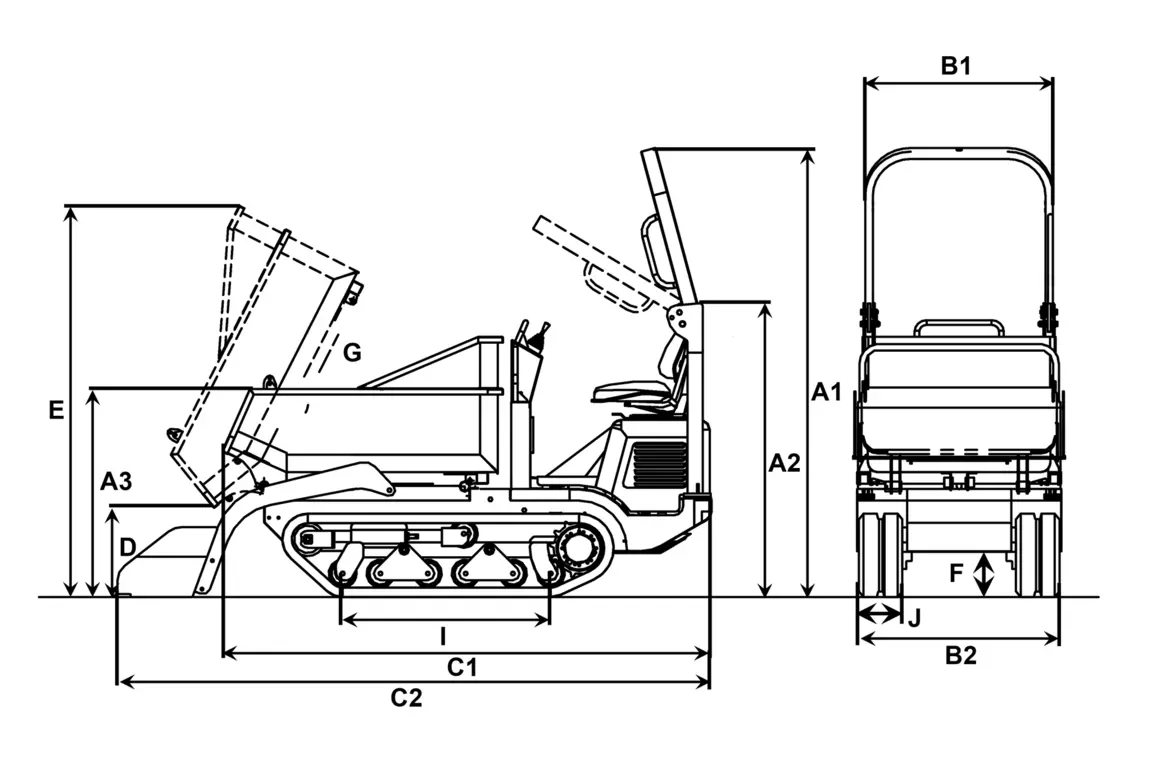

Working Dimensions:

		Front tip skip	Swivel tip skip	High tip skip	3-sided tilt platform	Concete Mixer
A1	Height ROPS	2,372 mm	2,372 mm	2,372 mm	2,372 mm	2,372 mm
A2	Height of ROPS tilted	2,022 mm	2,022 mm	2,022 mm	2,022 mm	2,022 mm
A3	Height front edge of skip	770 mm	1,210 mm	1,104 mm	1,150 mm	1,254 mm
B1	Width of skip	1,054 mm	1,102 mm	1,000 mm	1,020 mm	-
B2	Width with self loading equipment	1,080 mm	-	1,121 mm	-	1,080 mm
B2	Width of undercarriage	1,080 mm	1,080 mm	1,080 mm	1,080 mm	1,080 mm
C1	Total length without footboard	2,585 mm	2,674 mm	2,609 mm	2,640 mm	2,404 mm
C2	Length with self loading equipment, without footboard	3,160 mm	-	3,365 mm	-	3,250 mm
D	Dumping height max.	472 mm	810 mm	873 mm	380 mm	762 mm
E	Skip height tilted	2,070 mm	2,381 mm	2,383 mm	2,040 mm	1,647 mm
F	Ground clearance	224 mm	224 mm	224 mm	224 mm	224 mm
G	Dumping angle	63°	84°	78°	63°	62°
I	Length cha stand	1,100 mm	1,100 mm	1,100 mm	1,100 mm	1,100 mm
J	Track width	230 mm	230 mm	230 mm	230 mm	230 mm
