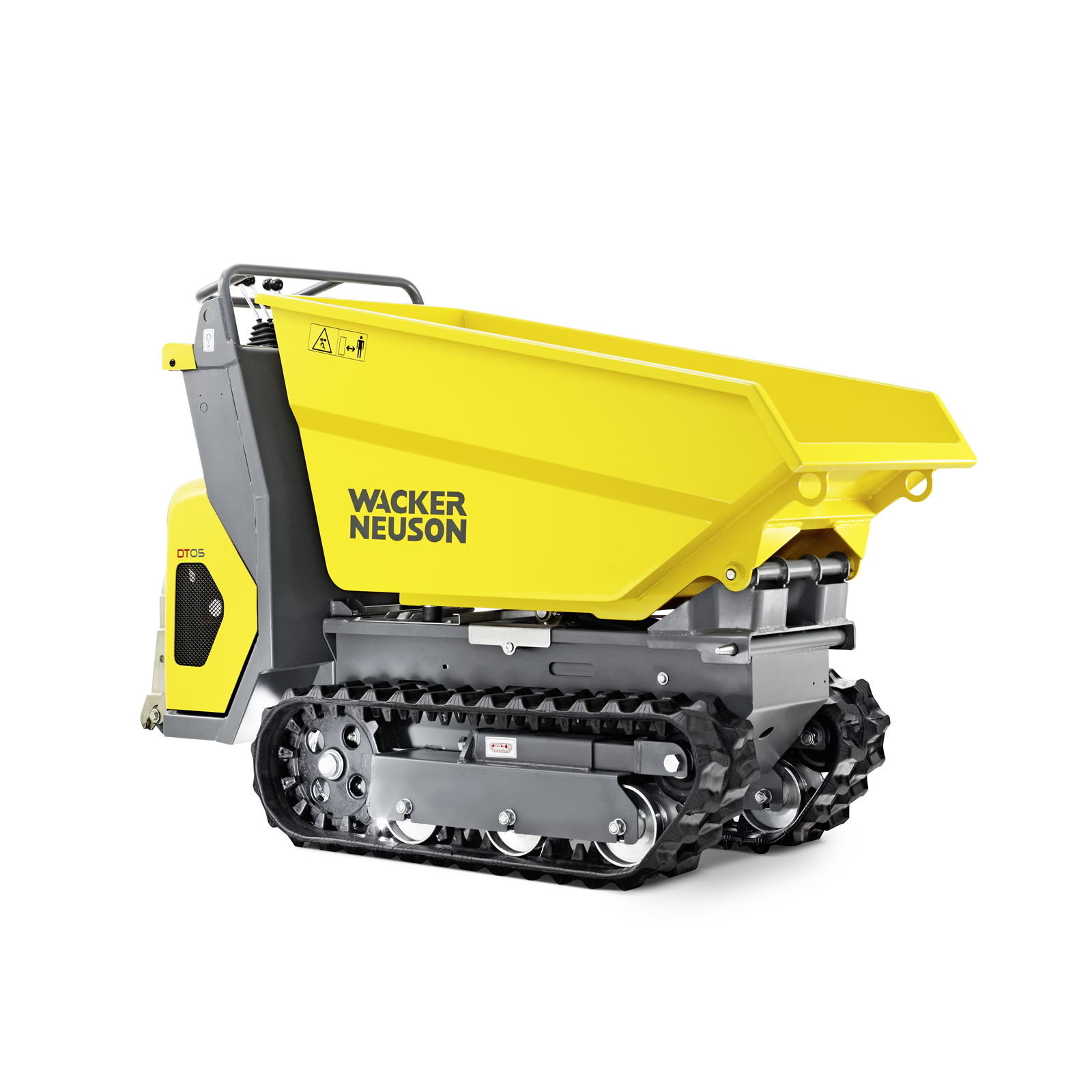

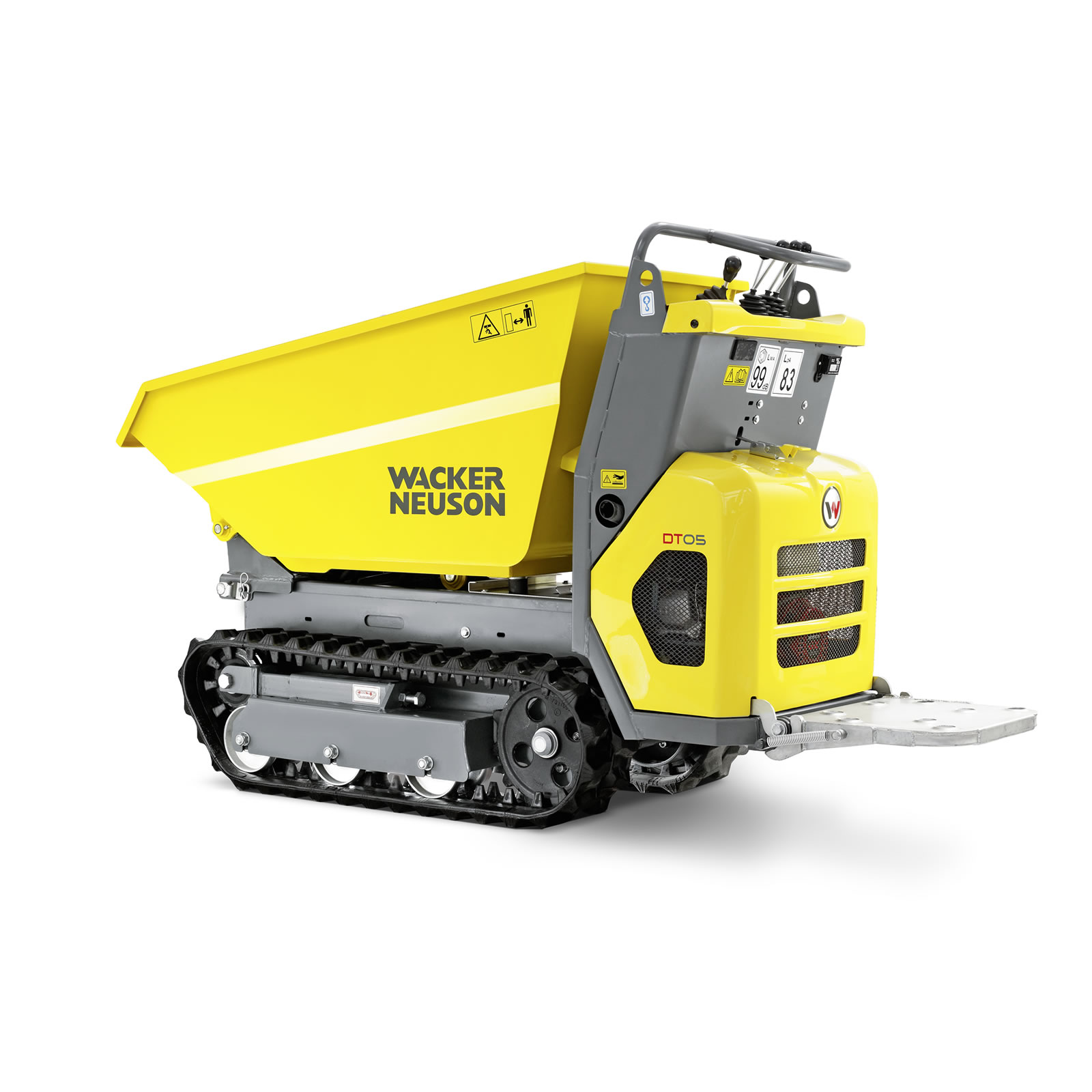

Wacker Neuson DT05 - Tracked Site Dumper

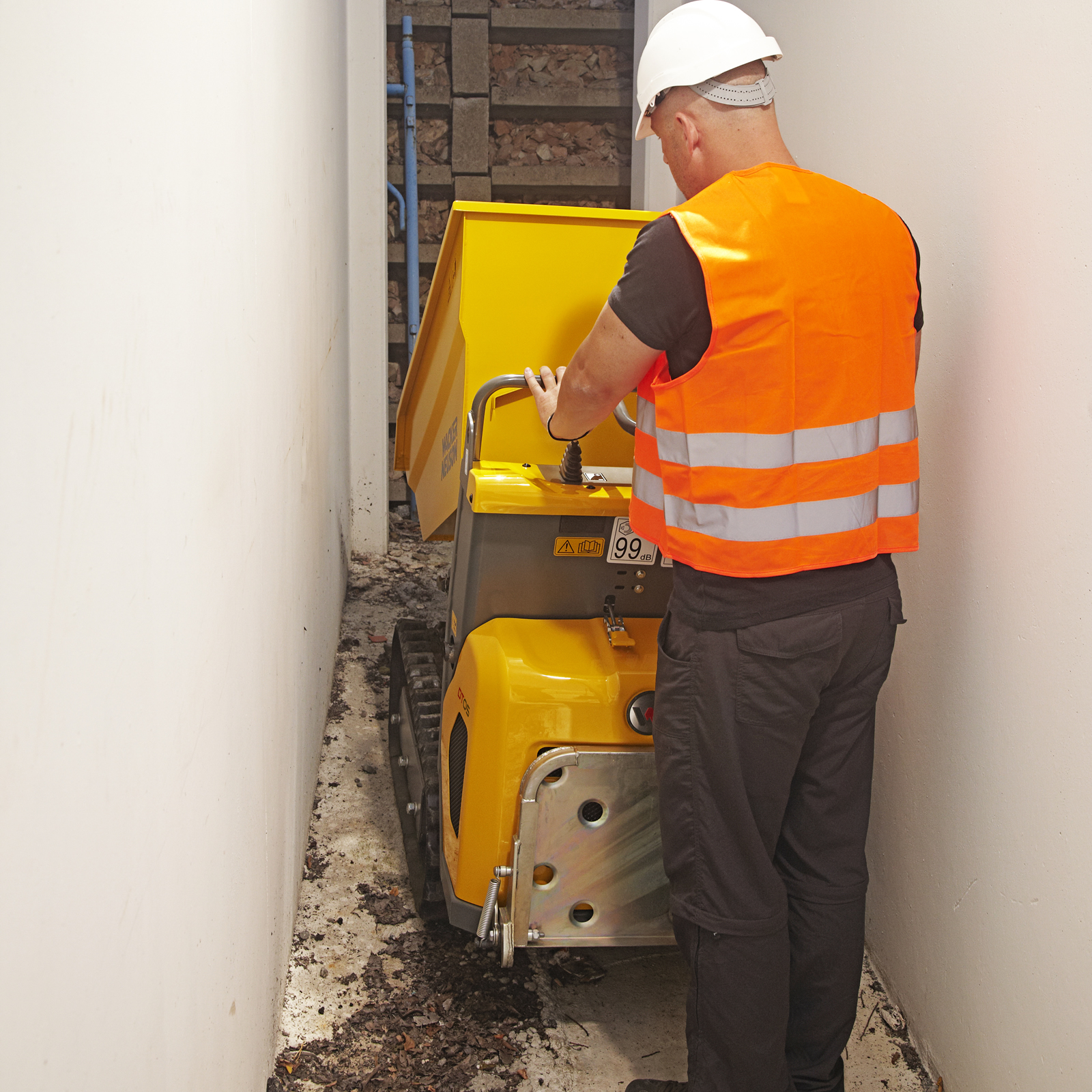

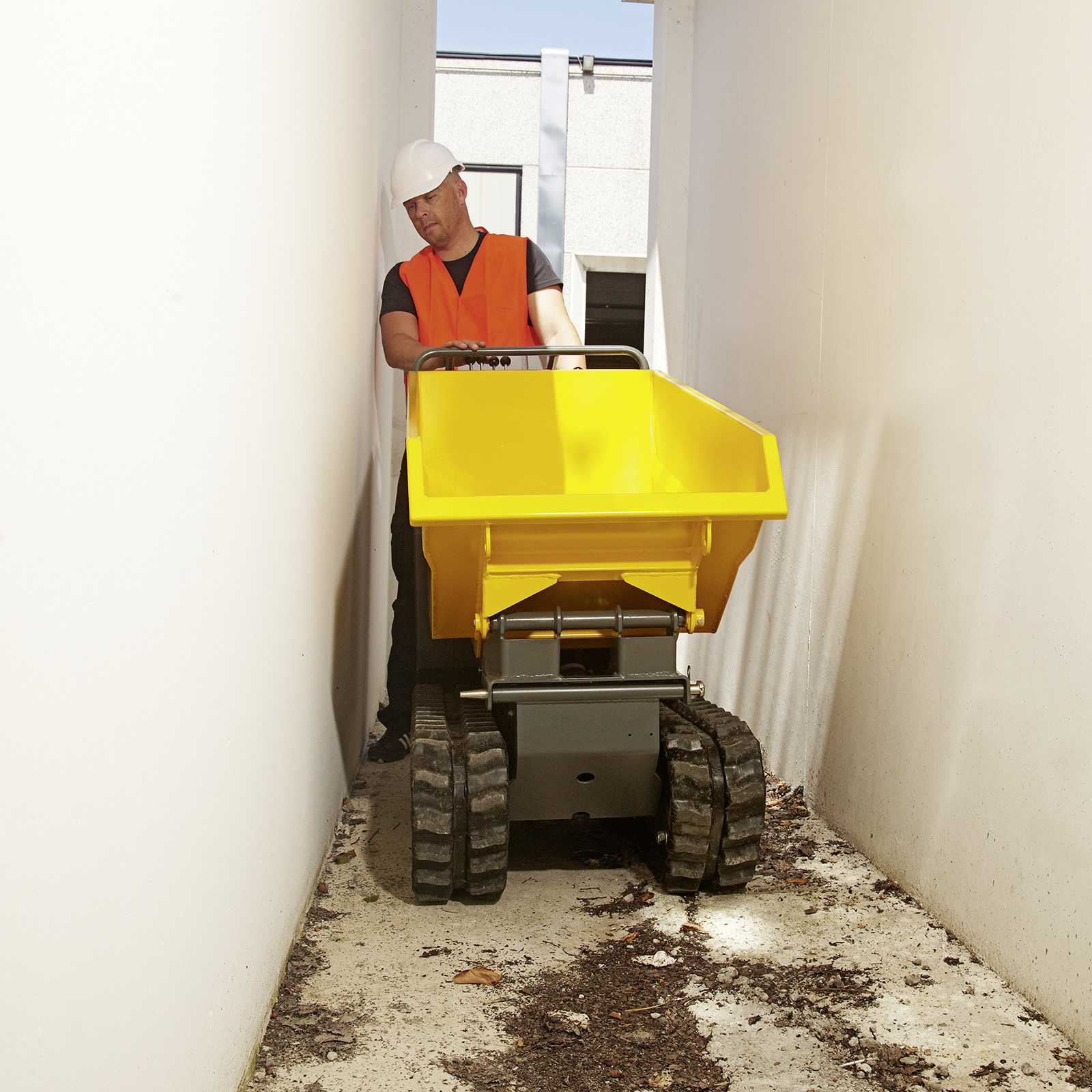

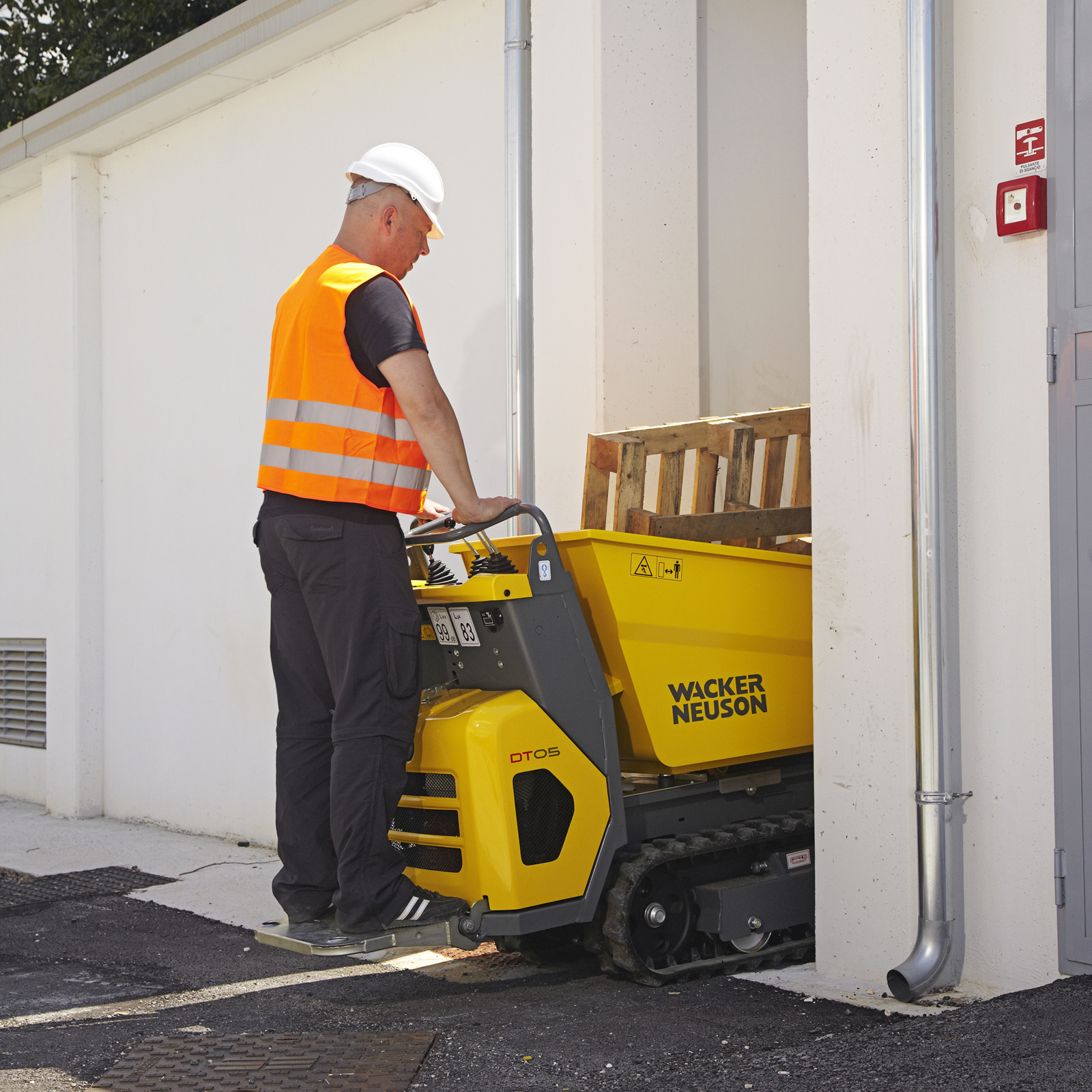

The DT05 Dumper can be manoeuvred with centimetre-accuracy over any surface due to its compact design and well-engineered drive train. Perfect when you need to shift material into tight spaces, as with so many sites across Australia.

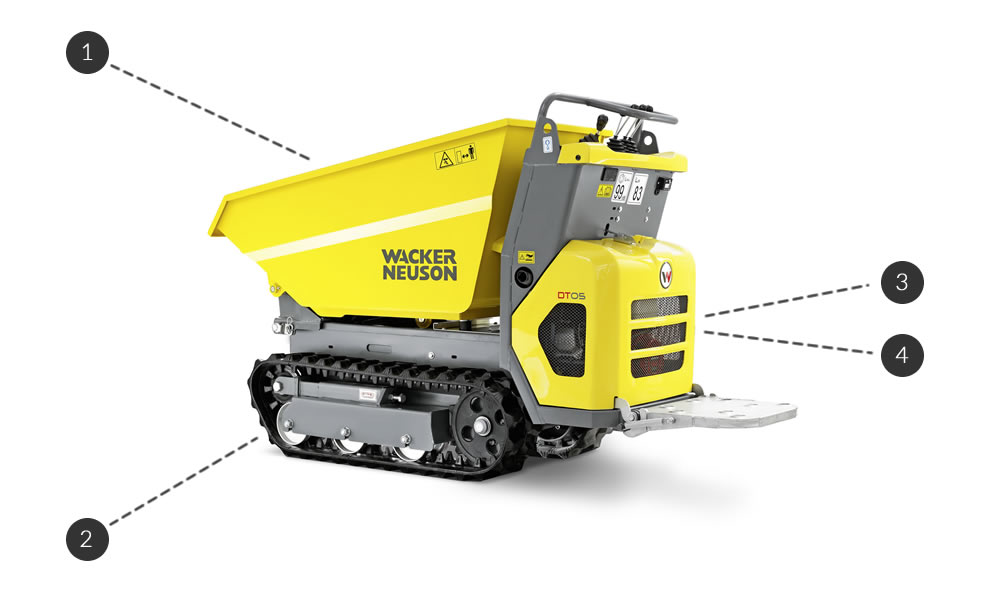

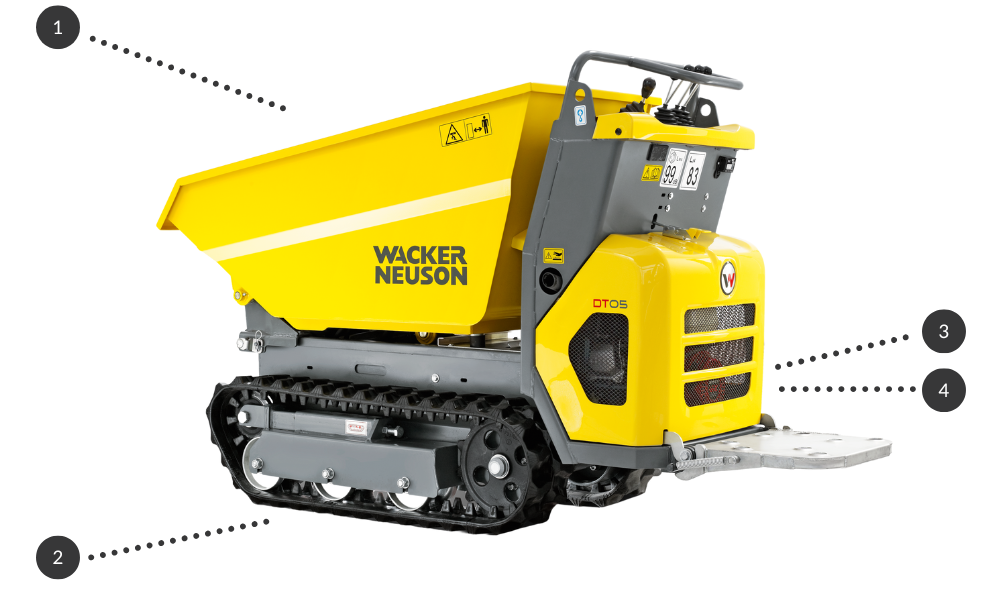

Key Features:

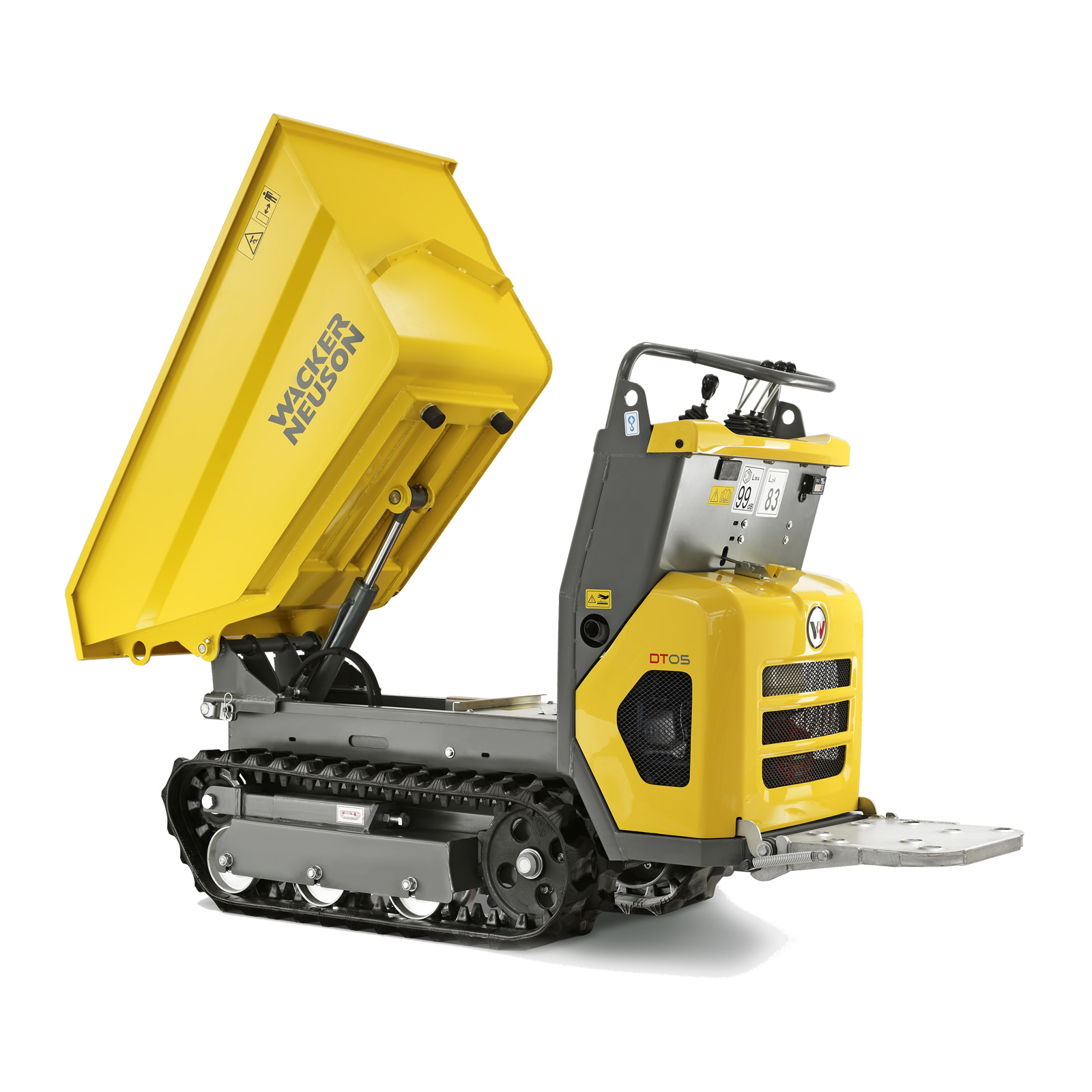

1.	Skip	Front tipping. 0.31 metre capacity.
2.	Versatility	High ground clearance. Powerful track design. 500kg capacity of all ground types.
3.	Power	Choice of Honda Petrol or Yanmar Diesel Power Plants. 2 speed Hydrostatic Drive.
4.	Maintenance	Single piece bonnet for easy access. Minimal maintenance required.

(DT05)

Weights:

Operating weight	620 kg
Transport weight	420 kg
Maximum Payload	500 kg

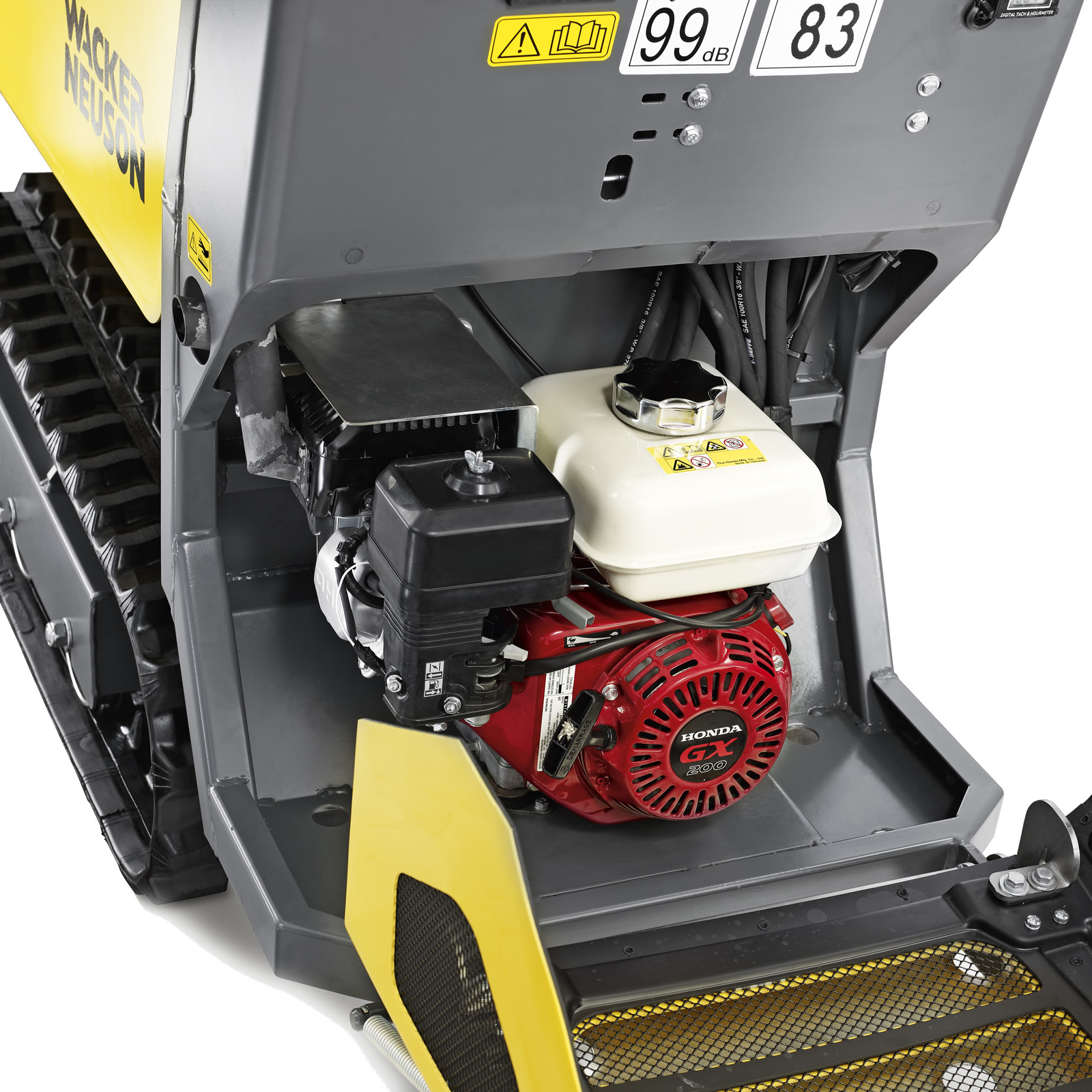

Engine:

Manufacturer	Honda
Model	GX 200
Power	4.5 kW (6 HP)
Torque	13.2 Nm
Displacement	196 cm3
Construction	1-cylinder, diesel, air-cooled

Operating Data:

Max. Travel Speed	3.9 km/h
Max. Lift Height to Pivot Pin
Max. Width	660 mm

Skip:

Skip Capacity (levelled)	273 L
Skip Capacity (heaped)	313 L

Hydraulics:

Construction	Hydrostatic Drive + Twin Gear Pump
Maximum Flow Rate (System)	30 L/min
System Pressure

Undercarriage:

Track Width	180 mm
Construction	Raised Drive with Planetary Gear Direct Drive
Number of Track Rollers	3 per side + Raised Idler Wheel
Ground Clearance	110 mm
Ground Pressure	0.12-0.25 kg/cm2
On Ground Track Length	753 mm

Capacities:

Hydraulic tank	18 L
Fuel Tank	3.6 L
Battery	12V / 30Ah

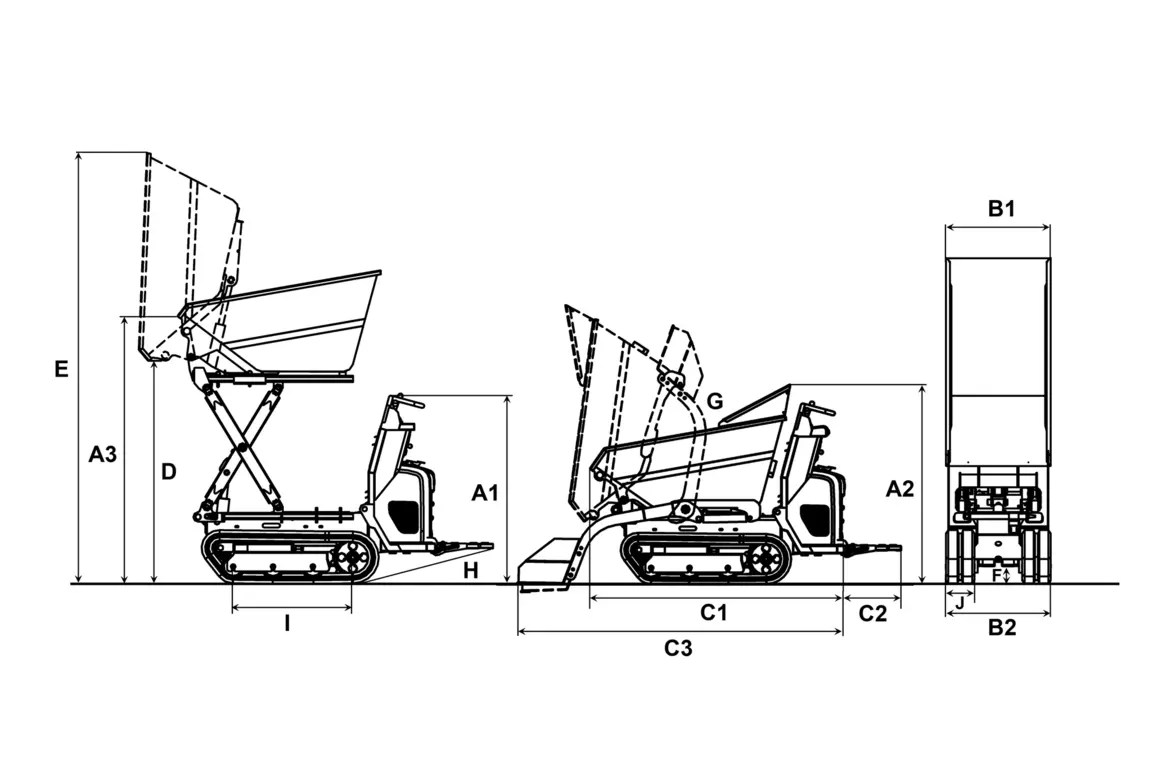

Working Dimensions:

		Front Tip Skip	High Tip Skip
A1	Height above operator's stand	1,185 mm	1,185 mm
A2	Height over skip hand guard	1,310 mm
A3	Height front edge of skip	760 mm	993 mm
B1	Width of skip	660 mm	660 mm
B1	Width of steering position	589 mm	660 mm
B2	Width of undercarriage	660 mm	660 mm
B2	Width with self-loading equipment	700 mm
C1	Total length without footboard	1,670 mm	1,550 mm
C2	Length footboard	365 mm	387 mm
C3	Length with self-loading equipment, without footboard	365 mm	387 mm
D	Dumping height max.	410 mm	1,397 mm
E	Skip height tilted	1,827 mm
F	Ground clearance	110 mm	110 mm
G	Dumping angle	72°	77°
H	Rollback angle footboard	15°	14°
I	Length chain stand	753 mm	753 mm
