Wacker Neuson 1001

1.0T Payload - Wheeled Dumper

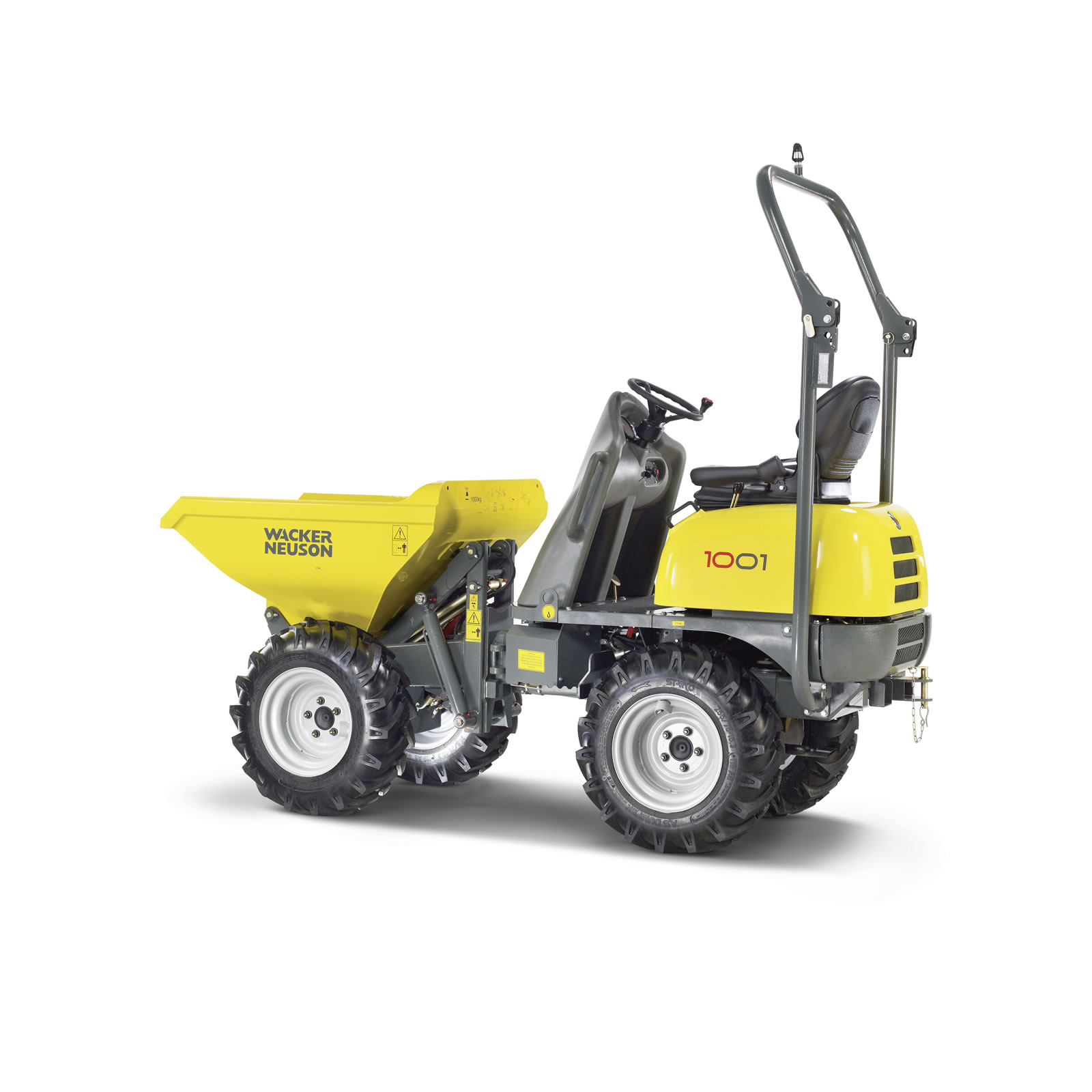

Wacker Neuson 1001 - All-Wheel Dumper

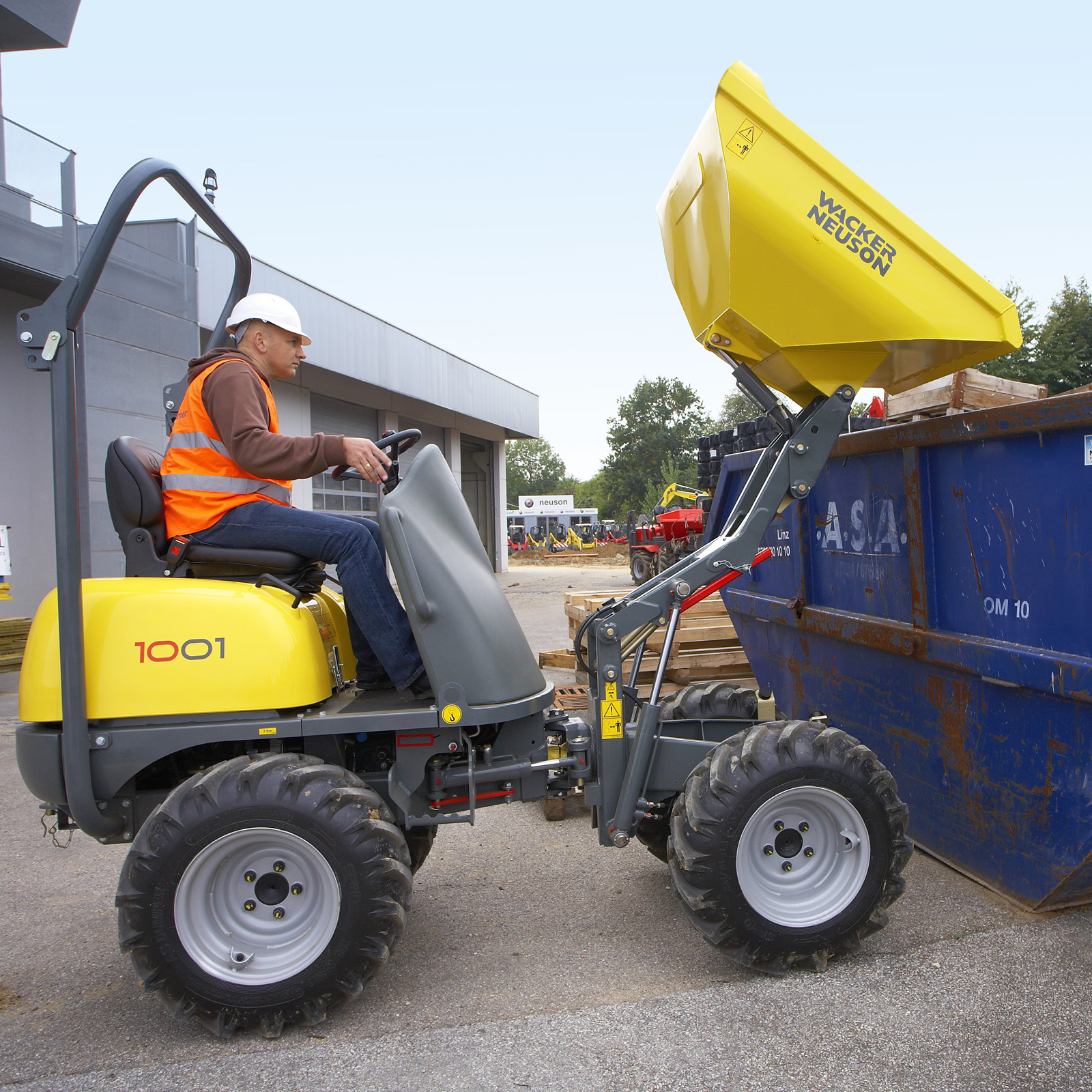

Powerful, manoeuvrable, compact and great in off-road conditions. Continuous all-wheel drive coupled with full articulating and oscillating steering drive make this the perfect dumper for off-highway use.  The 1001 comes standard with a high tip skip for dumping in rubbish skips. Backed by a 5 Year / 5000 hour warranty.

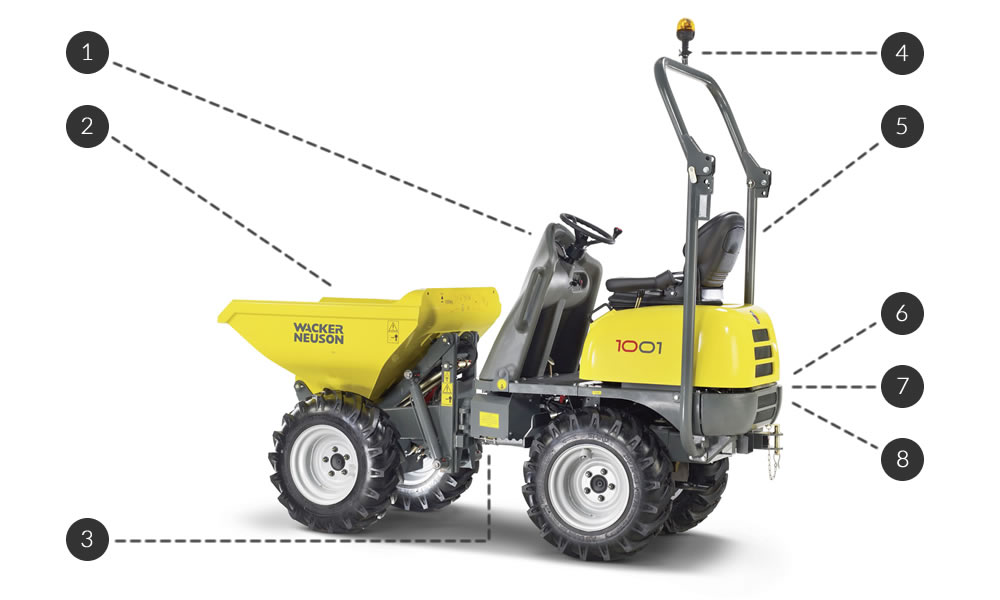

Key Features:

1. Vision
  • Tapered control panel for superior visibility.
  • Left and right rear view mirrors.
  • High mounted seat.
2. Skip
  • 0.53 cubic metre skip.

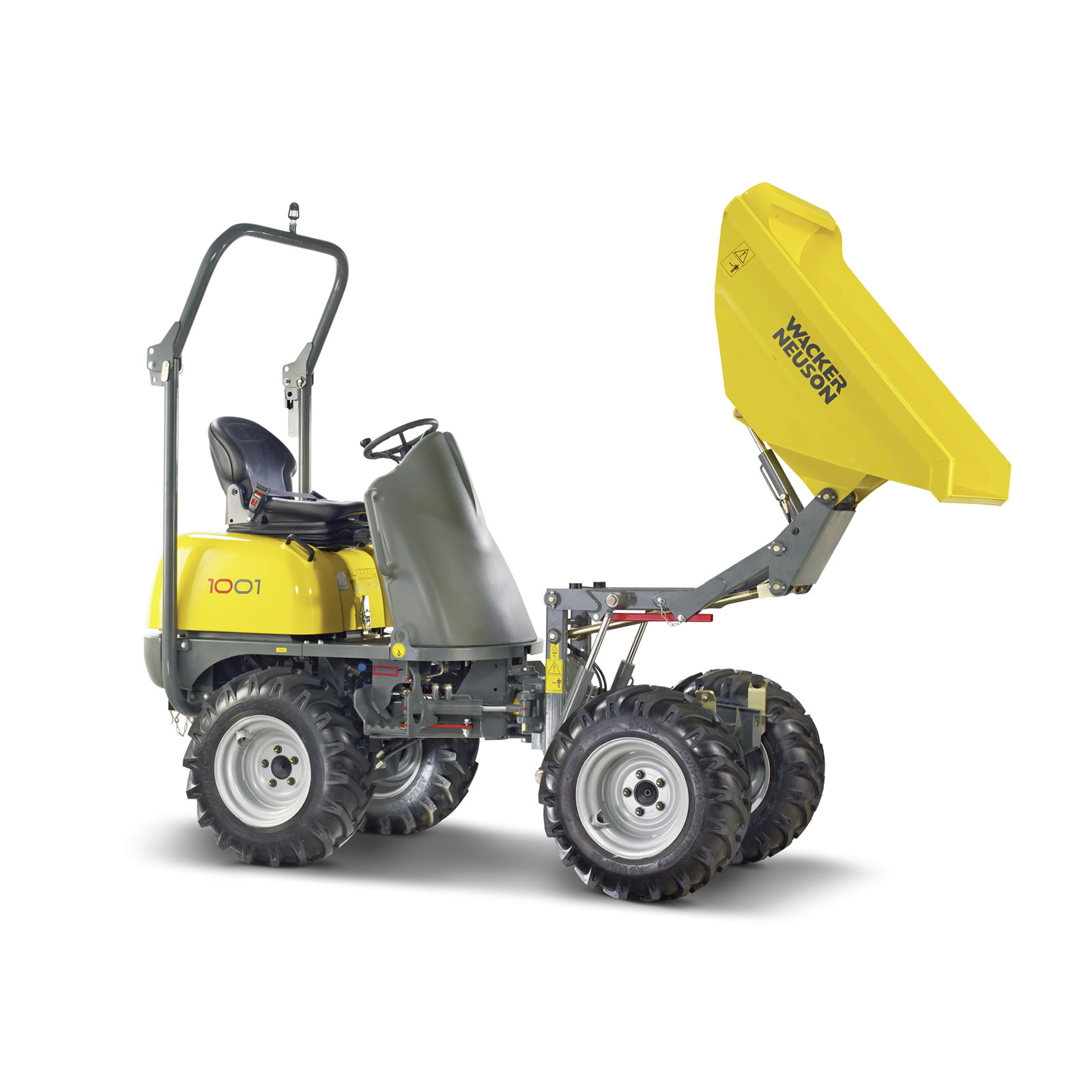

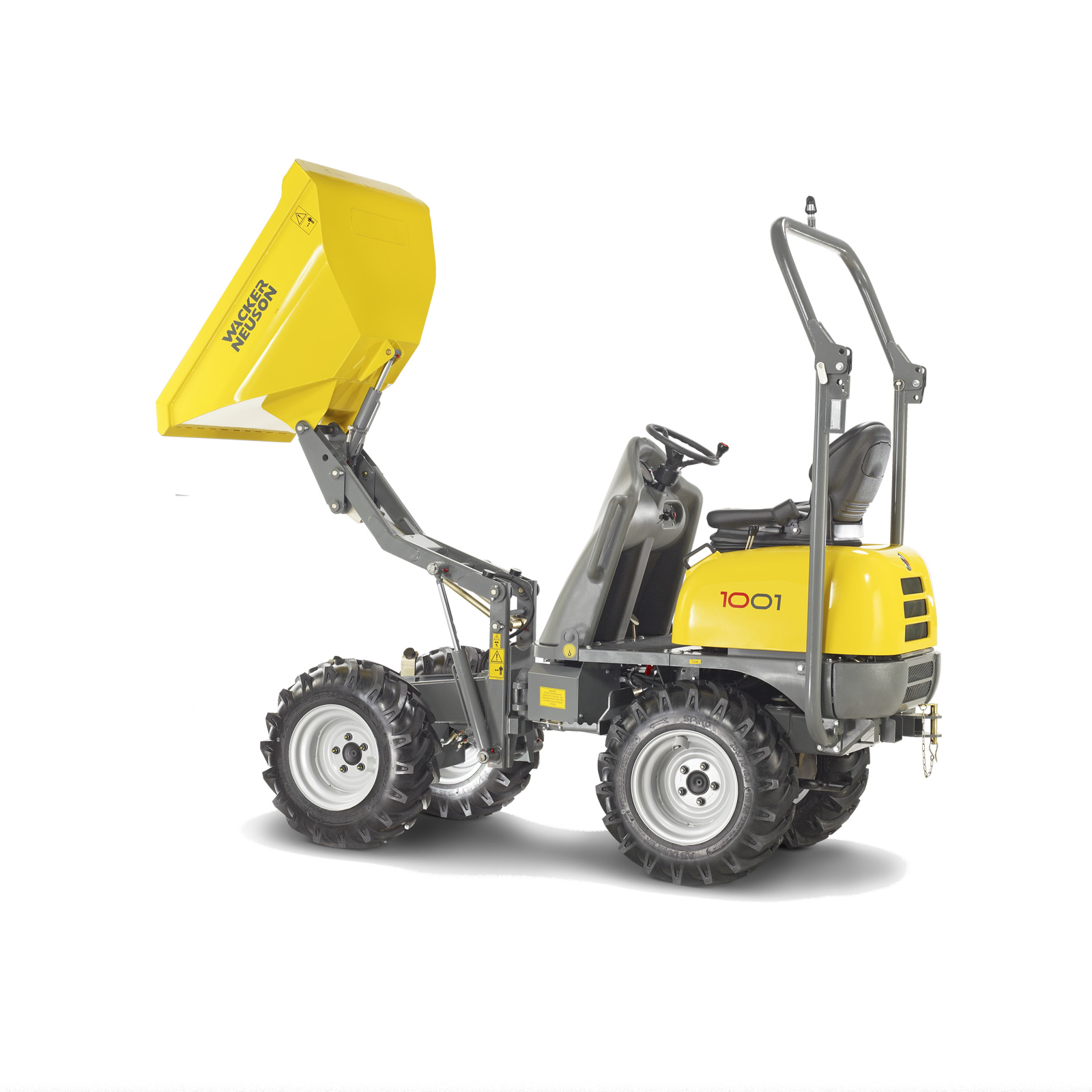

  • High-Tip skip standard.
  • 1,560mm dump height.
3. Versatility

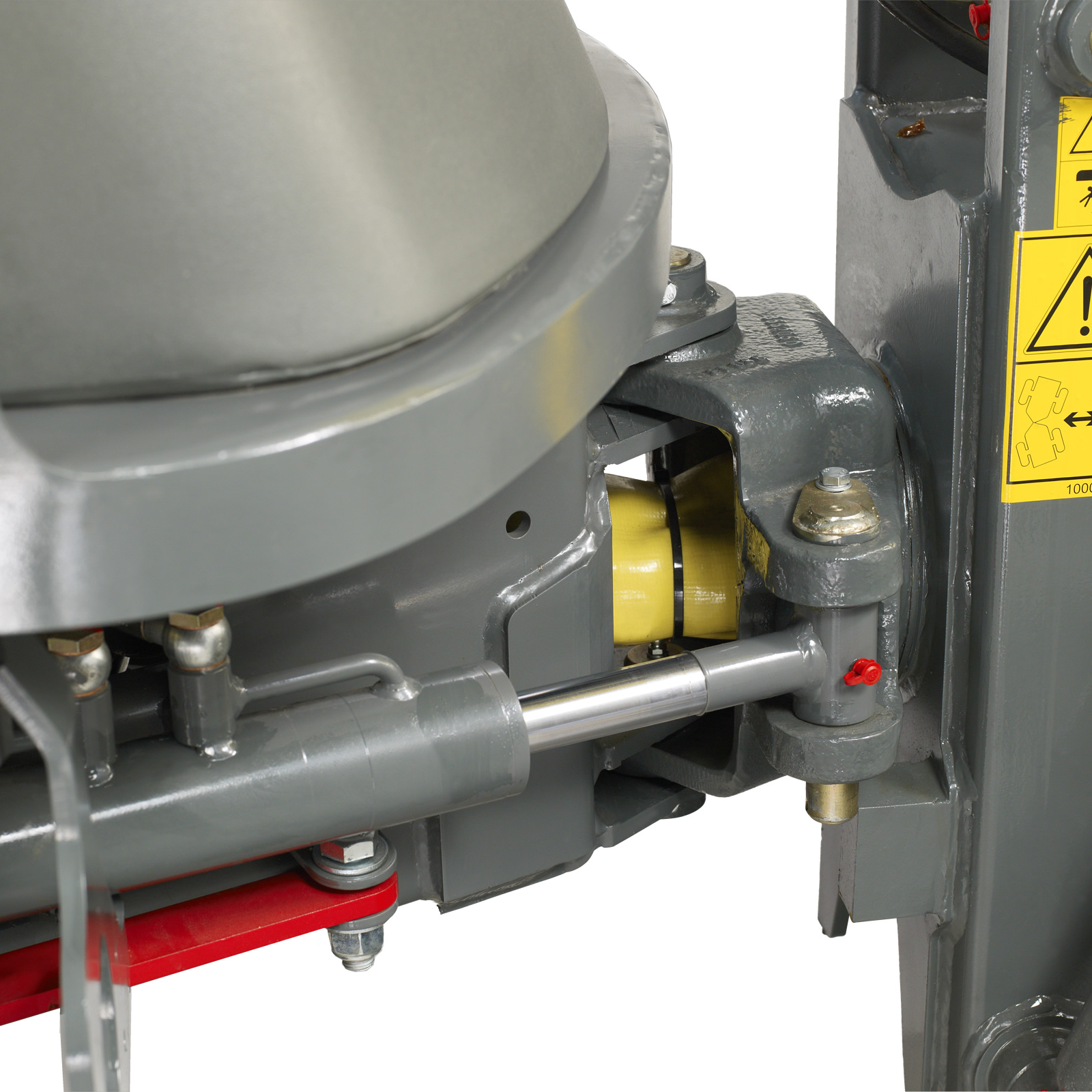

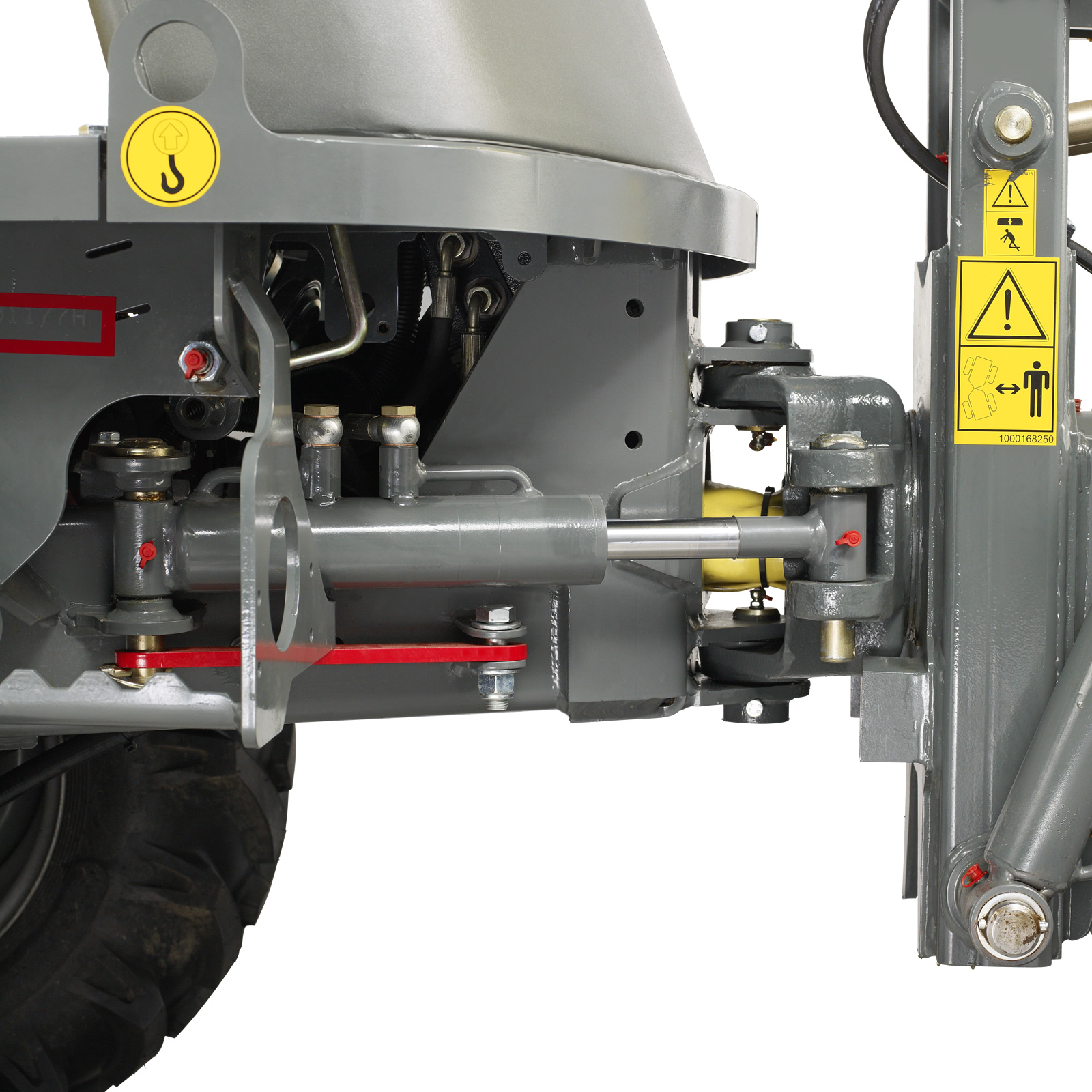

  • Articulated steering to 33 degrees.
  • Oscillated steering to 15 degrees.
  • High ground clearance.
  • 1.56m tipping height.
  • Constant 4WD for perfect off road capabilities.
4. Safety
  • Folding ROPS bar.
  • Full leg and foot protection.
  • Factory fitted beacon light and reverse beeper.
  • Rear-view mirrors.
  • Easy access grab rails and step for entering / exiting machine.
5. Comfort
  • Comfortable suspension seat.
  • Ergonomically designed operator’s station.
6. Power
  • High HP Yanmar 3 Cylinder diesel engine.
  • 18.9kW (25.3HP).
  • 1000kg payload.
  • Hydrostatic drive with twin lock continuous 4WD
7. Cooling
  • Large cooler and overflow bottle for efficient engine and hydraulic cooling.
  • Designed to keep cool in the harshest of Australian conditions.
8. Maintenance
  • Robust scratch and dent resistant operators station guarding.
  • Powder coated scratch and fade resistant coatings.
  • Integrated hose guide keeps hoses hidden from damage in off-road conditions.

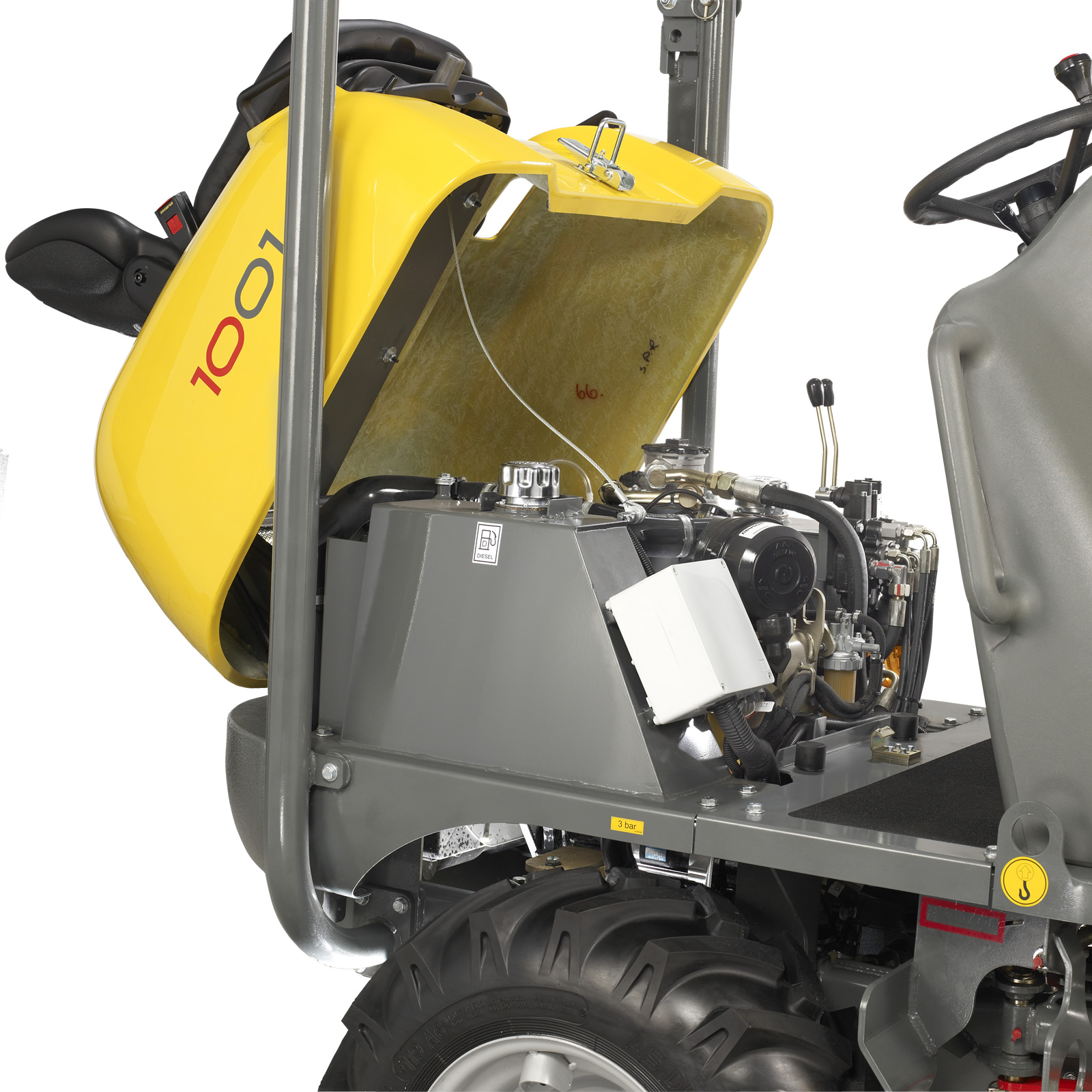

  • One-piece bonnet for easy maintenance access.

(1001)

General:

Tare weight 1,215 kg
Payload 1,000 kg
Skip capacity (leveled) 415 L (0.415 m3)
Skip capacity (heaped) 525 L (0.525 m3)
Skip capacity (water leveled) 275 L (0.275 m3)

Engine:

Manufacturer Yanmar
Model 3TNV76
Construction Liquid-cooled, 3-cylinder diesel
Displacement 1,116 cm3
Engine speed 3,000 rpm
Engine output according to ISO 18.9 kW (25.3 HP)
Battery voltage / capacitance 12 V / 45 Ah

Drive Characteristics:

Drive speed 0 - 14 km/h
Steering angle +/- 33°
Oscillation +/- 15°
Turing radius (outside) 3,200 mm
Gradeability 45 %

Drive:

Drive type 4WD, hydrostatic Twin-Lock
Steering Hydrostatic articulated frame
Standard tyres 10.00 / 75-15 Tractor profile
Service brake Hydrostatic
Park brake Hydraulic

Hydraulics:

Drive pump Axial piston pump
Flow rate 84 L/min
Operating pressure 360 bar
Work pump Gear pump
Flow rate 25 L/min
Operating pressure 170 bar

Capacities:

Hydraulic tank 20 L
Fuel Tank 15 L

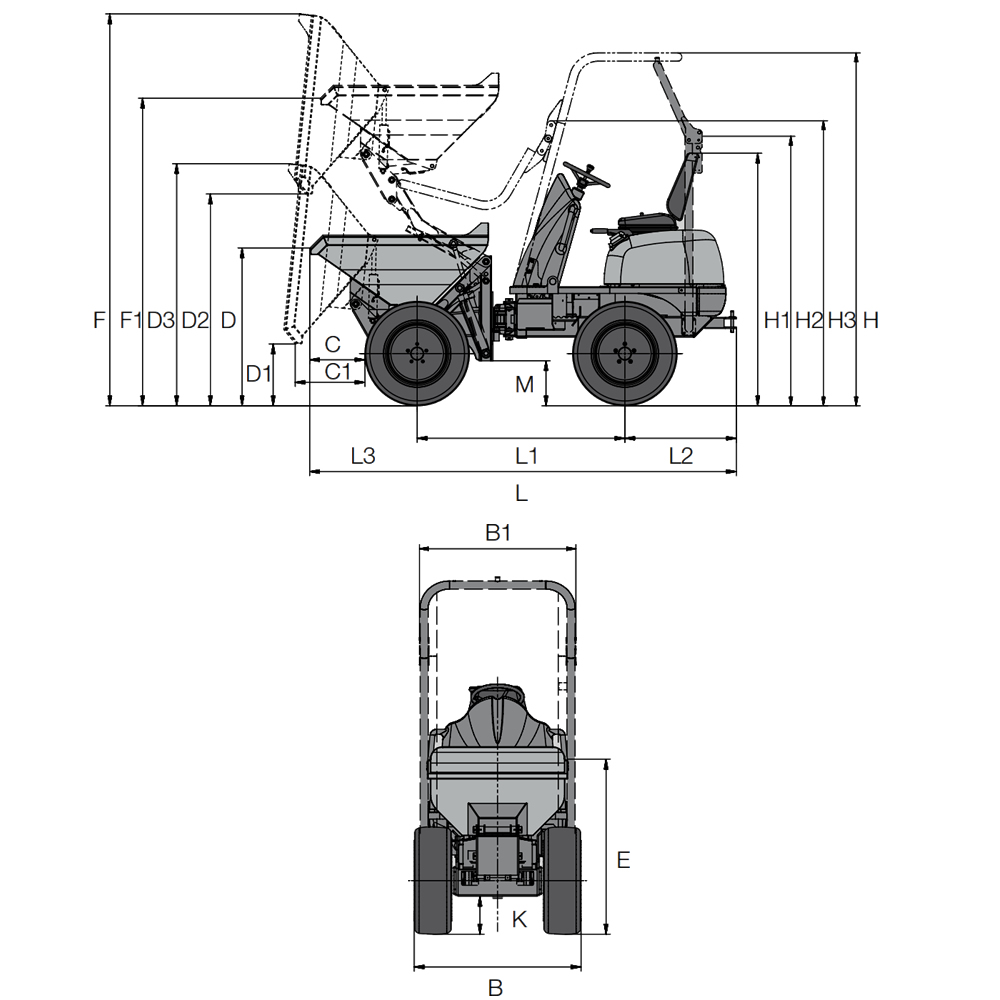

Working Dimensions:

B Width (wheel to wheel) 1,180 mm
B1 Width (chassis) 1,130 mm
C1 Front wheel to skip leading edge 510 mm
D Clearance (edge of tipped skip to ground) 1,160 mm
D1 Height (front edge of skip to ground) 465 mm
E Height (top of skip to ground) 1,230 mm
F Max. dumping height 2,860 mm
H Height (including ROPS) 2,580 mm
H1 Height (ROPS folded) 1,850 mm
K Clearance (driveline to ground) 270 mm
L Length (overall) 3,080 mm
L1 Length (wheel centres) 1,500 mm
L2 Length (rear wheel centre to rear) 810 mm
L3 Length (front wheel centre to front) 770 mm
M Clearance (tip frame to ground) 327 mm

Specifications subject to change without notice due to continual product development.
