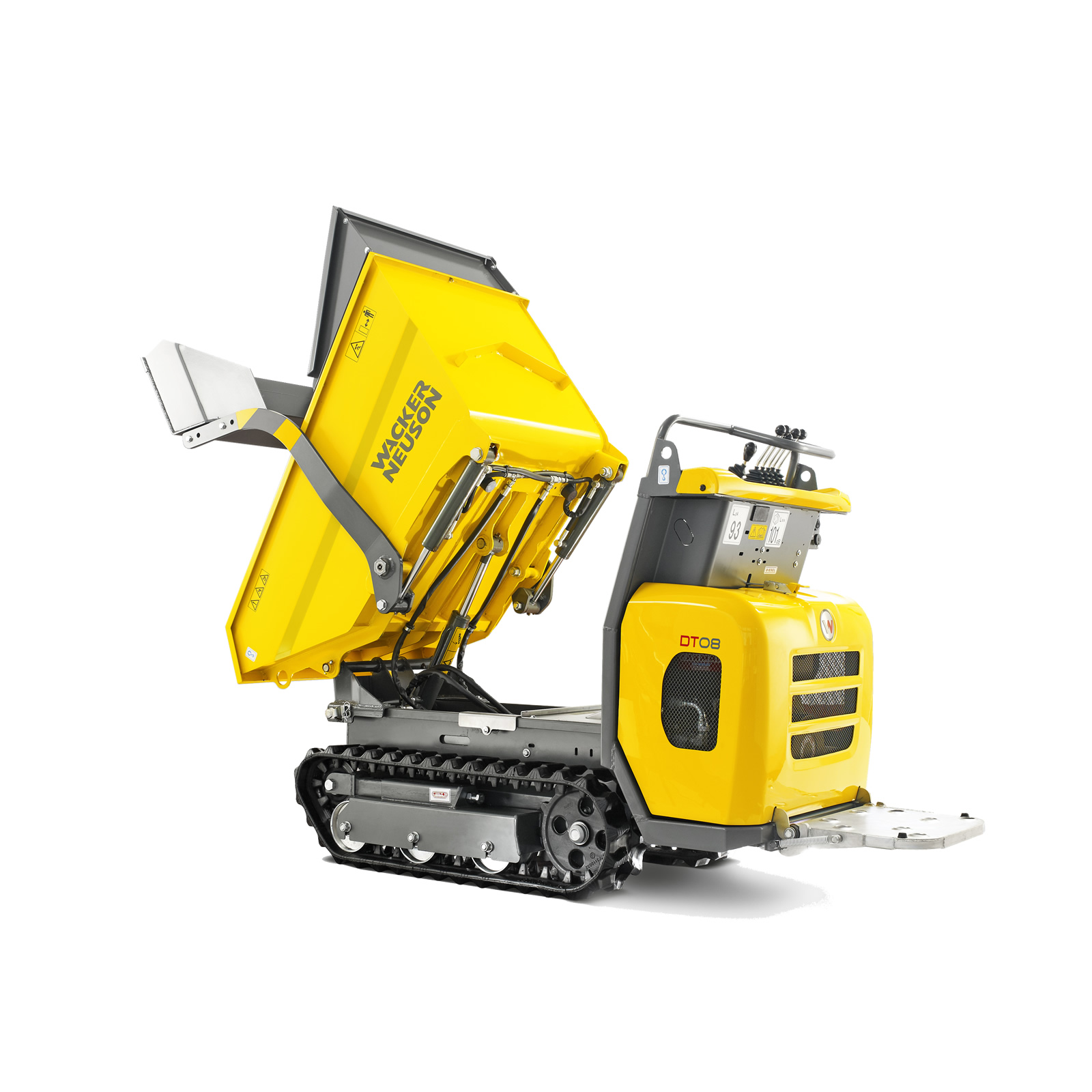

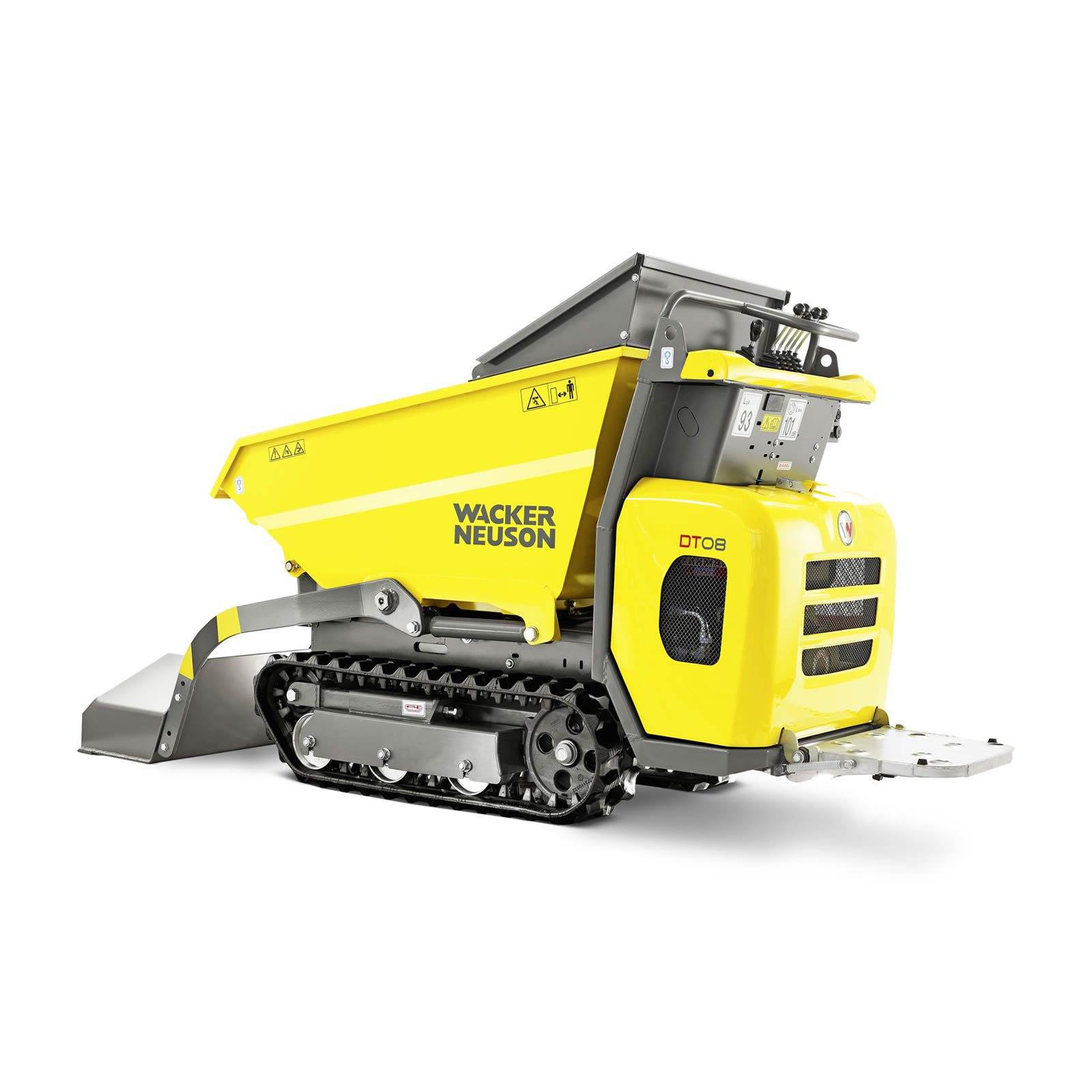

Wacker Neuson DT08 - Tracked Site Dumper

The DT08 Dumper can be manoeuvred with centimetre-accuracy over any surface due to its compact design and well-engineered drive train. Perfect when you need to shift material into tight spaces, as with so many sites across Australia.

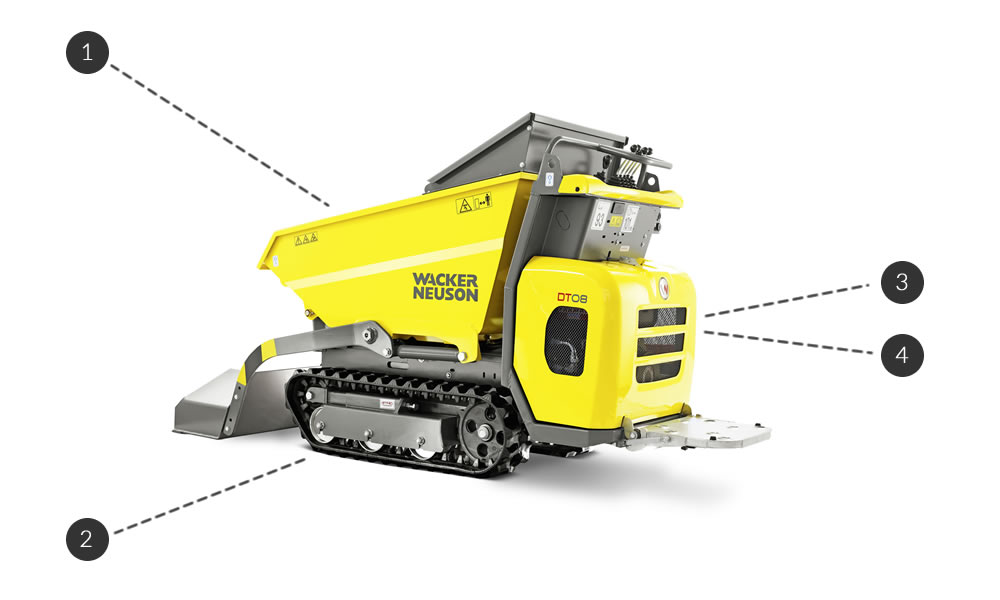

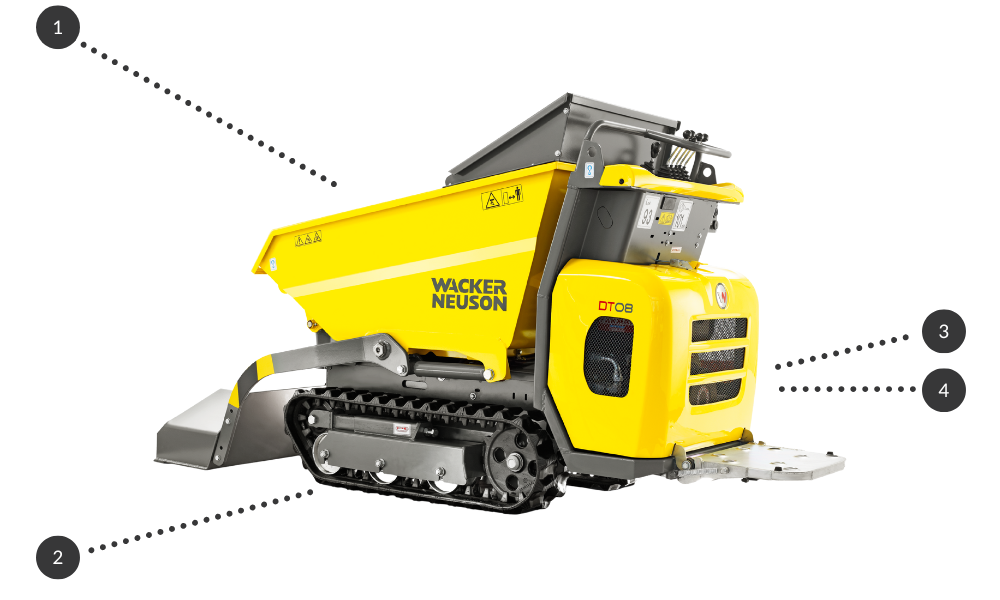

Key Features:

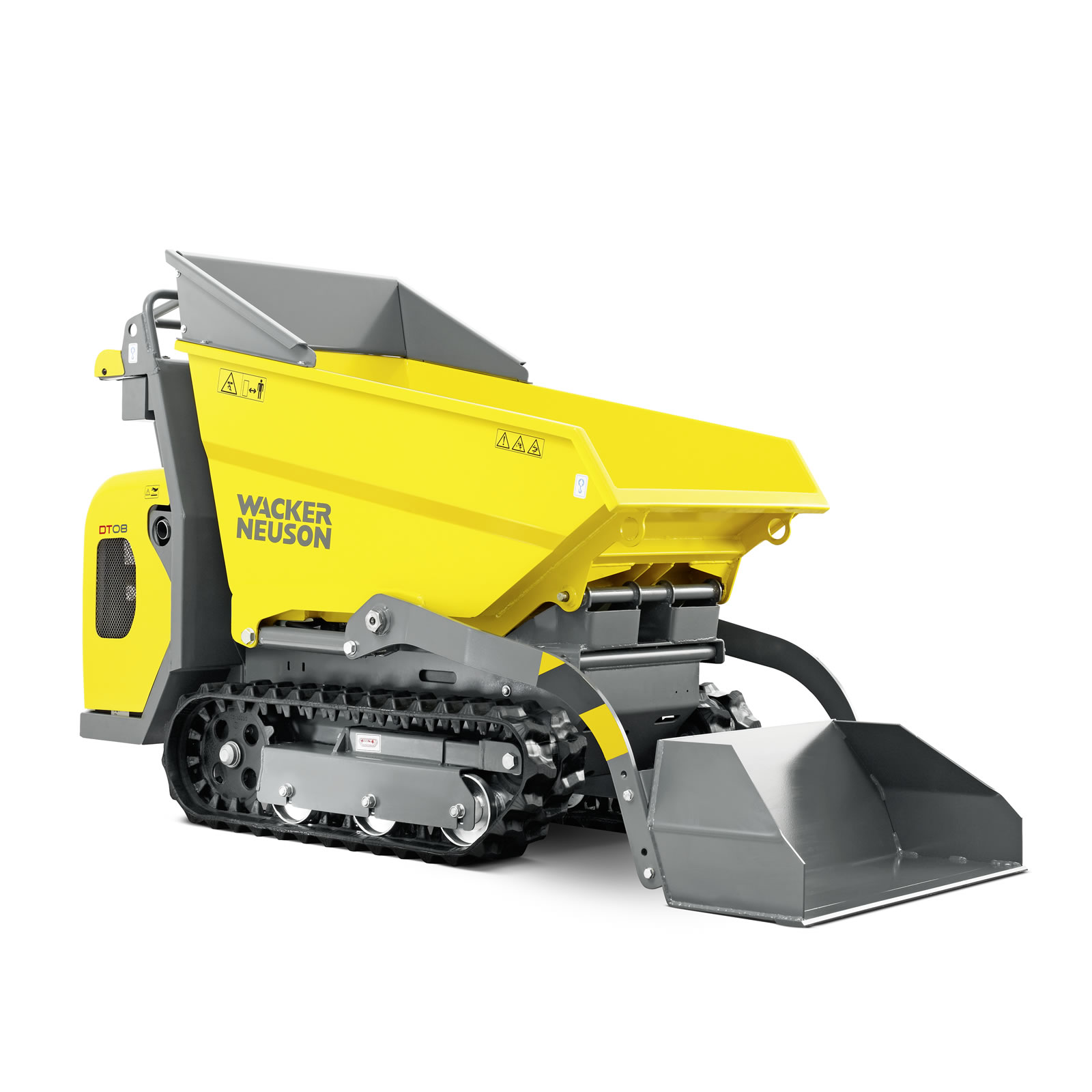

1.	Skip	High Tip standard. Front Tip with self loader (Optional). High capacity skip on both high tip and front tip. Heavy duty design and materials. Perfect visibility.
2.	Versatility	Self loading design, no need for a second machine to shift a stockpile. High ground clearance. Powerful track design. Low ground clearance with low disturbance on delicate surfaces.
3.	Power	Powered by Yanmar air-cooled diesel engine. 2 speed Hydrostatic Drive. Direct drive motors.

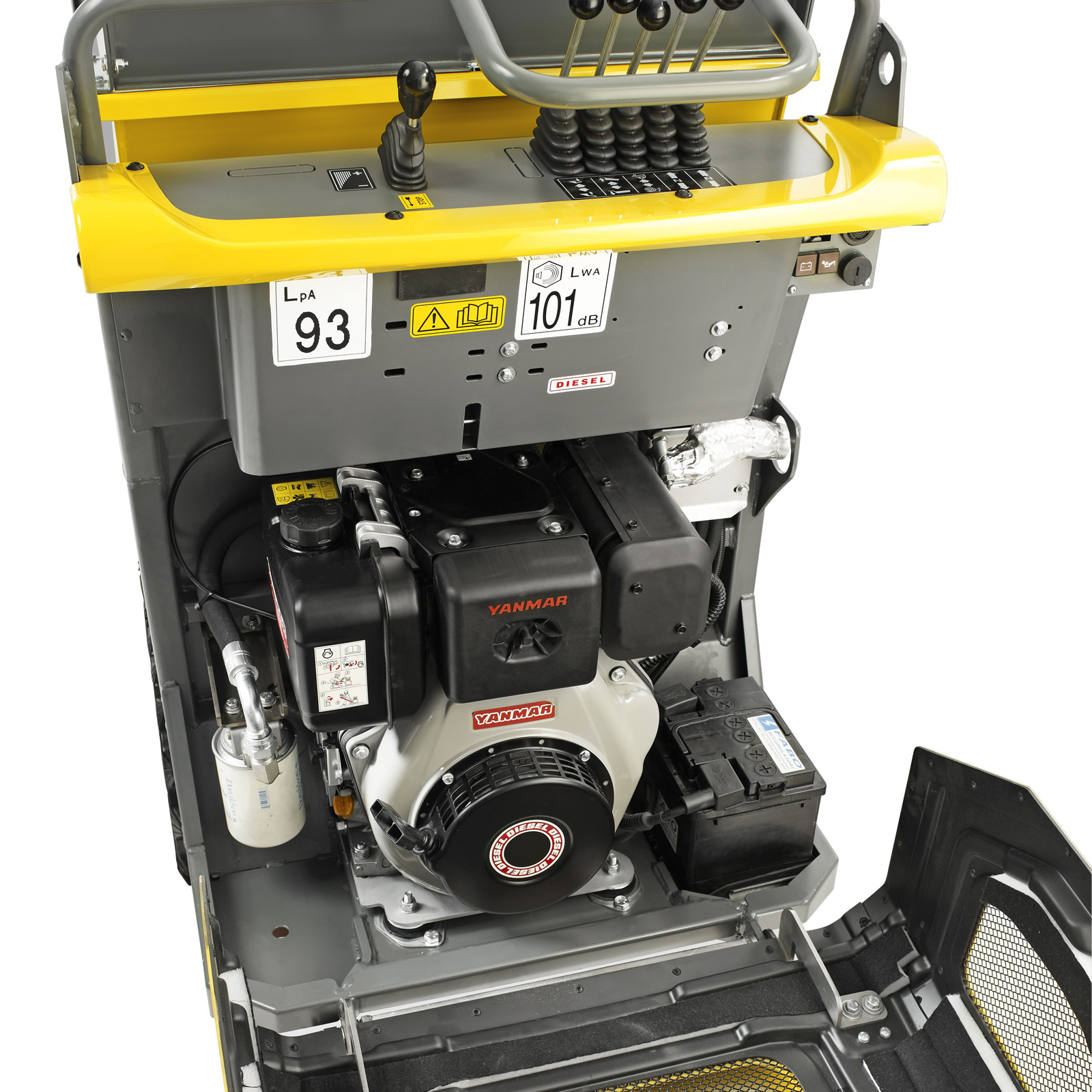

4.	Maintenance	Single piece bonnet for easy access. Minimal maintenance required. Heavy duty rollers.

(DT08)

Weights:

Operating weight	710 kg
Transport weight	520 kg
Maximum Payload	800 kg

Engine:

Manufacturer	Yanmar
Model	L100N6
Construction	1-cylinder, diesel, air-cooled
Displacement	435 cm3
Torque	22.5 Nm
Power	6.8 kW (9 HP)

Operating Data:

Max. travel speed	4 km/h
Max. Lift Height to Pivot Pin
Max. Width	750 mm

Skip:

Skip Capacity (levelled)	334 L
Skip Capacity (heaped)	378 L

Hydraulics:

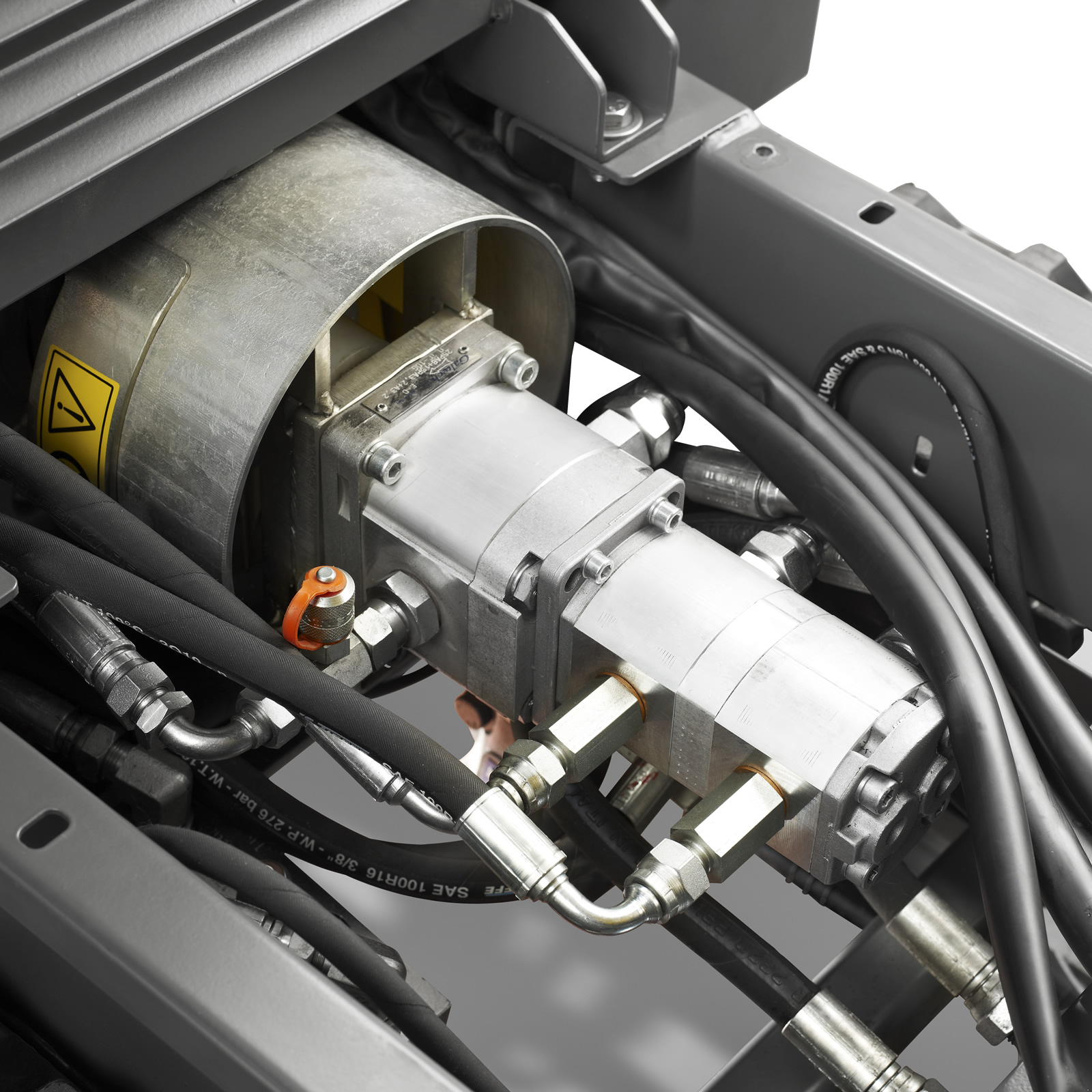

Construction	Triple Gear Pump
Maximum Flow Rate (System)	41 L/min
System Pressure	145 Bar

Undercarriage:

Track Width	180 mm
Construction	Raised Drive with Planetary Gear Direct Drive
Number of Track Rollers	3 per side + Raised Idler Wheel
Ground Clearance	110 mm
Ground Pressure	0.36 kg/cm2
On Ground Track Length	753 mm

Capacities:

Hydraulic tank	30 L
Fuel Tank	5.5 L
Battery	12V / 44Ah

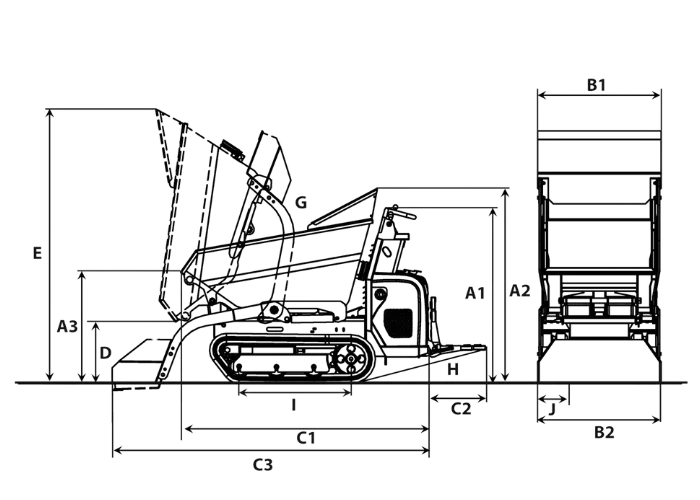

Working Dimensions:

Key	Description	Front tip skip	High tip skip	Front tip platform
A1	Height above operator's stand	1,243 mm	1,243 mm	1,243 mm
A2	Height over skip hand guard	1,304 mm	-	-
A3	Height front edge of skip	750 mm	983 mm	805 mm
B1	Width of skip	830 mm	764 mm	800 mm
B2	Width with self-loading equipment	830 mm	-	-
C1	Total length without footboard	1,789 mm	1,675 mm	1,874 mm
C2	Length footboard	398 mm	398 mm	398 mm
C3	Length with self-loading equipment, without footboard	2,264 mm	-	-
D	Dumping height max.	410 mm	776 mm	-
E	Skip height tilted	1,840 mm	1,917 mm	1,382 mm
G	Dumping angle	72°	82°	55°
H	Rollback angle footboard	12°	12°	12°
I	Length chain stand	769 mm	769 mm	769 mm
I1	Groung clearance	110 mm	110 mm	-
J	Track Width	180 mm	180 mm	180 mm
