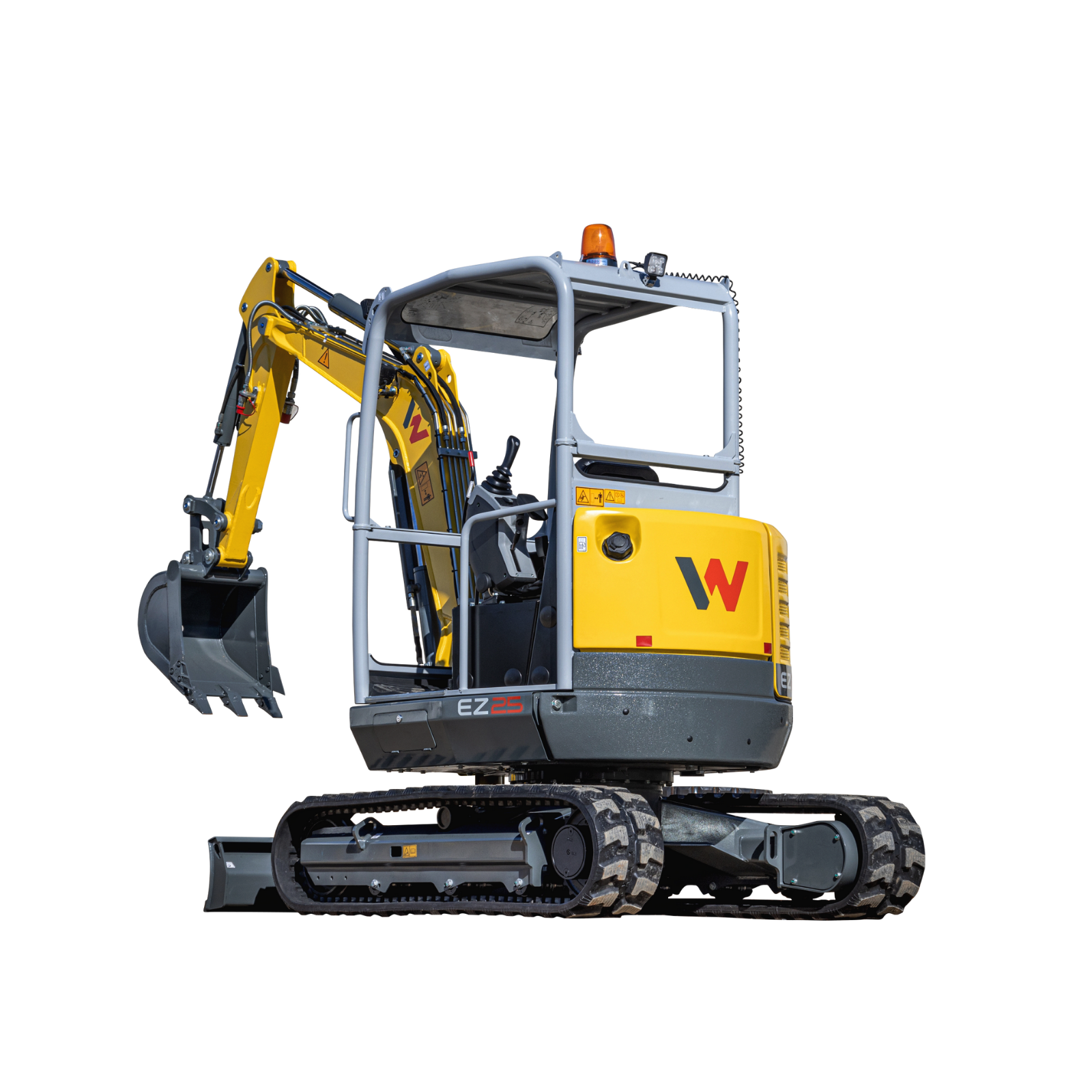

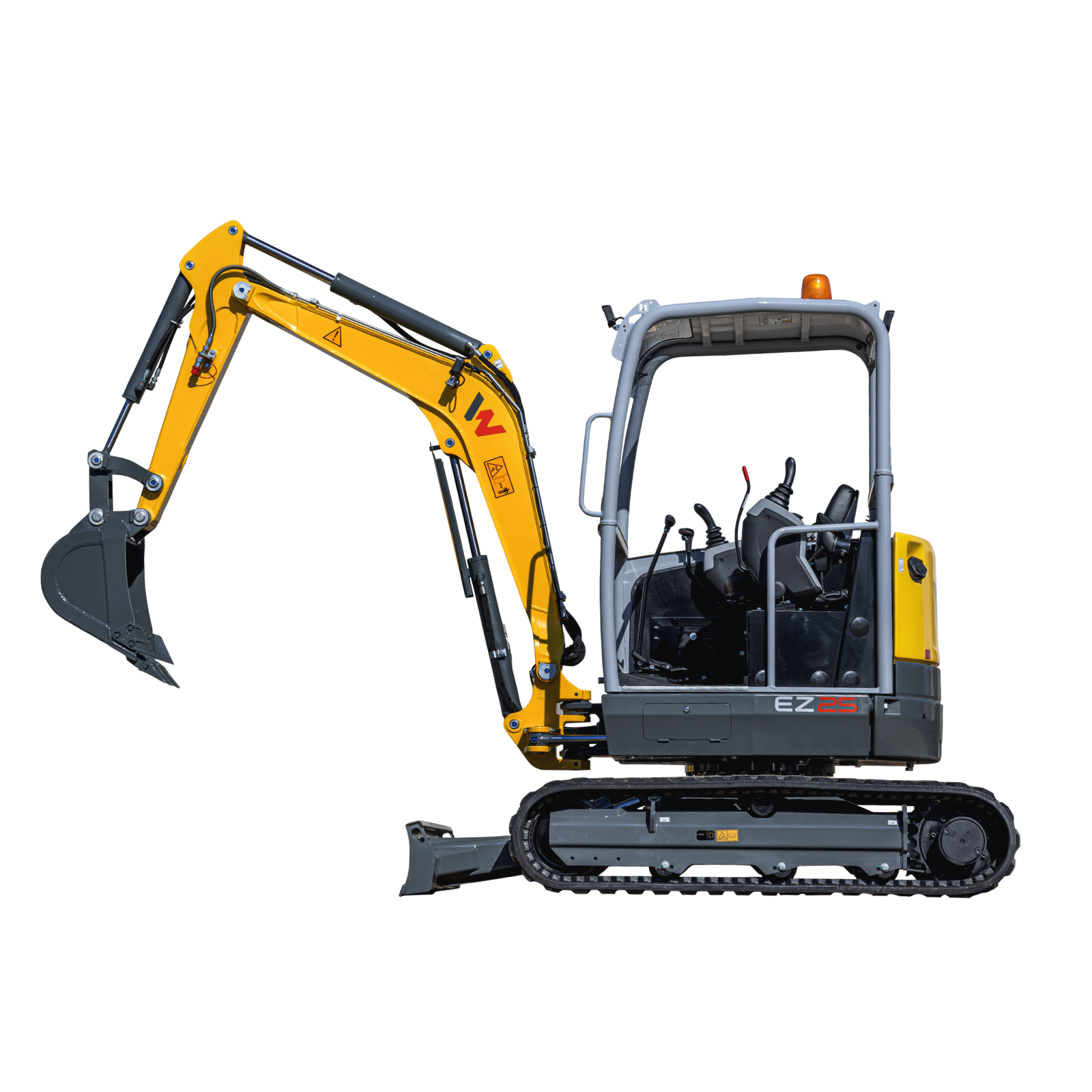

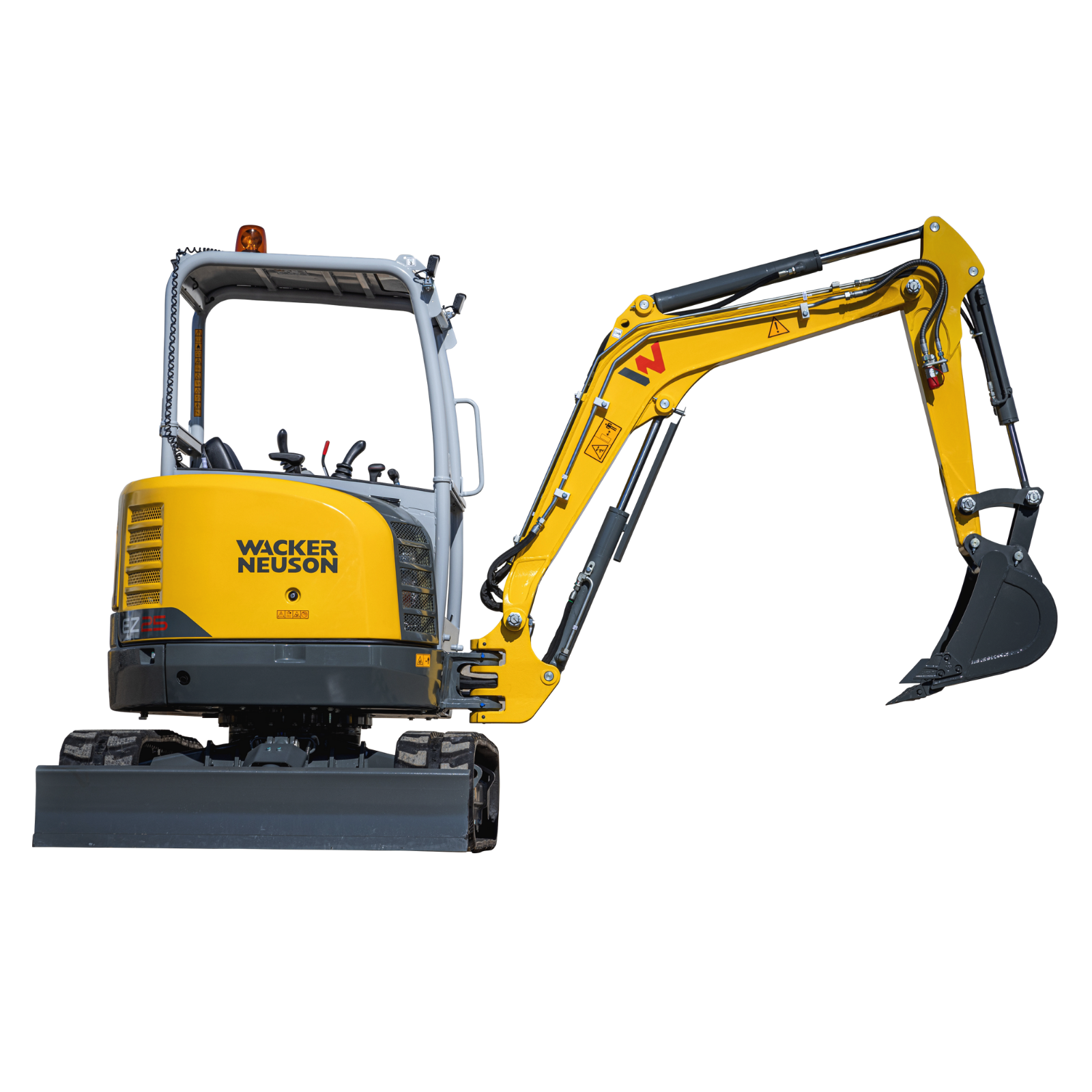

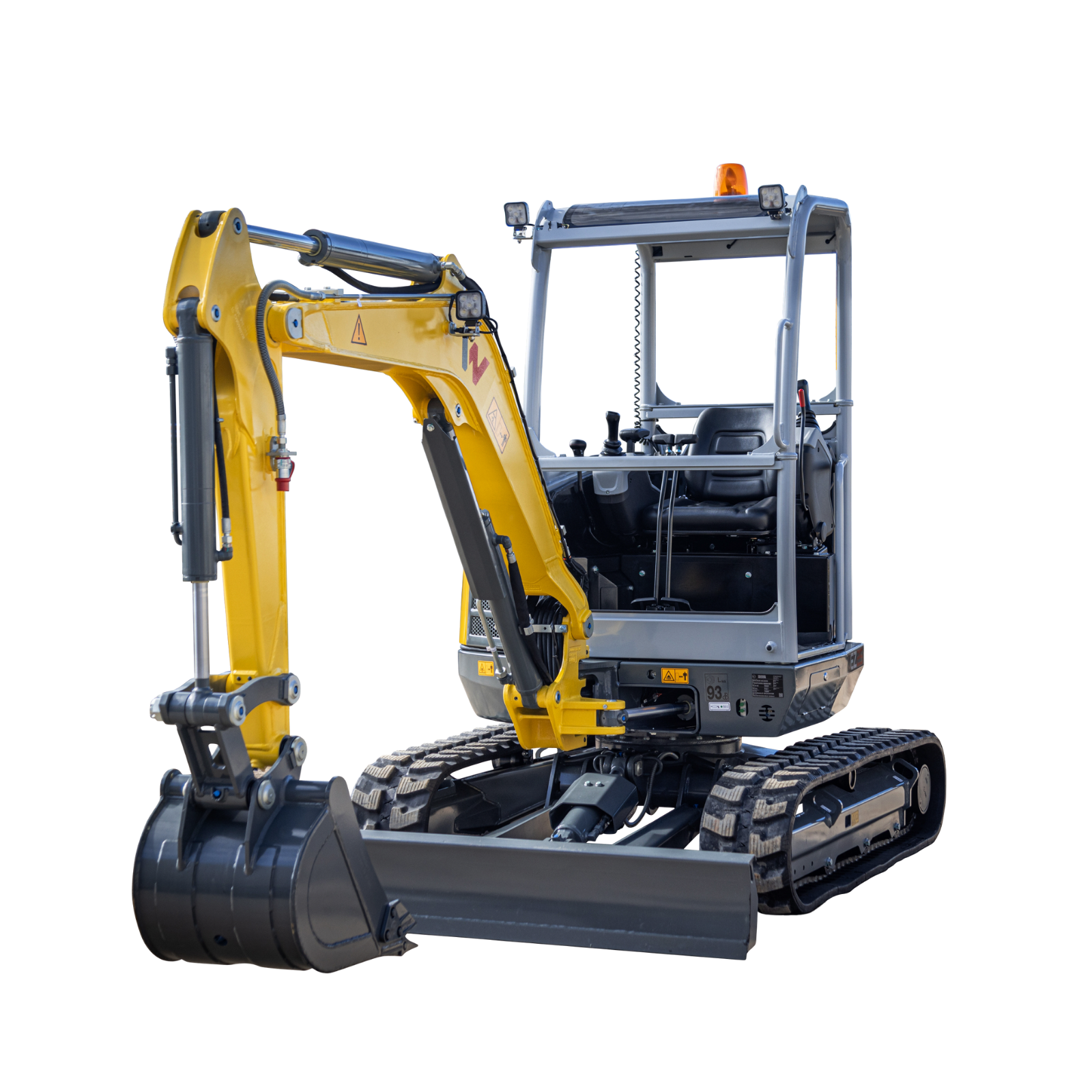

Wacker Neuson EZ25

2.5T Excavator

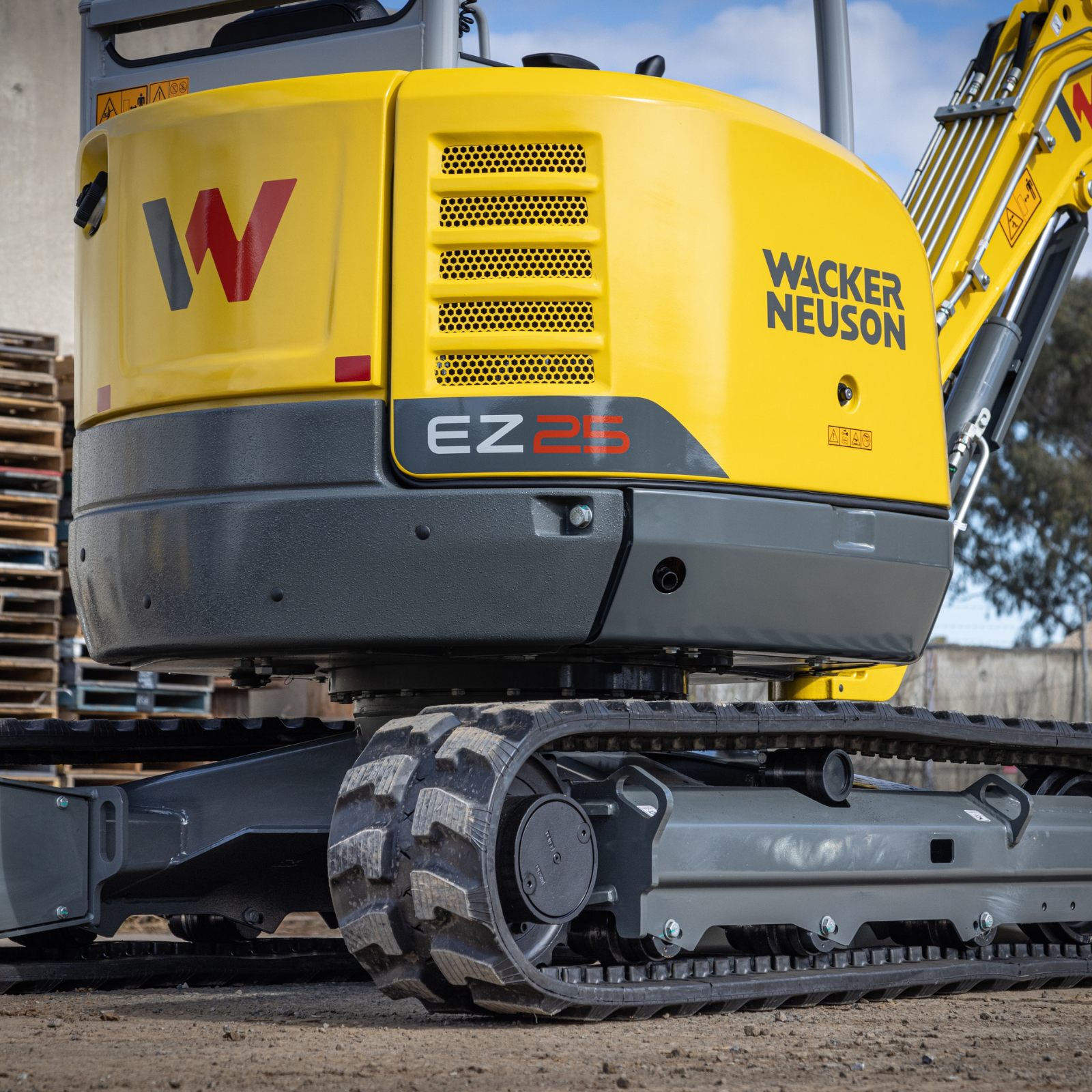

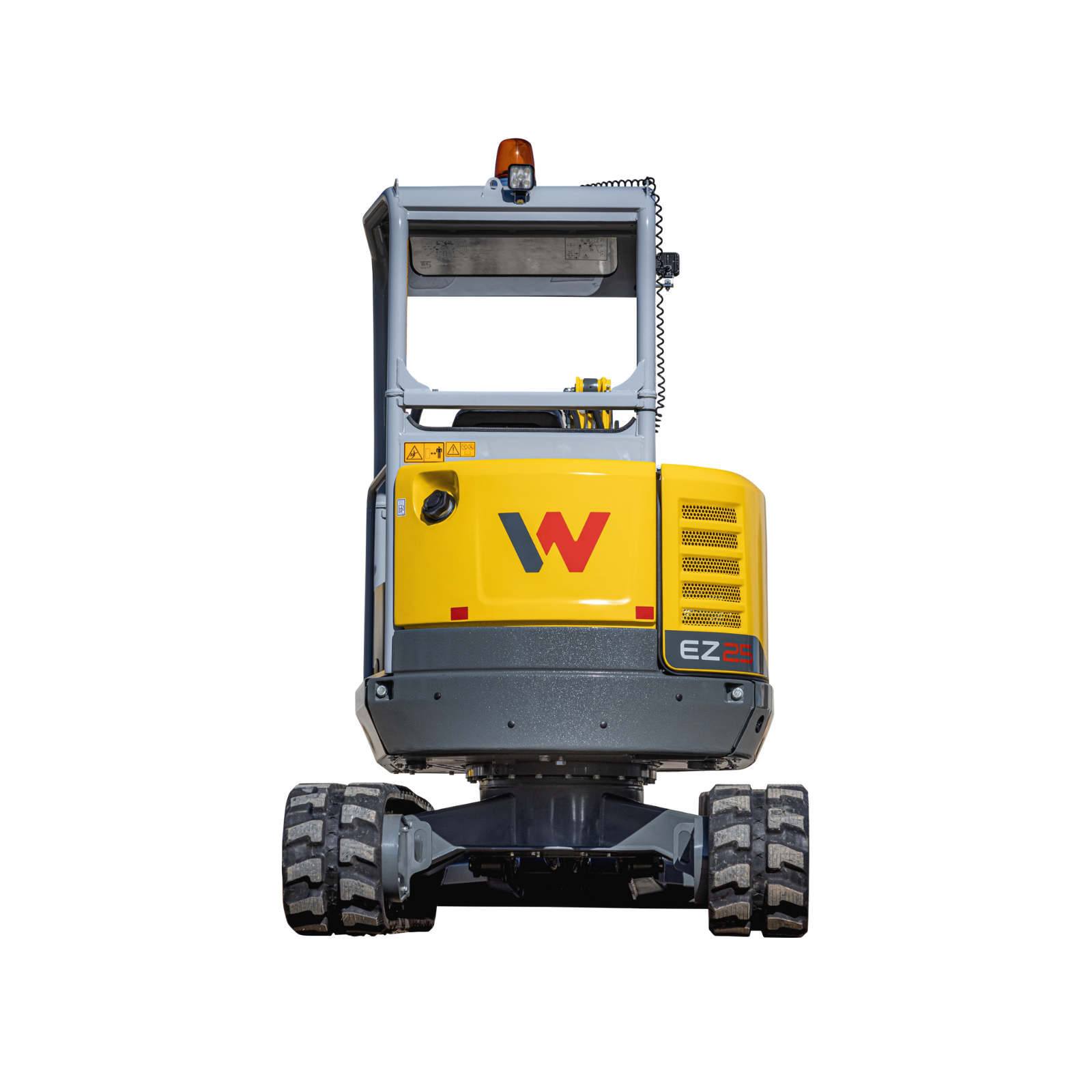

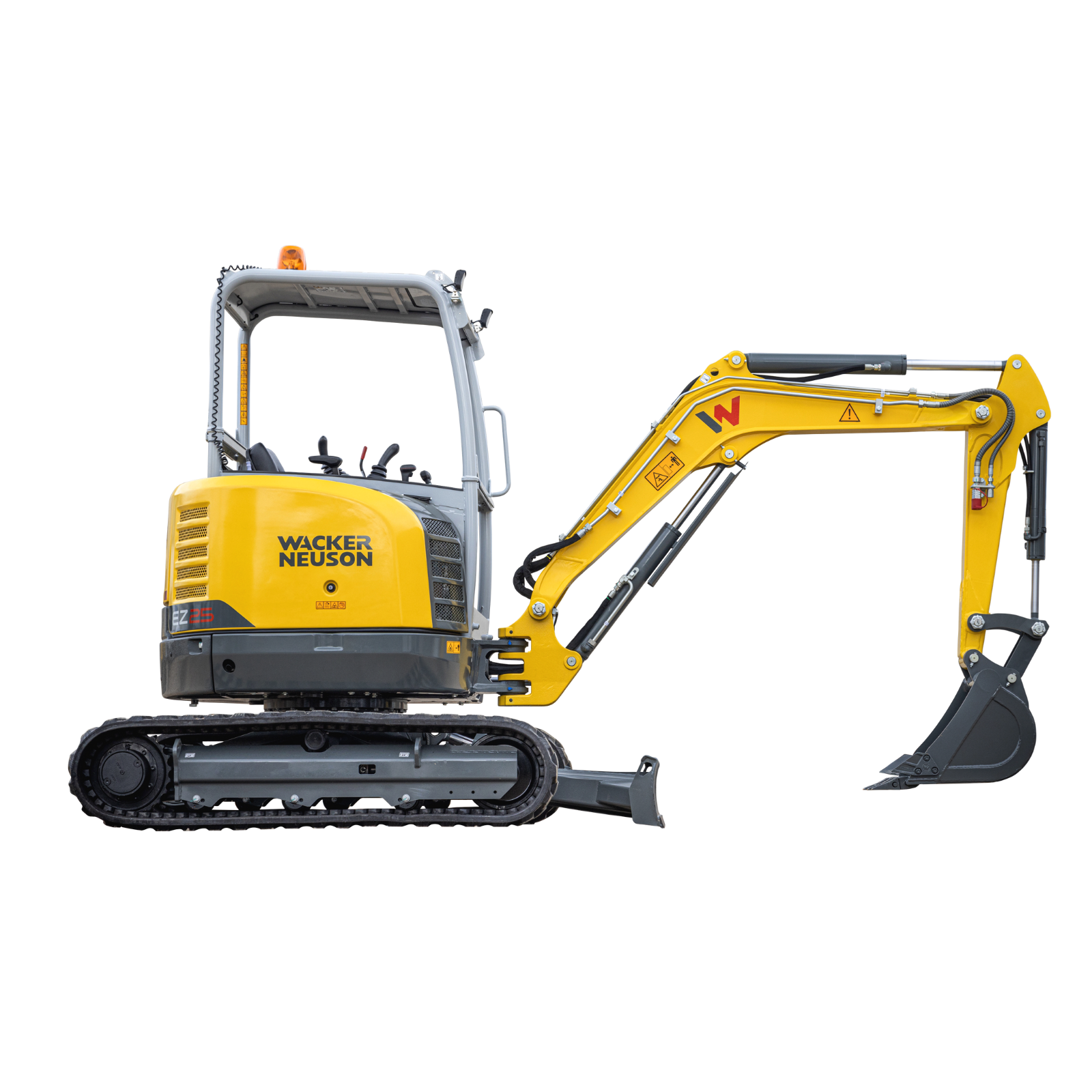

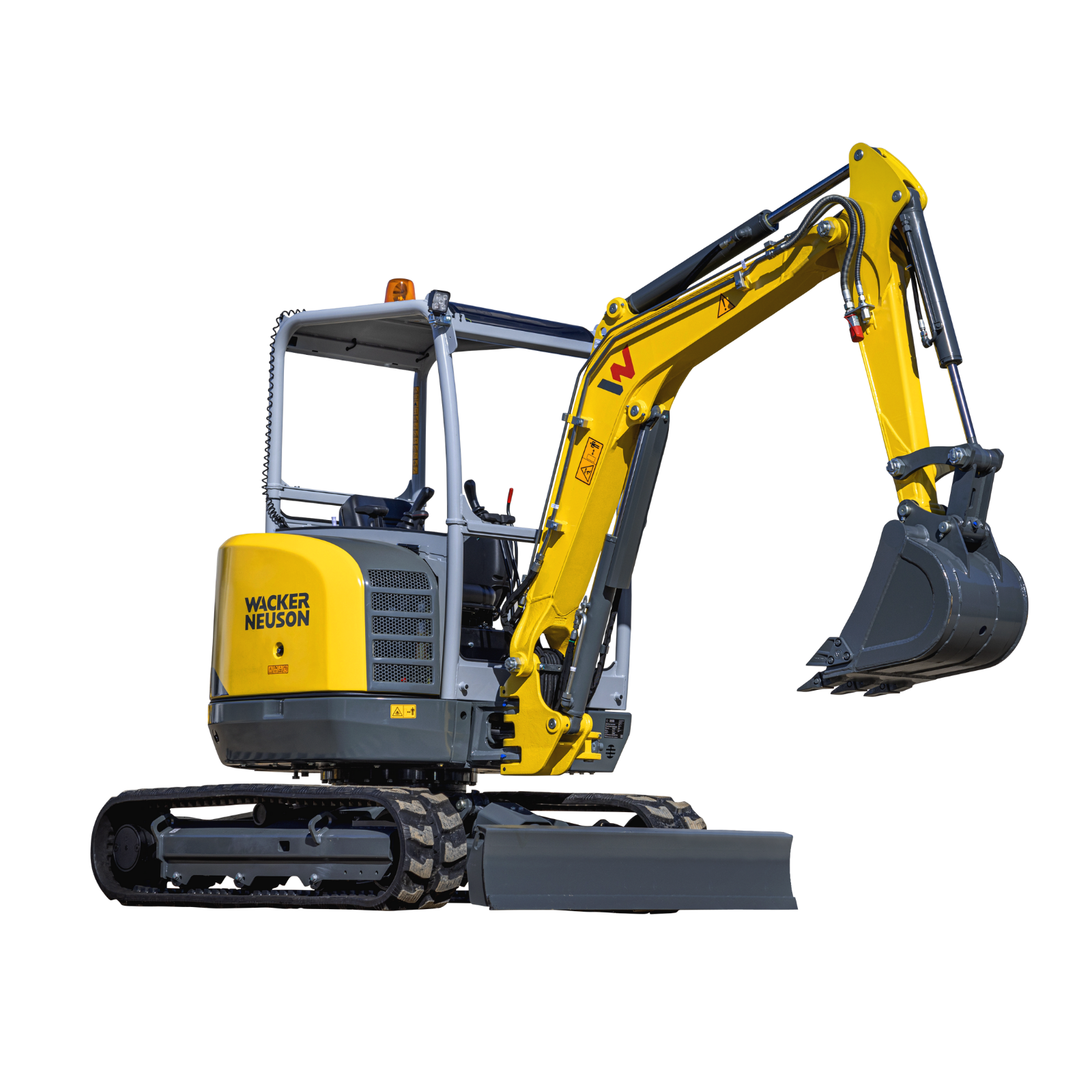

Wacker Neuson EZ25 - 2.5 Tonne Zero Swing Mini Excavator:

The Wacker Neuson EZ25 is the perfect mid sized mini excavator. EZ25 is a great step up in power from a 1.7/1.8t excavator, while still small enough for easy transport, standard with an easily removable split canopy. The EZ25 is feature rich with the same quality and reliability you would expect from all Wacker Neuson equipment.

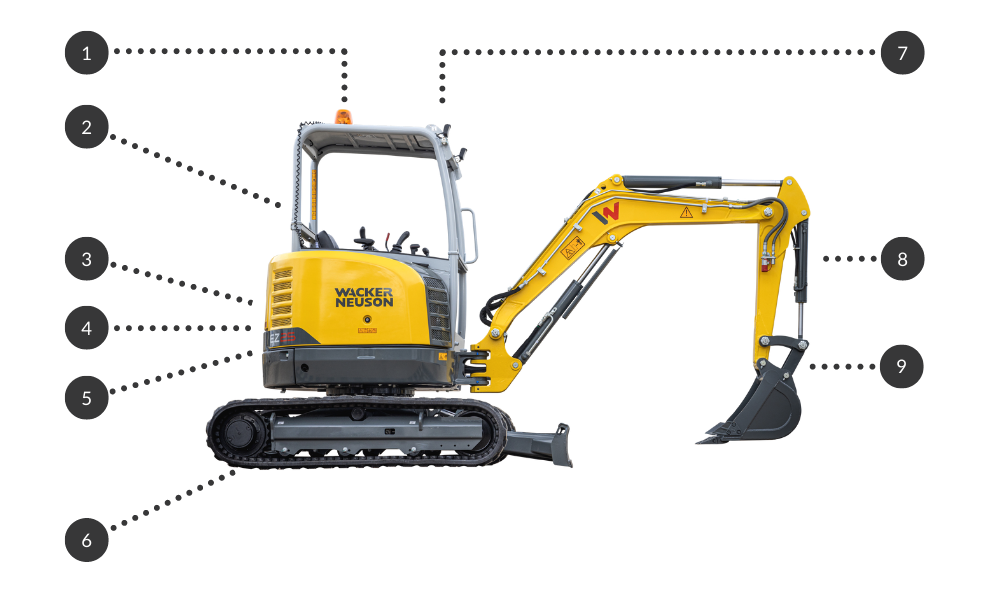

Key Features:



1. Safety
  • Rotating beacons, reverse beepers and warning horns as standard ensures machine is inline with latest safety standards.
  • All machines sold by ACES have an OHS Risk assessment prior to delivery.
  • Working lights on front and rear of canopy, and on boom for optimum safety at night.
  • ROPS certified canopy.
2. Comfort
  • Operators station ergonomically designed for continuous operation without fatigue.
  • Controls ensure comfort and feature large handles.
  • Adjustable arm rests fitted as standard.
  • All levers and switches positioned within easy and comfortable reach.
  • Seat features adjustable suspension for operators of different sizes.

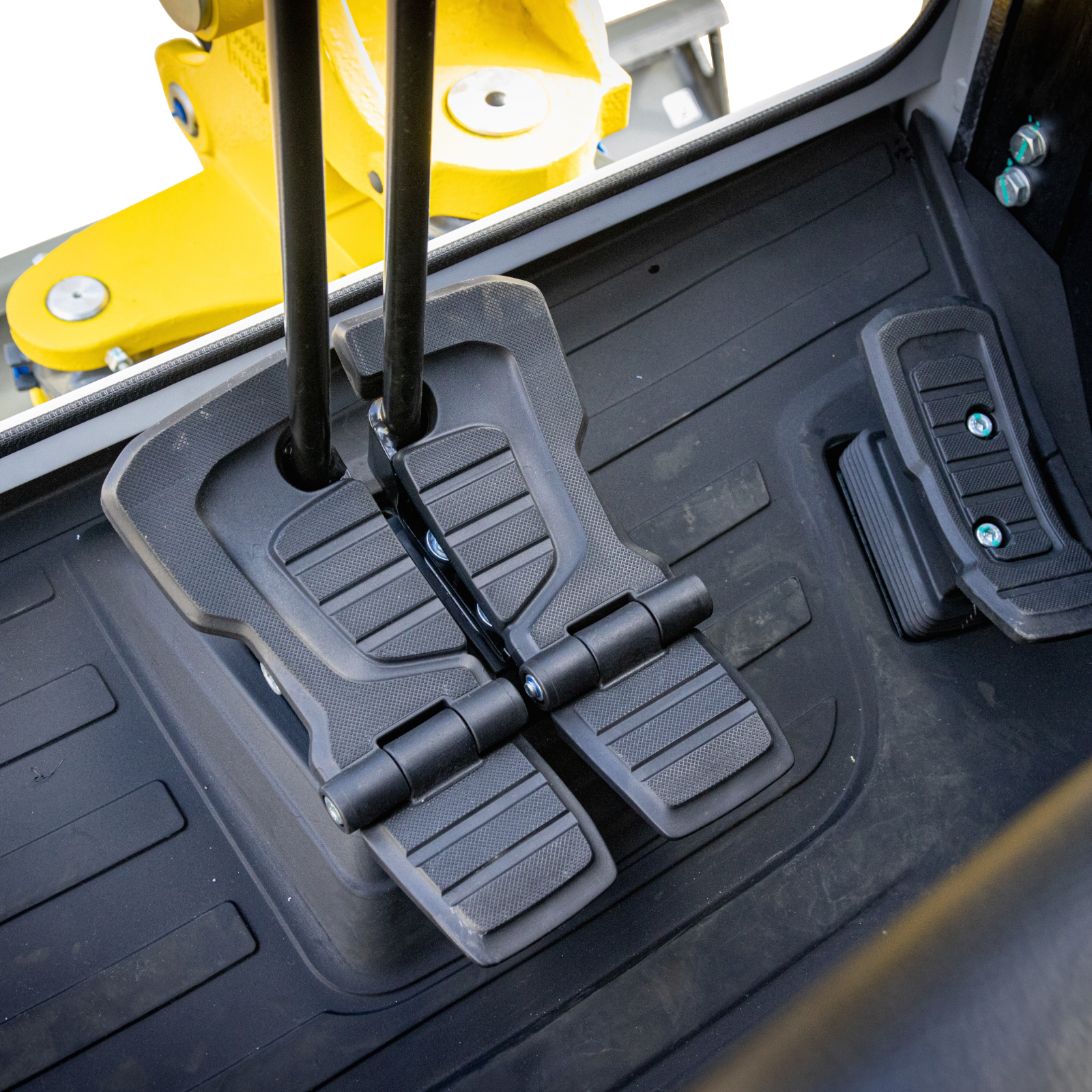

  • Travel levers fitted with large foot pedals for precise track control while operating other controls.
3. Power
  • Powered by Yanmar 3 Cylinder diesel (20.4HP / 15.2 kW).
  • Enough power to ensure machine never stalls at any load.
4. Efficiency
  • Hydraulic system of EZ25 comprises of double variable displacement axial piston pump and two fixed displacement pumps.
  • System uses dedicated pilot pump for smooth and efficient control of machine.
  • High capacity pumps ensure enough flow to control multiple circuits at all times and are reason EZ25 has such high auxiliary flow availability.

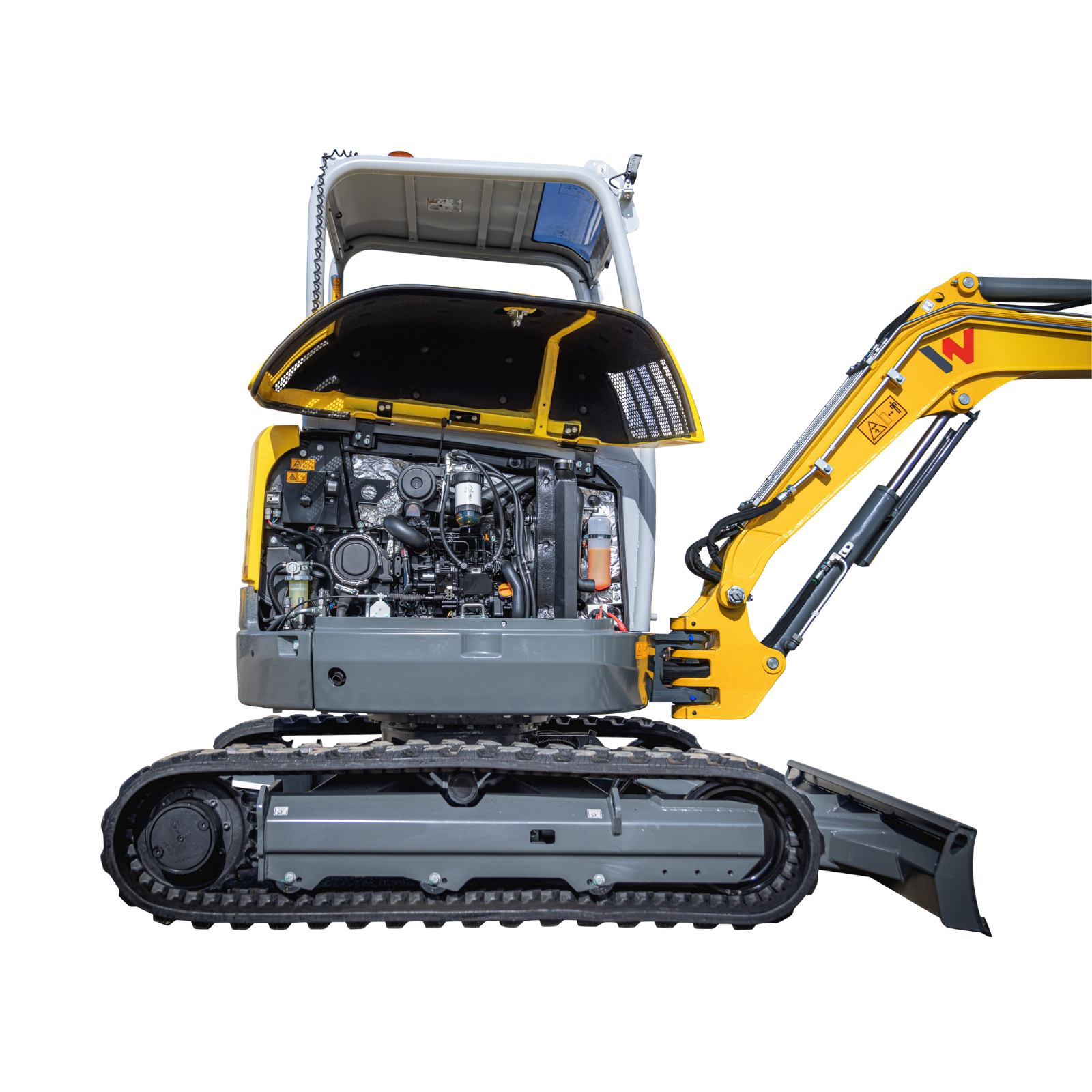

5. Cooling
  • A high efficiency radiator and cooling system keeps the EZ25 cool in high ambient temperatures.
  • Oil cooler and radiator mounted side by side for easy cleaning,
  • Side by side coolers stops common problem of debris building up between coolers mounted in front of each other, ensuring the most efficient cooling.
6. Versatility
  • EZ25 fitted standard with rubber tracks and has stable footing with a 1560mm maximum width.
  • Two speed travel pushes machine along quickly
  • Gradable up to 30º.
  • Pattern change from Backhoe (SAE) to Excavator (ISO)
  • Split ROPS design allows for easy removal and replacement for moving machine underneath low objects such as carports.
7. Vision
  • Canopy designed with perfect visibility.
  • ROPS posts positioned to ensure operator's view is not restricted.
  • Canopy roof fitted with window, allowing bucket visibility at all times.
8. Auxiliary Hydraulics
  • 2 way auxiliary piping standard from factory. Boasts one of the highest auxiliary flow in the industry
  • Massive 50.7L/min.
  • Fitted with dedicated oversized return line for hammer use. This ensures a minimal backpressure so that if running a hammer, it will run at it's most efficient.
9. Hitches
  • Fitted with Wacker Neuson Easy Lock fully automatic quick hitch as standard.
  • Wacker Neuson Easy Lock Powertilt fully automatic quick hitch (optional) also available.

(EZ25)

General:

Transport Weight 2,560 kg
Operating Weight 2,710 kg

Engine:

Manufacturer Yanmar
Model 3TNV76
Construction Liquid-cooled, 3-cylinder diesel
Displacement 1,116cm3
Engine Speed 2,500rpm
Engine Output according to ISO 15.8kW (21.2HP)
Battery Voltage / Capacitance 14V / 44Ah

Hydraulics:

Pumps Double variable and double gear pumps
Max. flow rate 2 x 30.5 + 20.2 + 7.5
Operating Pressure for working and driving hydraulics 225 bar
Operating Pressure for slewing gear 206 bar
Slewing speed 10 rpm
Max. tear out force short / long arm 15.3 kN
Max. breakaway force 22.5 kN

Undercarriage:

Track Width 300 mm
Ground Pressure 0.27 kg/cm3
Number of track rollers 3
Ground Clearance 277 mm
Drive speed 3.8 km/h
Max. gradebility 30º

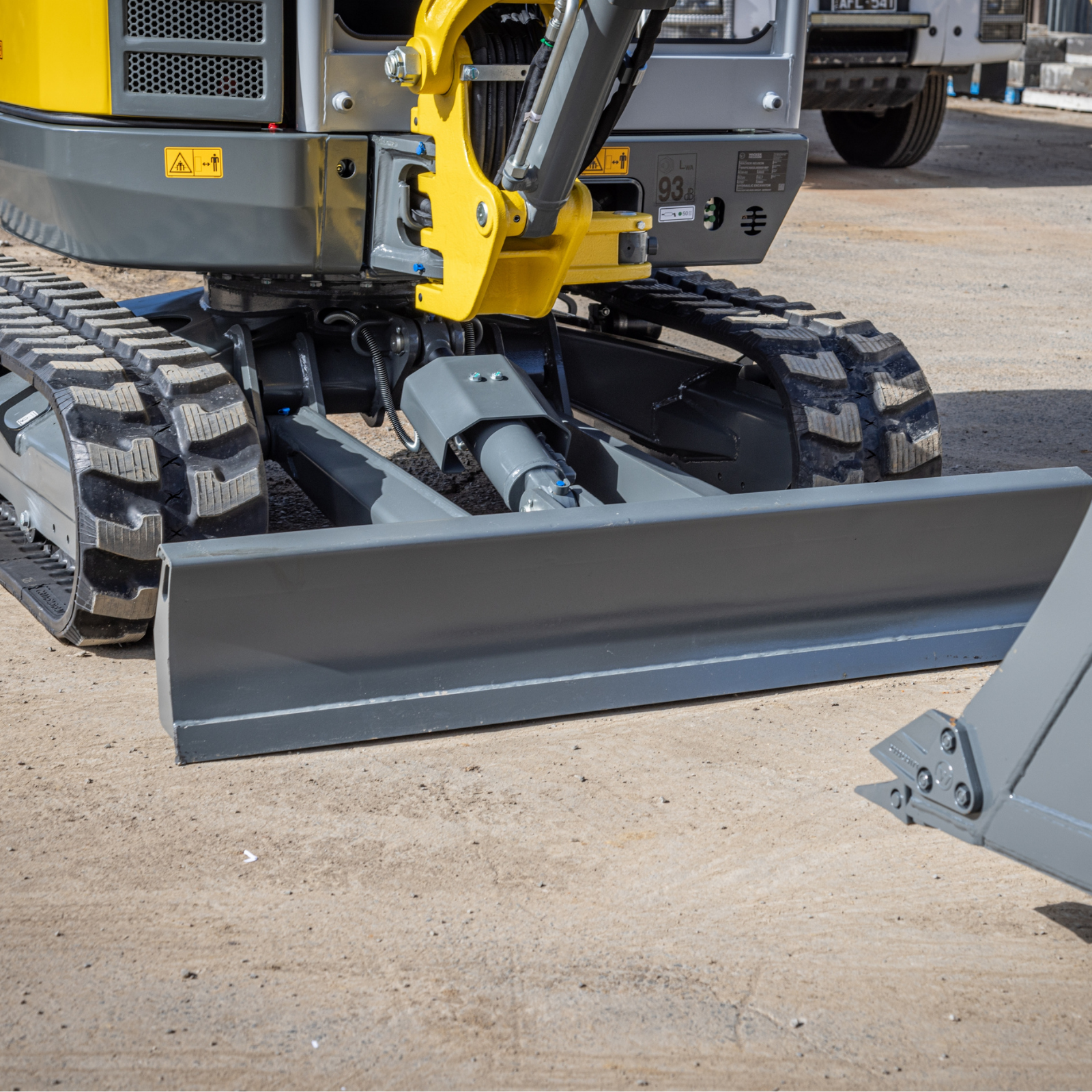

Blade:

Width 1570 mm
Stroke above / below 380 / 419 mm

Capacities:

Hydraulic system 26.5L
Fuel Tank 36L

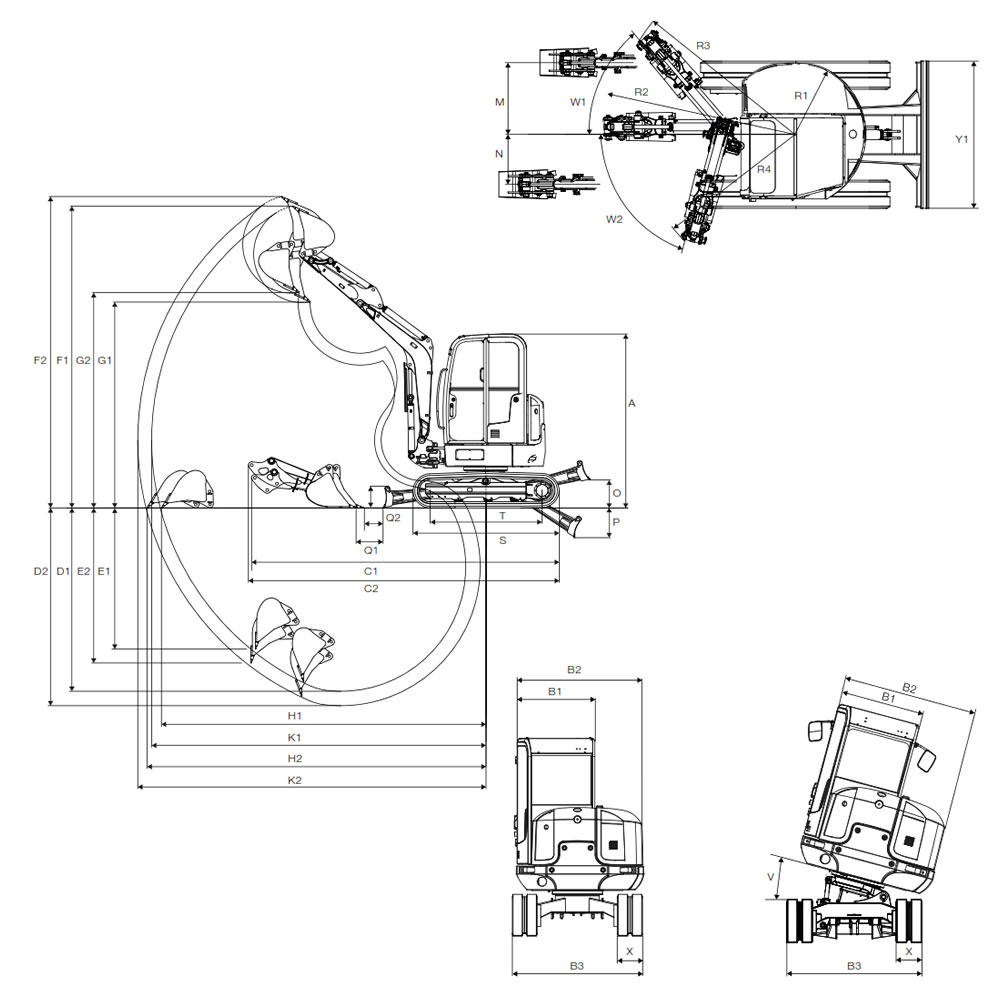

Working Dimensions:

    EZ25
A Height, mm 2,414
B1 Width of the cabin, mm 986
B2 Width of the revolving superstructure, mm 1,340
B3 Width of the undercarriage, mm 1,570
C1 Transport length, mm 4,266
D1 Max. digging depth, mm 2,537
E1 Max. vertical recess depth, mm 1,949
T1 Max. recess height, mm 4,176
G1 Max. dumping height, mm 2,847
H1 Max. ground coverage, mm 4,490
K1 Max. digging radius, mm 4,624
M Max. boom offset to centre of bucket, right side, mm 765
N Max. boom offset to centre of bucket, left side, mm 531
O Max. lifting height of dozer blade above subgrade, mm 387
P Max. scraping depth of dozer blade below subgrade, mm 412
Q1 Clearance of bucket dozer blade (short dipper arm), mm 259
Q2 Clearance of bucket dozer blade (long dipper arm), mm 354
R1 Min. tail swing radius, mm 759
R2 Boom swing radius, centre, mm 2,080
R3 Boom swing radius, right, mm 1,960
R4 Boomswing radius, left, mm 1,641
S Total travelling gear length, mm 2,006
T Travelling gear length of the sprocket guide wheel, mm -
W1 Max. swing angle of the arm system to the right, º 50
W2 Max. swing angle of the arm system to the left, º 75
X Chain width, mm 300
Y1 Dozer blade width, mm 1,570
Z Dozer blade height, mm 300

Specifications subject to change without notice due to continual product development
