Wacker Neuson ET08

Tracked Excavator

Wacker Neuson ET08 - 1.0 Tonne Mini Excavator:

The Wacker Neuson ET08 stands out as the most compact excavator within the Wacker Neuson range. With a width of just 700mm, it is designed to easily pass through a standard doorway. The innovative front folding ROPS enhances the excavator's maneuverability, providing a tighter turning radius when folded down.

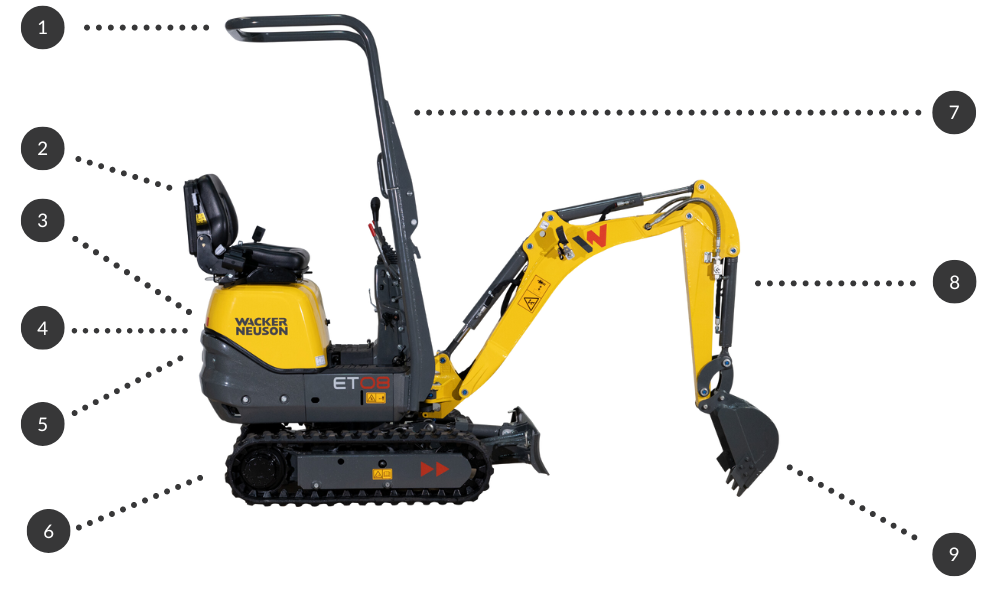

Key Features:



1. Safety
  • Rotating beacons, reverse beepers and warning horns as standard to ensure machine is inline with latest safety standards.
  • All machines sold by ACES have and OHS Risk assessment prior to delivery.
  • Working light on boom for optimum safety at night.
  • Inovative folding ROPS bar, the safest available on a mini excavator.
  • Easily folded in the down position to fit under carports and through doorways, then repositioned in the safe upright position once through the door.
2. Auxiliary Hydraulics
  • Two way auxiliary piping standard from the factory boasting the highest auxiliary flow in the industry.
  • Massive 22 L/min.
3. Hitch
  • ET08 available with a Half Hitch (standard).
4. Comfort

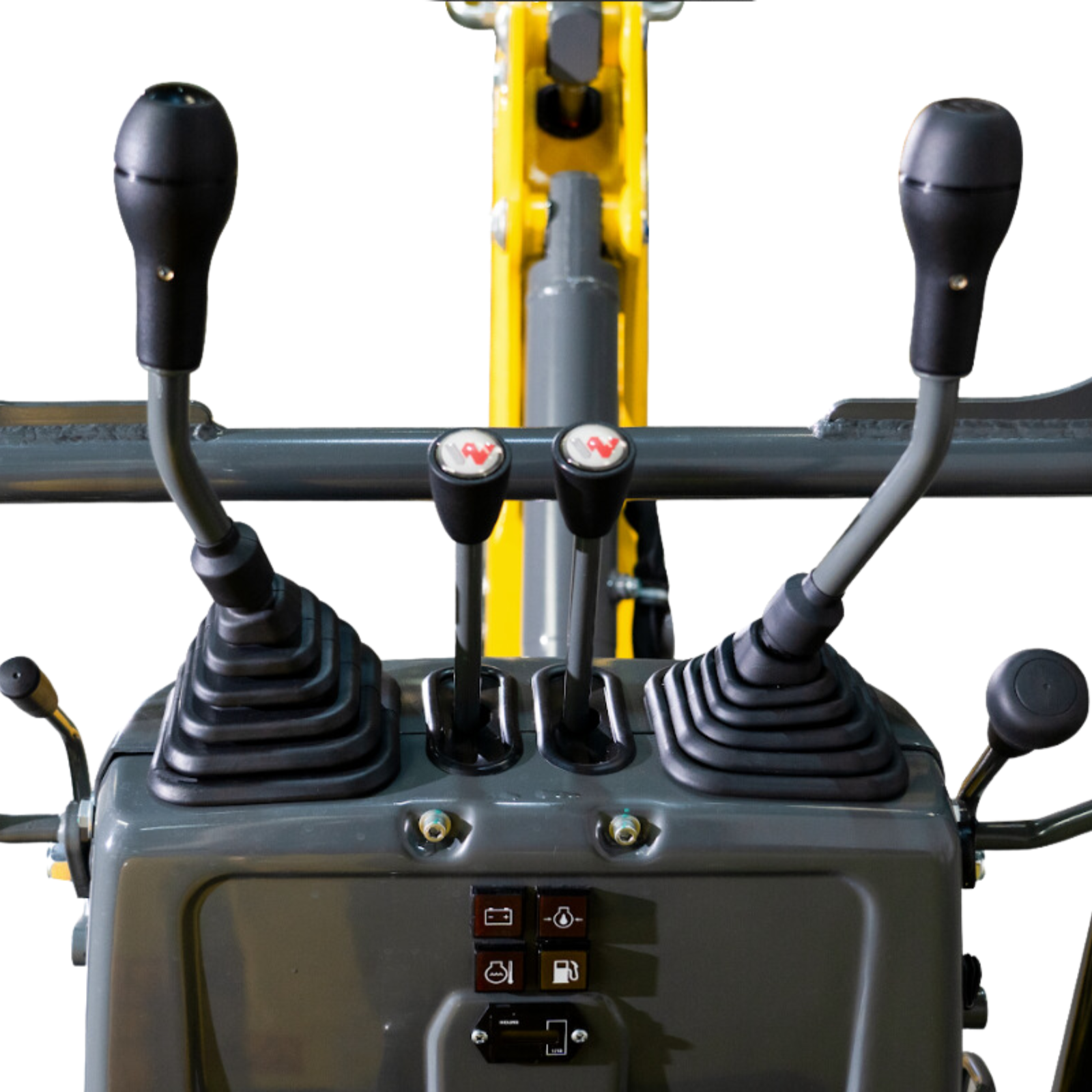

  • Operators station ergonomically designed for continous operation without fatigue.
  • Controls ensure comfort and feature large handles.
  • All levers and switches positioned within easy and comfortable reach.
  • Seat fitted with water drain so if left in the weather, the seat won't hold water.
5. Power
  • Powered by Yanmar 3 Cylinder diesel (13HP / 9.6 kW).
  • Enough power to ensure machine never stalls at any load.
6. Efficiency
  • Twin fixed displacement pump.
  • Class leading hydraulic efficiency.
7. Cooling
  • A high efficency radiator and cooling system keeps the 803 cool in high ambient temperatures.
  • Large hydraulic tank for perfect heat dispertion
8. Versatility
  • ET08 fitted with telescopic undercarriage as standard.
  • 700mm at narrowest to fit through tight gaps
  • 830mm expanded for best stability.
  • Pattern change from Backhoe (SAE) to Excavator (ISO)

(ET08)

General:

Transport Weight 990 kg

Engine:

Manufacturer Yanmar
Model 3TNV70
Construction Water cooled model, 3-cylinder diesel engine
Displacement 854cm³
Engine Speed 2,100rpm
Engine Output according to ISO 9.6kW (13HP)
Battery Voltage / Capacitance 12 V, 20 Ah

Hydraulics:

Pumps 2 gear pumps
Max. flow rate 11.4 + 11.4 I/min
Operating Pressure for working and driving hydraulics 170 bar
Operating Pressure for slewing gear 70 bar
Slewing speed 8 rpm
Max. tear out force short / long arm 4.5kN
Max. breakaway force 8.9kN

Undercarriage:

Track Width 180mm
Ground Pressure 0.25 kg/cm²
Number of track rollers 2
Ground Clearance 127mm
Drive speed 1.8km/h
Max. gradebility 30º (58%)

Blade:

Width 700/860mm
Stroke above / below 200mm

Capacities:

Hydraulic system
Fuel Tank

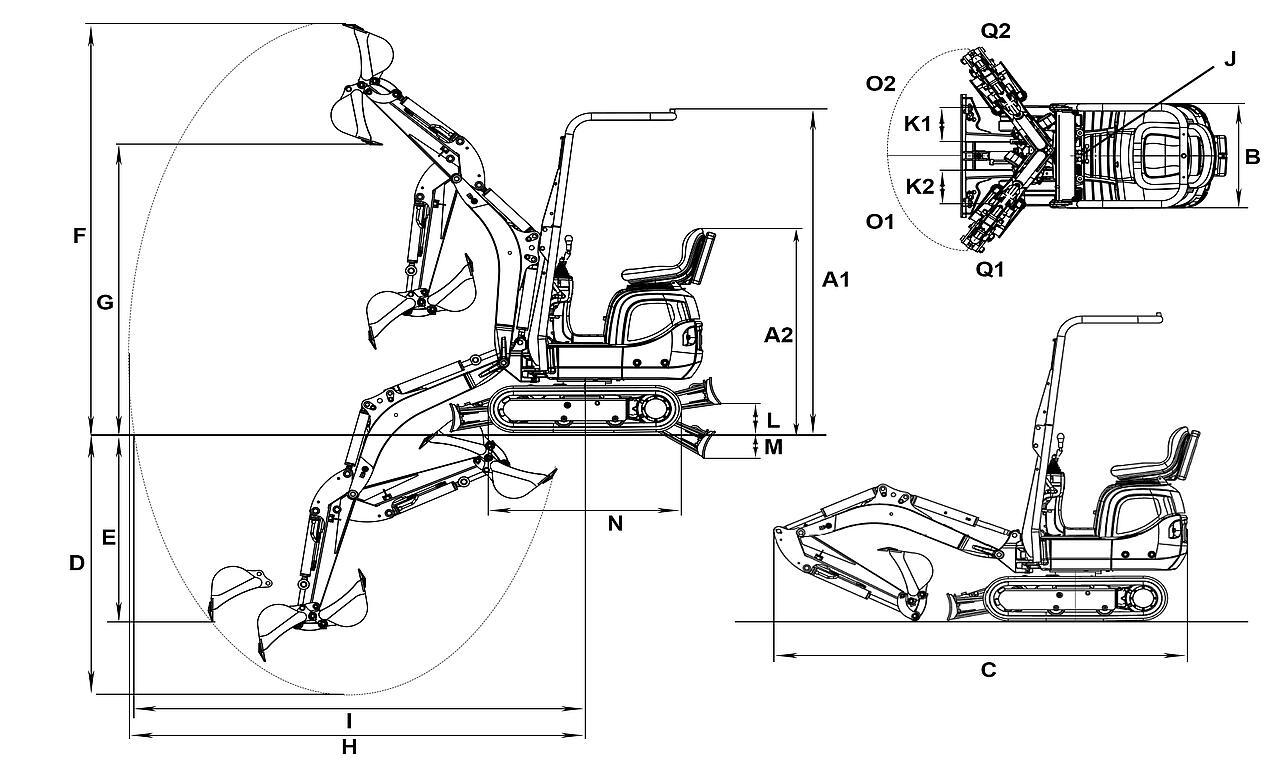

Working Dimensions:

A1 Height ROPS 2,261 mm
A2 Height 1,427 mm
B

Width of upper carriage

730 mm

B Width travel gear retracted 700 mm
C Transport length 2,828 mm
D Digging depth max. 1,736 mm
E Piercing depth max. 1,320 mm
F Piercing height max. 2,863 mm
G

Dumping Height max.

2,012 mm

H



Digging radius max.



3,090 mm

I Max. reach at ground level 3,028 mm
J Tail swing radius 747 mm
K1 Boom offset max. (to center of bucket left side) 245 mm
K2 Boom offset max. (to center of bucker right side) 283 mm
L Stacking height max. (dozer blade above surface) 194 mm
M Digging depth max. (dozer blade below surface) 178 mm
N Length travel drive 1,220 mm
O1 Boom swing radius left 55 °
O2 Boom swing radius right 56 °
SKU ET08
