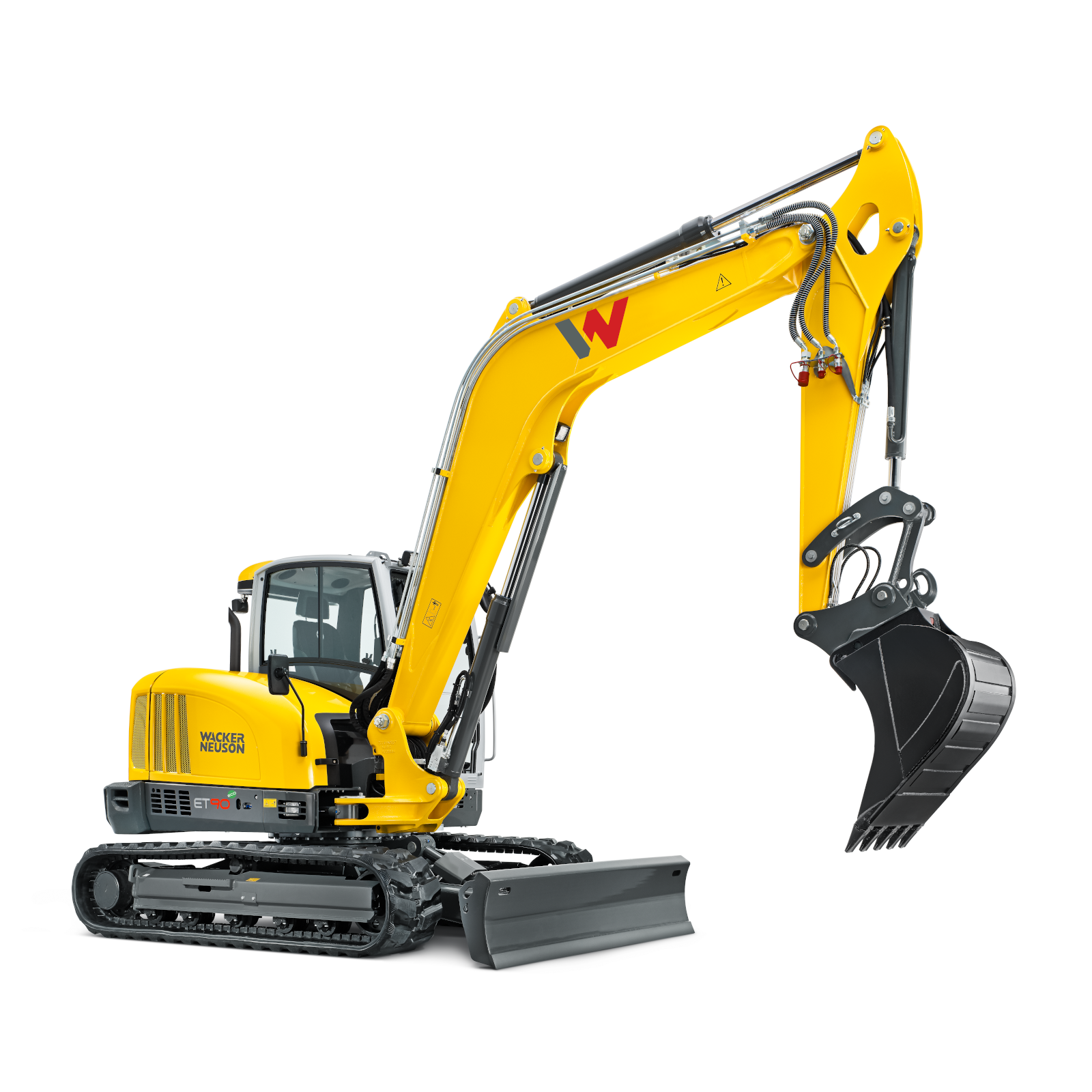

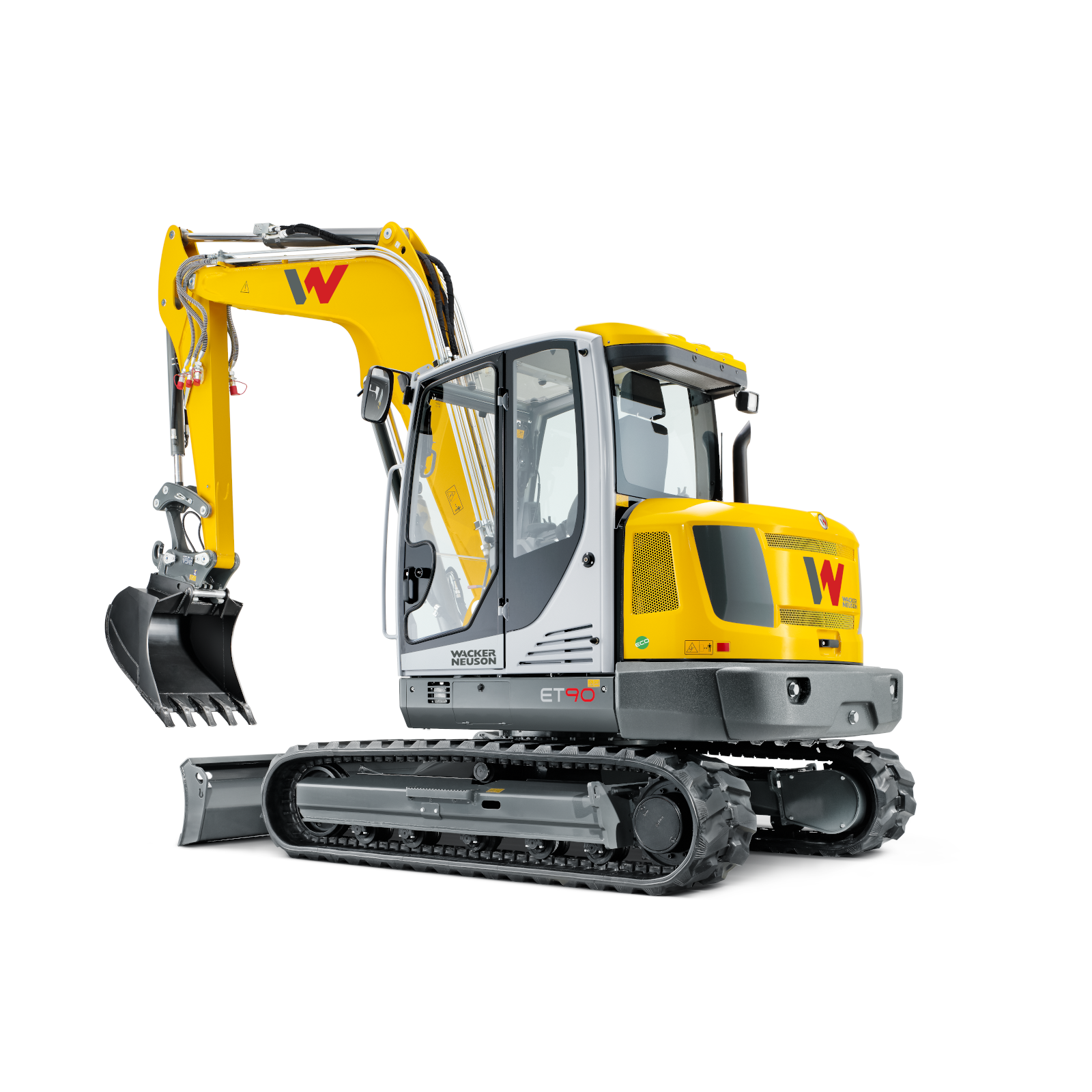

Wacker Neuson ET90 - 10.0 Tonne Compact Excavator:

The Wacker Neuson ET90 is the most powerful excavator in the 9-10t class available in Australia, featuring a huge 73.8kN breakout force, 55kW engine and a 1029kg SWL.  It features the latest technology available for compact excavators including fully climatic control air-conditioning, jog dial controlled 7" LCD screen for machine functions and LUDV ultra efficient hydraulic system.  Wacker Neuson Equipcare GPS system is fitted as standard with 2 years complimentary tracking and remote diagnosis availability.  ET90 comes standard with a 5 Year / 5000 hour Warranty.

Key Features:

1. Safety
  • Rotating beacons, reverse beepers and warning horns as standard, ensures machine is inline with latest safety standards.
  • All machines sold by ACES have an OHS Risk assessment prior to delivery.
  • LED Working lights on front and rear of canopy, on boom, and on both sides for optimum safety at night, providing full-360 degree illumination.
  • Safety valving fitted to boom and dipper cylinders to lock cylinders in case of hose failure.
  • Well-designed cabin shape and offset arm positioning for outstanding operator vision.
2. Comfort
  • Climatic control air conditioning system.
  • Operators station ergonomically designed for continuous operation without fatigue.
  • Controls ensure comfort and feature large handles.
  • Adjustable arm rests fitted as standard.
  • All levers and switches positioned within easy and comfortable reach.
  • Seat features adjustable suspension for operators of different sizes.
  • Travel levers fitted with large foot pedals for precise track control while operating other controls.
  • Fully retractable front glass panel.
  • Right hand side window features two way opening.
  • LCD Screen ergonomically position, control junction via jog dial control without the need to lean and reach forward.
3. Efficiency
  • Hydraulic system of ET90 comprises variable displacement axial piston pump with load-independent flow distribution (LUDV).
  • The most advanced hydraulic system for compact excavators, also the most efficient system.
  • High capacity pump ensures enough flow to control multiple circuits at once and is the reason ET90 has such high flow auxiliary flow availability.
  • Up to 20% reduction in fuel consumption over previous model and much higher savings in comparison to competitors.
  • Ultra-efficient hydraulic hose routing and bend radius’ to reduce heat and pressure loss.

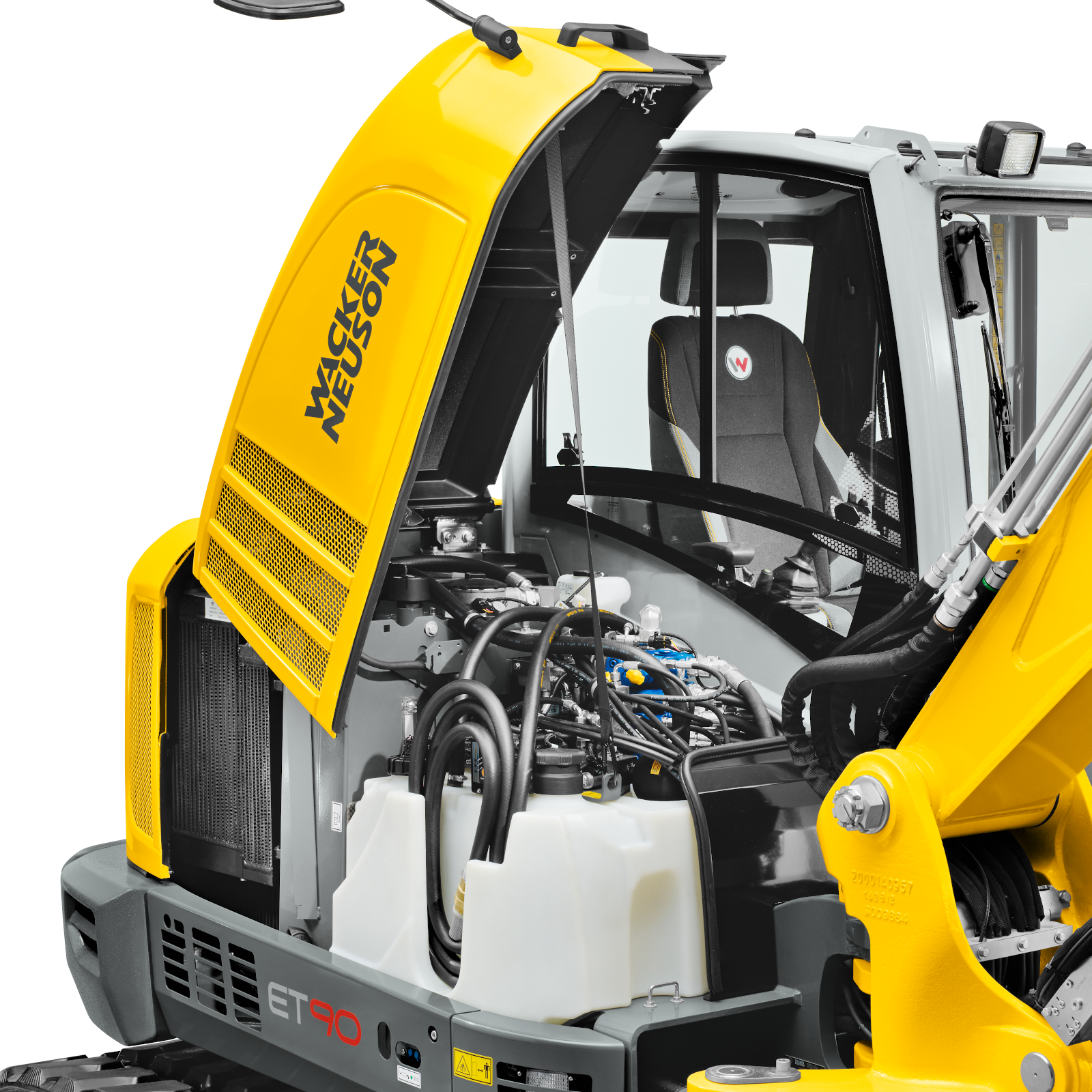

4. Cooling
  • A high efficiency radiator and cooling system keeps the ET90 cool in high ambient temperatures.
  • Oil cooler and radiator mounted side by side for easy cleaning.
  • Side by side coolers stop the common problem of debris building up between coolers as with coolers mounted in front of each other. This ensures the most efficient cooling.
  • Integrated expansion chamber in radiator top tank, no overflow bottle necessary, most advance system on market.
5. Vision
  • Cabin designed with perfect visibility.
  • ROPS posts positioned to ensure operator's view is not restricted.
  • Cabin roof is fitted with window, allowing bucket visibility at all times.
  • Offset arm position for greater visibility and safety.
  • Retractable roof window curtain as standard
6. Auxiliary Hydraulics
  • Two way auxiliary piping standard from factory boasting one of the highest auxiliary flow in the industry.
  • Massive 113L/min.

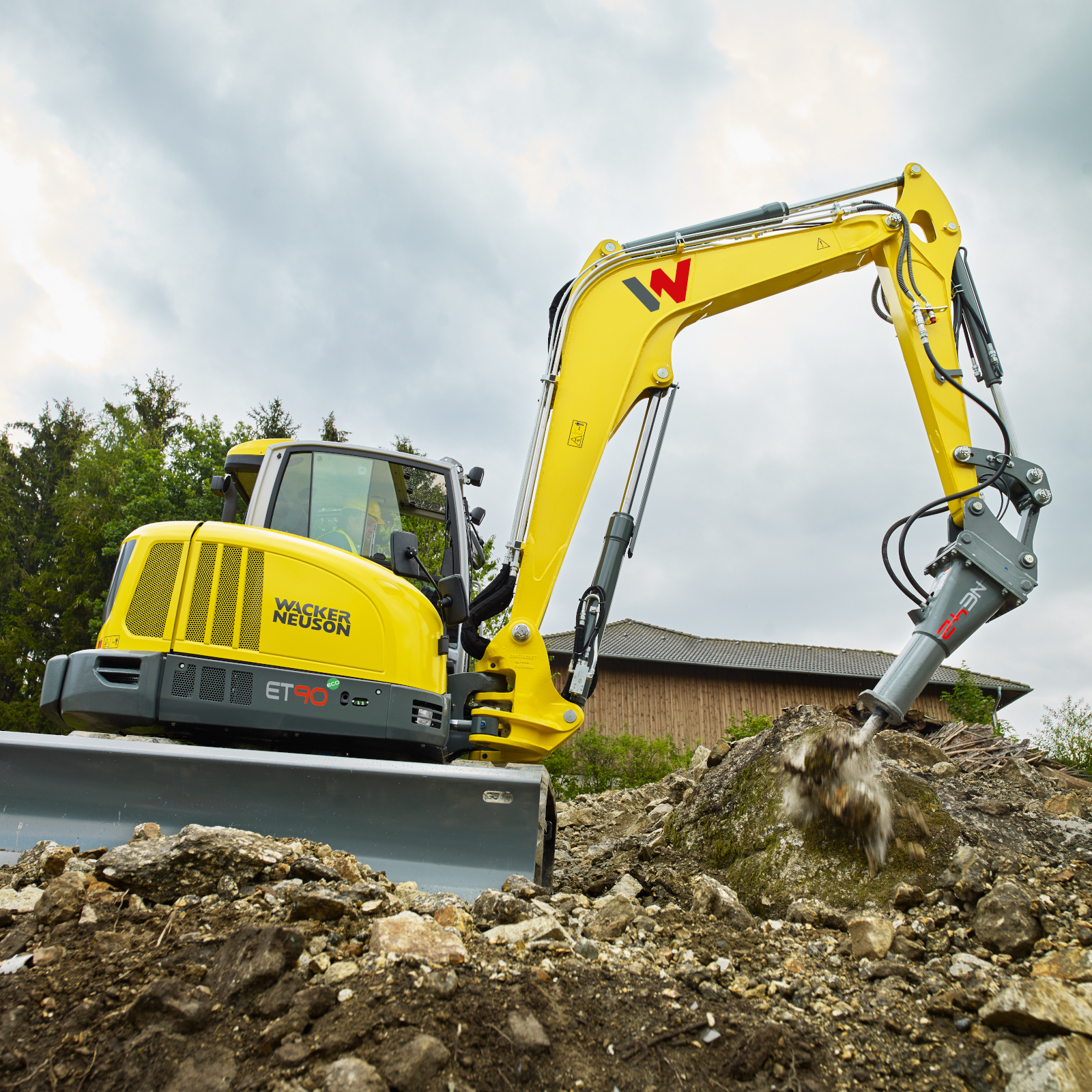

  • Fitted with dedicated oversized return line for hammer use. This ensures minimal backpressure. So that if running a hammer it will run most efficiently.
  • Programable auxiliary hydraulics via jog dial control. Flow rates and fully customisable, ie, thumb wheel can be selected to ramp to full power and lock at the touch of a button (flail mower use), or full variable control (grab).
7. Power
  • Highest bucket and arm breakout forces in class at 73.8kN.
  • Unique 3 Point Linkage for far superior breakout forces.
  • Powered by Deutz TCD2.9 supper-efficient Turbo Diesel engine (55kW).
  • Smooth power with automatic idle control.
  • Variable Axial Piston Pump with LUDV load sensing system, load-independent flow distribution.
  • 300bar operating pressure.
8. Hitches
  • Fitted with Wacker Neuson Easy Lock fully automatic quick hitch as standard.
  • Wacker Neuson Easy Lock Powertilt fully automatic quick hitch (optional) also available as retro fit and factory fit.
9. Versatility
  • Jog dial control for machine modes and junction.
  • 200° bucket rotation from 3 point linkage.
  • The ET90 is fitted standard with rubber tracks and has a stable footing and compact dimensions at 2250mm wide.
  • Two speed travel pushes the machine along quickly, fastest travel speed on the market.
  • Pattern change from Backhoe (SAE) to Excavator (ISO) via electronic control.
  • 8 oversized well position tie down points.
  • Additional counterweight option available for increase performance and stability.

(ET90)

Weights:

Transport Weight 8,348 kg
Operating Weight 10,506 kg
Maximum Payload 753 kg

Engine:

Manufacturer Perkins
Model 904J - E28T
Construction 4-cylinder, diesel, liquid-cooled
Displacement 2,920 cm³
Power 55.4 kW (74.3 HP)
Torque 300 Nm

Operating Data:

Max. Bucket Breakout Force 74 kN
Max. Arm Breakout Force 46 kN
Max. Travel Speed 5 km/h
Max. Slewing Speed 8.5 RPM
Max. Dig Depth 4,625 mm
Max. Width 2,250 mm

Hydraulics:

Pumps Twin Variable Displacement Axial Piston Pump + Twin Gear Pump
Maximum Flow Rate (System) 175 L/min
Auxiliary Flow Rate 75 L/min
Auxiliary 2 Flow Rate 25 L/min
System Pressure 300 Bar
Slewing Pressure 180 Bar
Auxiliary Pressure 210 Bar

Undercarriage:

Track width 450 mm
Construction Planetary Gear Reduction System
Number of Track Rollers 5 per side + Idler Wheel + Central Carrier
Ground pressure 0.70 kg/cm²
Ground clearance 370 mm
On Ground Track Length 2,826 mm
Parking Brake Hydraulic


Capacities:

Hydraulic tank 92 L
Fuel tank 85 L
Battery 12V / 110Ah

Working Dimensions:



 Key   Description Monobloc Boom Articulated Boom
  Height of dozer blade 501 mm 501 mm
  Track width 450 mm 450 mm
A1 Height with cab 1,001 mm 2,564 mm
A2 Total height with rotating beacon 2,743 mm 2,743 mm
B1 Width of upper carriage 2,008 mm 2,019 mm
B2 Width of cab 1,001 mm 1,001 mm
B3 Width travel gear 2,252 mm 2,252 mm
B4 Widht of dozer blade 2,225 mm 2,252 mm
C Trasnport length short shovel arm 7,122 mm 6,473 mm
C Transport length long shovel arm 7,145 mm 6,696 mm
D Digging depth max., short shovel arm 4,328 mm 4382 mm
D Digging depth max., long shovel arm 4,629 mm 4,682 mm
E Piercing depth max., short shovel arm 3,194 mm 3,200 mm
E Piercing depth max., long shovel arm 3,477 mm 3,459 mm
F Piercing height max., short shovel arm 7,328 mm 7,937 mm
F Piercing height max., long shovel arm 7,535 mm 8,202 mm
G Dumping height max., short shovel arm 5,070 mm 5,678 mm
G Dumping height max., long shovel arm 527 mm 5,945 mm
H Digging radius max., short shovel arm 7,336 mm 7,602 mm
H Digging radius max., long shovel arm 7,625 mm 7,895 mm
I  Max. reach at ground level (short shovel arm) 7,184 mm 7,469 mm
I Max. reach at ground level (long shovel arm) 7,480 mm 7,757 mm
J Tail swing radius 1,584 mm 1,567 mm
J Tail swing radius with tail weight 1,656 mm 1,656 mm
K1 Boom offset max. (to center of bucket right side) 706 mm 706 mm
K2 Boom offset max. (to center of bucket left side) 684 mm 684 mm
L Stacking height max. (dozer blade above surface) 479 mm 479 mm
M Digging depth max. (dozer blade below surface) 518 mm 518 mm
N Length travel drive 2,828 mm 2,828 mm
O1 Max. swivel angle (arm system to the left) 67 ° 67 °
O2 Max. swivel angle (arm system to the right) 63 ° 63 °
Q Boom swing radius center 2,505 mm 2,842 mm
Q Boom swing radius right 2,429 mm 2,761 mm
Q Boom swing radius left 1,971 mm 2,282 mm



Specifications subject to change without notice due to continual product development.
