Wacker Neuson EZ17

View PDF brochure for Wacker Neuson EZ17

Wacker Neuson EZ17

1.7T Excavator

Share:
Enquiry/Quote

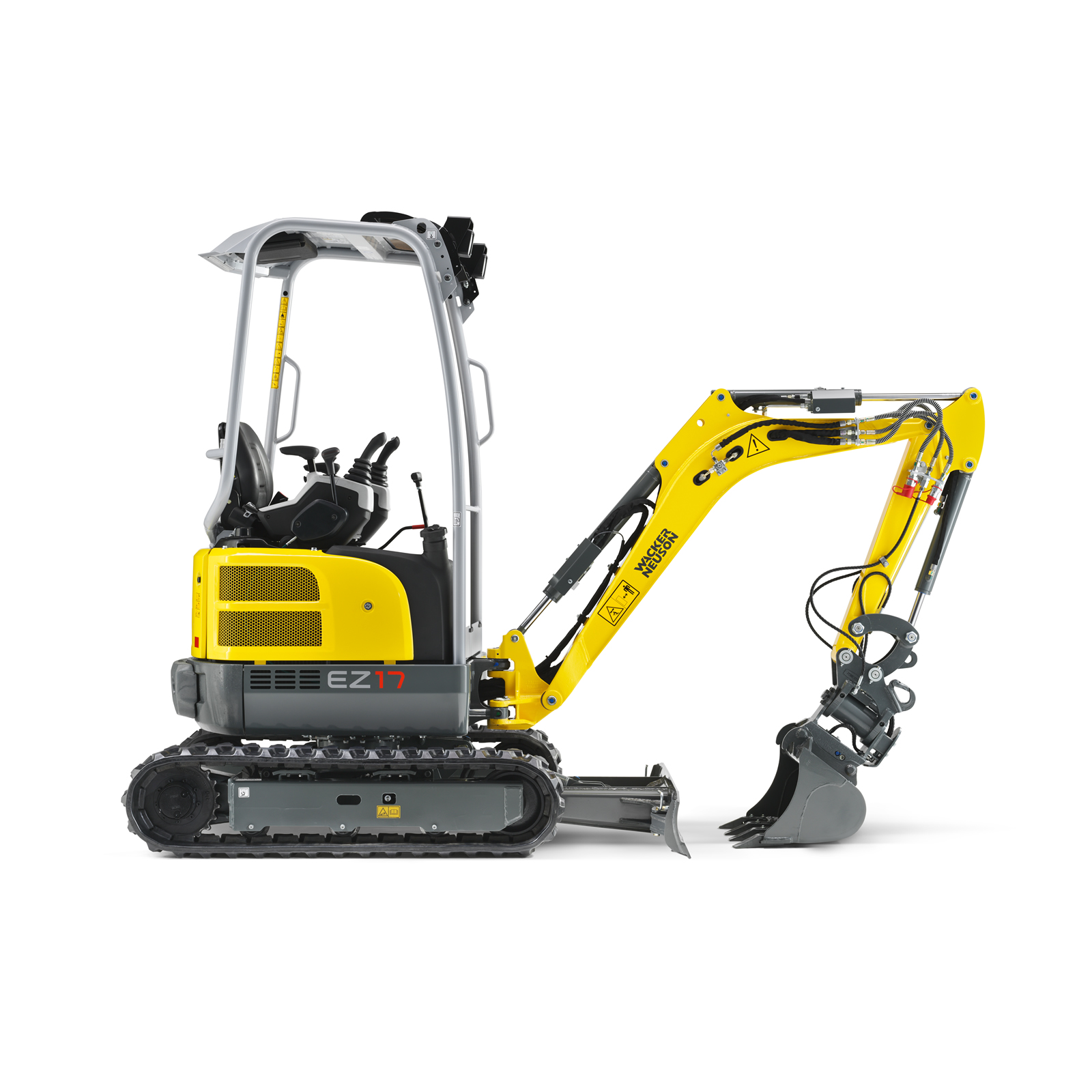

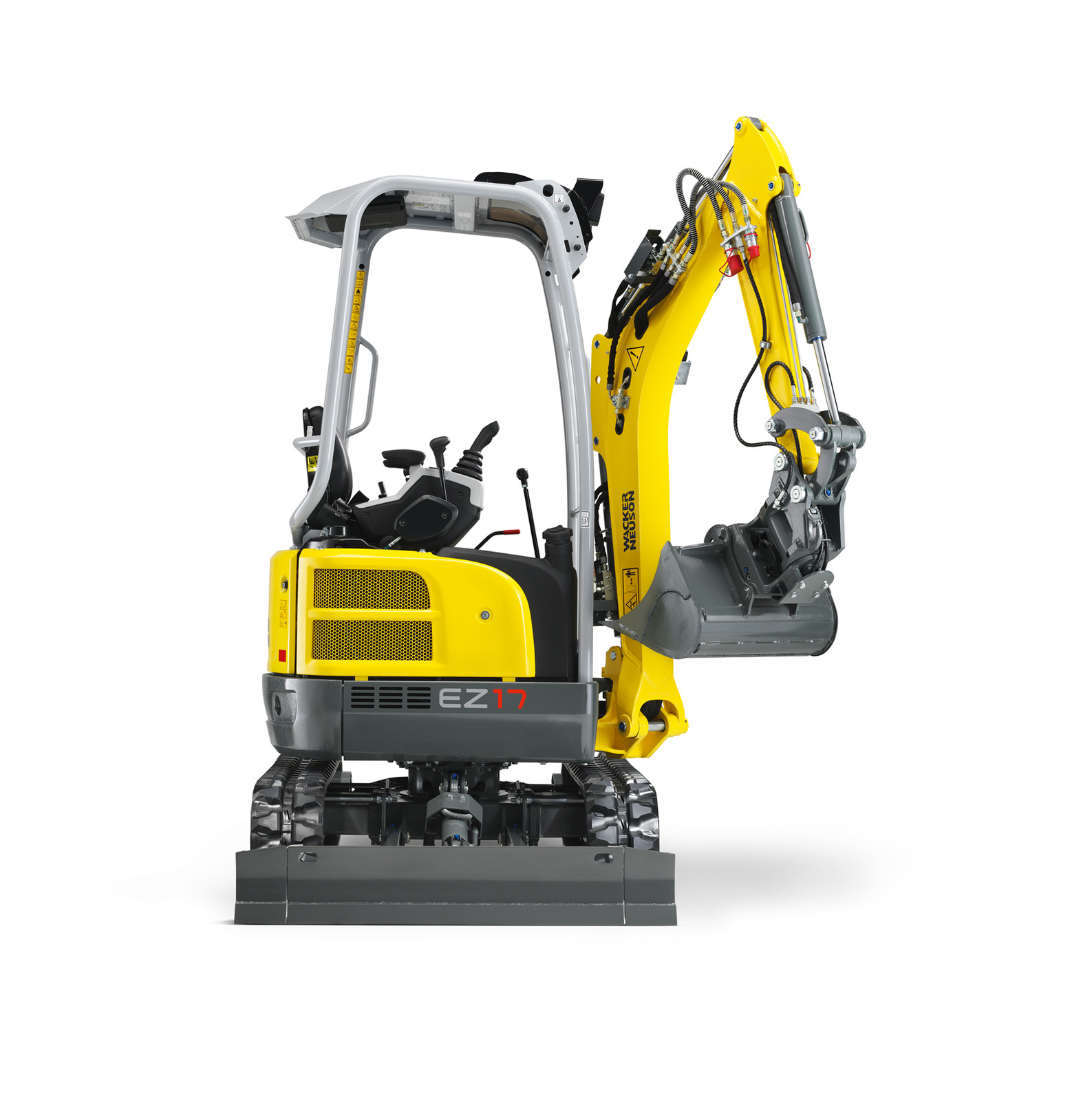

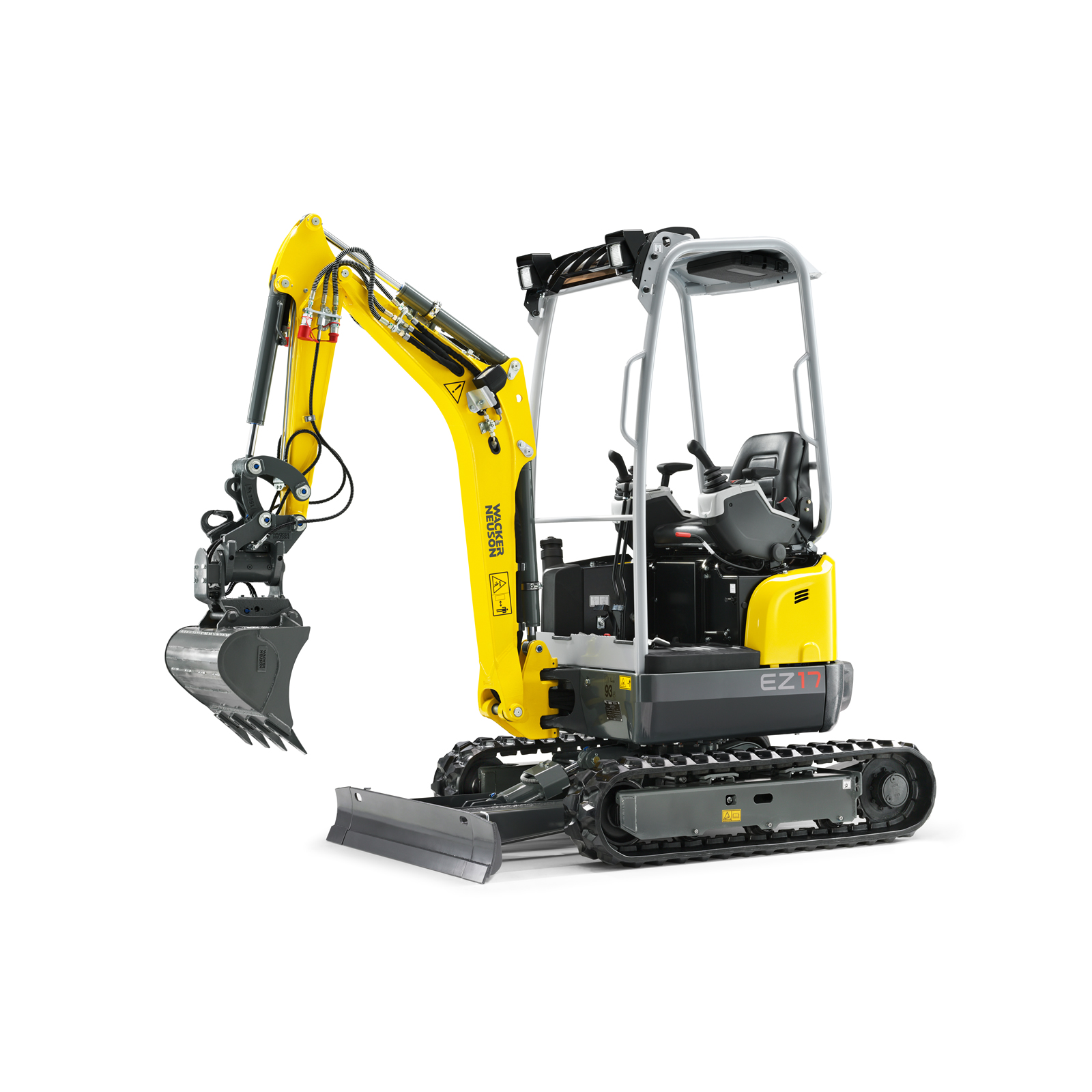

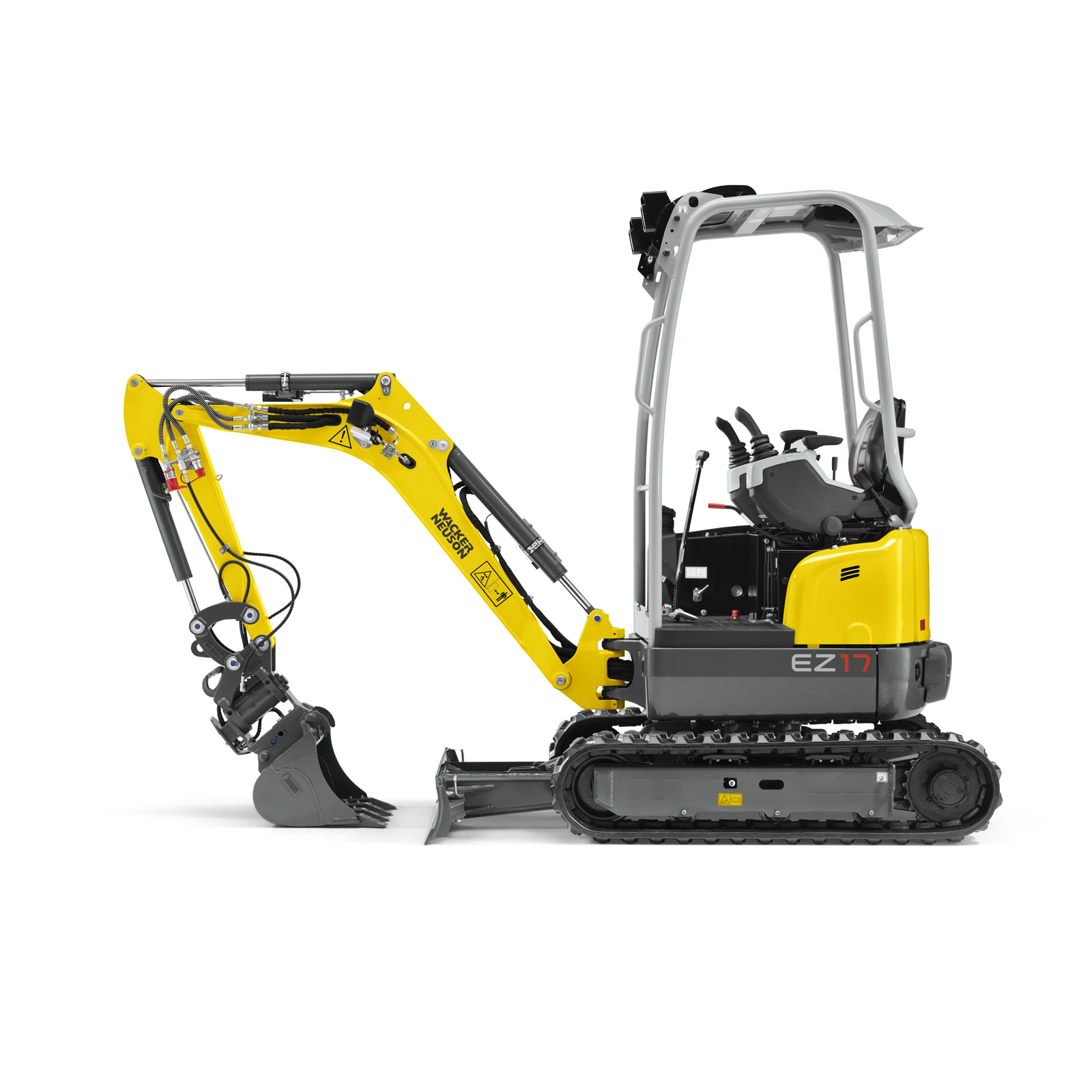

Wacker Neuson EZ17 - 1.7 Tonne Zero Swing Mini Excavator:

The Wacker Neuson EZ17 uses the latest hydraulic technology to completely out-perform the competition.  It has more bucket breakout force, higher auxiliary flow rate, faster travel speeds higher engine power.  You simply cannot beat the EZ17



Don't just take our word for it, compare the facts by clicking on the "Market Comparison" tab above

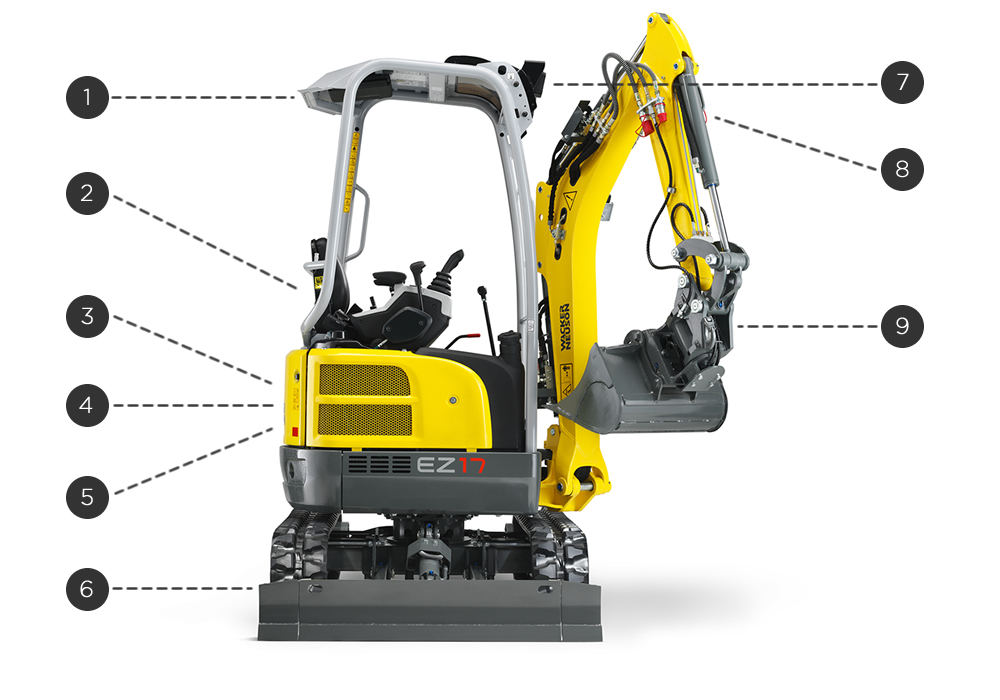

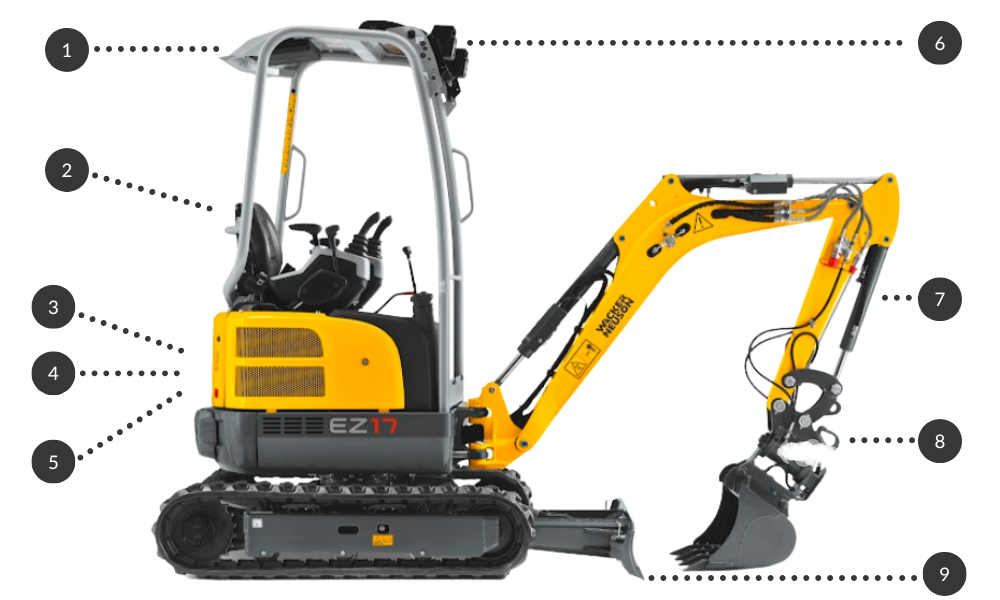

Key Features:

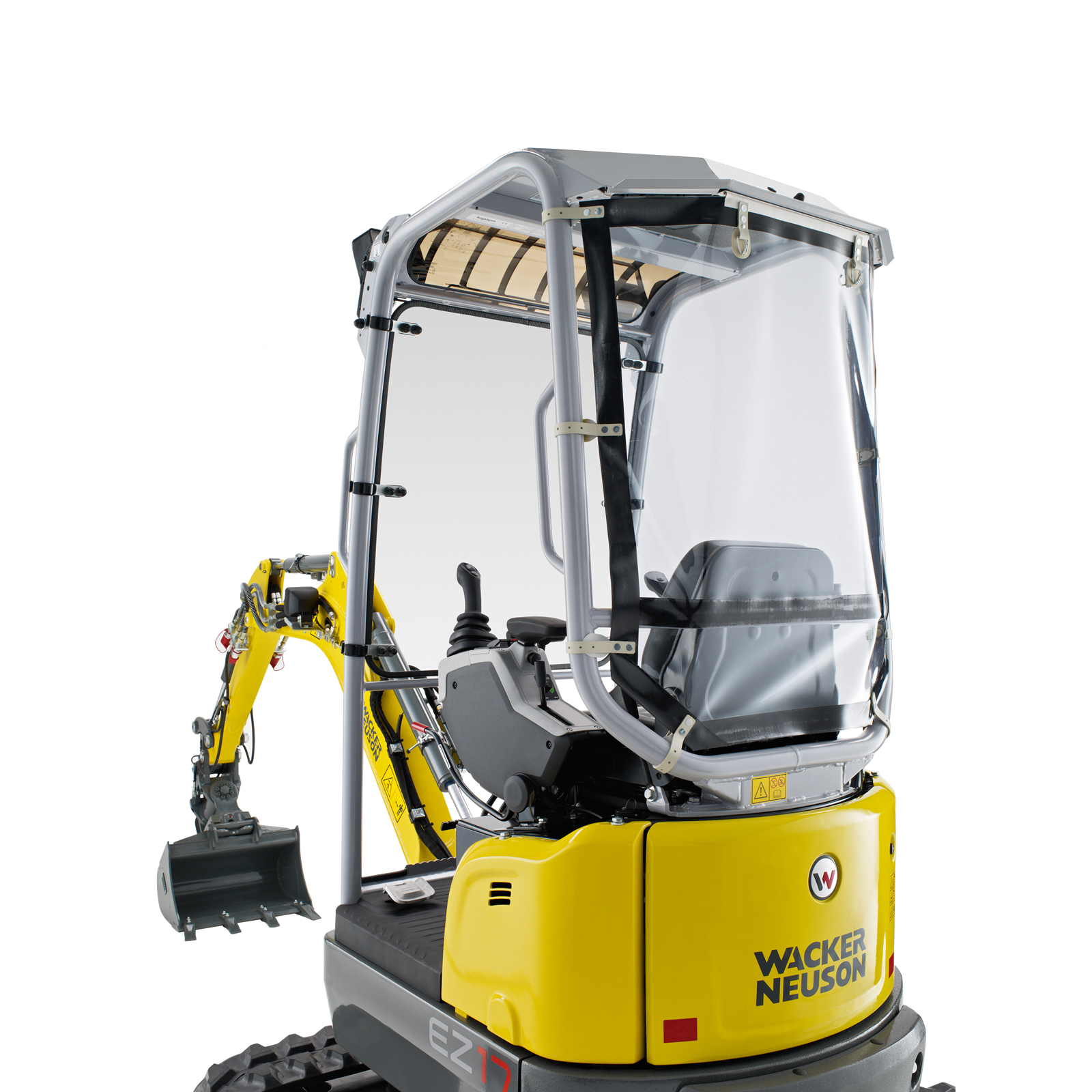

1. Vision
  • Canopy designed with perfect visibility.
  • ROPS posts positioned to ensure operator's view is no restricted
  • Canopy roof is fitted with a window allowing bucket visibility at all times.
2. Comfort
  • Operators station ergonomically designed for continous operation without fatigue
  • Controls ensure comfort and feature large handles
  • Adjustable arm rests fitted as standard
  • All levers and switches positioned within easy and comfortable reach
  • Seat features adjustable suspension for operators of different sizes
  • Travel levers fitted with with large foot pedals for precise track control while operating other controls
  • Rear of the canopy is fitted with weatherproof vinyl shield for all weather operation
3. Power
  • Powered by Yanmar 3 Cylinder diesel (18HP / 13.4 kW)
  • Largest HP engine in its class

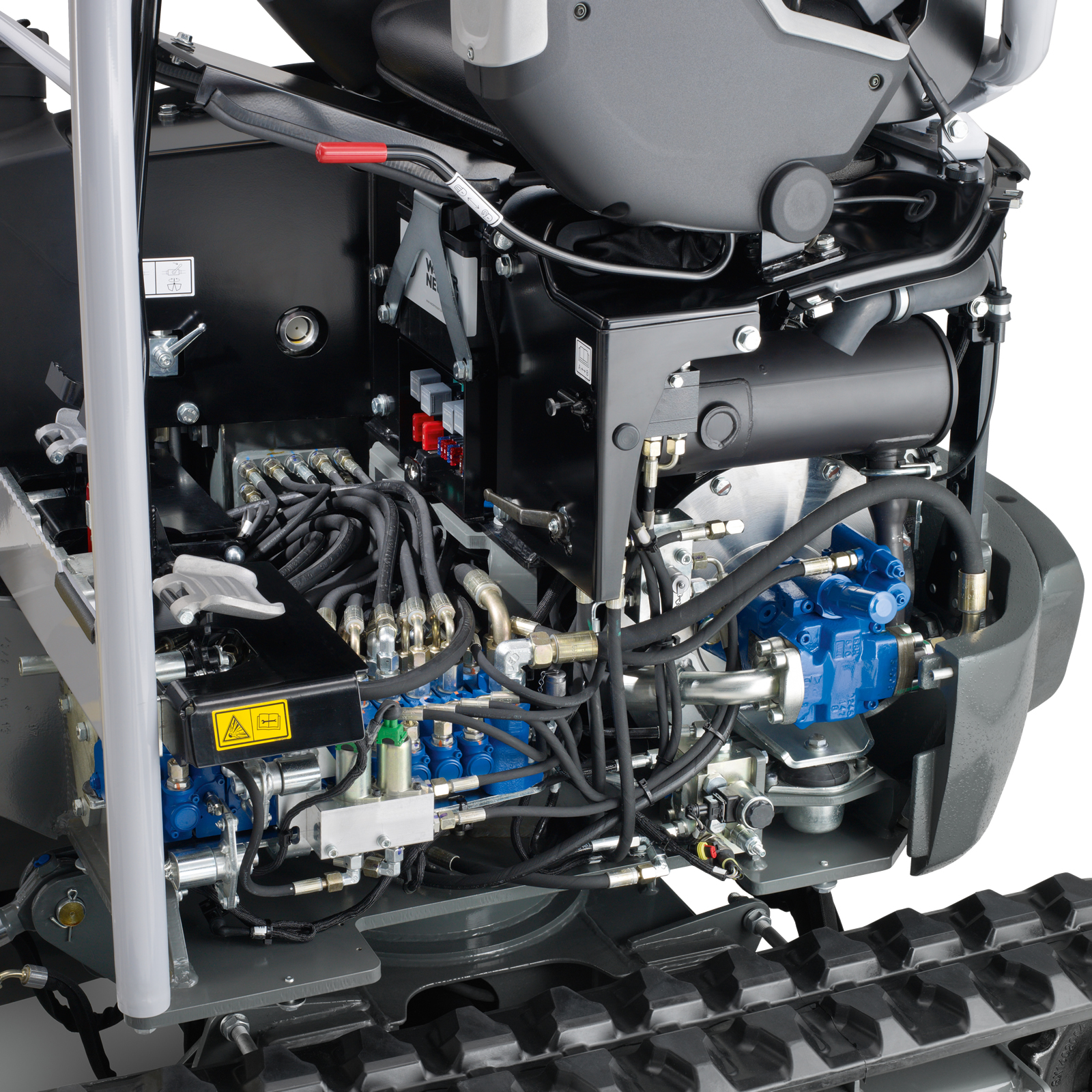

4. Efficiency
  • Wacker Neuson LUDV, load sensing hydraulic system with variable displacement pump.
  • The latest technology in hydraulics for mini excavators.
  • LUDV is what gives the EZ17 its precise, smooth control and the ability to run higher flows and pressures than its competitors.
5. Cooling
  • Sealed and pressurised cooling system keepts the EZ17 cool in ambient temperatures of up to 45ºC
  • Uses a innovative radiator with internal expansion chamber, negating the use for an overflow bottle.
  • Fluid level checked easily via sight glass on the exterior of the machine, no need to lift radiator cap to check.
6. Safety
  • Rotating beacons, reverse beepers and warning horns as standard to ensure machine is inline with latest safety standards.
  • All machines sold by ACES have and OHS Risk assessment prior to delivery.
  • Working lights on front and rear of canopy for optimum safety at night.
7. Auxiliary Hydraulics
  • Two way auxiliary piping standard from the factory boasting the highest auxiliary flow in the industry
  • Massive 36.1L/min, up to 30% more than the competition.
  • Auxiliary lines also run higher pressure than the competition (240bar), so for running an auger, the EZ17 will get the maximum torque that, the competition won't.
8. Hitches
  • EZ17 available with a Half Hitch (standard).
  • Wacker Neuson Easylock, fully automatic quick hitch (optional).
  • Wacker Neuson Easylock Powertilt, fully automatic quick hitch (optional).
9. Versatility
  • EZ17 fitted with telescopic undercarriage as standard.
  • 990mm at narrowest to fit through tight gaps.
  • 1300mm expanded for best stability
  • Machine boasts one of the fastest travel speeds off all 1.7tonne mini excavators, up to 20% faster than most of the competition.

(EZ17)

1.7 Tonne Zero Swing Mini Excavators - Market Comparison



Use the machinery comparison charts to check the facts from the ficton before you make your next excavator purchase.  Fields market in green show a good Wacker Neuson advantage, fields market in blue show a significant Wacker Neuson advantage.



Click on the links below to compare the machines:



Kubota U17-3 vs Wacker Neuson EZ17

Yanmar Vio17 vs Wacker Neuson EZ17

Kobelco SK17sr-3 vs Wacker Neuson EZ17

Case CX17B vs Wacker Neuson EZ17

New Holland E18B vs Wacker Neuson EZ17

Komatsu PC18mr-3 vs Wacker Neuson EZ17

Hitachi Zaxis ZX17U-2 vs Wacker Neuson EZ17

Takeuchi TB215 vs Wacker Neuson EZ17

CAT 301.7Dcr vs Wacker Neuson EZ17

IHI 17VX-3 vs Wacker Neuson EZ17

Terex TC15 vs Wacker Neuson EZ17



Wacker Neuson EZ17 vs Kubota U17-3

  EZ17 U17-3 Wacker Neuson Advantage
Transport Weight 1656 kg 1650 kg 0%
Engine Power 13.4 kW 12.7 kW 6%
Bucket Breakout Force 18.7 kN 15.2 kN 23%
Dig Depth 2490 mm 2310 mm 8%
Travel Speed 4.8 km/h 4.1 km/h 17%
Auxiliary Flow 36.1 L/min 27.7 L/min 30%
Min. Width 990 mm 990 mm 0%
Fuel Tank 22 L 19 L 16%



Wacker Neuson EZ17 vs Yanmar Vio17

  EZ17 Vio17 Wacker Neuson Advantage
Transport Weight 1656 kg 1740 kg 0%
Engine Power 13.4 kW 10.1 kW 33%
Bucket Breakout Force 18.7 kN 15.2 kN 23%
Dig Depth 2490 mm 2200 mm 13%
Travel Speed 4.8 km/h 4.3 km/h 12%
Auxiliary Flow 36.1 L/min 30.8 L/min 17%
Min. Width 990 mm 950 mm 0%
Fuel Tank 22 L 20 L 10%



Wacker Neuson EZ17 vs Kobelco SK17sr

  EZ17 SK17sr Wacker Neuson Advantage
Transport Weight 1656 kg 1655 kg 0%
Engine Power 13.4 kW 10.1 kW 33%
Bucket Breakout Force 18.7 kN 15.2 kN 23%
Dig Depth 2490 mm 2,200 mm 13%
Travel Speed 4.8 km/h 4.3 km/h 12%
Auxiliary Flow 36.1 L/min 30.8 L/min 17%
Min. Width 990 mm 950 mm 0%
Fuel Tank 22 L 20 L 10%



Wacker Neuson EZ17 vs Case CX17B

  EZ17 CX17B Wacker Neuson Advantage
Transport Weight 1656 kg 1650 kg 0%
Engine Power 13.4 kW 11.3 kW 19%
Bucket Breakout Force 18.7 kN 15.2 kN 23%
Dig Depth 2490 mm 2150 mm 16%
Travel Speed 4.8 km/h 4.0 km/h 20%
Auxiliary Flow 36.1 L/min Unquoted
Min. Width 990 mm 990 mm 0%
Fuel Tank 22 L 22 L 0%



Wacker Neuson EZ17 vs New Holland E18B

  EZ17 E18B Wacker Neuson Advantage
Transport Weight 1656 kg 1600 kg 0%
Engine Power 13.4 kW 11.3 kW 19%
Bucket Breakout Force 18.7 kN 15.2 kN 23%
Dig Depth 2490 mm 2150 mm 16%
Travel Speed 4.8 km/h 4.0 km/h 20%
Auxiliary Flow 36.1 L/min 28 L/min 29%
Min. Width 990 mm 990 mm 0%
Fuel Tank 22 L 22 L 0%



Wacker Neuson EZ17 vs Komatsu PC18mr-3

  EZ17 PC18mr-3 Wacker Neuson Advantage
Transport Weight 1656 kg 1780 kg 0%
Engine Power 13.4 kW 11.2 kW 20%
Bucket Breakout Force 18.7 kN 15.9 kN 18%
Dig Depth 2490 mm 2160 mm 15%
Travel Speed 4.8 km/h 4.3 km/h 12%
Auxiliary Flow 36.1 L/min 35 L/min 3%
Min. Width 990 mm 980 mm 0%
Fuel Tank 22 L 19 L 16%



Wacker Neuson EZ17 vs Hitachi Zaxis ZX17U-2

  EZ17 Zaxis ZX17U-2 Wacker Neuson Advantage
Transport Weight 1656 kg 1850 kg 0%
Engine Power 13.4 kW 11 kW 22%
Bucket Breakout Force 18.7 kN 16 kN 17%
Dig Depth 2490 mm 2170 mm 15%
Travel Speed 4.8 km/h 4.3 km/h 12%
Auxiliary Flow 36.1 L/min Unquoted
Min. Width 990 mm 970 mm 0%
Fuel Tank 22 L 19.5 L 13%



Wacker Neuson EZ17 vs Takeuchi TB215

  EZ17 TB215 Wacker Neuson Advantage
Transport Weight 1656 kg 1500 kg 0%
Engine Power 13.4 kW 11 kW 22%
Bucket Breakout Force 18.7 kN 14 kN 34%
Dig Depth 2490 mm 2190 mm 14%
Travel Speed 4.8 km/h 4.2 km/h 14%
Auxiliary Flow 36.1 L/min 33.6 L/min 7%
Min. Width 990 mm 980 mm 0%
Fuel Tank 22 L 22 L 0%



Wacker Neuson EZ17 vs CAT 301.7Dcr

  EZ17 301.7D Wacker Neuson Advantage
Transport Weight 1656 kg 1610 kg 0%
Engine Power 13.4 kW 13.2 kW 2%
Bucket Breakout Force 18.7 kN 14.2 kN 32%
Dig Depth 2490 mm 2321 mm 7%
Travel Speed 4.8 km/h 5.6 km/h 0%
Auxiliary Flow 36.1 L/min 35 L/min 3%
Min. Width 990 mm 990 mm 0%
Fuel Tank 22 L 19 L 16%



Wacker Neuson EZ17 vs IHI 17VX-3

  EZ17 17VX-3 Wacker Neuson Advantage
Transport Weight 1656 kg 1510 kg 0%
Engine Power 13.4 kW 10.5 kW 28%
Bucket Breakout Force 18.7 kN 16.4 kN 14%
Dig Depth 2490 mm 2100 mm 19%
Travel Speed 4.8 km/h 4.0 km/h 20%
Auxiliary Flow 36.1 L/min 29 L/min 24%
Min. Width 990 mm 960 mm 0%
Fuel Tank 22 L 20 L 10%



Wacker Neuson EZ17 vs Terex TC15

  EZ17 TC15 Wacker Neuson Advantage
Transport Weight 1656 kg 1679 kg 0%
Engine Power 13.4 kW 11.2 kW 20%
Bucket Breakout Force 18.7 kN 15.2 kN 23%
Dig Depth 2490 mm 2070 mm 20%
Travel Speed 4.8 km/h Unquoted
Auxiliary Flow 36.1 L/min 36 L/min 0%
Min. Width 990 mm 990mm 0%
Fuel Tank 22 L Unquoted

Weights:

Transport Weight 1,596 kg - 1,735 kg
Operating Weight 1,724 kg - 1,826 kg
Maximum Payload 175 kg

Engine:

Manufacturer Yanmar
Model 3TNV76
Power 13.4kW (18HP)
Torque 65.6 Nm
Displacement 1,116 cm3
Construction 3-cylinder, diesel, liquid-cooled

Operating Data:

Max. Arm Breakout Force 9.1 kN
Max. Bucket Breakout Force 18.7 kN
Max. Slewing Speed 8.5 RPM
Max. Travel Speed 4.8 km/h
Max. Dig Depth 2,485 mm
Max. Width 990 mm

Hydraulics:

Pumps Single Variable Displacement Axial Piston Pump with LUDV Load Sensing
Max. flow rate (System) 39.6 L/min
Auxiliary Flow Rate 25 L/min
System Pressure 240 Bar
Slewing Pressure 210 Bar
Auxiliary Pressure 240 Bar

Undercarriage:

Track Width 230 mm
Construction Planetary Gear Reduction System
Number of Track Rollers 3 per side + Idler Wheel
Ground Pressure 0.28 kg/cm3
Ground Clearance 156 mm
On Ground Track Length 1,607 mm
Parking Brake Hydraulic

Capacities:

Hydraulic system 21 L
Fuel Tank 22 L
Battery 12V / 44Ah

Working Dimensions:





Key Description Short Dipper Stick Long Dipper Stick
A1 Height 2,362 mm
A2 Total height with rotating beacon 2,537 mm
B1 Width of upper carriage 980 mm
B2 Width of cab 884 mm
B3 Width travel gear extended 1,300 mm
B4 Width travel gear retracted 991 mm
C Transport length 3,584 mm 3,551 mm
D Digging depth max. 2,327 mm 2,487 mm
E Piercing depth max. 1,712 mm 1,862 mm
F Piercing height max. 3,462 mm 3,576 mm
G Dumping height max. 2,436 mm 2,550 mm
H Digging radius max. 3,899 mm 4,049 mm
I Max. reach at ground level 3,848 mm 4,003 mm
J Tail swing radius 660 mm
J Tail swing radius with tail weight 724 mm
K1 Boom offset max. (to center of bucket right side) 533 mm
K2 Boom offset max. (to center of bucket left side) 419 mm
L Stacking height max. (dozer blade above surface) 272 mm
M Digging depth max. (dozer blade below surface) 391 mm
N Lenght travel drive 1,608 mm
O1 Max. swivel angle (arm system to the right) 57 °
O2 Max. swivel angle (arm system to the left) 65 °
Q1 Boom swing radius center 1,628 mm
Q2 Boom swing radius right 1,519 mm
Q3 Boom swing radius left 1,372 mm
R Distance bucket dozer blade, short shovel arm 333 mm
R Distance bucket dozer blade, long shovel arm 260 mm

Specificatons subject to change without notice due to continual product development.
