Wacker Neuson DW30

3.0T Payload - Wheeled Dumper

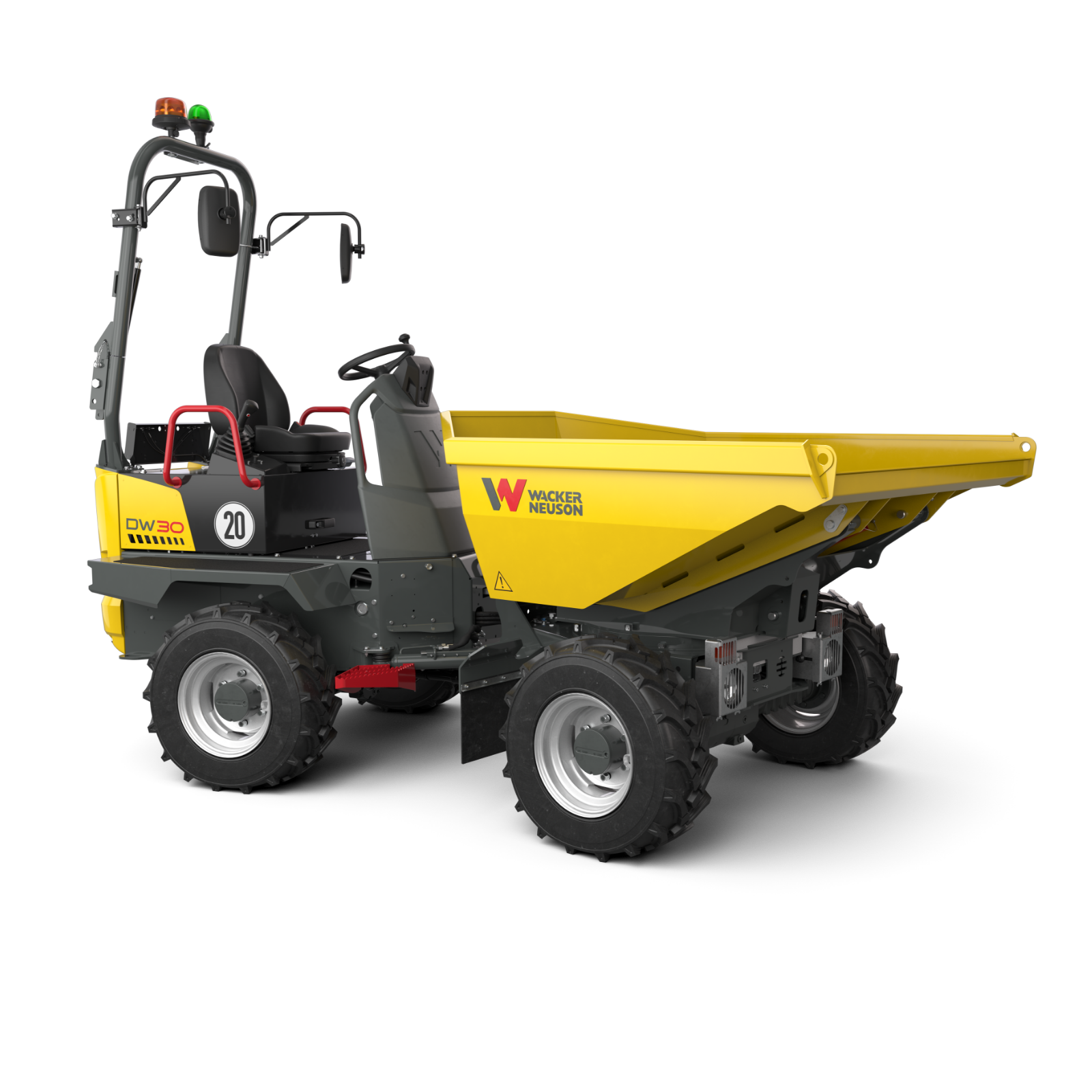

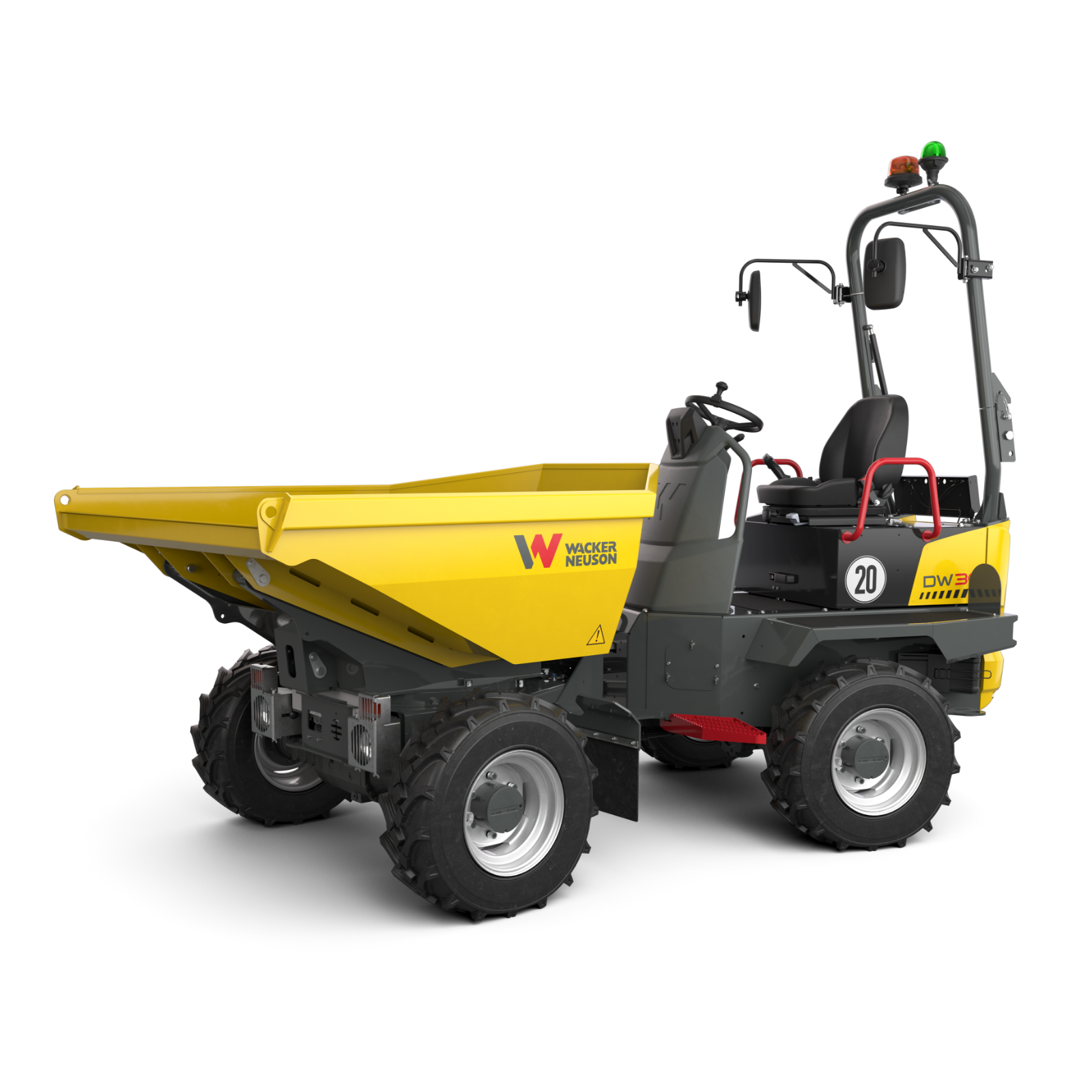

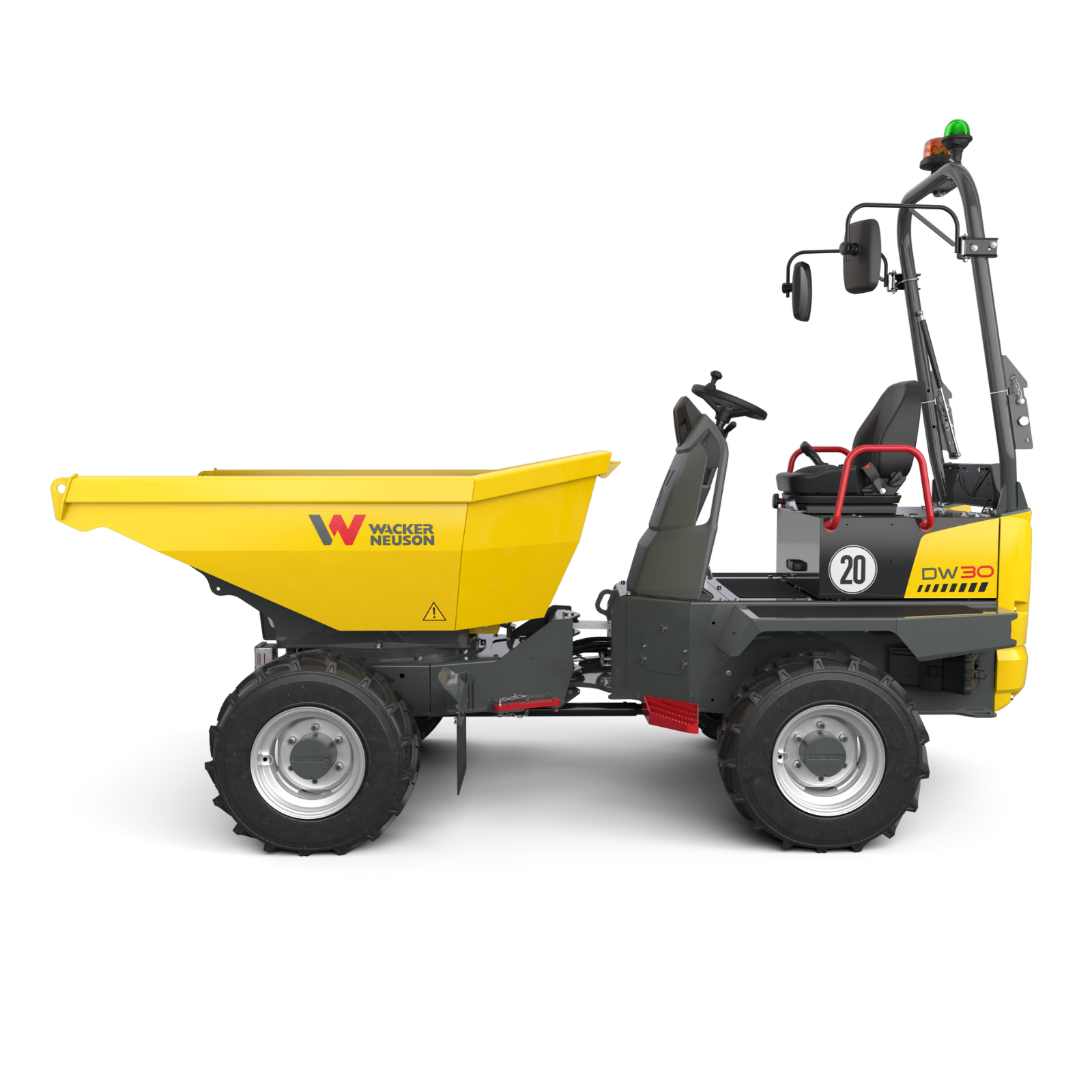

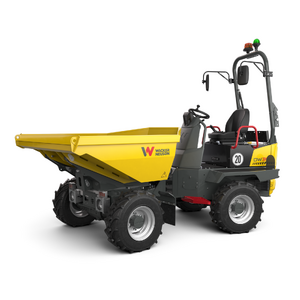

Wacker Neuson DW30 - All-Wheel Dumper

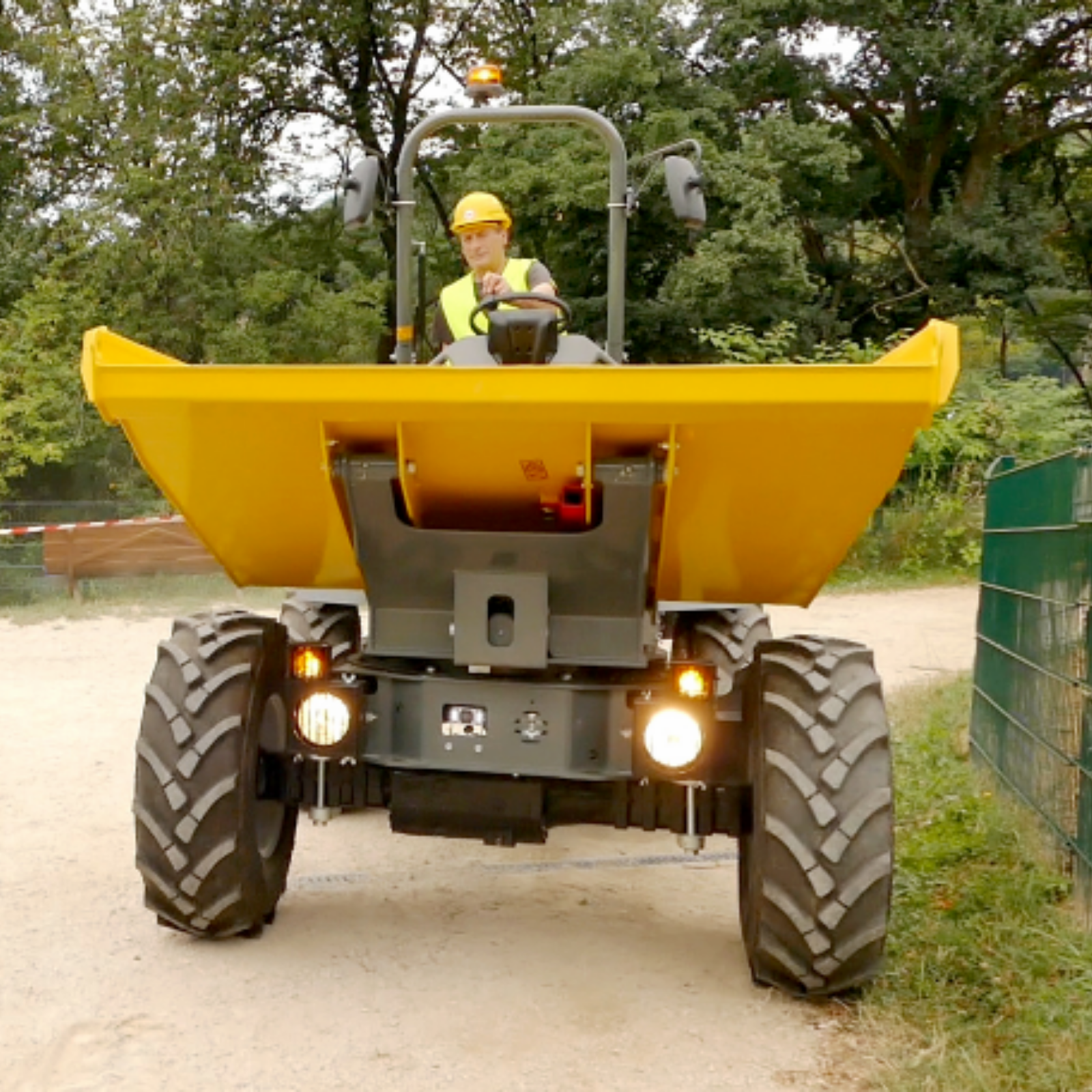

Powerful, manoeuvrable, and excellent off-road capability. Continuous all-wheel drive coupled with full articulating and oscillating steering drive make this the perfect dumper for off-highway use.  The DW30 comes standard with a swivel tip skip for dumping at any angle.

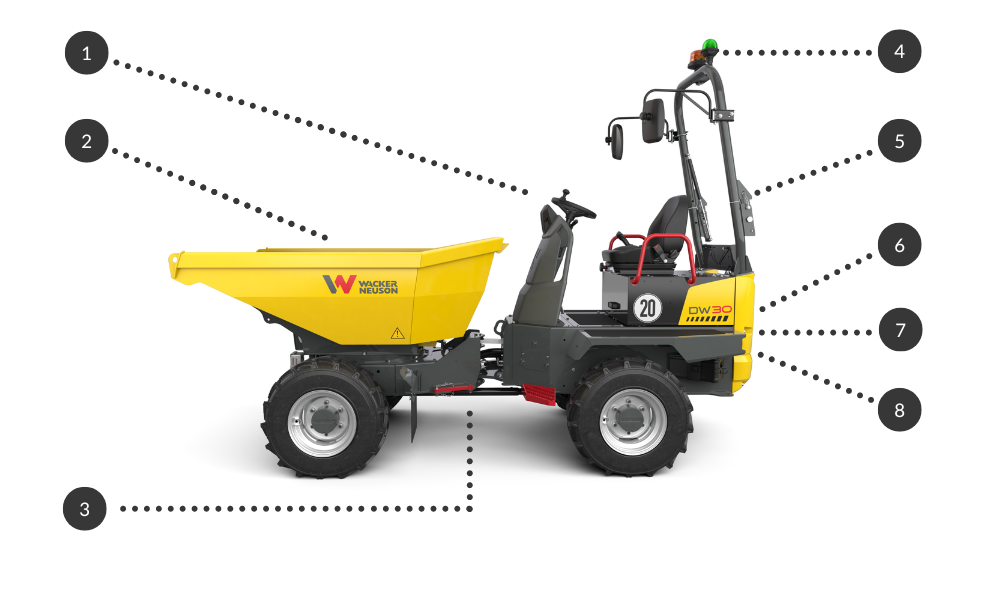

Key Features:

1. Vision
  • Tapered control panel for superior visibility.
  • Left and right rear view mirrors.
  • Low-profile engine hood for perfect rear vision.
2. Skip
  • 1.8 cubic metre skip.

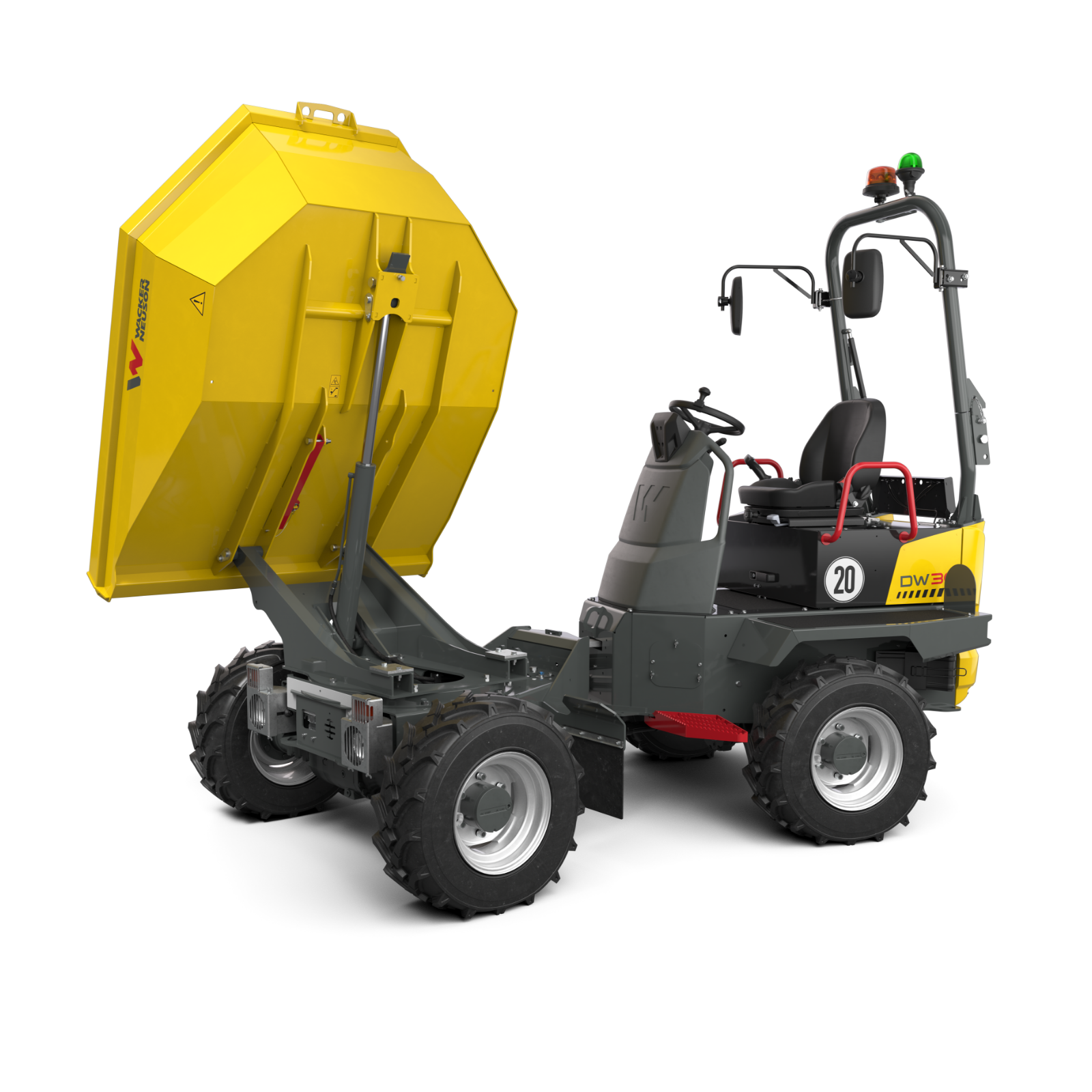

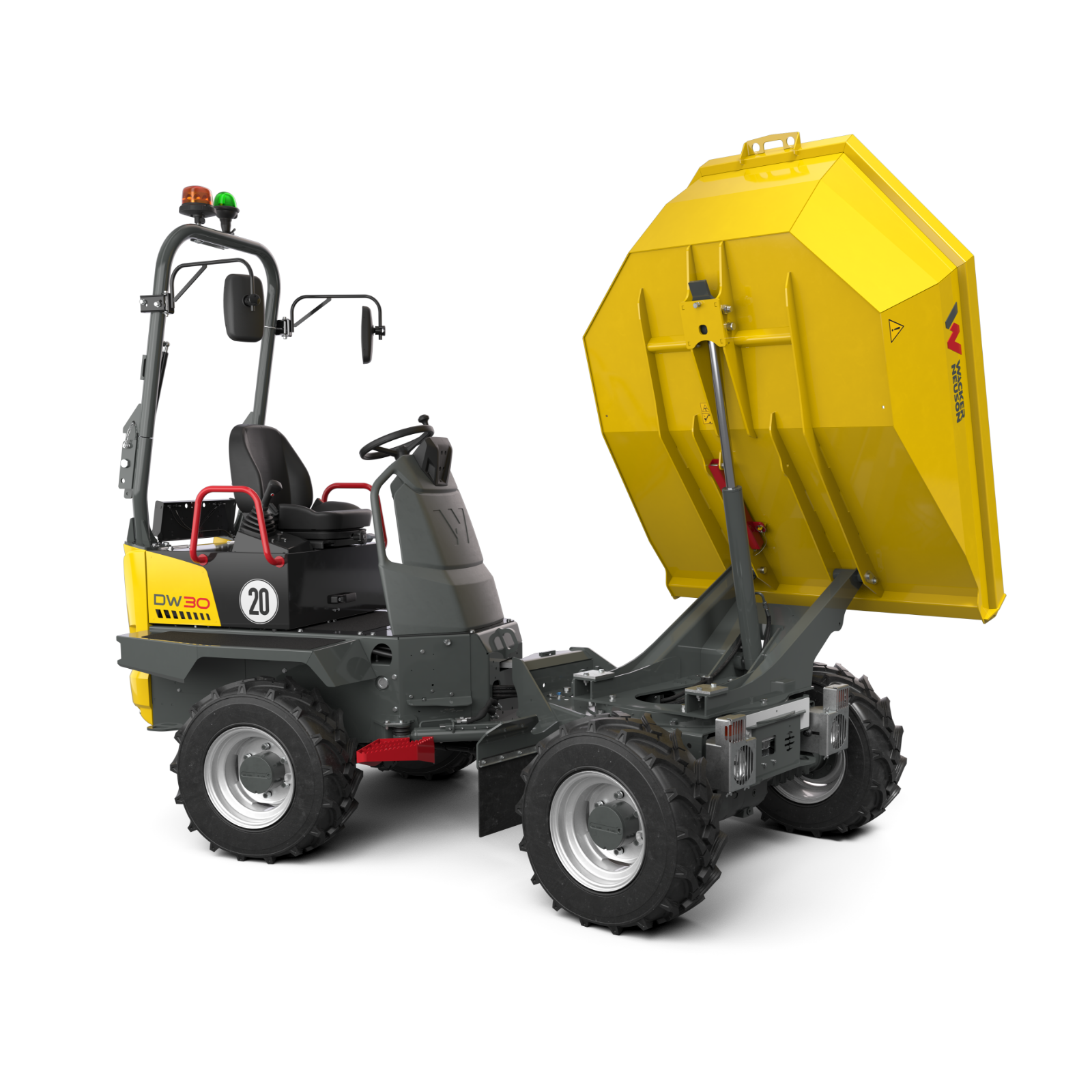

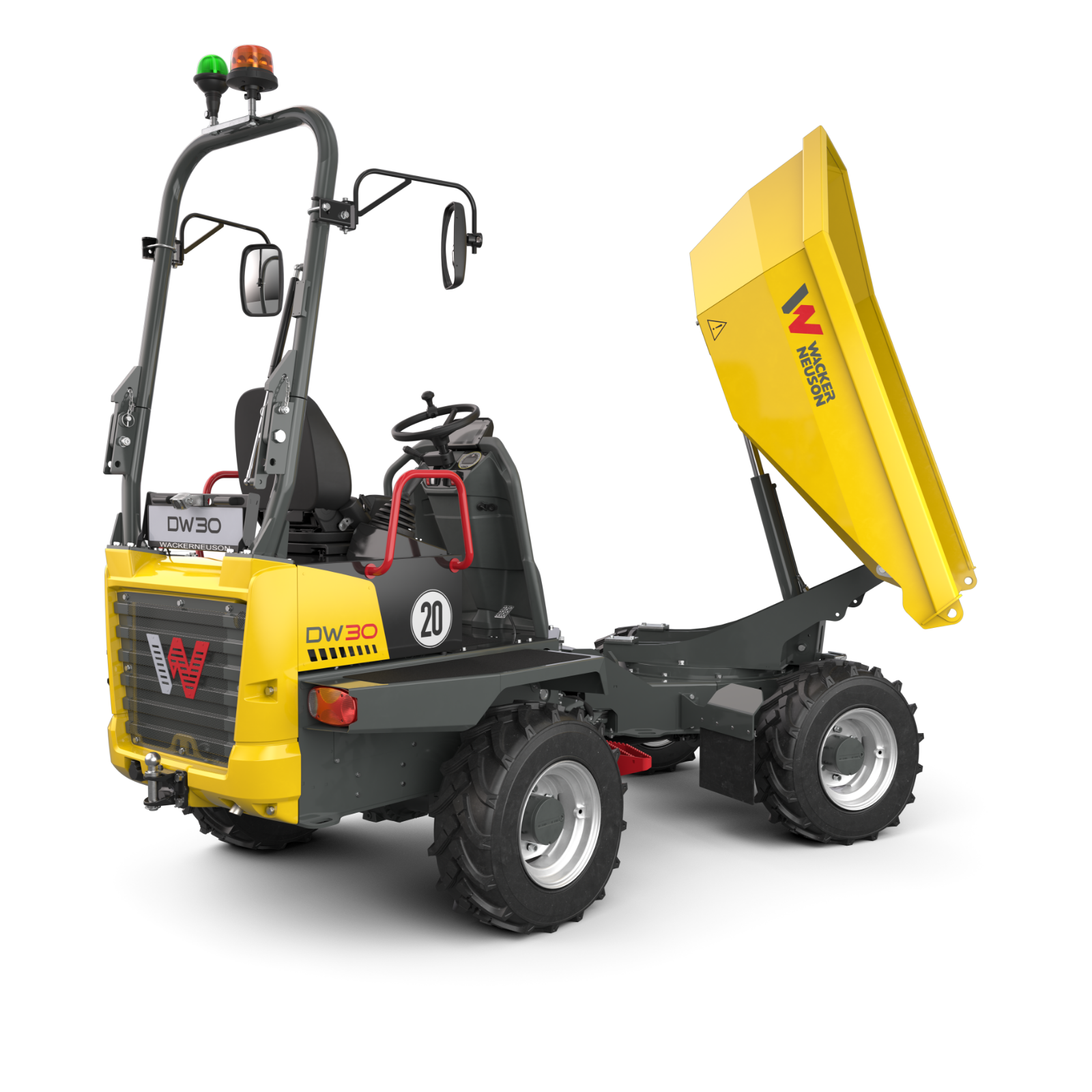

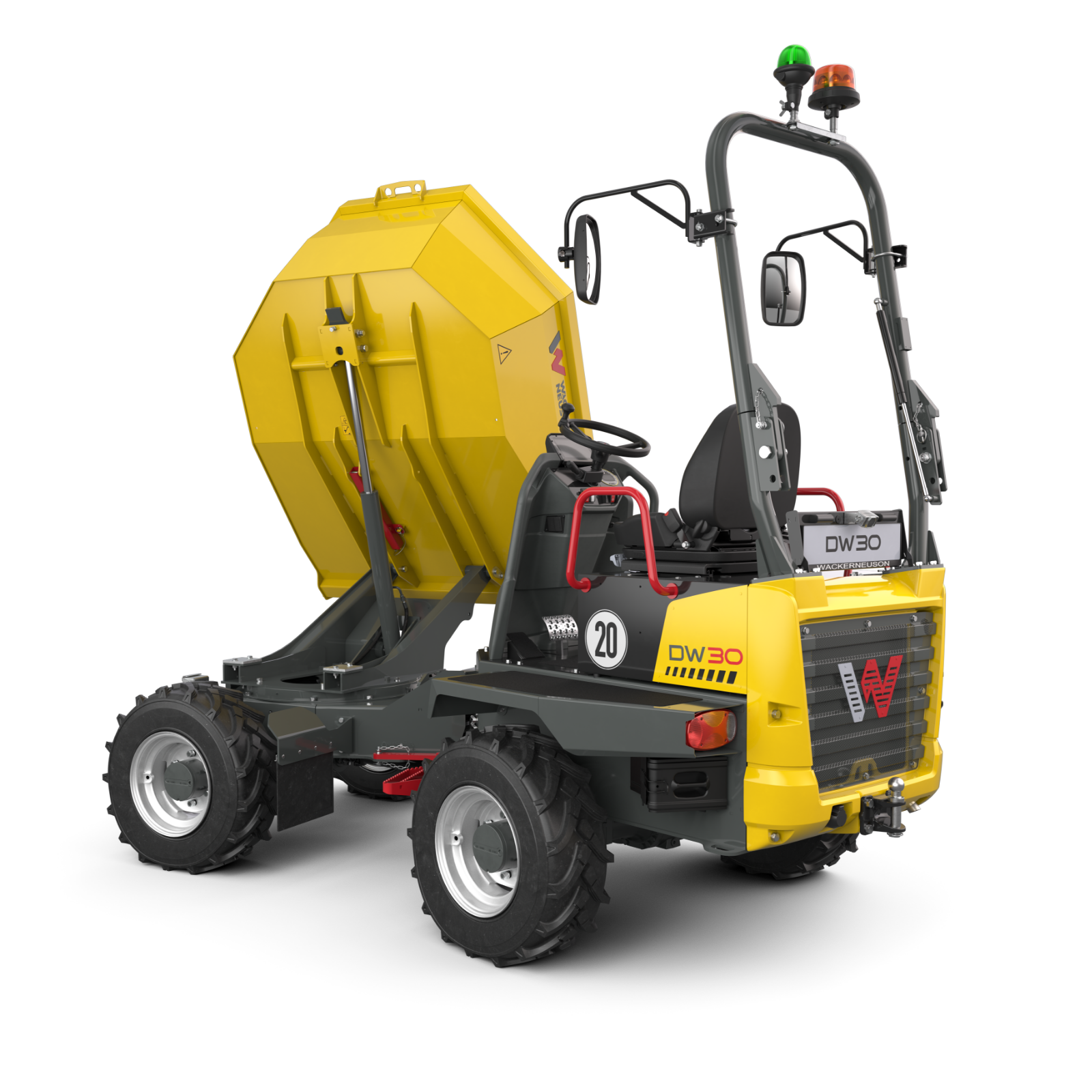

  • Swivel-Tip skip standard.
3. Versatility
  • Articulated steering to 36 degrees.
  • Oscillated steering to 15 degrees.
  • Two speed travel up to 25km/h.
  • High ground clearance.

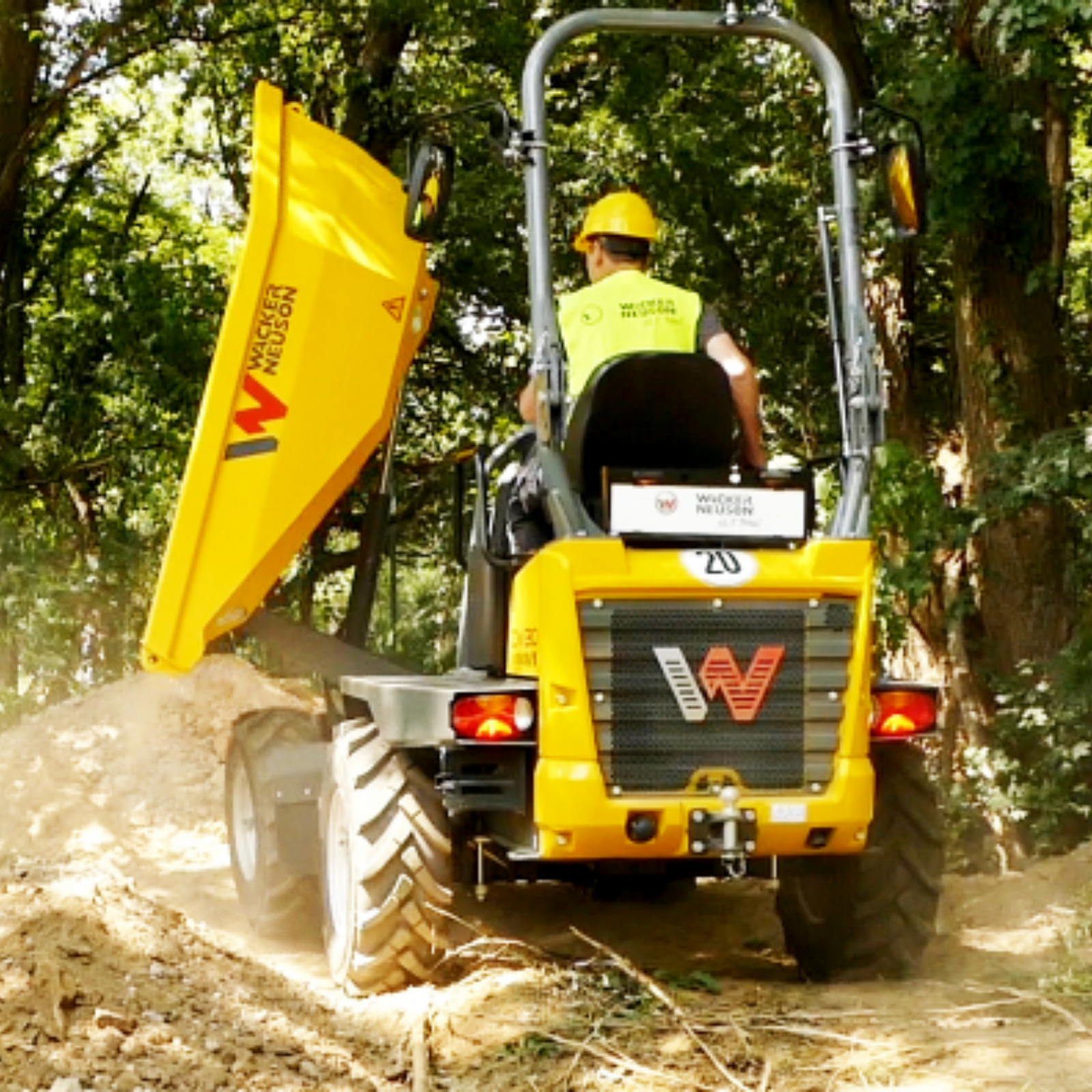

  • Swivel tip skip perfect for backfilling trenches.
4. Safety
  • Folding ROPS bar.
  • Full leg and foot protection.
  • Factory fitted beacon light and reverse beeper.
  • Rear-view mirrors.
  • ISO joystick control.
  • Dual entry.
5. Comfort
  • Comfortable suspension seat.
  • Ergonomically designed operator’s station.
  • Soft touch joystick control.
  • Power steering.
6. Power
  • High HP Yanmar 3 Cylinder diesel engine.
  • 26kW (35HP).
  • 3000kg payload.
  • Hydrostatic drive.
7. Cooling
  • Large cooler for efficient engine and hydraulic cooling.
  • Integrated expansion chamber in the top tank of the radiator, no overflow bottle necessary.
  • Simple telltale for coolant level visibility.
  • Designed to keep cool in the harshest of Australian conditions.
8. Maintenance
  • Robust scratch and dent resistant operators station.
  • Integrated hose guide keeps hoses hidden from damage in off-road conditions.
  • One-piece bonnet for easy maintenance access.

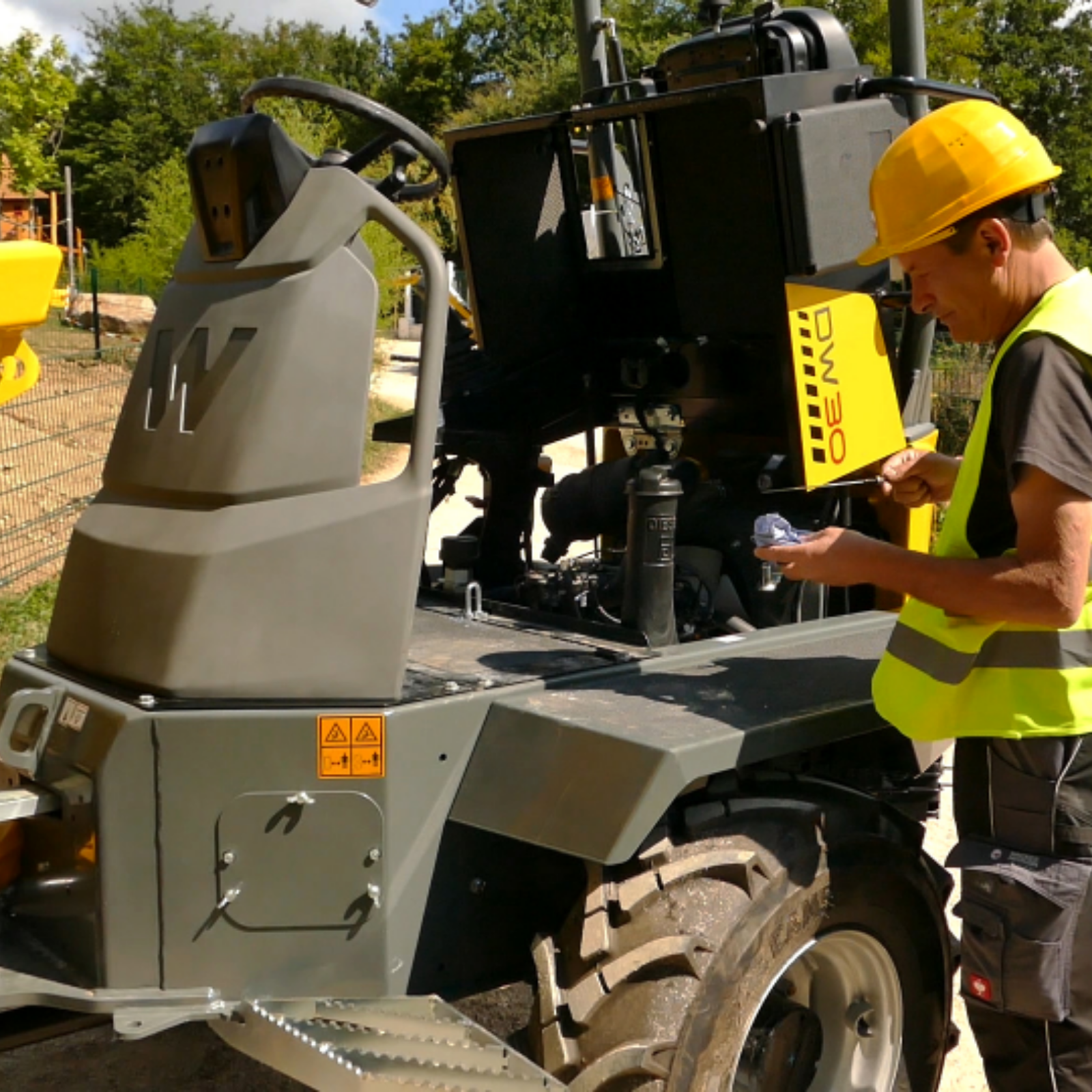

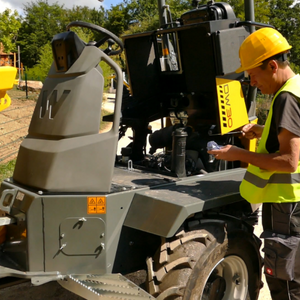

  • Easily accessible engine, battery and hydraulic system.

(DW30)

General:

Operating Weight 2,253 kg
Payload 3,000 kg
Skip capacity (leveled) 1,280 L (1.28 m3)
Skip capacity (heaped) 1,750 L (1.75 m3)
Skip capacity (water levelled) 990 L (0.99 m3)

Engine:

Manufacturer Yanmar
Model 3TNV88
Construction Liquid-cooled, 3-cylinder diesel
Displacement 1,642 cm3
Engine speed 2,800 rpm
Engine output according to ISO 26 kW (35 HP)
Battery voltage / capacitance 12 V / 88 Ah

Drive Characteristics:

Drive speed 0-20 km/h
Steering angle +/- 36°
Oscillation +/- 15°
Turing radius (outside) 3,900 mm
Gradeability 50%

Drive:

Drive type Hydrostatic drive
Steering Hydrostatic articulated frame
Standard tyres 11.50 / 80-15.3 Tractor profile

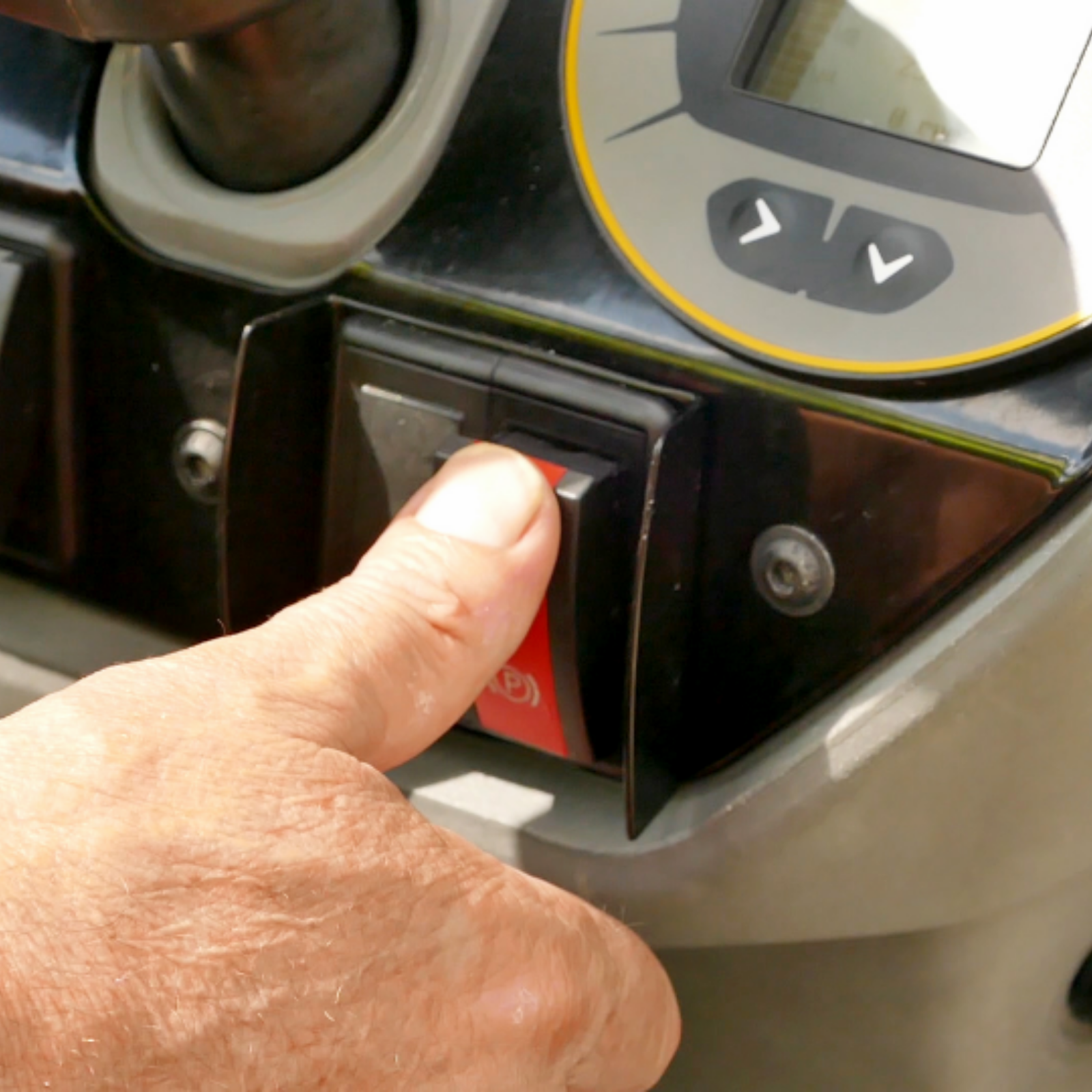

Park brake Hydraulic multi disk in oil bath

Hydraulics:

Drive pump Axial piston pump (hydrostatic)
Operating pressure 445 bar
Work pump Gear pump
Flow rate 33.4 L/min
Operating pressure 200 bar

Capacities:

Hydraulic tank 48 L
Fuel Tank 25 L

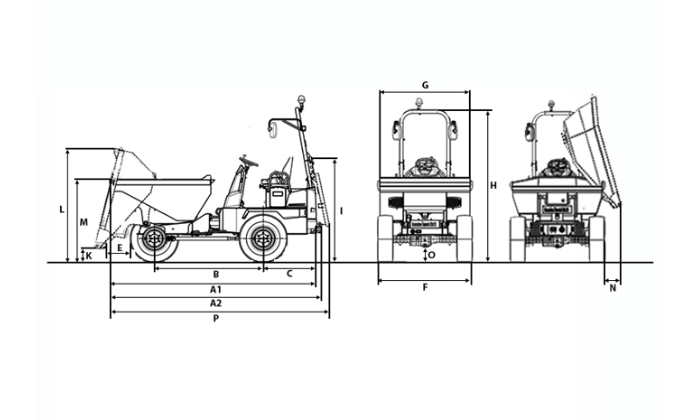

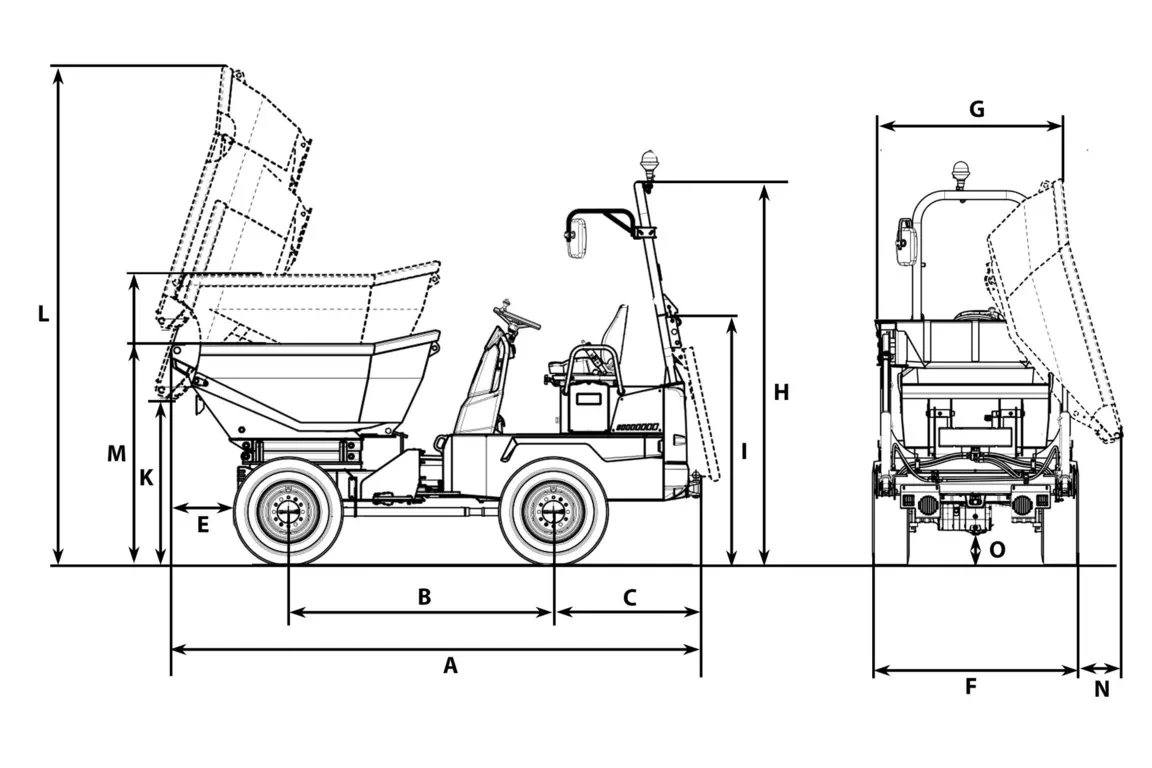

Working Dimensions:

A1 Overall length 3,928 mm
A2 Overall length with hitch 3,904 mm
B Wheelbase 1,945 mm
C Rear overhang 963 mm
E Dumping distance 482 mm
F Width 1,730 mm
G Skip width 1,730 mm
H Height ROPS 2,778 mm
I Height ROPS tilted 1,913 mm
K Dumping height max. 994 mm
L Skip height skip tilted 3,082 mm
M Skip height 1,475 mm
N Dumping distance lateral 235 mm
O Ground clearance 257 mm
P Length ROPS tilted 4,045 mm

Specifications subject to change without notice due to continual product development.
