Wacker Neuson DV90-2

9 Tonne Payload Dual View Dumper

Wacker Neuson DV90-2

The class leading 9t Dumper from Wacker Neuson features a dual view cabin so the operator is always facing forward.  Dual view design greatly increases safety on site lowering the risk off accidents with pedestrians, othe vehicles or infrastructure, making this the ideal dumper for civil, tunneling and rail projects. Improved design with increased legroom and dual exit options in seating directions enhances the safety and efficiency of operating the dumper.  Hillstart assist is now standard along with self cleaning forward and reverse cameras and red colour coded entry and exit handrails and steps.

The capability to carry up to 9 tons of payload not only allows for ample materials handling per trip but is also complemented with a drive speed of up to 30km/h. Furthermore, the inclusion of additional safety features such as the hill-hold function, seat belt monitoring, and various other highlights, preemptively address potential safety concerns.  Standard with a 5 Year, 5000 hour Warranty.

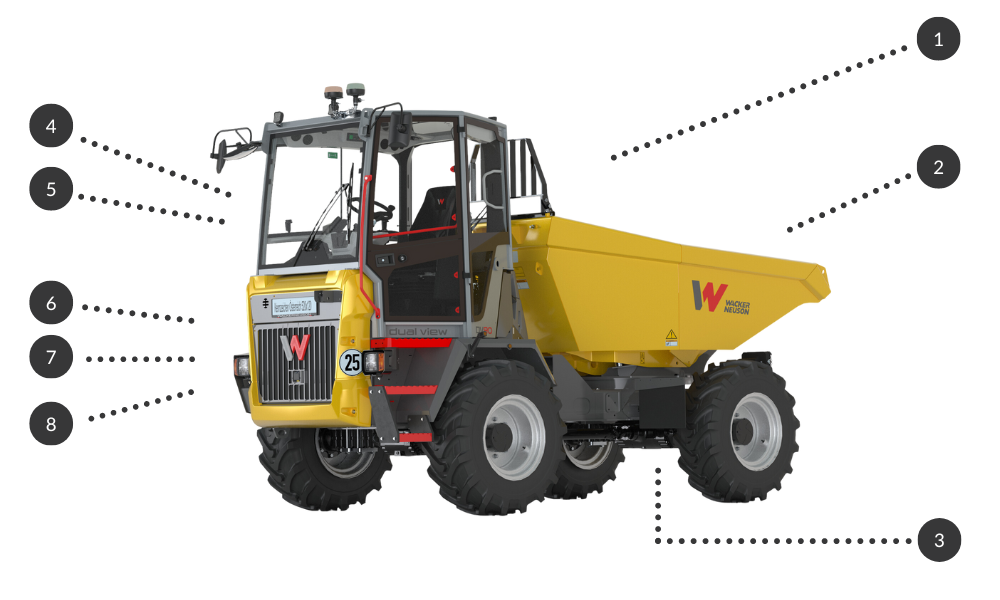

Key Features:

1. Safety
  • ROPS Cabin.
  • Full leg and foot protection on canopy model (canopy model optional).
  • Factory fitted beacon light and reverse beeper.
  • Rear-view mirrors.
  • Front and Rear cameras.
  • Cabin guarding (on skip) to protect against impact from loading excavator.
  • Dual View: Always looking forward, no reversing necessary.
2. Skip
  • 4.6 cubic metre skip (heaped).

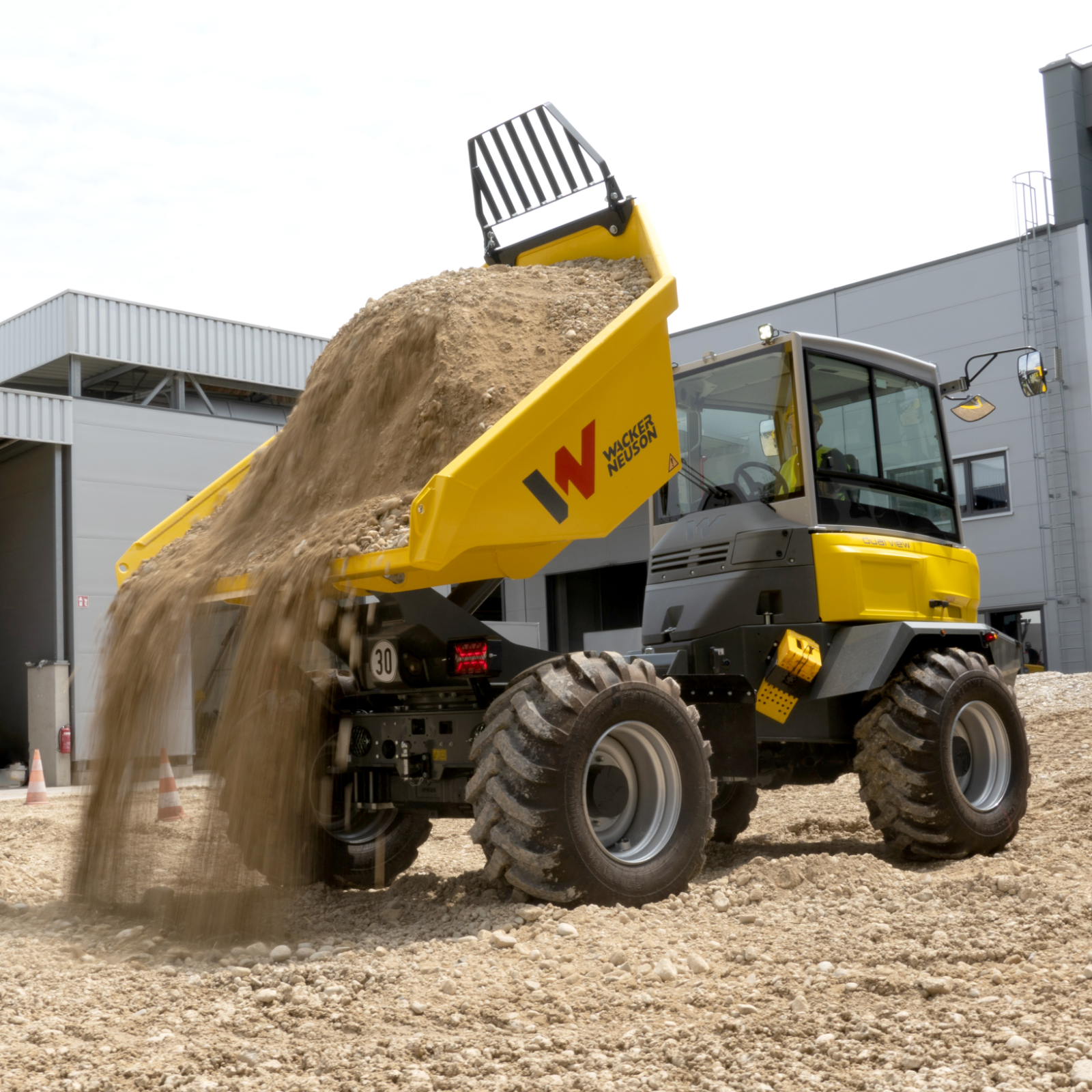

  • Swivel-Tip skip standard.
3. Versatility
  • Articulated steering to 28 degrees.
  • Oscillated steering to 11 degrees.
  • 30km/h travel speed.
  • High ground clearance.
  • Swivel tip skip perfect for backfilling trenches.
  • Dual View: Always driving forward, no reversing or 3 point turns necessary.
4. Vision
  • Tapered control panel for superior visibility.
  • Left and right rear view mirrors.
  • Front and Rear cameras.
  • Dual View: 180 Degree operator station swivel, always looking forward.
  • Always looking forward.
5. Comfort
  • Comfortable air-suspension seat.
  • Ergonomically designed operator’s station.
  • ISO soft touch joystick controls
  • Easy reach switches and controls.
  • Air-Conditioned cabin standard.
6. Power
  • High HP Deutz 4 Cylinder diesel engine.
  • 54.4kW (74.3HP).
  • 9000kg payload.
  • Hydrostatic drive.
7. Cooling
  • Large cooler and overflow bottle for efficient engine and hydraulic cooling.
  • Designed to keep cool in the harshest of Australian conditions.
8. Maintenance
  • Robust scratch and dent resistant panelling between skip and cabin..
  • Integrated hose guide keeps hoses hidden from damage in off-road conditions.
  • Easy maintenance access.

(DV90-2)

General:

Tare weight 4,545 kg
Payload 9,000 kg
Skip capacity (leveled) 3,750 L (3.75 m3)
Skip capacity (heaped) 4,600 L (4.6 m3)
Skip capacity (water leveled) 2,400 L (2.4 m3)

Engine:

Manufacturer Deutz
Model T2.9 L4
Construction Liquid-cooled, 4-cylinder turbo diesel
Displacement 2,900 cm3
Engine speed 2,300 cm3
Engine output according to ISO 55.4 kW (74.3 HP)
Battery voltage 12 V

Drive Characteristics:

Drive speed 0-30 km/h
Steering angle +/- 28°
Oscillation +/- 11°
Turing radius (outside) 6,620 mm
Gradeability 58%

Drive:

Drive type Hydrostatic drive
Steering Hydrostatic to articulated frame
Park brake Hydraulic multi disk in oil bath

Hydraulics:

Drive pump Axial piston pump
Operating pressure 480 bar
Work pump Gear pump
Flow rate 73 L/min
Operating pressure 240 bar

Capacities:

Hydraulic tank 60 L
Fuel Tank 48 L

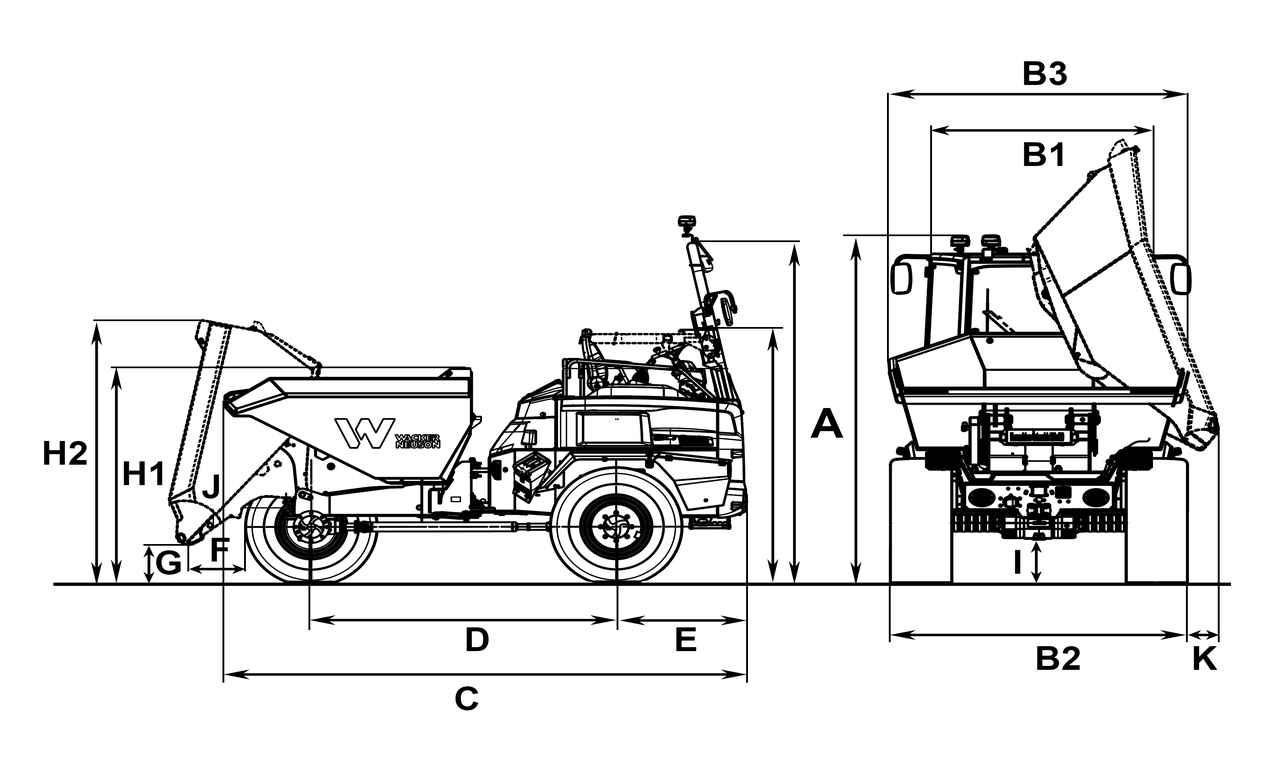

Working Dimensions:





    Swivel Tip Skip
A Height ROPS 3,483 mm
A Height ROPS with rotating beacon                                     3,593 mm
A Height of ROPS tilted 2,473 mm
A Height with cab 2,974 mm
A Height of cab with rotating beacon 3,139 mm
B1 Width of cab 1,629 mm
B2 Width of vehicle 2,420 mm
B3 Width of skip 2,453 mm
C Total length ROPS 4,891 mm
C Total length of cab 4,891 mm
D Wheel base 2,700 mm
E Rear overhang 1,157 mm
F Dumping width 553 mm
G Dumping height max. 1,202 mm
H1 Skip height 2,290 mm
H2 Skip height tilted 4,010 mm
I Ground clearance 390 mm
J Dumping angle 40 mm



































Specifications subject to change without notice due to continual product development.
