Wacker Neuson EZ36

4.0T Excavator

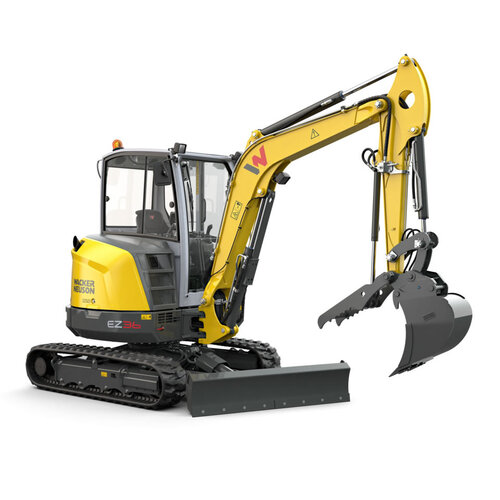

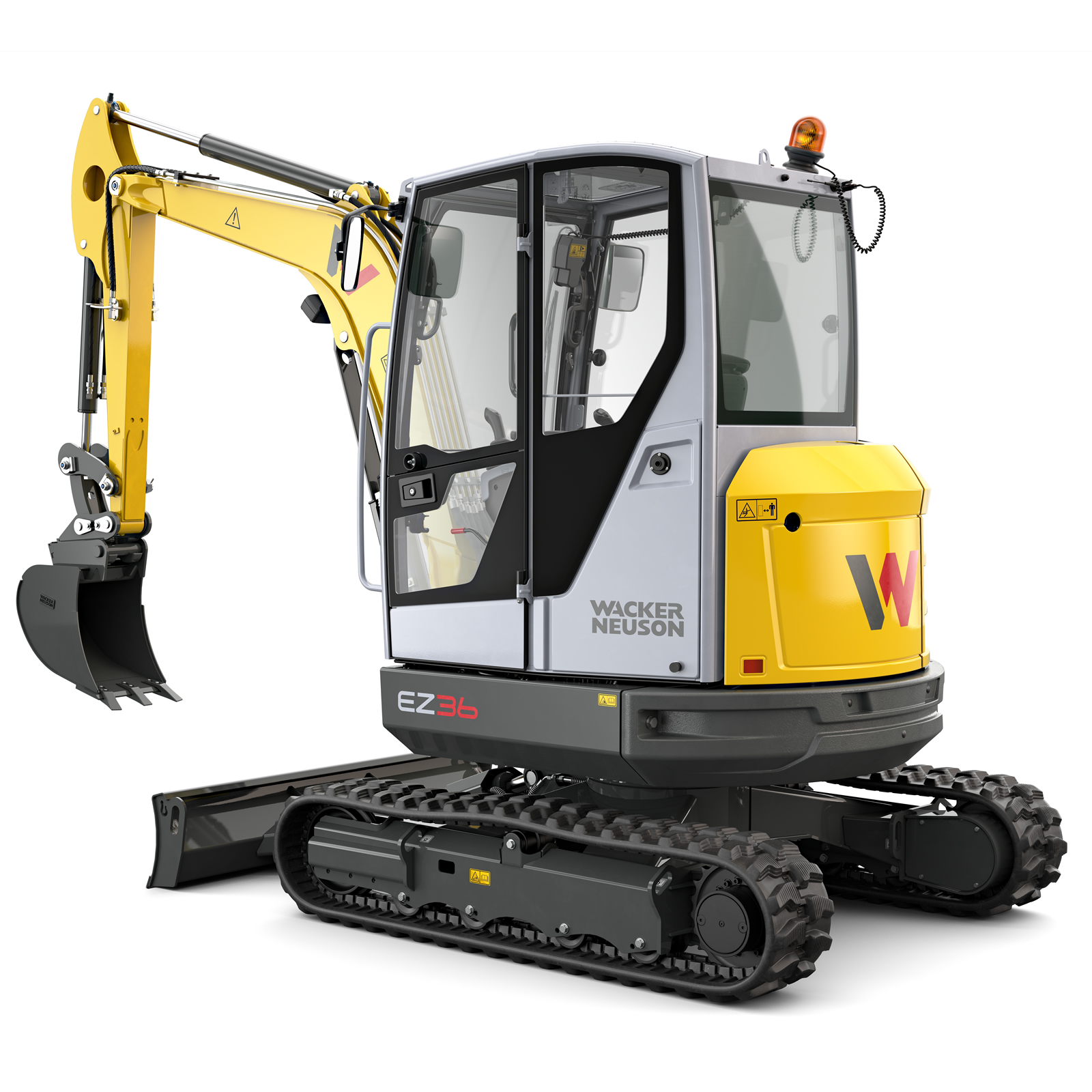

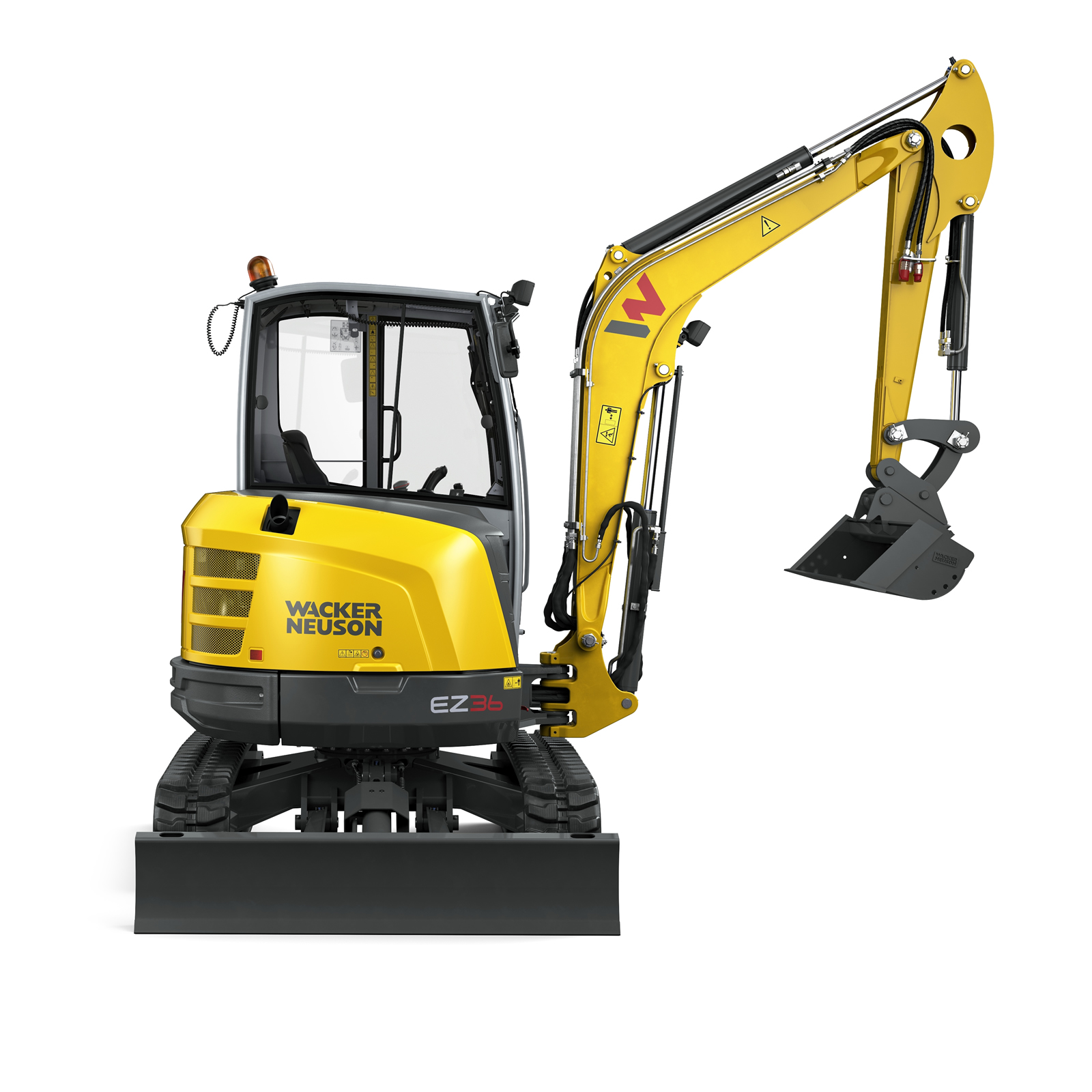

Wacker Neuson EZ36 - 4.0 Tonne Zero Swing Mini Excavator:

The Wacker Neuson EZ36 is the perfect all rounder, with loads of power while being easily transportable and manouvareable.  The EZ36 boasts one of the largest cabins in class, with a perfectly designed operator's station.  The optional VDS system sets it apart, making it the most versatile 4.0 Tonne excavator.

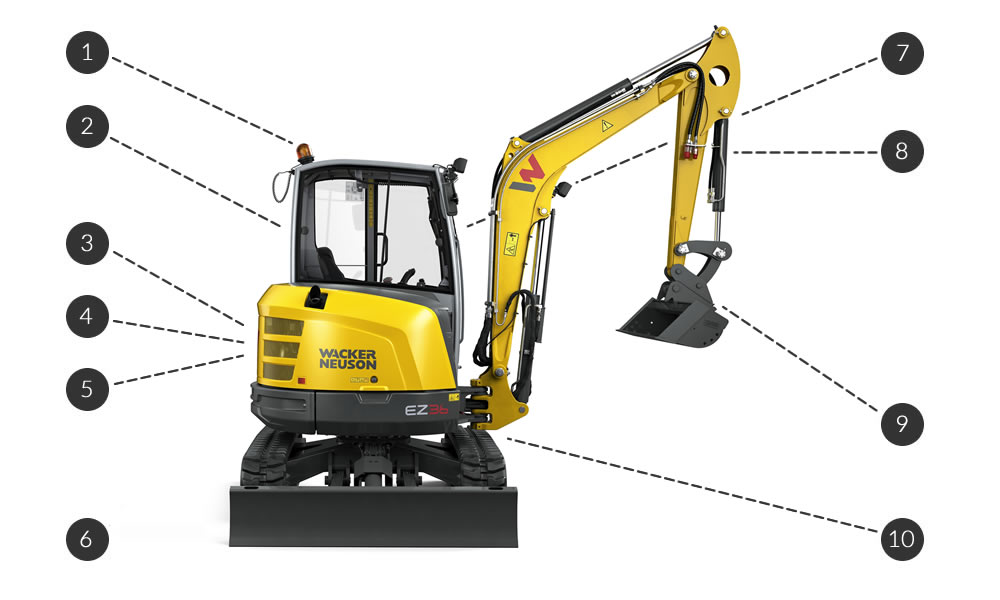

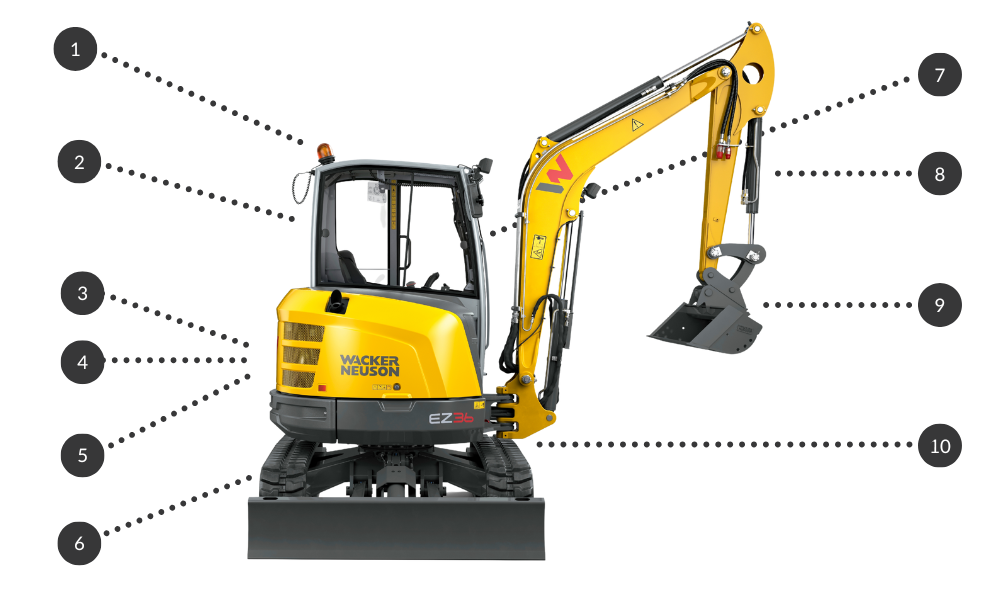

Key Features:

1. Safety
  • Rotating beacons, reverse beepers and warning horns as standard ensures machine is inline with latest safety standards.
  • All machines sold by ACES have an OHS Risk assessment prior to delivery.

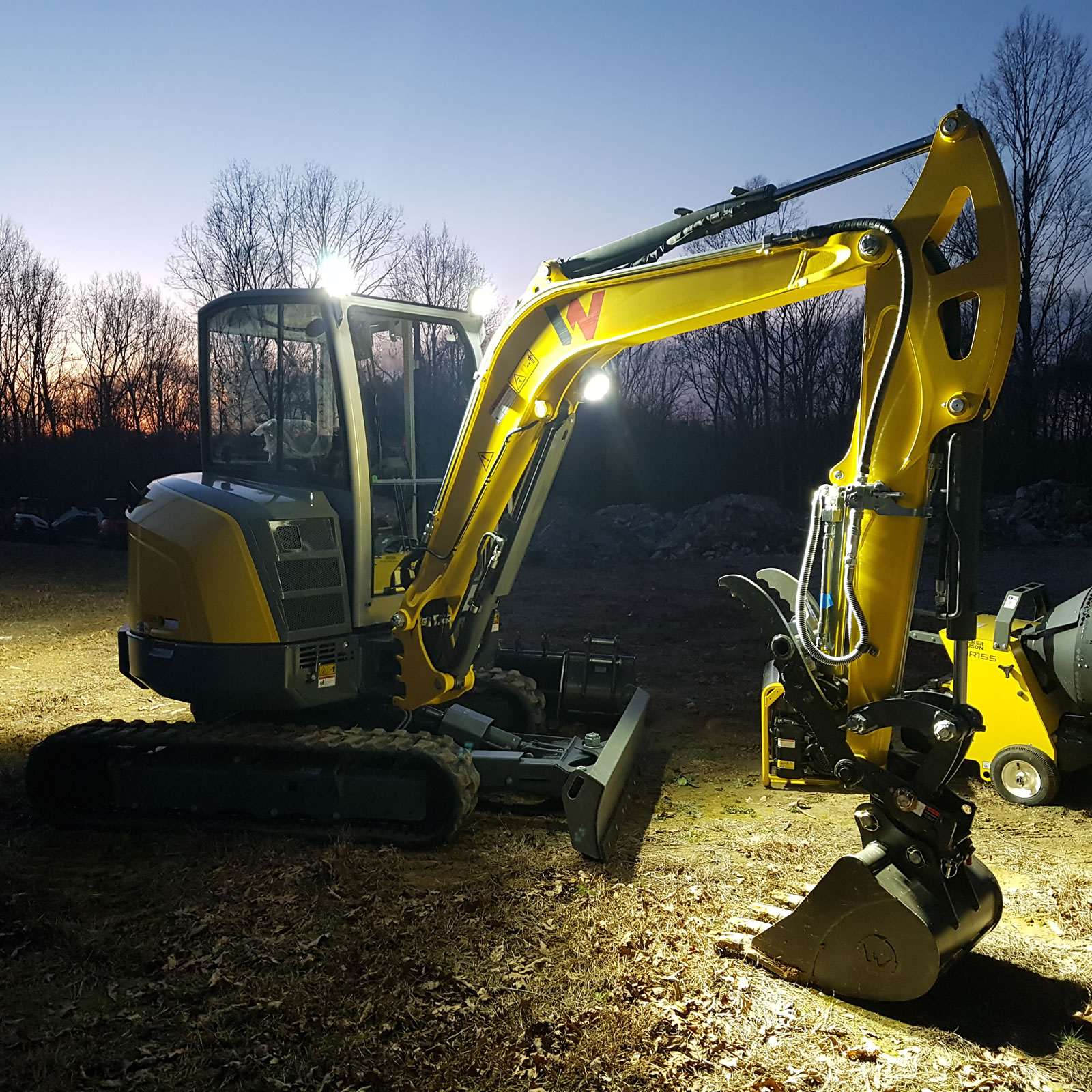

  • Working lights on front and rear of canopy, and on boom for optimum safety at night.
2. Comfort
  • Operators station ergonomically designed for continuous operation without fatigue.
  • Controls ensure comfort and feature large handles.
  • Adjustable arm rests fitted as standard.
  • All levers and switches positioned within easy and comfortable reach.
  • Seat features adjustable suspension for operators of different sizes.
  • Travel levers fitted with large foot pedals for precise track control while operating other controls.
  • Canopy model fitted with rear glass window for all weather operation.
  • Cabin model fitted with fully retractable front glass panel and dual openable side window.
  • Cabin model fitted with heater.
3. Power
  • Powered by Yanmar 3 Cylinder diesel (22.2 kW Tier III, 18.2kW Tier IV).
  • Enough power to ensure machine never stalls at any load.
  • Industry leading 21.1kN brekout force
4. Efficiency
  • Hydraulic system of EZ36 comprises of double variable displacement axial piston pump and two fixed displacement pumps.
  • System uses dedicated pilot pump for smooth and efficient control of machine.
  • High capacity pumps ensure enough flow to control multiple circuits at all tmes and is reason EZ36 has such high auxiliary flow availability.
  • Eco mode selectable on Tier IV verison lowering fuel consumption
5. Cooling
  • A high efficiency radiator and cooling system keeps the EZ36 cool in high ambient temperatures.
  • Oil cooler and radiator mounted side by side for easy cleaning.
  • Side by side coolers stops the common problem of debris building up between coolers mounted infront of each other ensuring the most efficient cooling.
  • Strong raidator lamination design.
6. Versatility
  • EZ36 fitted standard with rubber tracks and has stable footing with a 1750mm maximum width.
  • Two speed travel pushes machine along quickly.
  • Pattern change from Backhoe (SAE) to Excavator (ISO).
  • 8 Oversized tie down points.
7. Vision
  • Both canopy and cabin designed with perfect visibility.
  • ROPS posts positioned to ensure operator's view is not restricted.
  • Rollformed tubing designed a-pillar allows for superior visability over compressed sheet design on Japanese and American competitors.
  • Canopy roof fitted with window, allowing bucket visibility at all times.
  • 16% higher visability through front window compered to competitors.
8. Auxiliary Hydraulics
  • 2 way auxiliary piping standard from factory, boasts one of the highest auxiliary flows in the industry.
  • Options 2nd and 3rd circuits available.
  • Massive 66.1L/min.
  • Hammer valve fitted as standard option.
  • Auxiliaries controlled via thumb wheel on joystick.
  • Pre-set auxiliary flow rates available on Tier IV version
  • Pre-set auxiliary flow rates selectable through LCD screen and Jog dial control
9. Hitches
  • Fitted with Wacker Neuson Easy Lock fully automatic quick hitch as standard.
  • Wacker Neuson Easy Lock Powertilt fully automatic quick hitch (optional) also available.
10. VDS
  • Optional Veritcal Dig System or VDS is a Patented Wacker Neuson innovation.
  • Allows uppercarriage of machine to be tilted 15º away from undercarriage.
  • Provides perfect stability for excavator and allows level excavating on unlevel grounds.

(EZ36)

General:

Transport Weight 3,530-4,446kg
Operating Weight 3,720-4,636kg

Engine:

Manufacturer Yanmar
Model 3TNV88
Construction Liquid-Cooled, 3-Cylinder diesel engine
Displacement 1,642cm3
Engine Speed 2,500rpm / 2430rpm (Tier IV)
Engine Output according to ISO 22.2kW / 18.2kW (Tier IV)
Battery Voltage / Capacitance 12V/71Ah

Hydraulics:

Pumps Double variable & double gear
Max. flow rate 2x42.5 + 23.8 +11.3 / 2x41.3 + 23.1 + 10.9 (Tier IV)
Operating Pressure for working and driving hydraulics 240bar
Operating Pressure for slewing gear 195bar
Slewing speed 9.5rpm
Max. tear out force short / long arm 21.1 / 18.7kN
Max. breakaway force 35.0kN
Max. flow rate AUX I 66.1l/min
Max. flow rate AUX II / AUX III 23.6l/min

Undercarriage:

Track Width 300mm
Ground Pressure 0.36 - 0.46kg/cm3
Number of track rollers 4
Ground Clearance 251mm
Drive speed 2.7 / 4.7km/h

Blade:

Width 1,750/357mm
Stroke above / below 393/505mm

Capacities:

Hydraulic system 65.5L
Fuel Tank 44L

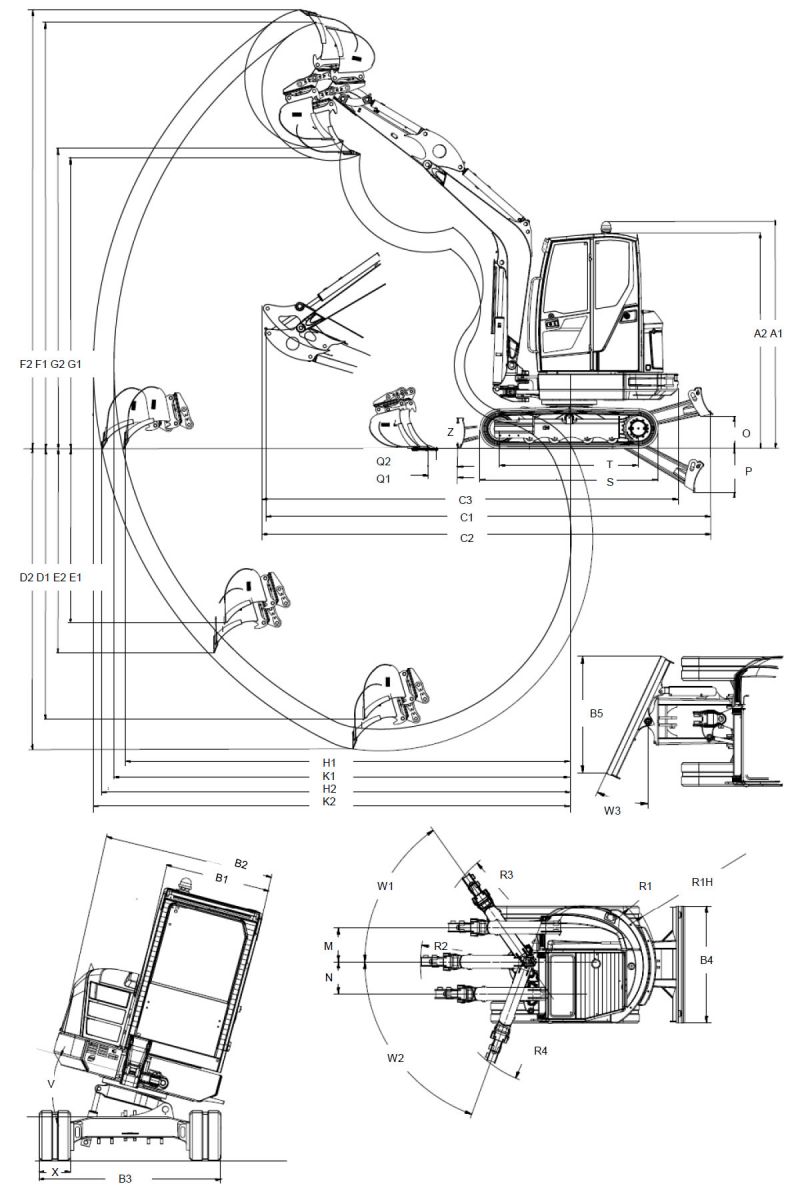

Working Dimensions:

    EZ36 EZ36VDS
A1 Height with rotary light 2,630mm 2,711mm
A2 Height 2,491mm 2,573mm
B1 Width cabin 980mm 980mm
B2 Width uppercarriage 1,630mm 1,630mm
B3 Width undercarriage 1,750mm 1,750mm
B4 Width dozer blade 1,750mm 1,750mm
B5 Width angle blade-tilted 1,474mm N/A
C1 Transport length with dozer blade (short dipper arm) 5,503mm 5,489mm
C2 Transport length with dozer blade (long dipper arm) 5,503mm 5,508mm
C3 Transport length with without dozer blade (long dipper arm) 4,878mm 4,881mm
D1 Max. digging depth (short dipper arm) 3,247mm 3,172mm
D2 Max. diggin depth (long dipper arm) 3,497mm 3,422mm
E1 Max. vertical digging depth (short dipper arm) 2,123mm 2,048mm
E2 Max. vertical digging depth (long dipper arm) 2,360mm 2,285mm
F1 Max. digging height (short dipper arm) 4,925mm 5,004mm
F2 Max. digging height (long dipper arm) 5,082mm 5,157mm
G1 Max. tilt-out heigh (short dipper arm) 3,336mm 3,411mm
G2  Max. tilt-out height (long dipper arm) 3,489mm 3,546mm
H1 Max. reach at ground level (short dipper arm) 5,391mm 5,378mm
H2 Max. reach at ground level (long dipper arm) 5,641mm 5,629mm
K1 Max. digging radius (short dipper arm)

5,506mm

5,506mm
K2 Max. digging radius (long dipper arm) 5,743mm 5,743mm
M Max. boom displacement to bucket center (right side) 680mm 680mm
N Max. boom displacement to bucket center (left side) 650mm 650mm
O Max. lift height of dozer blade above ground 393mm 393mm
P Max scraping depth of dozer blade below ground 505mm 505mm
Q1 Distance between bucket and dozer blade (short dipper arm) 370mm 369mm
Q2 Distance between bucket and dozer blade (long dipper arm) 250mm 249mm
R1 Min. tail swing radius 933mm 933mm
R1H Min. tail swing radius with counterweight 1,025mm 1,025mm
R2 Boom swivel radius (center) 2,245mm 2,245mm
R3 Boom swivel radius (right) 2,073mm 2,073mm
R4 Boom swivel radius (left) 1,863mm 1,863mm
S Track lenght (total) 2,062mm 2,062mm
T Track lenght (idler to sprocket centres) 1,604mm 1,604mm
V Max. tilting angle vds N/A 15°
W1 Max. boom tilting angle (right) 55° 55°
W2 Max. boom tilting angle (left) 70° 70°
X Track width 300mm 300mm
Z Dozer blade height 357mm 357mm

Specifications subject to change without notice due to continual product development.
