Wacker Neuson EZ26-2

2.6T Excavator

Share:
Enquiry/Quote

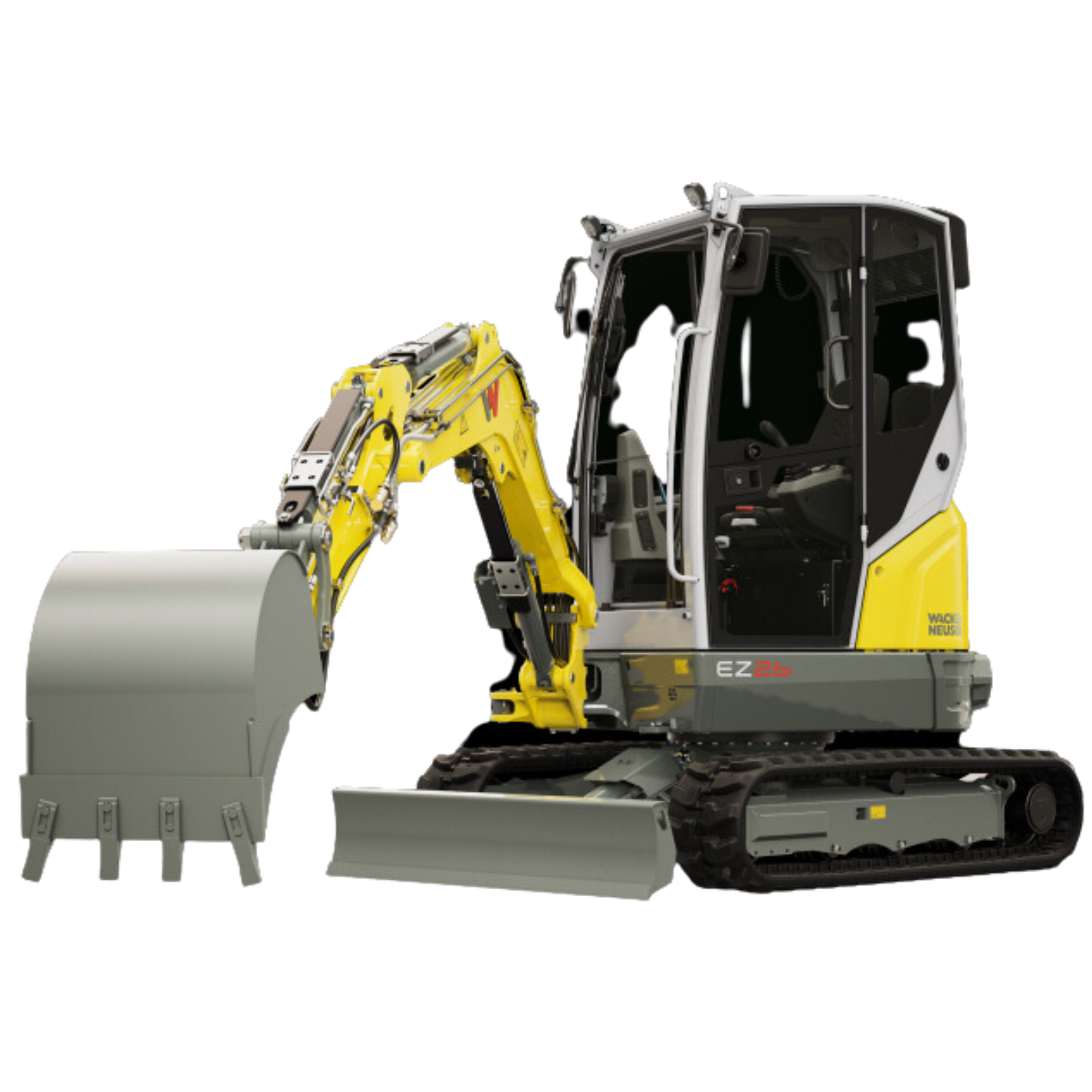

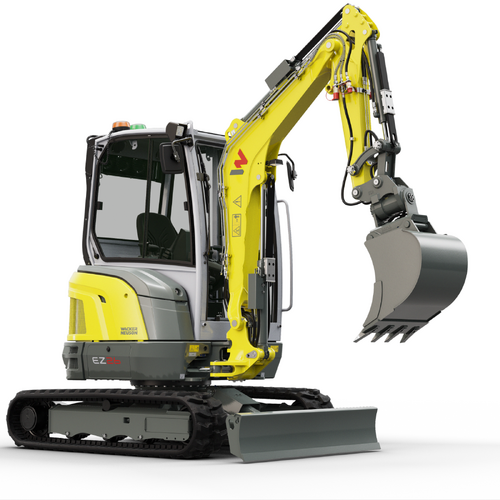

Wacker Neuson EZ26-2 - 2.6 Tonne Zero Swing Mini Excavator:

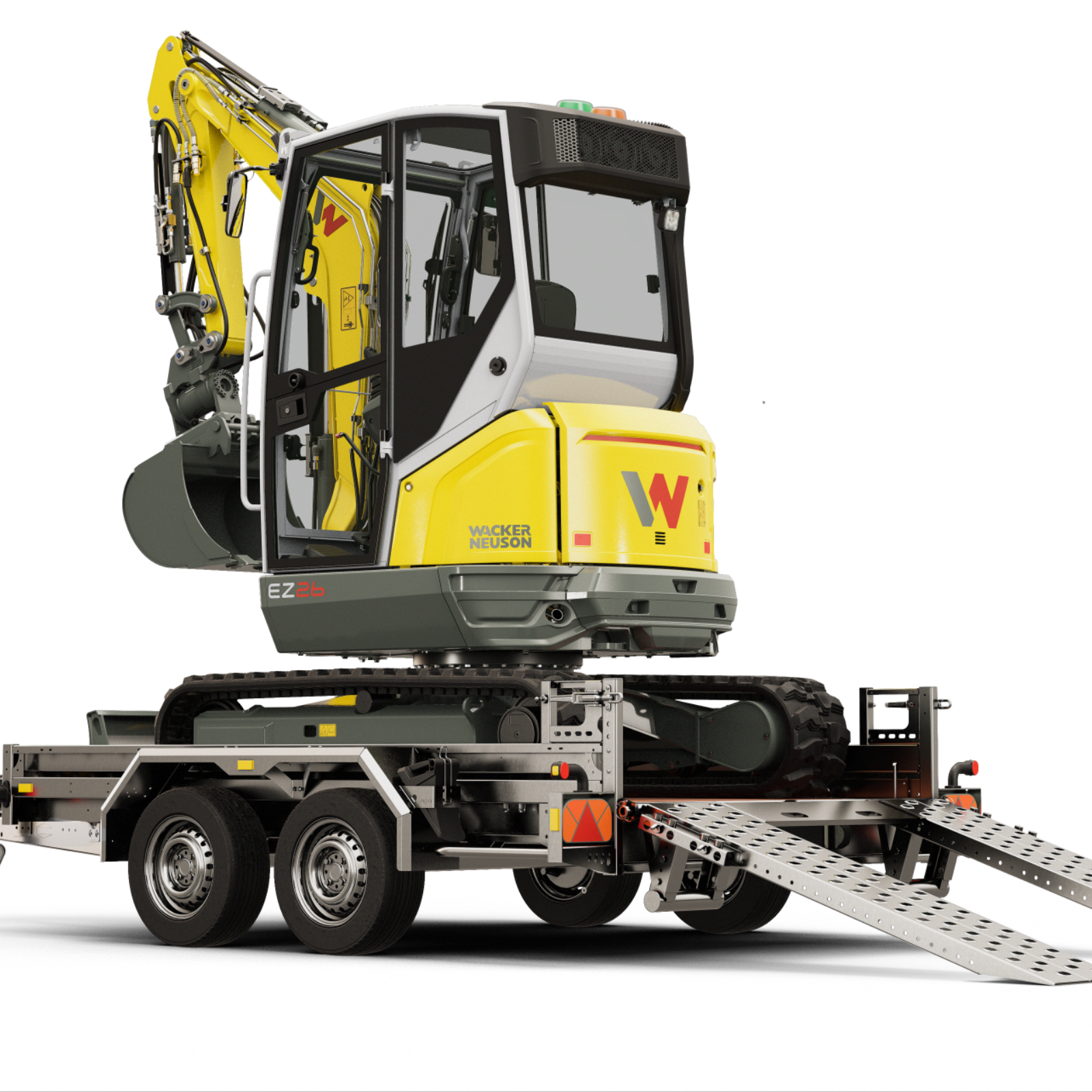

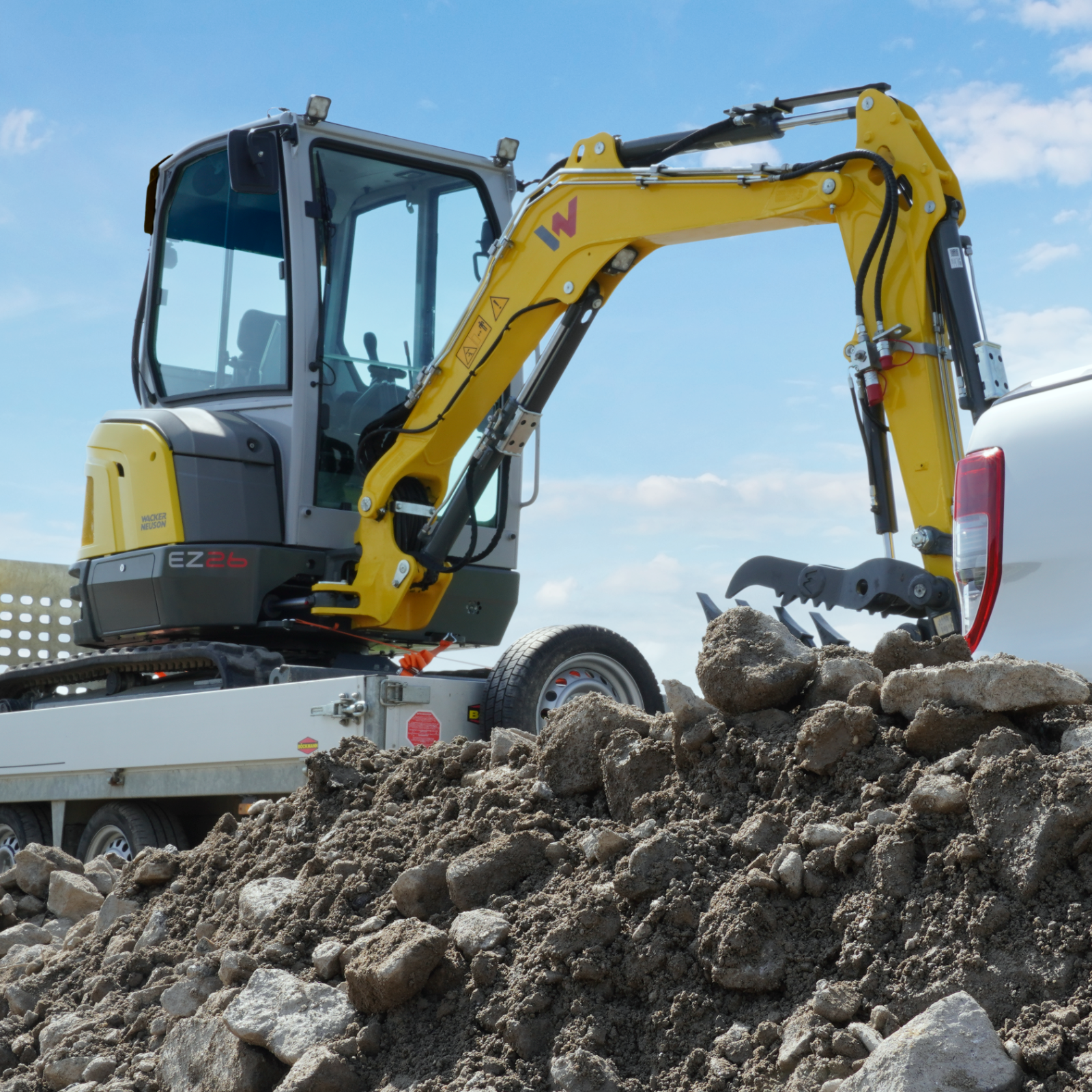

The EZ26-2 uses the latest hydraulic technology to combine immense power in a compact stature. Its lightweight design allows for transportation behind most 3.5T rated utes in Australia. The spacious cab provides a wide field of vision, enhancing both operator safety and overall construction site environment awareness, ensuring continuous control of the working surroundings. Additionally, the EZ26 creates a comfortable working environment with its fully sealed air-conditioned cabin.

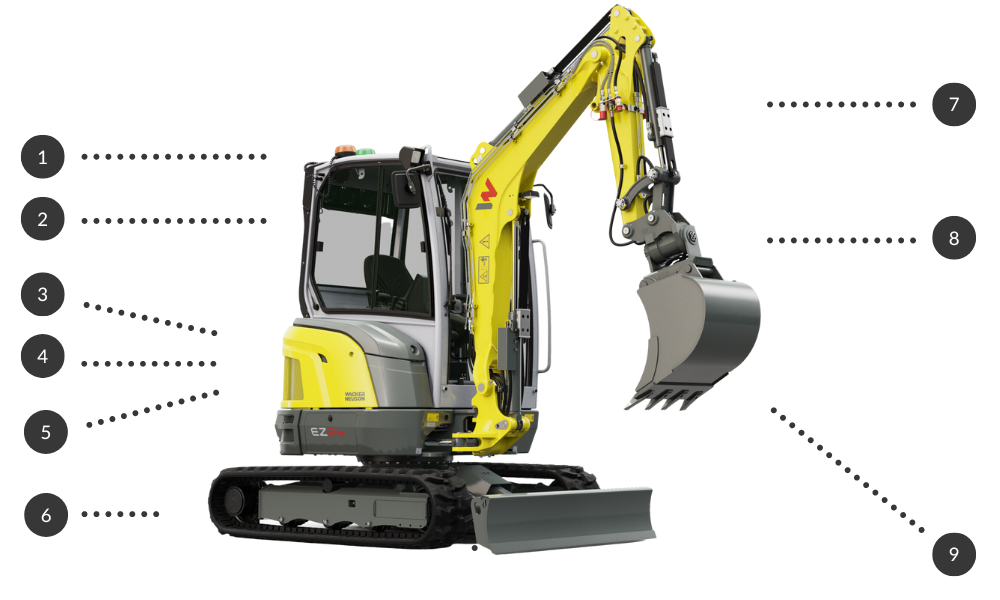

Key Features:



1. Safety
  • Rotating beacons, reverse beepers and warning horns as standard ensures machine is inline with latest safety standards.
  • All machines sold by ACES have an OHS Risk assessment prior to delivery.
  • Working lights on front and rear of canopy, and on boom for optimum safety at night.
  • ROPS certified cabin.
2. Comfort
  • Air-Conditioning and Heating.
  • Operators station ergonomically designed for continuous operation without fatigue.
  • Controls ensure comfort and feature large handles.
  • Adjustable arm rests fitted as standard.
  • All levers and switches positioned within easy and comfortable reach.
  • Seat features adjustable suspension for operators of different sizes.
  • Travel levers fitted with large foot pedals for precise track control while operating other controls.
  • Fitted with fully retractable front glass panel and openable side window.
3. Power
  • Powered by Yanmar 3 Cylinder diesel (20HP / 14.6 kW).
  • Enough power to ensure machine never stalls at any load.
4. Efficiency
  • Wacker Neuson LUDV, load sensing hydraulic system with variable displacement pump.
  • The latest technology in hydraulics for mini excavators.
  • LUDV is what gives the EZ26-2 its precise, smooth control and the ability to run higher flows and pressures than its competitors.
5. Cooling
  • A high efficiency radiator and cooling system keeps the EZ26 cool in high ambient temperatures.
  • Oil cooler and radiator mounted side by side for easy cleaning,
  • Side by side coolers stops common problem of debris building up between coolers mounted in front of each other, ensuring the most efficient cooling.
6. Versatility

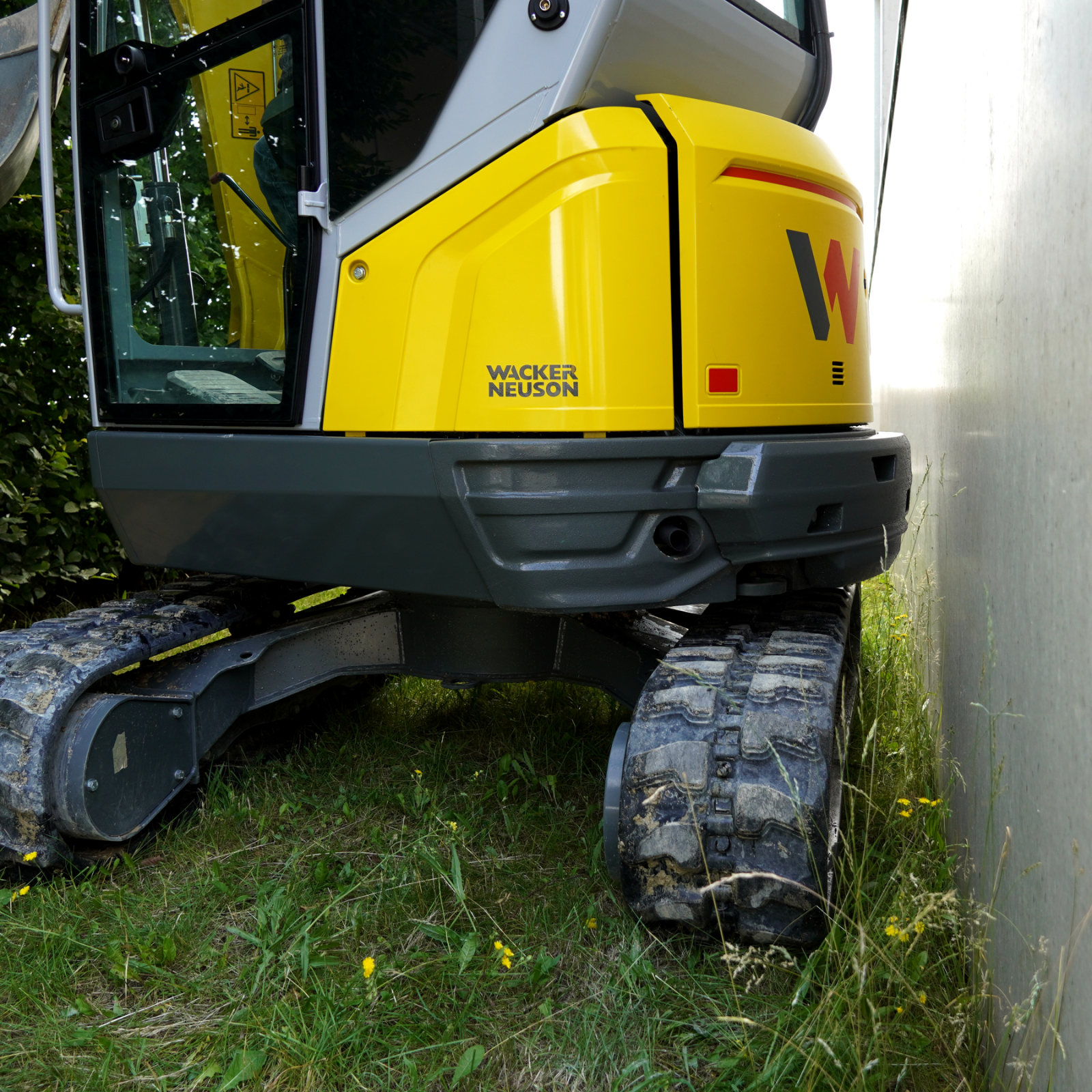

  • EZ26 fitted standard with rubber tracks and has stable footing with a 1550mm maximum width.
  • Two speed travel pushes machine along quickly.
  • Gradable up to 30º.
  • Pattern change from Backhoe (SAE) to Excavator (ISO).
7. Vision
  • Cabin designed with perfect visibility.
  • Thin framed ROPS posts positioned to ensure operator's view is not restricted.
  • Canopy roof fitted with window, allowing bucket visibility at all times.
8. Auxiliary Hydraulics
  • 2 way auxiliary piping standard from factory. Boasts one of the highest auxiliary flow in the industry
  • Massive 44.9L/min.
  • Fitted with dedicated oversized return line for hammer use. This ensures a minimal backpressure so that if running a hammer, it will run at it's most efficient.
9. Hitches
  • Fitted with Wacker Neuson Easy Lock fully automatic quick hitch as standard.
  • Wacker Neuson Easy Lock Powertilt fully automatic quick hitch (optional) also available.

(EZ26-2)

General:

Transport Weight  2,480 - 2,700 kg
Operating Weight  2,455 - 3,358 kg

Engine:

Manufacturer Yanmar
Model 3TNV80F
Displacement 1,266 cm3
Engine Speed 2,350 rpm
Starter Battery Voltage 12 V

Hydraulics:

Pumps LUDV with variable displacement pump
Max. flow rate 65.8 l/min
Operating Pressure 240 bar
Break Out Force Bucket 22.6 kN
Break Out Force Lift Arm 15.7 kN

Undercarriage:

Track Width 300 mm
Ground Pressure 0.27 kg/cm3
Number of track rollers 3
Ground Clearance 263 mm
Drive speed 4.3 km/h

Blade:

Width 1570 mm
Stroke above / below 380 / 419 mm

Capacities:

Hydraulic system 34.5 L

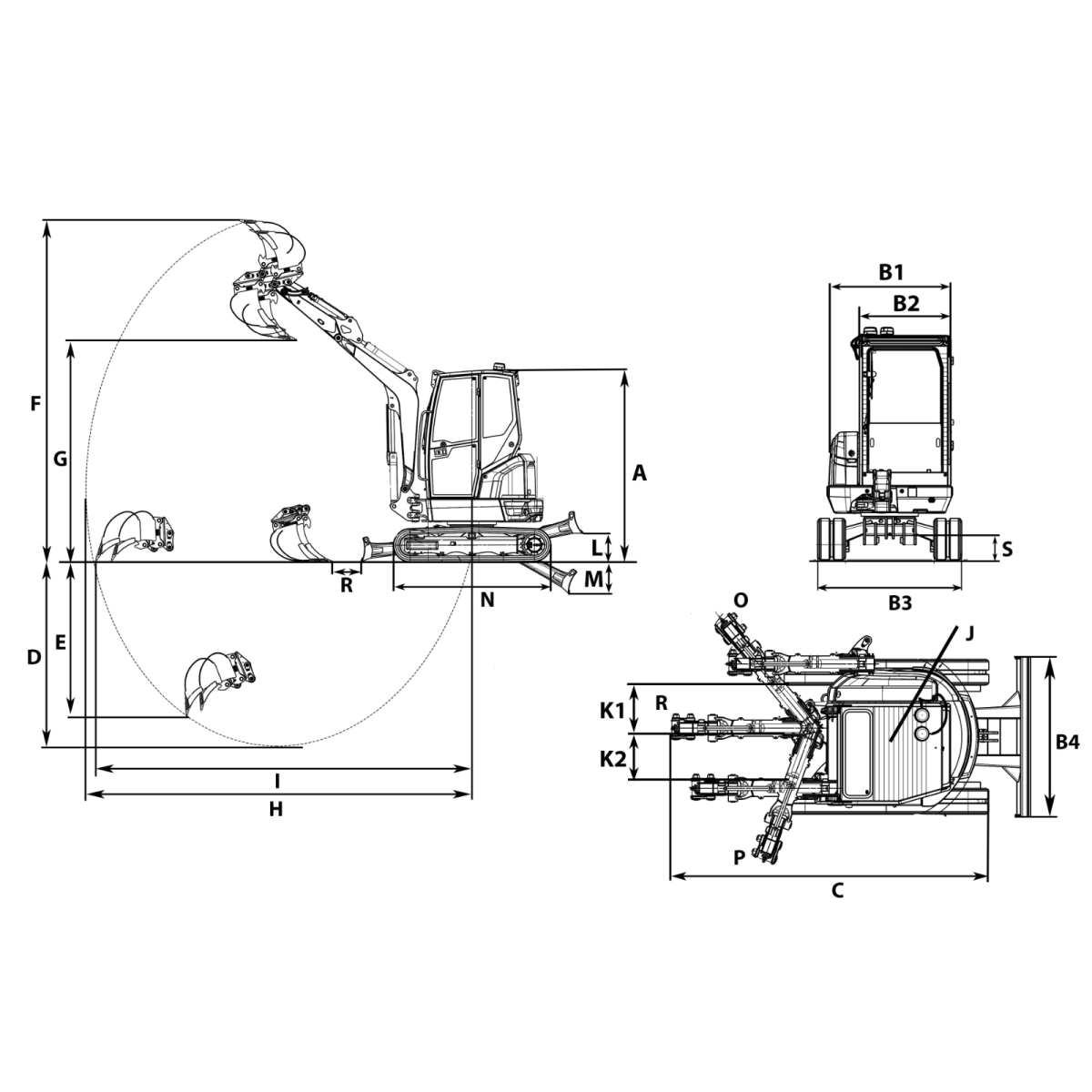

Working Dimensions:

A Height 2,412 mm
A Total height with rotating beacon 2,502 mm
B1 Width of upper carriage 1,350 mm
B2 Width of cab 980 mm
B3 Width travel gear 1,550 mm
C Transport length short shovel arm 4,199 mm
C Transport length long shovel arm 4,212 mm
D Digging depth max., short shovel arm 2,603 mm
D Digging depth max., long shovel arm 2,803 mm
E Piercing depth max., short shovel arm 1,124 mm
E Piercing depth max., long shovel arm 1,281 mm
F Piercing height max., short shovel arm 4,151 mm
F Piercing height max., long shovel arm 4,280 mm
G Dumping height max., short shovel arm 2,764 mm
G Dumping height max., long shovel arm 2,893 mm
H Digging radius max., short shovel arm 4,622 mm
H Digging radius max., long shovel arm 4,813 mm
I Max. reach at ground level (short shovel arm) 4,508 mm
I Max. reach at ground level (long shovel arm) 4,706 mm
J Tail swing radius 819 mm
J Tail swing radius with tail weight 896 mm
K1 Boom offset max. (to center of bucket right side) 622 mm
K2 Boom offset max. (to center of bucket0 left side) 584 mm
L Stacking height max. (dozer blade above surface) 374 mm
M Digging depth max. (dozer blade below surface) 409 mm
N Length travel drive 1,982 mm
O Max. swivel angle (arm system to the right) 50 mm
P Max. swivel angle (arm system to the left) 70 mm
R Boom swing radius center 2,102 mm
S Ground clearance 263 mm

Specifications subject to change without notice due to continual product development
