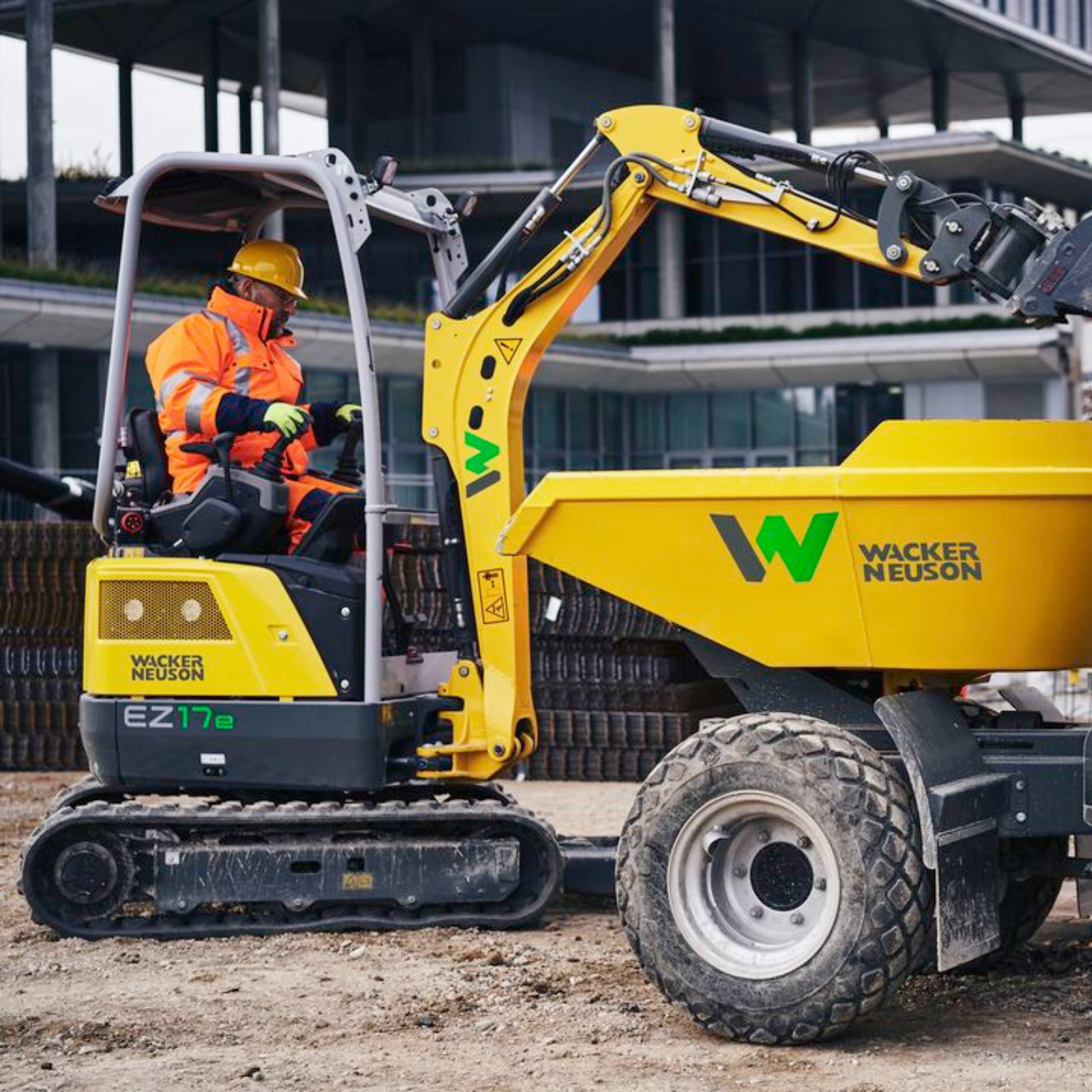

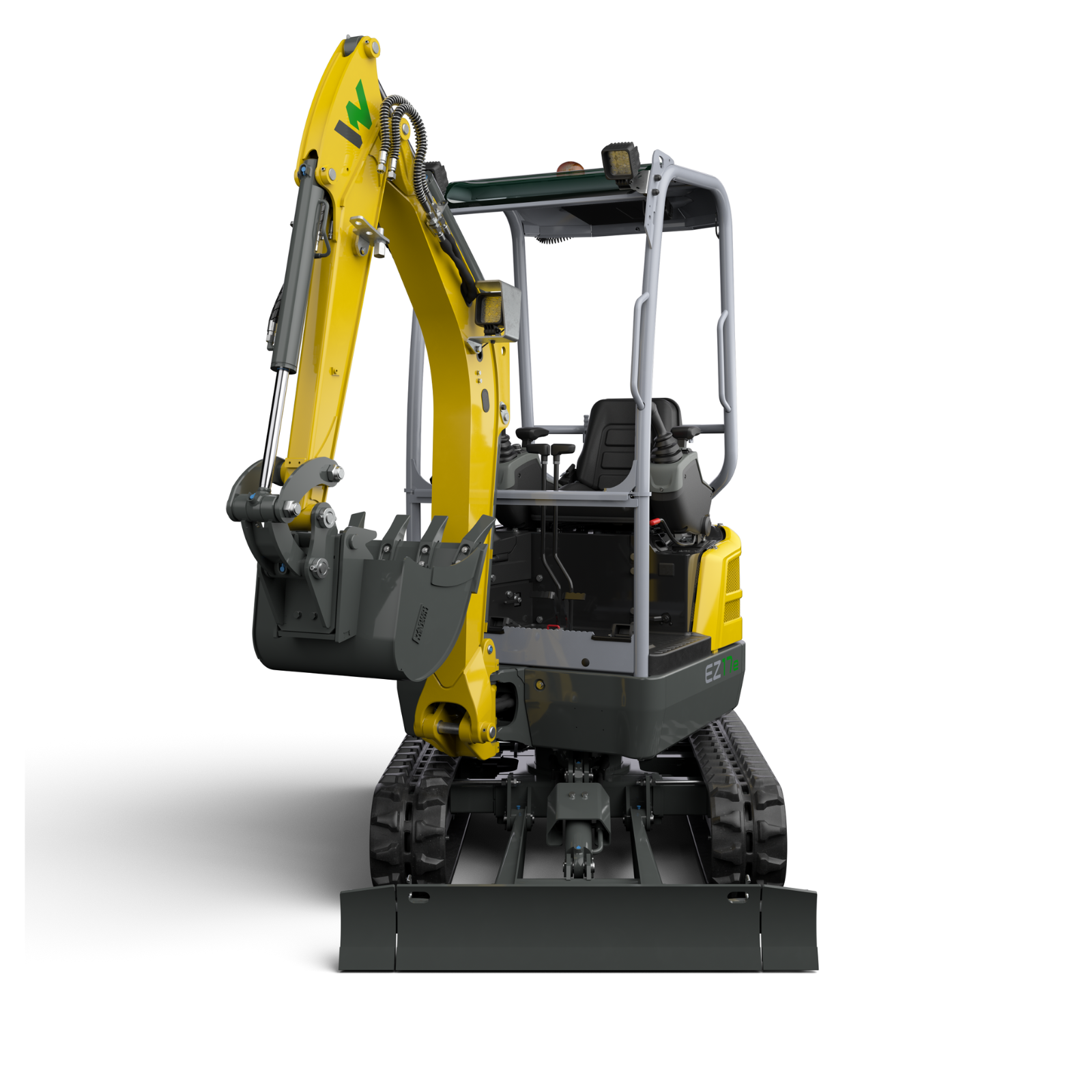

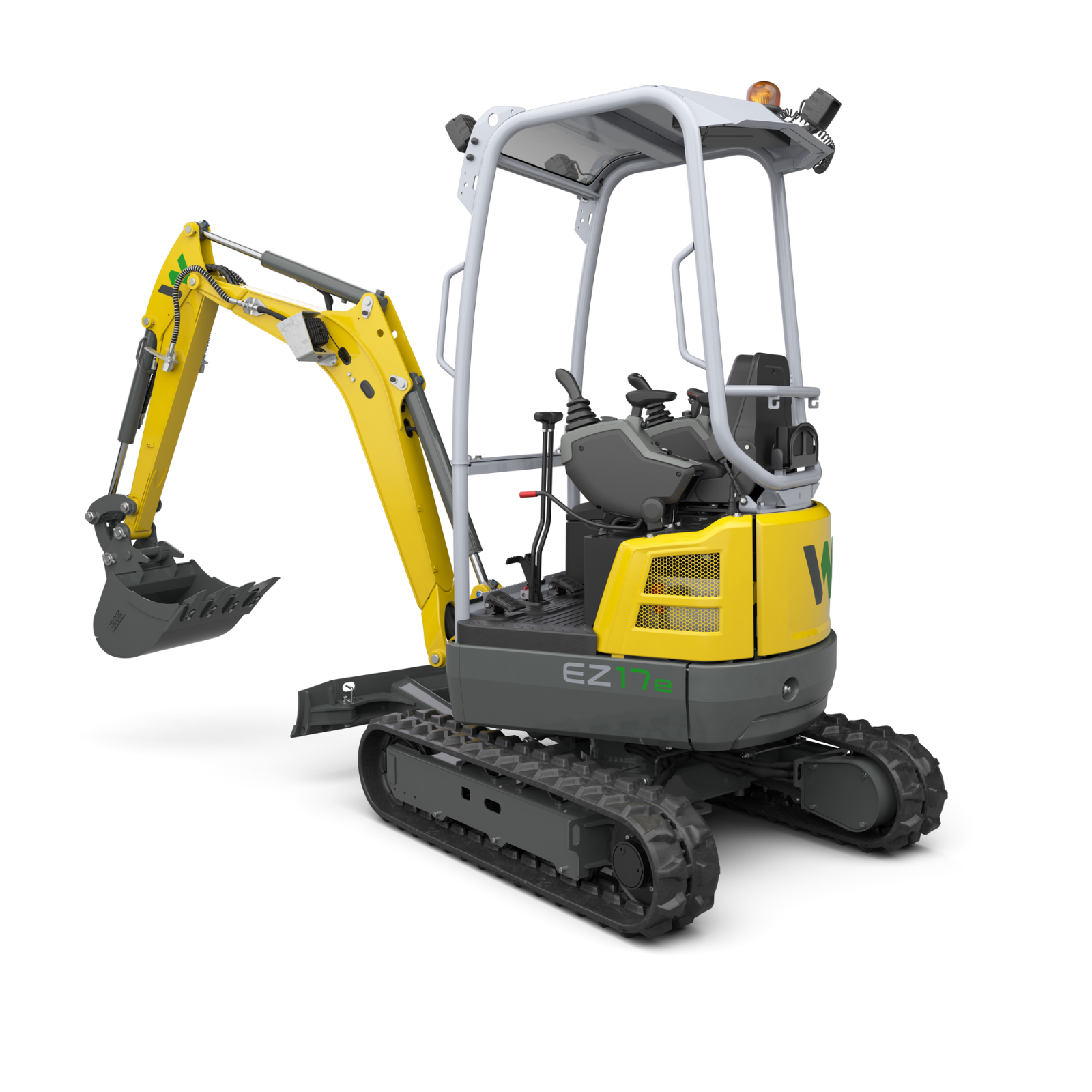

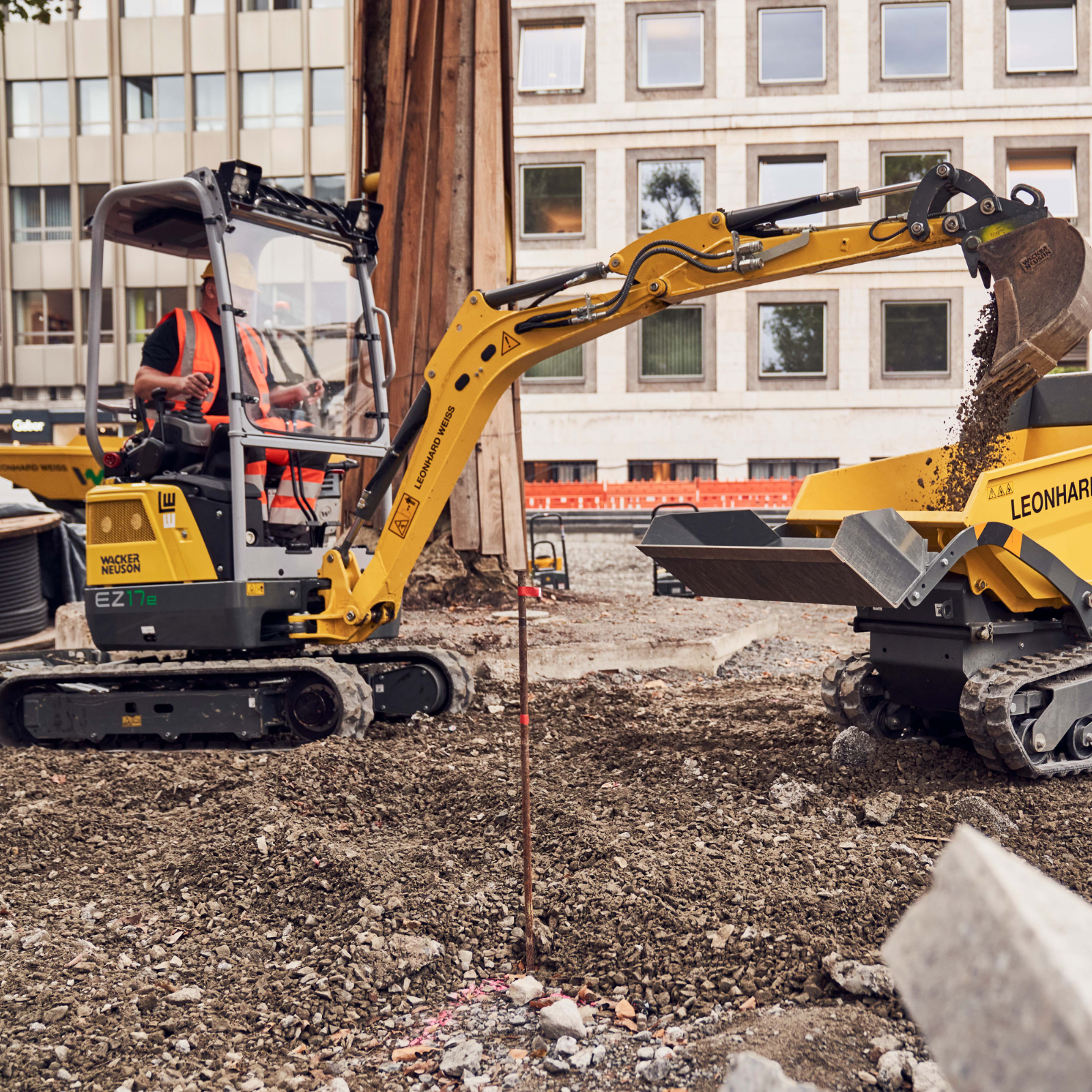

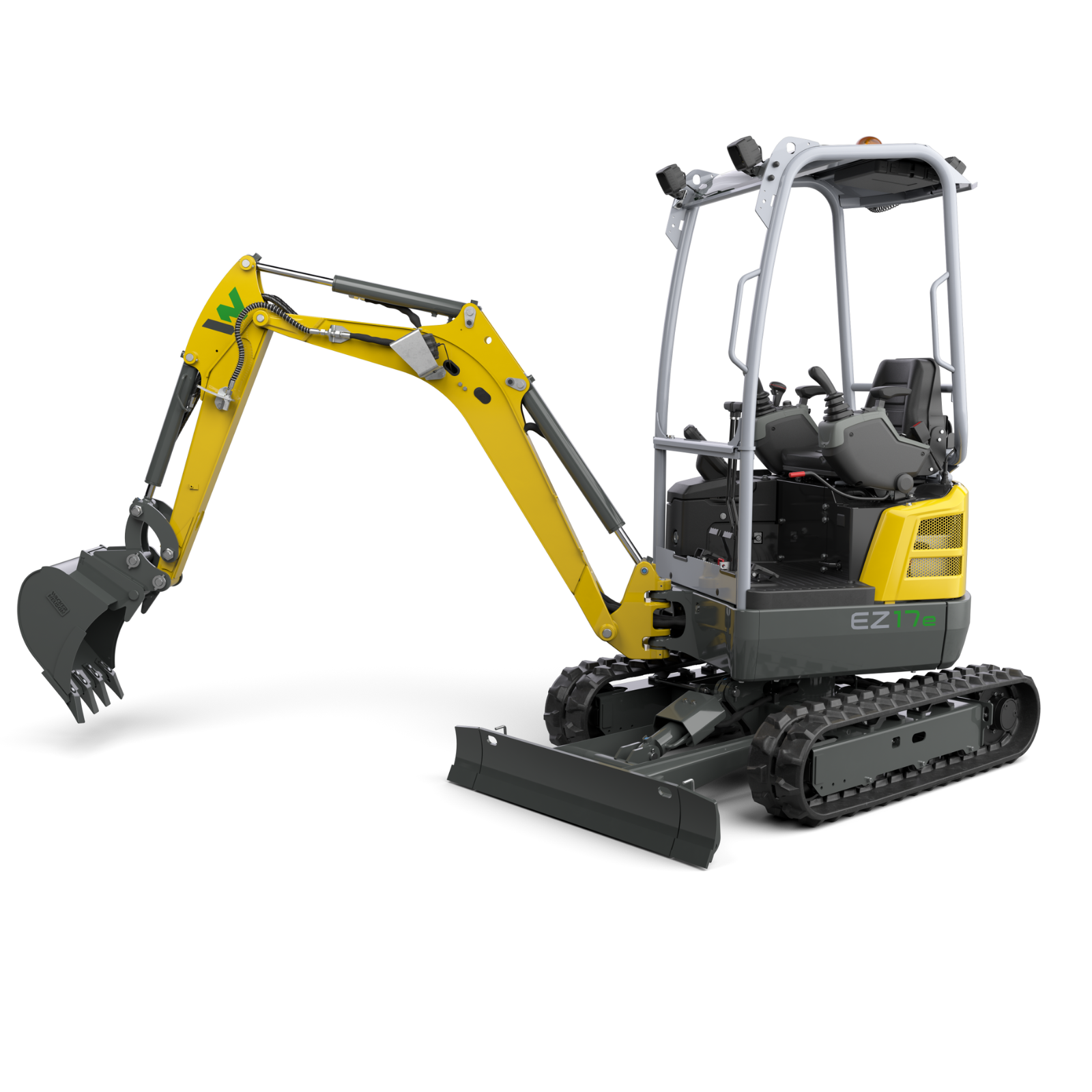

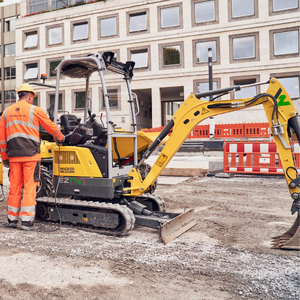

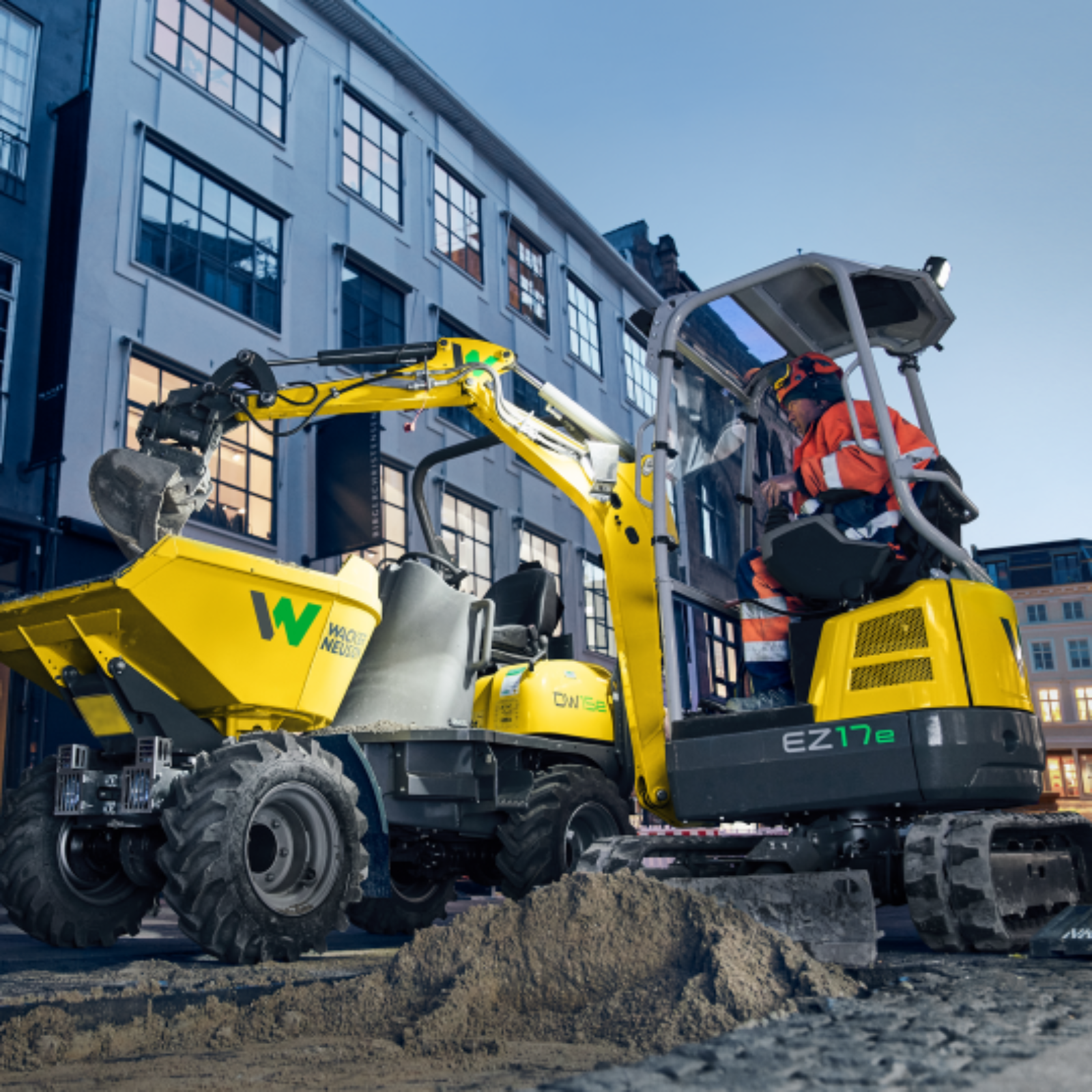

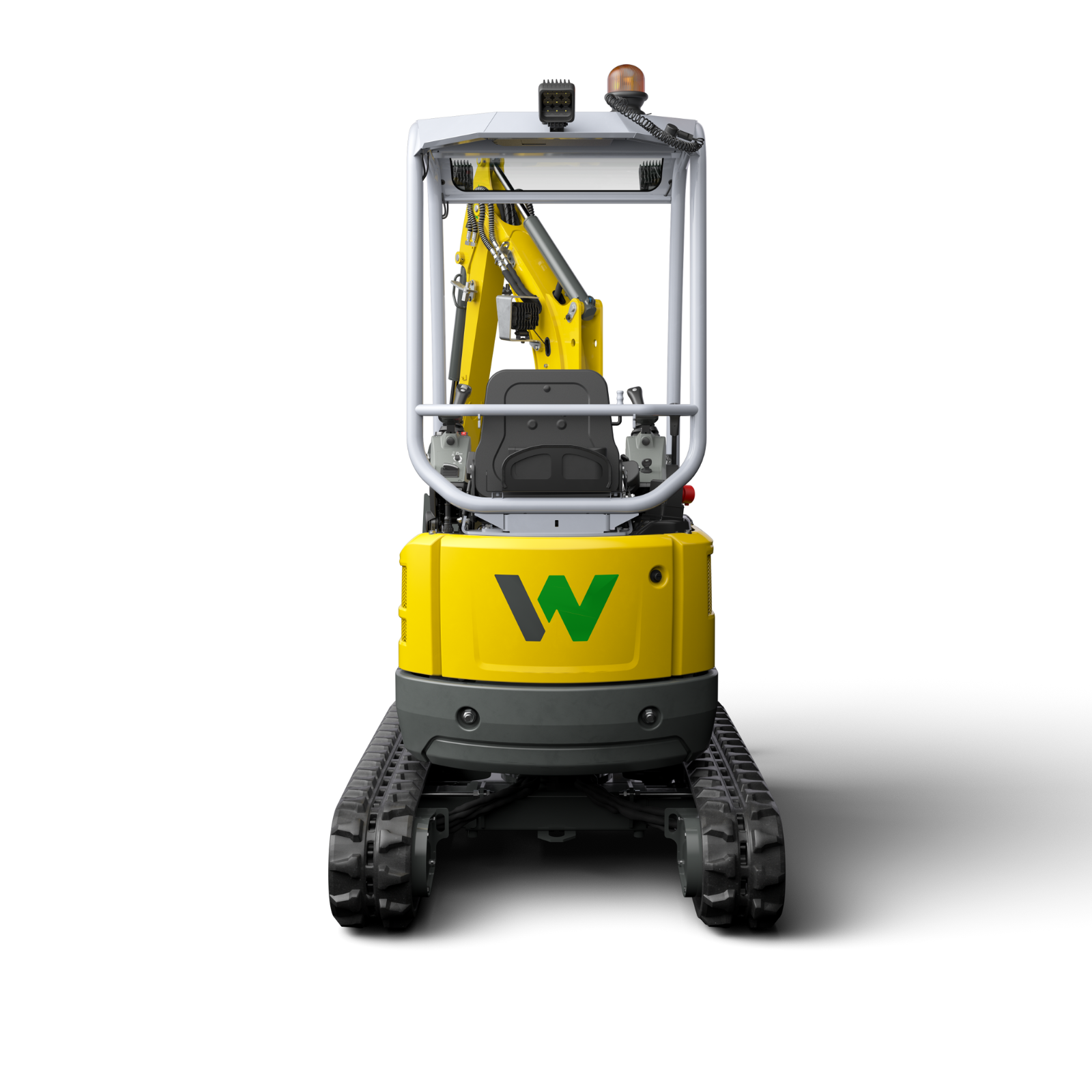

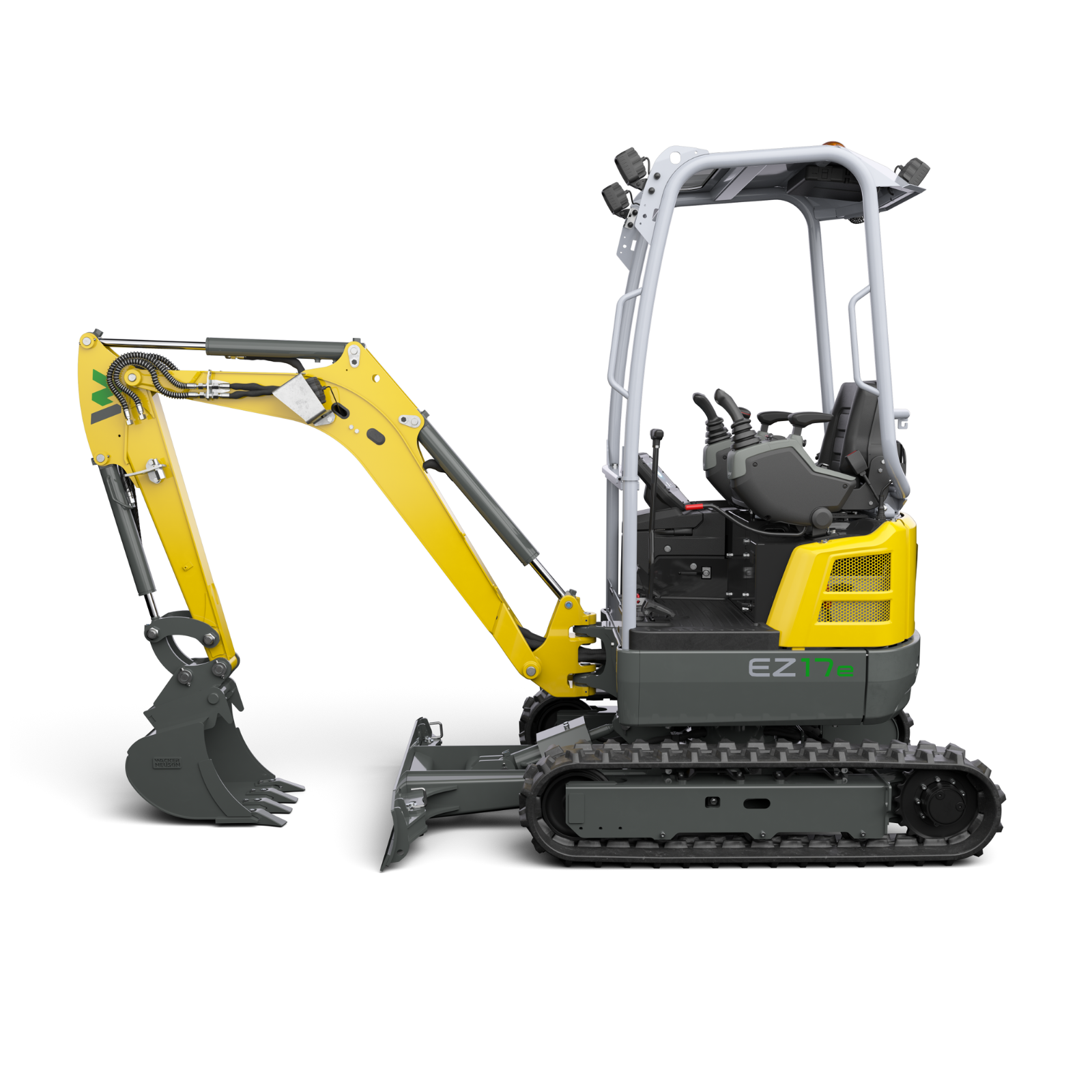

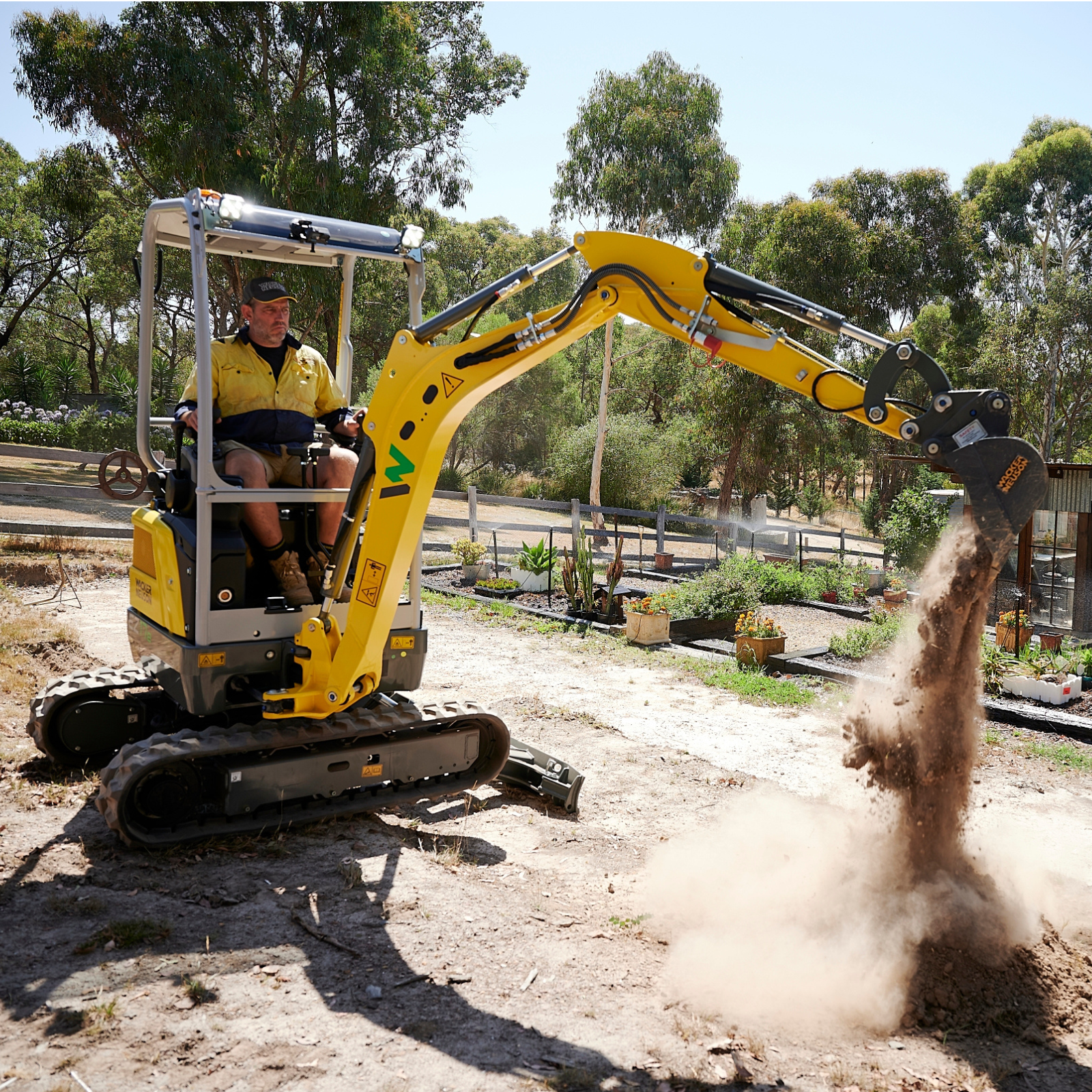

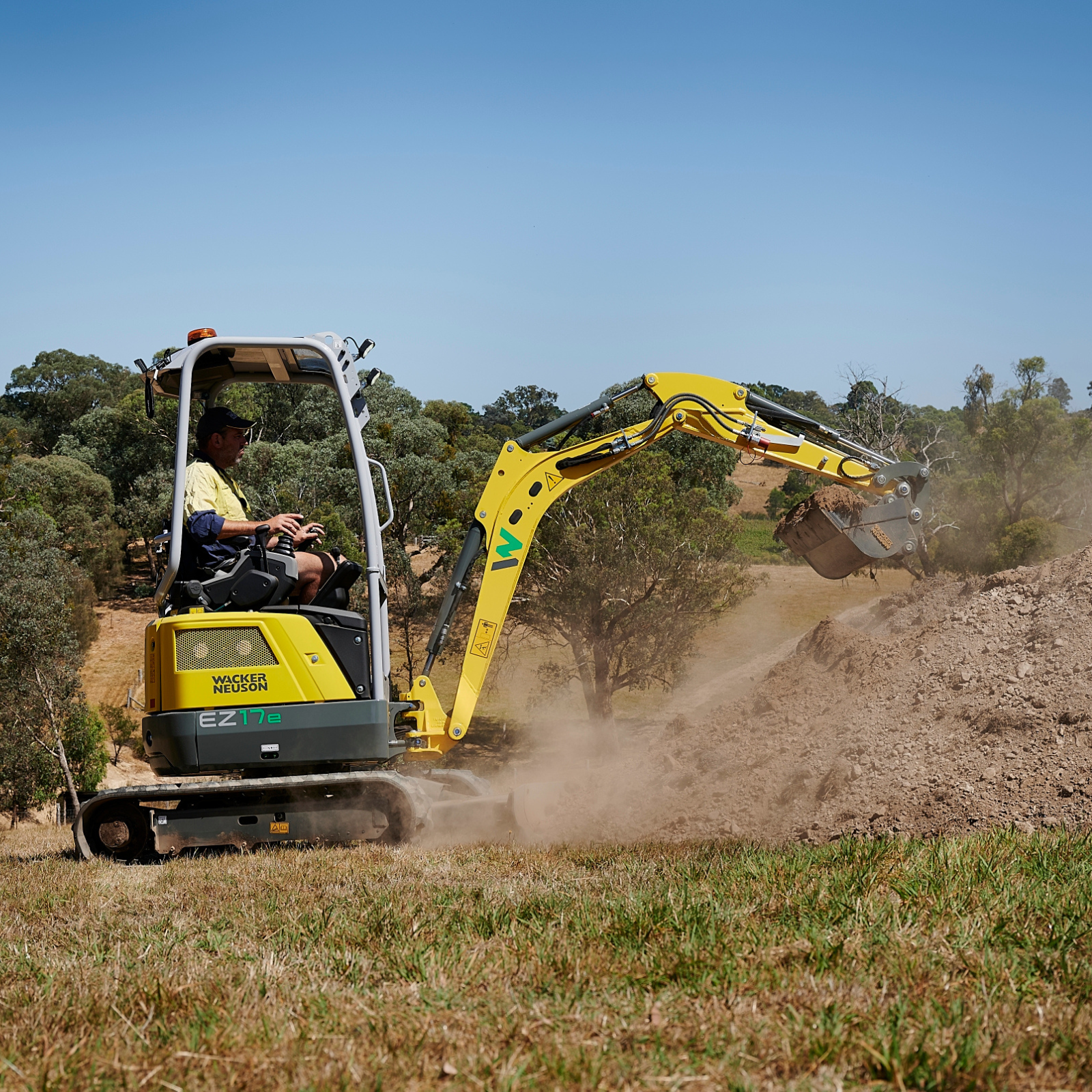

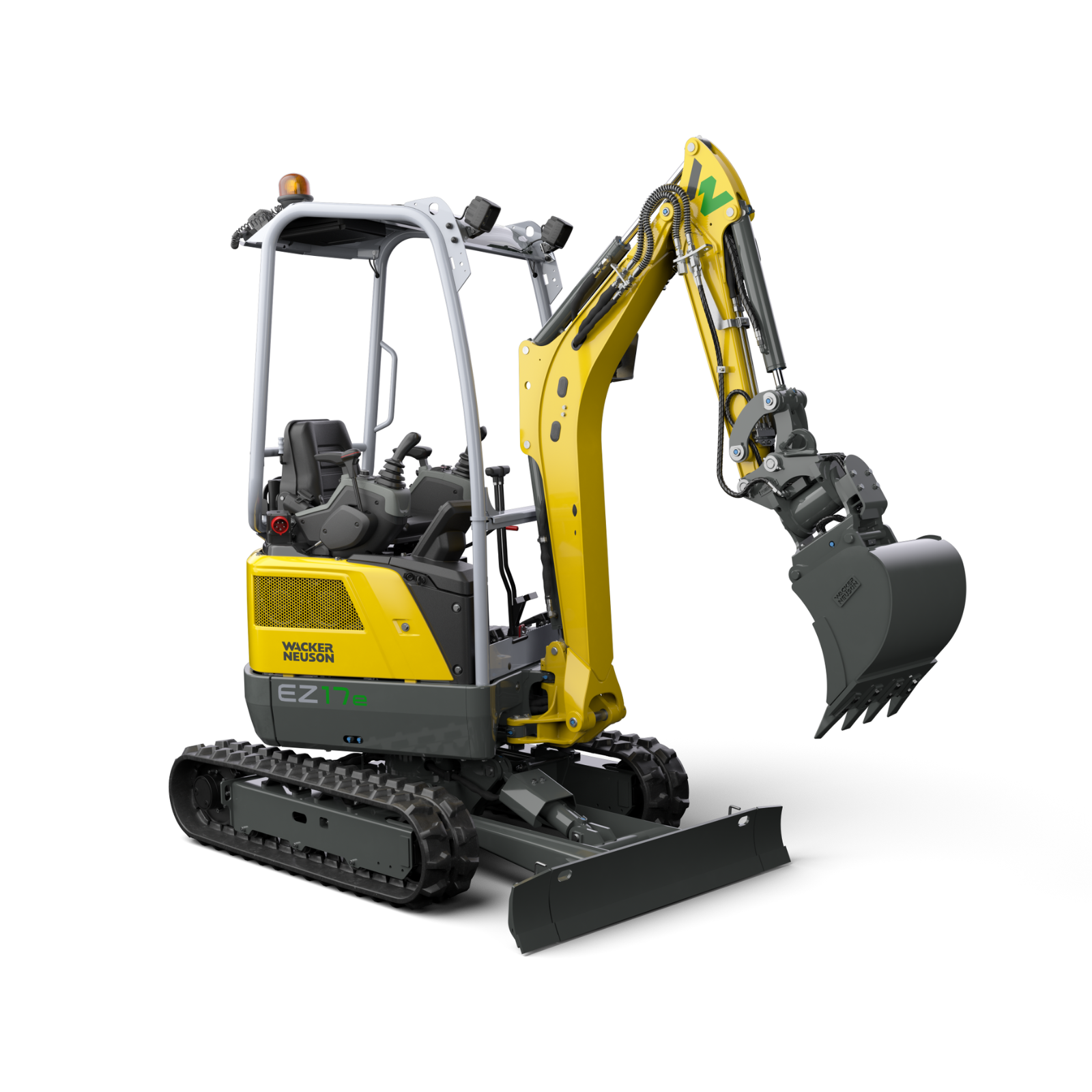

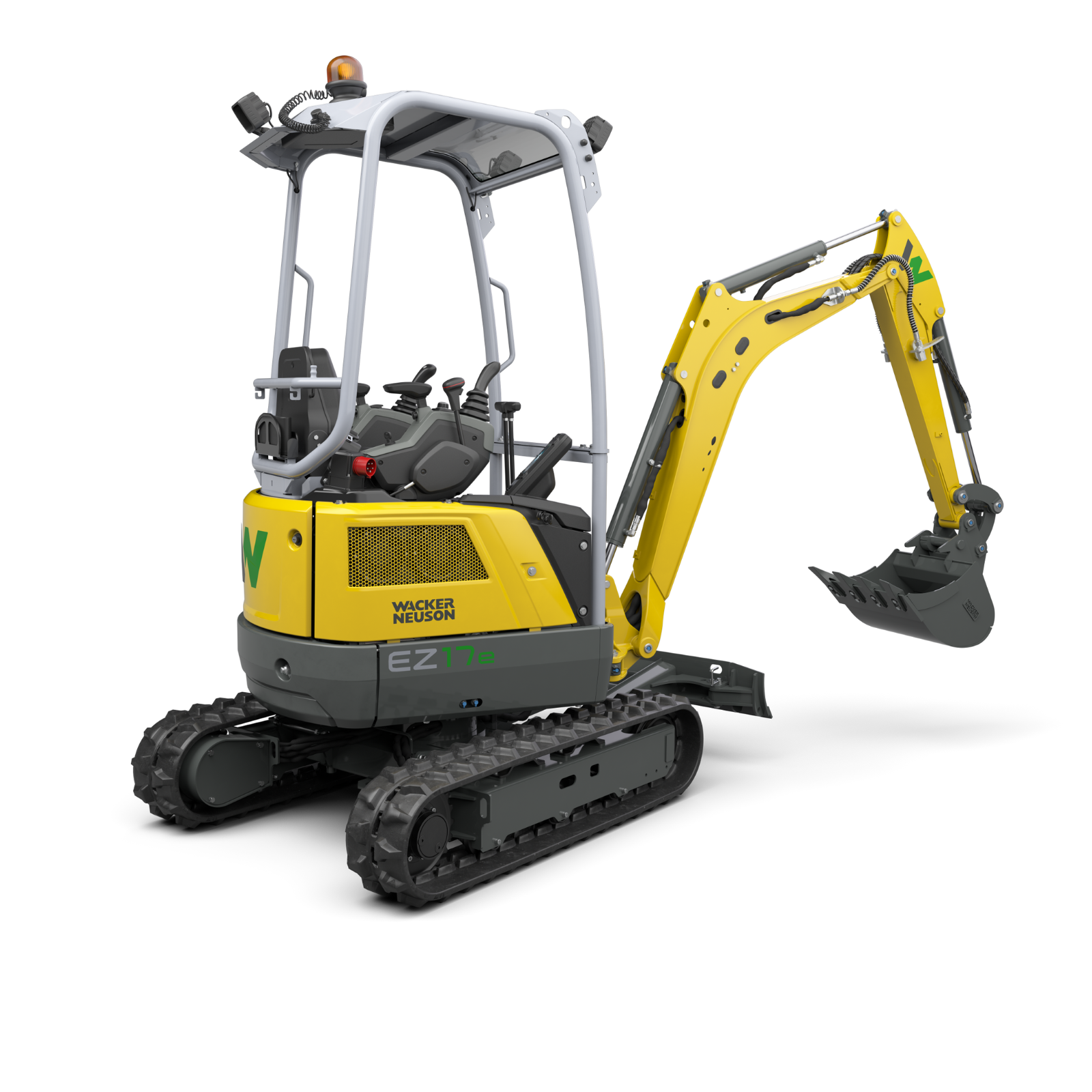

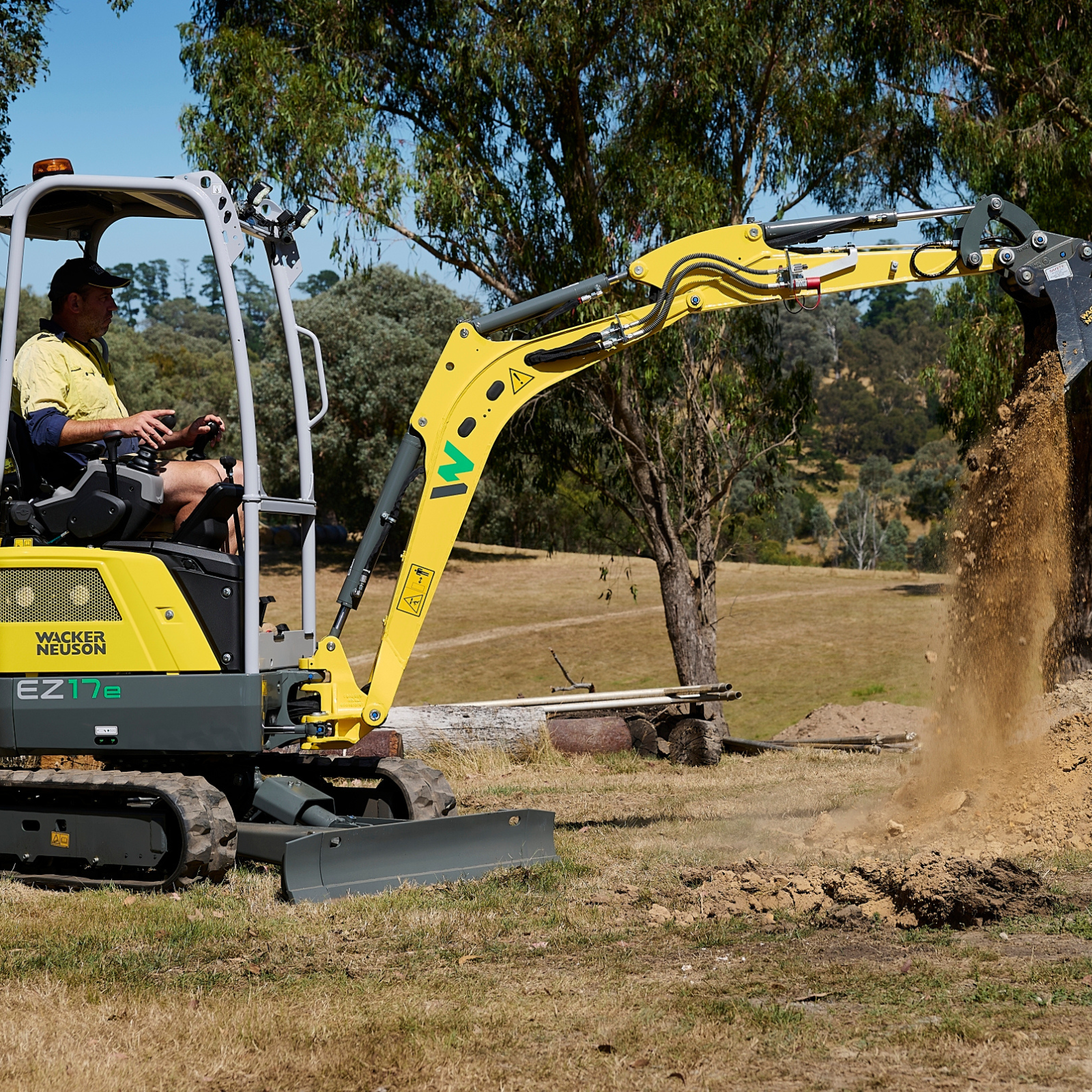

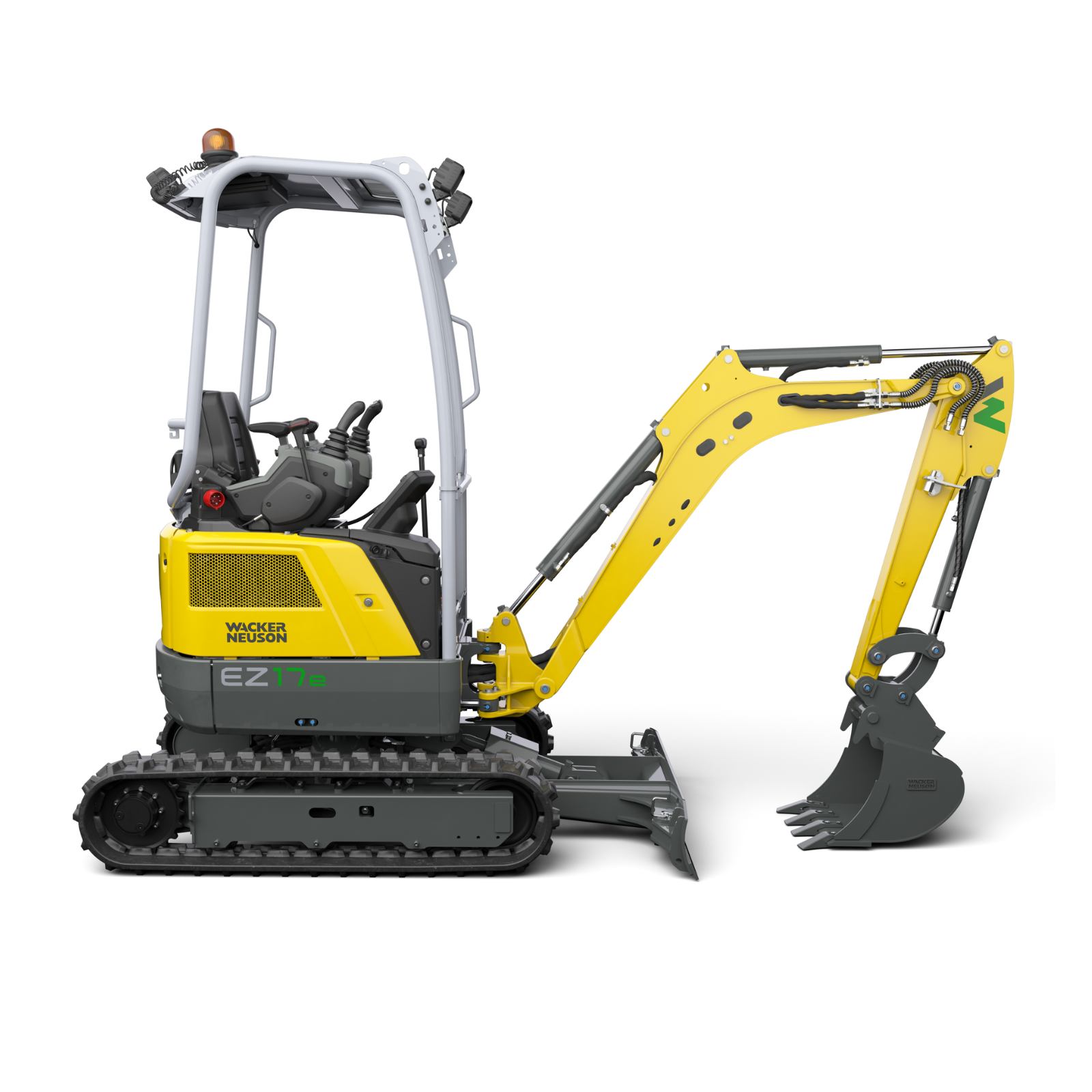

Wacker Neuson EZ17e - 1.7 Tonne Zero Swing Lithium Ion Mini Excavator:

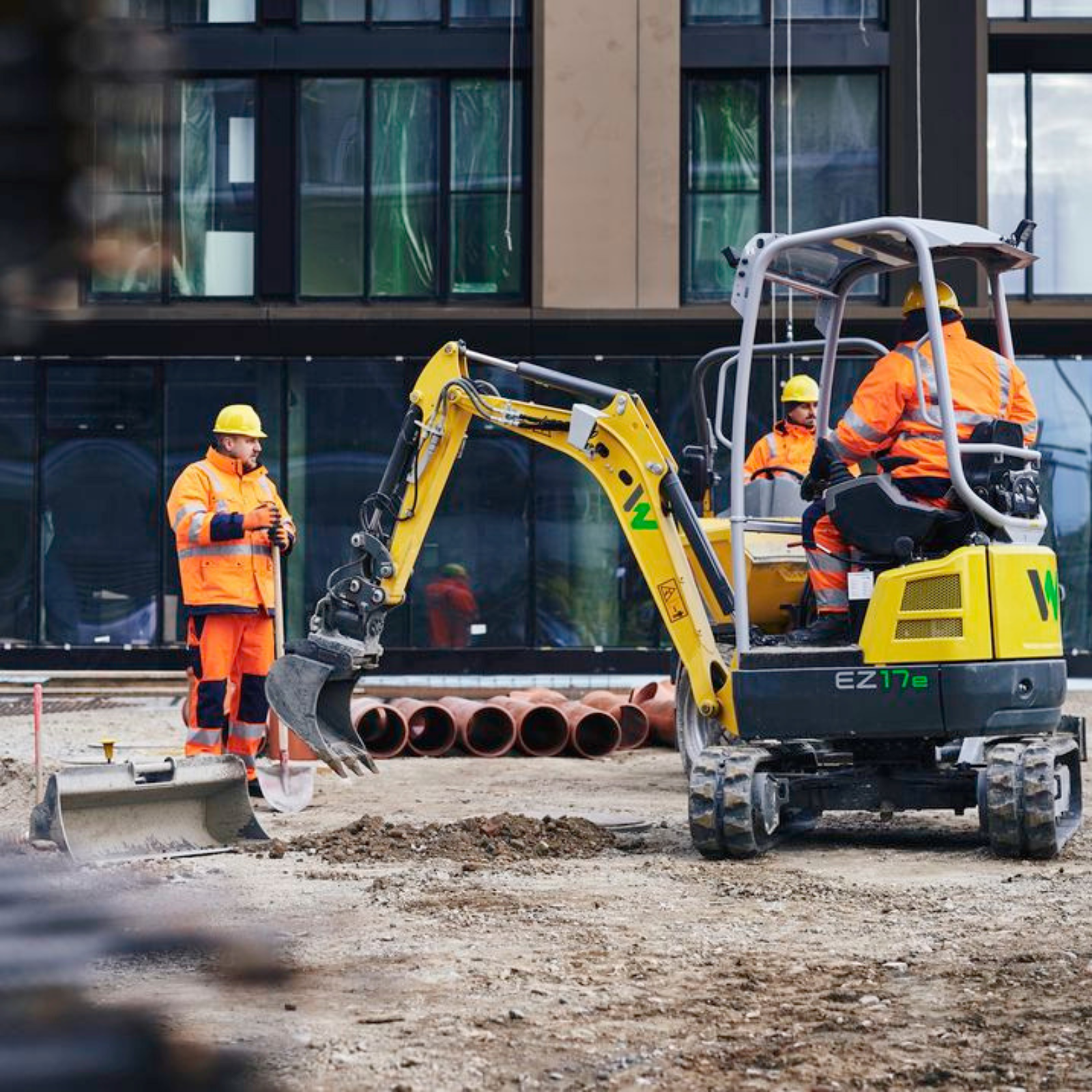

The EZ17e is an electric zero swing mini-excavator. It emits zero emissions, making it perfect for indoor use and areas with strict exhaust and noise restrictions. It has a strong lithium ion battery that can last a full workday and can also be used while connected to a power source. Its patented battery technology allows for charging at any power source (100 to 415 volts) without extra effort, regardless of the temperature.

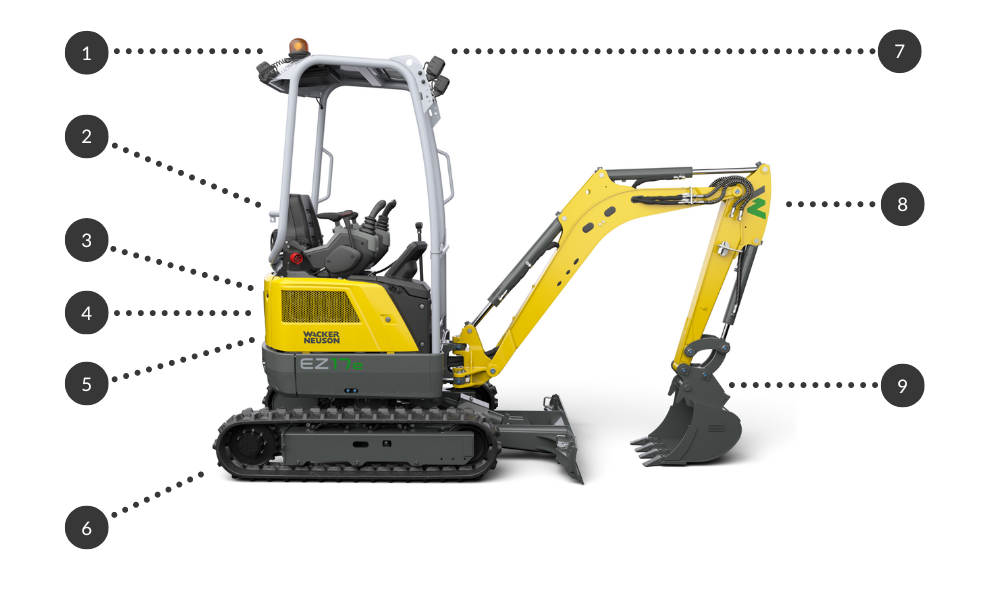

Key Features:



1. Vision
  • Canopy designed with perfect visibility.
  • ROPS posts positioned to ensure operator's view is no restricted
  • Canopy roof is fitted with a window allowing bucket visibility at all times.

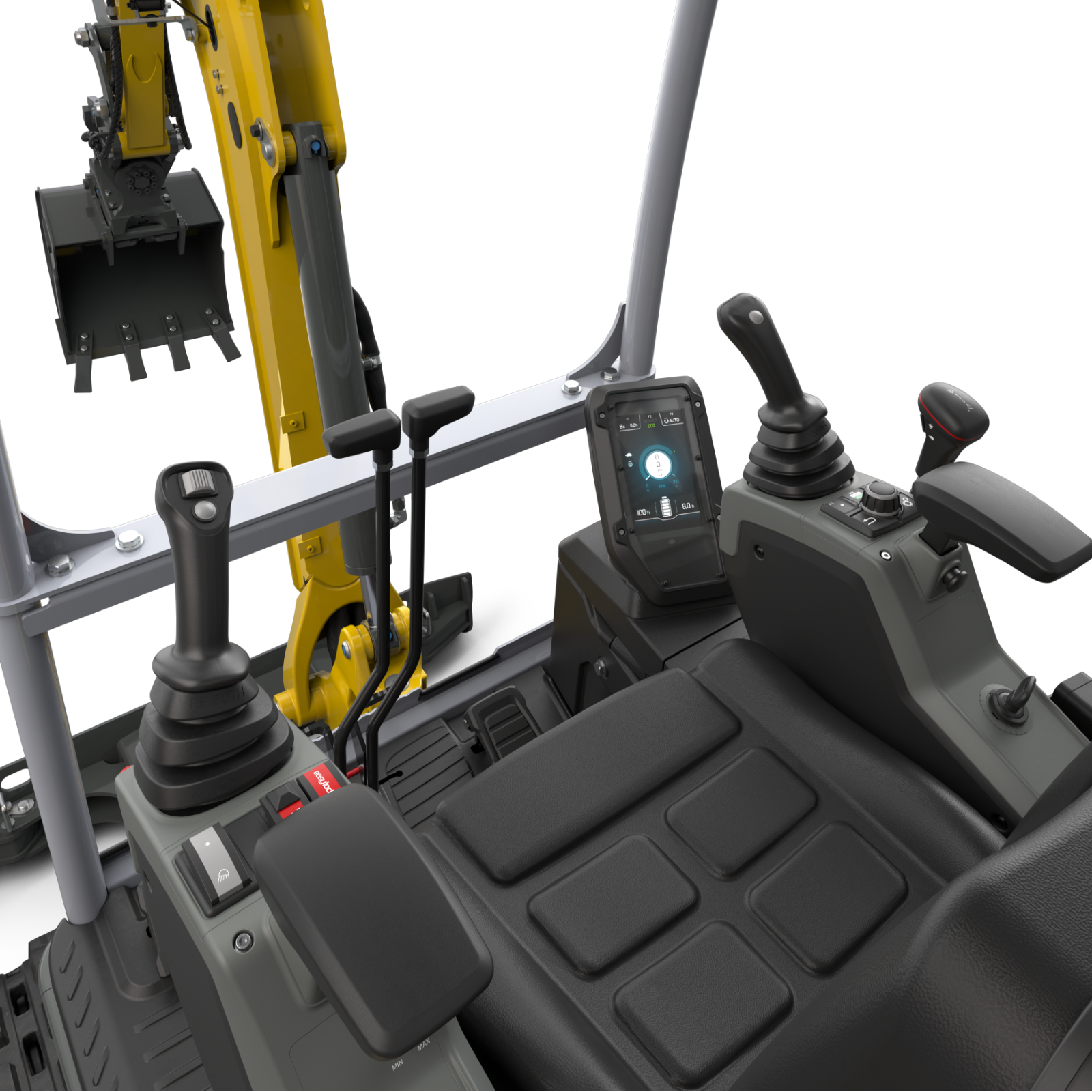

2. Comfort
  • Operators station ergonomically designed for continous operation without fatigue
  • Controls ensure comfort and feature large handles
  • Adjustable arm rests fitted as standard
  • All levers and switches positioned within easy and comfortable reach
  • Seat features adjustable suspension for operators of different sizes
  • Travel levers fitted with with large foot pedals for precise track control while operating other controls
3. Power
  • Powered by 16.5kW(22HP) SynRm Electirc Motor.
  • More powerful than the diesel version.
  • 48V nominal volatage at 480Amps.
4. Efficiency
  • Wacker Neuson LUDV, load sensing hydraulic system with variable displacement pump.
  • The latest technology in hydraulics and electronics for mini excavators.
  • LUDV is what gives the EZ17e its precise, smooth control and the ability to run higher flows and pressures than its competitors.
5. Battery

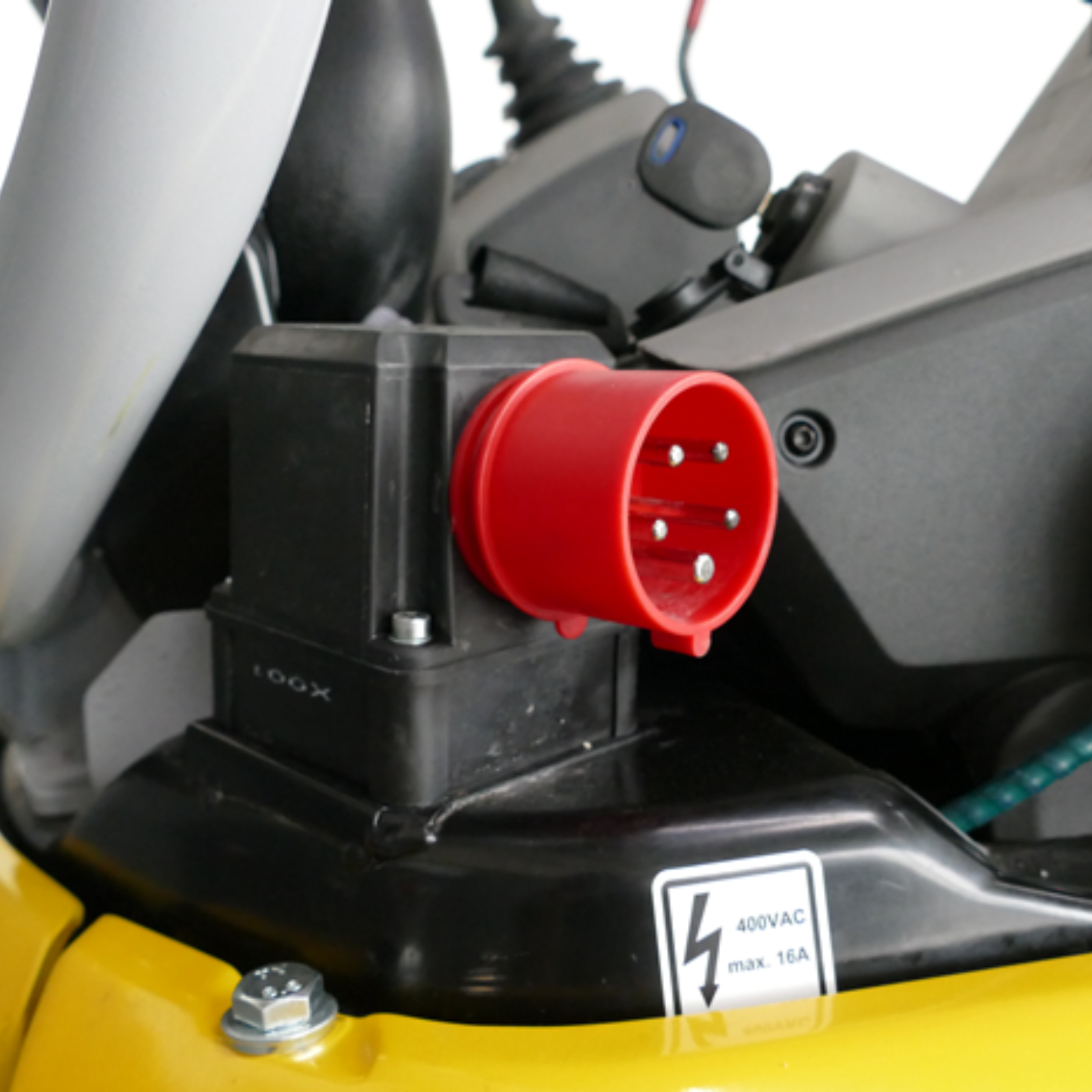

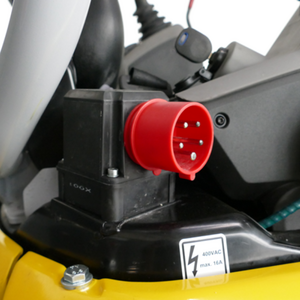

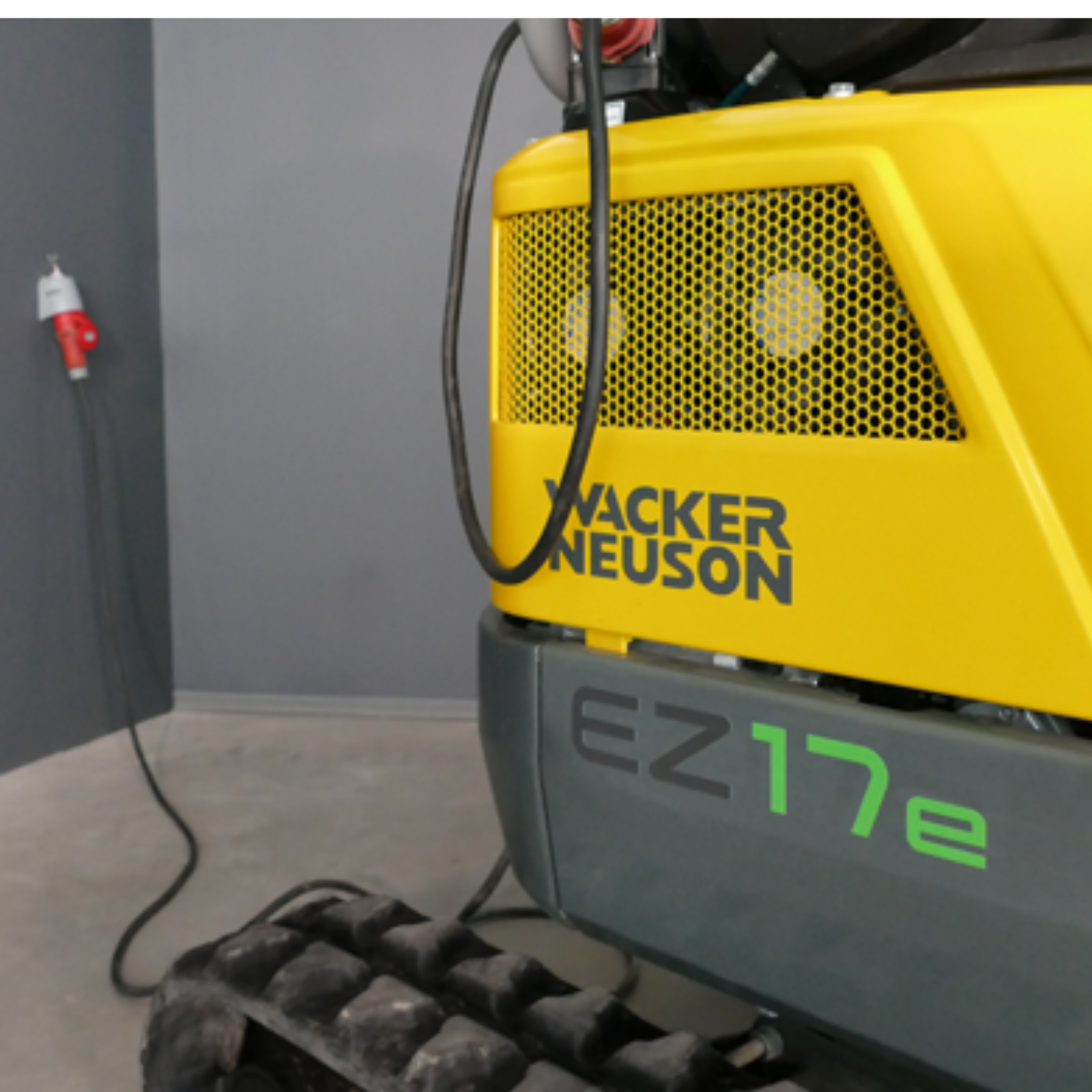

  • Inbuilt charger for 110v-415v powersupply.
  • Fully rechargeable in 4 hours (3phase supply)
  • Patented Li-Ion battery technology.
  • 6-8 hours operating life.
6. Versatility
  • EZ17e fitted with telescopic undercarriage as standard.
  • 990mm at narrowest to fit through tight gaps.
  • 1300mm expanded for best stability
  • Machine boasts one of the fastest travel speeds off all 1.7tonne mini excavators, up to 20% faster than most of the competition.
7. Safety
  • Rotating beacons, reverse beepers and warning horns as standard to ensure machine is inline with latest safety standards.
  • All machines sold by ACES have and OHS Risk assessment prior to delivery.
  • Working lights on front and rear of canopy for optimum safety at night.
8. Auxiliary Hydraulics
  • Two way auxiliary piping standard from the factory boasting the highest auxiliary flow in the industry
  • Massive 36.1L/min, up to 30% more than the competition.
  • Auxiliary lines also run higher pressure than the competition (240bar), so for running an auger, the EZ17e will get the maximum torque that, the competition won't.
9. Hitches
  • EZ17e fitted with Wacker Neuson Easylock, fully automatic quick hitch
  • Wacker Neuson Easylock Powertilt, fully automatic quick hitch (optional).

(EZ17e)

General:

Transport Weight 1,681 - 1,860 kg
Operating Weight 1,797 - 2,152 kg

Electric Motor / Battery:

Manufacturer DANA
Model SRI150-21T48
Construction Electric Motor
Charging Time 4.0 - 15.0 h
Type of Battery Li-Ion
Battery output (according to ISO kW/hp) 16.5kW (22HP)
Battery Voltage / Capacitance 48v / 12Ah

Hydraulics:

Pumps Load-sensing hydraulic system/ 1 variable displacement pump
Max. flow rate 39.0 l/min
Operating Pressure for working and travel hydraulics 240 bar
Operating Pressure for swing gear 160 bar
Auxiliary hydraulics,
max. discharge volume		 36.1 I/min
Max. tear out force short / long arm 9.1 / 8.1 kN
Max. breakaway force 20.5 kN

Undercarriage:

Track Width 230 mm
Ground Pressure 0.28 kg/cm3
Number of track rollers 3 per side
Ground Clearance 160 mm
Drive speed 2.6 / 4.5 km/h
Max. gradebility 58º

Blade:

Width 990 / 1300 mm
Stroke above / below 275 / 390 mm

Capacities:

Hydraulic system 21 L

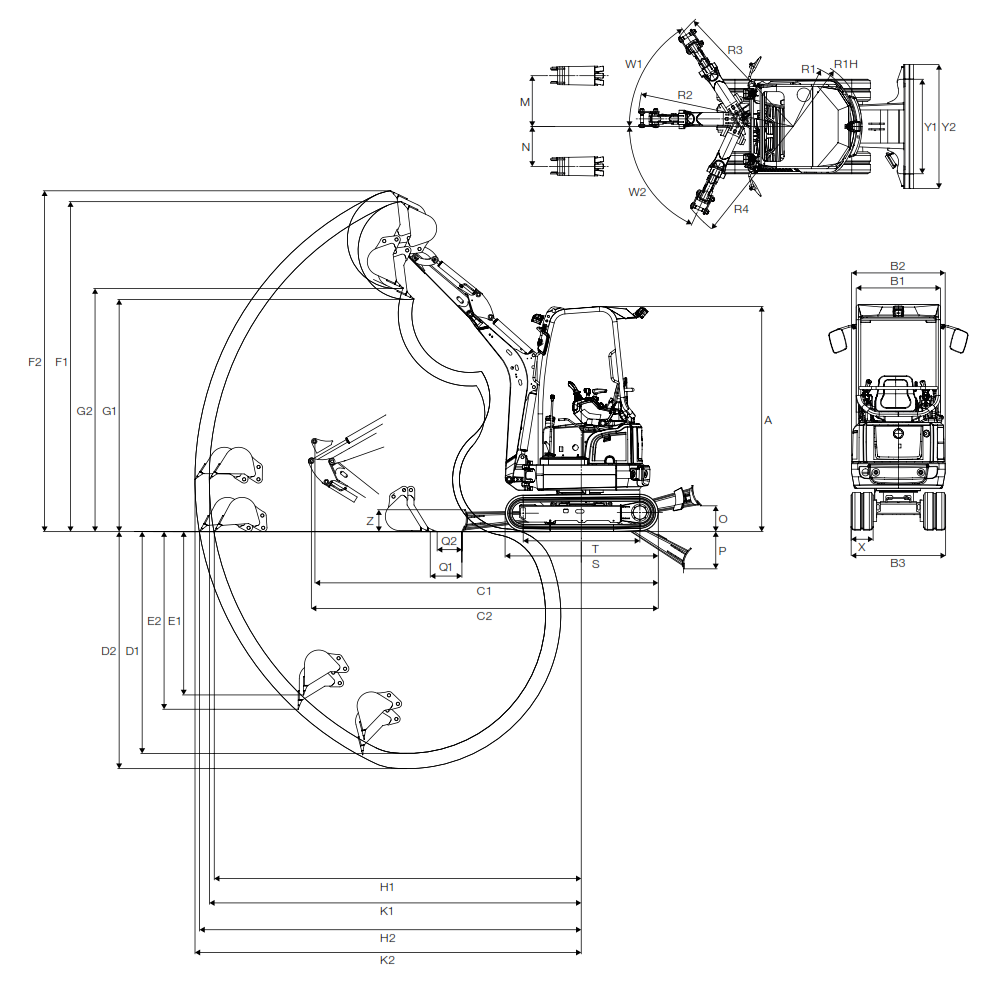

Working Dimensions:

A Height 2,360 mm
B1 Width of canopy 865 mm
B2 Width of superstructure 980 mm
B3 Undercarriage width, retracted 990 mm
B3 Undercarriage width, extended 1,300 mm
C1 Transport length (short arm) 3,585 mm
C2 Transport length (long arm) 3,550 mm
D1 Max. digging depth (short arm) 2,330 mm
D2 Max. digging depth (long arm) 2,490 mm
E1 Max. vertical digging depth (short arm) 1,715 mm
E2 Max. vertical digging depth (long arm) 1,865 mm
F1 Max. digging height (short arm) 3,465 mm
F2 Max. digging height (long arm) 3,580 mm
G1 Max. dumping height (short arm) 2,440 mm
G2 Max. dumping height (long arm) 2,550 mm
H1 Max. span on ground (short arm) 3,850 mm
H2 Max. span on ground (long arm) 4,000 mm
K1 Max. digging radius (short arm) 3,900 mm
K2 Max. digging radius (long arm) 4,050 mm
M Max. boom offset to centre of bucket, right 535 mm
N Max. boom offset to centre of bucket, left 425 mm
O Max. clearance under blade 390 mm
P Max. cutting depth of blade 275 mm
Q1 Distance of bucket to blade (short arm) 332 mm
Q2 Distance of bucket to blade (long arm) 260 mm
R1 Min. tail swing radius 650 mm
R1H Min. tail swing radius (additional weight) 720 mm
R2 Boom pivoting radius, right 1,515 mm
R4 Boom pivoting radius, left 1,370 mm
S Total track length 1,605 mm
T Track lenght, centre to centre 1,225 mm
W1 Max. swing angle, right 57º
W2 Max. swing angle, left 65°
X Track width 230 mm
Y1 Blade width 990 mm
Y2 Blade width, expanded 1,300 mm
Z Blade height 230 mm

Specificatons subject to change without notice due to continual product development.
