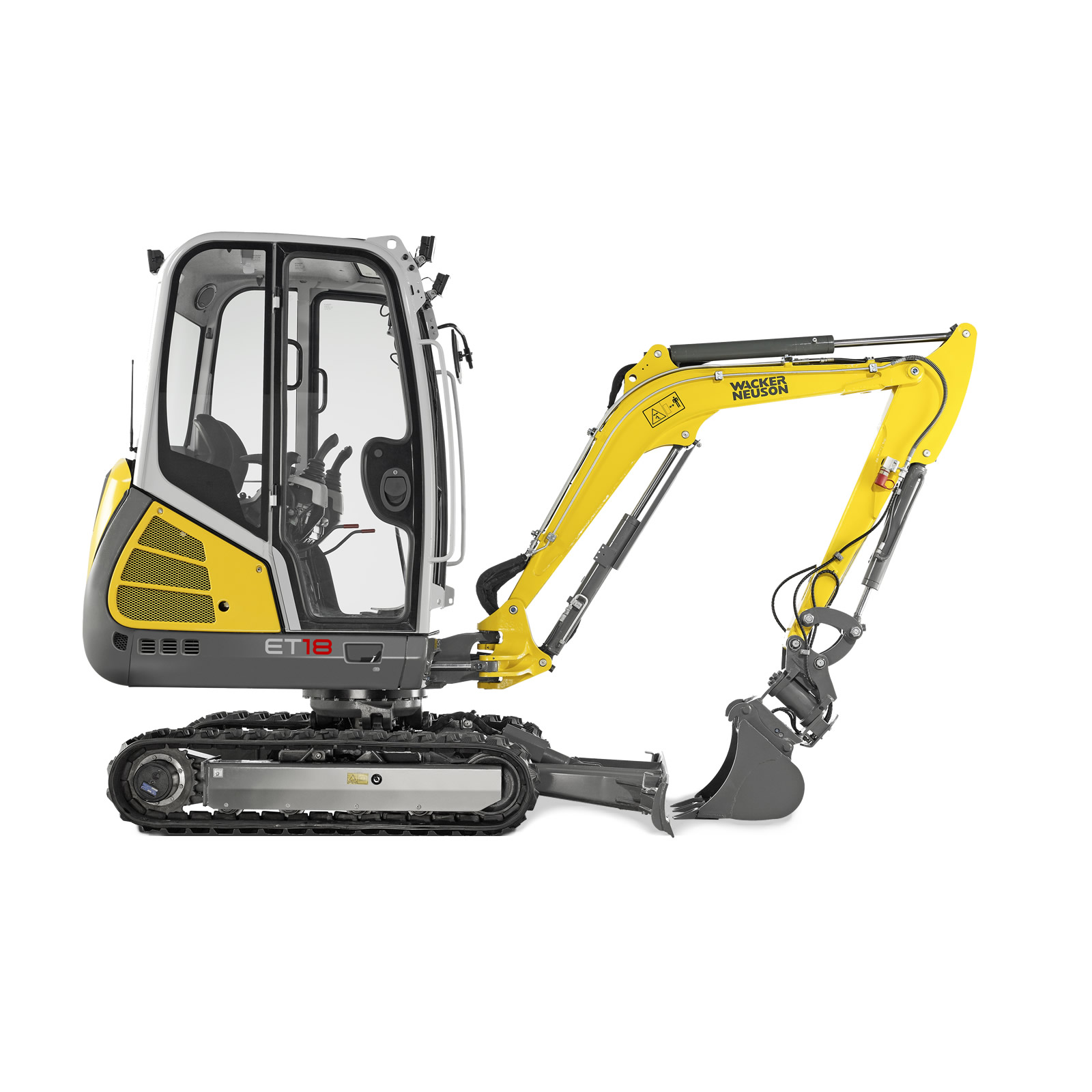

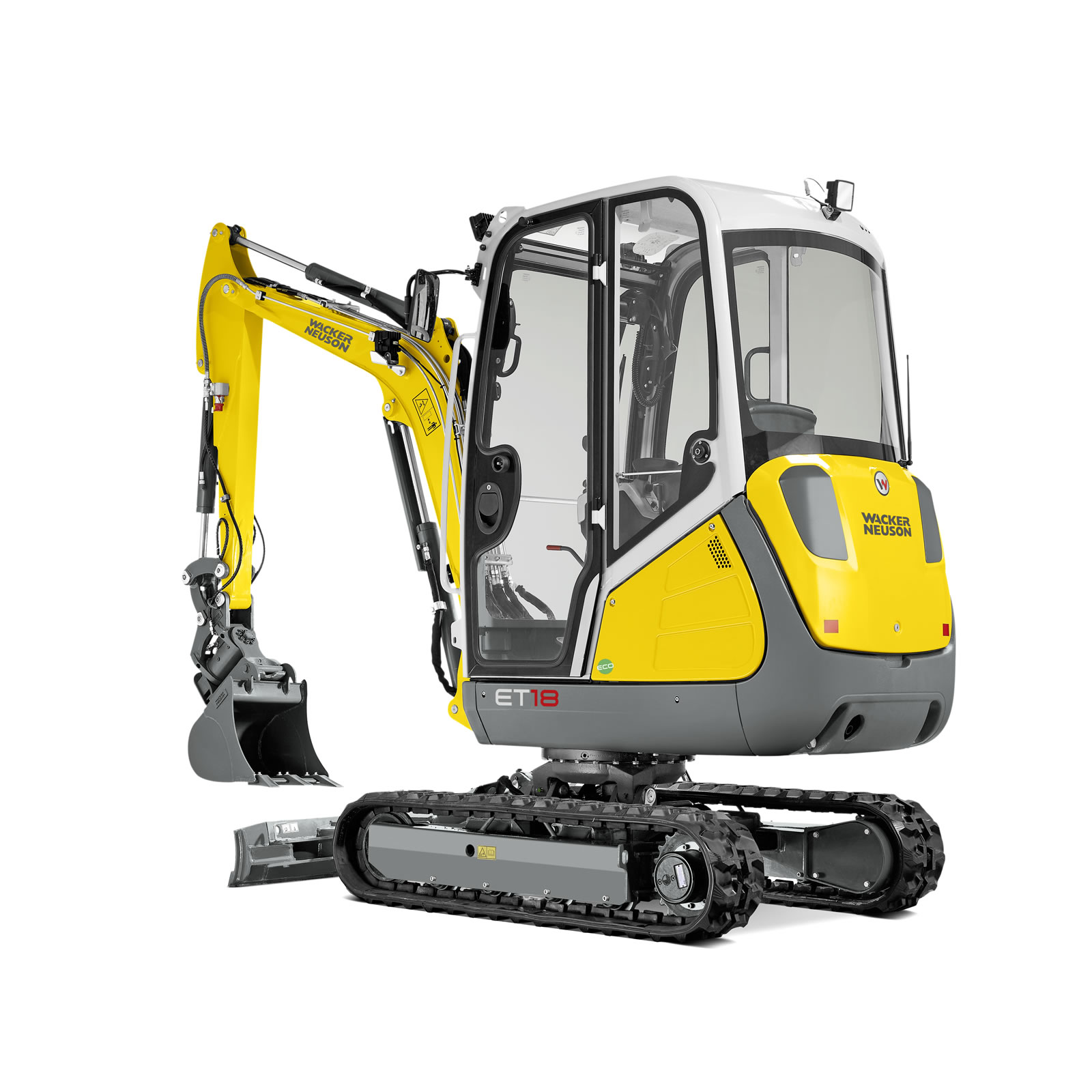

Wacker Neuson ET18

1.8T Excavator

Wacker Neuson ET18 - 1.8 Tonne Conventional Swing Mini Excavator:

The Wacker Neuson ET18 uses the latest hydraulic technology to completely out perform the competition.  It has more bucket breakout force, higher auxiliary flow rate, faster travel speeds higher engine power.  You simply cannot beat the ET18.



Don't just take our word for it, compare the facts by clicking on the "Market Comparison" tab above

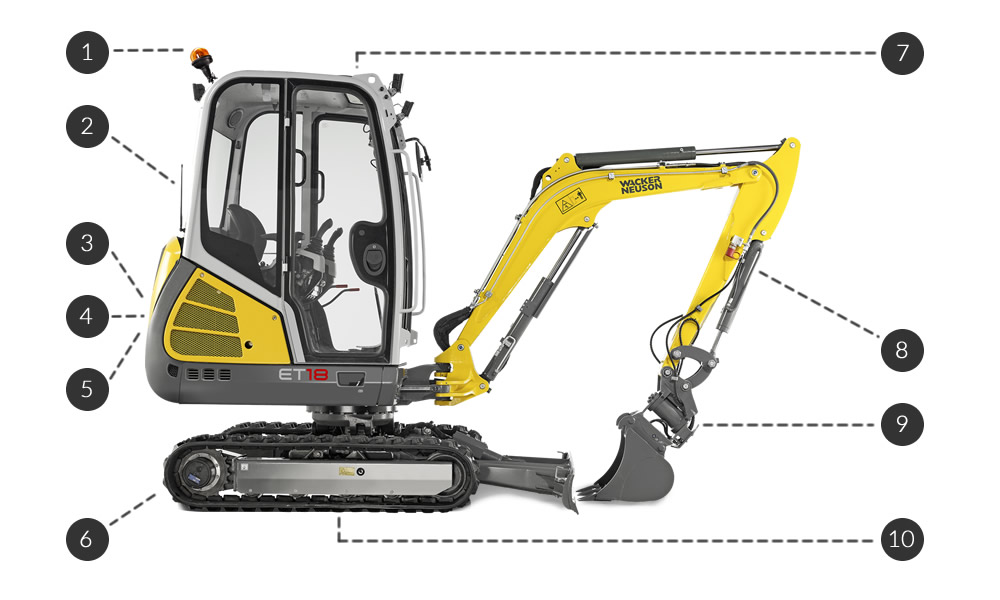

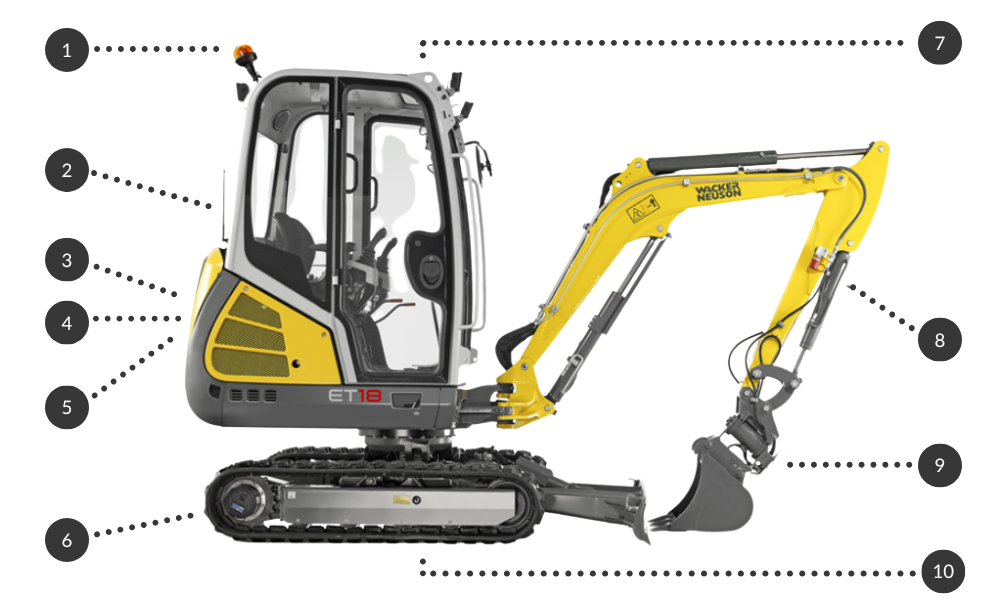

Key Features:



1. Safety
  • Rotating beacons, reverse beepers and warning horns as standard to ensure machine is inline with latest safety standards.
  • All machines sold by ACES have and OHS Risk assessment prior to delivery.
  • Working lights on front and rear of canopy, and on boom for optimum safety at night.
2. Comfort
  • Operators station ergonomically designed for continous operation without fatigue.
  • Controls ensure comfort and feature large handles.
  • Adjustable arm rests fitted as standard.
  • All levers and switches positioned within easy and comfortable reach.
  • Seat features adjustable suspension for operators of different sizes.
  • Travel levers fitted with with large foot pedals for precise track control while operating other controls.
  • Rear of the canopy is fitted with glass window for all weather operation.
3. Power
  • Powered by Yanmar 3 Cylinder diesel (18HP / 13.4 kW).
  • Largest HP engine in its class.
4. Efficiency
  • Hydraulic system of ET18 comprises of double variable displacement axial piston pump and two fixed displacement pumps.
  • System uses dedicated pilot pump for smooth and efficient control of machine
  • High capacity pumpsensure enough flow to control multiple circuits at once and are reason ET18 has such high flow auxiliary flow availability.
5. Cooling
  • Sealed and pressurised cooling system keepts ET18 cool in ambient temperatures of up to 45ºC.
  • Uses a innovative radiator with internal expansion chamber, negating the use for an overflow bottle.
  • Fluid level checked easily via sight glass on the exterior of the machine, no need to lift radiator cap to check.
6. Versatility
  • ET18 fitted with telescopic undercarriage as standard.
  • 990mm at narrowest to fit through tight gaps.
  • 1300mm expanded for best stability.
  • Machine boasts one of the fastest travel speeds off all 1.8tonne mini excavators, up to 36% faster than most of the competition.
  • Pattern change from Backhoe (SAE) to Excavator (ISO)
7. Vision
  • Canopy designed with perfect visibility.
  • ROPS posts positioned to ensure operator's view is not restricted.
  • Canopy roof is fitted with a window, allowing bucket visibility at all times.
8. Auxiliary Hydraulics
  • Two way auxiliary piping standard from the factory boasting the highest auxiliary flow in the industry.
  • Massive 41L/min, up to 50% more than the competition.
9. Hitches
  • ET18 fitted with Wacker Neuson Easy Lock fully automatic quick hitch as standard.
  • Also available with Wacker Neuson Easy Lock Powertilt fully automatic quick hitch (optional).
10. VDS
  • Veritcal Dig System or VDS is a Patented Wacker Neuson innovation.
  • Allows uppercarriage of machine to be tilted 15º away from undercarriage.
  • Provides perfect stability for excavator and allows level excavating on unlevel grounds.
  • VDS now fitted to Australian delivered ET18 mini excavators as standard.

(ET18)

1.8 Tonne Conventional Swing Mini Excavators - Market Comparison



Use the machinery comparison charts to check the facts from the ficton before you make your next excavator purchase.  Fields market in green show a good Wacker Neuson advantage, fields market in blue show a significant Wacker Neuson advantage.



Click on the links below to compare the machines:



Kubota KX018 vs Wacker Neuson EZ17

Takeuchi TB216 vs Wacker Neuson EZ17

Takeuchi TB219 vs Wacker Neuson EZ17

Bobcat 324 vs Wacker Neuson EZ17

JCB 8018CTS vs Wacker Neuson EZ17

Terex TC20 vs Wacker Neuson EZ17

CAT 301.7D vs Wacker Neuson EZ17

Hyundai R16-9 vs Wacker Neuson EZ17

Volvo EC18 vs Wacker Neuson EZ17



Wacker Neuson EZ17 vs Kubota KX018

  ET18 KX018 Wacker Neuson Advantage
Transport Weight 1,867 kg 1,620 kg 15%
Engine Power 13.4 kW 12.7 kW 6%
Bucket Breakout Force 18.8 kN 15.98 kW 18%
Dig Depth 2,300 mm 2,380 mm 0%
Travel Speed 5.3 km/h 4.0 km/h 33%
Auxiliary Flow 41.5 L/min 27.7 L/min 50%
Min. Width 990 mm 990 mm 0%
Fuel Tank 24 L 21 L 14%



Wacker Neuson EZ17 vs Takeuchi TB216

  ET18 TB216 Wacker Neuson Advantage
Transport Weight 1,867 kg 1,680 kg 0%
Engine Power 13.4 kW 11.5 kW 17%
Bucket Breakout Force 18.8 kN 14.0 kN 34%
Dig Depth 2,300 mm 2,390 mm 0%
Travel Speed 5.3 km/h 4.2 km/h 26%
Auxiliary Flow 41.5 L/min 33 L/min 26%
Min. Width 990 mm 980 mm 0%
Fuel Tank 24 L 22 L 9%



Wacker Neuson EZ17 vs Takeuchi TB219

  ET18 TB219 Wacker Neuson Advantage
Transport Weight 1,867 kg 1,879 kg 0%
Engine Power 13.4 kW 11.5 kW 17%
Bucket Breakout Force 18.8 kN 16 kN 18%
Dig Depth 2,300 mm 2,270 mm 1%
Travel Speed 5.3 km/h 4.0 km/h 33%
Auxiliary Flow 41.5 L/min 40 L/min 4%
Min. Width 990 mm 980 mm 0%
Fuel Tank 24 L 24 L 0%


Wacker Neuson EZ17 vs Bobcat 324

  ET18 324 Wacker Neuson Advantage
Transport Weight 1,867 kg 1,619 kg 15%
Engine Power 13.4 kW 10.4 kW 29%
Bucket Breakout Force 18.8 kN 16.1 kN 0%
Dig Depth 2,300 mm 2,500 mm 0%
Travel Speed 5.3 km/h 4.2 km/h 26%
Auxiliary Flow 41.5 L/min 29.9 L/min 39%
Min. Width 990 mm 980 mm 1%
Fuel Tank 24 L 24 L 0%



Wacker Neuson EZ17 vs JCB 8018CTS

  ET18 8018CTS Wacker Neuson Advantage
Transport Weight 1,867 kg 1,677 kg 0%
Engine Power 13.4 kW 14.7 kW 0%
Bucket Breakout Force 18.8 kN 16.4 kN 16%
Dig Depth 2,300 mm 2,343 mm 0%
Travel Speed 5.3 km/h 3.9 km/h 36%
Auxiliary Flow 41.5 L/min 26 L/min 60%
Min. Width 990 mm 980 mm 0%
Fuel Tank 24 L 23.5 L 2%



Wacker Neuson EZ17 vs Terex TC20

  ET18 TC20 Wacker Neuson Advantage
Transport Weight 1,867 kg 1,950 kg 0%
Engine Power 13.4 kW 13.1 kW 2%
Bucket Breakout Force 18.8 kN 15.7 kN 20%
Dig Depth 2,300 mm 2,300 mm 0%
Travel Speed 5.3 km/h 4.2 km.h 26%
Auxiliary Flow 41.5 L/min Unquoted
Min. Width 990 mm 990 mm 0%
Fuel Tank 24 L 30 L 0%



Wacker Neuson EZ17 vs CAT 301.7D

  ET18 301.7D Wacker Neuson Advantage
Transport Weight 1,867 kg 1,735 kg 0%
Engine Power 13.4 kW 13.2 kW 2%
Bucket Breakout Force 18.8 kN 18.8 kN 0%
Dig Depth 2,300 mm 2,200 mm 0%
Travel Speed 5.3 km/h 5.6 km/h 0%
Auxiliary Flow 41.5 L/min 30 L/min 38%
Min. Width 990 mm 990 mm 0%
Fuel Tank 24 L 24 L 0%


Wacker Neuson EZ17 vs Hyundai R16-9

  ET18 R16-9 Wacker Neuson Advantage
Transport Weight 1,867 kg 1,650 kg 0%
Engine Power 13.4 kW 12.5 kW 7%
Bucket Breakout Force 18.8 kN 15.1 kN 25%
Dig Depth 2,300 mm 2,250 mm 2%
Travel Speed 5.3 km/h 4.1 km/h 29%
Auxiliary Flow 41.5 L/min Unquoted
Min. Width 990 mm 980 mm 0%
Fuel Tank 24 L 25 L 0%



Wacker Neuson EZ17 vs Volvo EC18

  ET18 EC18 Wacker Neuson Advantage
Transport Weight 1,867 kg 1685 kg 0%
Engine Power 13.4 kW 12.3 kW 9%
Bucket Breakout Force 18.8 kN 15.1 kN 25%
Dig Depth 2,300 mm 2,097 mm 10%
Travel Speed 5.3 km/h 4.6 km/h 15%
Auxiliary Flow 41.5 L/min 44 L/min 0%
Min. Width 990 mm 994 mm 0%
Fuel Tank 24 L 20 L 20%

General:

Transport Weight 1,610 - 1,955 kg
Operating Weight 1,745 - 2,090 kg

Engine:

Manufacturer Yanmar
Model 3TNV76
Construction Liquid-cooled, 3-cylinder diesel engine
Displacement 1,116 cm3
Engine Speed 2,200 rpm
Engine Output according to ISO 13.4kW (18HP)
Battery Voltage / Capacitance 12v / 44Ah

Hydraulics:

Pumps Double variable pump with two gear pumps
Max. flow rate 47.6 + 19 + 6.4 L/min
Operating Pressure for working and driving hydraulics 200 bar
Operating Pressure for slewing gear 125 bar
Slewing speed 10 rpm
Max. tear out force 11.2 kN
Max. digging force 18.8 kN

Undercarriage:

Track Width 230 mm
Ground Pressure 0.3 kg/cm3
Number of track rollers 3 per side
Ground Clearance 170 mm
Drive speed 3.0 / 5.3 km/h
Max. gradebility 30°

Blade:

Width 990 / 1300 mm
Stroke above / below (standard blade) 200 / 390 mm
Stroke above / below (long blade) 300 / 380 mm

Capacities:

Hydraulic Tank 19 L
Fuel Tank 24 L

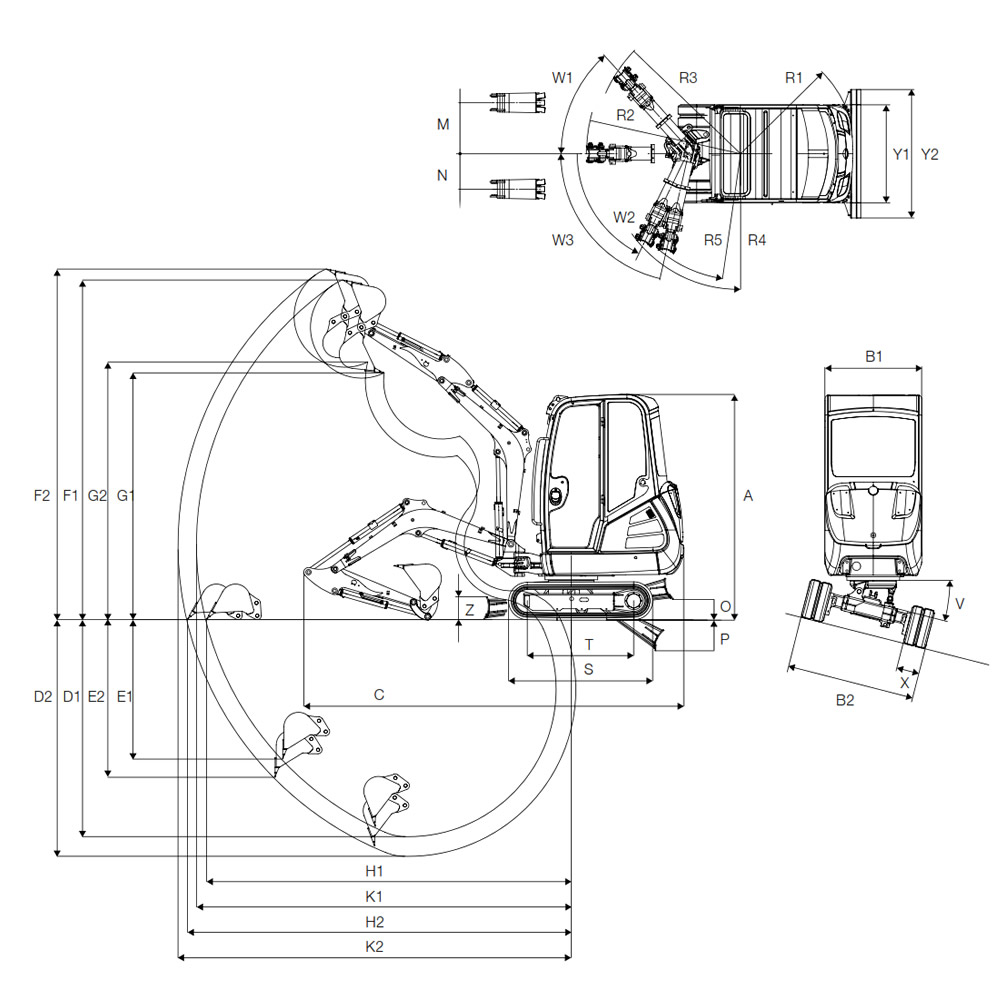

Working Dimensions:

A Height 2,390 mm
B1 Superstructure width 990 mm
B2 Width, undercarriage retracted 990 mm
B2 Width, undercarriage extended 1,300 mm
C Transport length 3,800 mm
D1 Max. digging depth (short arm) 2,200 mm
D2 Max. digging depth (long arm) 2,400 mm
E1 Max. vertical digging depth (short arm) 1,320 mm
E2 Max. vertical digging depth (long arm) 1,500 mm
F1 Max. digging height (short arm) 3,550 mm
F2 Max. digging height (long arm) 3,660 mm
G1 Max. dumping height (short arm) 2,610 mm
G2 Max. dumping height (long arm) 2,720 mm
H1 Max. span on ground (short arm) 3,670 mm
H2 Max. span on ground (long arm) 3,870 mm
K1 Max. digging radius (short arm) 3,800 mm
K2 Max. digging radius (long arm) 4,000 mm
M Max. boom offset to centre of bucket, right 520 mm
N Max. boom offset to centre of bucket, left 360 mm
O Max. clearance under blade (short) 270 mm
O Max. clearance under blade (long) 360 mm
P Max. cutting depth of blade 260 mm
P Max. cutting depth of blade 310 mm
R1 Min. tail swing radius 1,160 mm
R2 Boom pivoting radius, centre 1,580 mm
R3 Boom pivoting radius, right 1,500 mm
R4 Boom pivoting radius, left lock 1,380 mm
R5 Boom pivoting radius, left max. 1,280 mm
S Total track length 1,605 mm
T Track length, centre to centre 1,225 mm
V Tilting superstructure (VDS) 0-15°
W1 Max. swing angle, right 48°
W2 Max. swing angle, left lock 64°
W3 Max. swing angle, left 77°
X Track width 230 mm
Y1 Blade width 990 mm
Y2 Blade width, expanded 1,300 mm
Z Blade height 230 mm

Specifications subject to change without notice due to continual product development.
