Wacker Neuson EZ80

View PDF brochure for Wacker Neuson EZ80

Wacker Neuson EZ80

8T Excavator

Share:
Enquiry/Quote

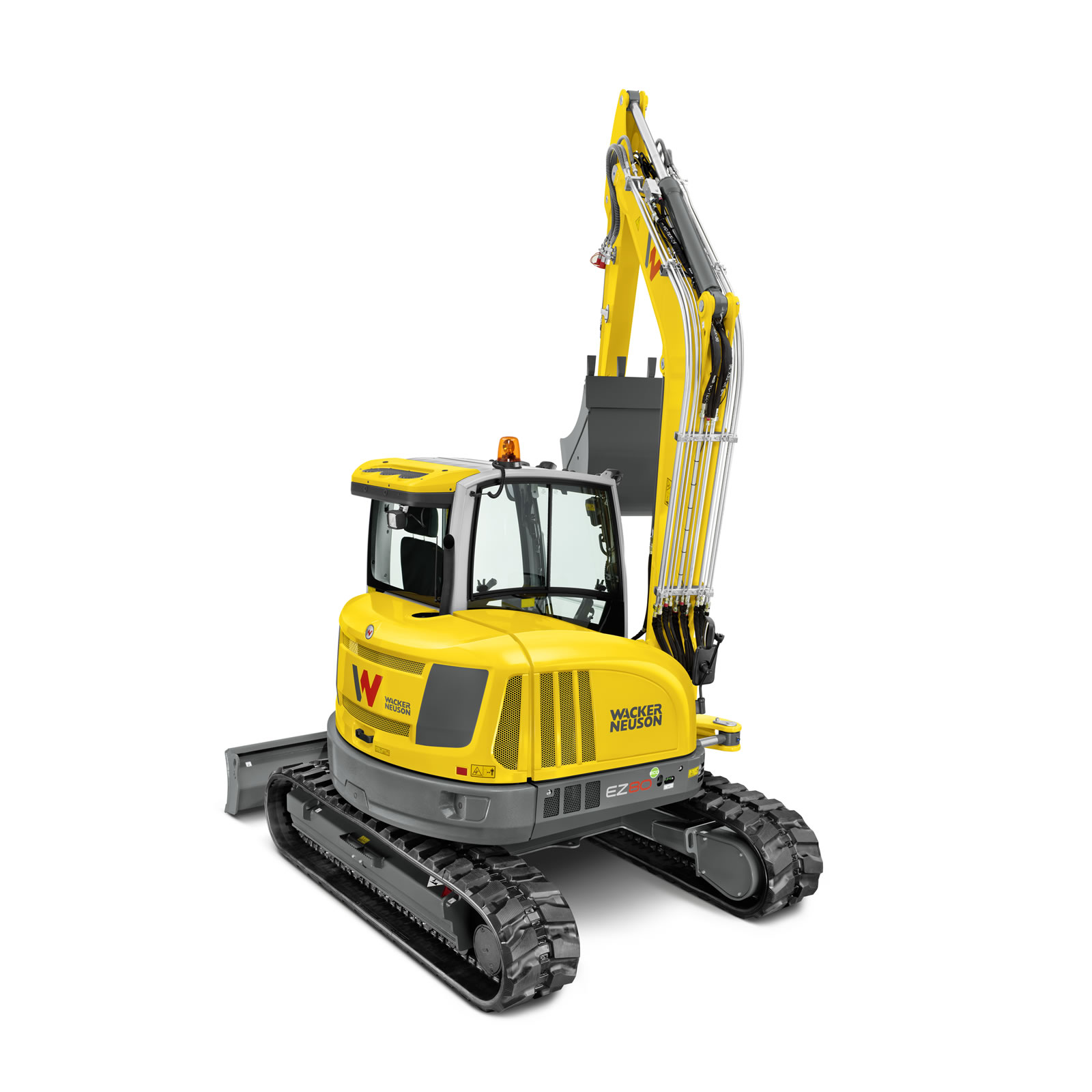

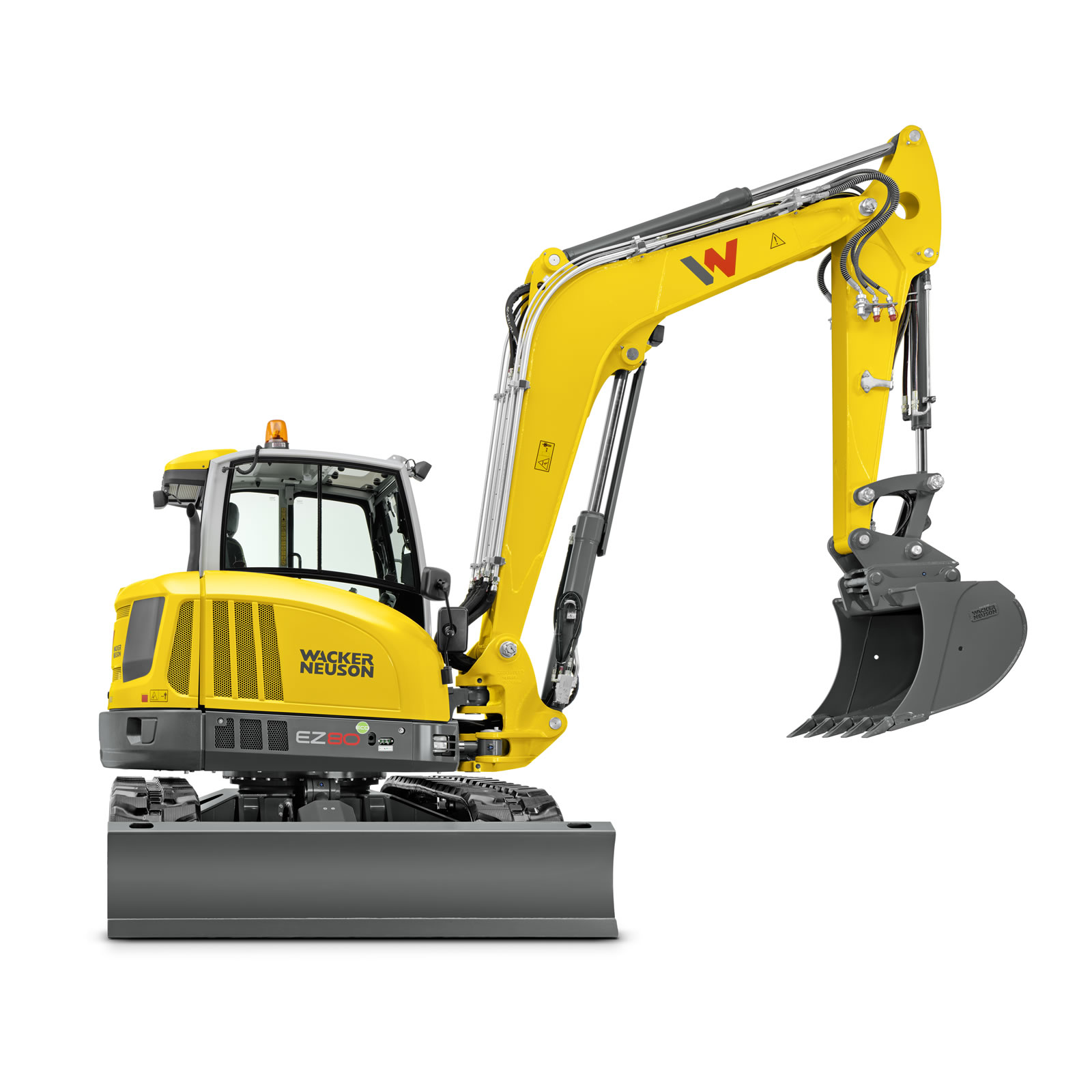

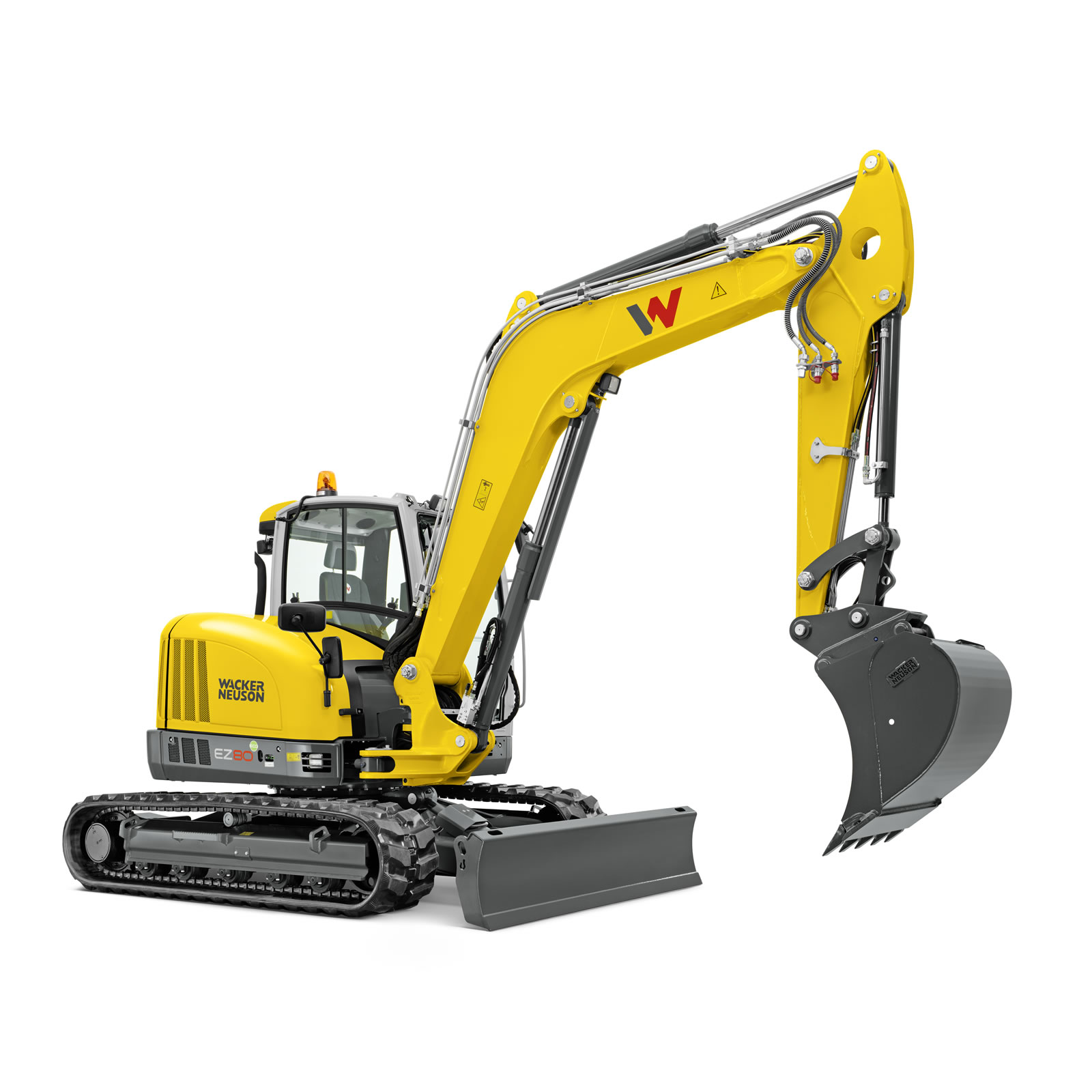

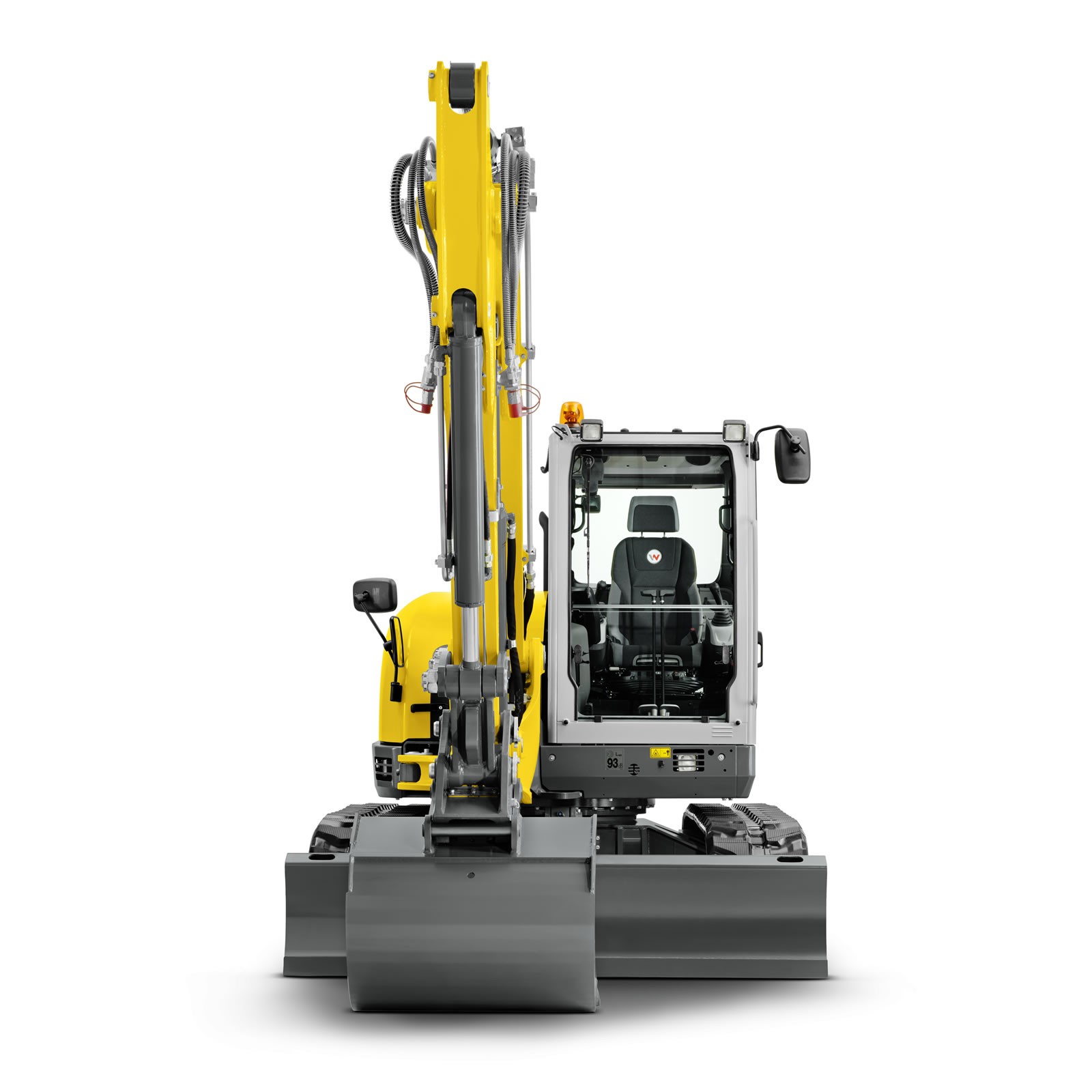

Wacker Neuson EZ80 - 8.0 Tonne Zero Swing Excavator:

The Wacker Neuson EZ80 is the largest zero swing excavator manufactured by Wacker Neuson.  It features the latest technology available for compact excavators including fully climatic control air-conditioning, jog dial controlled LCD screen for machine functions and LUDV efficient hydraulic system.  The EZ80 is the most powerful excavator in its class for both bucket and arm breakout forces. Wacker Neuson Equipcare GPS system is fitted as standard with 2 years complimentary tracking and remote diagnosis availability.  EZ80 comes standard with a 5 Year / 5000 hour Warranty.

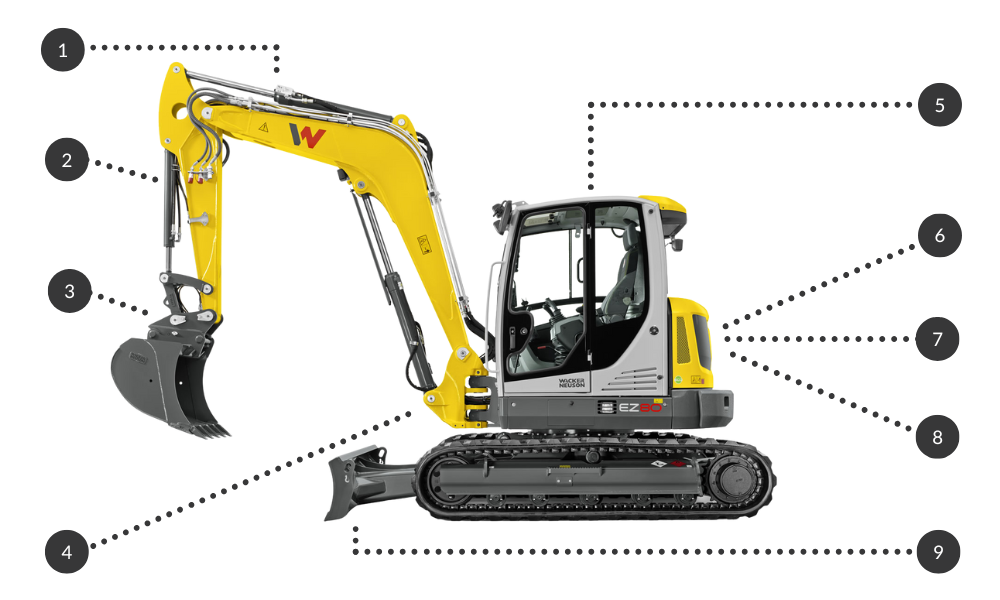

Key Features:



1. Safety
  • Rotating beacons, reverse beepers and warning horns as standard, ensures machine is inline with latest safety standards.
  • All machines sold by ACES have an OHS Risk assessment prior to delivery.
  • Working lights on front and rear of canopy, on boom, and on both sides for optimum safety at night.
  • Safety valving fitted to boom and dipper cylinders to lock cylinders in case of hose failure.
  • Well-designed cabin shape and offset arm positioning for outstanding operator vision.
2. Auxiliary Hydraulics
  • Two way auxiliary piping standard from factory boasting one of the highest auxiliary flow in the industry.
  • Massive 113L/min.
  • Fitted with dedicated oversized return line for hammer use. This ensures minimal backpressure. So that if running a hammer it will run most efficiently.
3. Hitches
  • Fitted with Wacker Neuson Easy Lock fully automatic quick hitch as standard.
  • Wacker Neuson Easy Lock Powertilt fully automatic quick hitch (optional) also available as retro fit and factory fit.
4. Vision
  • Cabin designed with perfect visibility.
  • ROPS posts positioned to ensure operator's view is not restricted.
  • Cabin roof is fitted with window, allowing bucket visibility at all times.
  • Offset arm position for greater visibility and safety.

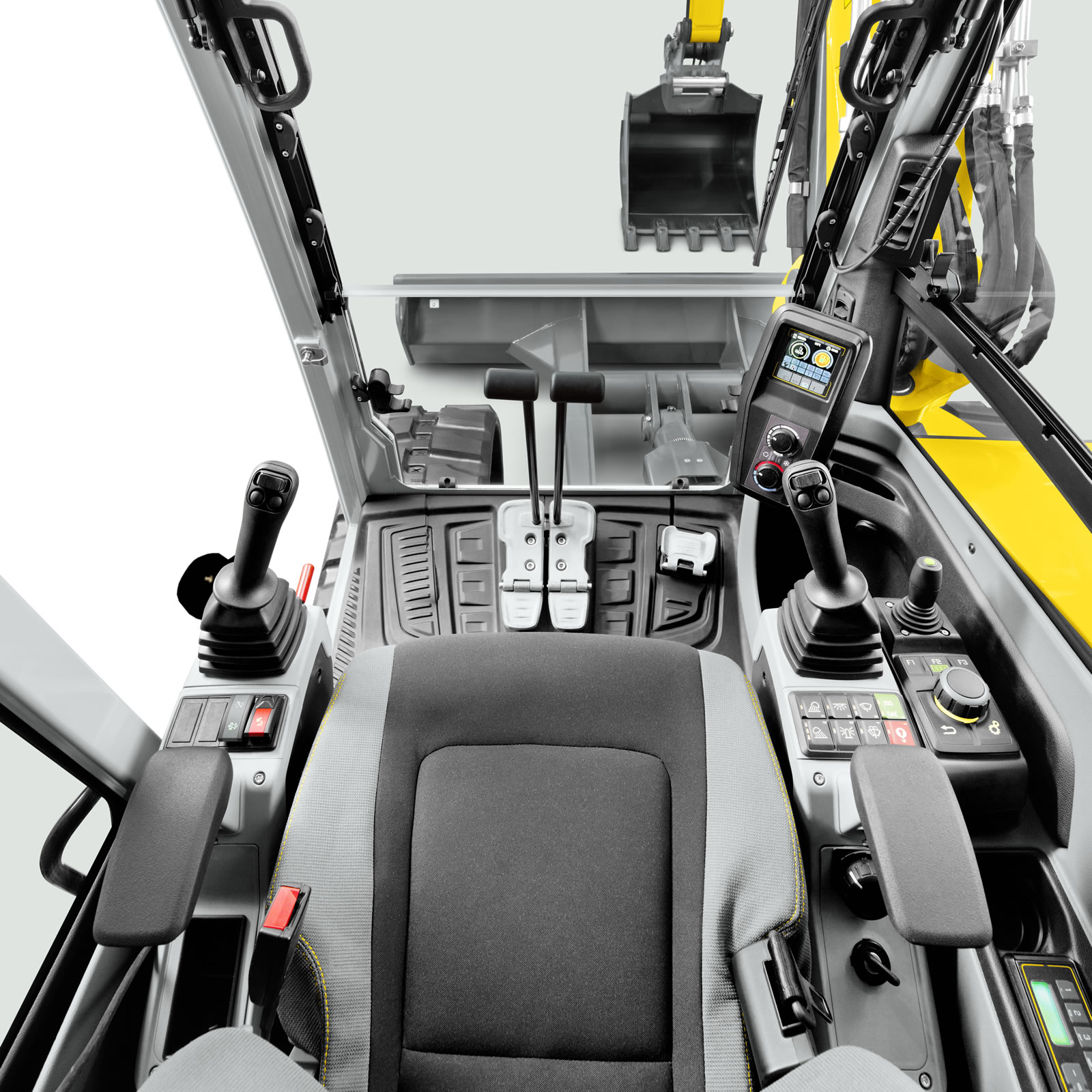

5. Comfort
  • Climatic control air conditioning system.
  • Operators station ergonomically designed for continuous operation without fatigue.
  • Controls ensure comfort and feature large handles.
  • Adjustable arm rests fitted as standard.
  • All levers and switches positioned within easy and comfortable reach.
  • Seat features adjustable suspension for operators of different sizes.
  • Travel levers fitted with large foot pedals for precise track control while operating other controls.
  • Fully retractable front glass panel.
  • Right hand side window features two way opening.

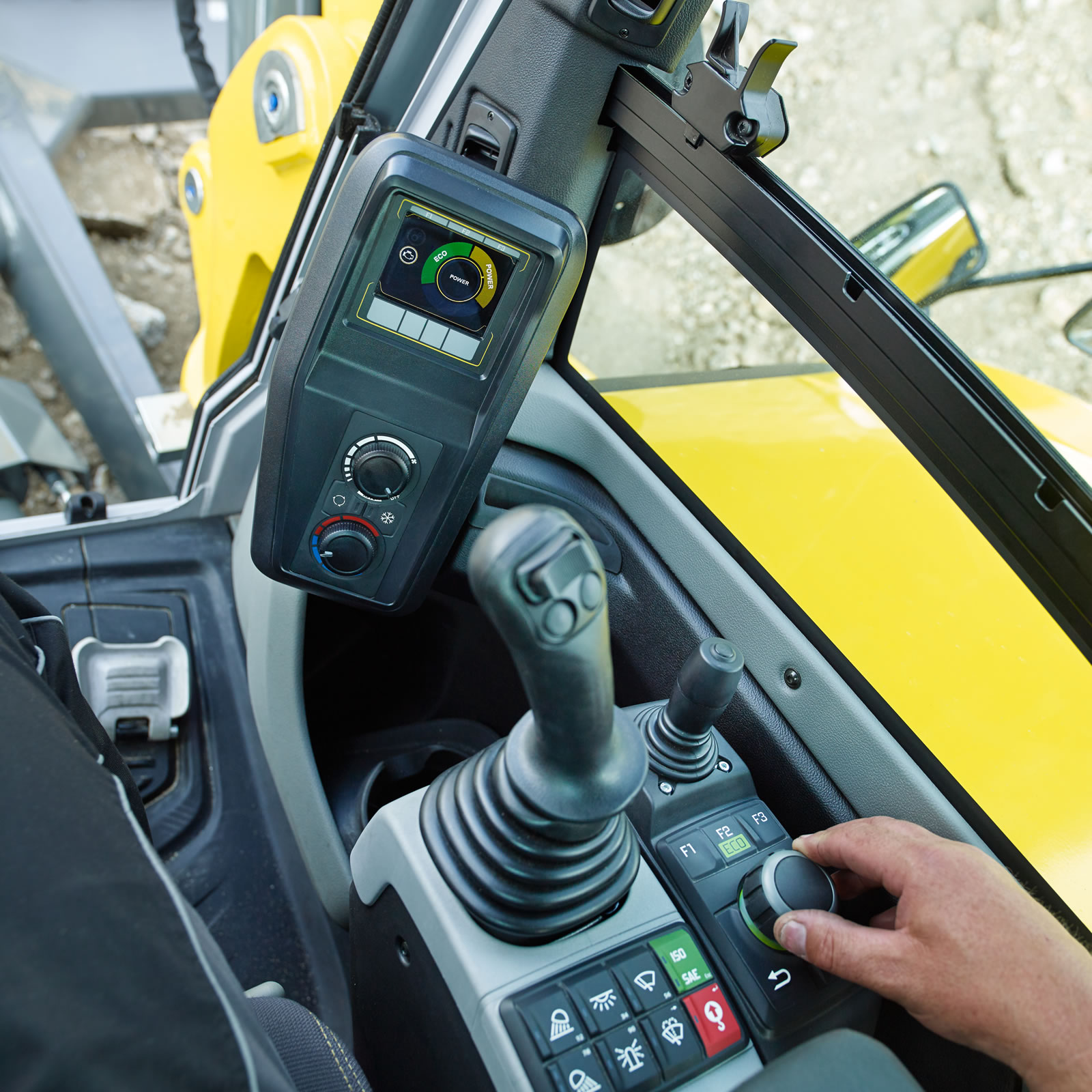

  • LCD Screen ergonomically position, control junction via jog dial control without the need to lean and reach forward.
6. Power
  • Highest bucket and arm breakout forces in class at 68kN and 43.7kN respectively.
  • Powered by Perkins 404D-22T efficient Turbo Diesel engine (36.3kW).
  • Smooth power with automatic idle control.
  • Variable Axial Piston Pump with LUDV load sensing system, load-independent flow distribution.
  • 300bar operating pressure.
7. Efficiency
  • Hydraulic system of EZ80 comprises variable displacement axial piston pump with load-independent flow distribution (LUDV).
  • The most advanced hydraulic system for compact excavators, also the most efficient system.
  • High capacity pump ensures enough flow to control multiple circuits at once and is the reason EZ80 has such high flow auxiliary flow availability.
  • Up to 20% reduction in fuel consumption over previous model and much higher savings in comparison to competitors.
  • Ultra-efficient hydraulic hose routing and bend radius’ to reduce heat and pressure loss.
8. Cooling
  • A high efficiency radiator and cooling system keeps the EZ80 cool in high ambient temperatures.
  • Oil cooler and radiator mounted side by side for easy cleaning.
  • Side by side coolers stop the common problem of debris building up between coolers as with coolers mounted in front of each other. This ensures the most efficient cooling.
  • Integrated expansion chamber in radiator top tank, no overflow bottle necessary, most advance system on market.
9. Versatility
  • Jog dial control for machine modes and junction.
  • The EZ80 is fitted standard with rubber tracks and has a stable footing and compact dimensions at 2250mm wide.
  • Two speed travel pushes the machine along quickly.
  • Pattern change from Backhoe (SAE) to Excavator (ISO) via electronic control.
  • 8 oversized well position tie down points.
  • Additional counterweight option available for increase performance and stability.

(EZ80)

General:

Transport Weight 7,588 - 8,877 kg
Operating Weight 7,918 - 9,208 kg

Engine:

Manufacturer Perkins
Model 404D-22T
Construction Water cooled 4-cylinder turbo diesel engineI
Displacement 2,216 cm³
Engine Output according to ISO 36.2 kW (49.2 HP)

Hydraulics:

Pumps Variable displacement pump with LUDV load-independant flow distribution
Max. flow rate 160 L/min
Operating Pressure for working and driving hydraulics 300 bar
Operating Pressure for slewing gear 240 bar
Max. tear out force short arm 43.7 kN
Max. breakaway force 68 kN

Undercarriage:

Track width 450 mm
Ground pressure 0.36 kg/cm²
Number of track rollers 5
Ground clearance 357 mm
Drive speed 4.4 km/h

Blade:

Width 2,250 mm
Stroke above / below 474 / 523 mm

Capacities:

Hydraulic tank 92 L
Fuel tank 85 L

Working Dimensions:

A Height 2,562 mm
B Width 2,250 mm
C Transport length 6,939 mm
D Max. excavation depth 3,919 / 4,169 mm
E Max. vertical insertion depth 1,915 / 2,124 mm
F Max. insertion height 6,620 / 6,782 mm
G Max. dumping height 4,587 / 4,749 mm
H Max. digging radius 6,955 / 7,190 mm
I Max. ground reach 6,795 / 7,036 mm
J Min. rear swivel radius 1,228 mm
K Arm displacement to center (left / right) 705 / 683 mm
L Max. lift height above subgrade 474 mm
M Max. scraping depth below subgrade 533 mm
N Total traveling gear length 2,826 mm
O Max. turning angle of arm, left 63º
P Max. turning angle of arm, right 67º
Q Track width 2,250 mm
R Boom slewing radius, centre 2,869 mm

Specifications subject to change without notice due to continual product development.
