MultiOne 7.2K

1500kg Tipping Load

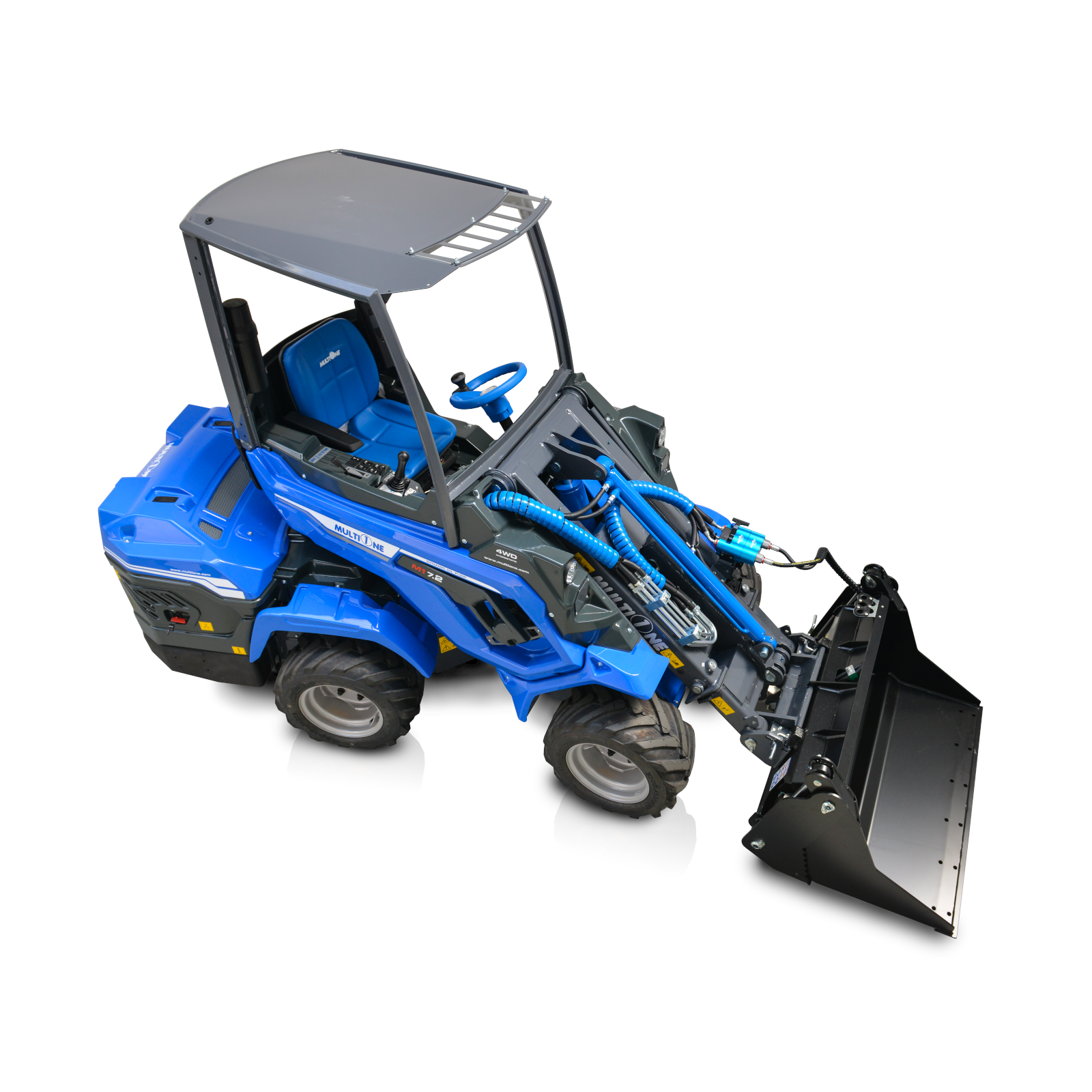

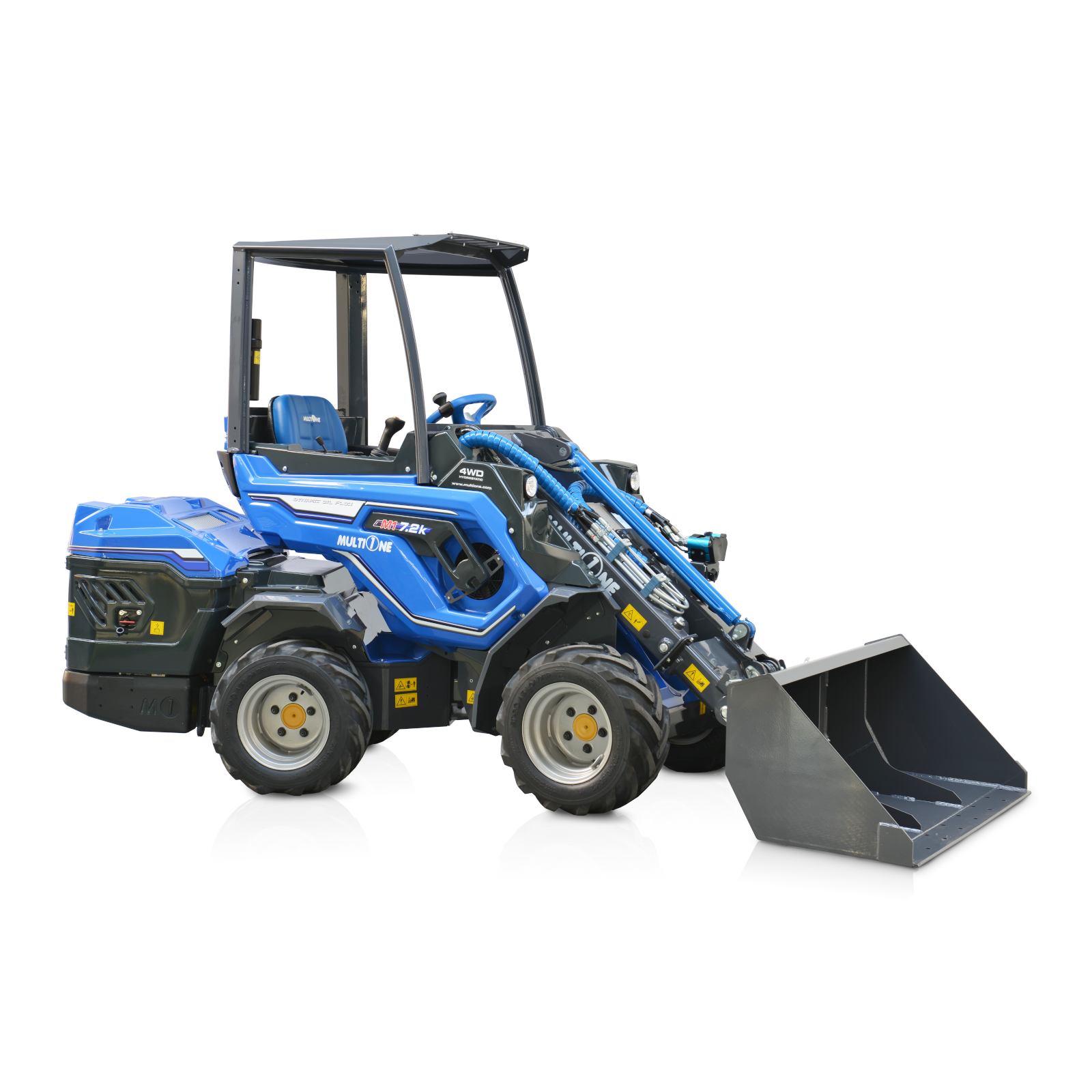

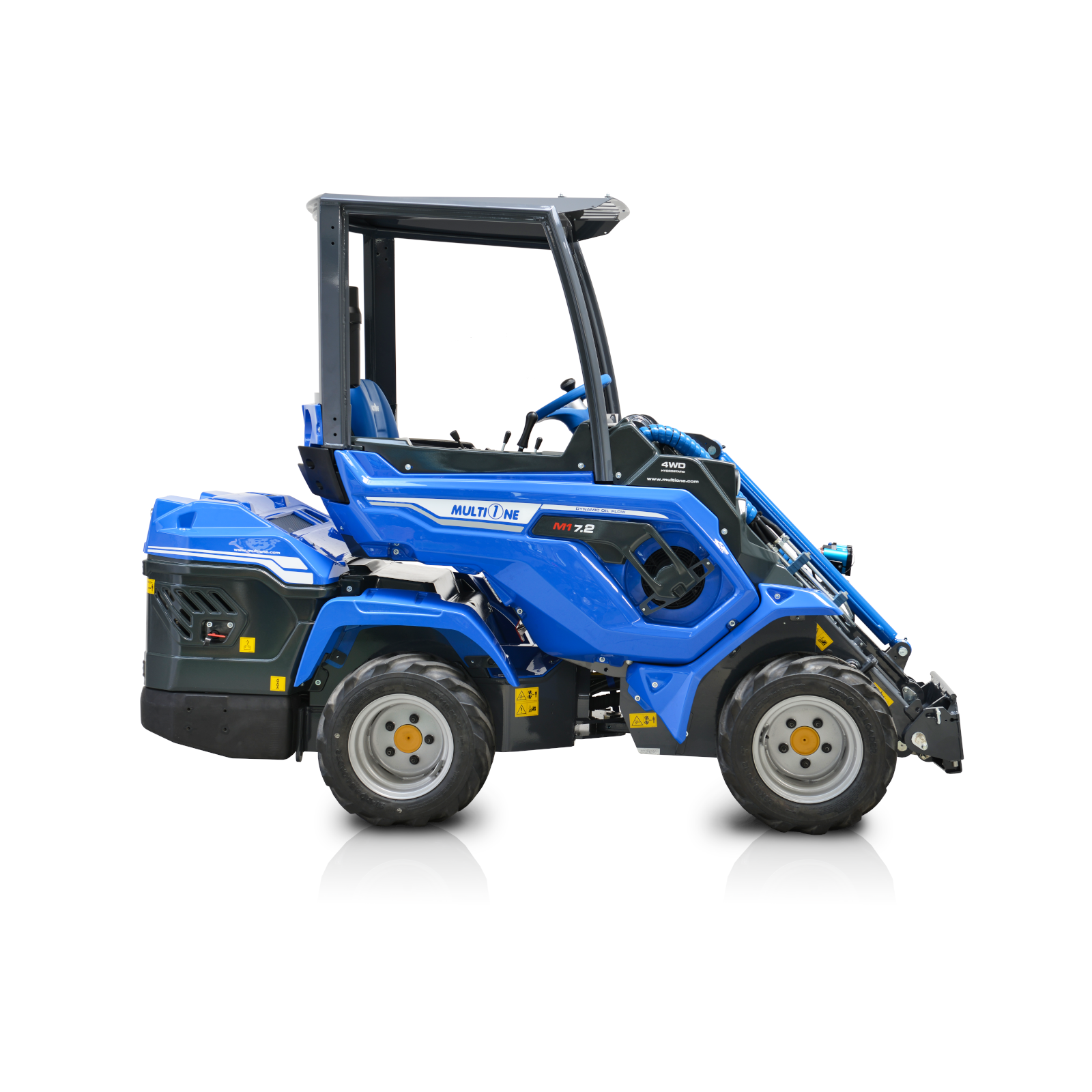

MultiOne 7.2K - 1590kg Mini Loader

The 7.2K Mini Loader is the winning combination of power, speed and agility.  It's compact size with high lift capacity is perfect for material handling jobs.  Integrated cast backweight plus additional backweight coupled with a strong hydraulic systems allow for such a high lift capcity to weight ratio.

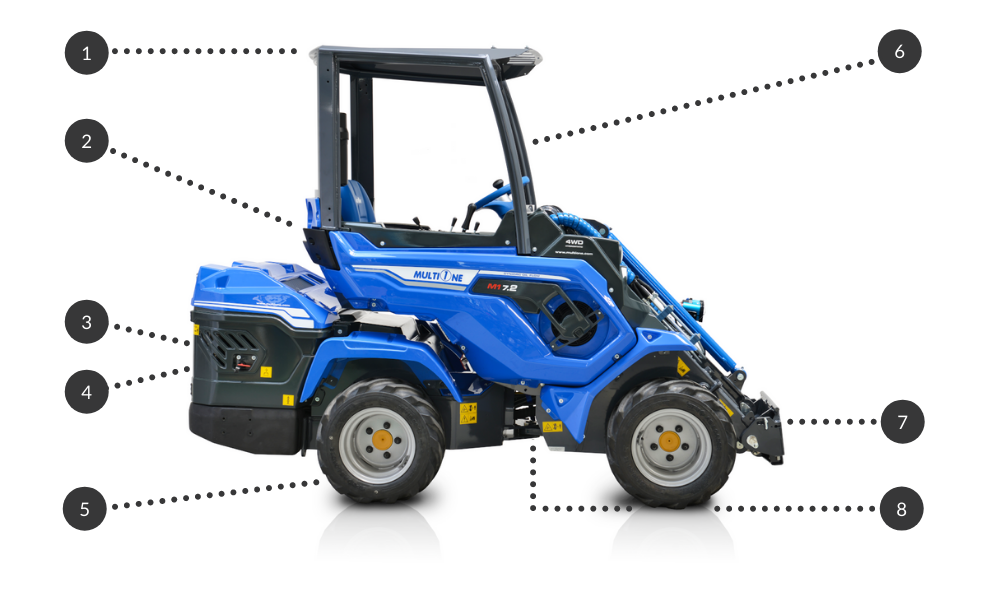

Key Features:

1. Safety
  • ROPS canopy and cabins.
  • Sit down machine no operator fatigue.
  • Seat belt and safety bar.
  • Electronic over hydraulic parking brake.
  • Reverse Beeper.
  • Rotating Beacon.
2. Comfort

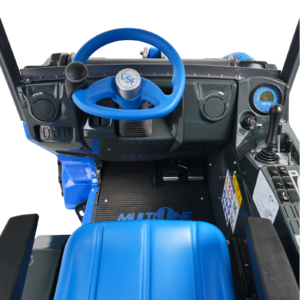

  • Spacious operator station for small sized machine.

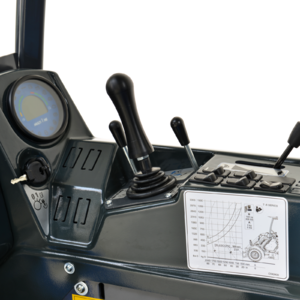

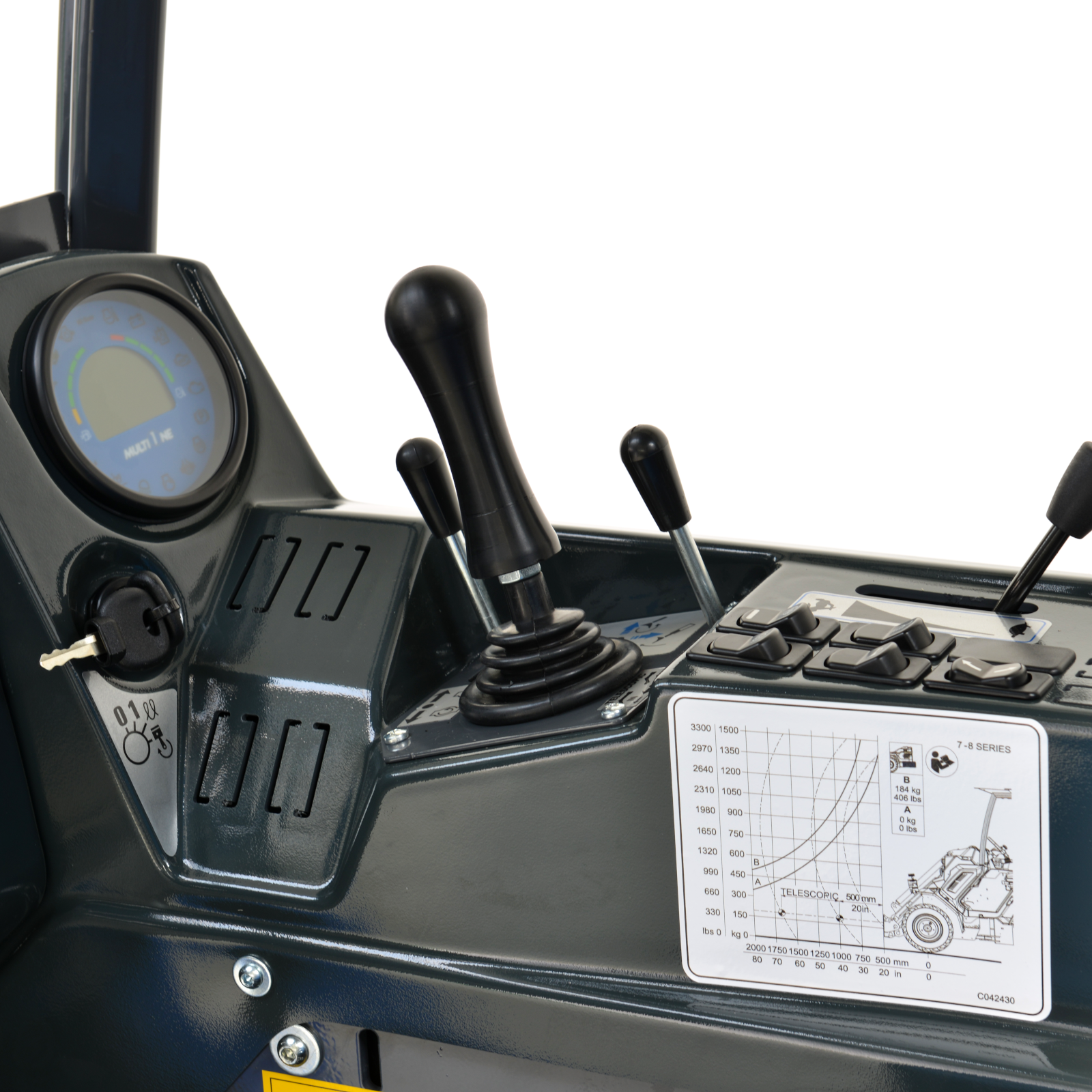

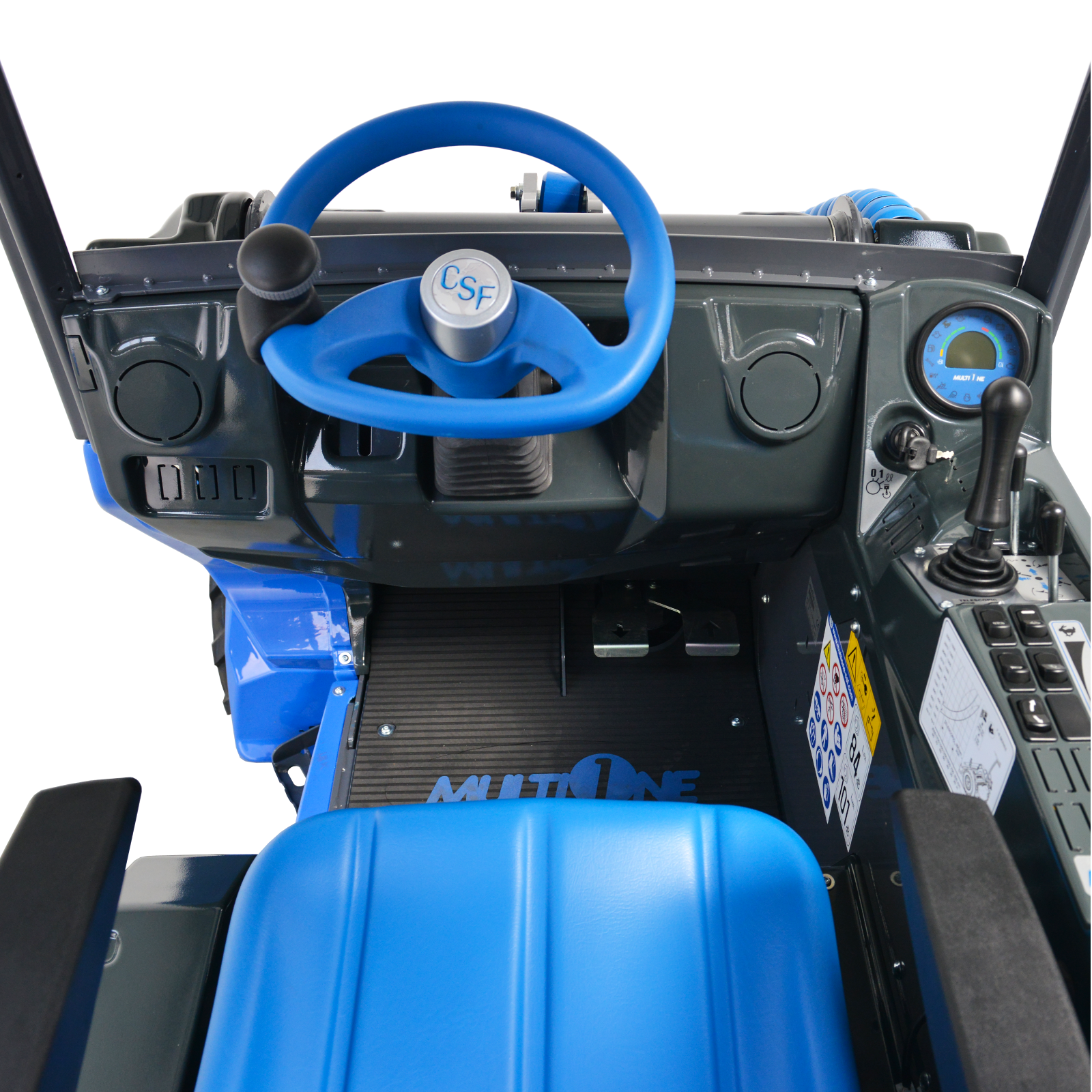

  • Ergononmically placed controls.

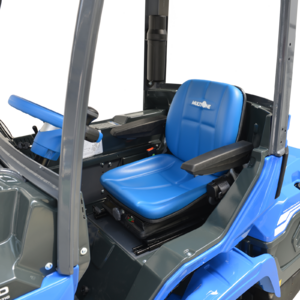

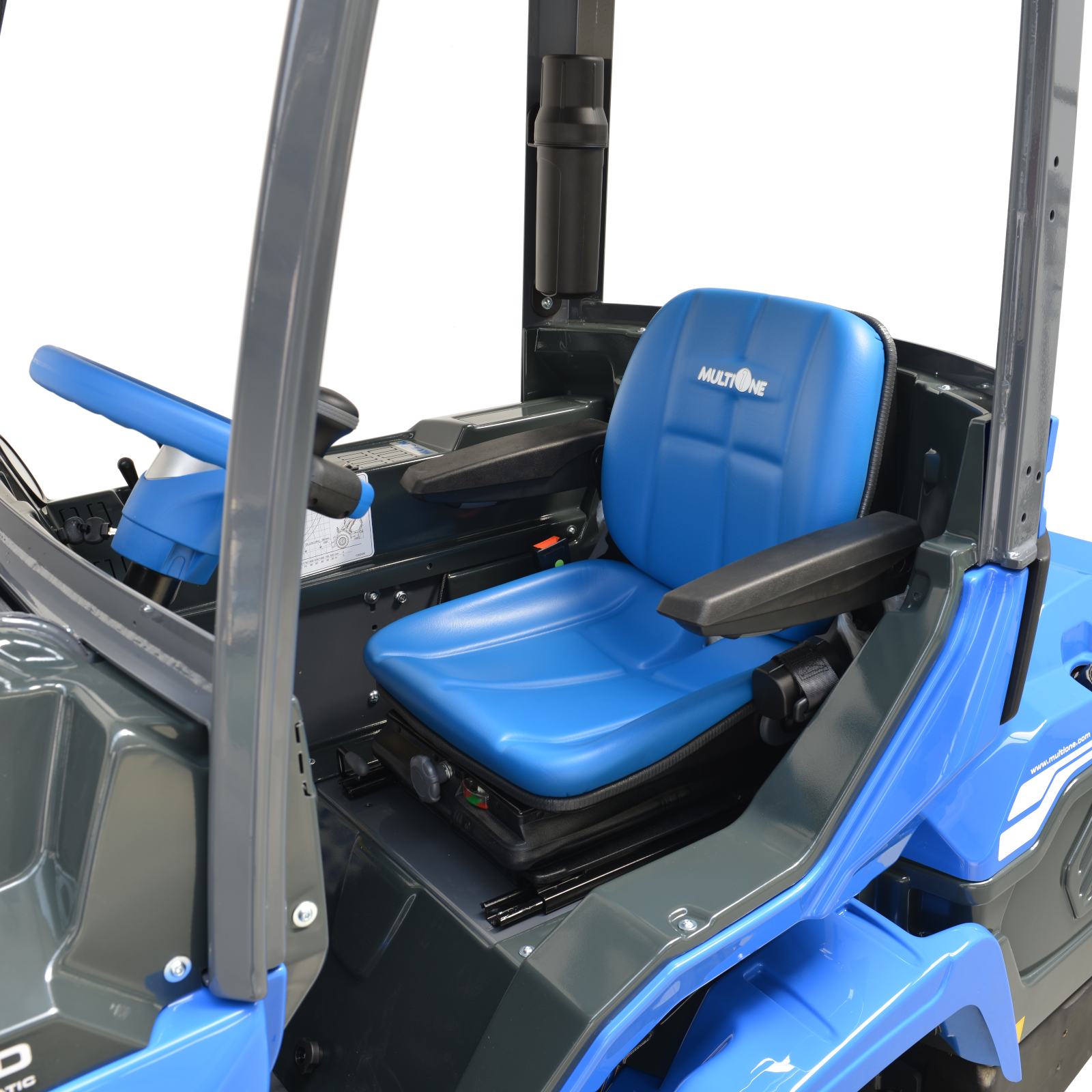

  • Suspension seat.
  • Enclosed cabin with heating (optional).
3. Power
  • 25HP Kubota Diesel engine.
  • 4WD hydrostatic drive.
  • 40L/min auxiliary hydraulics.
4. Efficiency
  • Direct drive radial piston drive motors.

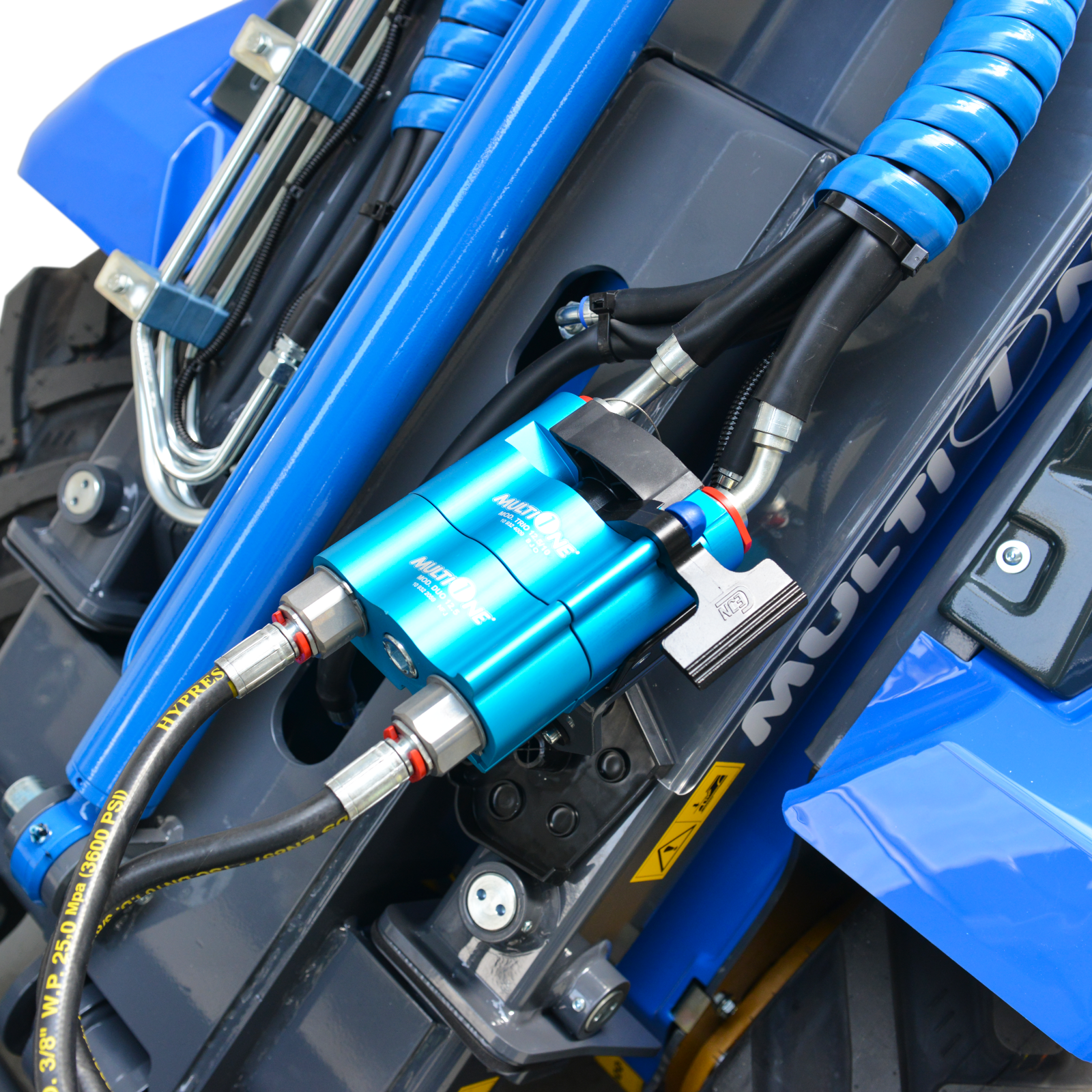

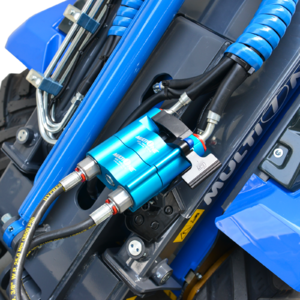

  • Dynamic Block System.
  • Hydraulic Oil Cooler.
  • Hydrostatic Transmission
5. Speed
  • High Speed 9 km/h.
  • 40L/min hydraulics
6. Vision
  • 360 Degree Visibility.
  • No side screens or high rear arches.
  • Roof window for loading at height.
7. Attachments
  • Full range of attachments including buckets, grapples, forks, mixers, augers, hammers and much more.
  • Over 170 attachments available to suit the full range of Multione machines.
  • Aftermarket attachments available.
8. Versatility
  • Articulated frame, no skidding to damage ground.
  • Telescopic Boom.
  • Huge lift capacity to machine weight ratio.
  • High ground clearance.
  • Range of attachments.

(7.2K)

General:

Weight 1590 kg
Length 2690 mm
Height 2080 mm

Engine:

Manufacturer Kubota
Model D1305
Construction Liquid-Cooled, 3-Cylinder Diesel
Displacement 1261 cc
Output 18.6 kW (25 Hp)
Torque 85Nm @ 1700 RPM

Drive:

Construction Hydrostatic Transmission to direct drive hydraulic wheel motors
Motors Direct Drive Radial Piston x 4
Drive Speed 0-9 km/h
Parking Brake Multi-Disc
Standard Tyres 27x10.50-15

Hydraulics

Auxiliary Flow 40 L/m

Performance

Max. Lift Height 2900 mm
Max. Tip Load1 1500 kg
Lifting Capacity Straight2 1200 kg
Lifting Capacity Fully Articulated3 1020 kg
Breakout Force 1700 kg
Pushing Force 1690 kgf

Working Dimensions:

A Pivot Point Height (retracted) 2280 mm
B Pivot Point Height (extended) 2900 mm
C Outreach, raised boom (extended) 455 mm
D Outreach, horizontal Boom (retracted) 445 mm
E Outreach, horizontal boom (extended) 1185 mm
F Front length 500 mm
G Wheelbase 1280 mm
H Rear length 910 mm
I Machine Length 2690 mm
L Ground Clearance 210 mm
M Departure Angle (w/without backweights) 15 / 21 degrees
N Max Width (standard tyres) 1130 mm
O Dump Angle 36 degrees
P Rollback Angle 29 degrees
Q Height (w/ standard tyres) 2080 mm

1) Maximum load that can be lifted just off the ground when the machine is straight, with backweights and boom not extended, weight off attachment included.
2) Machine straight, with backweights and boom not extended. Weight of attachment included. (80% of tipping load).
3) Machine fully articulated, with backweights and boom not extended. Weight of attachment is included.

* Specifications subject to change without notice due to continual product development.
