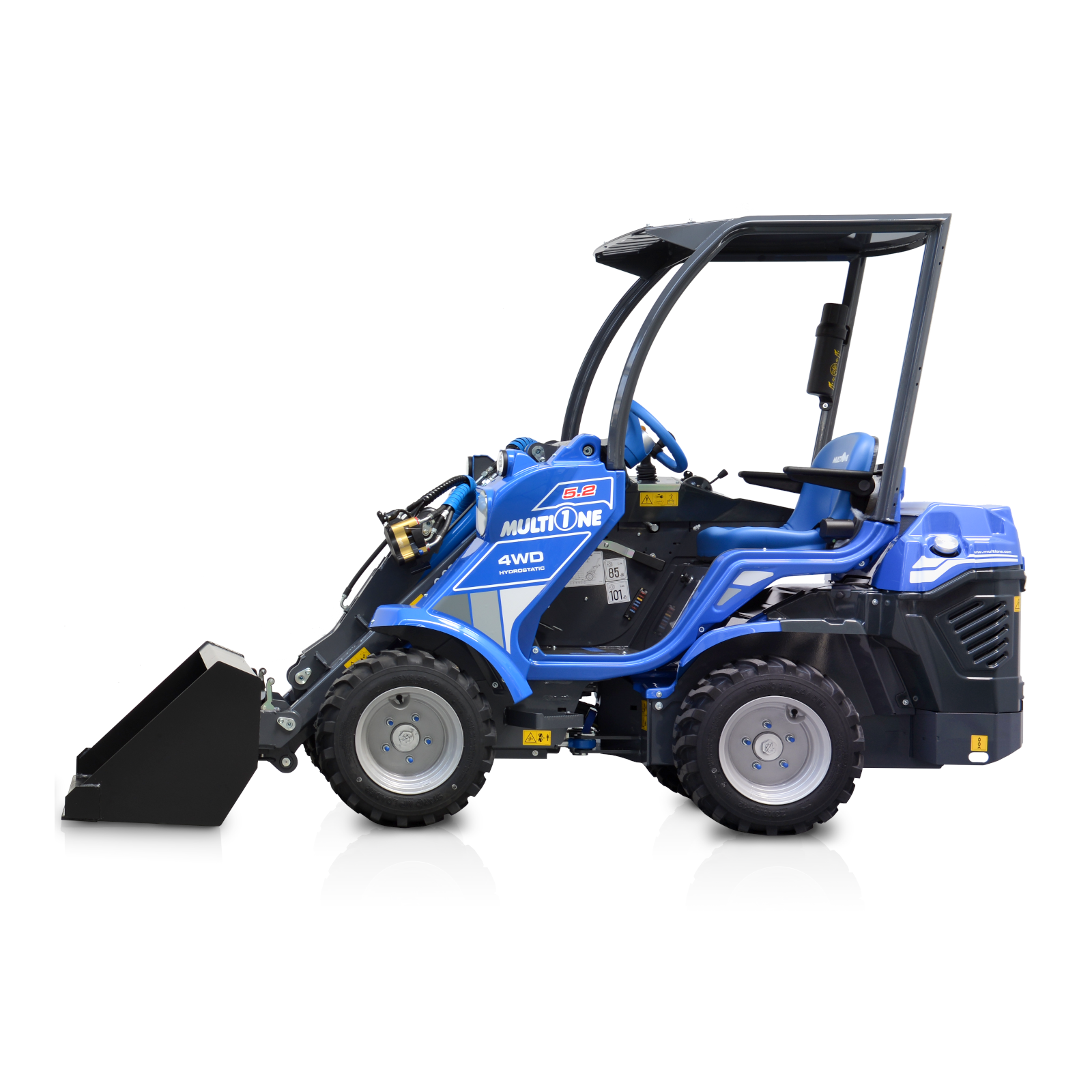

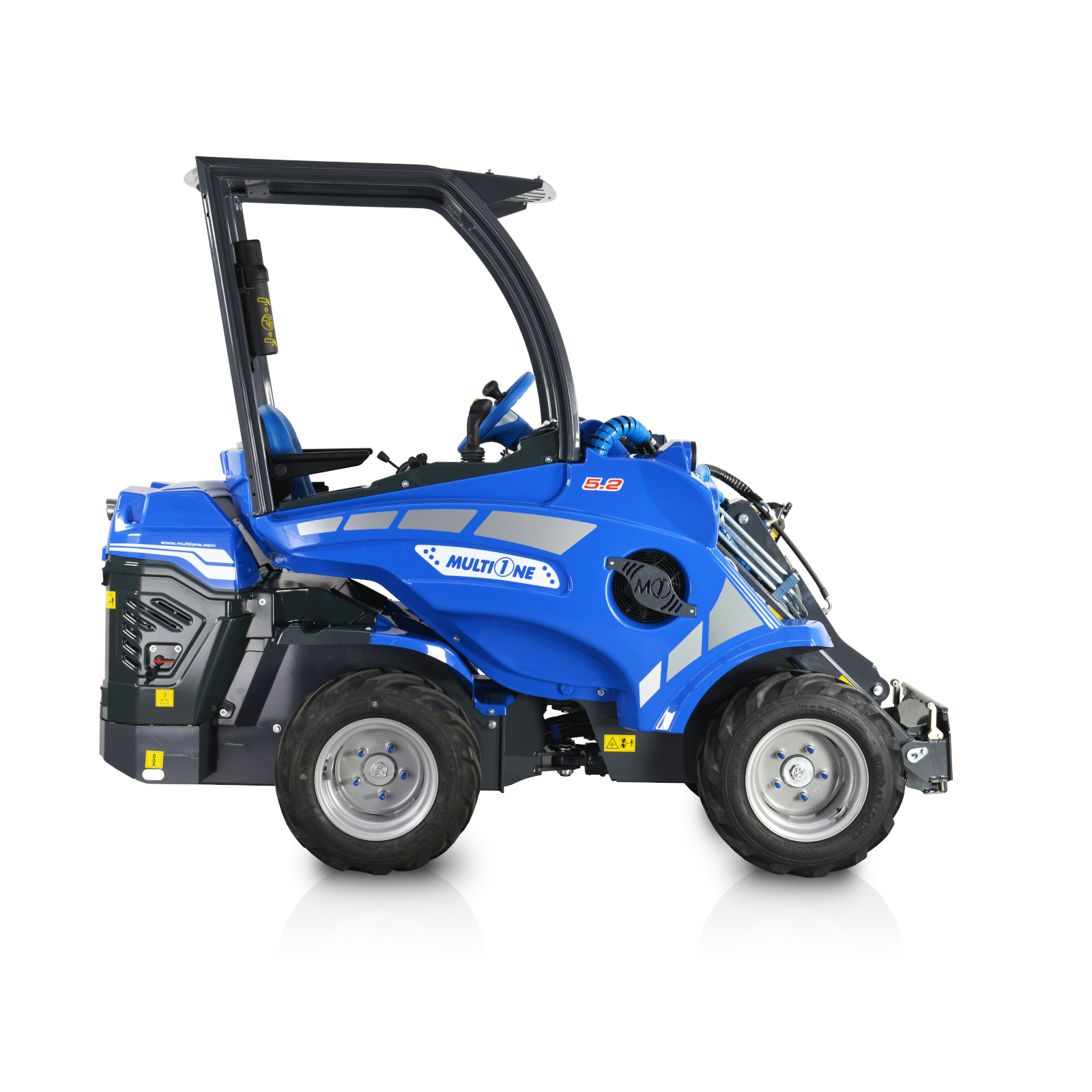

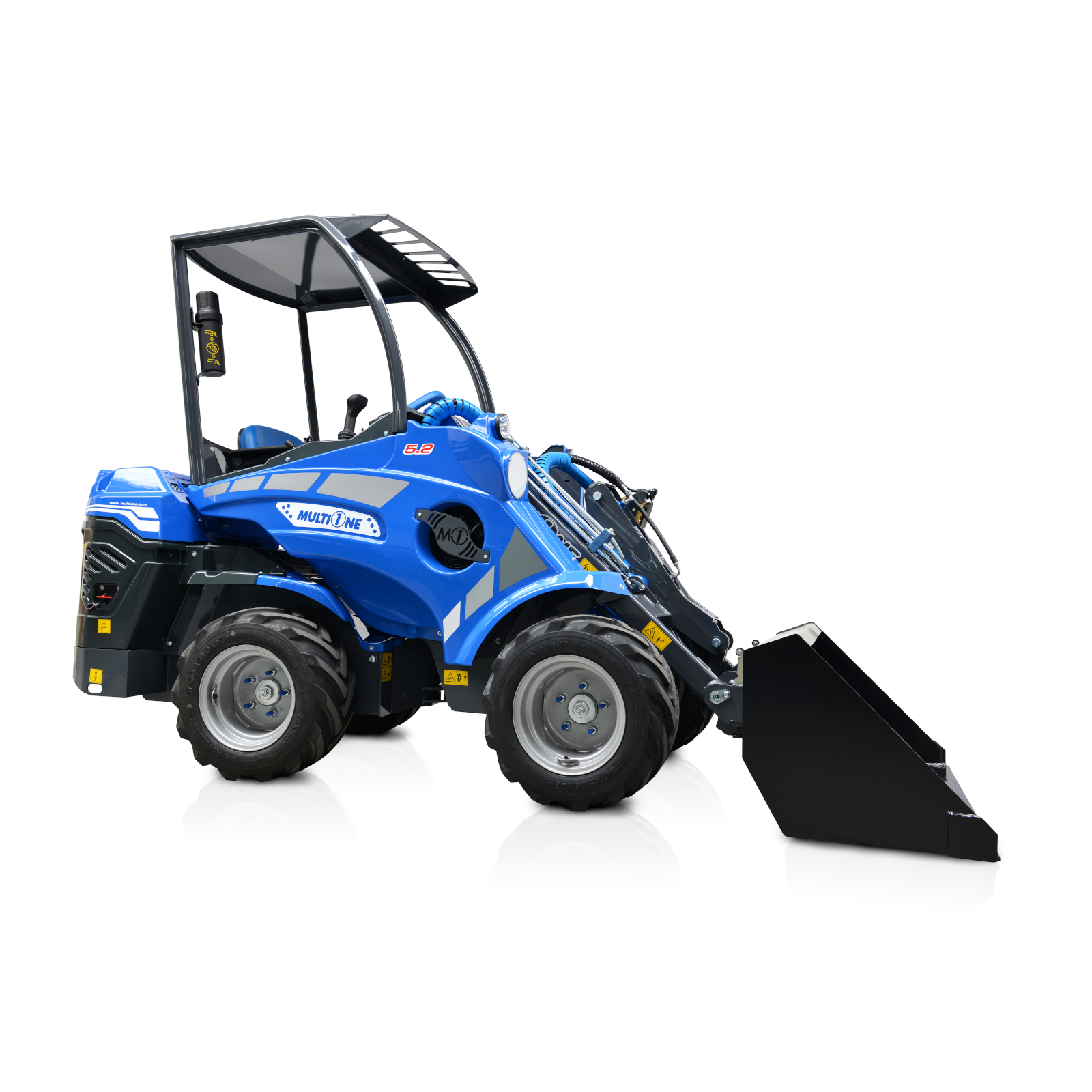

MultiOne 5.2K



General:

Weight	1020 kg
Length	2390 mm
Height	1960 mm

Engine:

Manufacturer	Kubota
Model	D902
Construction	Liquid-Cooled, 3-Cylinder Diesel
Displacement	898 cc
Output	18.6kW (25Hp)
Torque	55Nm @ 2400 RPM

Drive:

Construction	Hydrostatic Transmission to direct drive hydraulic wheel motors
Motors	Direct Drive x 4
Drive Speed	0-14 km/h
Parking Brake	Mechanical
Standard Tyres	23x8.50-12

Hydraulics:

Auxiliary Flow

34 L/m

Performance

Max. Lift Height	2750 mm
Max. Tip Load1	1020 kg
Lifting Capacity Straight2	820 kg
Lifting Capacity Fully Articulated3	700 kg
Breakout Force	800 kg
Pushing Force	900 kgf

Working Dimensions:

A	Pivot Point Height (retracted)	2250 mm
B	Pivot Point Height (extended)	2750 mm
C	Outreach, raised boom (extended)	160 mm
D	Outreach, horizontal Boom (retracted)	350 mm
E	Outreach, horizontal boom (extended)	900 mm
F	Front length	450 mm
G	Wheelbase	1150 mm
H	Rear length	790 mm
H1	Rear length (w/backweights)	900 mm
I	Machine length	2390 mm
M	Departure angle	19°
M1	Departure angle (w/backweights)	19°
N	Max width (standard tyres)	1090 mm
O	Dump angle	29°
P	Rollback angle	31°
Q	Height	1960 mm

1) Maximum load that can be lifted just off the ground when the machine is straight, with backweights and boom not extended, weight off attachment included.
2) Machine straight, with backweights and boom not extended. Weight of attachment included. (80% of tipping load).
3) Machine fully articulated, with backweights and boom not extended. Weight of attachment is included.

* Specifications subject to change without notice due to continual product development.
