MultiOne 6.3+K

View PDF brochure for MultiOne 6.3+K

MultiOne 6.3+K

1200kg Tipping Load

Share:
Enquiry/Quote

MultiOne 6.3K - 1050kg Mini Loader

The 6.3+K mini loader from Multione is a strong powerful mini loader in a compact package. Featuring the same heavy-duty boom and spacious operator station found on the larger range of Multitone loaders. High-Torque piston motors and a short rear frame make this perfect for tight access earth works and easy to transport. This is the Multitone of choice for compact earthworks.

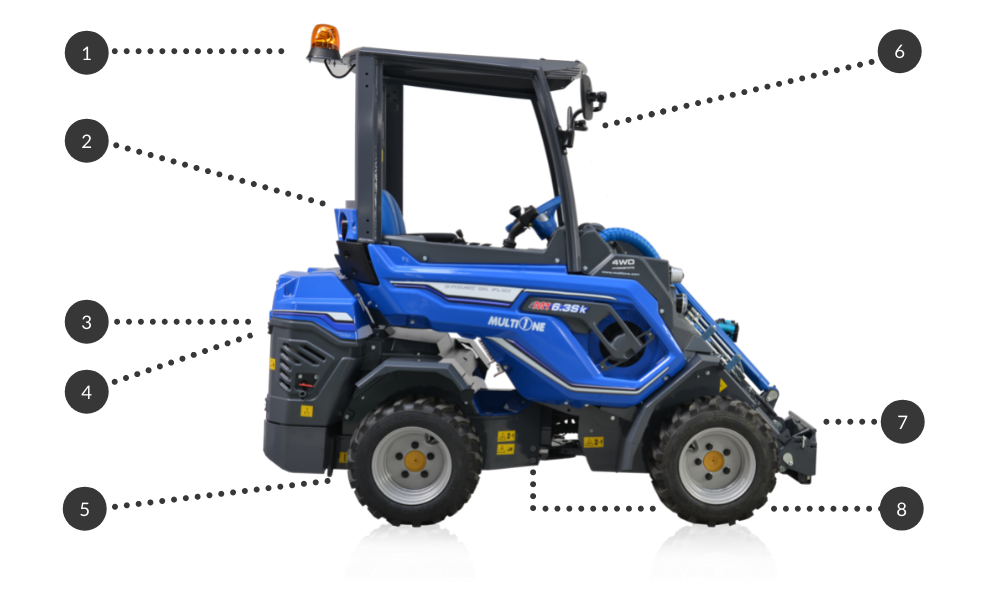

Key Features:

1. Safety
  • ROPS canopy and cabins.
  • Sit down machine no operator fatigue.
  • Seat belt and safety bar.
  • Parking brake.
  • Reverse Beeper.
  • Rotating Beacon.
2. Comfort
  • Spacious operator station for small sized machine.
  • Enclosed cabin with heating (optional).
3. Power
  • 25HP Kubota Diesel engine
  • 4WD hydrostatic drive
  • 50L/min auxiliary hydraulics
4. Efficiency
  • Direct drive radial piston motors.
  • Dynamic Block System.
  • Hydraulic Oil Cooler.
5. Speed
  • High Torque 9 km/h.
6. Vision
  • 360 Degree Visibility.
  • No side screens or high rear arches.
7. Attachments
  • Full range of attachments available including buckets, grapples, forks, mixers, augers, hammers and much more.
  • Over 170 Genuine attachments available to suit the full range of Multione machines.
  • Aftermarket attachments available.
8. Versatility
  • Articulated frame, no skidding to damage ground.
  • Telescopic Boom.
  • Huge lift capacity to machine weight ratio.
  • Floating Boom.
  • High ground clearance.
  • Range of attachments.

(6.3K)



General:

Weight 1400 kg
Length 2445 mm
Height 2020 mm

Engine:

Manufacturer Kubota
Model D1305
Construction Liquid-Cooled, 3-Cylinder Diesel
Displacement 1261 cc
Output 18.6kW (25Hp)
Torque 85Nm @ 1700 RPM

Drive:

Construction Hydrostatic Transmission to direct drive hydraulic wheel motors
Motors Direct Drive Radial Piston Motor x 4
Drive Speed 0-9 km/h
Parking Brake Wet Disk
Standard Tyres 23x8.50-12

Hydraulics:

Auxiliary Flow 50 L/m

Performance

Max. Lift Height 2920 mm
Max. Tip Load1 1200 kg
Lifting Capacity Straight2 960 kg
Lifting Capacity Fully Articulated3 780 kg
Breakout Force 1400 kg
Pushing Force 1690 kgf

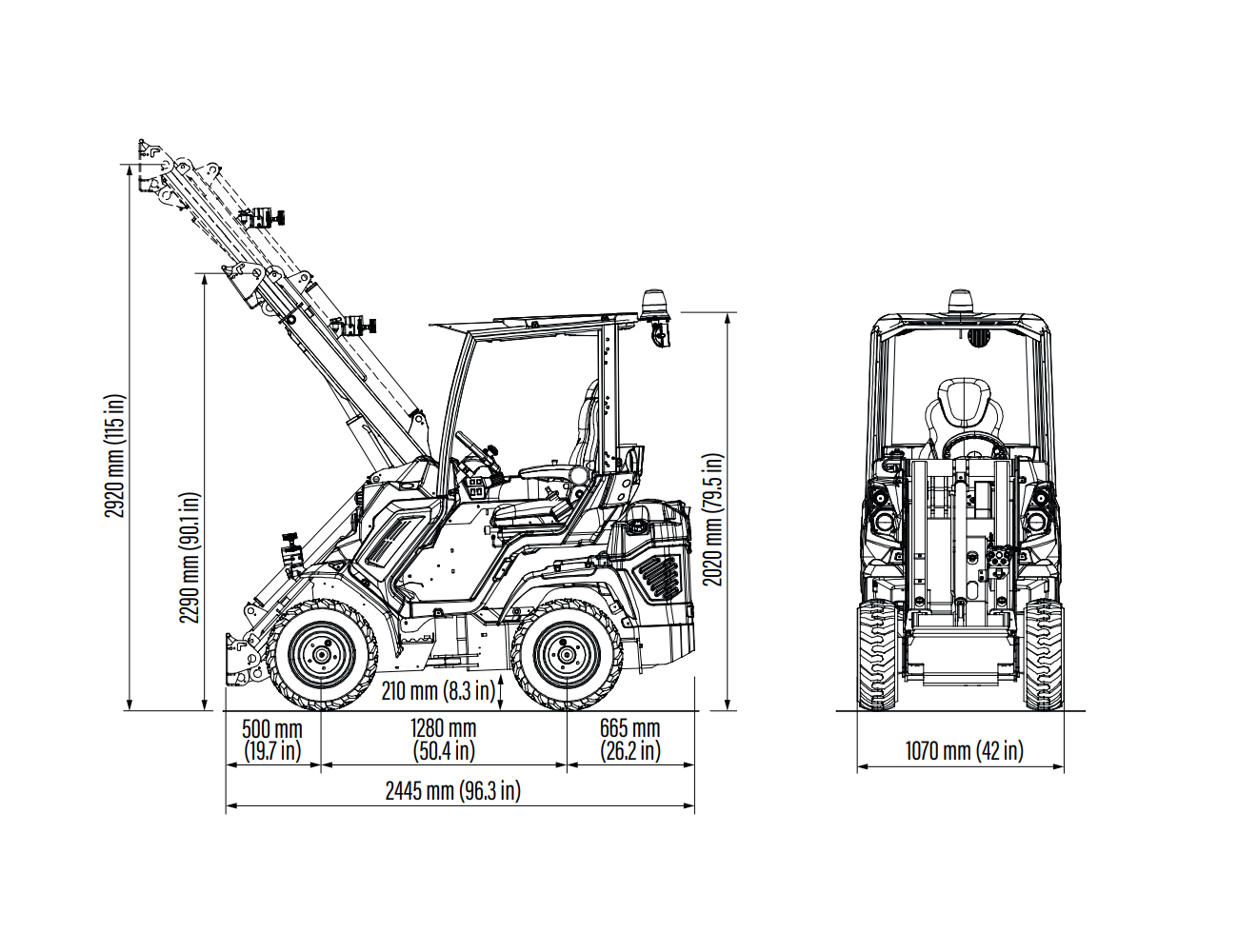

Working Dimensions:

1) Maximum load that can be lifted just off the ground when the machine is straight, with backweights and boom not extended, weight off attachment included.
2) Machine straight, with backweights and boom not extended. Weight of attachment included. (80% of tipping load).
3) Machine fully articulated, with backweights and boom not extended. Weight of attachment is included.

* Specifications subject to change without notice due to continual product development.

SKU 6.3K
