MultiOne 8.5SK

1780kg Tipping Load

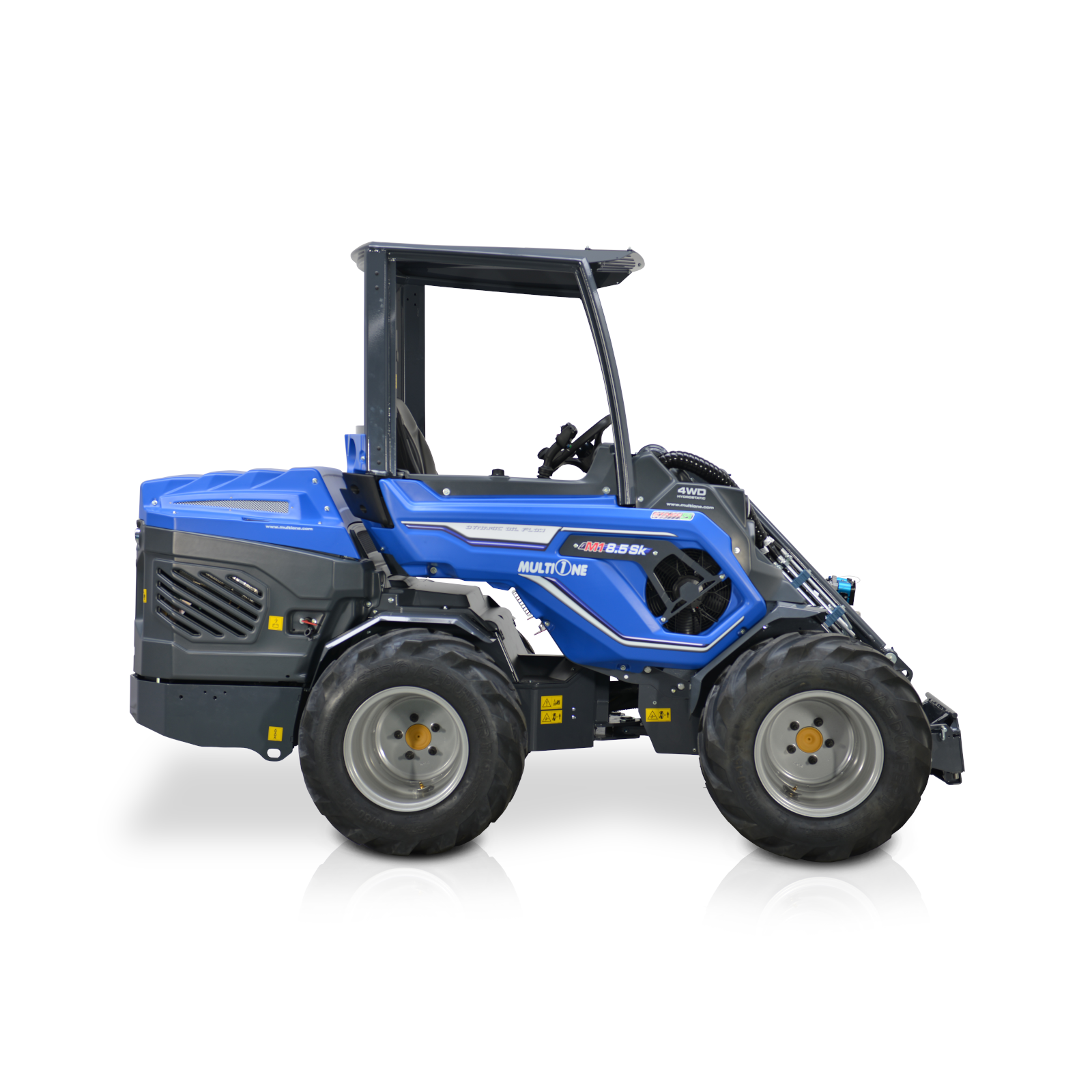

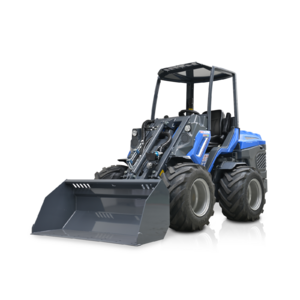

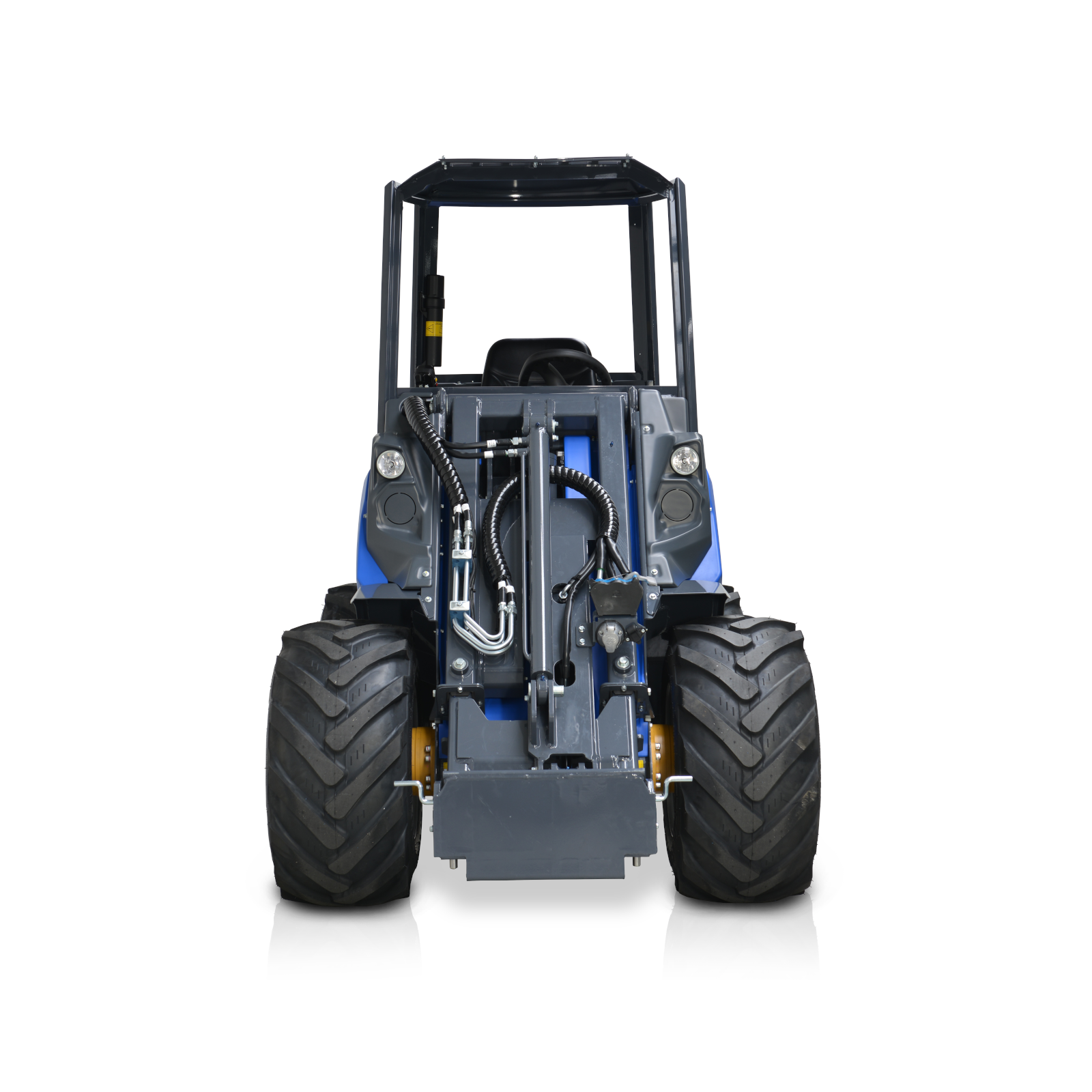

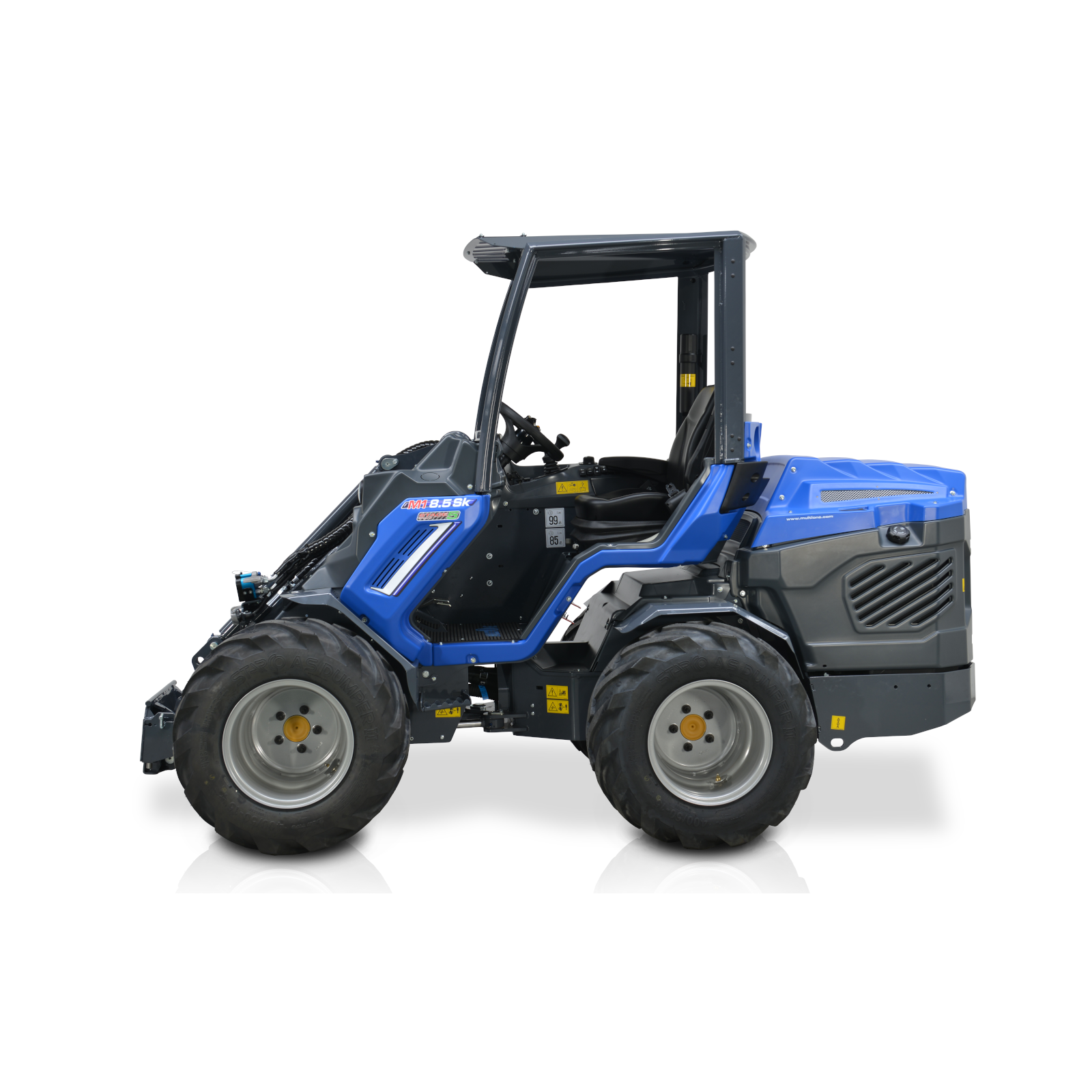

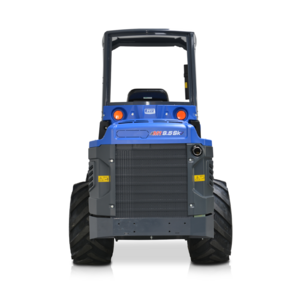

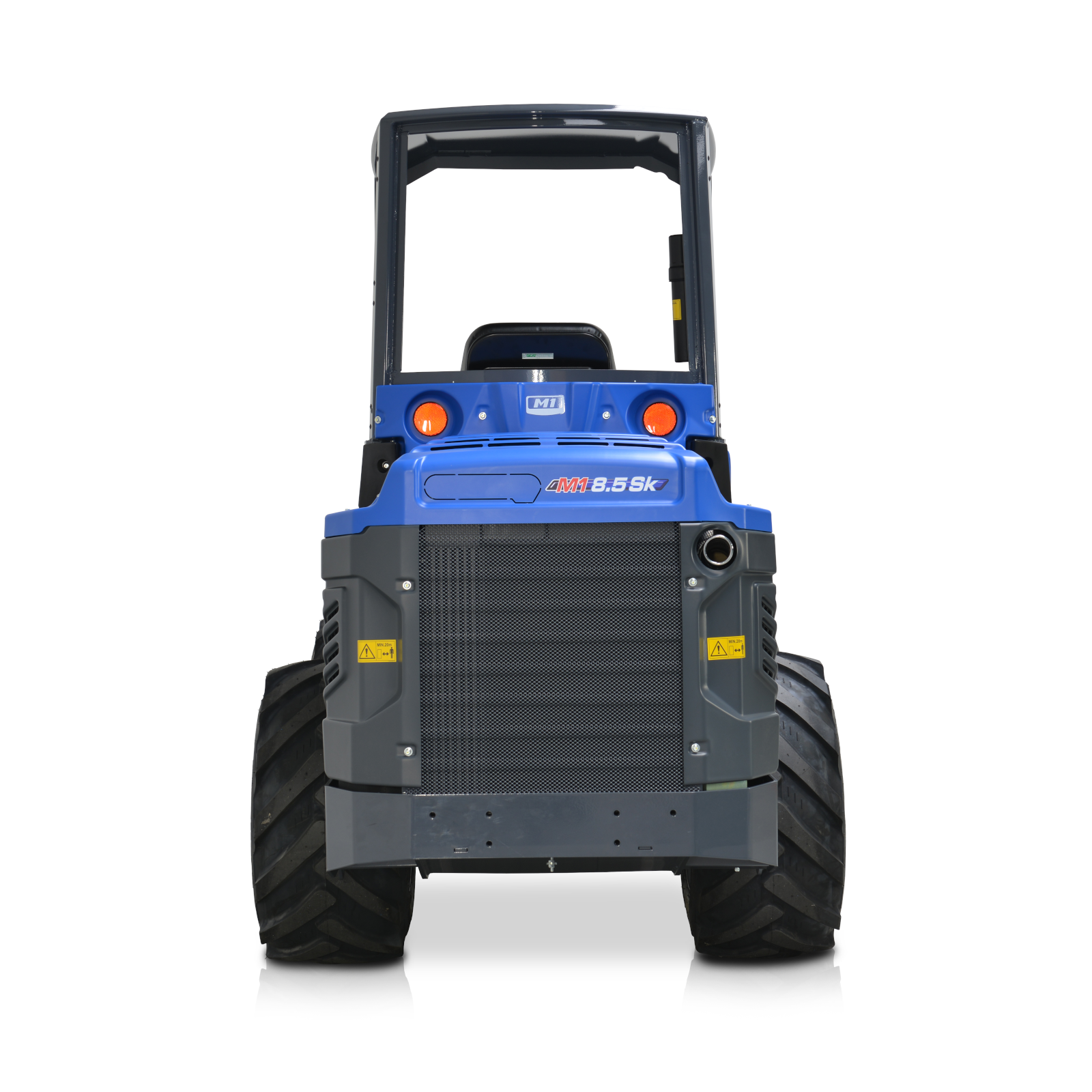

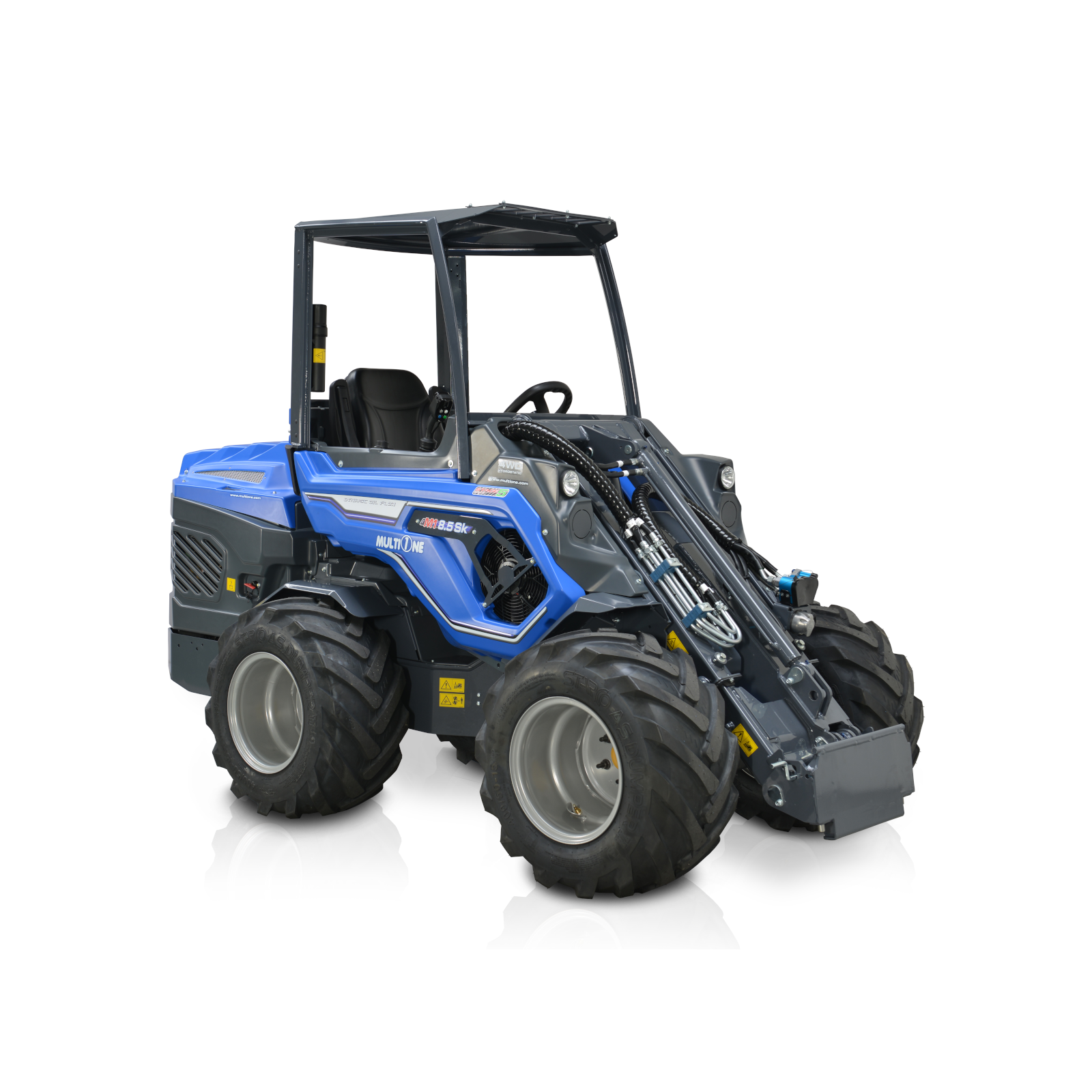

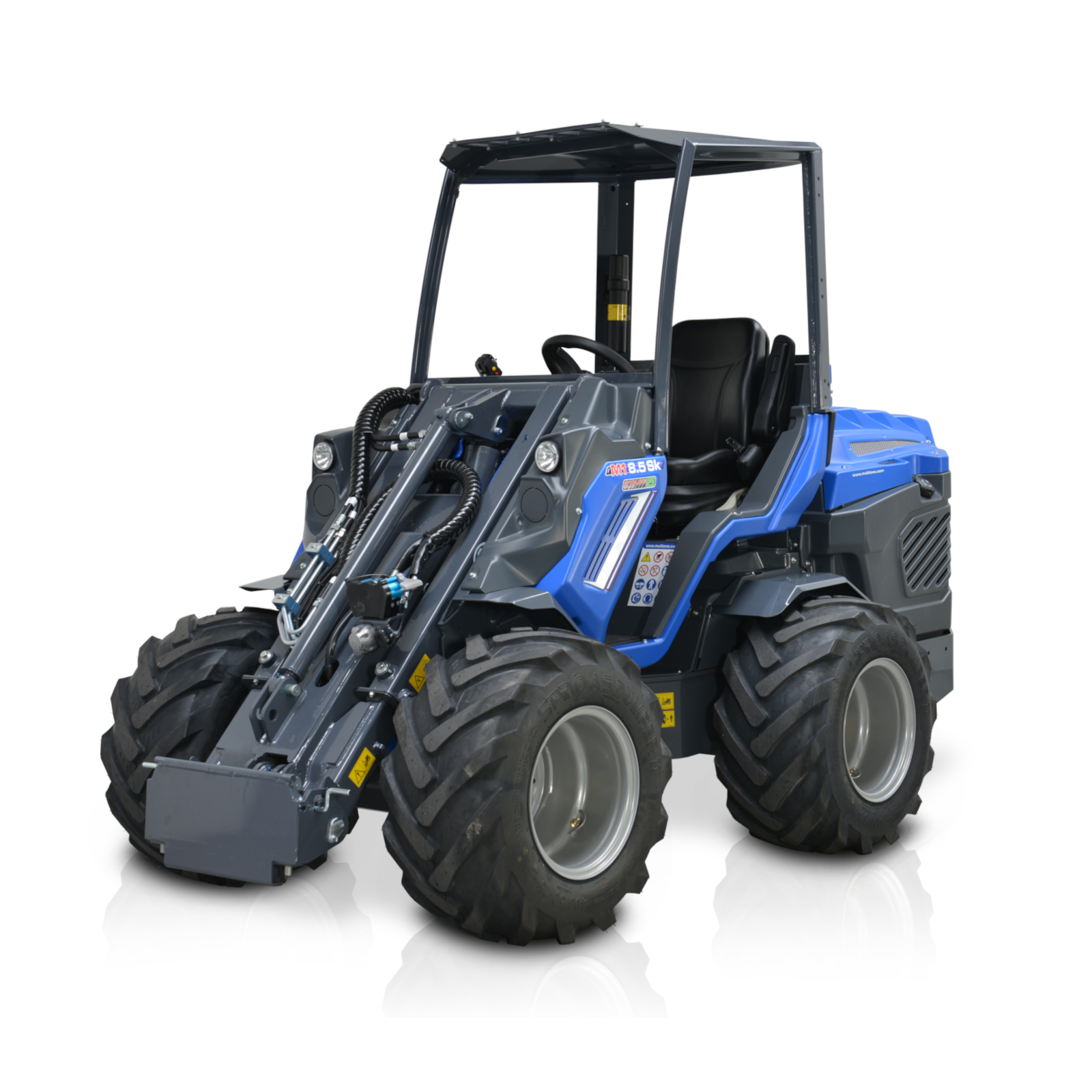

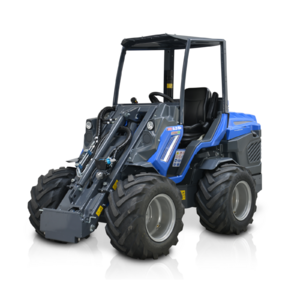

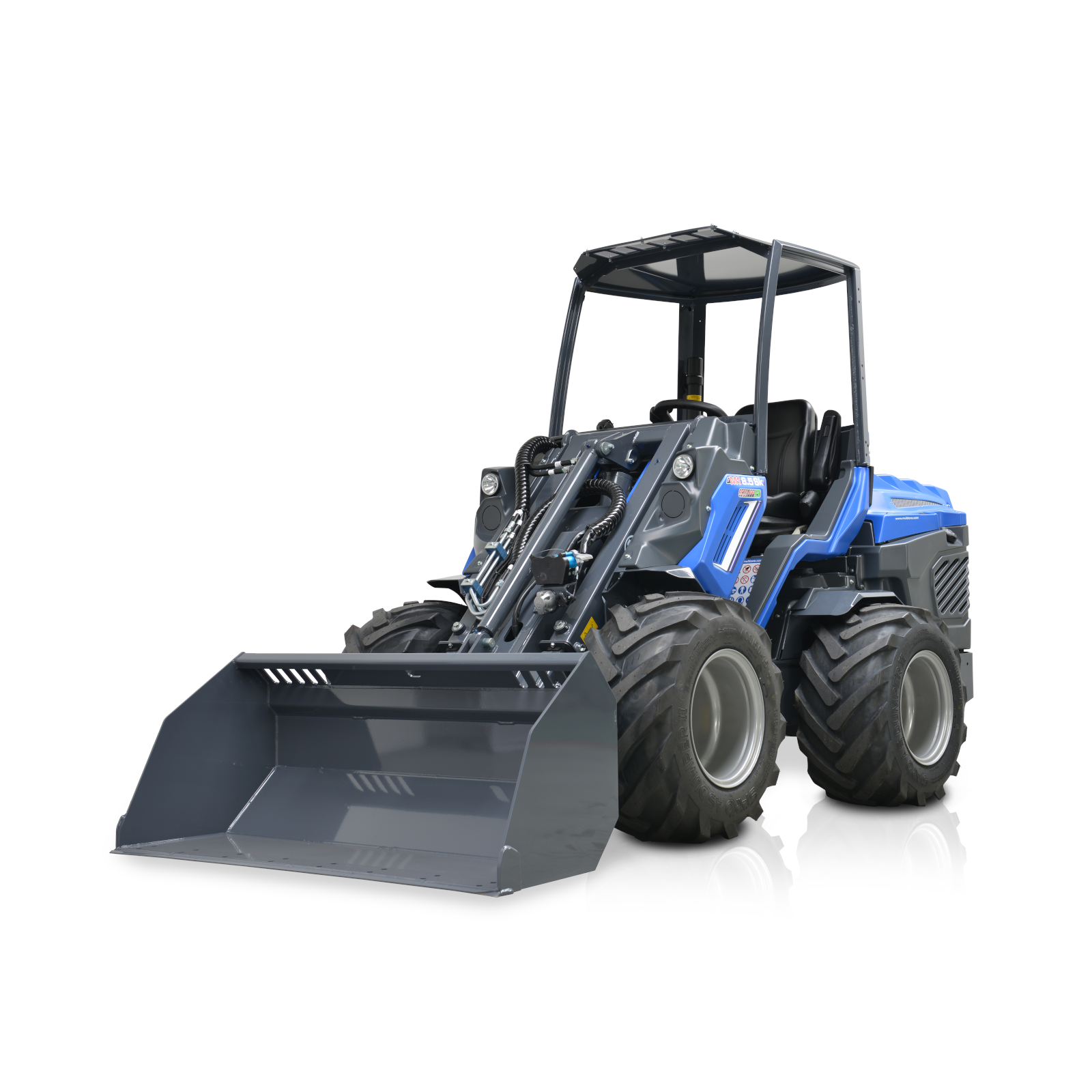

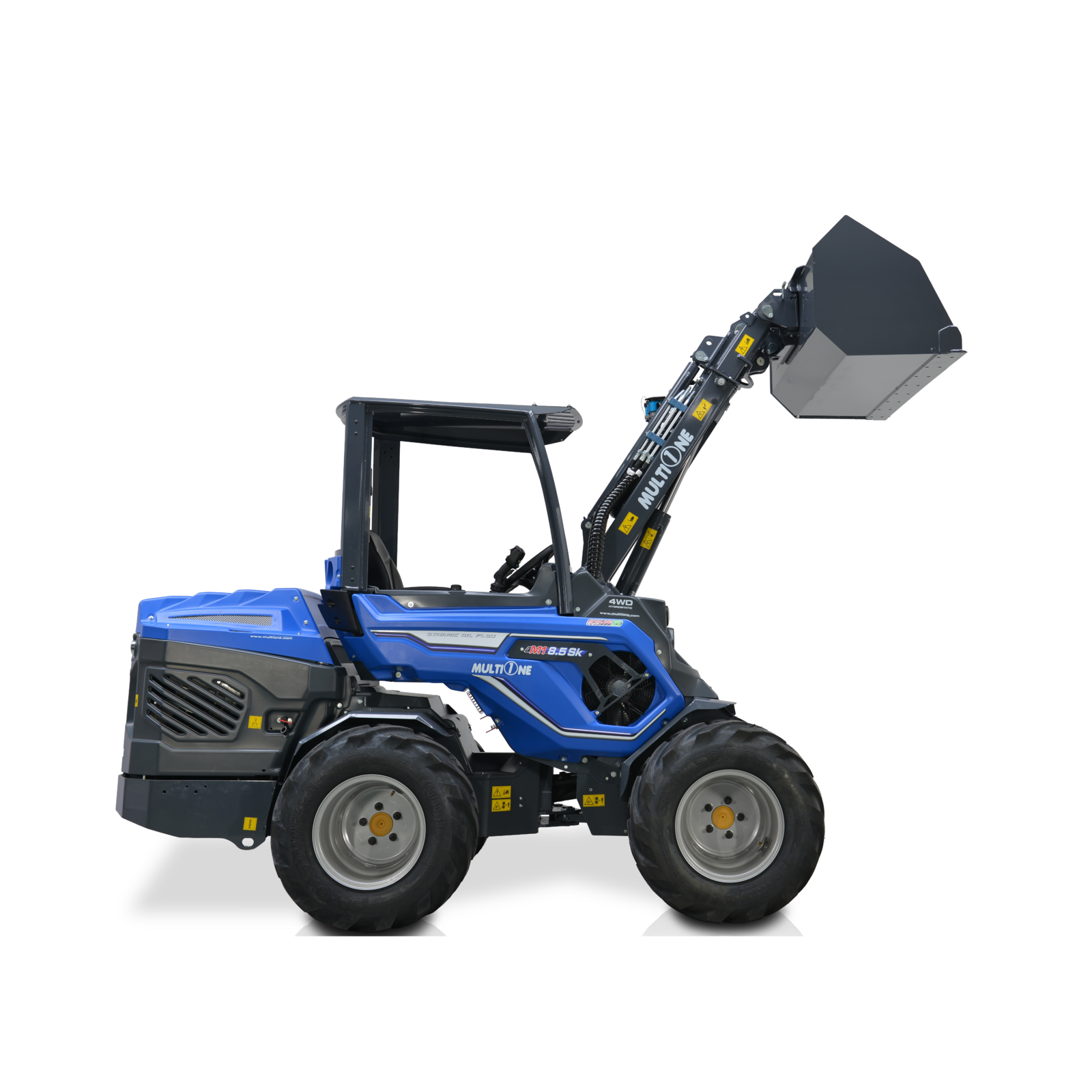

MultiOne 8.5SK - 1790kg Mini Loader

The 8.5SK Mini Loader from Multione has huge power in a compact package. Capable of speeds of 22km/h with 70L/min hydraulic flow rates. An astonishing lift to weight ratio, with tipping load of 1780kg and a transport weight less that 2000kg with backweights fitted. The 8.4SK is the perfect multifunctional machine for construction, maintenance and farming works.

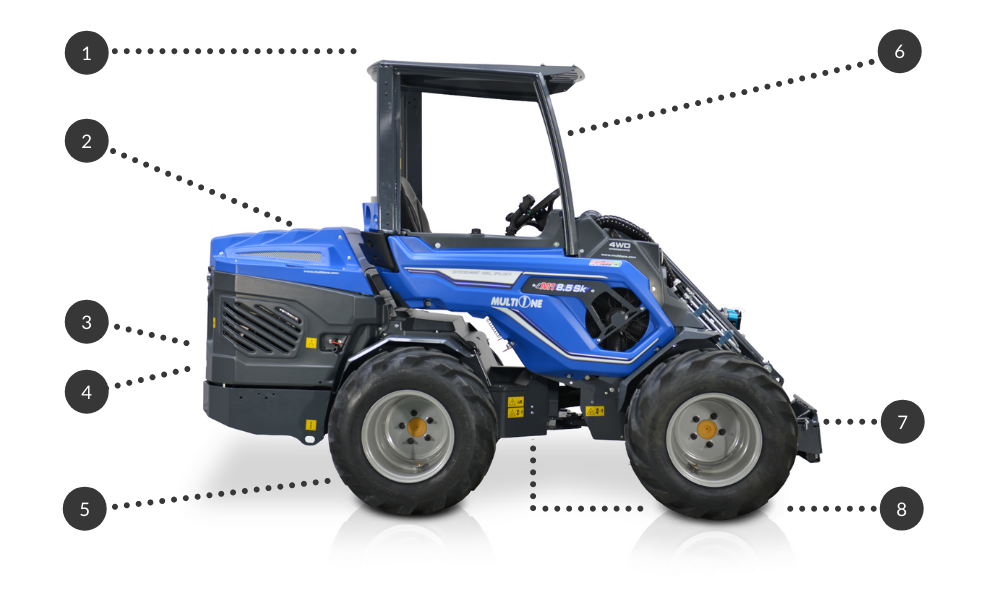

Key Features:

1. Safety
  • ROPS canopy and cabins.
  • Sit down machine no operator fatigue.
  • Seat belt and safety bar.
  • Parking brake.
  • Reverse Beeper.
  • Rotating Beacon.
2. Comfort
  • Spacious operator station for small sized machine.
  • Ergonomically placed controls.
  • Suspension seat.
  • Enclosed cabin with air-conditioning & heating (optional).
3. Power
  • 57HP Kohler Diesel engine. Tier 4 Final compliant
  • Huge 225 Nm Torque @ 1500 RPM
  • 4WD hydrostatic drive.
  • 70L/min auxiliary hydraulics.
4. Efficiency
  • OneDrive Transmission, 30% higher power and efficiency
  • Direct drive radial piston drive motors.
  • Dynamic Block System + Torque Divider
  • Hydraulic Oil Cooler.
5. Speed
  • High Speed 22 km/h.
  • Crusie Control.
6. Vision
  • 360 Degree Visibility.
  • No side screens or high rear arches.
  • Roof window for unobstructed vision.
7. Attachments
  • Full range of attachments available including buckets, grapples, forks, mixers, augers, hammers and much more.
  • Over 170 Genuine attachments available to suit the full range of Multione machines.
  • Aftermarket attachments available.
8. Versatility
  • 22km/h travel speed.
  • Articulated frame, no skidding to damage ground.

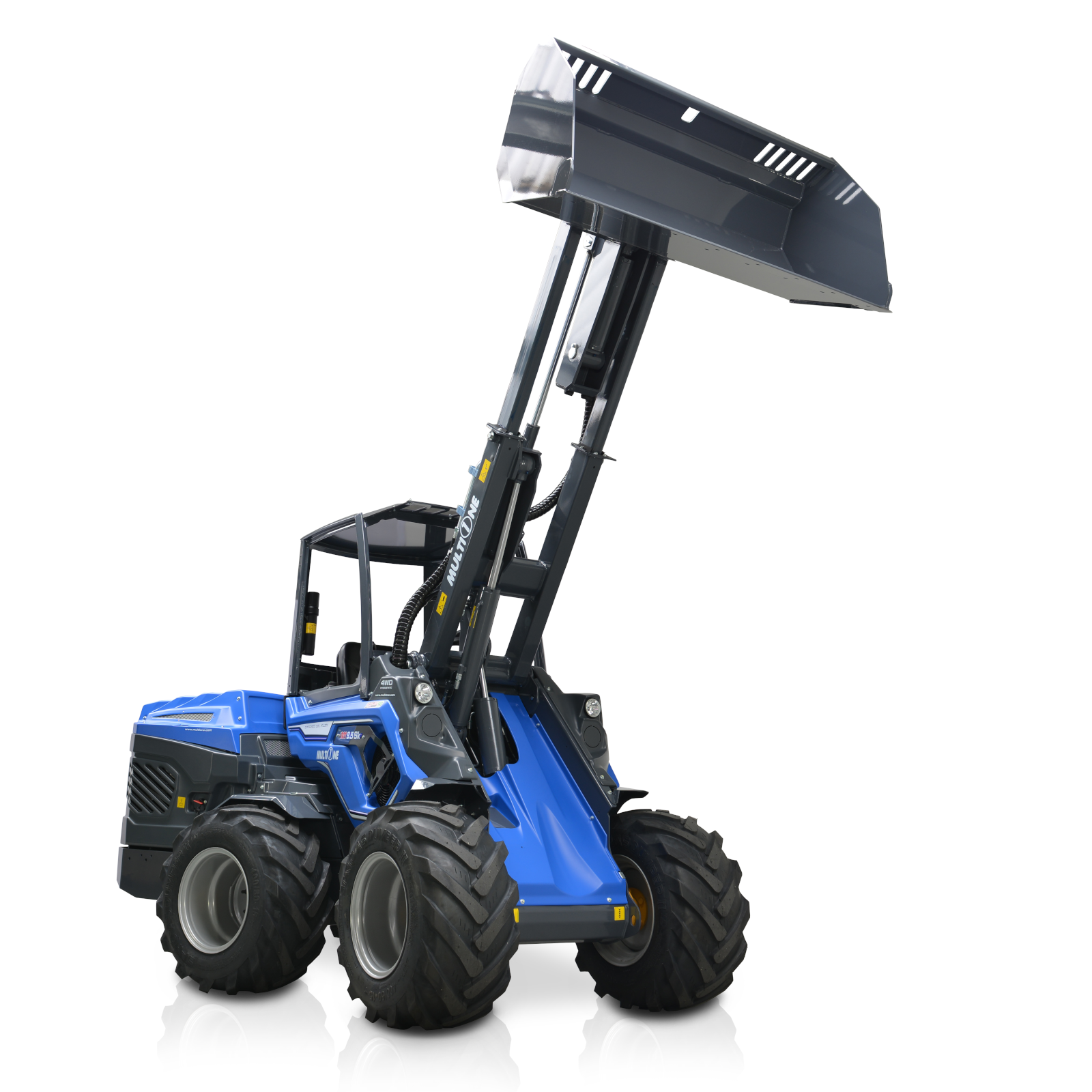

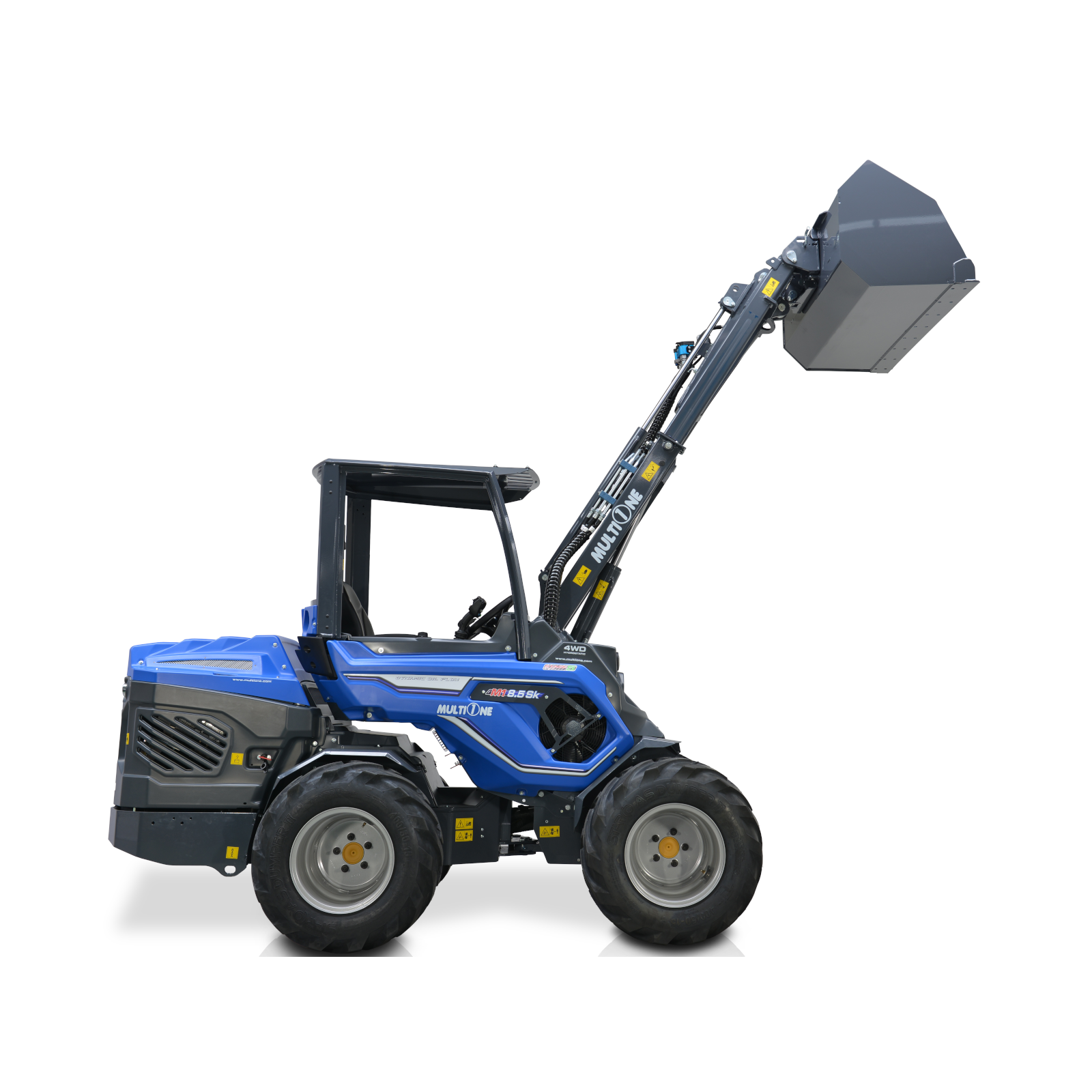

  • Telescopic Boom.
  • Huge lift capacity to machine weight ratio.
  • Floating Boom.
  • High ground clearance.

(8.5SK)

General:

Weight 1790 kg
Length 3005 mm
Height 2130 mm

Engine:

Manufacturer Kohler
Model KDI 1903
Construction Liquid-Cooled, 3-Cylinder Turbo Diesel
Displacement 1861 cc
Output 42.5 kW (57 Hp)
Torque 225 Nm @ 1500 RPM

Drive:

Construction Hydrostatic Transmission to direct drive hydraulic wheel motors
Motors Direct Drive Radial Piston x 4
Drive Speed 0-22 km/h
Parking Brake Multi-Disc
Standard Tyres 400/50-R15

Hydraulics

Auxiliary Flow 70 L/m

Performance

Max. Lift Height 3200 mm
Max. Tip Load1 1780 kg
Lifting Capacity Straight2 1425 kg
Lifting Capacity Fully Articulated3 1068 kg
Breakout Force 1700 kg
Pushing Force 2190 kgf

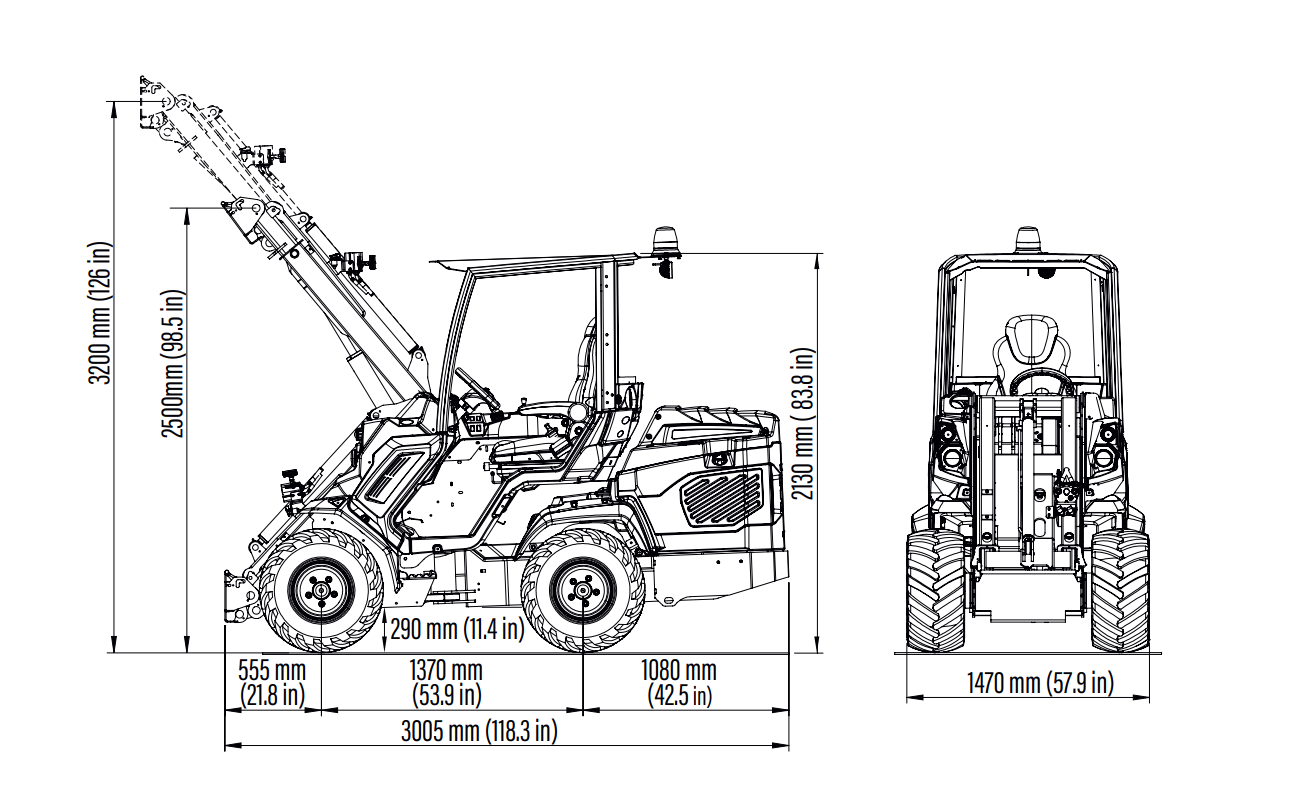

Working Dimensions:

Pivot Point Height (retracted) 2500 mm
Pivot Point Height (extended) 3200 mm
Front length 555 mm
Wheelbase 1370 mm
Rear length 1080 mm
Machine Length 3005 mm
Ground Clearance 290 mm
Max Width (standard tyres) 1470 mm
Height (w/ standard tyres) 2130 mm

1) Maximum load that can be lifted just off the ground when the machine is straight, with backweights and boom not extended, weight off attachment included.
2) Machine straight, with backweights and boom not extended. Weight of attachment included. (80% of tipping load).
3) Machine fully articulated, with backweights and boom not extended. Weight of attachment is included.

* Specifications subject to change without notice due to continual product development.

SKU 8.5SK
