MultiOne 8.4SK

1600kg Tipping Load

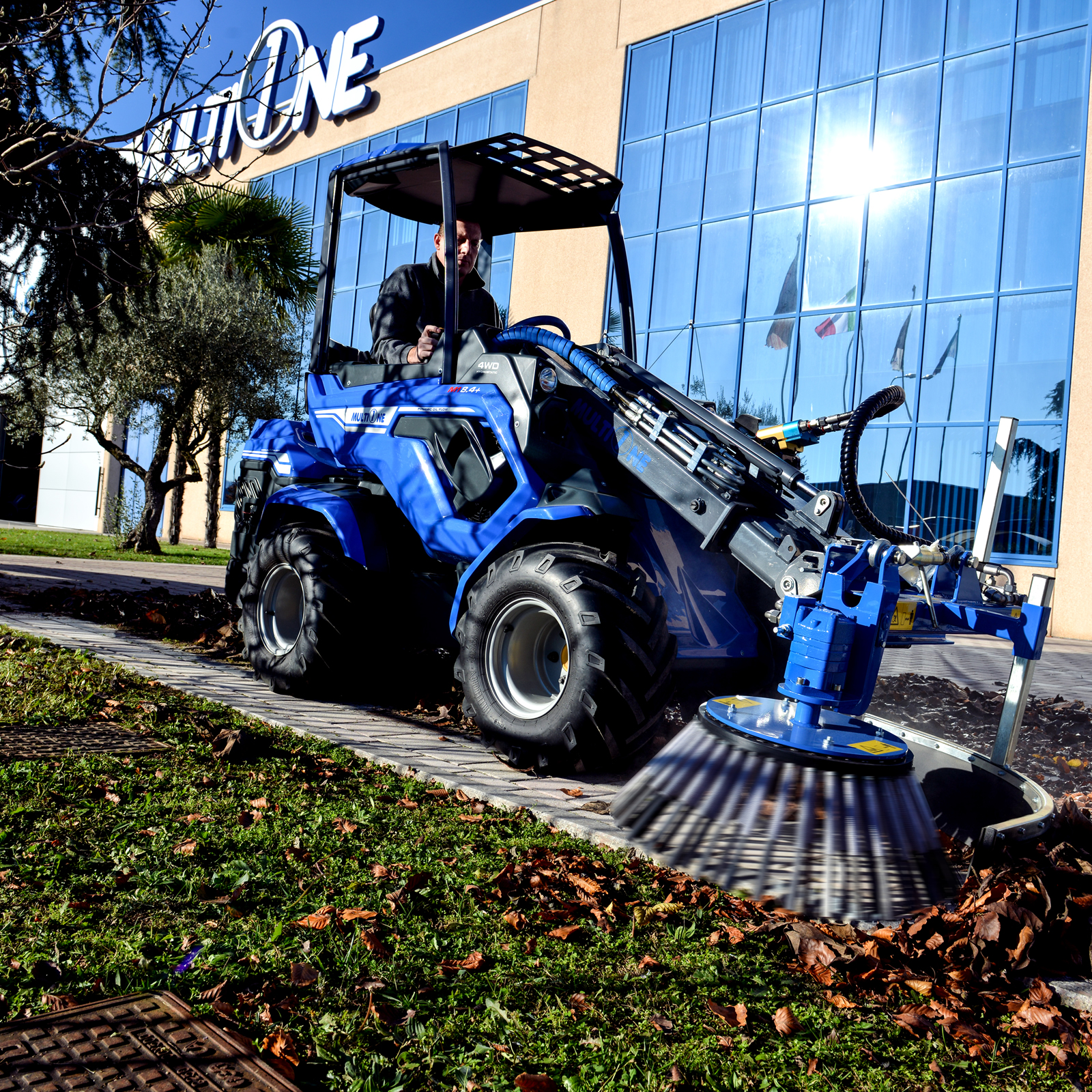

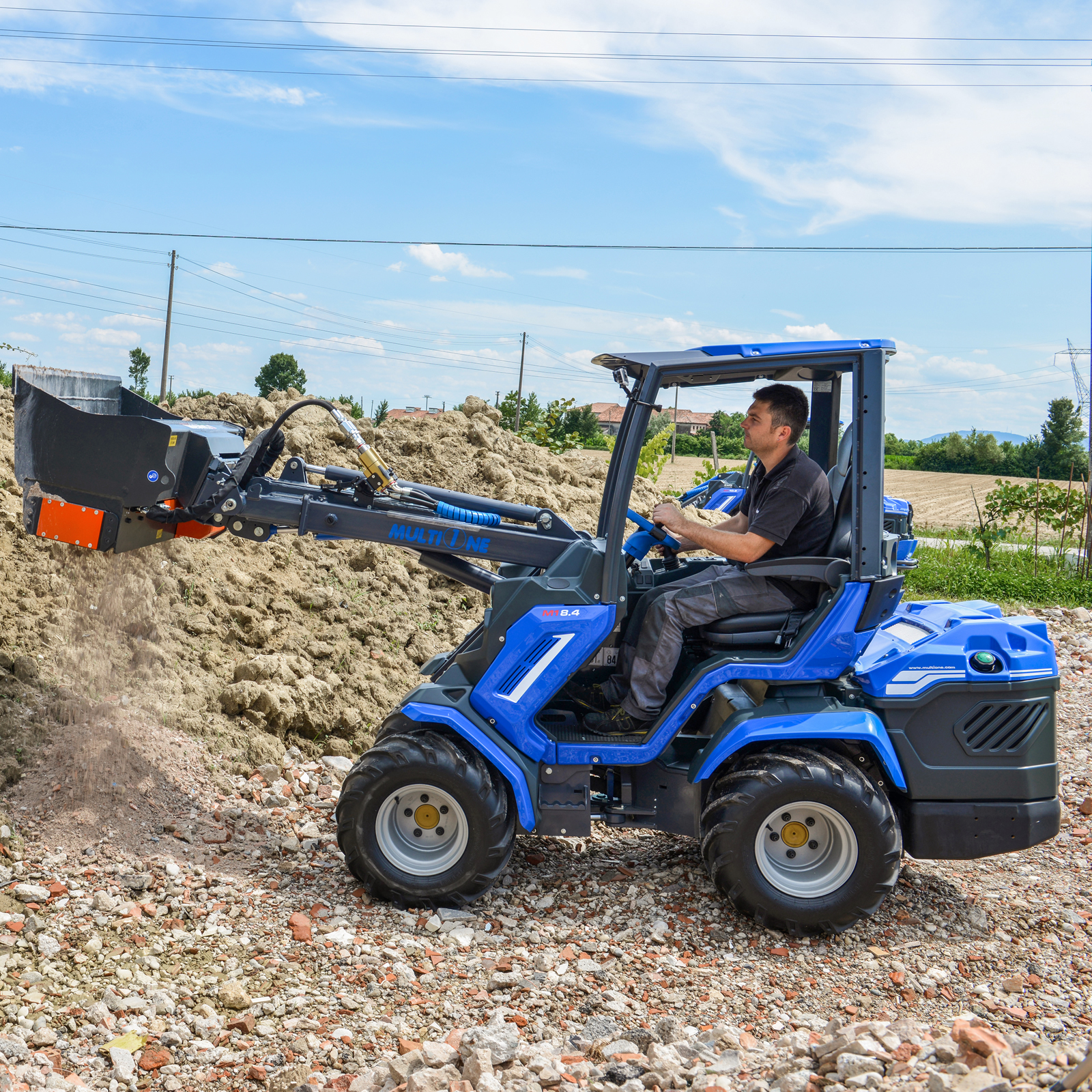

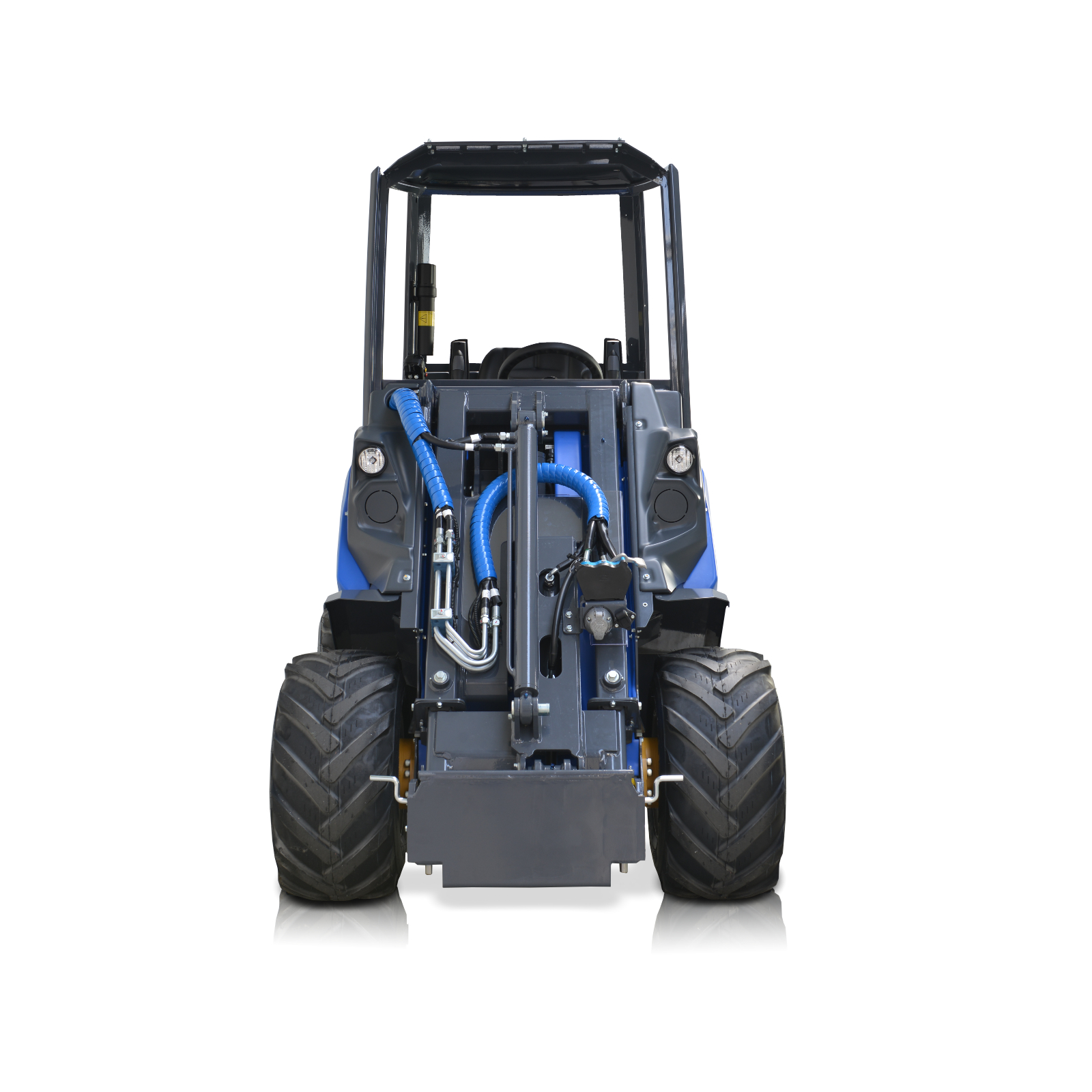

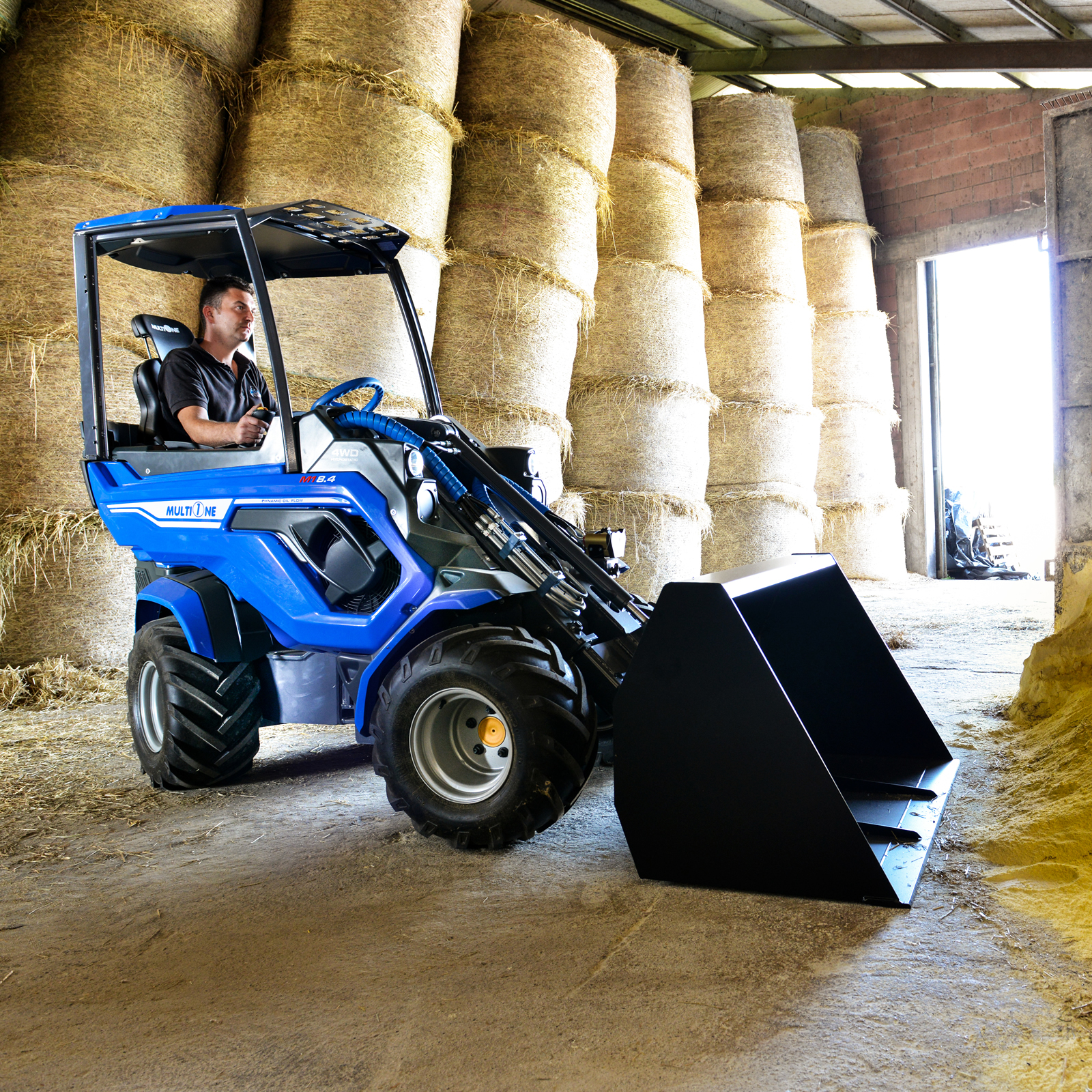

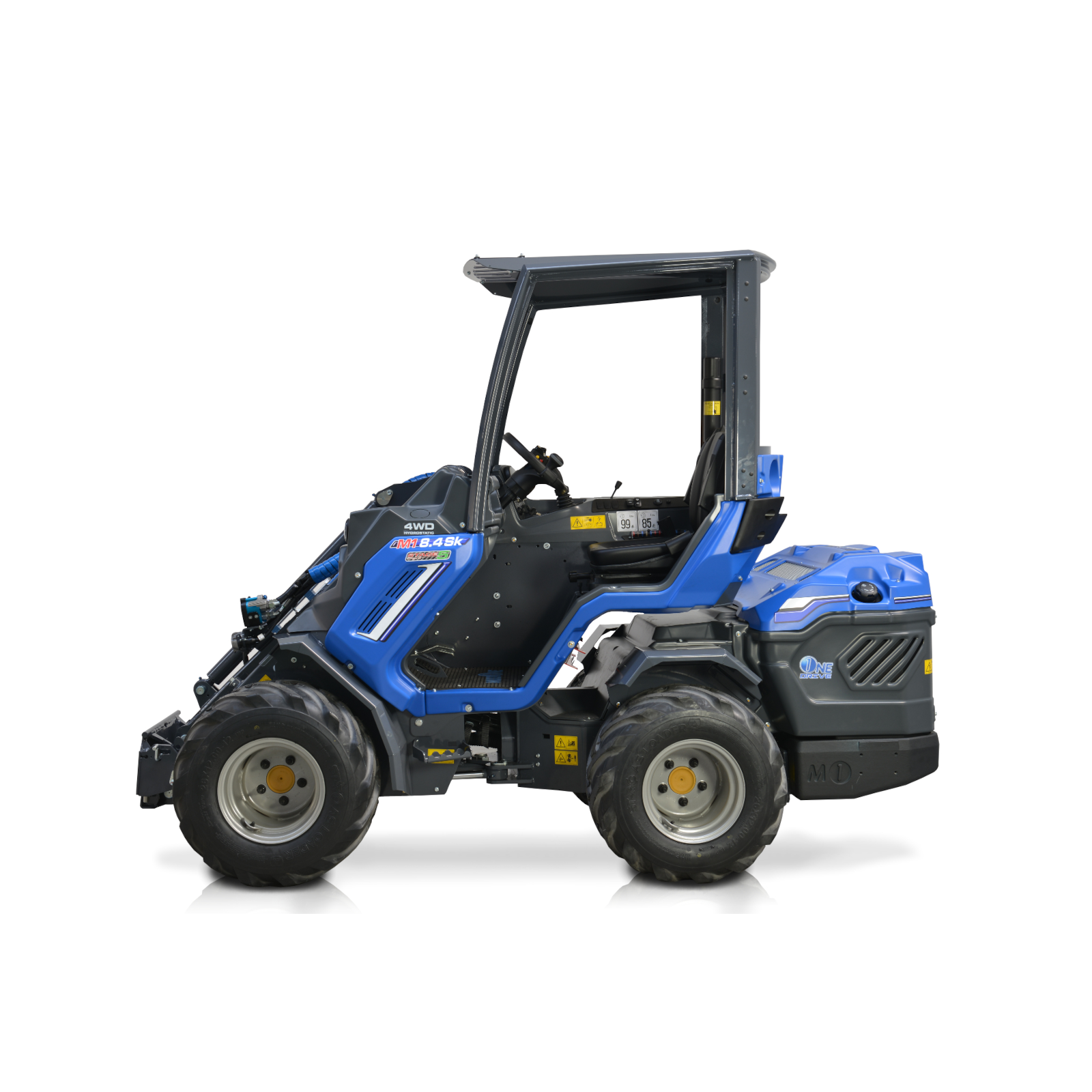

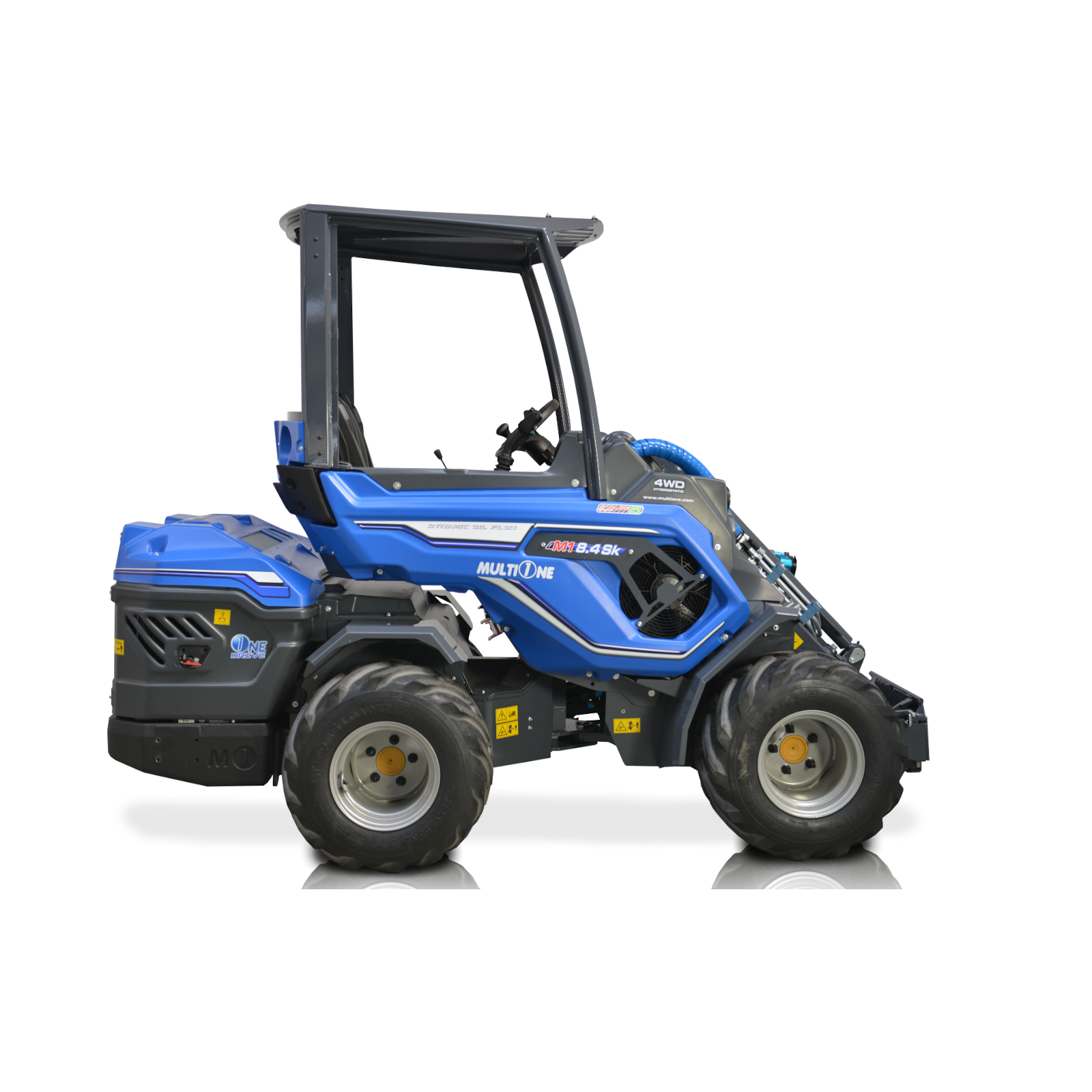

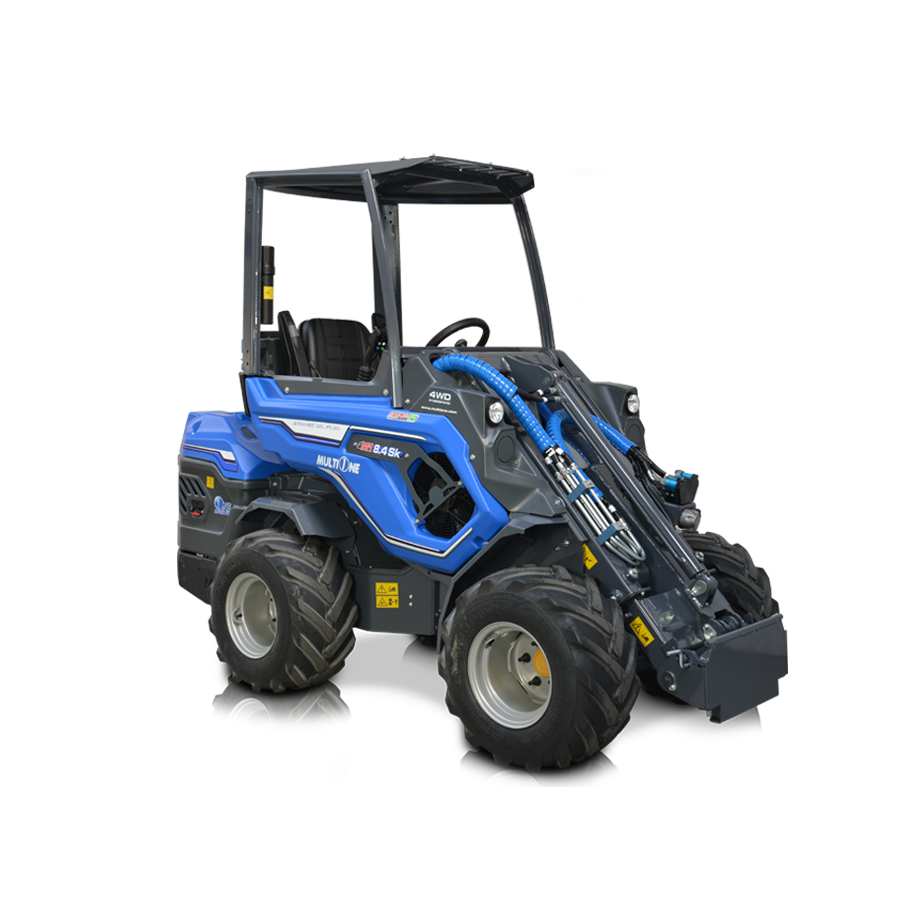

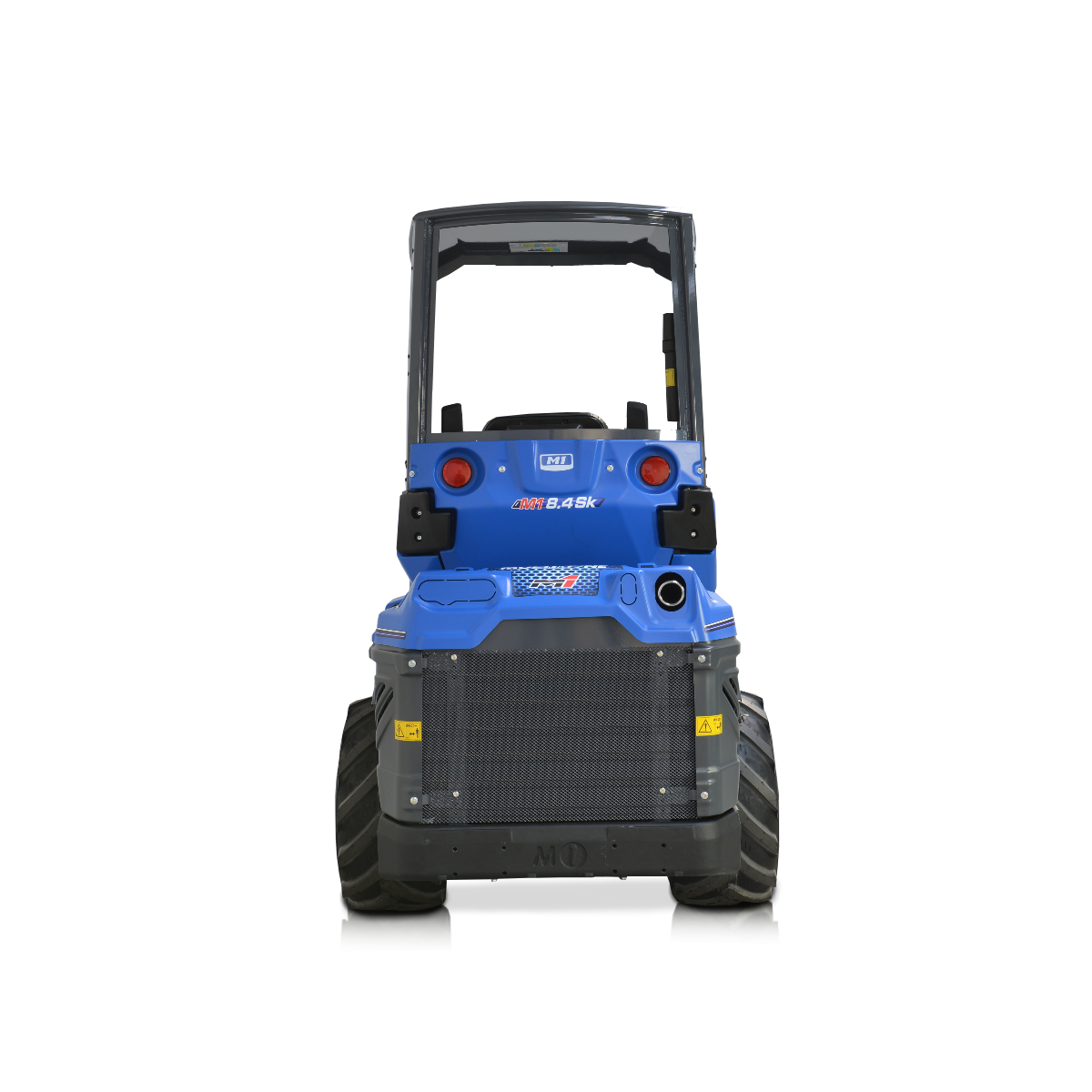

MultiOne 8.4SK - 1680kg Mini Loader

The 8.4SK Mini Loader from Multione can reach speeds of 22km/h with a huge push force of 2050kgf due to its high power direct drive power radial piston motors.  It has an astonishing lift to weight ratio, with tipping load of 1600kg. The 8.4SK is the perfect multifunctional machine for farming, agriculture, construction and maintenance markets.

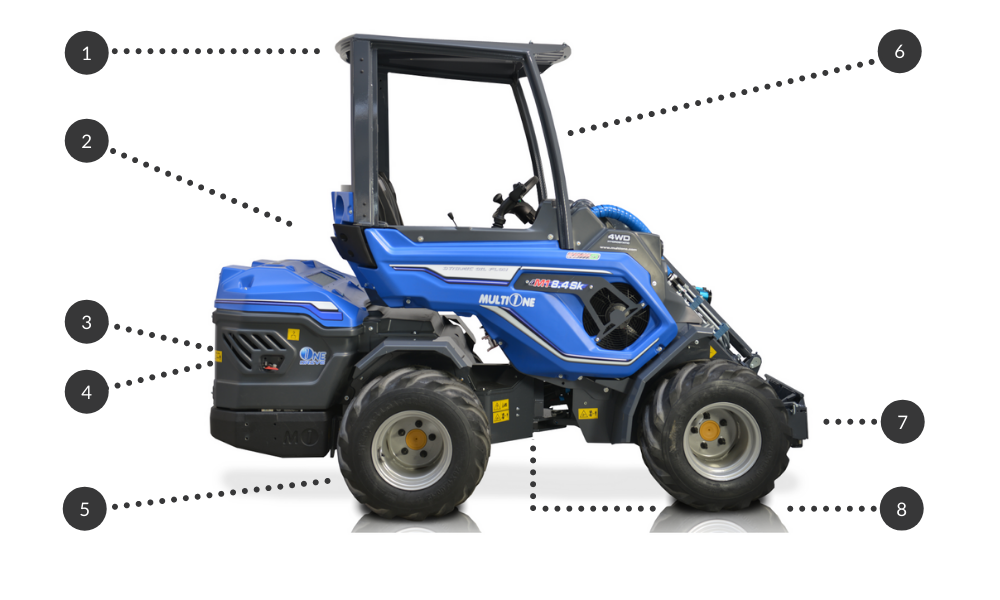

Key Features:

1. Safety
  • ROPS canopy and cabins.
  • Sit down machine no operator fatigue.
  • Seat belt and safety bar.
  • Parking brake.
  • Reverse Beeper.
  • Rotating Beacon.
2. Comfort
  • Spacious operator station for small sized machine.
  • Ergonomically placed controls.
  • Suspension seat.
  • Enclosed cabin with air-conditioning & heating (optional).
3. Power
  • 26HP Kubota Diesel engine. - Stage V compliant
  • Huge 93 Nm Torque @ 1700 RPM
  • 4WD hydrostatic drive.
  • 52L/min auxiliary hydraulics.
4. Efficiency
  • OneDrive Transmission, 30% higher power and efficiency
  • Direct drive radial piston drive motors.
  • Dynamic Block System + Torque Divider
  • Hydraulic Oil Cooler.
5. Speed
  • High Speed 22 km/h.
  • Crusie Control.
6. Vision
  • 360 Degree Visibility.
  • No side screens or high rear arches.
  • Roof window for unobstructed vision.
7. Attachments

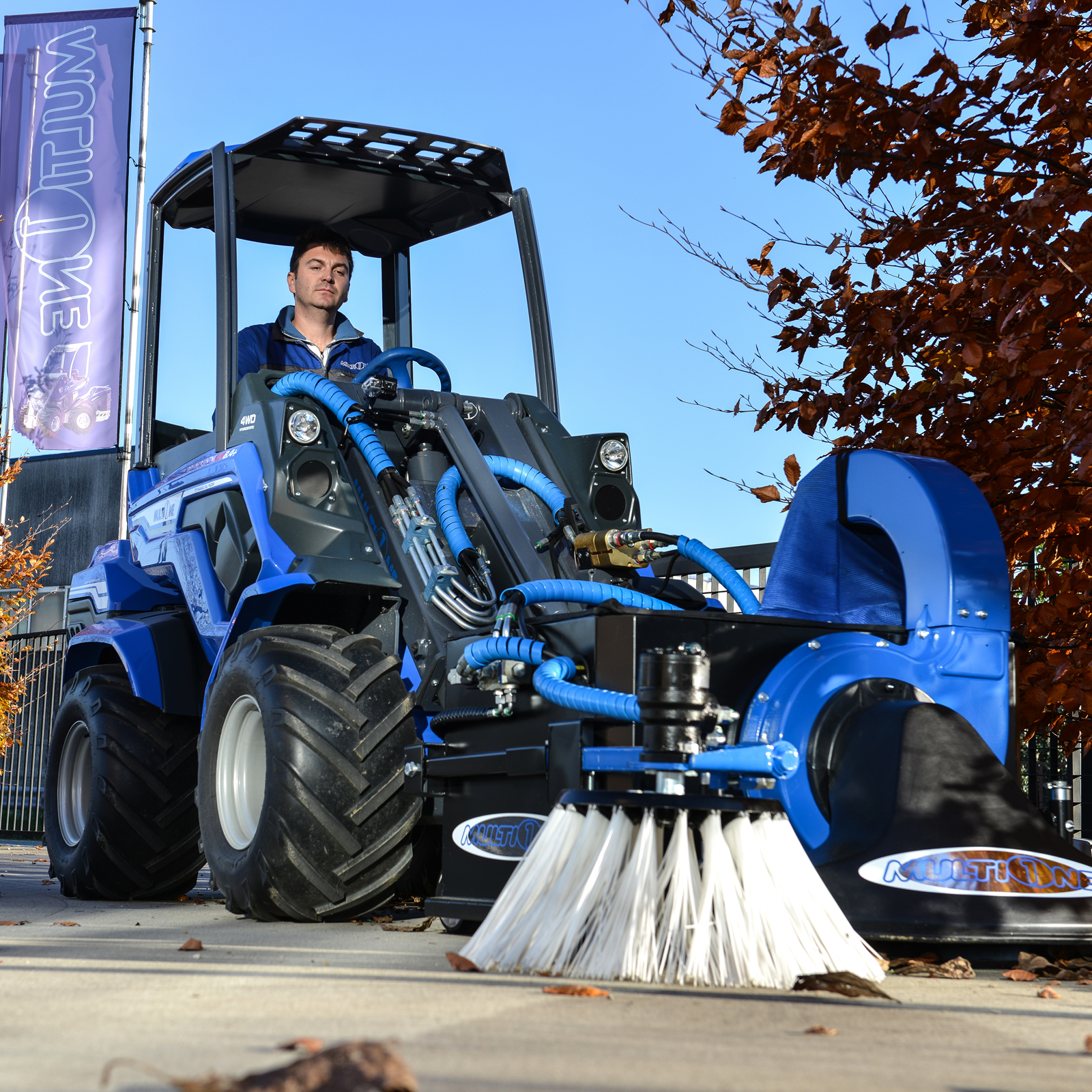

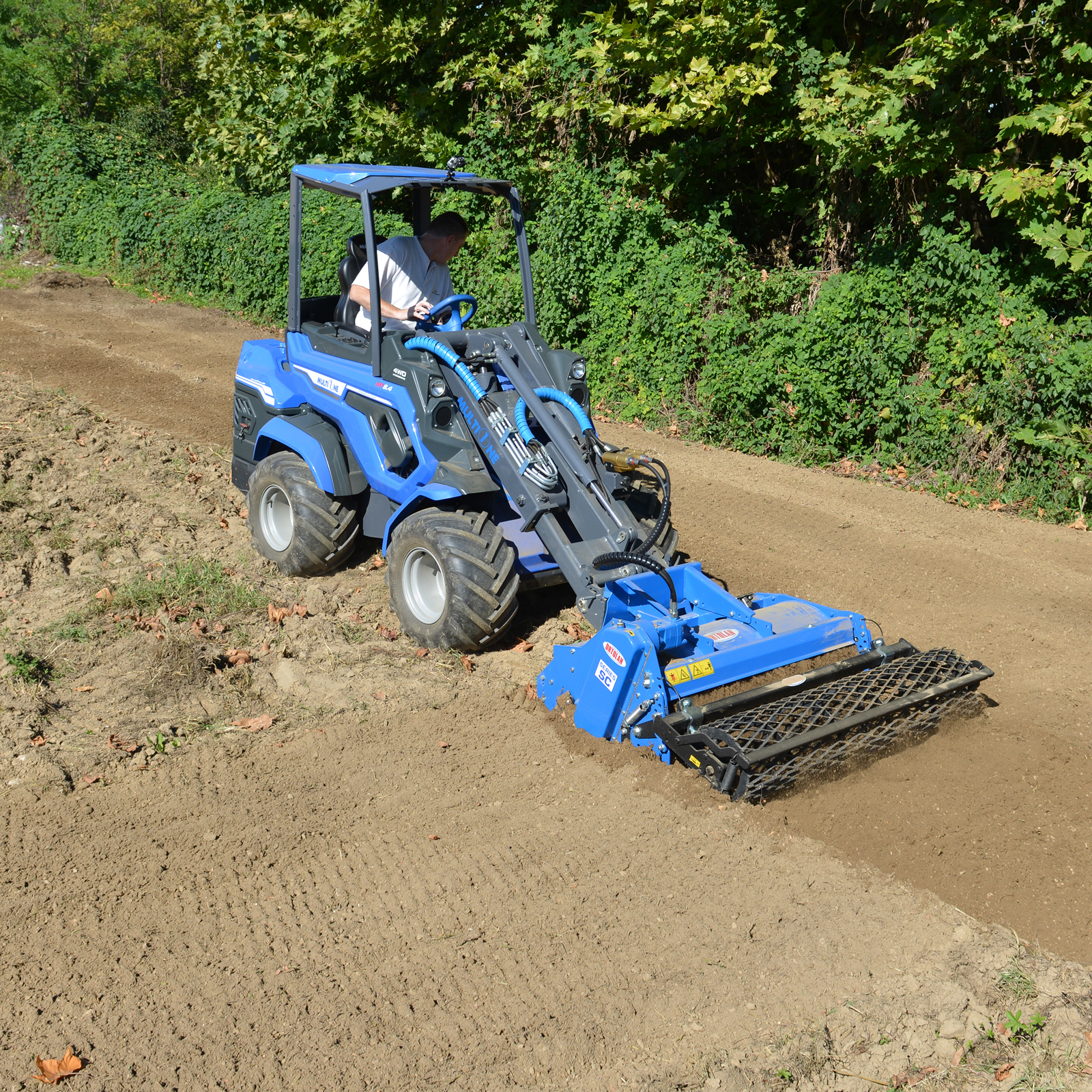

  • Full range of attachments available including buckets, grapples, forks, mixers, augers, hammers and much more.
  • Over 170 Genuine attachments available to suit the full range of Multione machines.
  • Aftermarket attachments available.
8. Versatility
  • 22km/h travel speed.
  • Articulated frame, no skidding to damage ground.
  • Telescopic Boom.
  • Huge lift capacity to machine weight ratio.
  • Floating Boom.
  • High ground clearance.

(8.4SK)

General:

Weight 1680 kg
Length 2690 mm
Height 2040 mm

Engine:

Manufacturer Kubota
Model V1505
Construction Liquid-Cooled, 4-Cylinder Diesel
Displacement 1498 cc
Output 19.4 kW (26 Hp)
Torque 93 Nm @ 1700 RPM

Drive:

Construction Hydrostatic Transmission to direct drive hydraulic wheel motors
Motors Direct Drive Radial Piston x 4
Drive Speed 0-22 km/h
Parking Brake Multi-Disc
Standard Tyres 26x12.00-12

Hydraulics

Auxiliary Flow 52 L/m

Performance

Max. Lift Height 2980 mm
Max. Tip Load1 1600 kg
Lifting Capacity Straight2 1280 kg
Lifting Capacity Fully Articulated3 1070 kg
Breakout Force 1700 kg
Pushing Force 2050 kgf

Working Dimensions:

A Pivot Point Height (retracted) 2320 mm
B Pivot Point Height (extended) 2980 mm
C Outreach, raised boom (extended) 455 mm
D Outreach, horizontal Boom (retracted) 445 mm
E Outreach, horizontal boom (extended) 1185 mm
F Front length 500 mm
G Wheelbase 1280 mm
H Rear length 910 mm
I Machine Length 2690 mm
L Ground Clearance 240 mm
M Departure Angle (w/without backweights) 17 / 23 degrees
N Max Width (standard tyres) 1280 mm
O Dump Angle 36 degrees
P Rollback Angle 29 degrees
Q Height (w/ standard tyres) 2040 mm

1) Maximum load that can be lifted just off the ground when the machine is straight, with backweights and boom not extended, weight off attachment included.
2) Machine straight, with backweights and boom not extended. Weight of attachment included. (80% of tipping load).
3) Machine fully articulated, with backweights and boom not extended. Weight of attachment is included.

* Specifications subject to change without notice due to continual product development.
