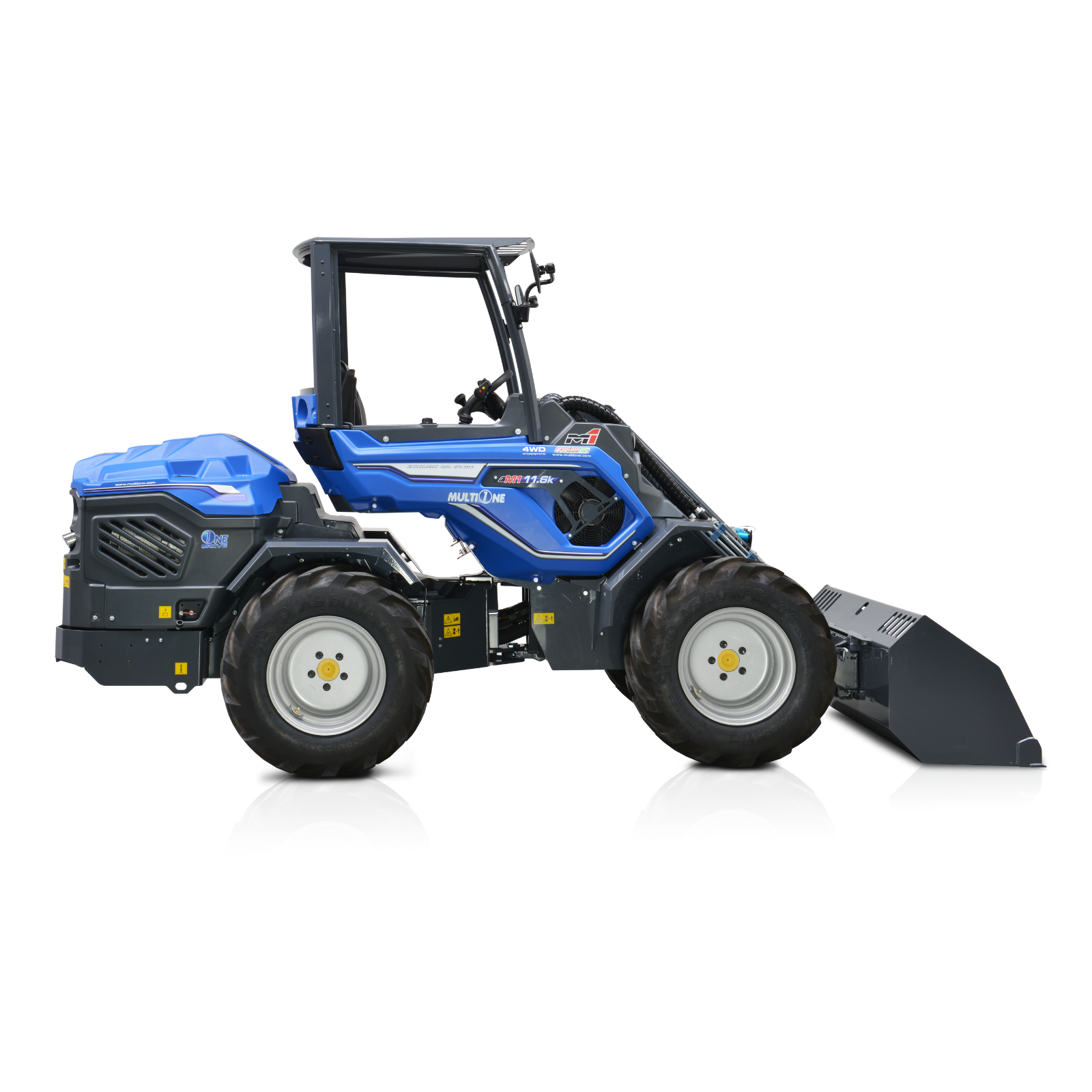

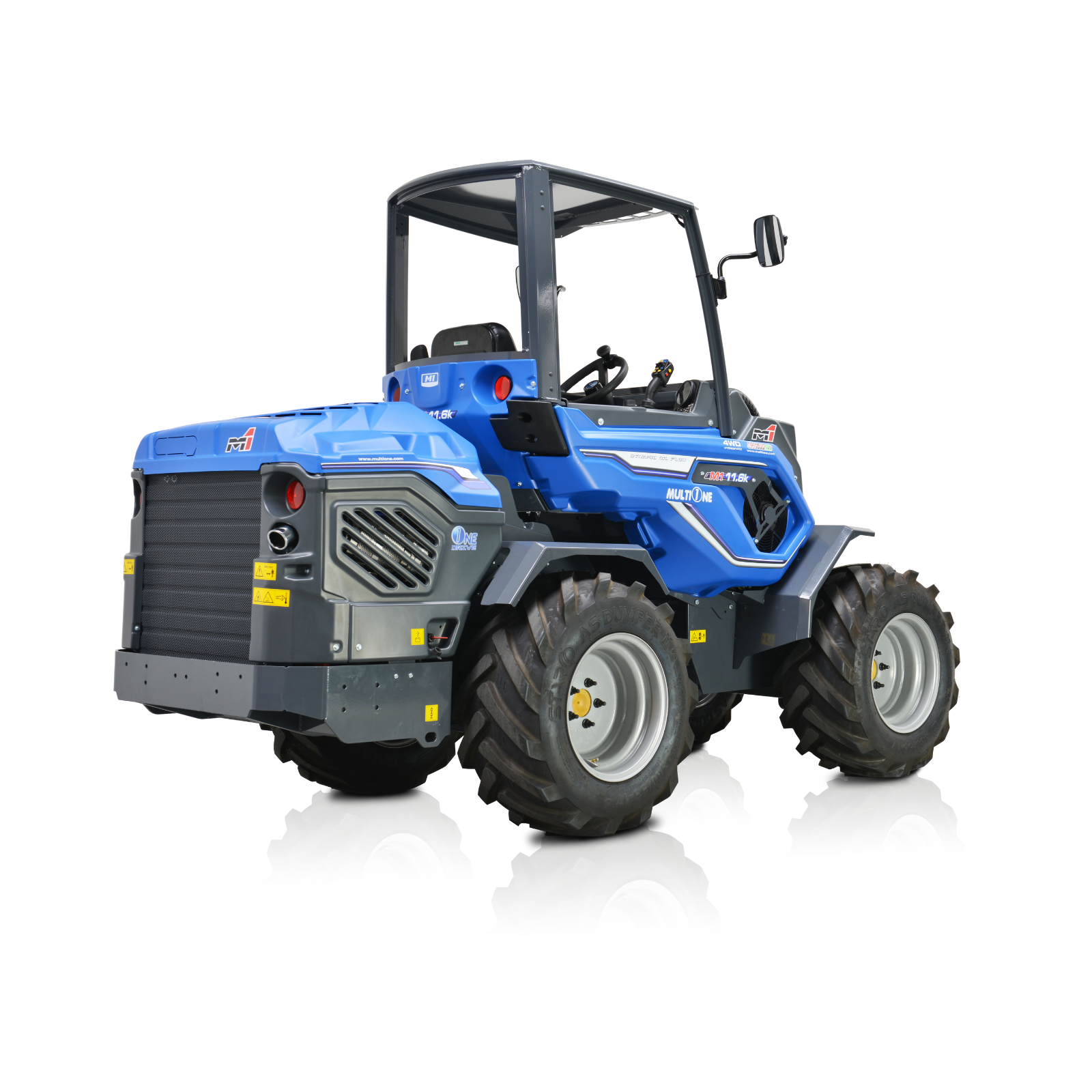

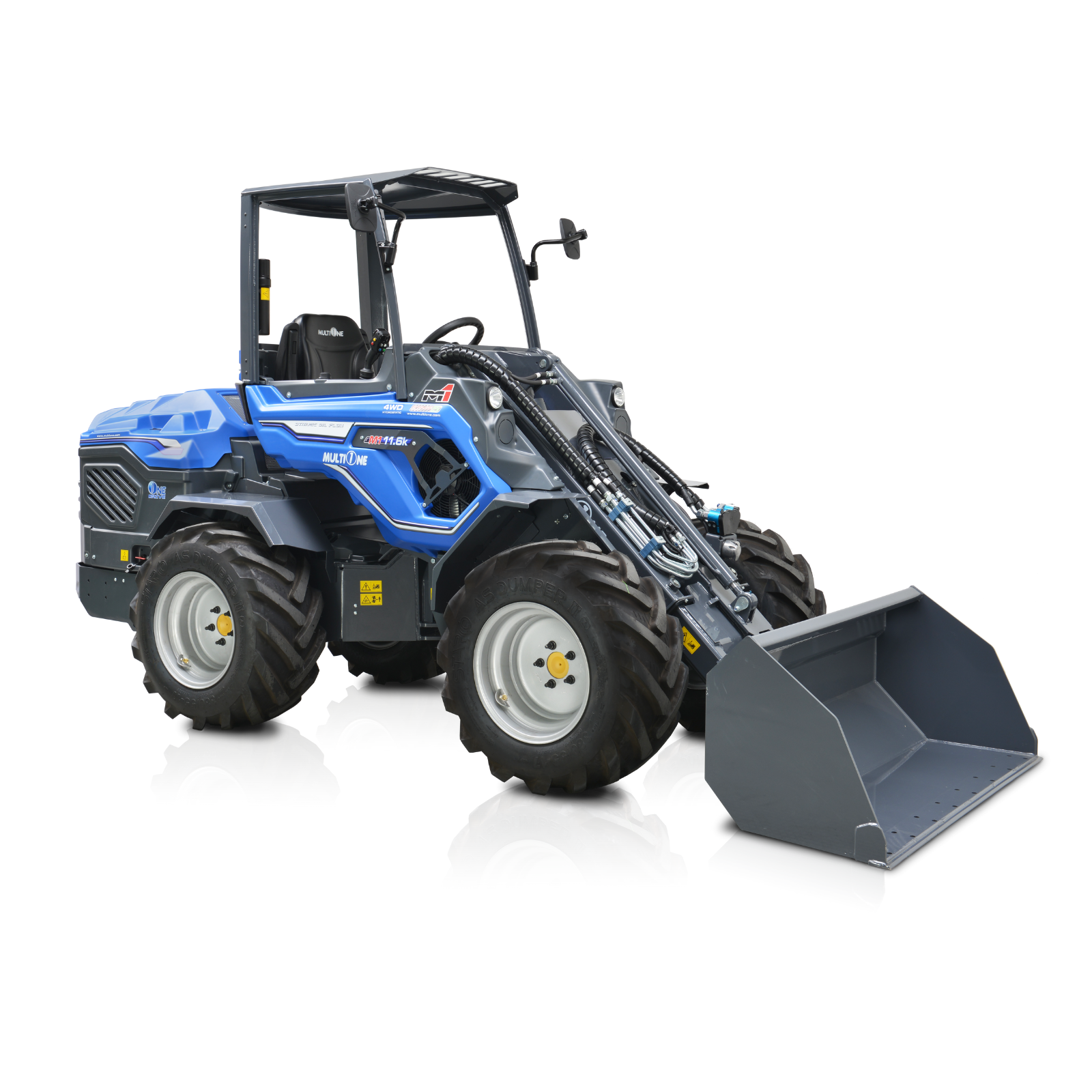

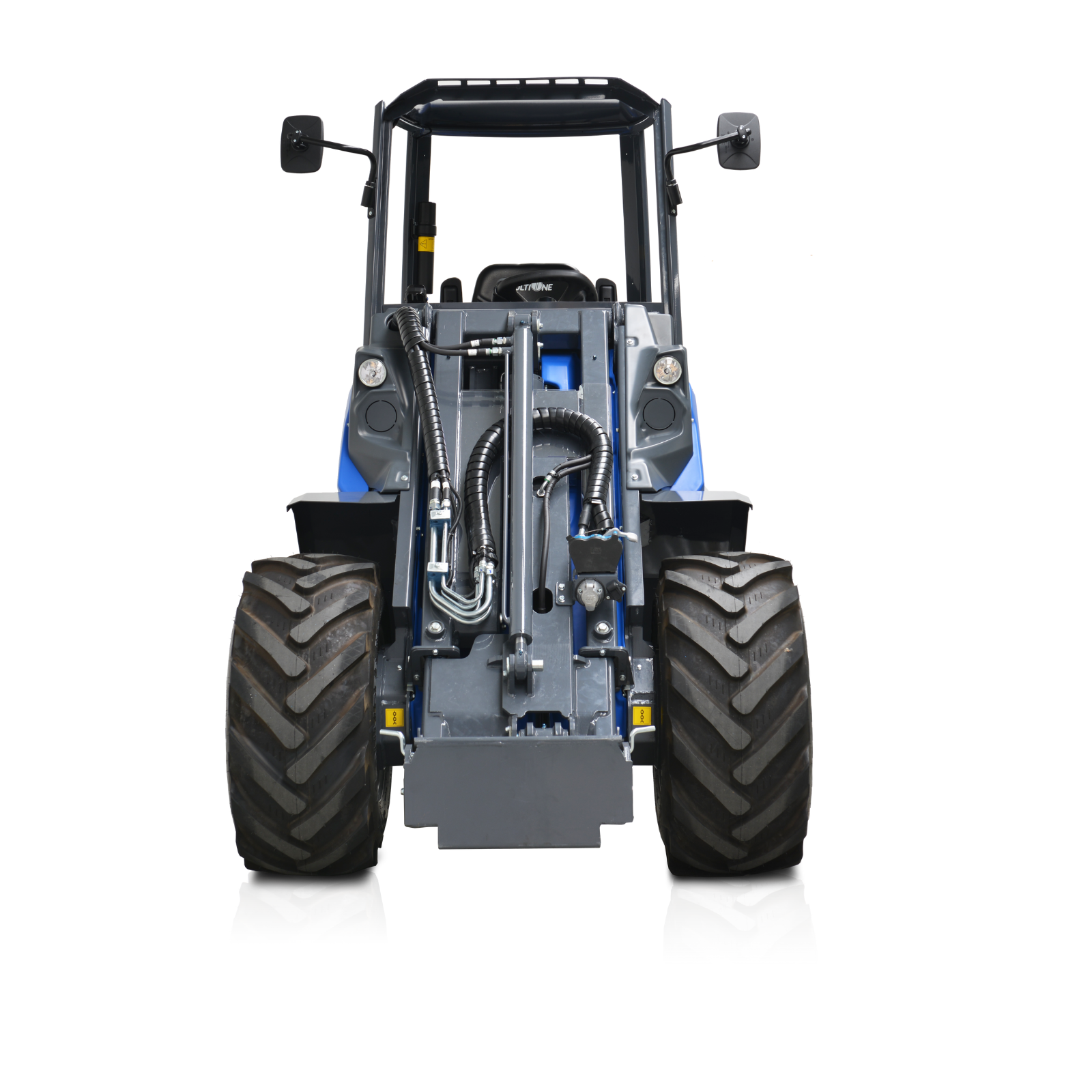

MultiOne 11.6K

3180kg Tipping Load

MultiOne 9.5 - 2100kg Mini Loader

The new MultiOne flagship. The new market benchmark.

The 11.6K Loader from Multione features the best in class weight to lift capacity ratio with a tip load of a whopping 3180kg.

11.6K is the evolution of the top class 9 and 10 series, with astonishing new features: OneDrive, Cruise Control, ACI and Heavy Duty Body Panels. The 11.6K offers superb value for money to the customer looking for all the benefits of a compact yet powerful package. MultiOne mini loaders come at a competitive price without sacrificing power and quality.  These machines are perfectly suited for more demanding jobs requiring high lifting power and pushing force in a compact frame.

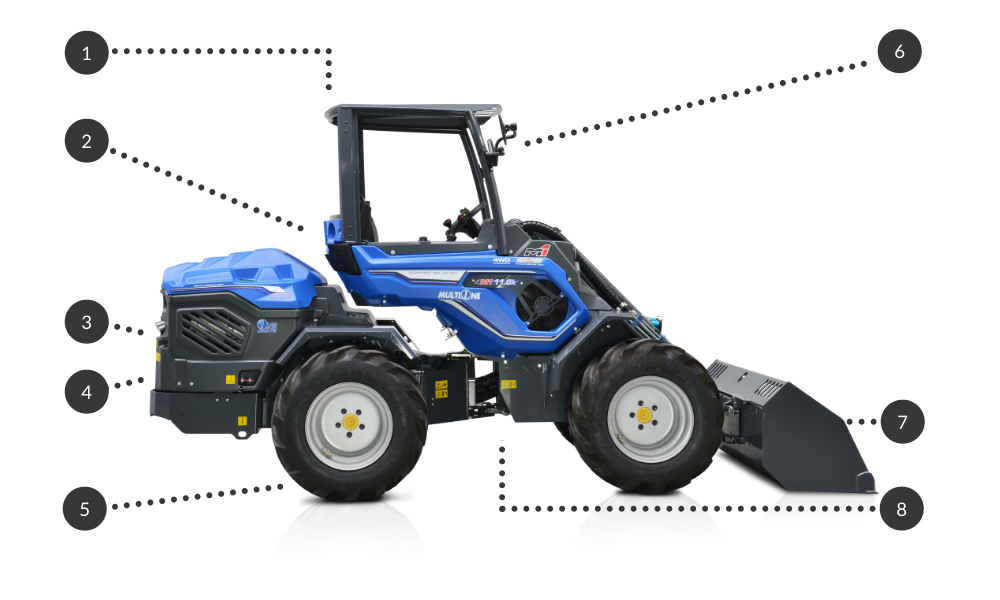

Key Features:

1. Safety
  • ROPS canopy and cabins.
  • Sit down machine no operator fatigue.
  • Seat belt and safety bar.
  • Parking brake.
  • Reverse Beeper.
  • Rotating Beacon.
2. Comfort
  • Spacious operator station for small sized machine.

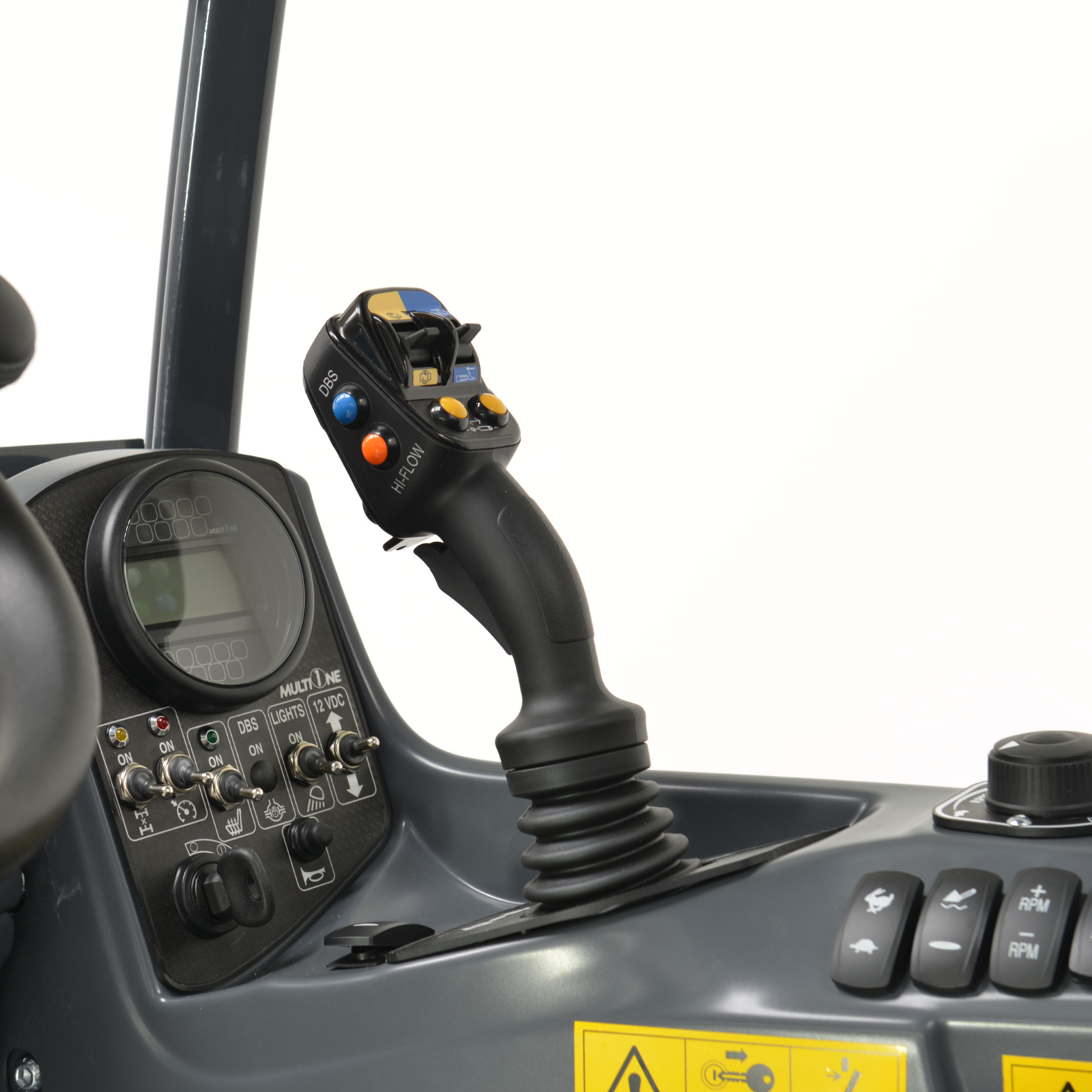

  • Ergonomically placed controls.
  • Suspension seat.

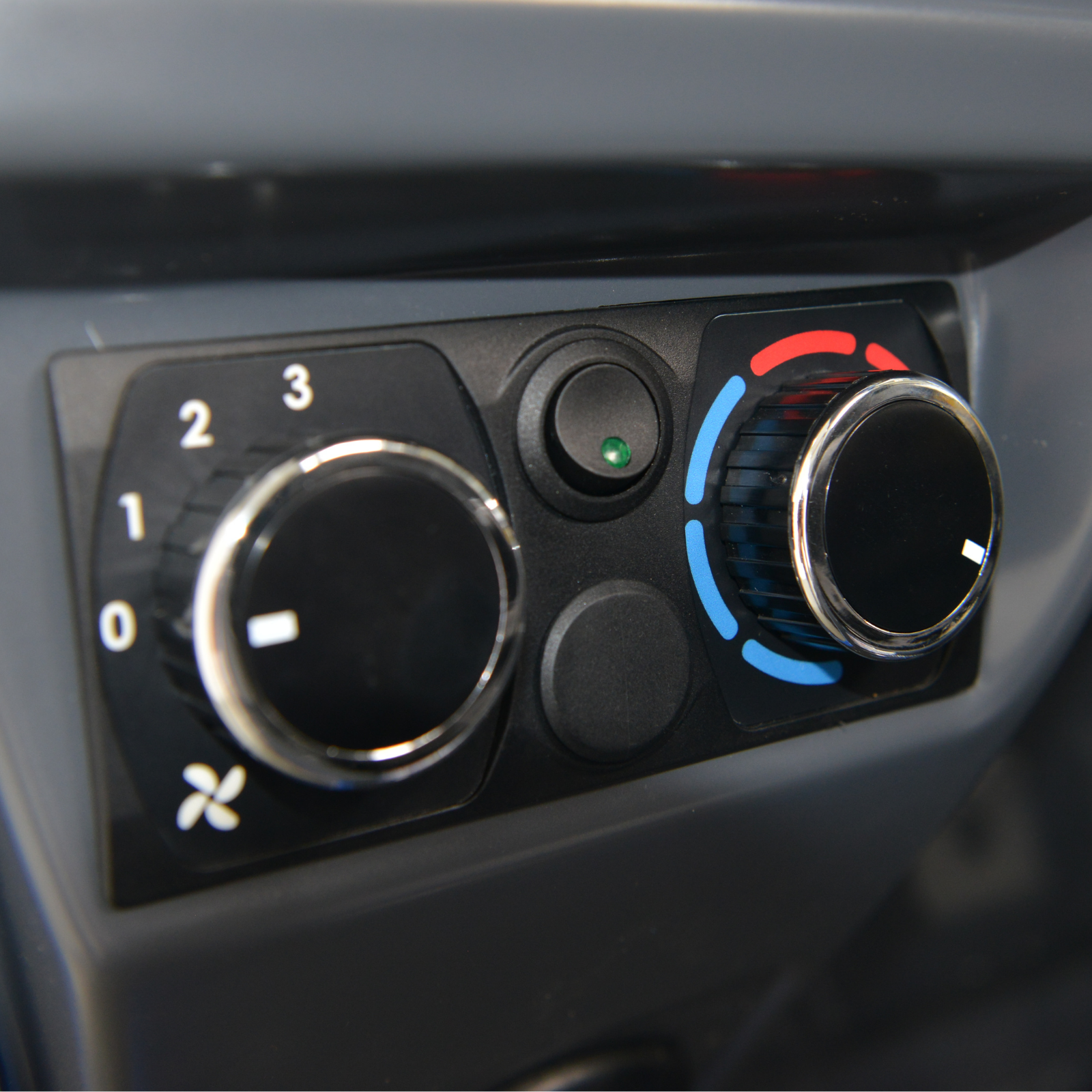

  • Enclosed cabin with air-conditioning & heating (optional).
3. Power
  • 57HP Kohler Diesel engine.
  • 225Nm Torque.
  • 4WD hydrostatic drive.

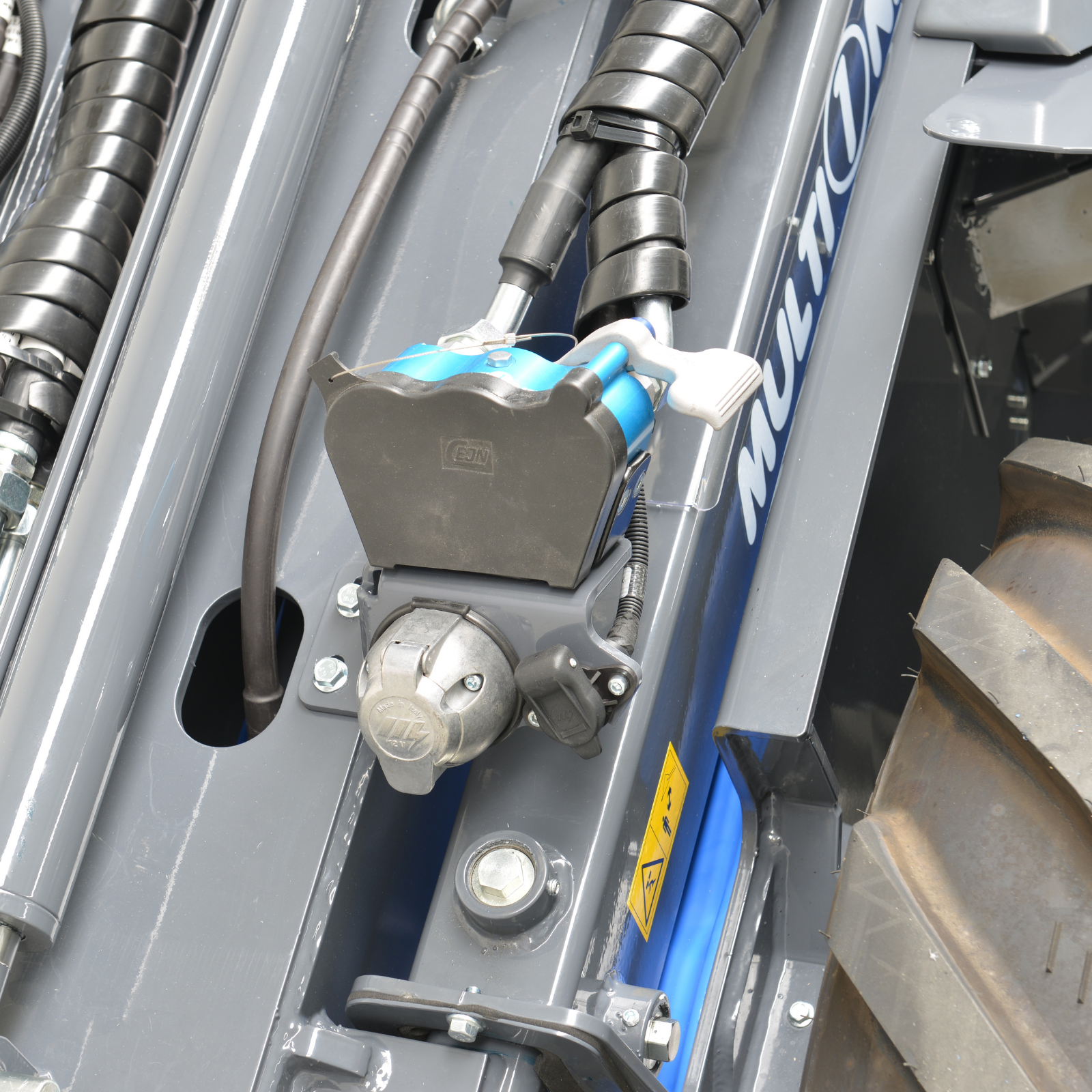

  • 72L/min auxiliary hydraulics.
4. Efficiency

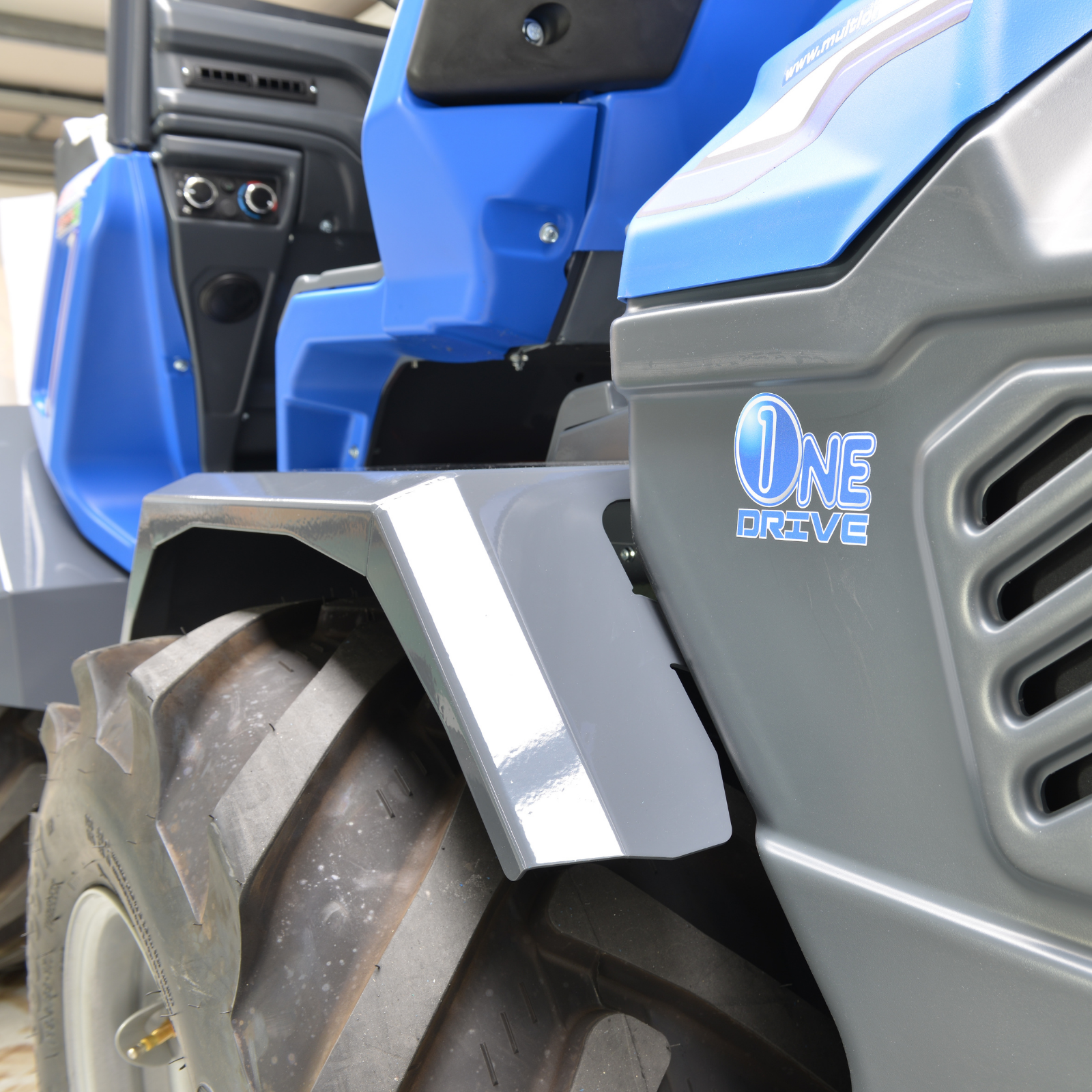

  • OneDrive Transmission, 30% higher power and efficiency.
  • Direct Drive radial piston drive motors.
  • Dynamic Block System.
  • Hydraulic Oil Cooler.
5. Speed
  • High Speed 26 km/h.
  • Cruise Control.
6. Vision
  • 360 Degree Visibility.
  • No side screens or high rear arches.
  • Roof window for unobstructed vision.
7. Attachments
  • Full range of attachments available including buckets, grapples, forks, mixers, augers, hammers and much more.
  • Over 170 Genuine attachments available to suit the full range of Multione machines.
  • Aftermarket attachments available.
8. Versatility
  • 25km/h travel speed.
  • Articulated frame, no skidding to damage ground.

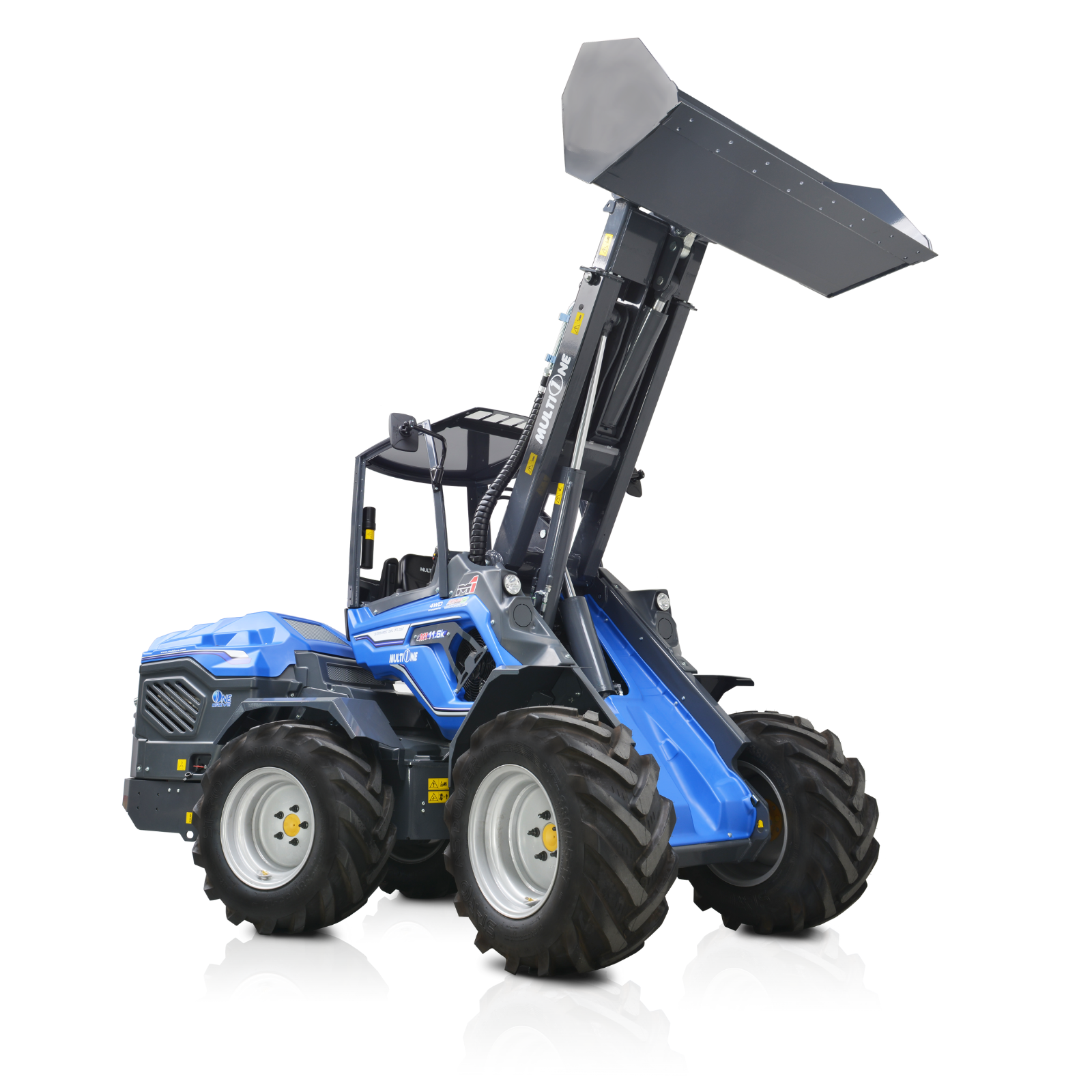

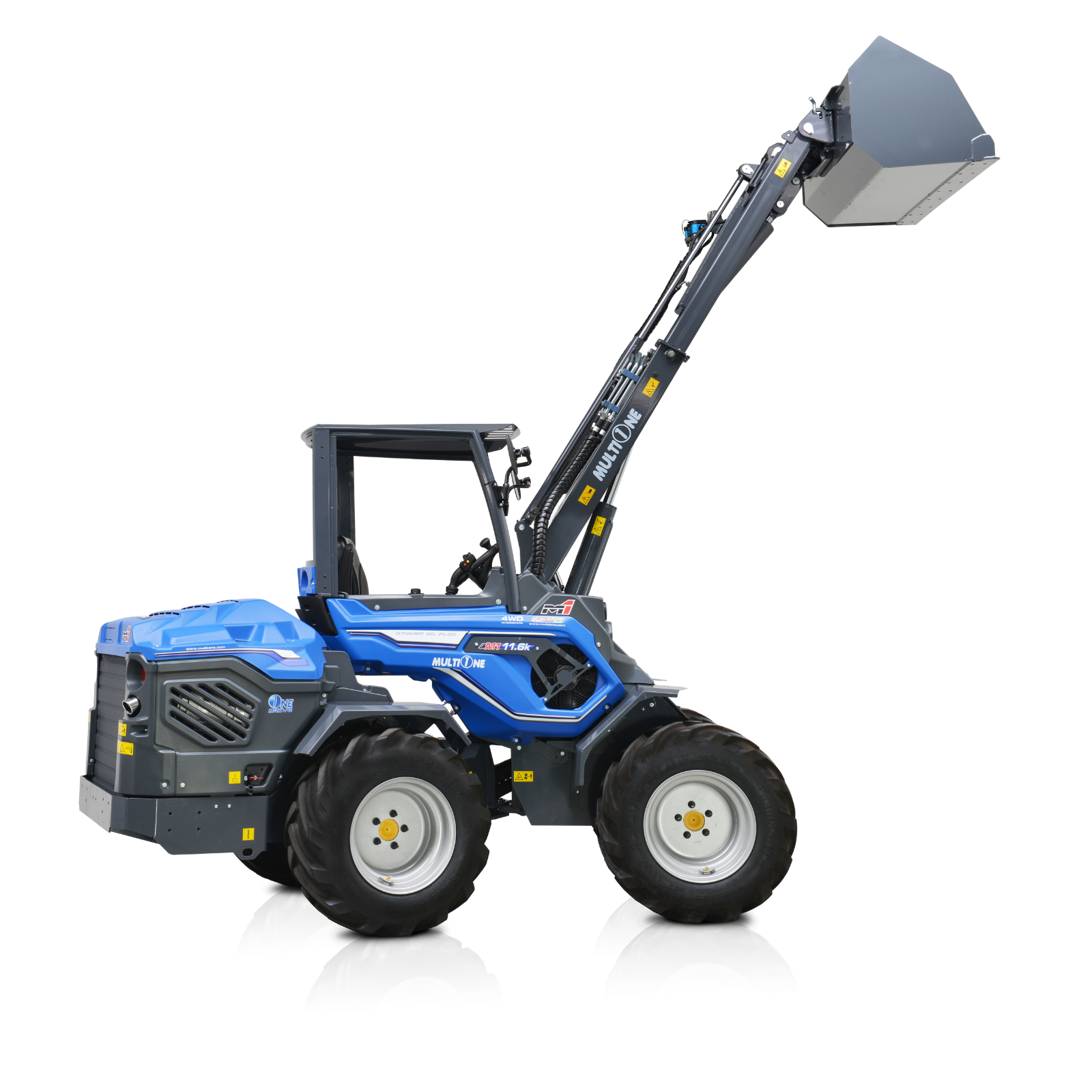

  • Telescopic Boom.
  • Huge lift capacity to machine weight ratio.
  • Floating Boom.
  • High ground clearance.
  • Range of attachments.

(C968105)

General:

Weight 2320 kg
Length 3380 mm
Height 2240 mm

Engine:

Manufacturer Kohler
Model KDI 1903
Construction Liquid-Cooled, 3-Cylinder Common Rail Turbo Diesel
Displacement 1861 cc
Output 42 kW (57 Hp)
Torque 225 Nm @ 1500 RPM

Drive:

Construction Hydrostatic Transmission to direct drive radial piston hydraulic wheel motors
Motors Direct Drive Radial Piston x 4
Drive Speed 0-26 km/h
Parking Brake Multi-Disc
Standard Tyres 380/55-17

Hydraulics

Auxiliary Flow 72 L/m

Performance

Max. Lift Height 3700 mm
Max. Tip Load1 3180 kg
Lifting Capacity Straight2 2540 kg
Breakout Force 3000 kg
Pushing Force 2650 kgf

Working Dimensions:

A Pivot Point Height (retracted) 2280 mm
B Pivot Point Height (extended) 3700 mm
F Front length 600 mm
G Wheelbase 1660 mm
H Rear length 1120 mm
I Machine Length 3380 mm
M Departure Angle 24 degrees
N Max Width (standard tyres) 1500 mm
Q Height (w/ standard tyres) 2240 mm

1) Maximum load that can be lifted just off the ground when the machine is straight, with backweights and boom not extended, weight off attachment included.
2) Machine straight, with backweights and boom not extended. Weight of attachment included. (80% of tipping load).

* Specifications subject to change without notice due to continual product development.

SKU C968105
