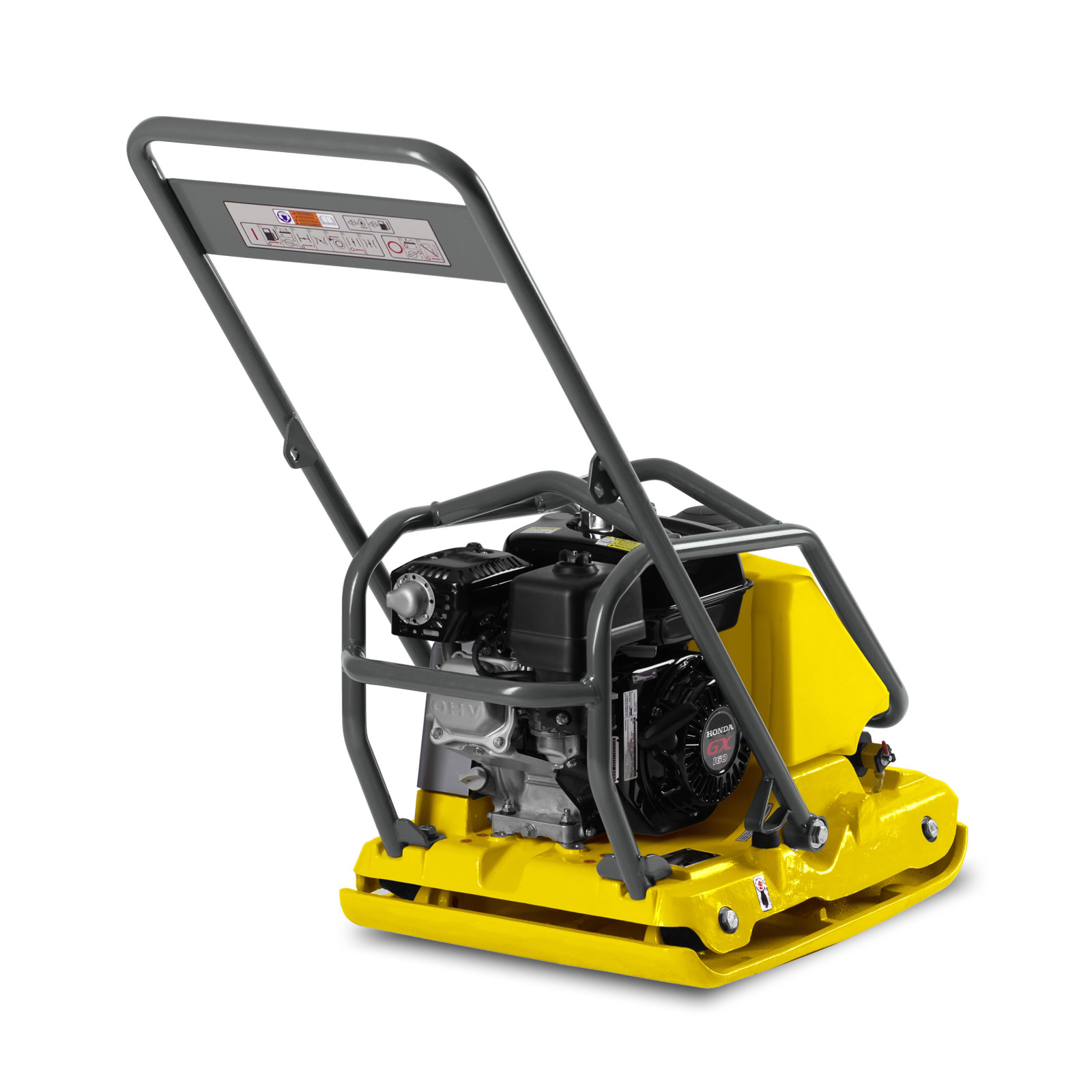

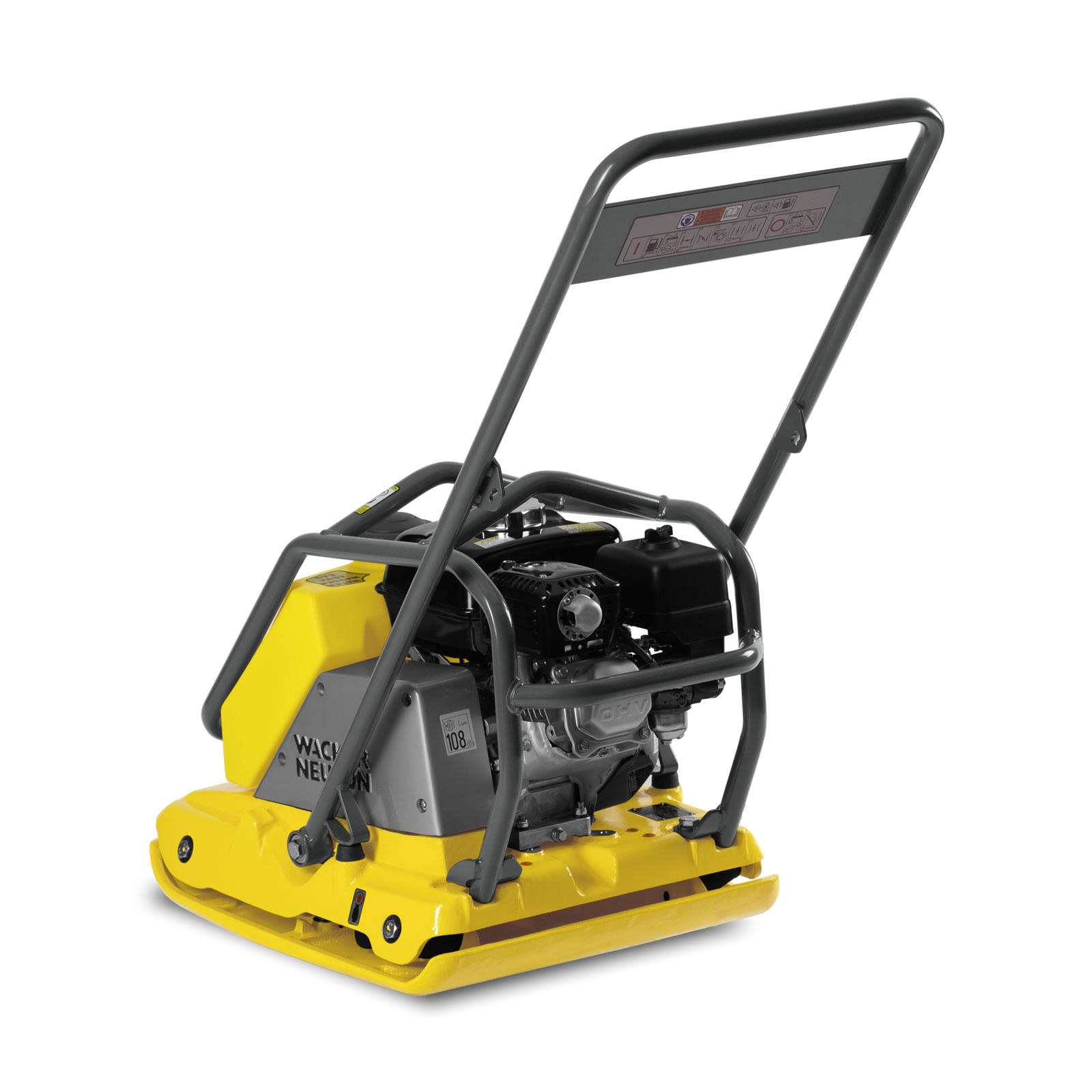

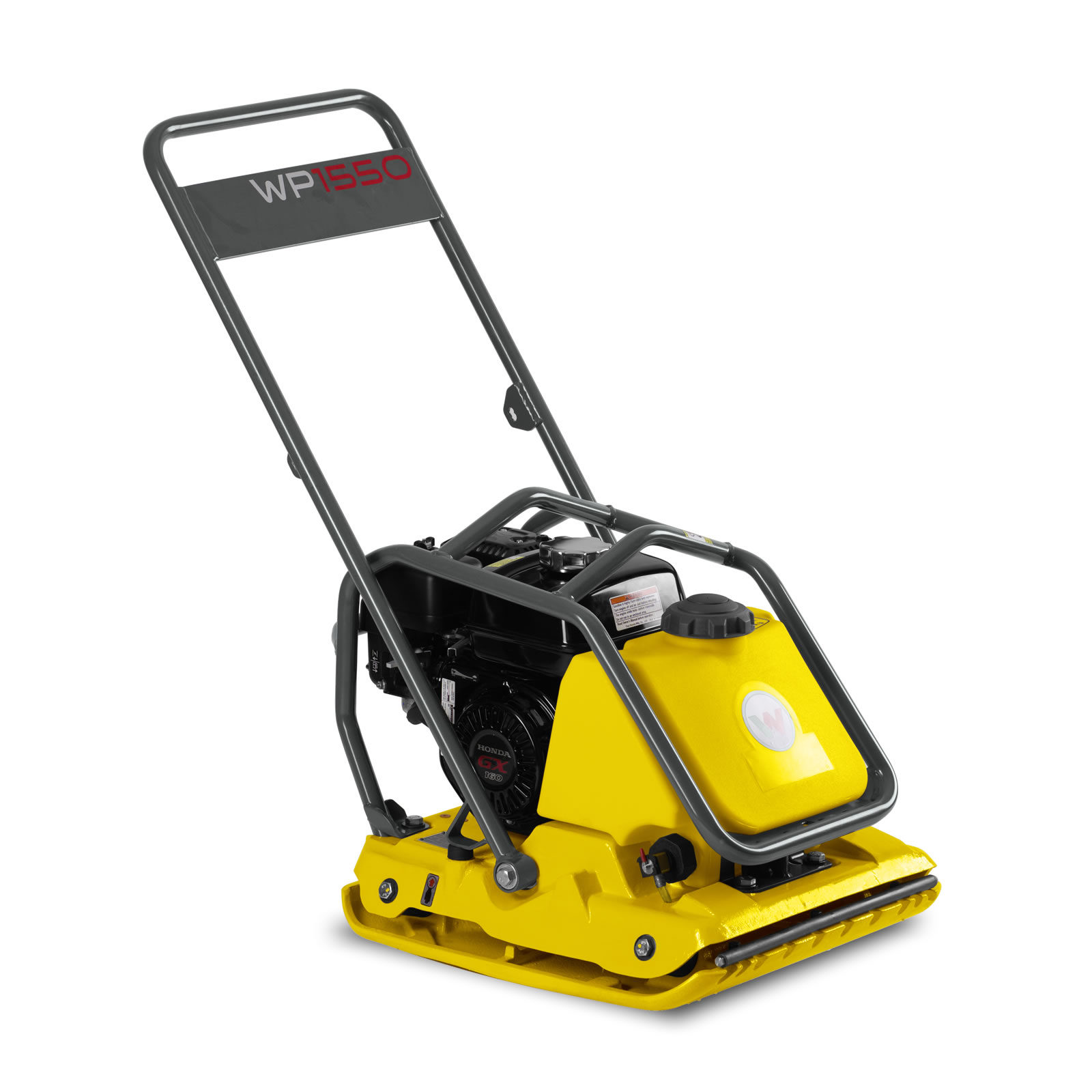

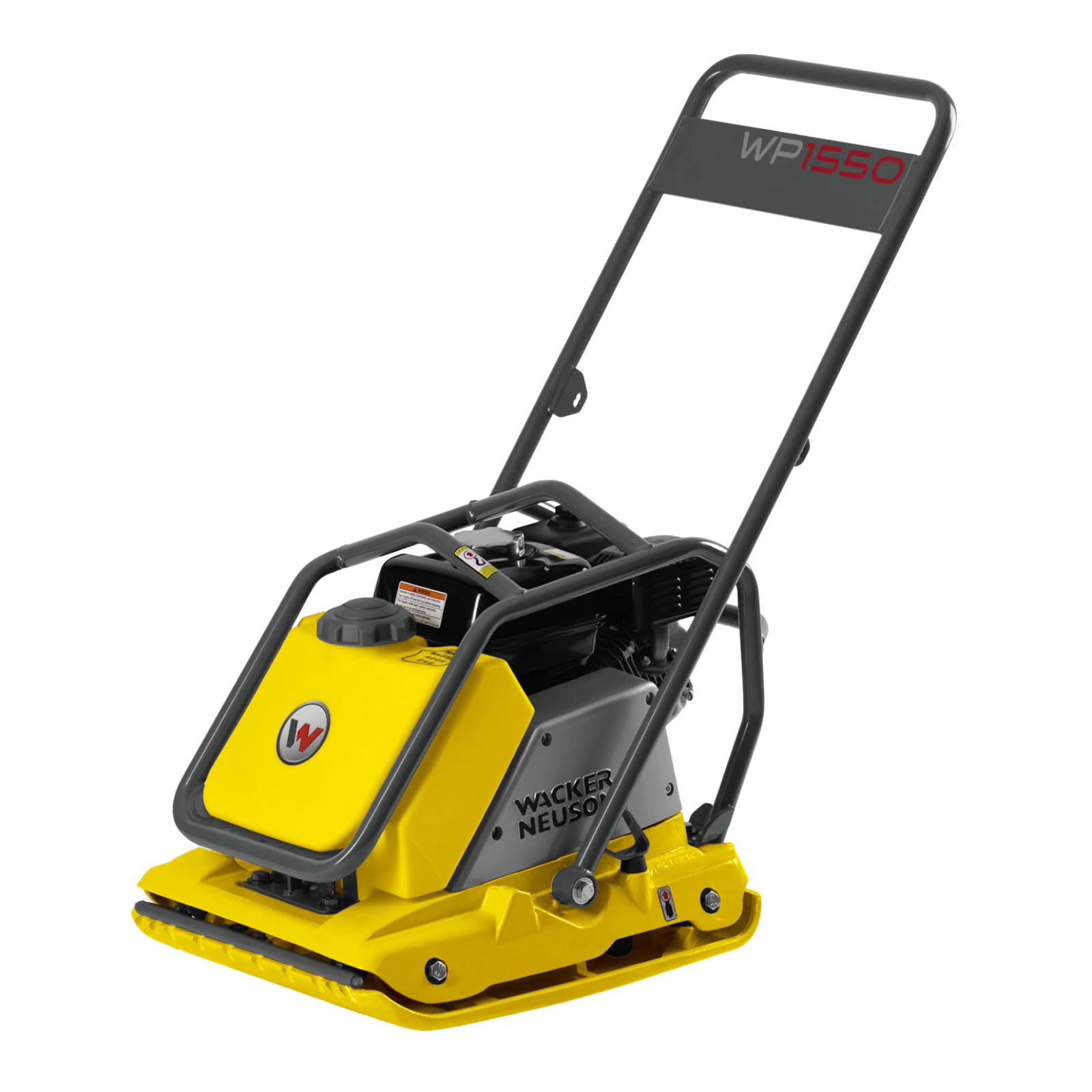

Wacker Neuson WP1550AW - Premium Vibe Plate

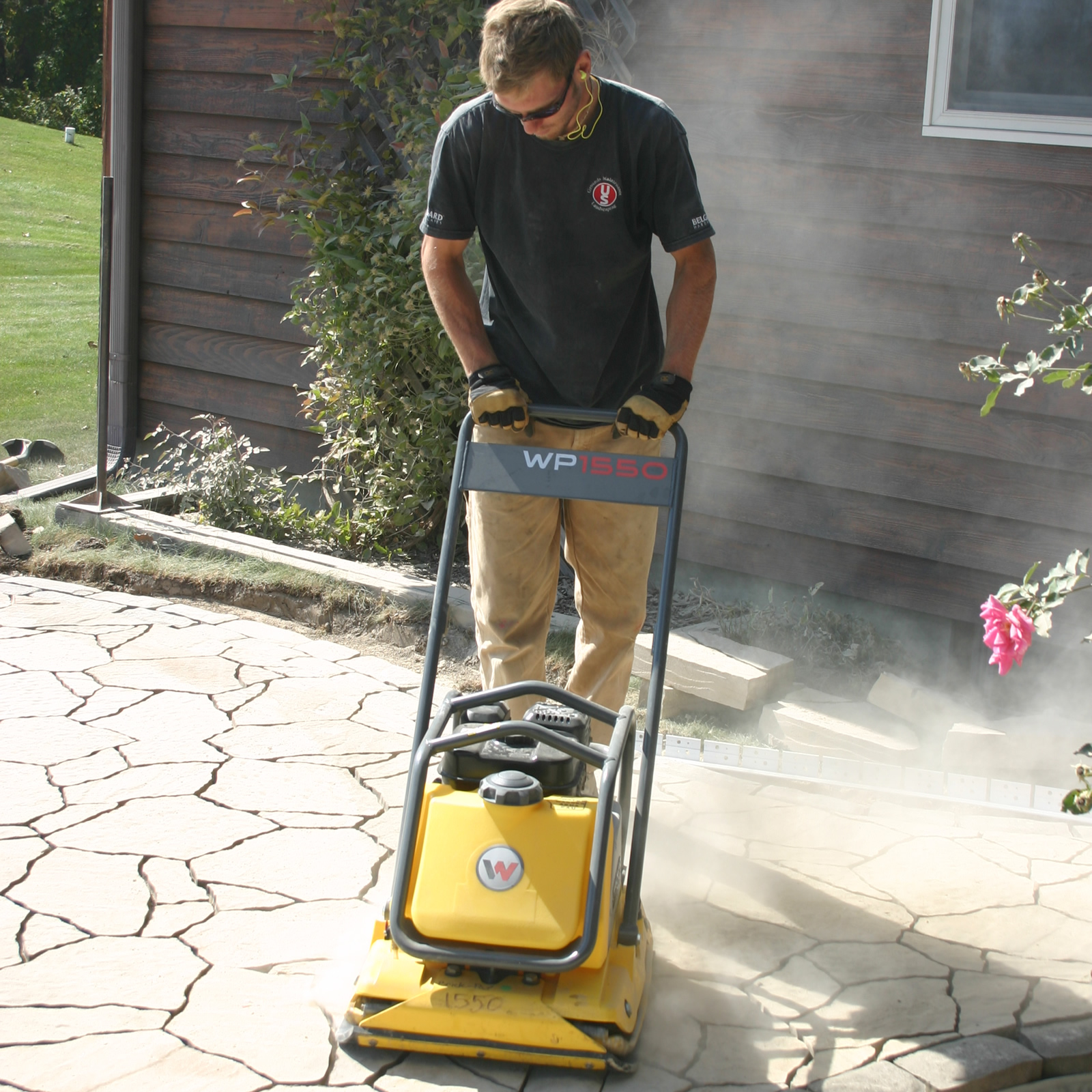

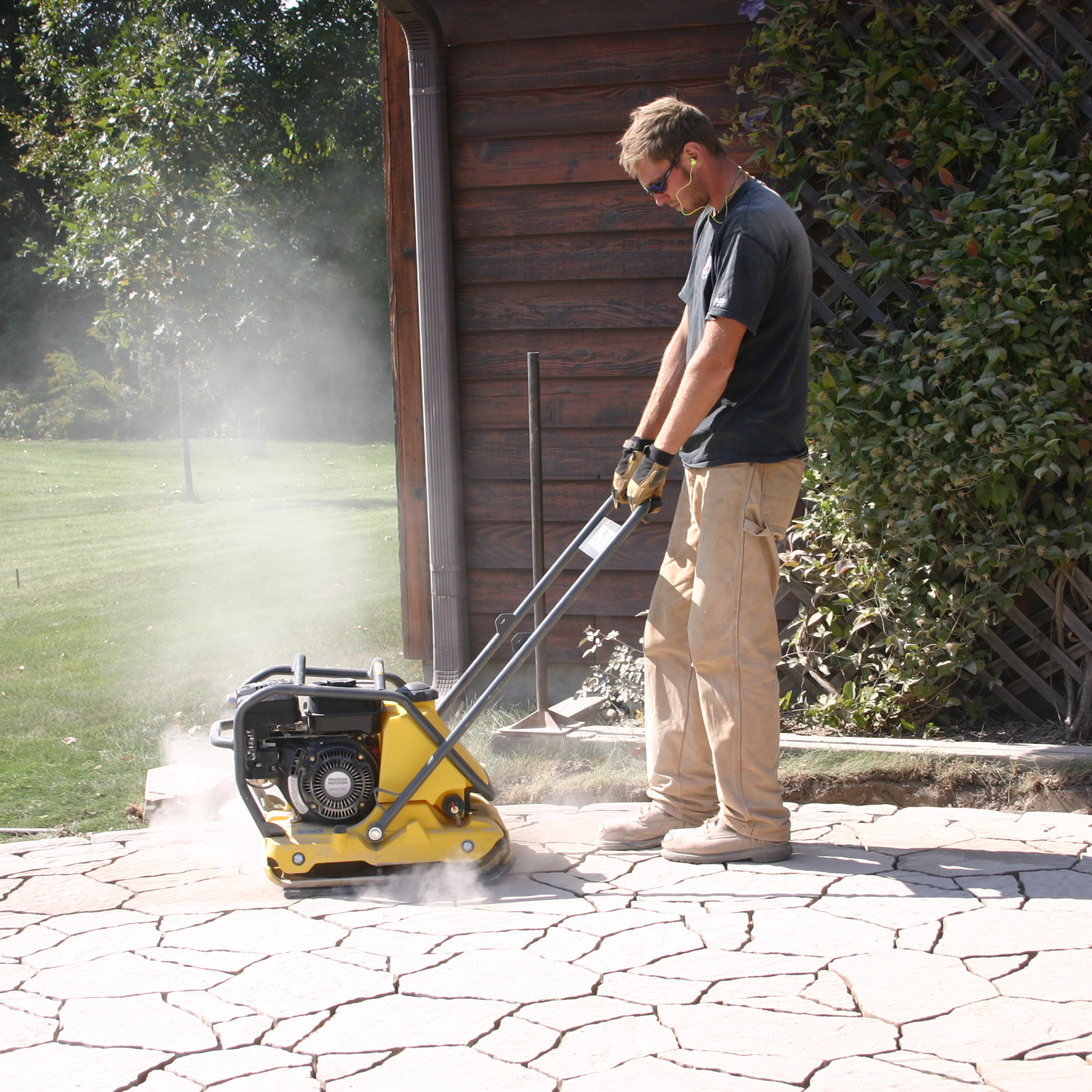

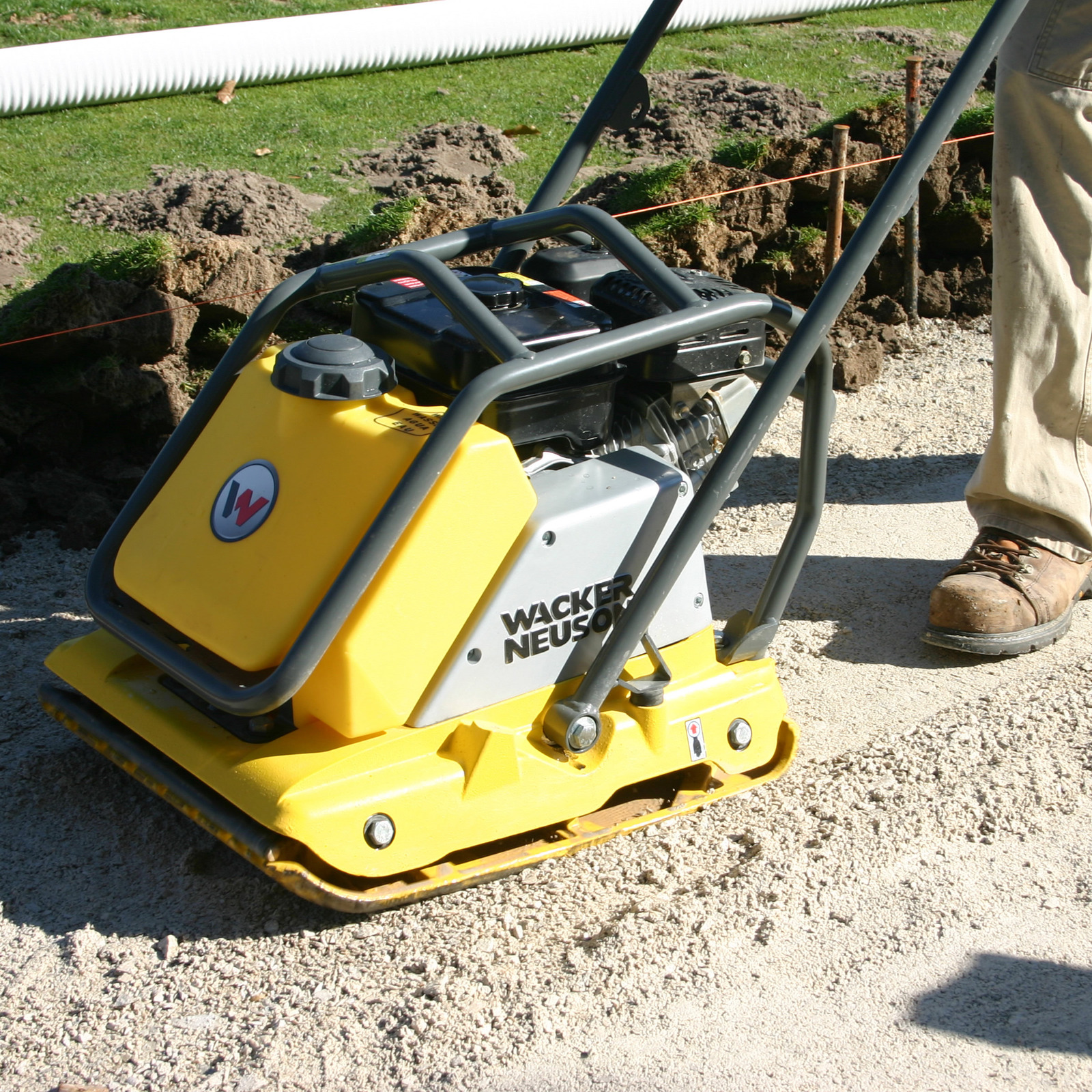

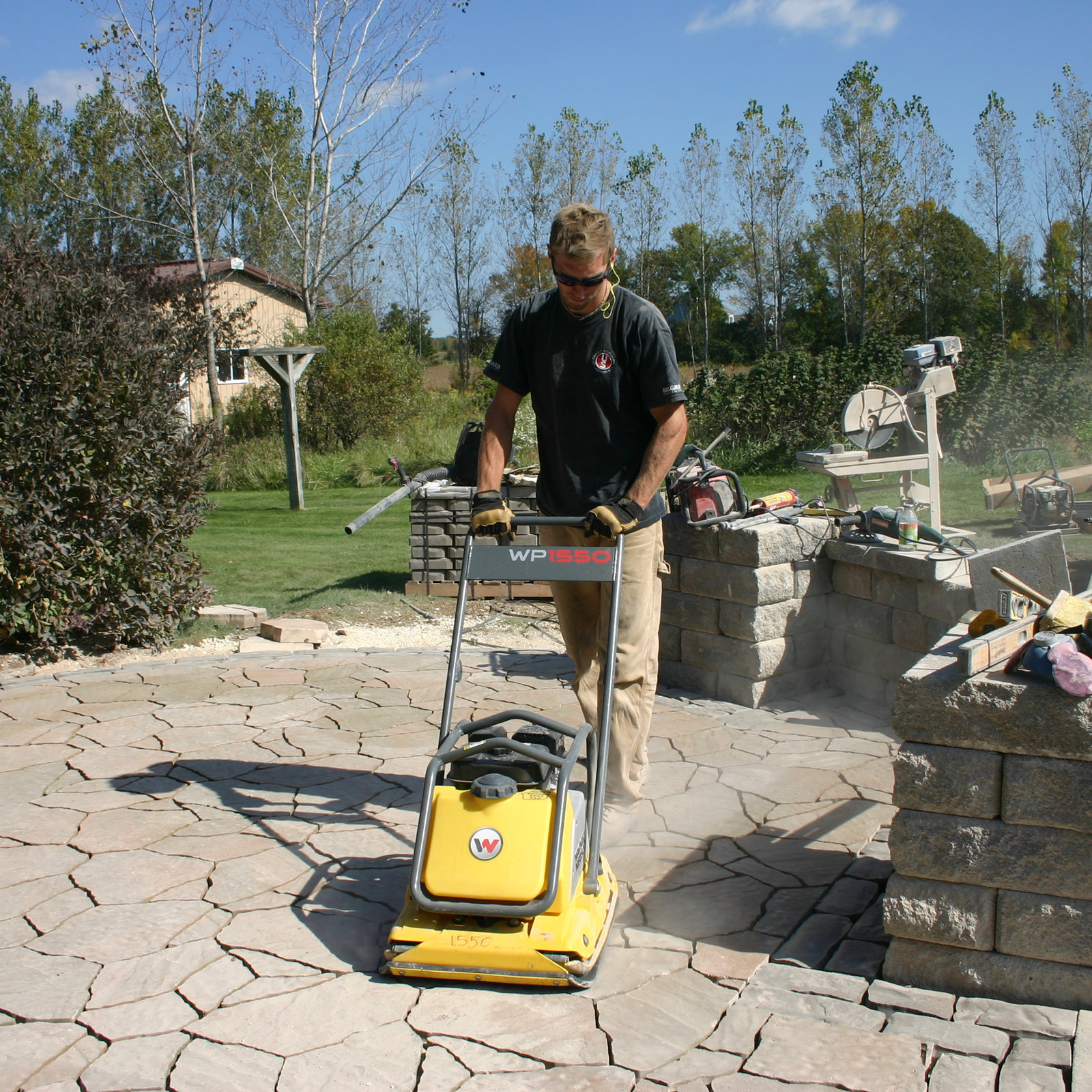

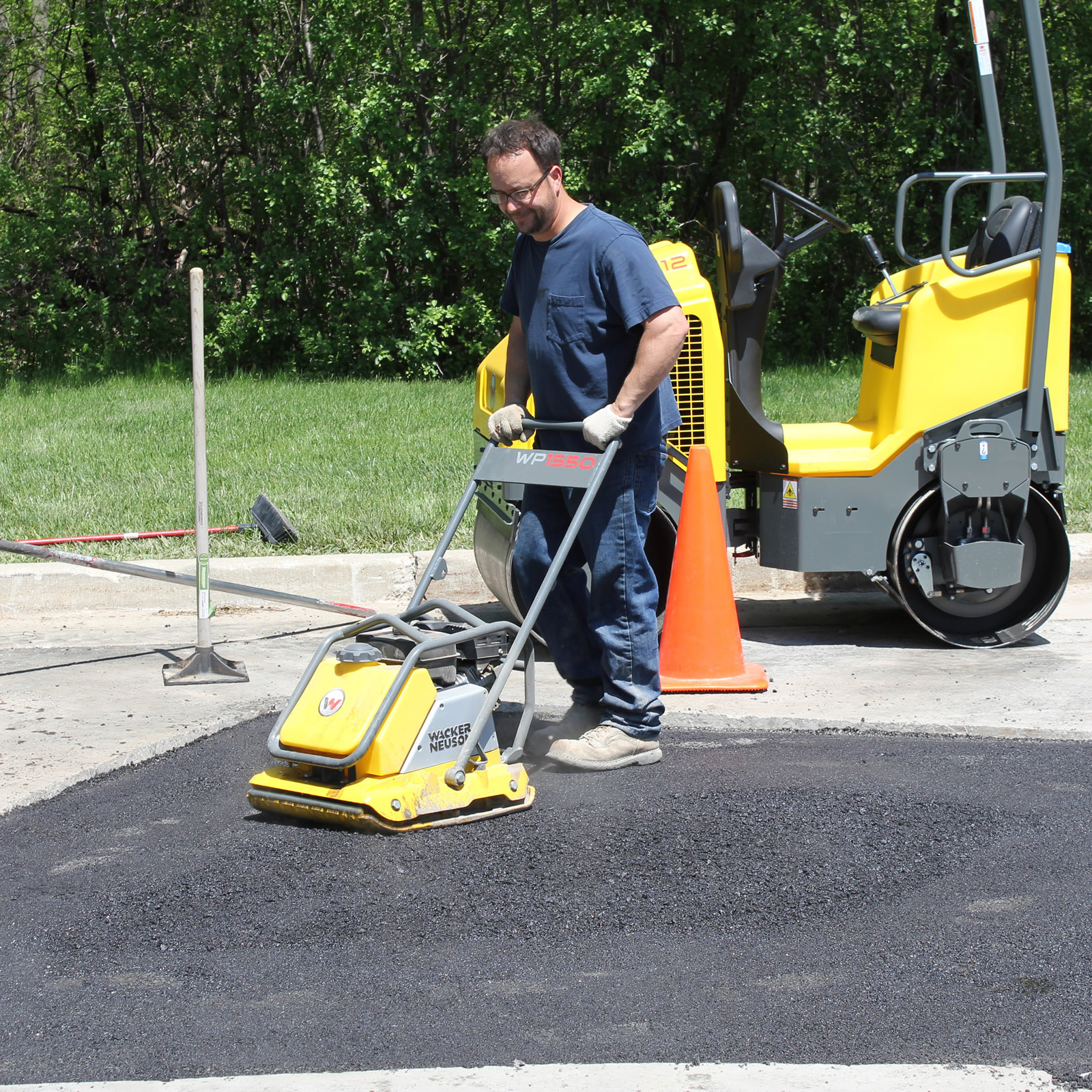

The WP1550AW Plate is a compact well engineered vibration plate perfect for compacting asphalt, interlocking paving stone or the compaction of mixed soils in confined spaces. Tapered edges make them excellent for asphalt compaction with minimal track marks when turning.

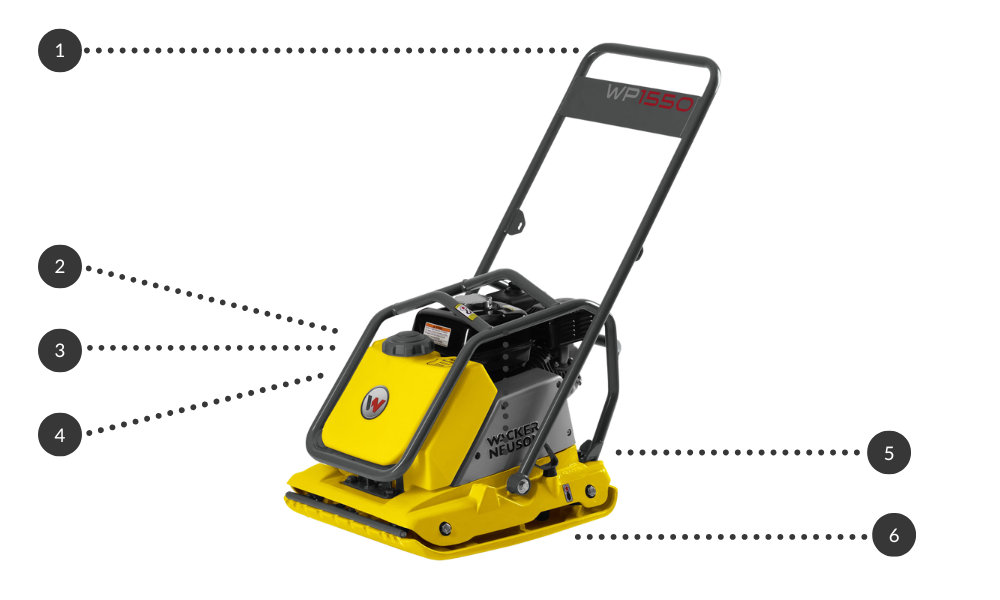

Key Features:

1.	Ease of Use	Ergonomic control handle for extended use without fatigue. High travel speeds. Rear wheels for easy transport.
2.	Safety	Dampened operator handle for extended use. Ergonomically designed handles for lifting. Central lifting point for crane use. Starter rope is positioned such that if plate takes off on starting, it will take off away from operator.
3.	Versatility	Compact design allows for easy use in tight spaces Water bottle for use on both hot and cold asphalt.
4.	Reliability	Wacker Neuson has been making construction equipment for over 160 years with proven engineering experience. Powered by a genuine Honda engine.
5.	Maintenance	Long life dual stage air filters fitted for low maintenance. Specially designed exciter bearings for maintenance-free service. Cast exciter. Cast, self cleaning base plate.
6.	Accessories	Water bottle included. Wheel kit included.

(5100016241)

Operating Specifications:

Operating weight	88 kg
Centrifugal force	15 kN
Base plate size (W x L)	500 x 586 mm
Frequency	98 Hz
Advance travel max.	29 m/min
Surface capacity max.	870 m2/h

Engine:

Manufacturer	Honda
Model	GX160
Construction	Air-cooled, single-cylinder petrol
Displacement	163 cm3
Engine speed	3,600 rpm
Engine output according to ISO	3.6 kW (4.8 HP)
Fuel consumption	1.8 L/h
Tank capacity	3.7 L

Specifications subject to change without notice due to continual product development

SKU	5100016241
Shipping Weight	95.0000kg
Shipping Width	0.550m
Shipping Height	1.200m
Shipping Length	0.600m
