Wacker Neuson DPU3760He Reversible Vibratory Plate / Compaction Plate

Enquiry/Quote

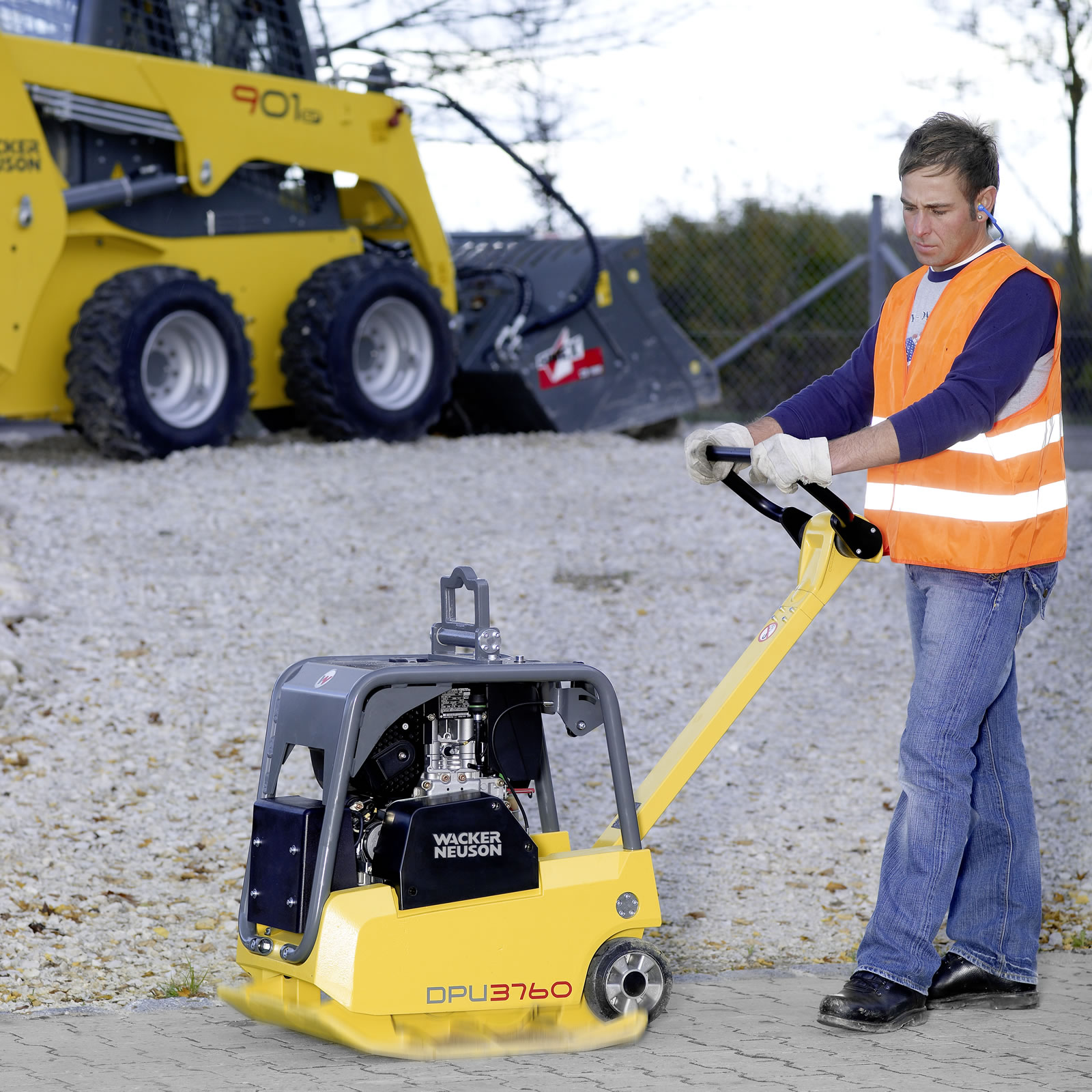

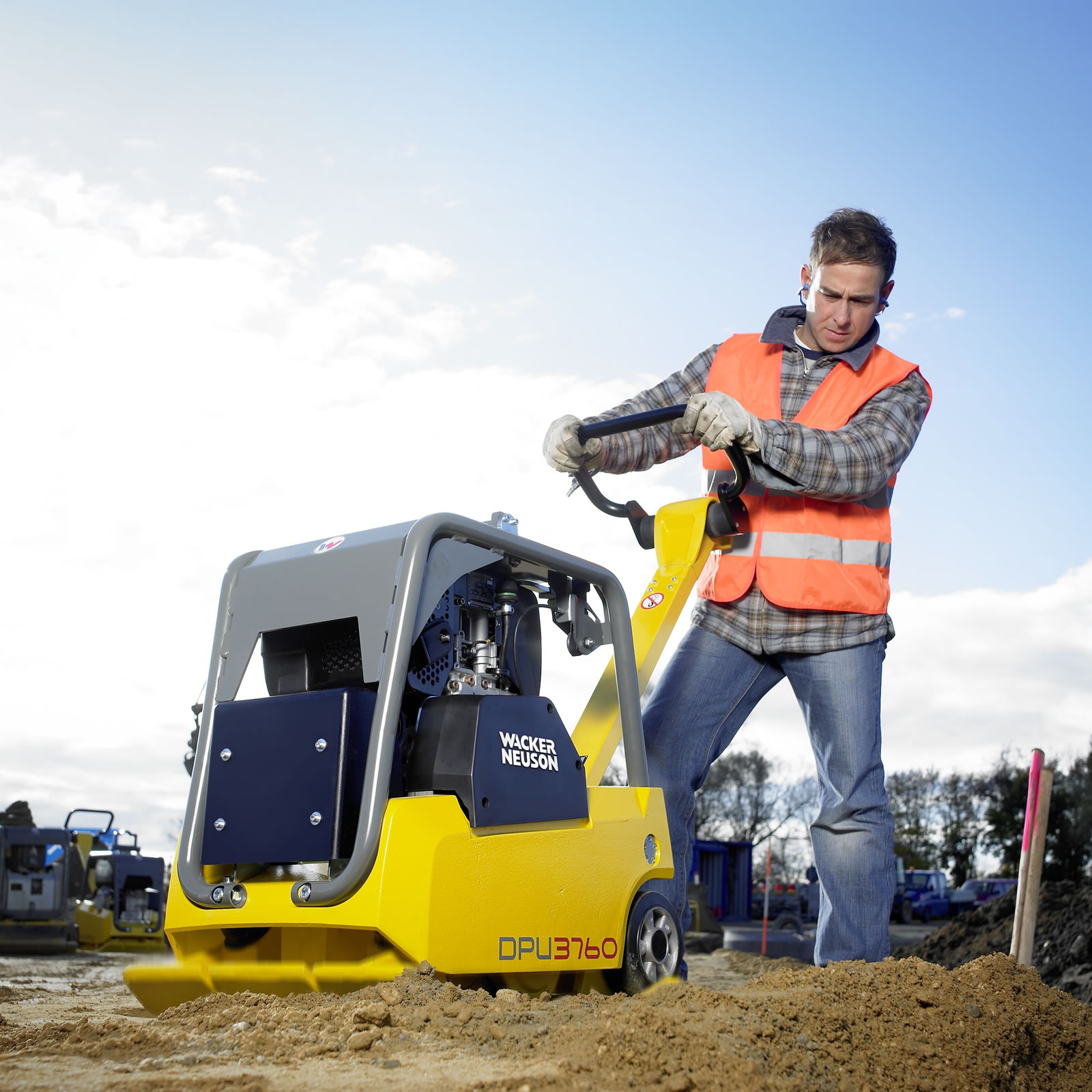

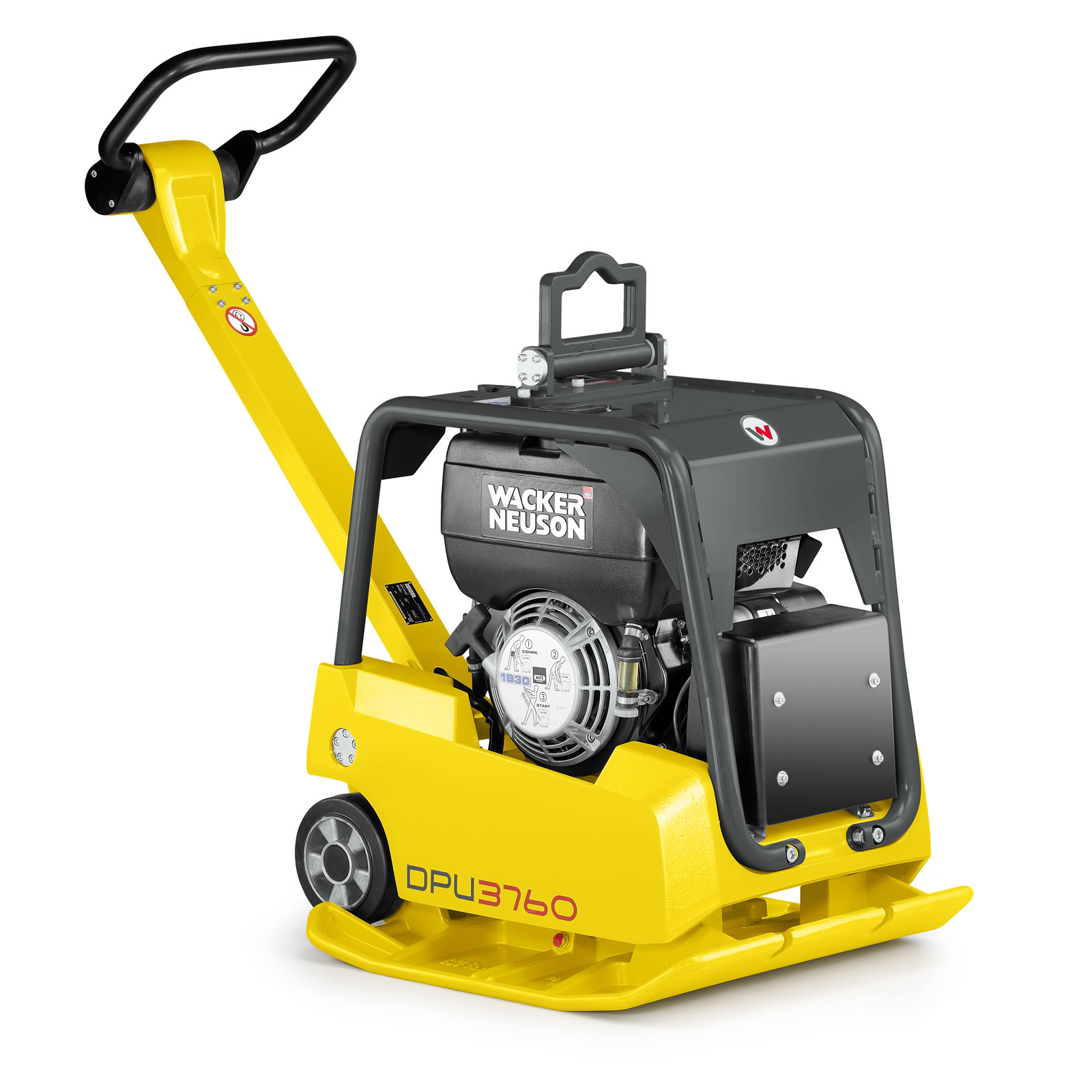

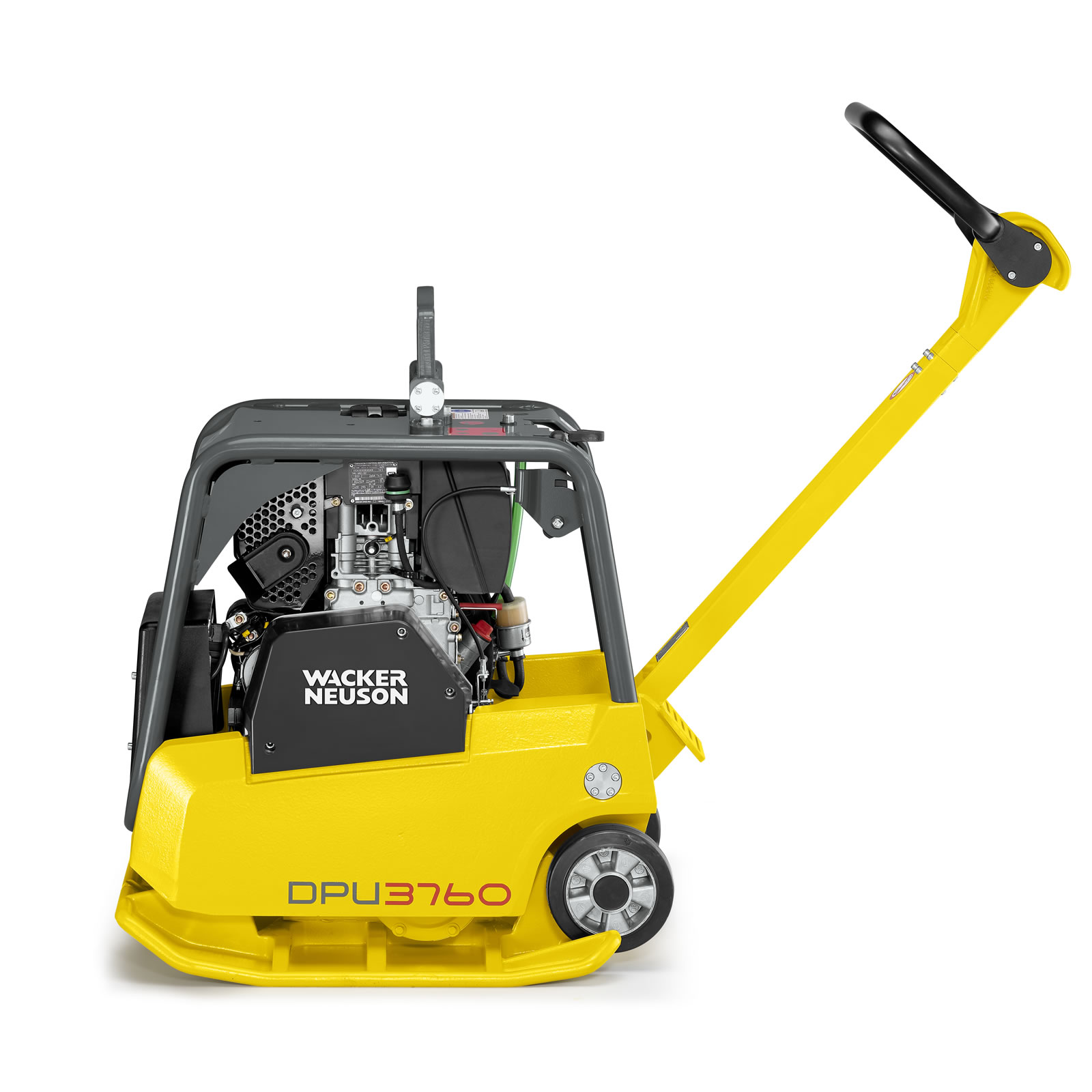

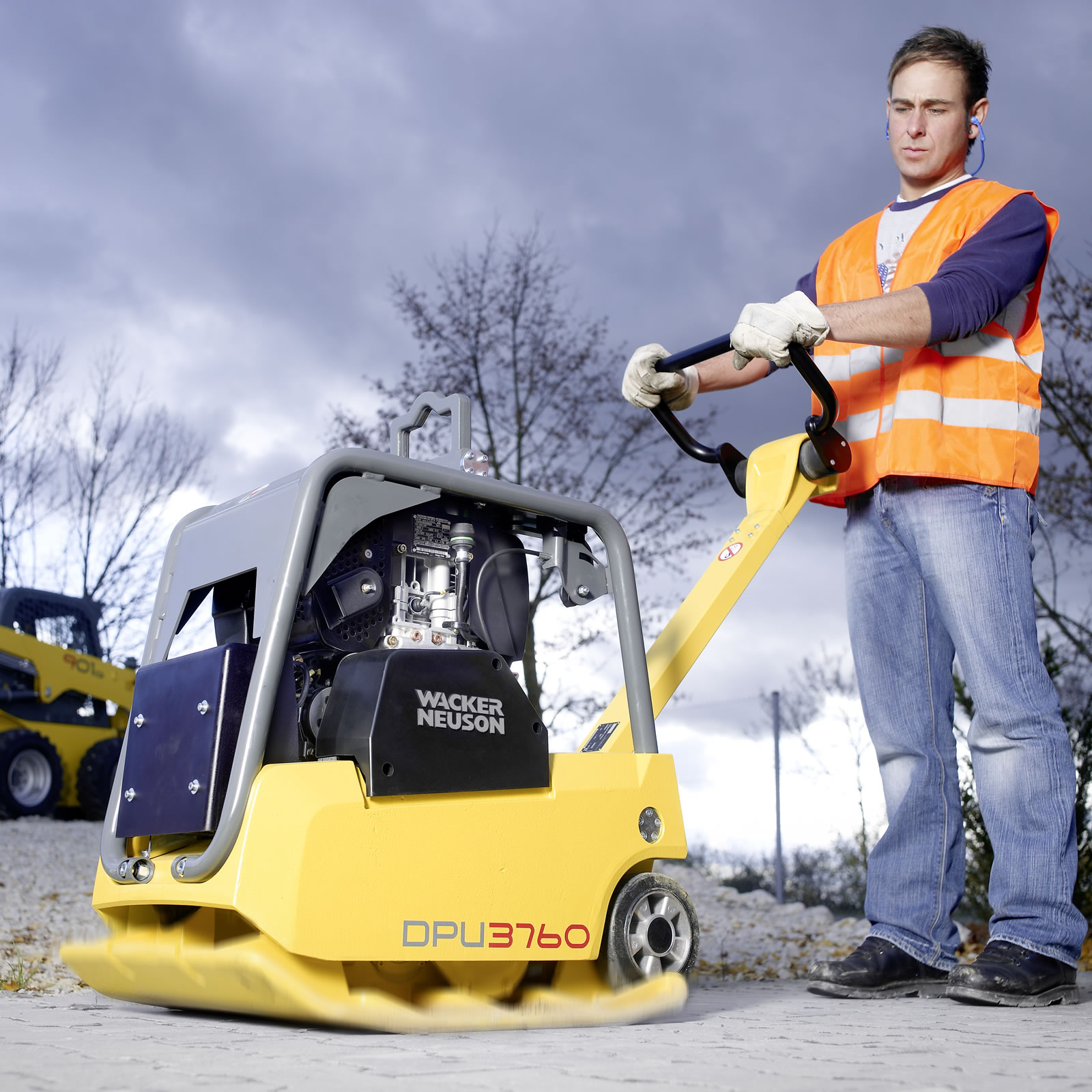

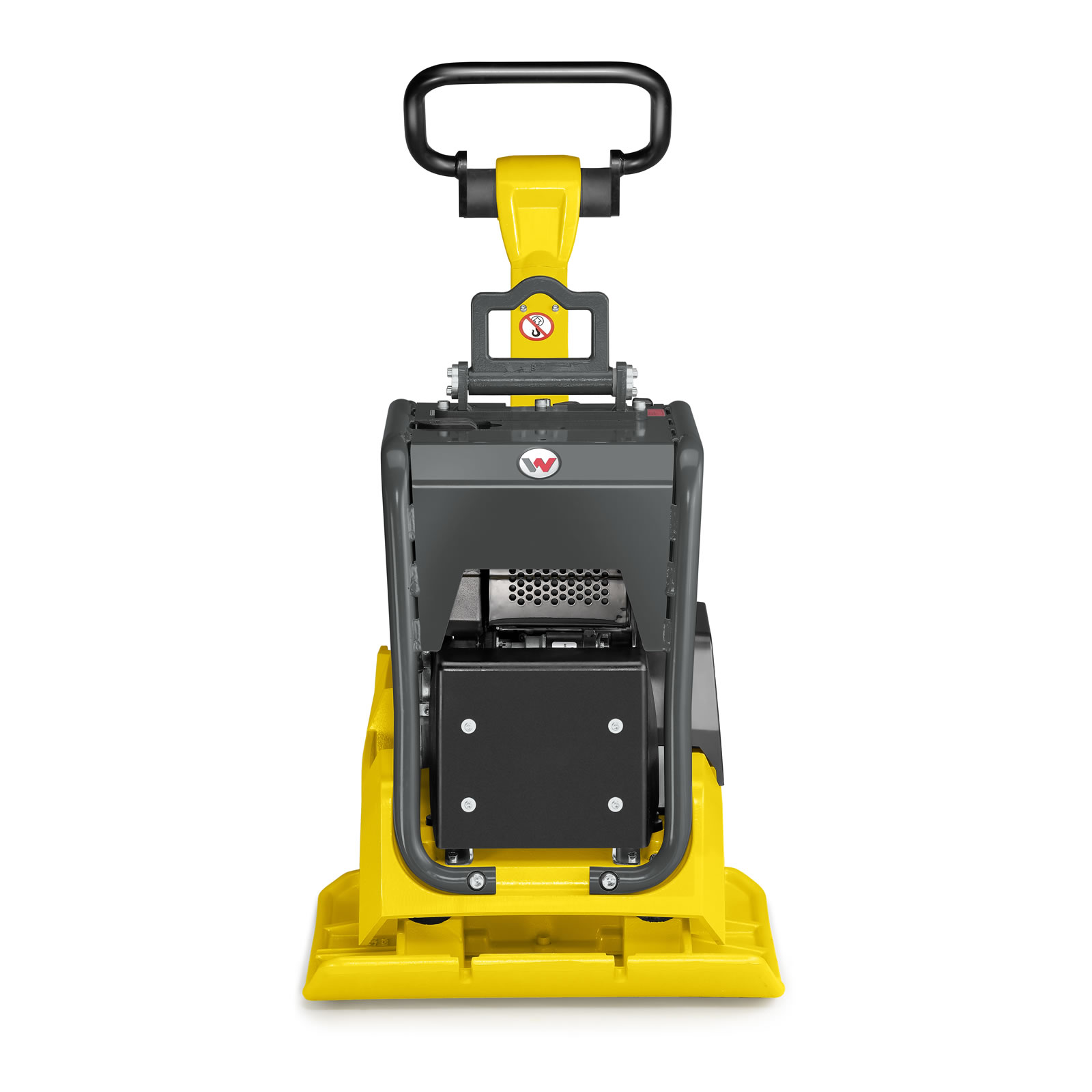

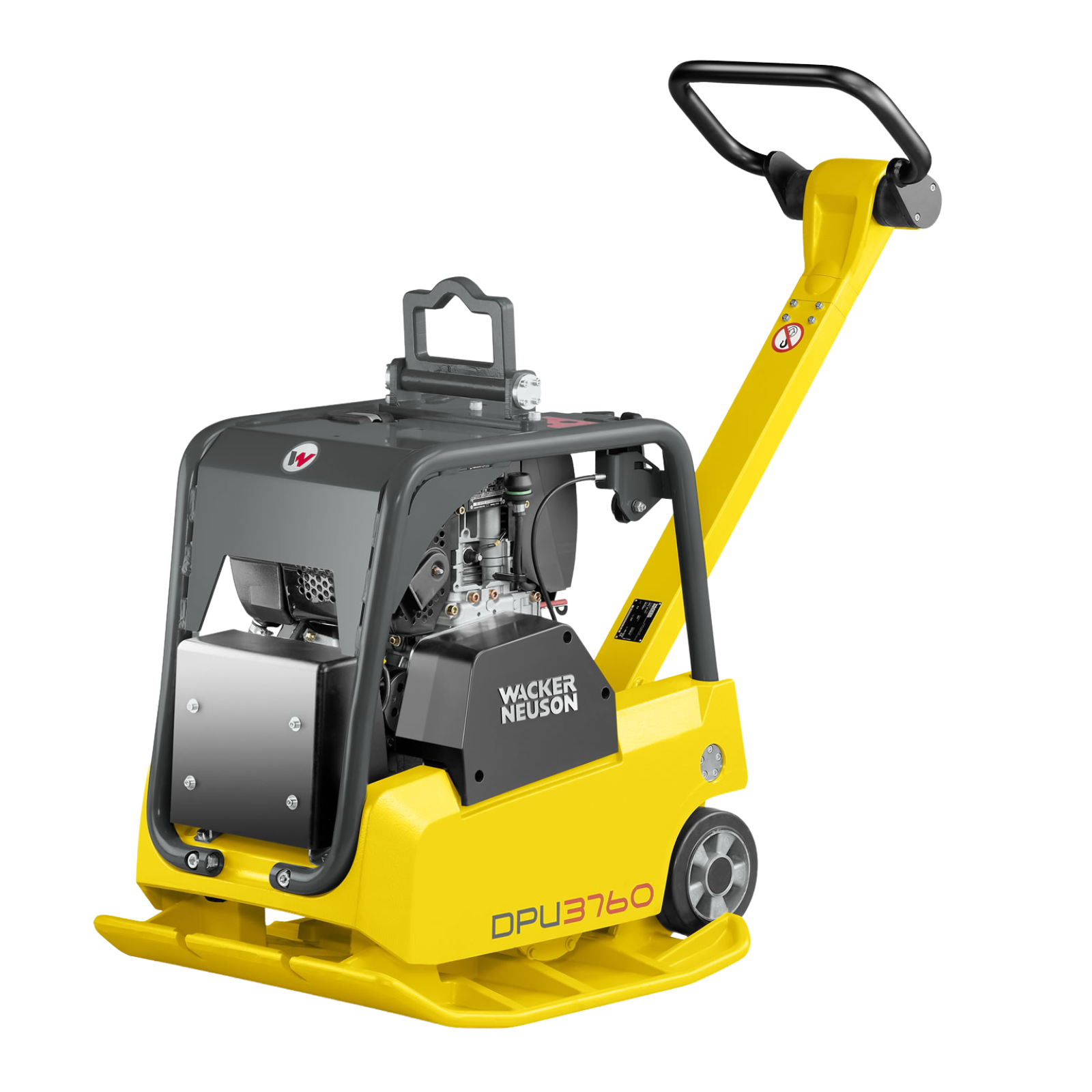

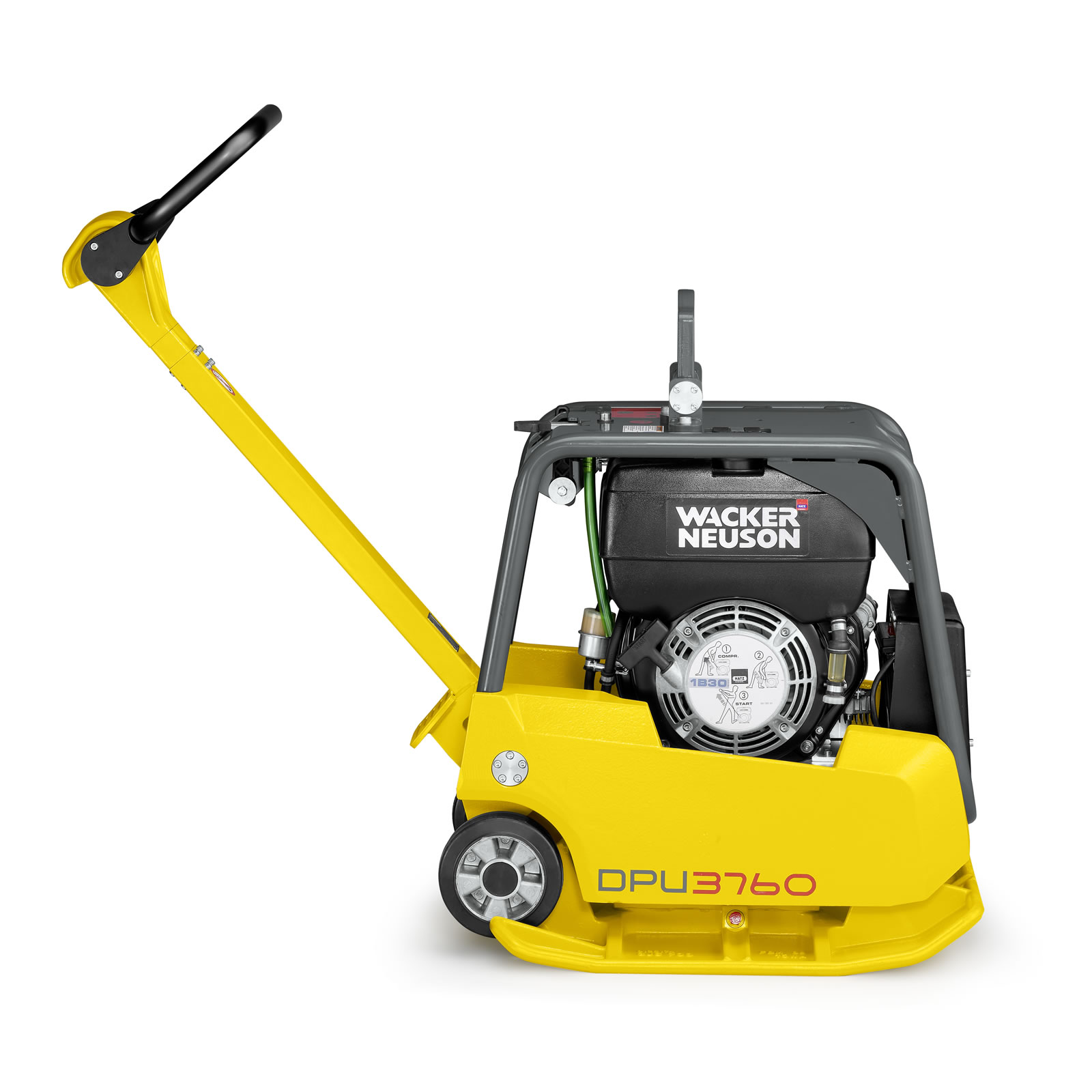

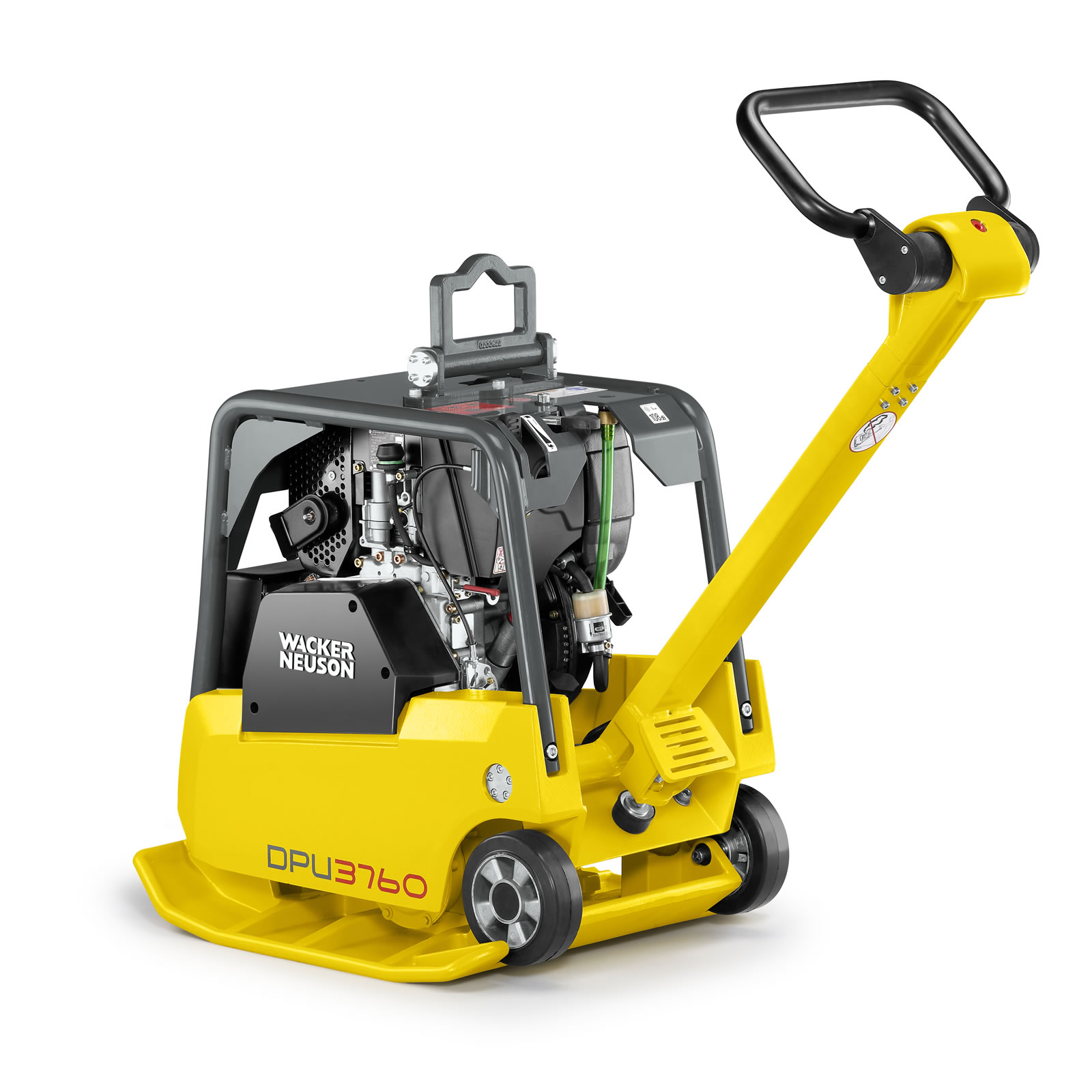

Wacker Neuson DPU3760He - Premium Reversible Vibe Plate

DPU3760 offers a perfect combination of power and versatility with integrated wheels for transport around job site. Mid range in size with high travel speed and high centrifugal force of 37kN makes this plate perfect for road maintenance, compacting paving stones, landscaping and paths. It is powered by a reliable Hatz Disesel Engine with electric start.

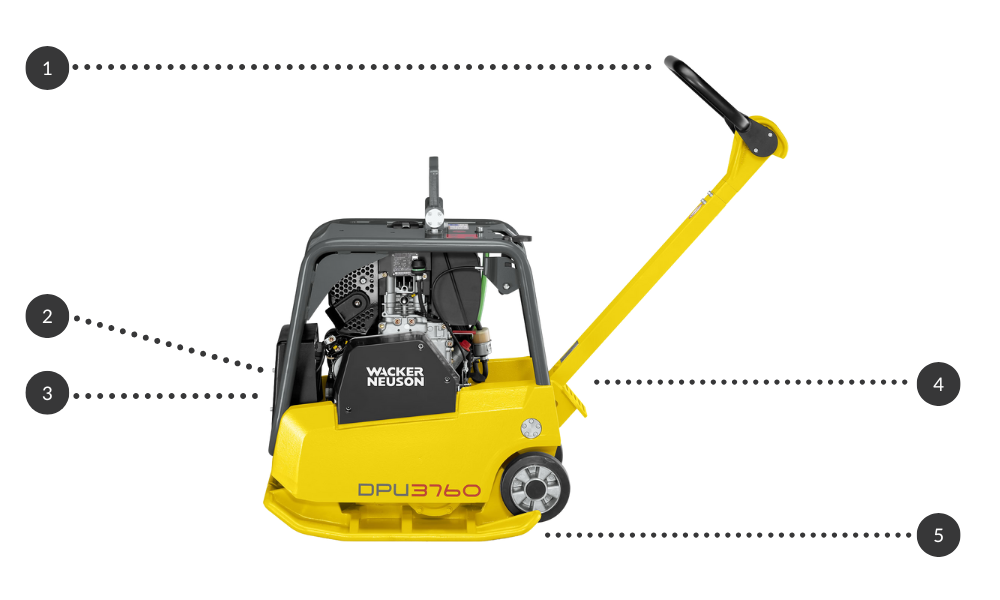

Key Features:

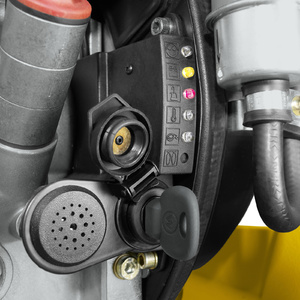

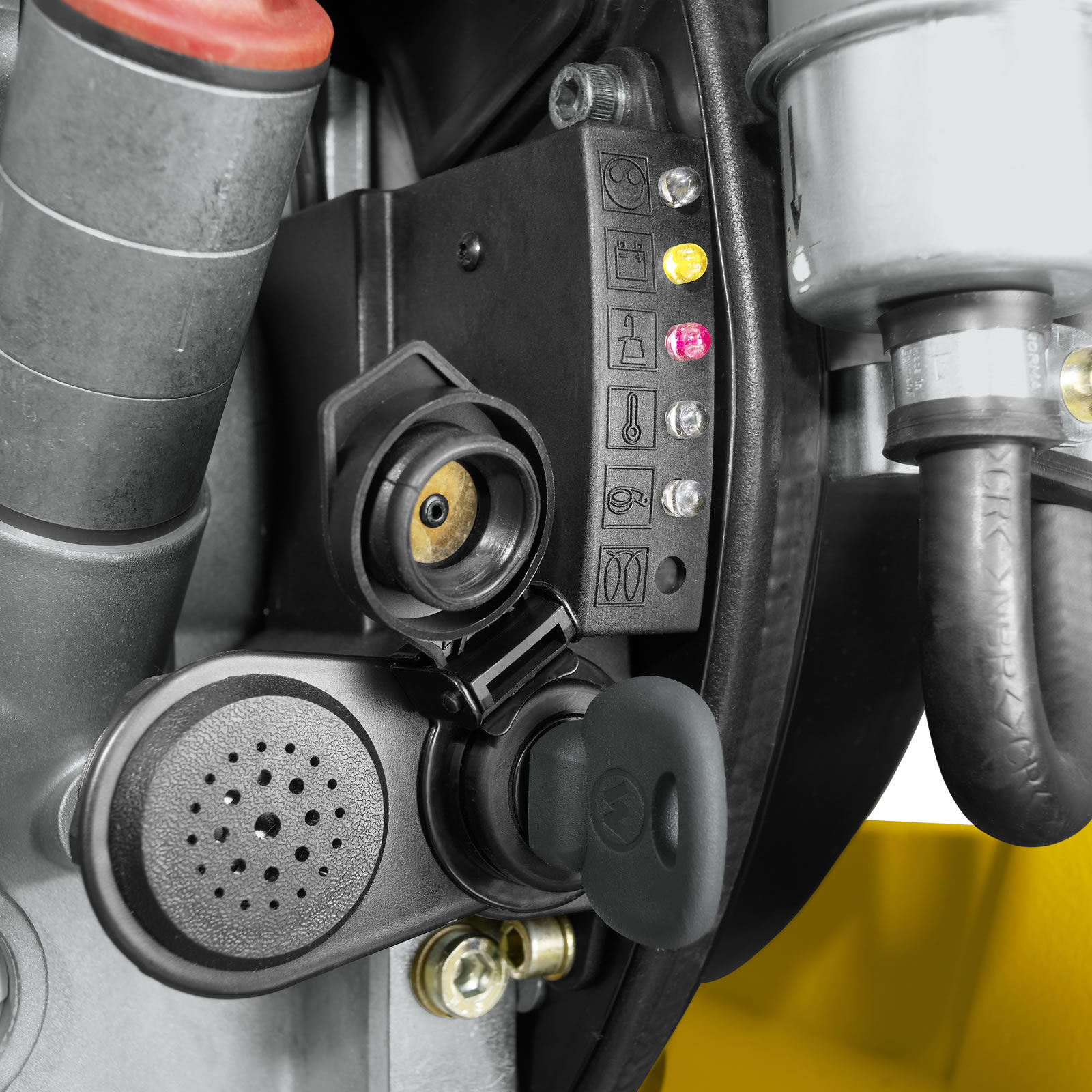

1.	Ease of use	Ergonomic control handle for extended use without fatigue. High travel speeds. Guide handle shock mount and integrated lateral guide. Forward / reverse easily operated from handle. Electric start engine.
2.	Ease of Use	Wacker Neuson has been making construction equipment for over 160 year with proven engineering experience. Powered by a Genuine Hatz Diesel engine.
3.	Maintenance	Long life air filters fitted for low maintenance. Specially designed exciter bearings for maintenance free service. Robust GJS-700 cast base plate.
4.	Versatility	Compact design allows for easy use in tight spaces. Forward and reverse direction from handle. Integrated wheels for jobsite transport.
5.	Safety	Dampened operator handle for extended use. Central lifting point for crane use. Starter rope is positioned so if the plate takes off on starting it will take off away from the operator. Electric start for low operator strain. Automatic locking mechanism on handle.

(5000610359)

Operating Specifications:

Operating weight	274 kg
Centrifugal force	37 kN
Base plate size (W x L)	600 x 703 mm
Base plate thickness	10mm
Height (without guide handle)	758 mm
Frequency	-
Advance travel (depending on soil)	26 m/min
Surface capacity (depending on soil)	936 m2/h

Engine:

Manufacturer	Hatz
Model	1 B 30
Construction	Air-cooled, single-cylinder diesel
Displacement	347 cm3
Engine speed	3,600 rpm
Engine output according to ISO	5.4 kW (7.2HP)
Fuel consumption	0.6 L/h
Tank capacity	5.0 L
