Wacker Neuson RD18-100

View PDF brochure for Wacker Neuson RD18-100

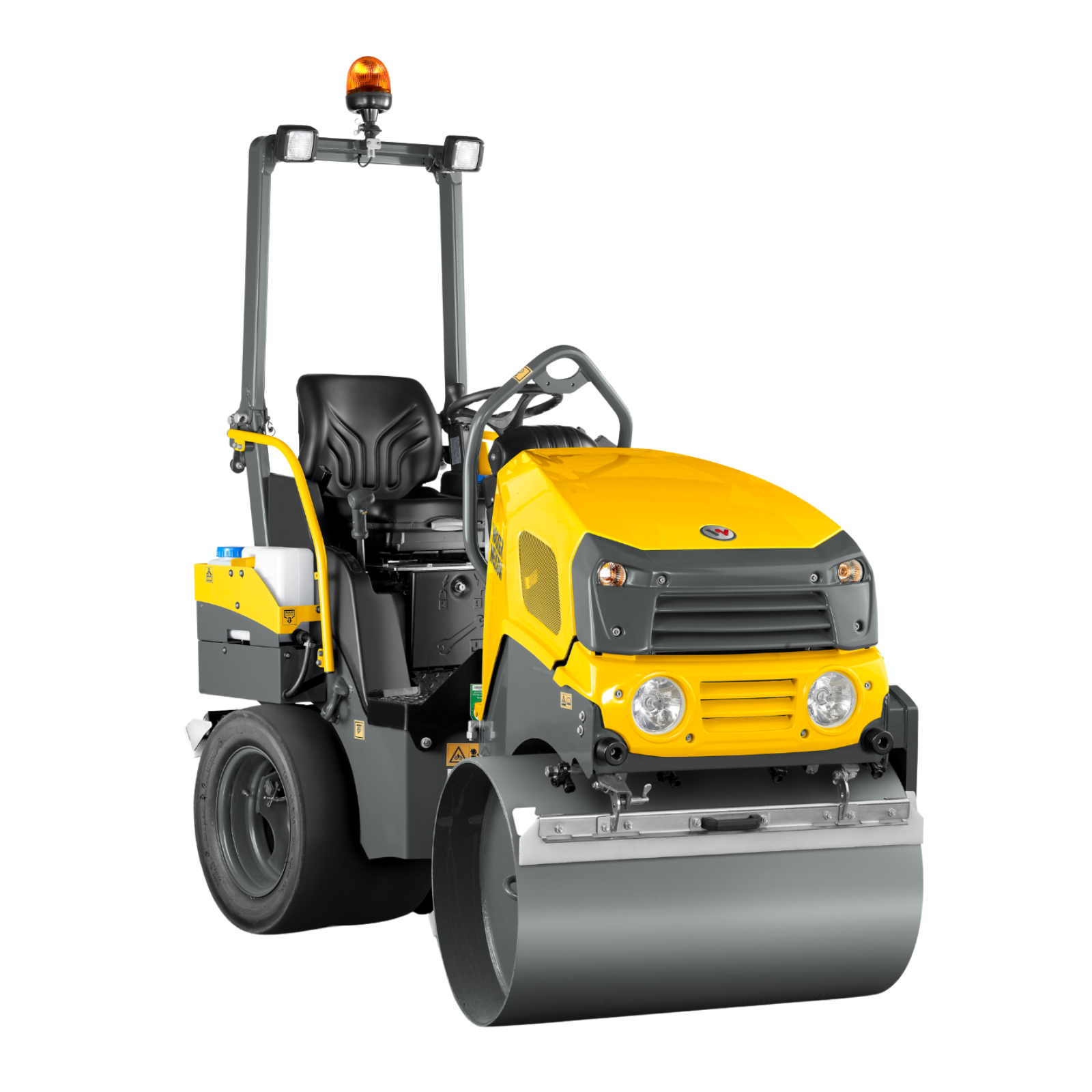

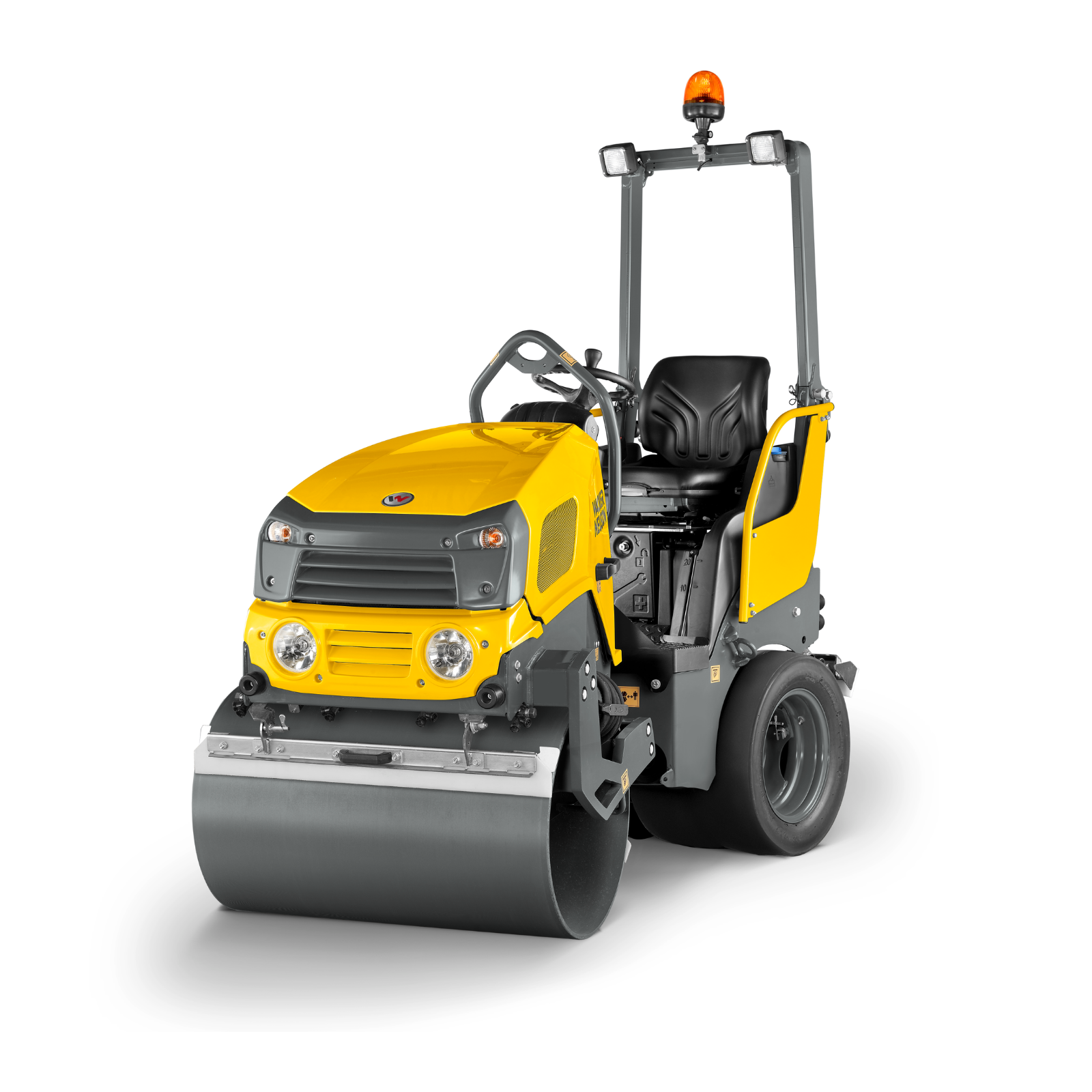

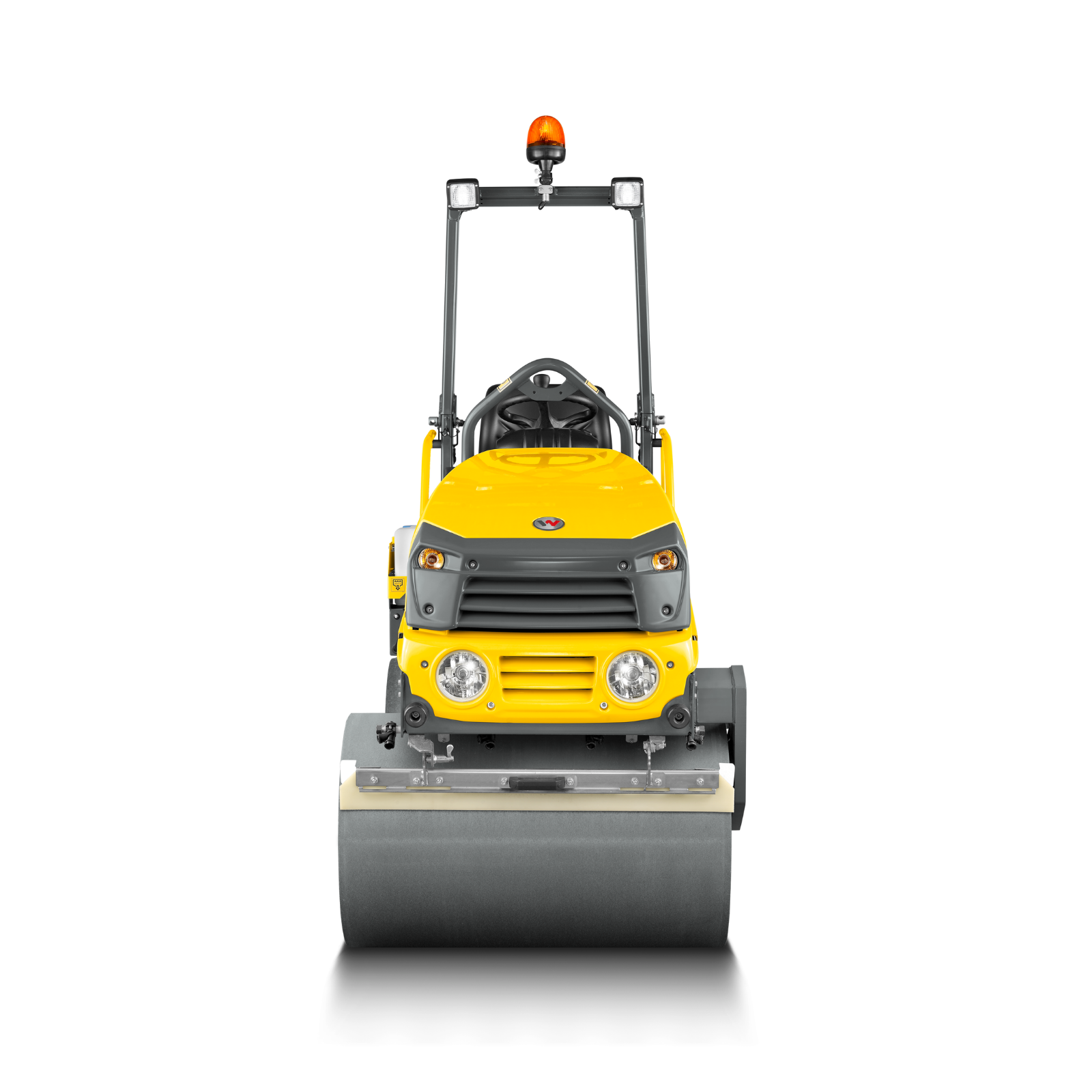

Wacker Neuson RD18-100

1.8T Tandem Roller

Share:
Enquiry/Quote

Wacker Neuson RD18-100 - 1.8 Tonne Tandem Roller:

The Wacker Neuson RD18-100 offers outstanding compaction performance for a compact roller under 2t operating weight.  RD18-100 features offset drum with each drum mounted to only one side of the roller, this allows for compaction right up to a wall without the need of a secondary machine such as a vibe plate.  Standard with road lighting and a modern, tapered engine hood for greater visibility and safety. RD18-100 backed with a 5 Year / 5000 hour Warranty.

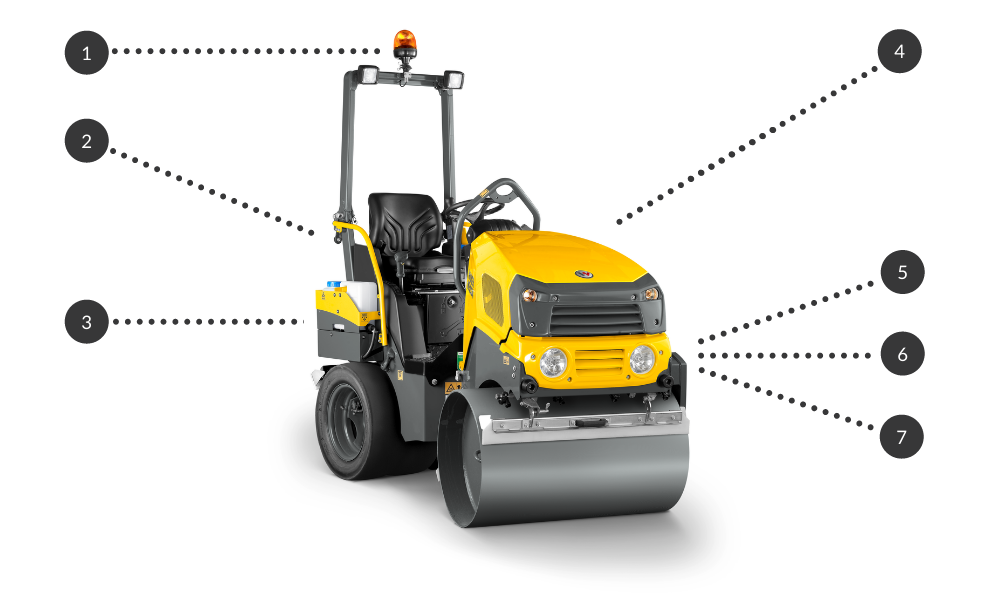

Key Features:



1. Safety
  • Rotating beacons and reverse beepers as standard, ensures the machine is inline with latest safety standards.
  • All machines sold by ACES have an OHS Risk assessment prior to delivery.
  • Working lights on front and rear for optimum safety at night.
  • Folding ROPS bar.
  • Tapered Engine Hood for fantastic visibility.
  • Easily accessible tie down points for safe transportation.
  • E-Stop fitted to the drive console.
2. Comfort
  • Ergonomic comfortable leather look seat.
  • 3 point articulation joint for continual roller traction and lower vibrations.
  • Large operator station with ample leg room.
  • Steering wheel in optimal position.
3. Versatility

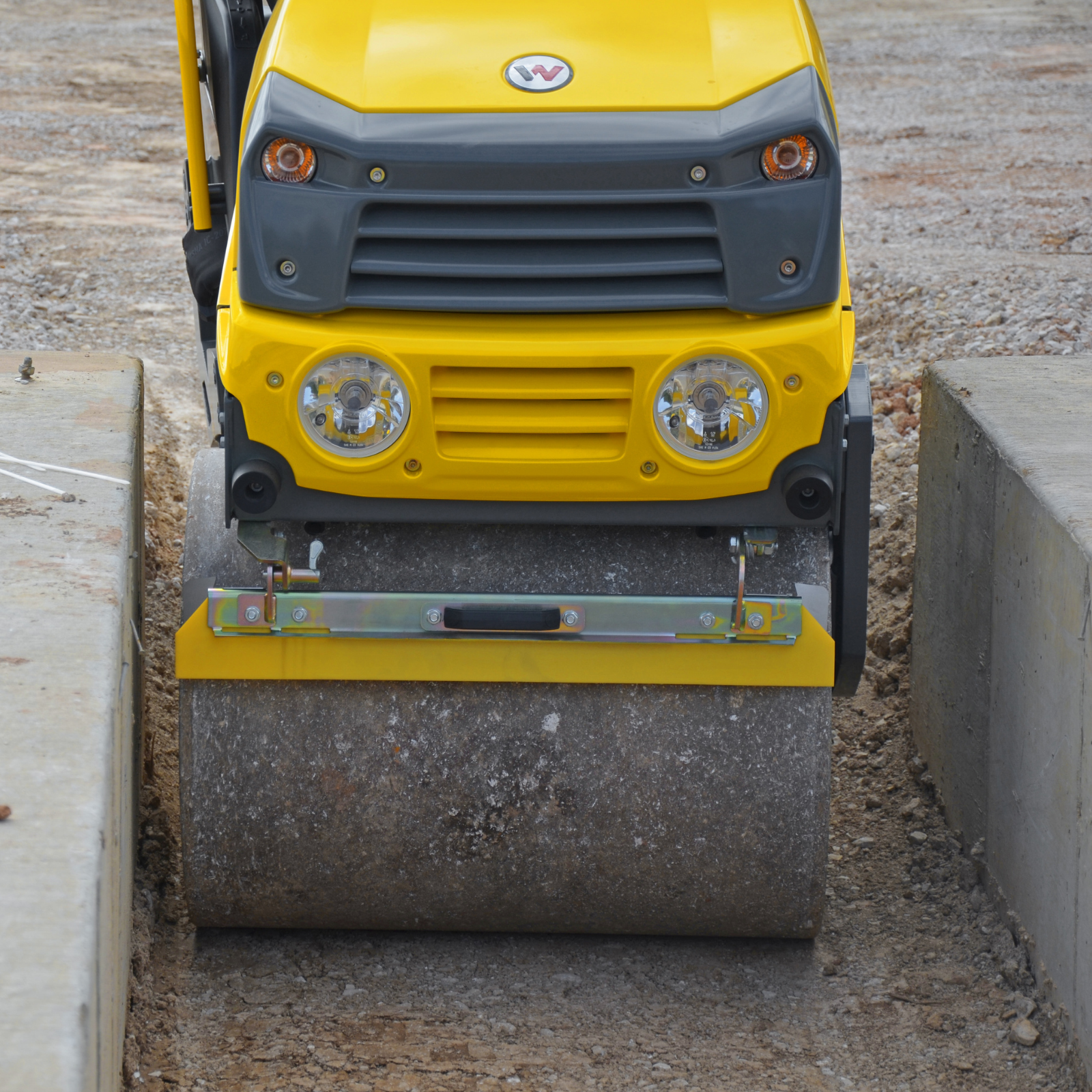

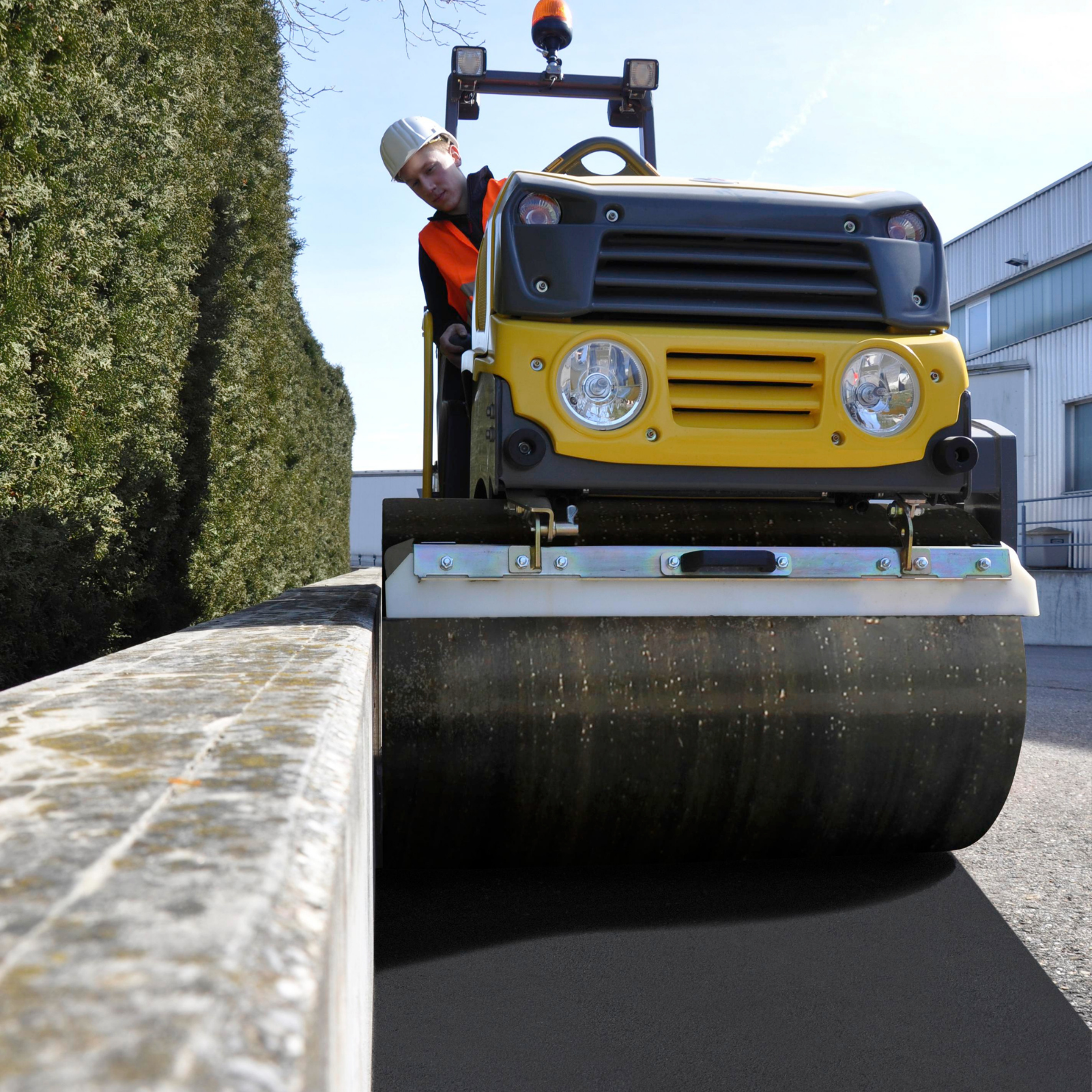

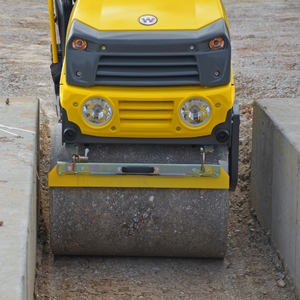

  • Offset drums for compaction against curbs and walls, no secondary compaction needed.
  • Large water tank and well-designed quick release spray nozzles, perfect for asphalt compaction.
  • Front and rear drum vibration for smooth optimal compaction.
  • Front and rear lighting for 24 hour use.
  • Larger tanks for longer run time between fuel and water fills.
  • Central balanced lifting point to crane on to worksites and for transportation.
4. Vision
  • Tapered engine hood for fantastic front visibility.
  • Seat mounted at the very rear of machine for unobstructed rear viability.
  • Fuel and water level indicators visible from operator station.
5. Power
  • Powered by Kubota 3-Cylinder diesel engine (16.8kW).
  • Smooth compaction power with front and rear drum vibration.
  • Hydrostatic drive, both front and rear drums are powered.
6. Efficiency
  • Super efficient hydrostatic drive system with integrated oil cooler.
  • Fixed displacement pump separated from drive system to power steering and vibration.
  • Fuel efficient Kubota diesel engine.
  • Oil cooler to reduce heat build up and efficiency losses in hydraulic system.
  • Front drum vibration combined with static rear drum offer high efficiency in a compact stature.
7. Cooling
  • Reliable and efficient sealed liquid cooling system without the need of an overflow bottle.
  • Unobstructed air flow to hydraulic oil cooler.
  • Designed to run in hot climates with proven track record in Australian conditions.

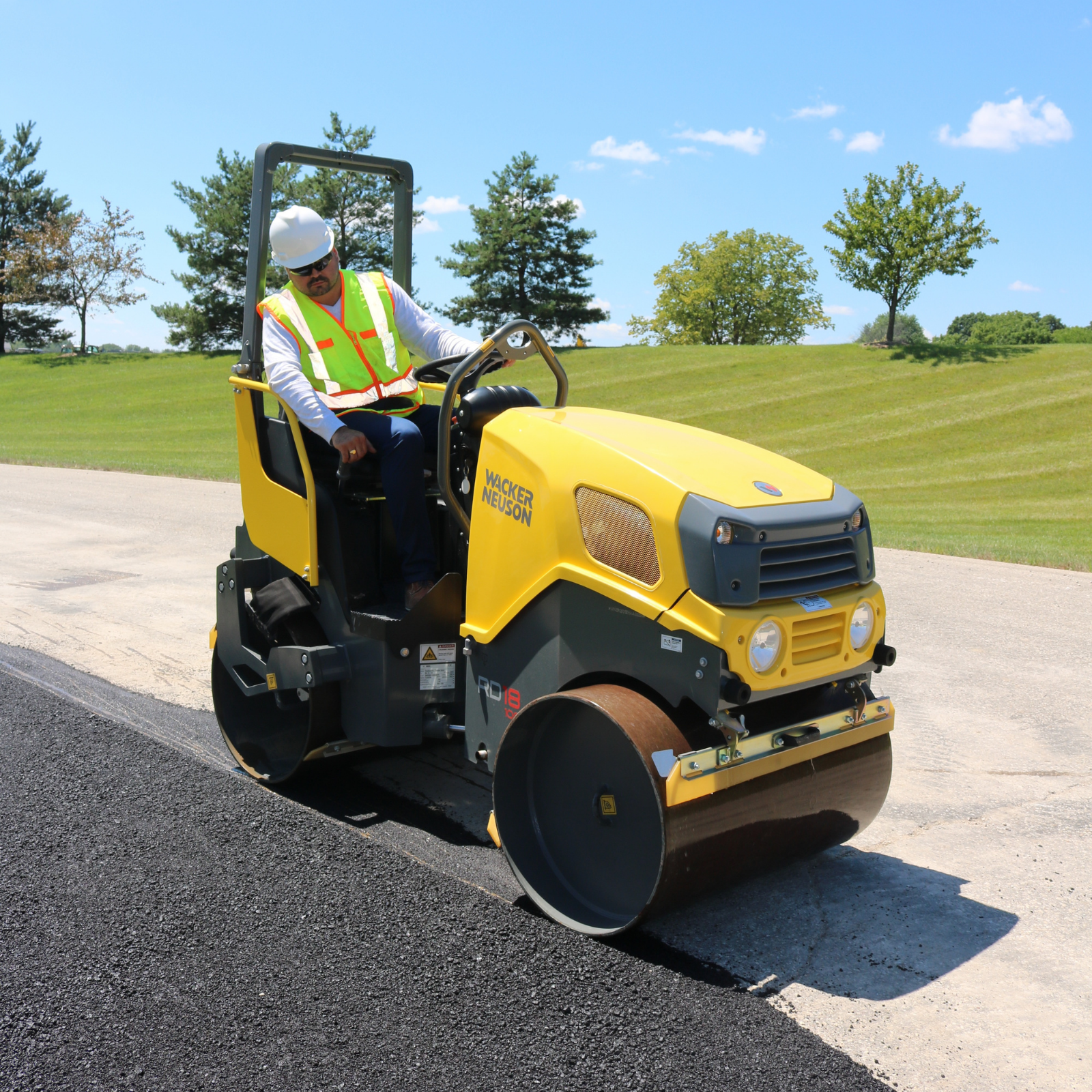

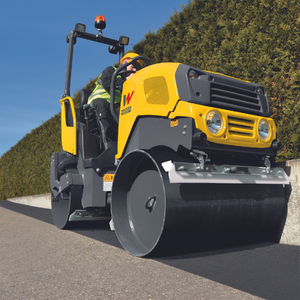

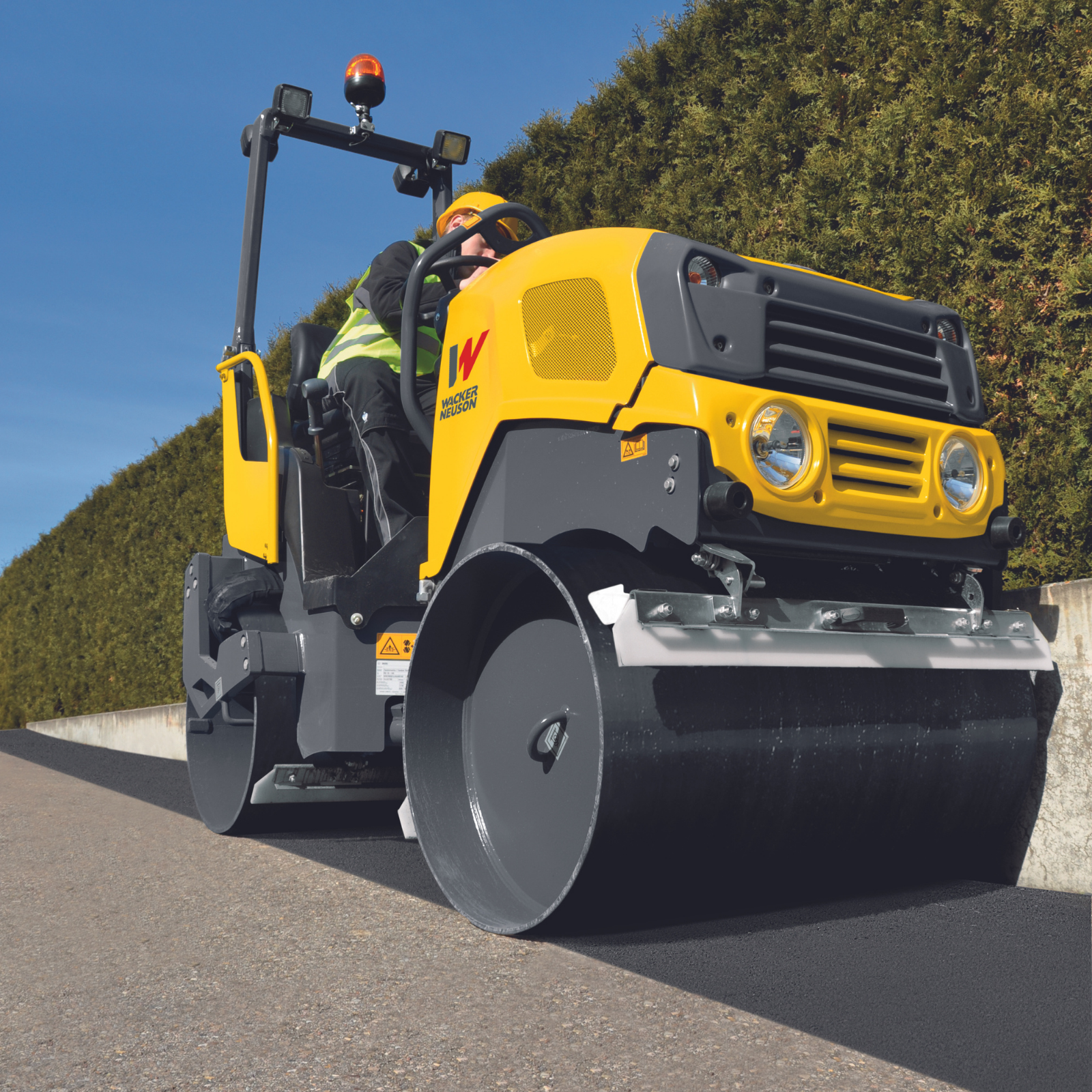

Note: Some photos above feature RD18-100C (combination roller, not available in Australia)

(RD18-100)

General:

Operating Weight Max. 1,950 kg
Dimensions (L x W x H) 2,260 x 1,056 x 2,210 mm

Engine:

Manufacturer Kubota
Construction 3-cyl liquid cooled
Engine output 16.8 kW (22.5 HP)

Hydraulics:

Drive Hydrostatic Transmission
Motors Front & Rear
Exciter Front
Steering Fixed Displacement

Compaction:

Centrifugal force level 1 25 kN
Centrifugal force level 2 16 kN
Frequency level 1 65 Hz
Frequency level 2 52 Hz
Amplitude 0.45 mm
Static linear force - front 8.1 N/mm
Static linear force - rear 8.6 N/mm

Operating Data & Dimensions:

Drum width 1,000 mm
Drum diameter 620 mm
Side clearance 0 mm
Curb clearance 0 mm
Travel speed 11 km/h
Turning radius outside 2,130 mm

Capacities:

Fuel tank 33 L
Water tank 70 L


Specifications subject to change without notice due to continual product development.

SKU RD18-100

Be The First To Review This Product!

Help other P.C. Arbuckle Propriety Limited users shop smarter by writing reviews for products you have purchased.

Write a product review

Others Also Bought


Wacker Neuson BS65-4As

Wacker Neuson BS65-4As

4 Stroke Rammer - 65kg

$3,688.30

MultiOne 11.6K

MultiOne 11.6K

3180kg Tipping Load

Wacker Neuson WL110 Wheel Loader

Wacker Neuson WL110 Wheel Loader

11T Wheel Loader

More From This Category


Wacker Neuson RD12A-90

Wacker Neuson RD12A-90

1.2T Tandem Roller

Wacker Neuson RD18-100

Wacker Neuson RD18-100

1.8T Tandem Roller

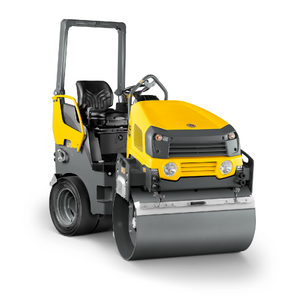

Wacker Neuson RD27-120
