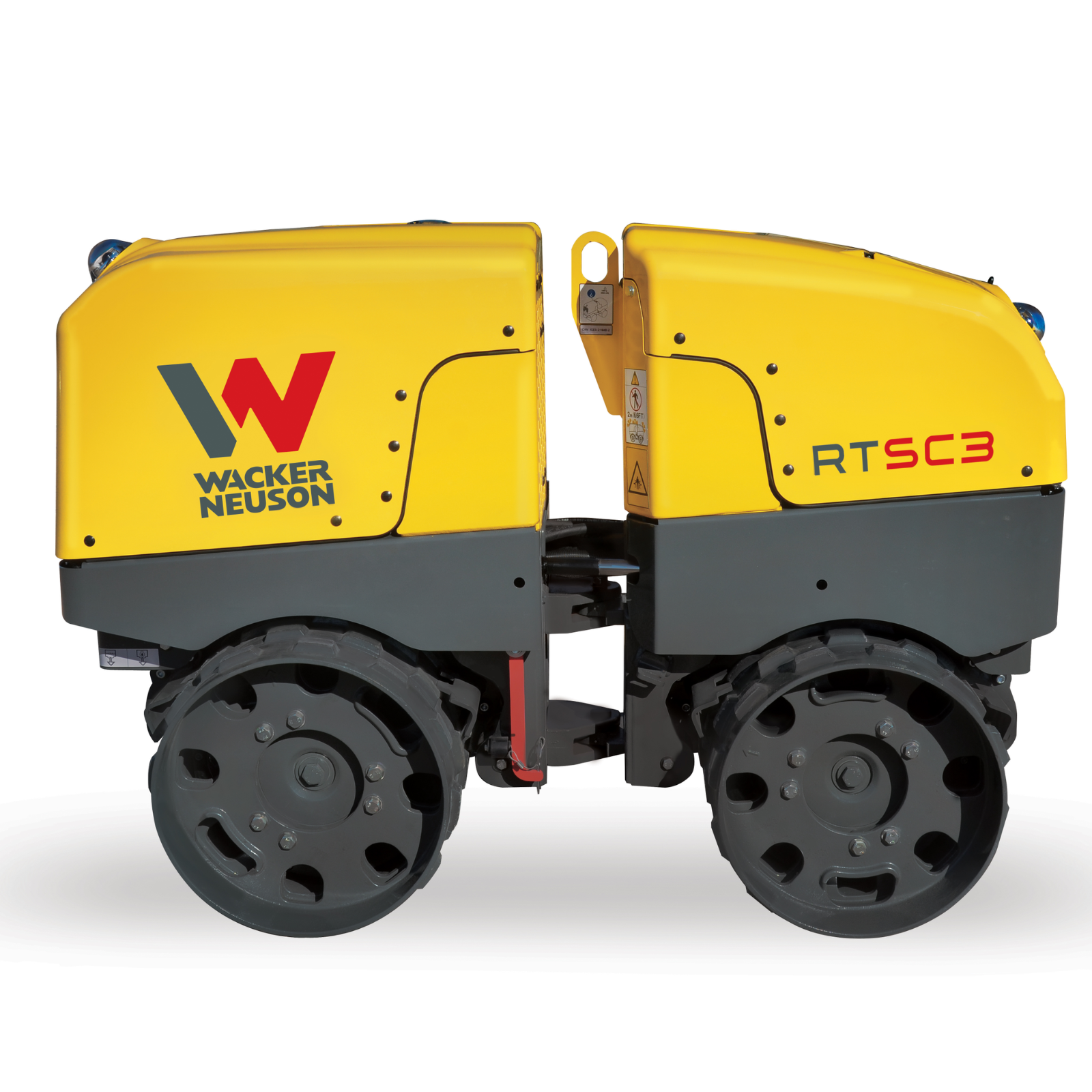

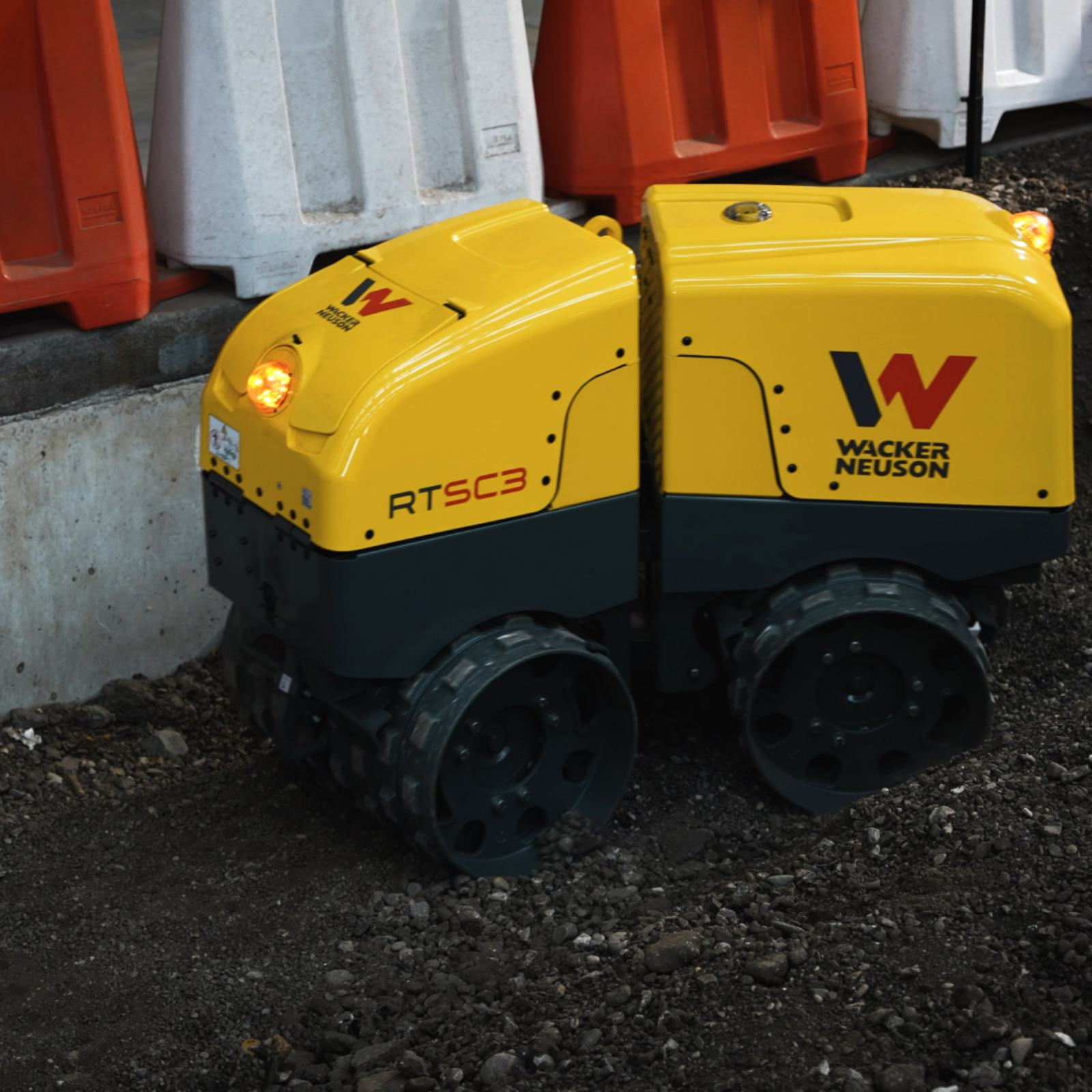

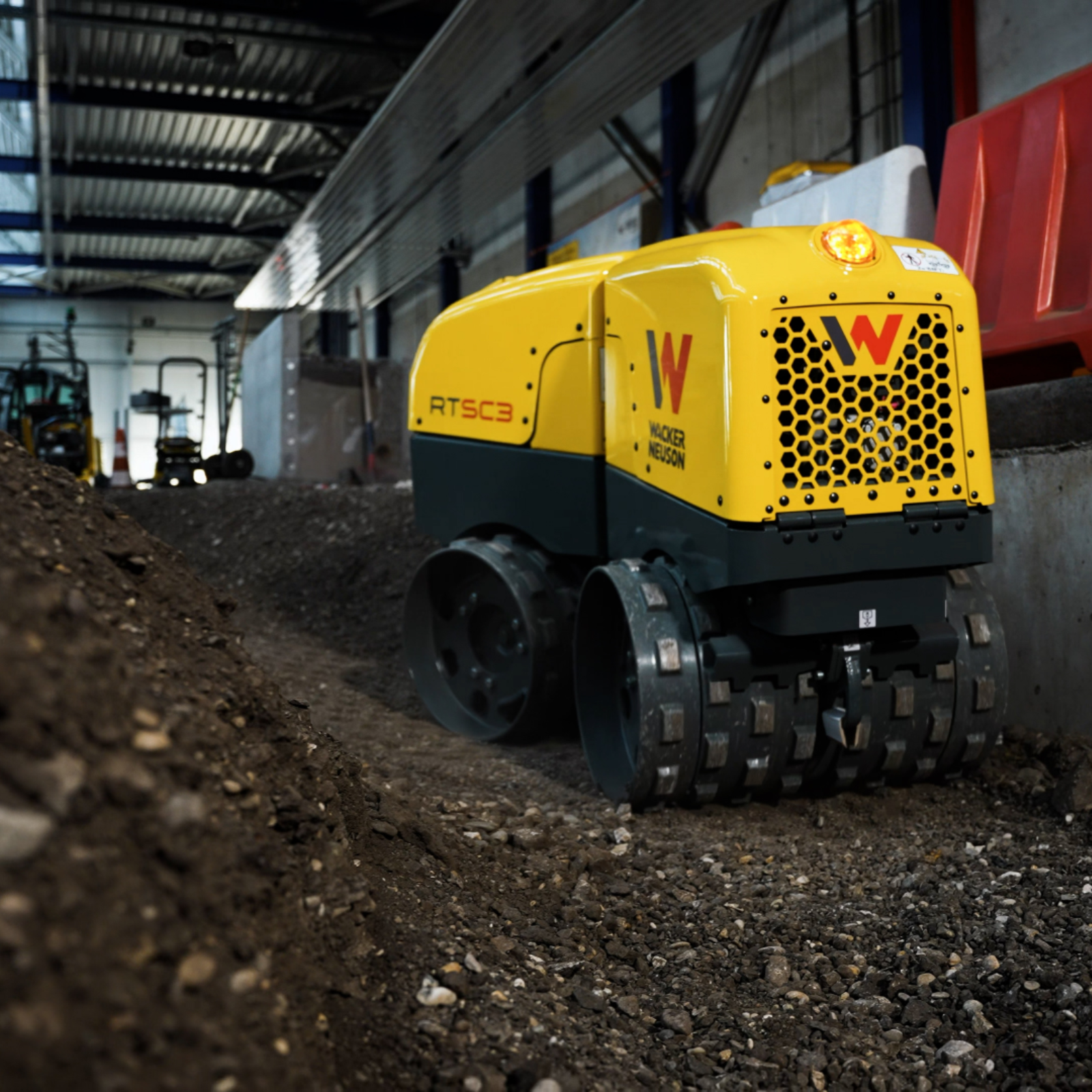

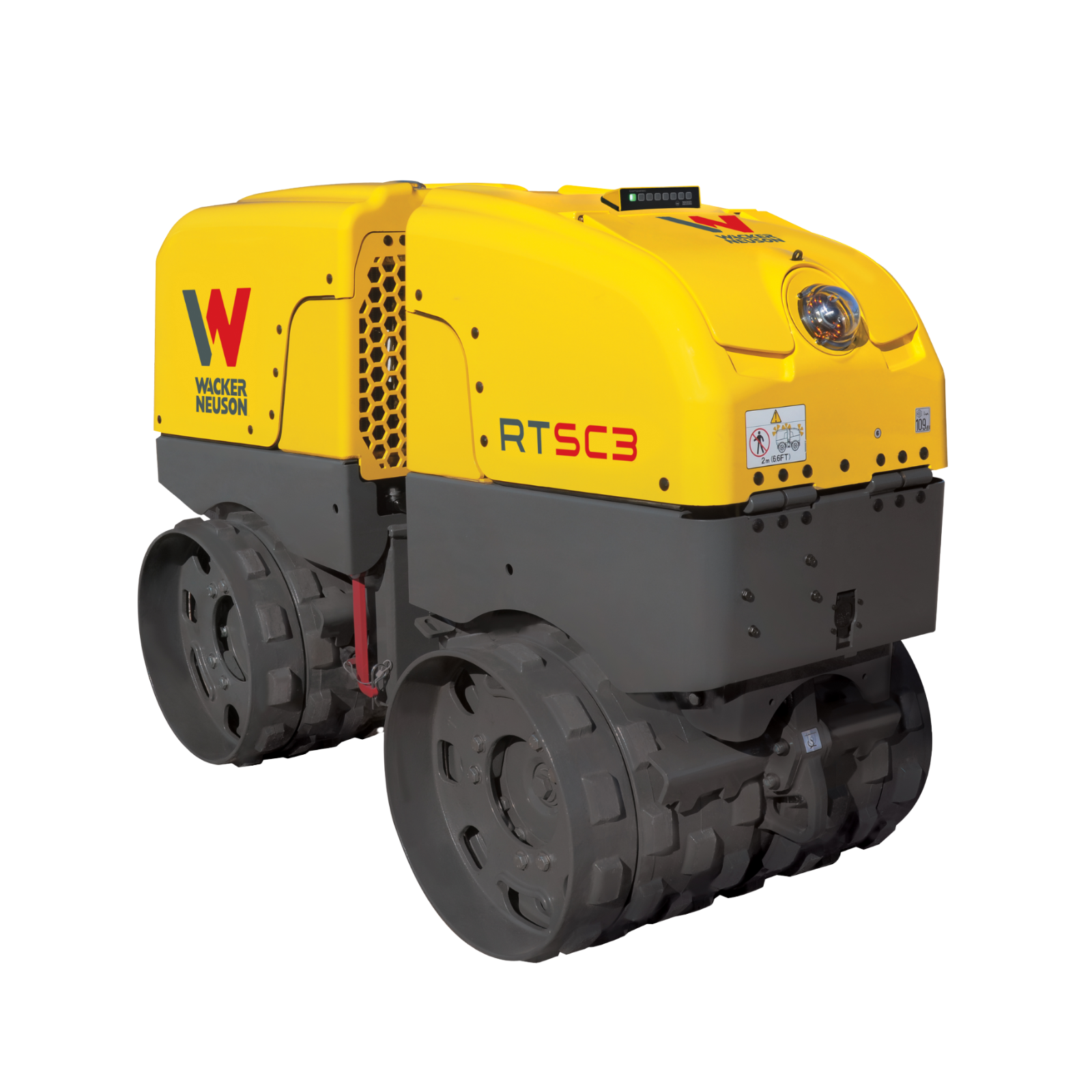

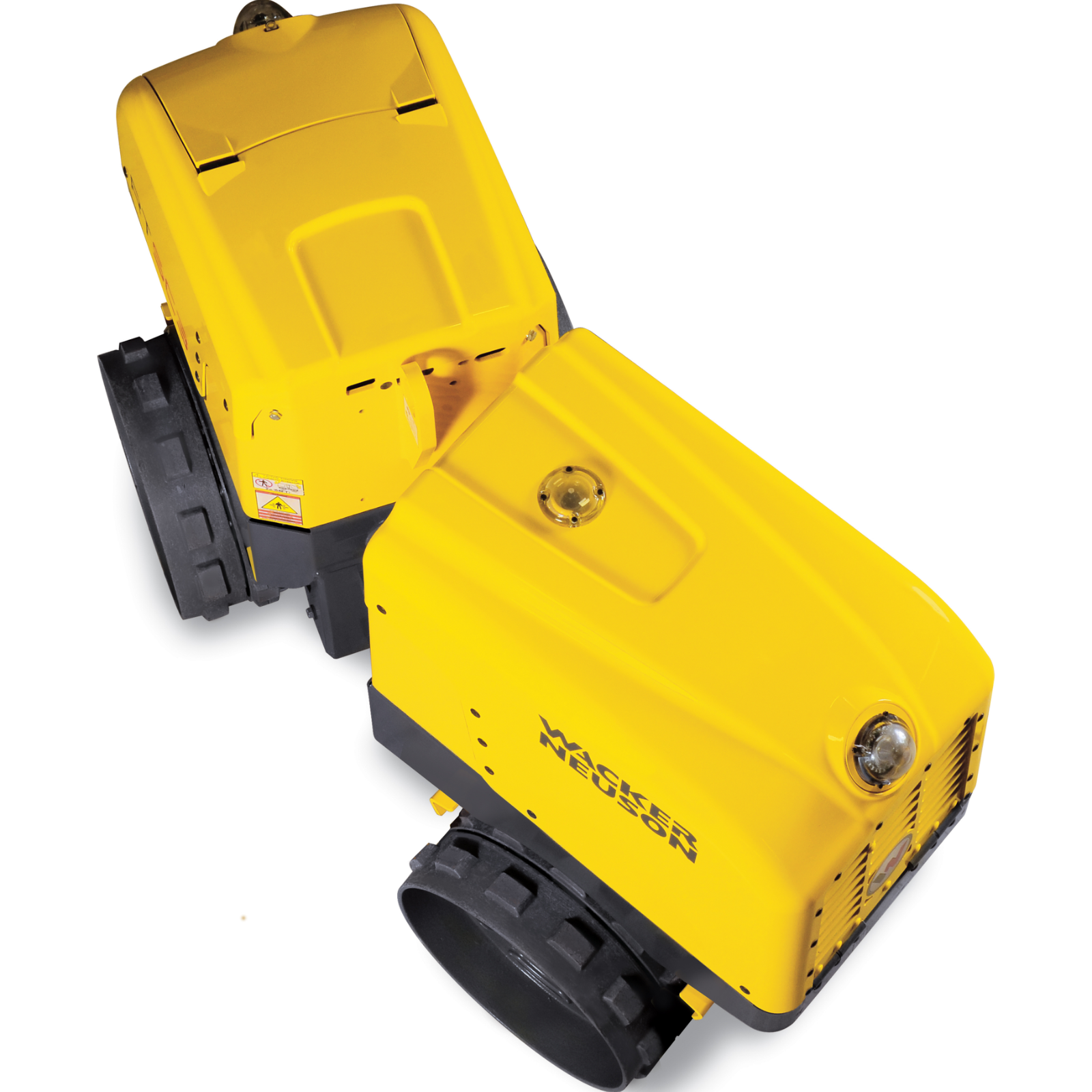

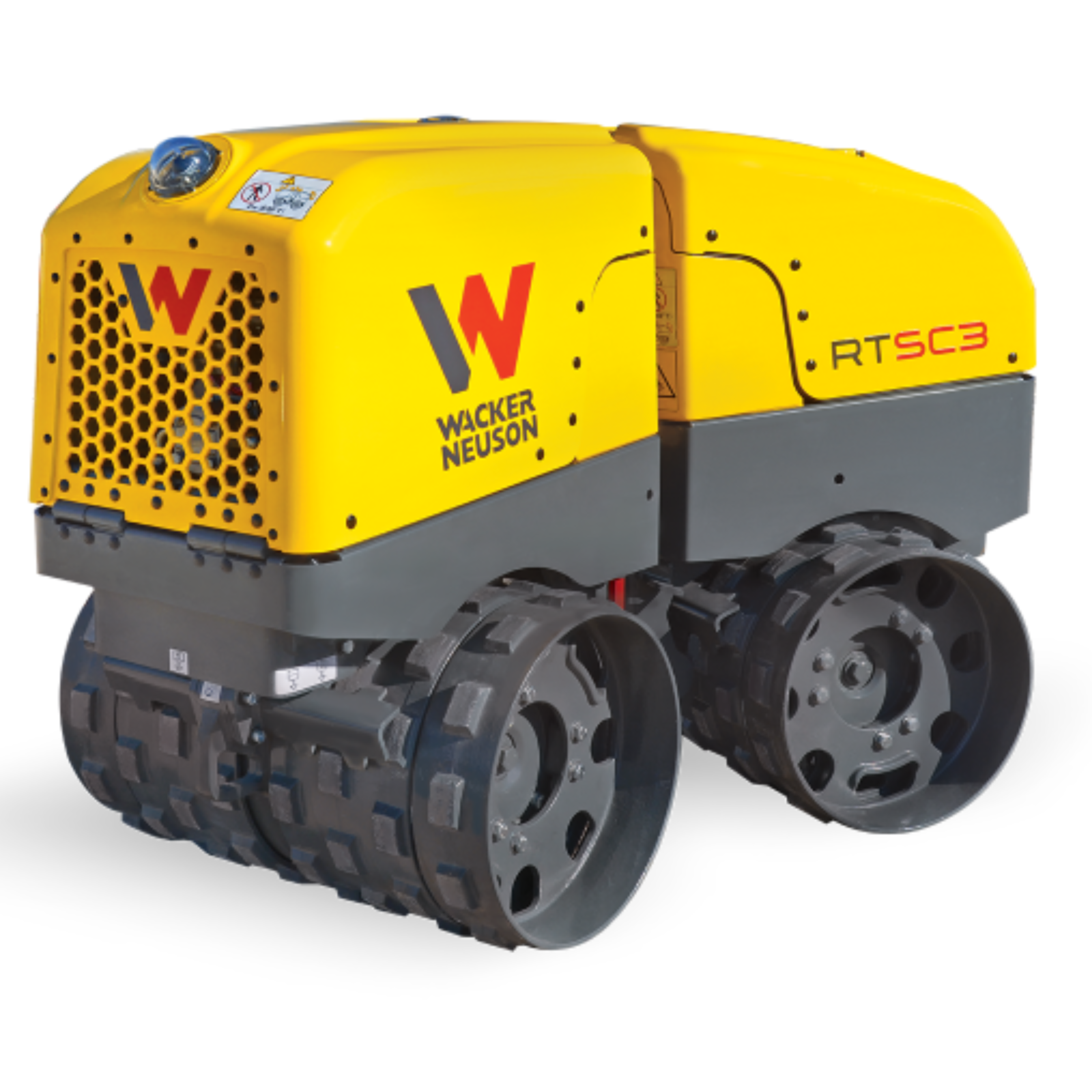

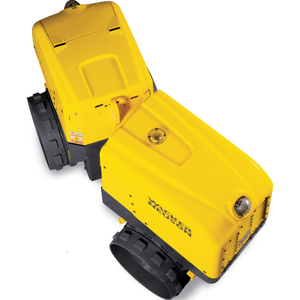

Wacker Neuson RTLx-SC3 Trench Roller:

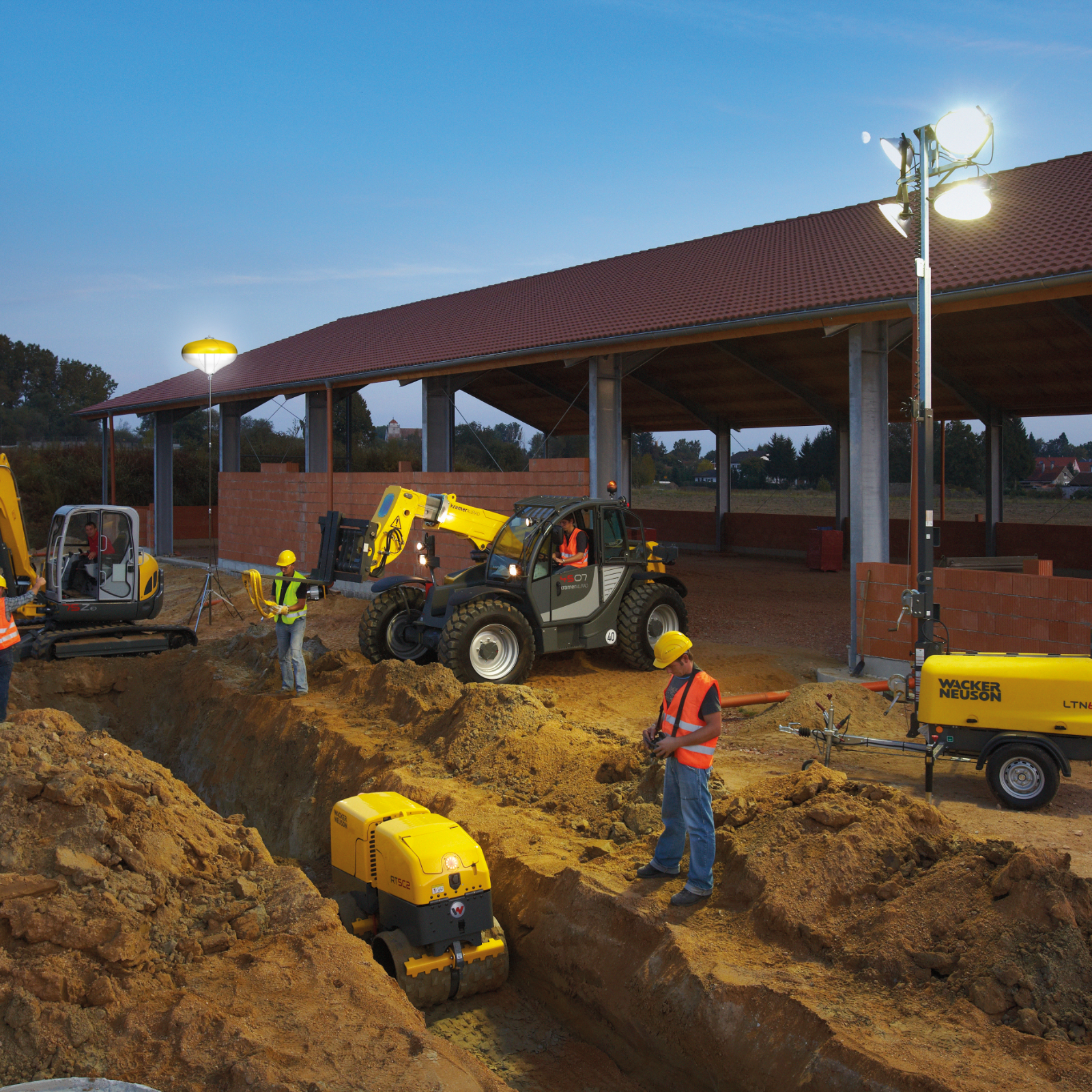

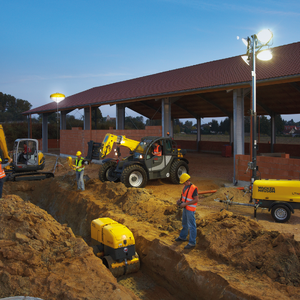

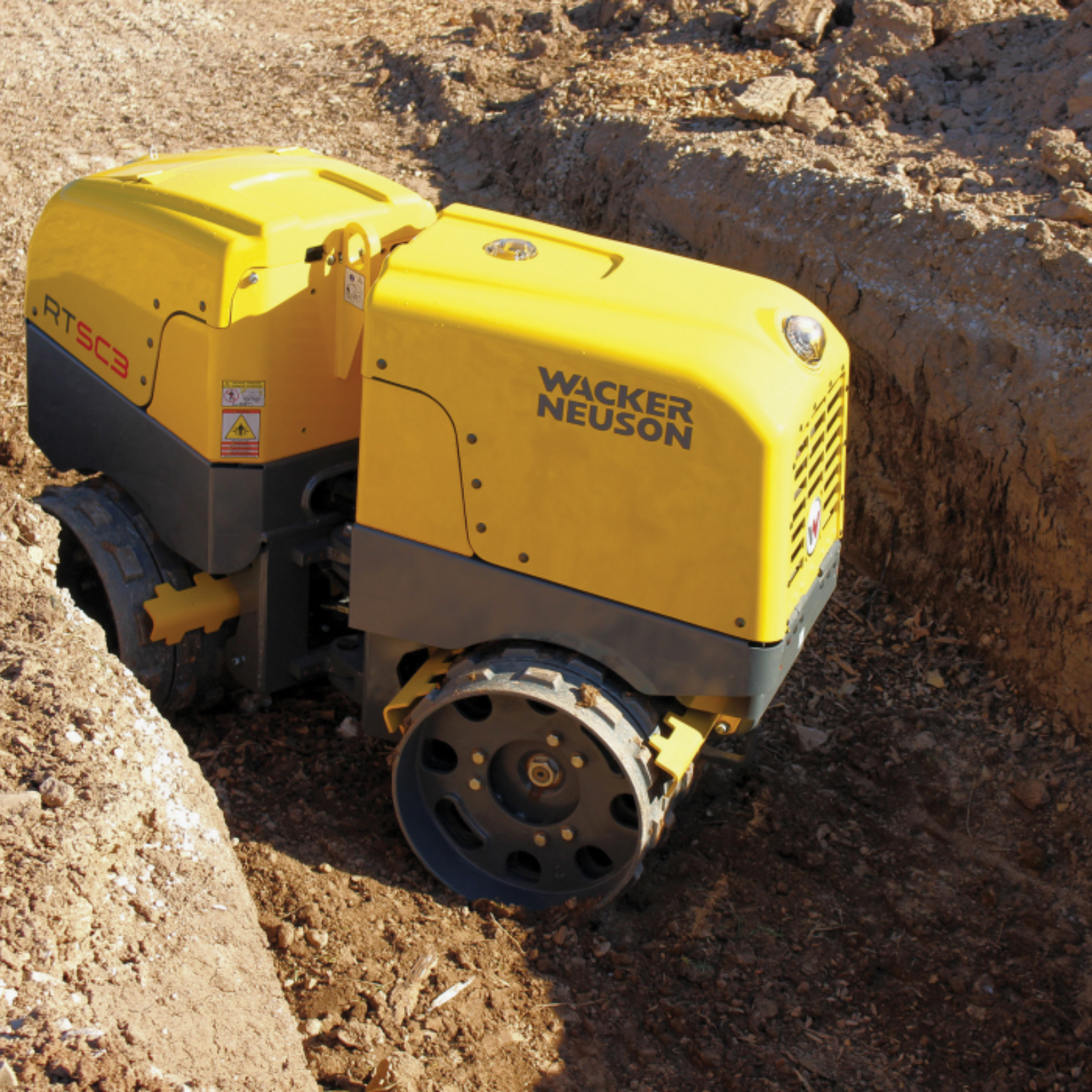

The RT trench roller equipped with the SC3 infrared-remote control ensures exceptional compaction outcomes while prioritizing safety during operation. Its smart control system utilizes an infrared signal and line-of-sight control for precise maneuverability unlike competitors that do not require line-of-sight. With an articulated design and padfoot drums equipped with a below-axle exciter, the RT trench roller efficiently transfers compaction energy to the soil, resulting in superior compaction results. This makes it especially well-suited for compacting excavations, sub bases of foundations, roads, and parking lots.

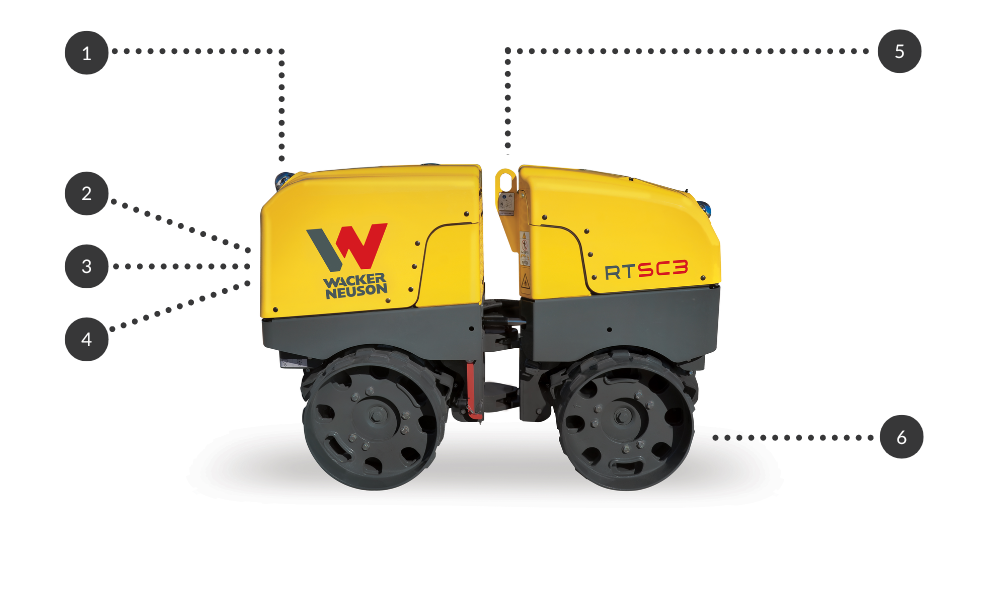

Key Features:

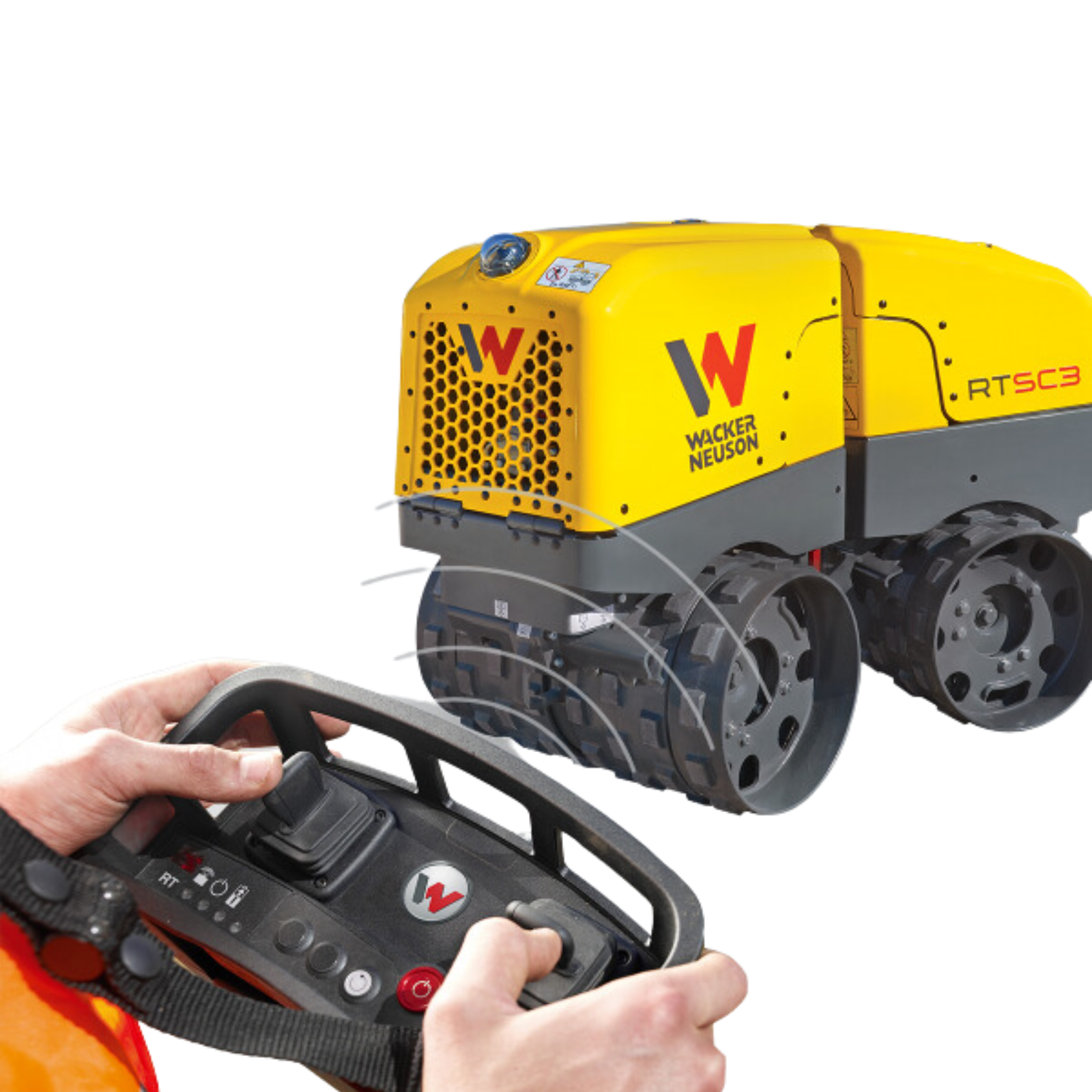

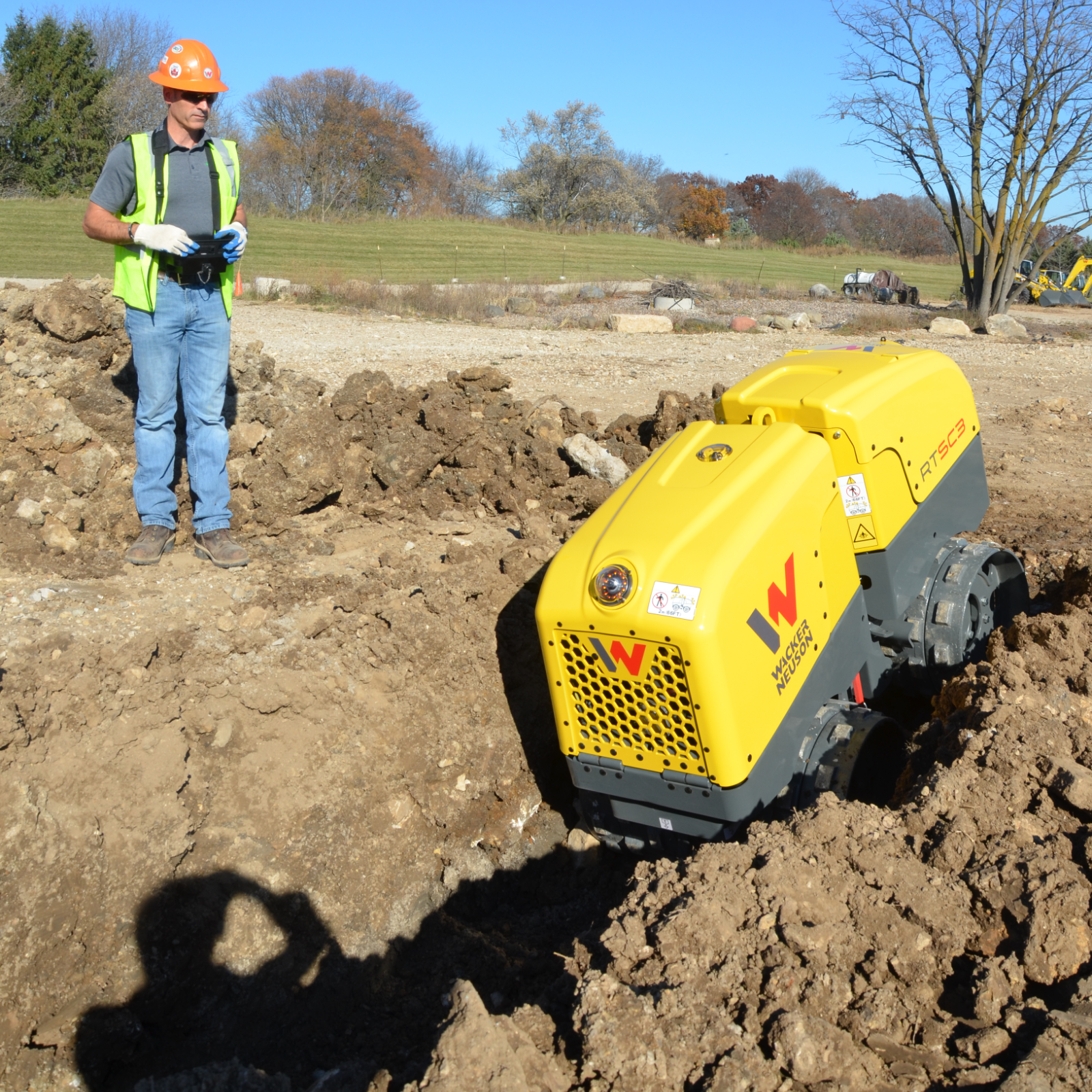

1.	Safety	Line-of-sight infrared technology. Remote must be able to "see" roller to function lowering the risk of injury. Remote conrol distance control stops machine function when too close to operator. Low centre of gravity with below axel mounted motors and exciters.
2.	Cooling	High efficiency water cooler. High efficiency hydraulic oil cooler.

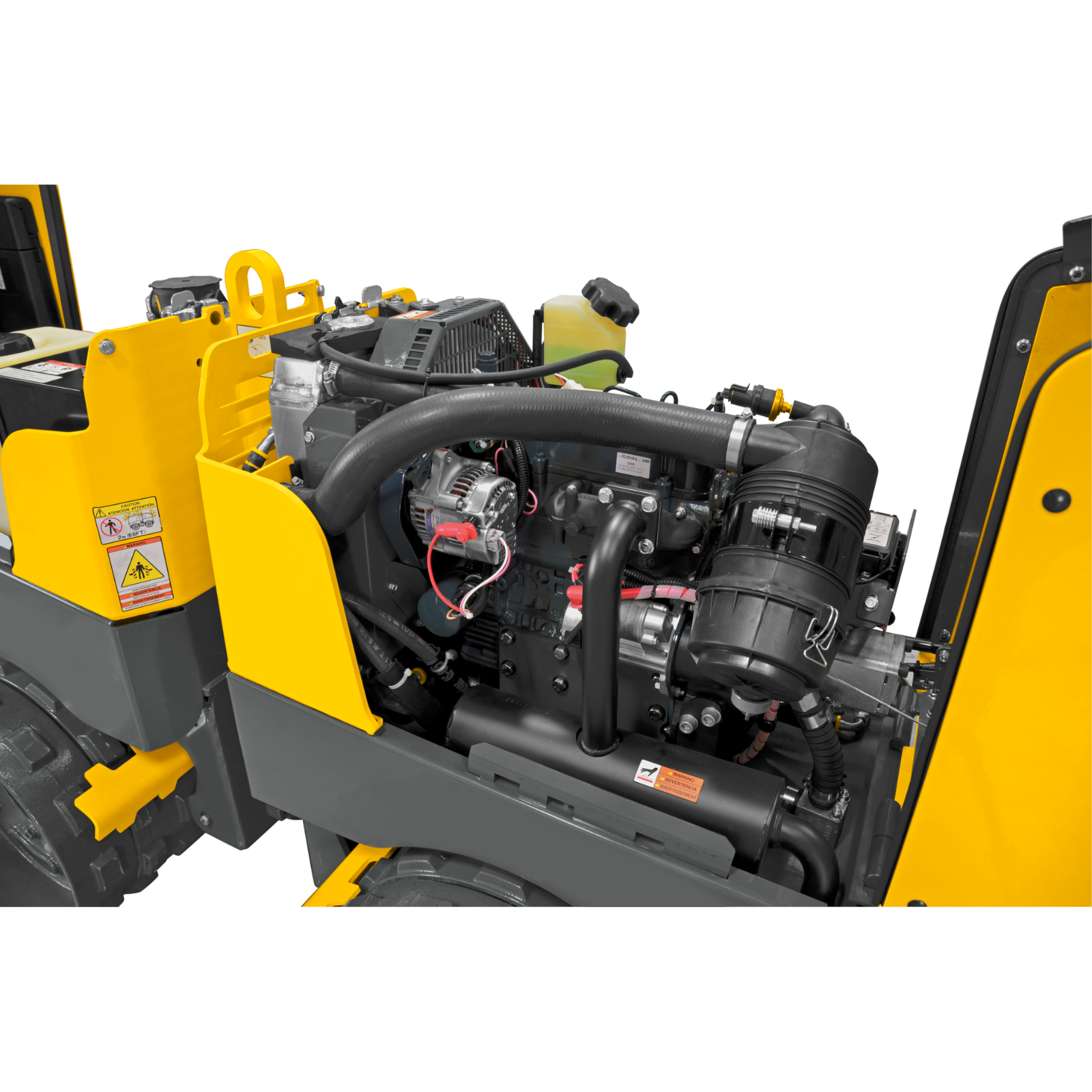

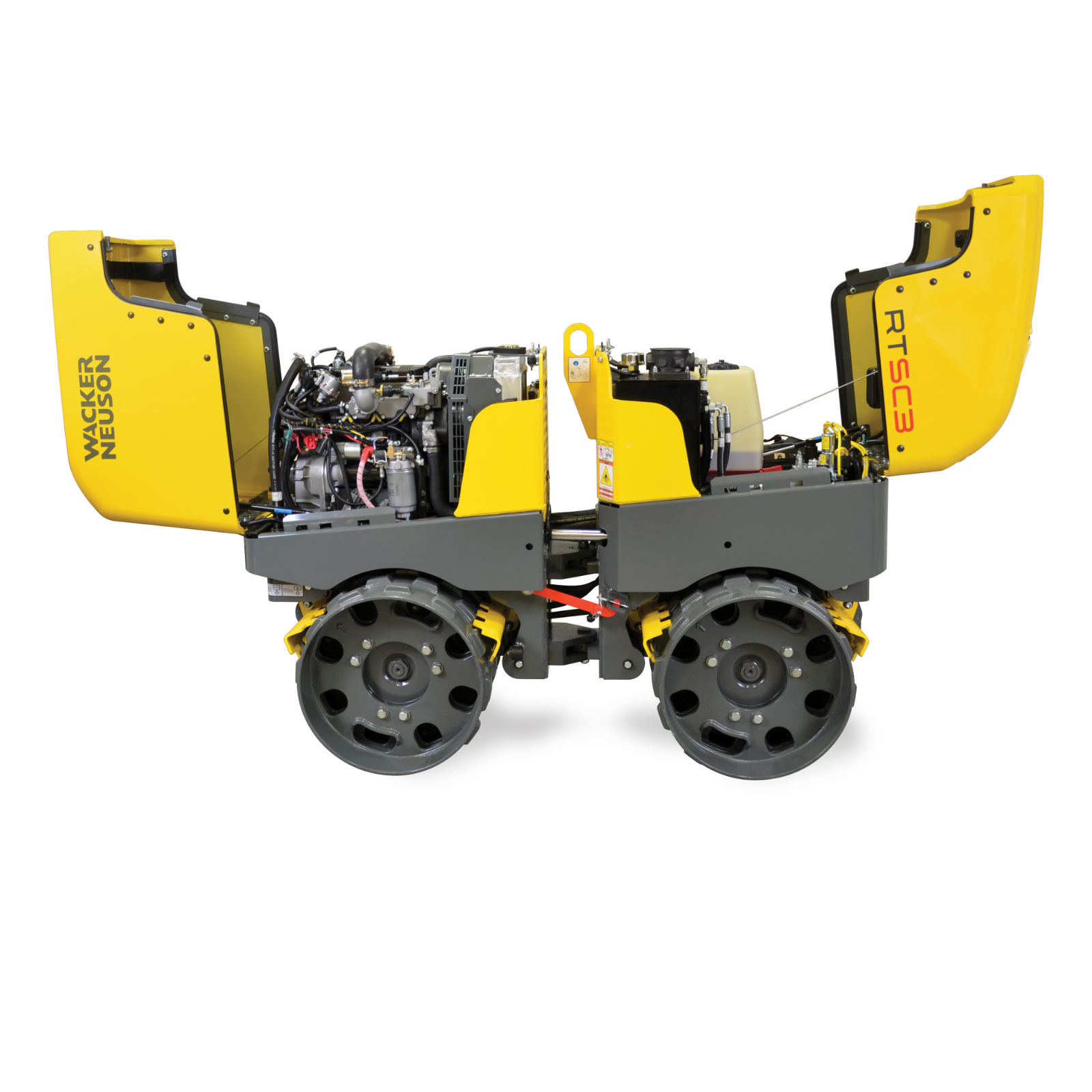

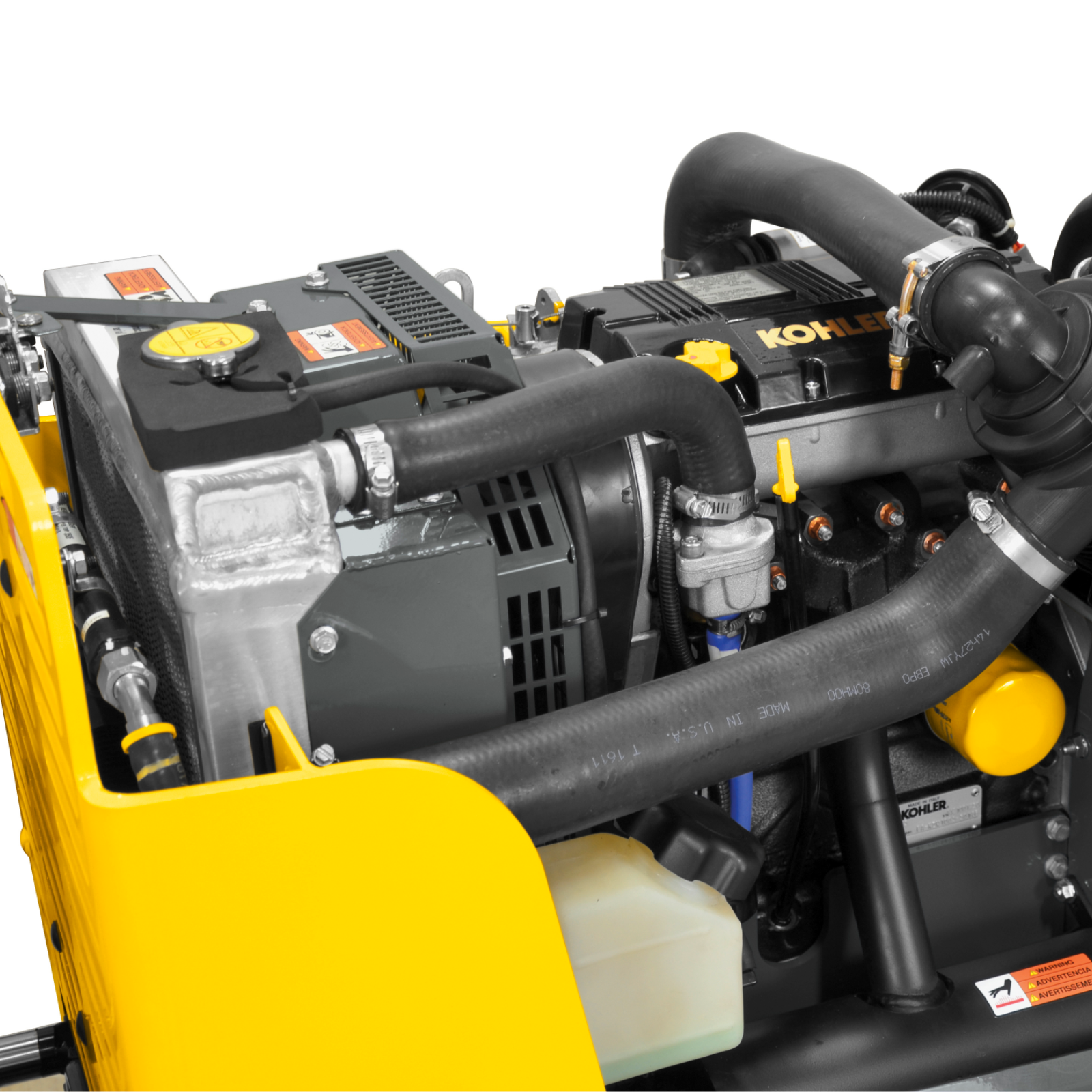

3.	Power	Powerful Kohler Diesel Engine. Hydrostatic Drive. Both Drums Driven by hydraulic motors.
4.	Efficiency	Fuel Efficient EFI Diesel Engine. Super efficient hydrostatic drive system with integrated oil cooler. Fixed displacement pump separated from drive system to power steering and vibration. Oil cooler to reduce heat build up and efficiency losses in hydraulic system. Front drum vibration combined with static rear drum offer high efficiency in a compact stature.
5.	Versatility	Central Lifting Point for crane use. Multipe tie down and tow points. Tip sensor if rolled over.

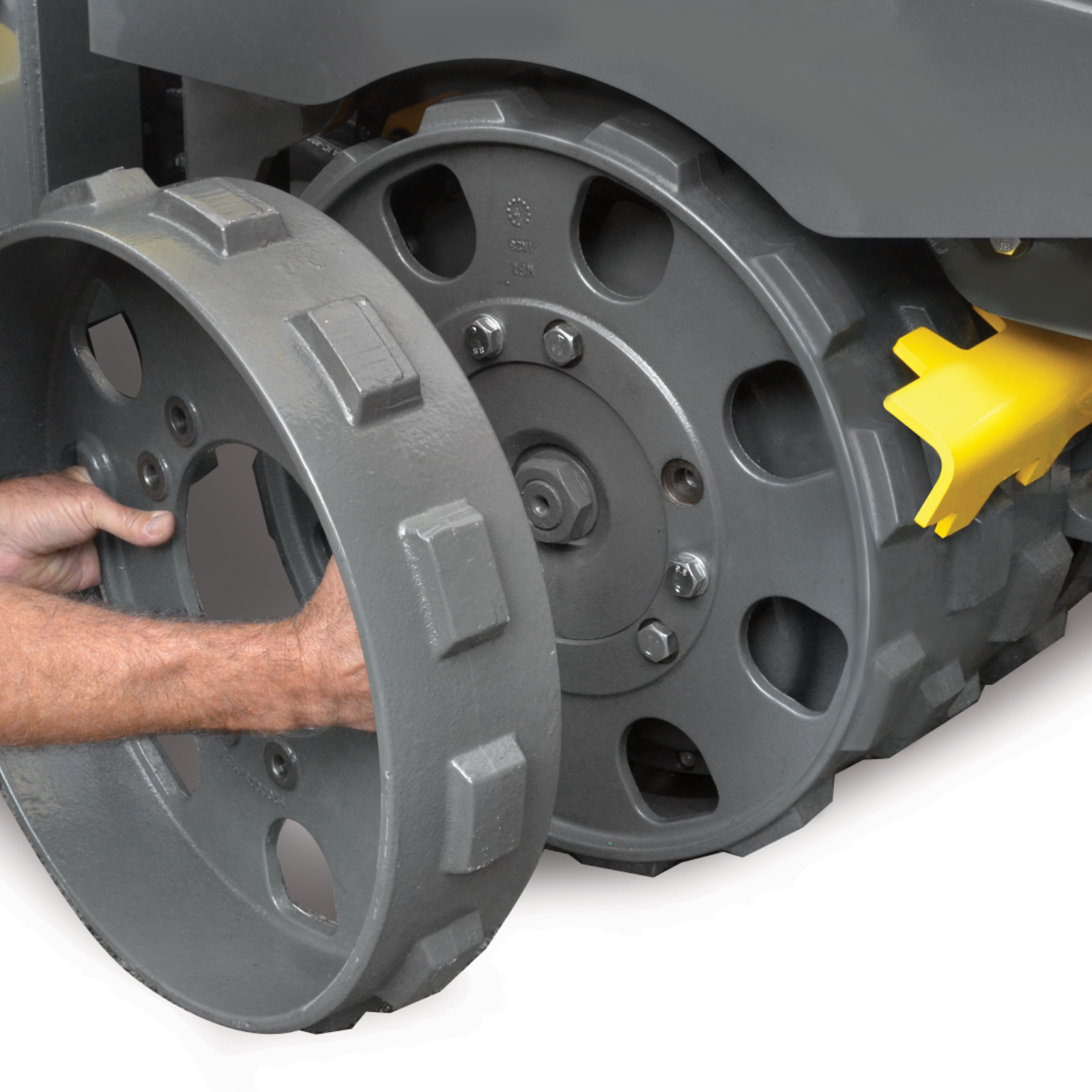

6.	Options	Bolt on Drum extnsions standard Tier 1 Safety Kit (E-Stop, FIre extinguisher etc.)

(RTLx-SC3)

General:

Operating Weight Max.	1,465 kg
Dimensions (L x W x H)	1,853 x 860 x 1,268 mm

Engine:

Manufacturer	Kohler
Construction	3-cyl liquid cooled
Engine output	14.8 kW (19.8HP)

Hydraulics:

Drive	Hydrostatic Transmission
Motors	Front & Rear
Exciter	Front & Rear
Steering	Fixed Displacement

Compaction:

Centrifugal force	34 kN per drum
Centrifugal force (Max)	68.4 kN
Ocillation Angle	0
Pad Height	16 mm
Pad Area	23 cm2

Operating Data & Dimensions:

Drum width	560 / 820 mm
Drum diameter	520 / 550 mm
Side clearance	0
Curb clearance	0
Travel speed	2.5 km/h
Turning radius outside	1,600 mm
