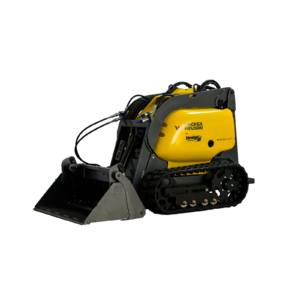

Dingo SM325-27T

27Hp Diesel Tracked Mini Loader

Wacker Neuson SM325-27T by Dingo - 27HP Diesel Tracked Mini Loader:

SM325-27T is the perfect workhorse for the worksite, powered by a reliable 3-cylinder Yanmar diesel engine.  The large displacement twin pump system delivers smooth consistent power to the tracks and attachments while performing multiple functions simultaneously.  The low centre of gravity gives best in class traction and lift capacity with up to 30% more pushing force than competitors.

Key Features:



1. Safety
  • 180° access to platform reduces risk of operator being trapped in roll over.
  • Low centre of gravity increases stability.
  • Soft touch controls reduce risk of operator being thrown from machine during operation.
  • Central tie down points for safe transportation.
  • All machines sold by ACES have an OHS Risk assessment prior to delivery.
2. Quality
  • Industry leading 5 Year / 5000 hour warranty.
  • Powder coated finishes for long life without fading or corrosion.
  • Grease free maintenance on pins and bushes.
3. Power
  • Powered by Yanmar 3TNV76 27HP engine
  • Class leading 27HP hydraulic system
  • 2 Pump system, 3,200PSI relief pressure
4. Efficiency
  • 76L hydraulic tank for efficient cooling of system without additional cooler needed greatly reducing efficiency losses.
  • 325kg SWL for low 1,093kg machine mass.
  • Efficient 2 wheel motor, direct drive to sprocket track system.
5. Cooling
  • Efficicent liquid-cooled diesel engine.
  • Fan motor forces hot air away from the operator not into the operator like competitors.
  • No hydraulic cooler needed, large hydraulic tank keeps oil at optimal temperature during demanding operations.
6. Traction
  • All wheel drive system with motors specifically designed for Dingo.
  • Square wheel PCD for optimal traction vs track life.
7. Versatility
  • Flow divider for infinite flow control between drive and auxiliary functions.
  • 1,835mm lift height for over fencing dumping and easy loading.
8. Auxiliary Hydraulics
  • Dual two way auxiliary piping.
  • Auxiliaries fitted with poppet style couplings for easy fitting of attachments.
  • 47L/min standard flow perfect for running a range of attachments such as trenchers, flail mowers and augers.
  • Second set of auxiliary couplings perfect for 4-in-1 bucket operation.
9. Hitch
  • SAE Mini multifit pickup.
  • Superior cast hitch for added strength and longevity.
10. Attachments
  • SAE Mini multifit hitch for full range of attachments.
  • High capacity hydraulics capable of running a full range of attachments.
  • Full range of attachments available including buckets, grapples, forks, mixers, augers, hammers and much more.

(SM325-27T)

General:

Operating Weight 1,093 kg

Engine:

Manufacturer Yanmar
Model 3TNV76
Construction Liquid cooled 3-cylinder diesel engine
Displacement 1,116 cm³
Engine Output according to ISO 19.9 kW (27 HP)

Hydraulics:

Auxiliary Hydraulics - Standard 47 L/min
Operating Pressure for working hydraulics 220 bar
Construction 2 Pump
Pump Size 11 & 4 cc

Undercarriage:

Construction Direct Drive, 2 wheel motors
Track Width 230 mm

Operating Data:

Rated Capacity (WWL) 325 kg
Travel Speed 7.5 km / h

Capacities:

Hydraulic tank 76 L

Working Dimensions:

A Overall width 850 - 1,050 mm
B Overall Length 1,600 mm
C Overall Height 1,200 mm
D Max operating height 4-in-1 2,080 mm
E Turning radisu with 4-in-1 1,300 mm
F Angle of departure 25º
G Wheel base 800 mm
H Ground clearance 135 mm
I Dump height - GP 1,450 mm
J Dump height - 4-in1 1,835 mm
K Reach - Raised 4-in-1 800 mm
L Height to hinge pin 1,940 mm
M Width with 4-in-1 1,050 mm

Specifications subject to change without notice due to continual product development.

SKU SM325-27T

Be The First To Review This Product!

Help other P.C. Arbuckle Propriety Limited users shop smarter by writing reviews for products you have purchased.

Write a product review


Others Also Bought

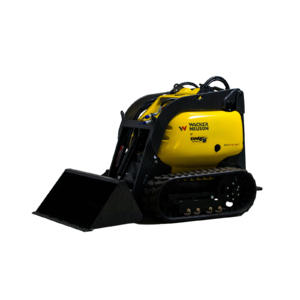

Dingo SM275-19T

Dingo SM275-19T

20Hp Diesel Tracked Mini Loader

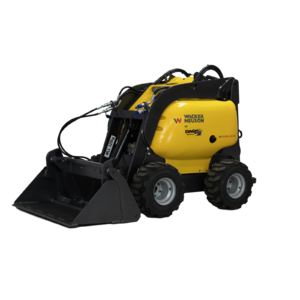

Dingo SM325-27W

Dingo SM325-27W

27Hp Diesel Wheeled Mini Loader

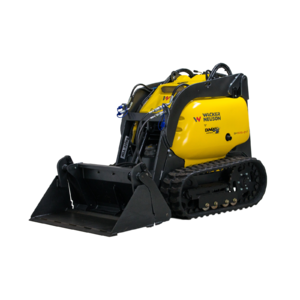

Dingo SM325-24T

Dingo SM325-24T

23Hp EFI Petrol Tracked Mini Loader

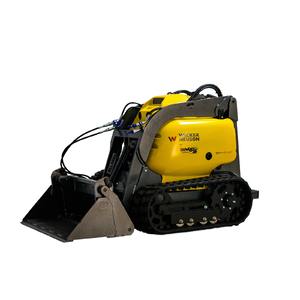

Dingo SM440-31T

Dingo SM440-31T

27Hp Diesel Tracked Mini Loader

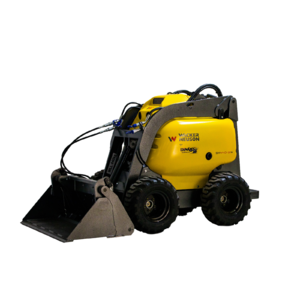

Dingo SM440-31W

Dingo SM440-31W

27Hp Diesel Wheeled Mini Loader


More From This Category


Dingo SM275-19T

Dingo SM275-19T

20Hp Diesel Tracked Mini Loader

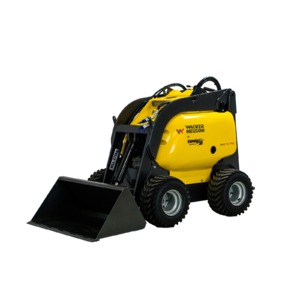

Dingo SM275-19W

Dingo SM275-19W

20Hp Diesel Wheeled Mini Loader

Dingo SM325-24T

Dingo SM325-24T

23Hp EFI Petrol Tracked Mini Loader

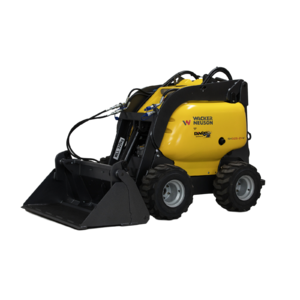

Dingo SM325-24W
