Auger Drives

Digga Auger Drives come feature packed with the latest in cutting edge design.

  • Compact, high torque Digga manufactured gearbox.
  • No case drain required.
  • Drive fits in the hole for greater depth.
  • Extreme duty shaft locking system.
  • Top mounted hose ports
  • Lifetime shaft pull out warranty
  • 5 year gearbox warranty
  • 3 year motor warranty

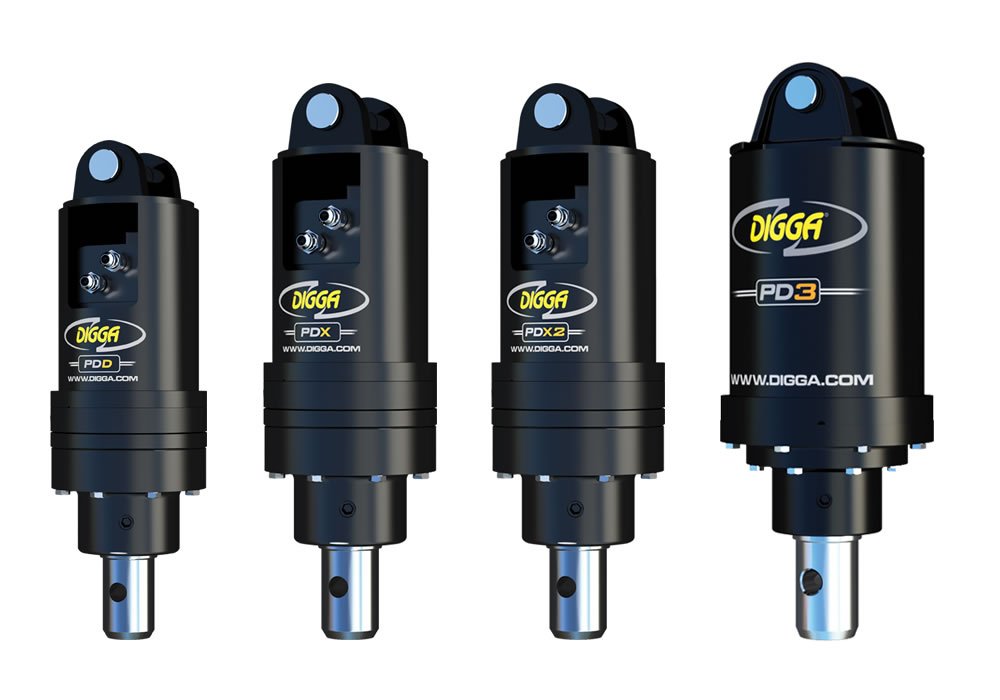

Specification PDD PD2 PDX2 PD3
Recommended flow 15 - 45 l/min 20 - 50 l/min 30 - 50 l/min 45 - 75 l/min
Max. torque 1171 Nm 1743 Nm 2307 Nm 3544 Nm
Motor 2K Bell Eaton 2K Bell Eaton 2K Bell Eaton 2K Bell Eaton
Pressure valve Optional Optional Optional Optional
Energy control valve N / A N / A N / A N / A
Case drain required No No No No
Max. pressure 240 Bar 240 Bar 240 Bar 240 Bar
Max. flow 95 l/min 95 l/min 95 l/min 115 l/min
Max. power 25 kW 25 kW 25 kW 25 kW
Overall length 500 mm 557 mm 557 mm 579 mm
Diameter 187 mm 187 mm 187 mm 240 mm
Weight (no frame/hitch) 41 kg 45 kg 45 kg 56 kg
Std. output shaft 65 mm Round 65 mm Round 65 mm Round 65 mm Round
Swing control N / A N / A N / A Optional
Diggalign N / A N / A N / A Optional
Rec. auger A4 A4 A4 A4
Max. auger dia. (clay/shale) 400 mm 400 mm 450 mm 600 mm
Max. auger dia. (earth) 500 mm 500 mm 600 mm 75

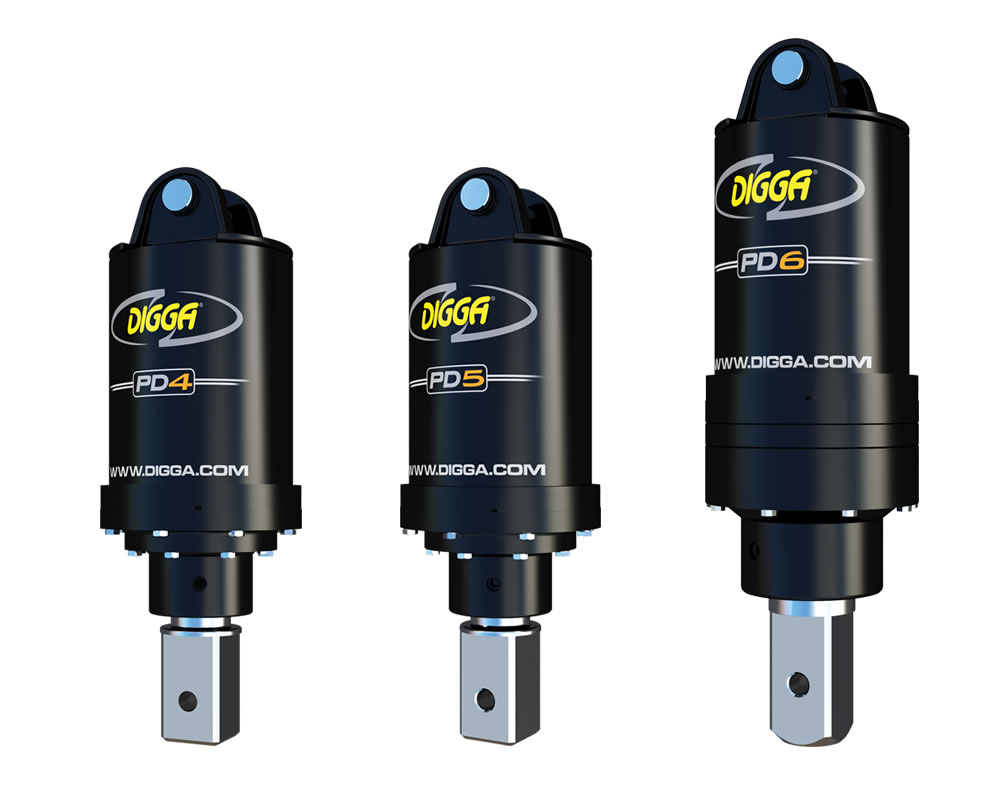

Specification PD4 PD5 PD6
Recommended flow 55 - 85 l/min 60 - 95 l/min 70  - 115 l/min
Max. torque 4448 Nm 5151 Nm 5596 Nm
Motor 2K Bell Eaton 2K Bell Eaton 2K Bell Eaton
Pressure valve Optional Optional Optional
Energy control valve N / A N / A N / A
Case drain required No No No
Max. pressure 240 Bar 240 Bar 240 Bar
Max. flow 115 l/min 115 l/min 115 l/min
Max. power 25 kW 25 kW 25 kW
Overall length 579 mm 579 mm 730 mm
Diameter 240 mm 240 mm 240 mm
Weight (no frame/hitch) 56 kg 62 kg 84 kg
Std. output shaft 75 mm Square 75 mm Square 75 mm Square
Swing control Optional Optional Optional
Diggalign Optional Optional Optional
Rec. auger A4 / AGS / A6 / A7 A6 / A7 A6 / A7
Max. auger dia. (clay/shale) 750 mm 900 mm 900 mm
Max. auger dia. (earth) 900 mm 1000 mm 1000 mm

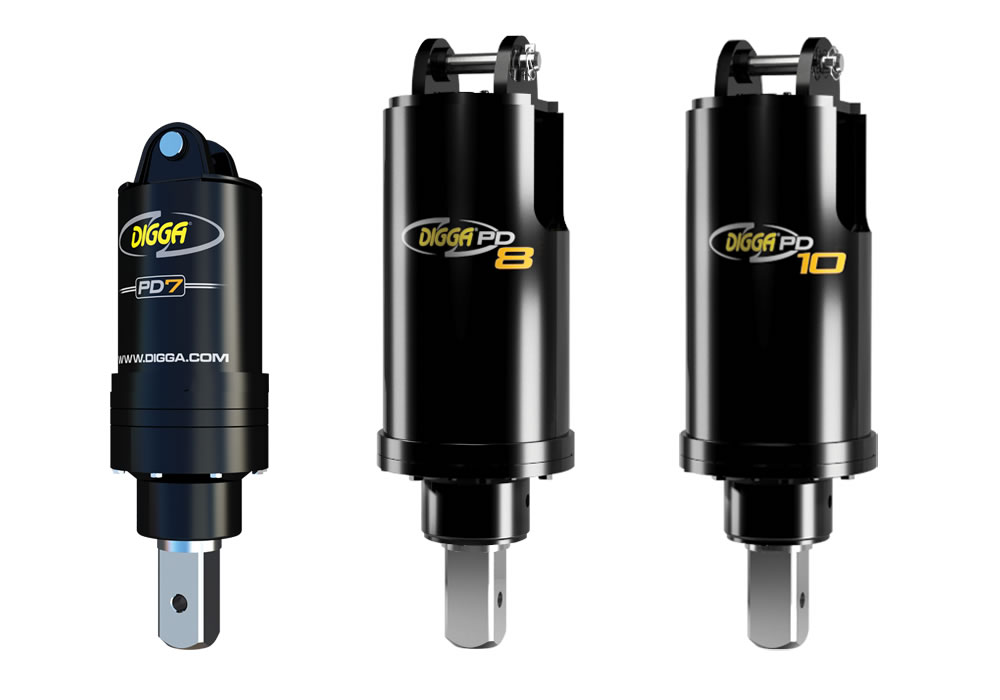

Specification PD7 PD8 PD10
Recommended flow 75 - 115 l/min 80 - 115 l/min 85 - 115 l/min
Max. torque 6040 Nm 7024 Nm 8487 Nm
Motor 2K Bell Eaton 2K Bell Eaton 2K Bell Eaton
Pressure valve Optional Optional Optional
Energy control valve N / A N / A N / A
Case drain required No No No
Max. pressure 240 Bar 240 Bar 240 Bar
Max. flow 115 l/min 115 l/min 115 l/min
Max. power 25 kW 25 kW 25 kW
Overall length 734 mm 854 mm 854 mm
Diameter 240 mm 290 mm 290 mm
Weight (no frame/hitch) 100 kg 107 kg 110 kg
Std. output shaft 75 mm Square 75 mm Square 75 mm Square
Swing control Optional Optional Optional
Diggalign Optional Optional Optional
Rec. auger A6 / A7 A6 / A7 A6 / A7
Max. auger dia. (clay/shale) 900 mm 1000 mm 1000 mm
Max. auger dia. (earth) 1000 mm 1200 mm 1500 mm
