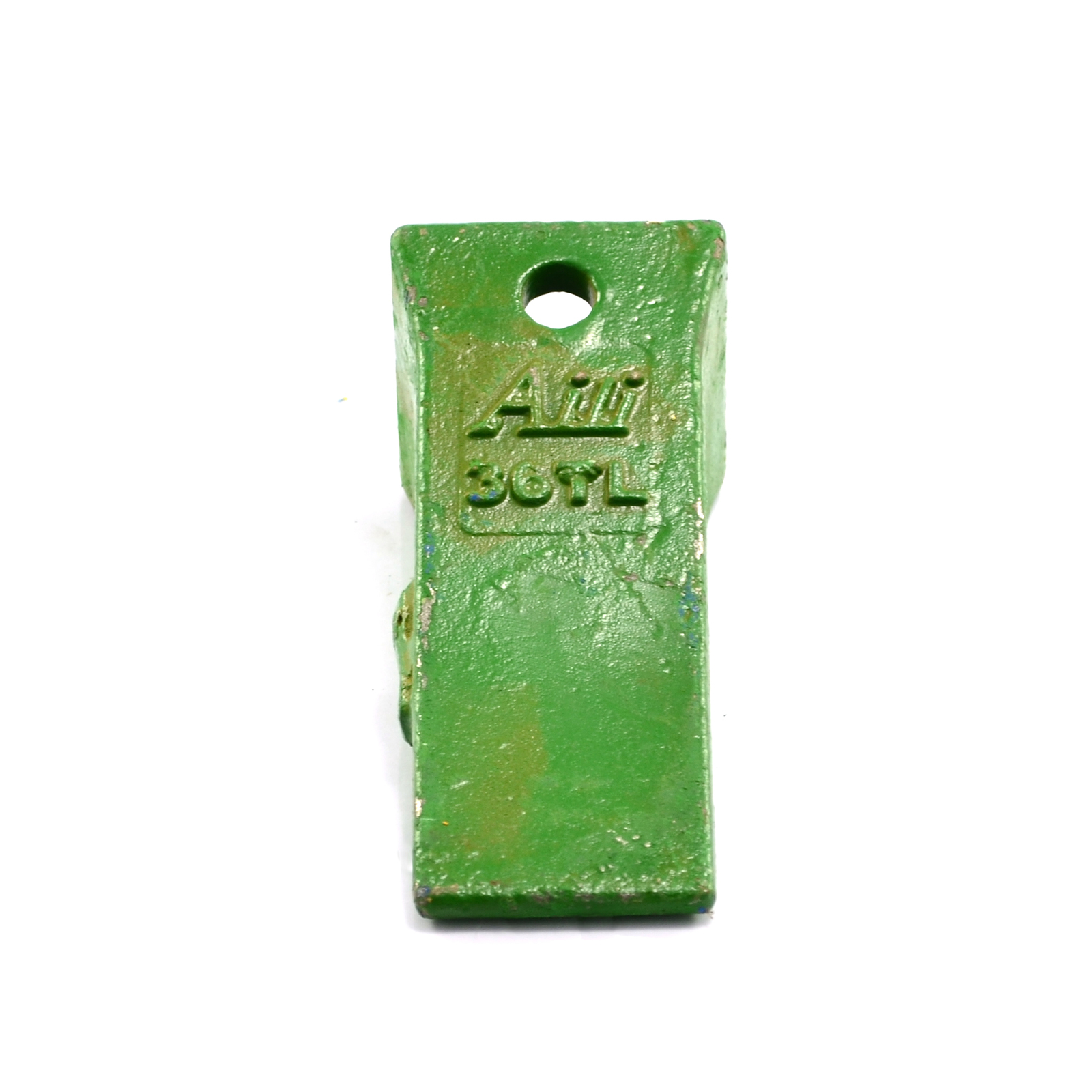

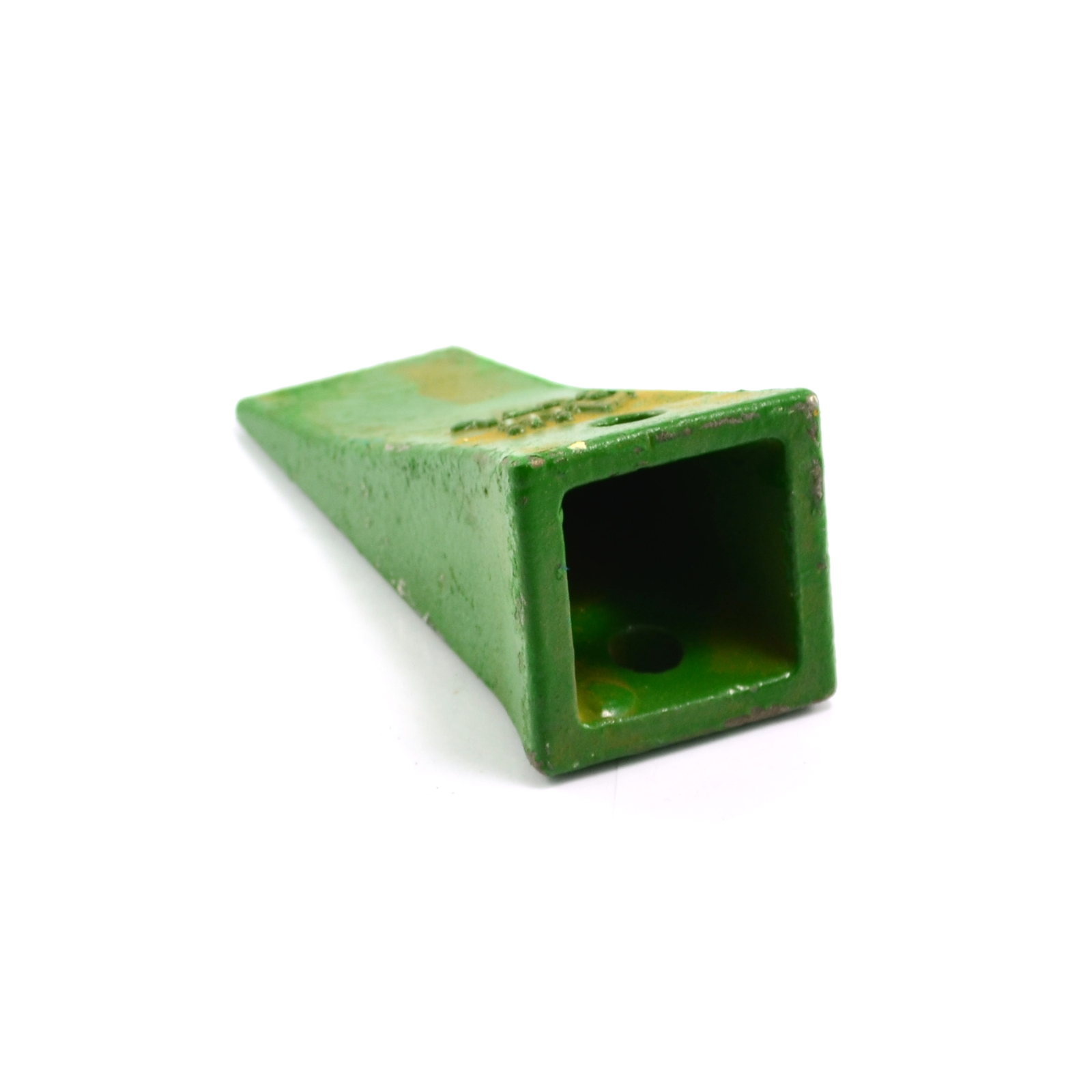

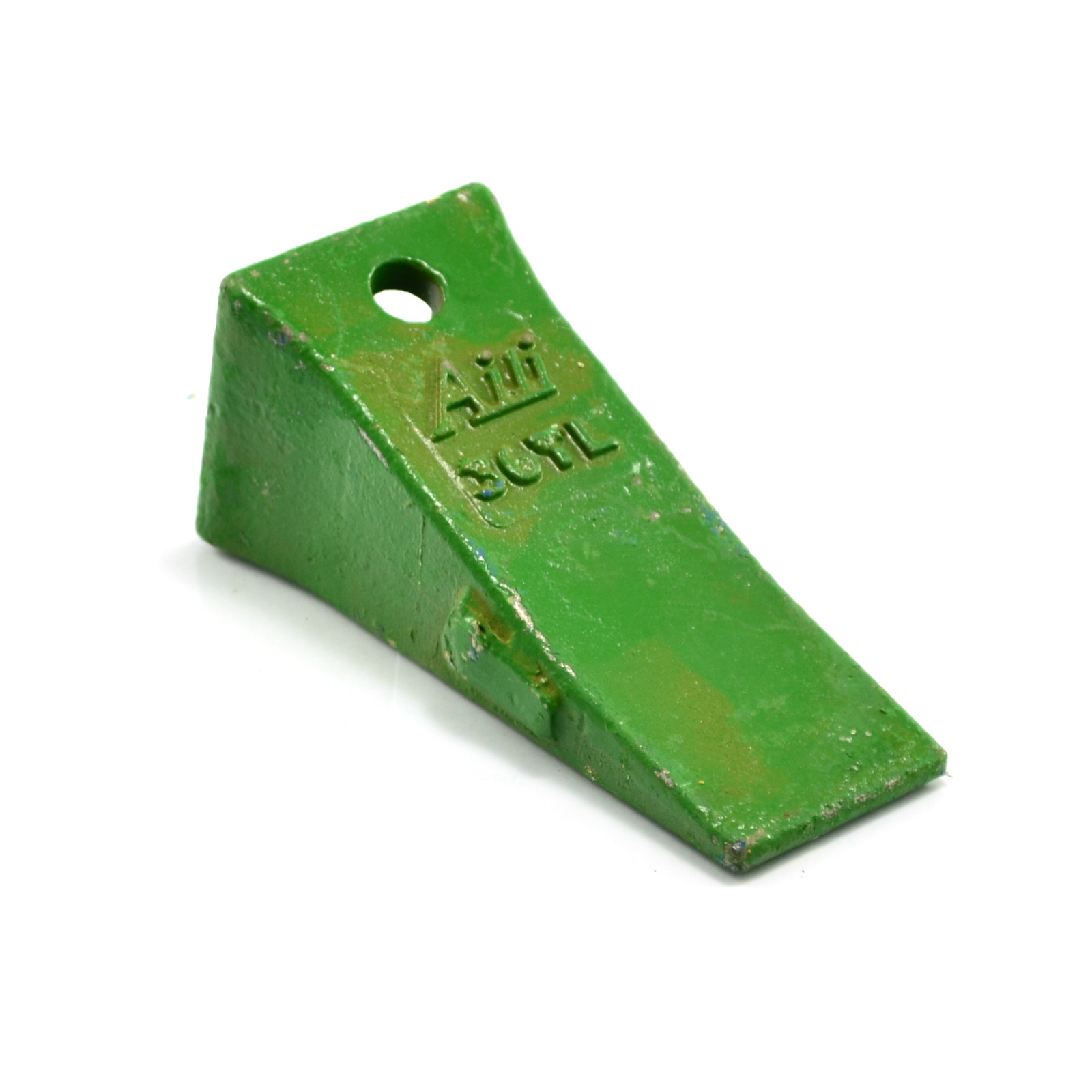

36TL Blade Tooth

36 ECH Roll Pin Style

$12.90
Sold Out
Out of Stock, Call for availability


Calculate Shipping

36 Blade Teeth

36 ECH Roll Pin Style are common teeth in Australia for mini excavators from 3 to 6 tonne.  They are fitted with either two roll pins (one inside another) or with one heavy duty coiled spring pin which is punched in vertically from top to bottom.  These will most likely be the teeth fitted If you have a mini excavator from 3 to 6 tonne with ECH buckets, or a large Skid-Steer Loader with a Hughes Bucket made from 2007 onwards.  These teeth are also interchangeable with Hensely X156 style.

Blade or Twin Tiger?

Blade teeth are great for general purpose work and long life, the large wear area will last longer than twin tip tiger teeth.  Twin tip tiger teeth will penetrate the ground much easier than blade teeth due to sharper points on the teeth, however they will wear faster than blade teeth due to the smaller wear area than blade teeth.  The general rule of thumb is to use blades for normal work and tigers when the ground is too hard and the machine is struggling to dig.

ACES Teeth

Aces Teeth are manufactured to the highest quality standards available.  All our teeth are manufactured using the Lost Wax Investment Casting process rather than the old fashioned sand casting process.  This ensures higher tolerances on the teeth and adapters during casting.  All teeth and adapters are made from high quality alloy steel to achieve an impact strength of greater than or equal to 20J. They are also hardened from 47-52 HRC for extremely long wear life.

(36TL)

Fitting Specifications:

Width 41 mm
Height 41 mm
Depth 58 mm

Shipping Specifications:

SKU 36TL
Shipping Weight 1.0000kg
Shipping Width 0.060m
Shipping Height 0.060m
Shipping Length 0.130m
Shipping Cubic 0.000325m3
