1U3202 Blade Tooth

CAT J200 Style

$12.90
In Stock


Calculate Shipping

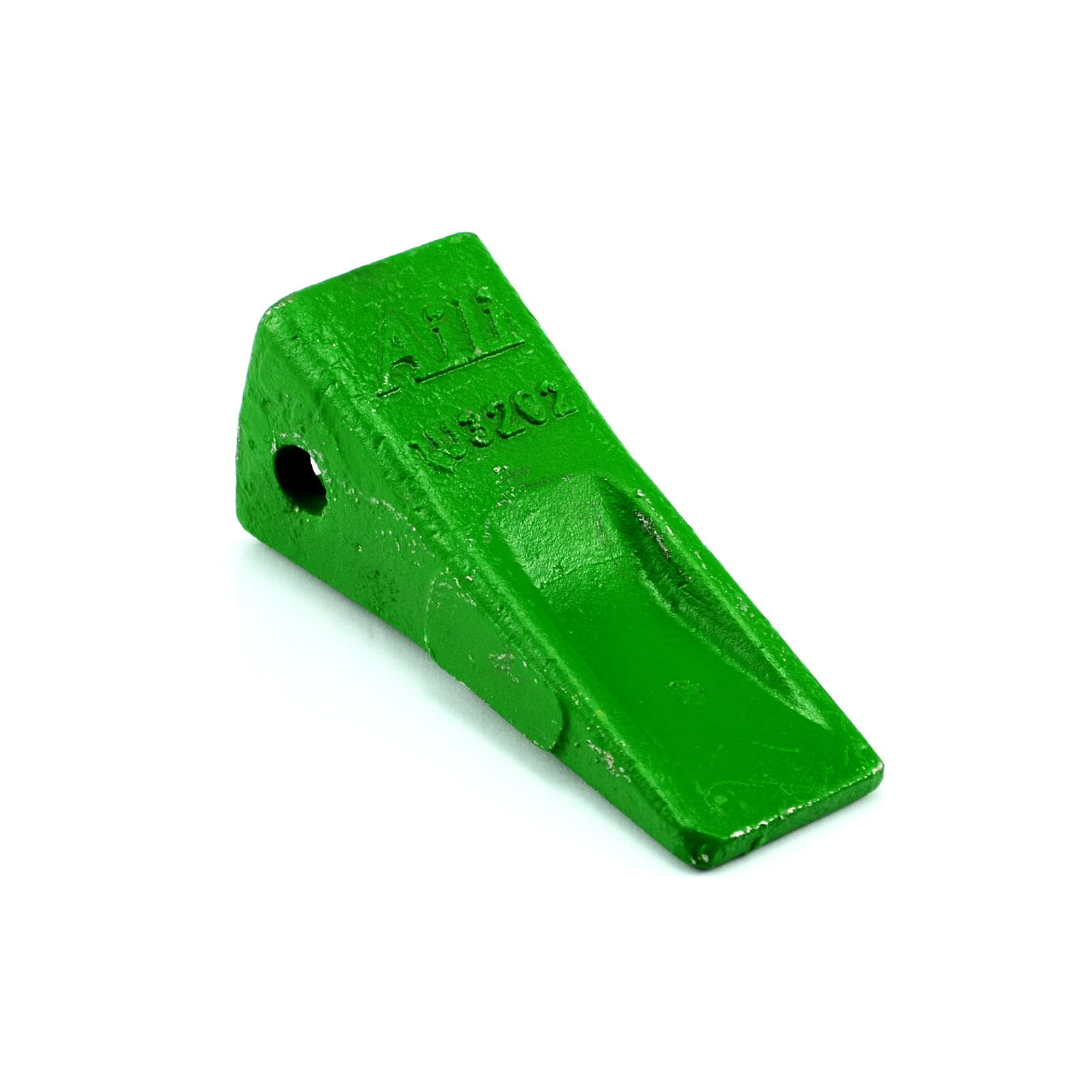

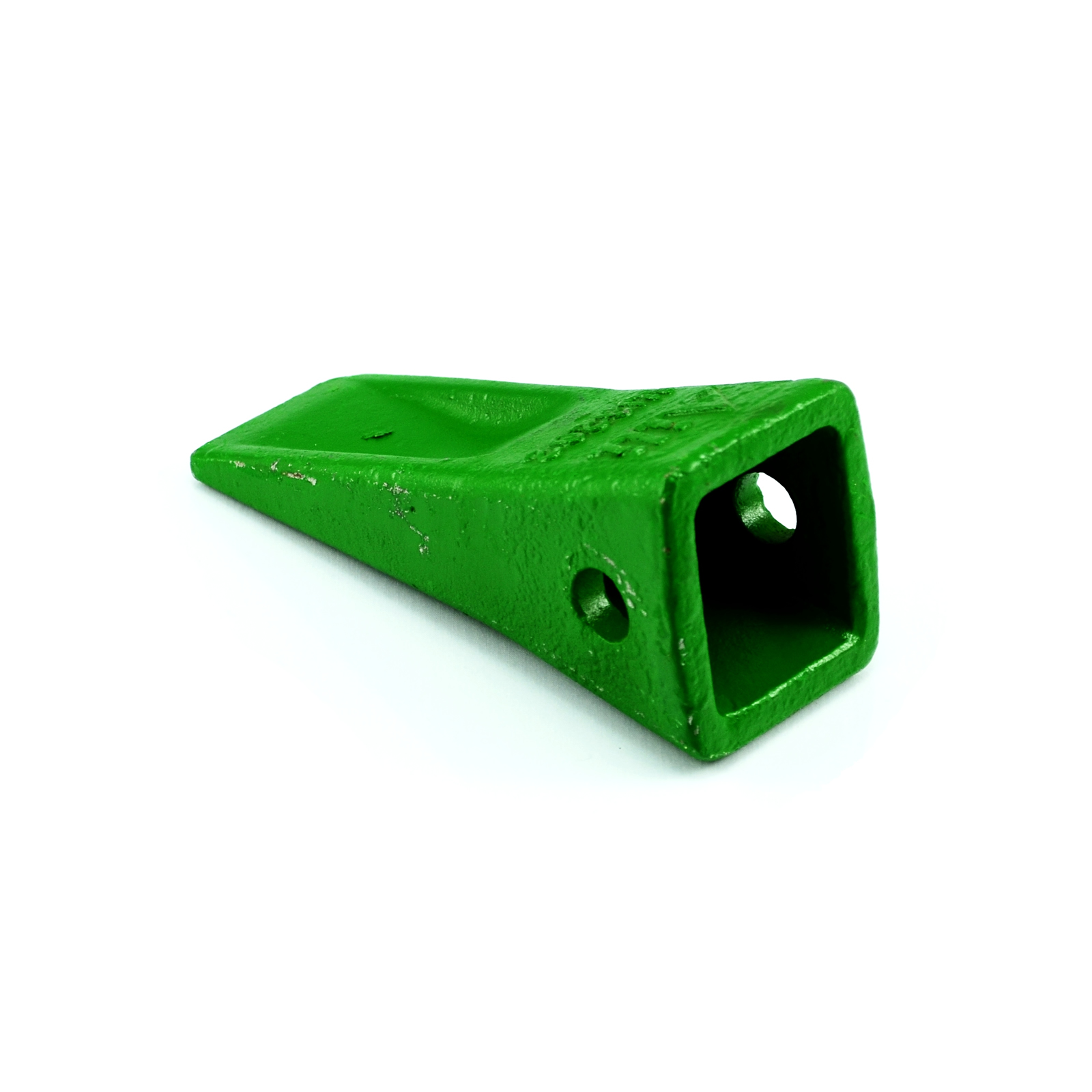

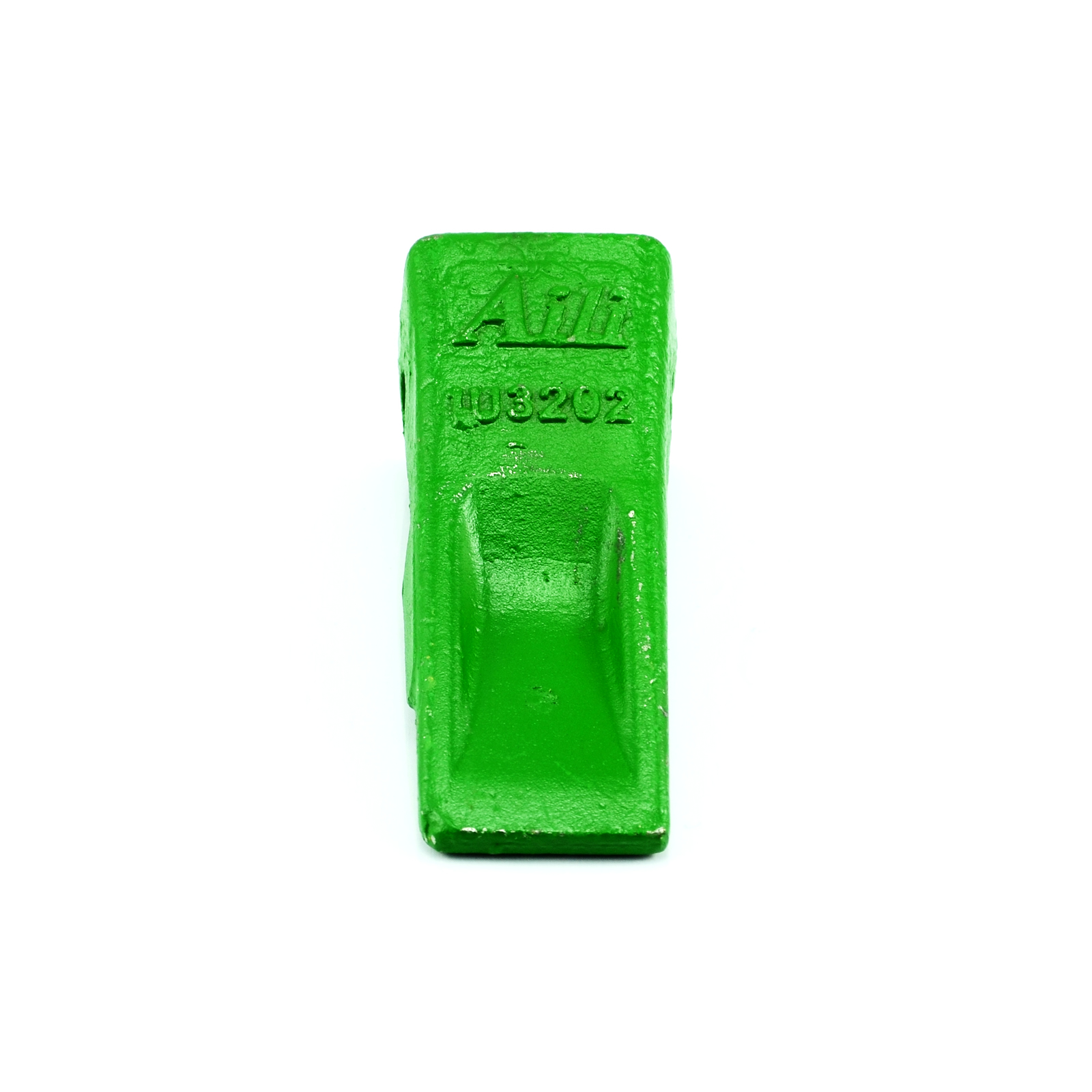

1U3202 Blade Teeth

Caterpillar J200 Style are the most common teeth in Australia for Caterpillar mini excavators from 3 to 6 tonne.  They are fitted with a steel pin and a round spring steel retaining ring punched through the tooth horizontally.  These will most likely be the teeth fitted If you have a compact loader or mini excavator from 3 to 6 tonne manufactured by Caterpillar.

Blade or Twin Tiger?

Blade teeth are great for general purpose work and long life, the large wear area will last longer than twin tip tiger teeth.  Twin tip tiger teeth will penetrate the ground much easier than blade teeth due to sharper points on the teeth, however they will wear faster than blade teeth due to the smaller wear area than blade teeth.  The general rule of thumb is to use blades for normal work and tigers when the ground is too hard and the machine is struggling to dig.

ACES Teeth

Aces Teeth are manufactured to the highest quality standards available.  All our teeth are manufactured using the Lost Wax Investment Casting process rather than the old fashioned sand casting process.  This ensures higher tolerances on the teeth and adapters during casting.  All teeth and adapters are made from high quality alloy steel to achieve an impact strength of greater than or equal to 20J. They are also hardened from 47-52 HRC for extremely long wear life.

(1U3202)

Fitting Specifications:

Width 41 mm
Height 46 mm
Depth 65 mm
Ø 15 mm

Shipping Specifications:

SKU 1U3202
Shipping Weight 1.3000kg
Shipping Width 0.060m
Shipping Height 0.060m
Shipping Length 0.140m
Shipping Cubic 0.000325000m3
