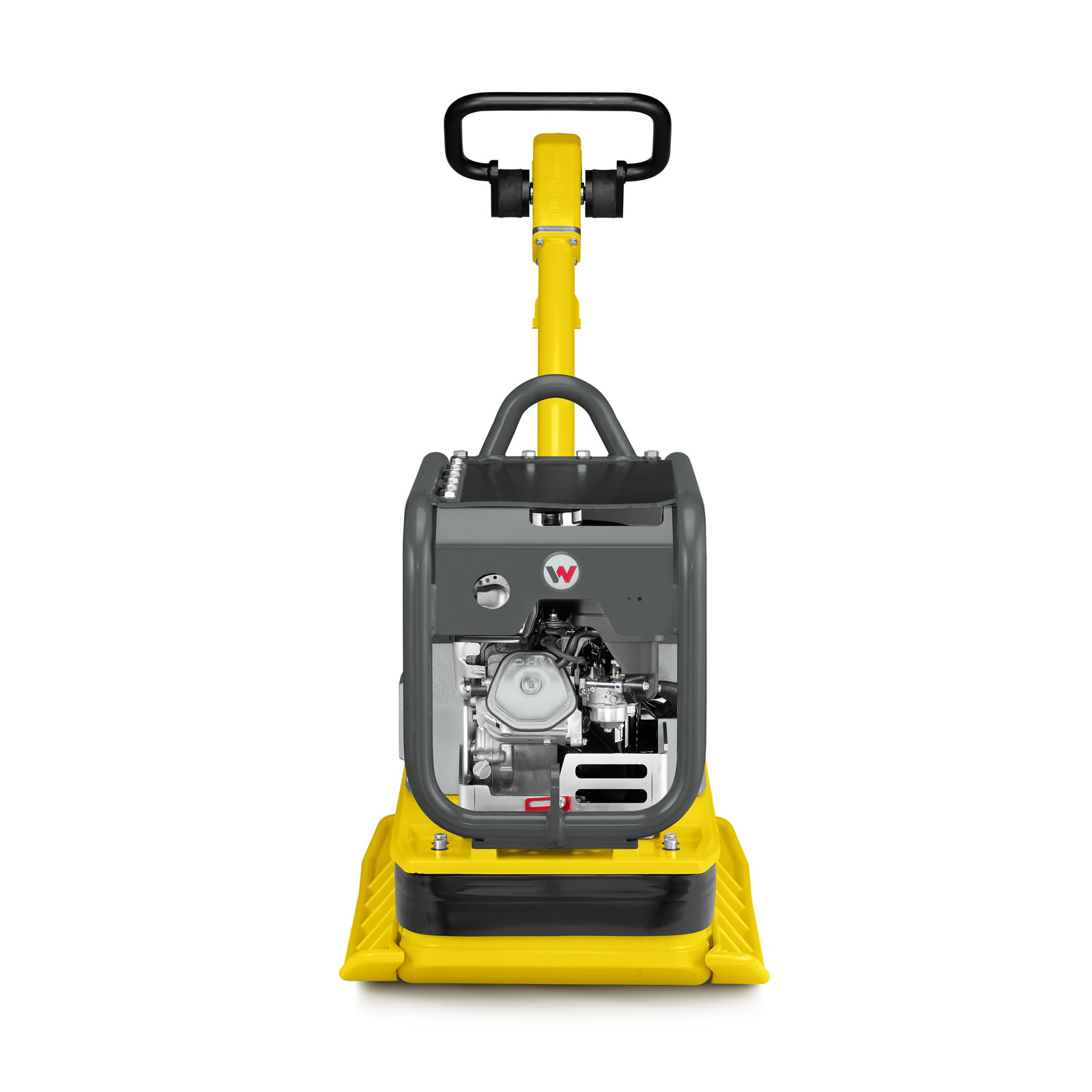

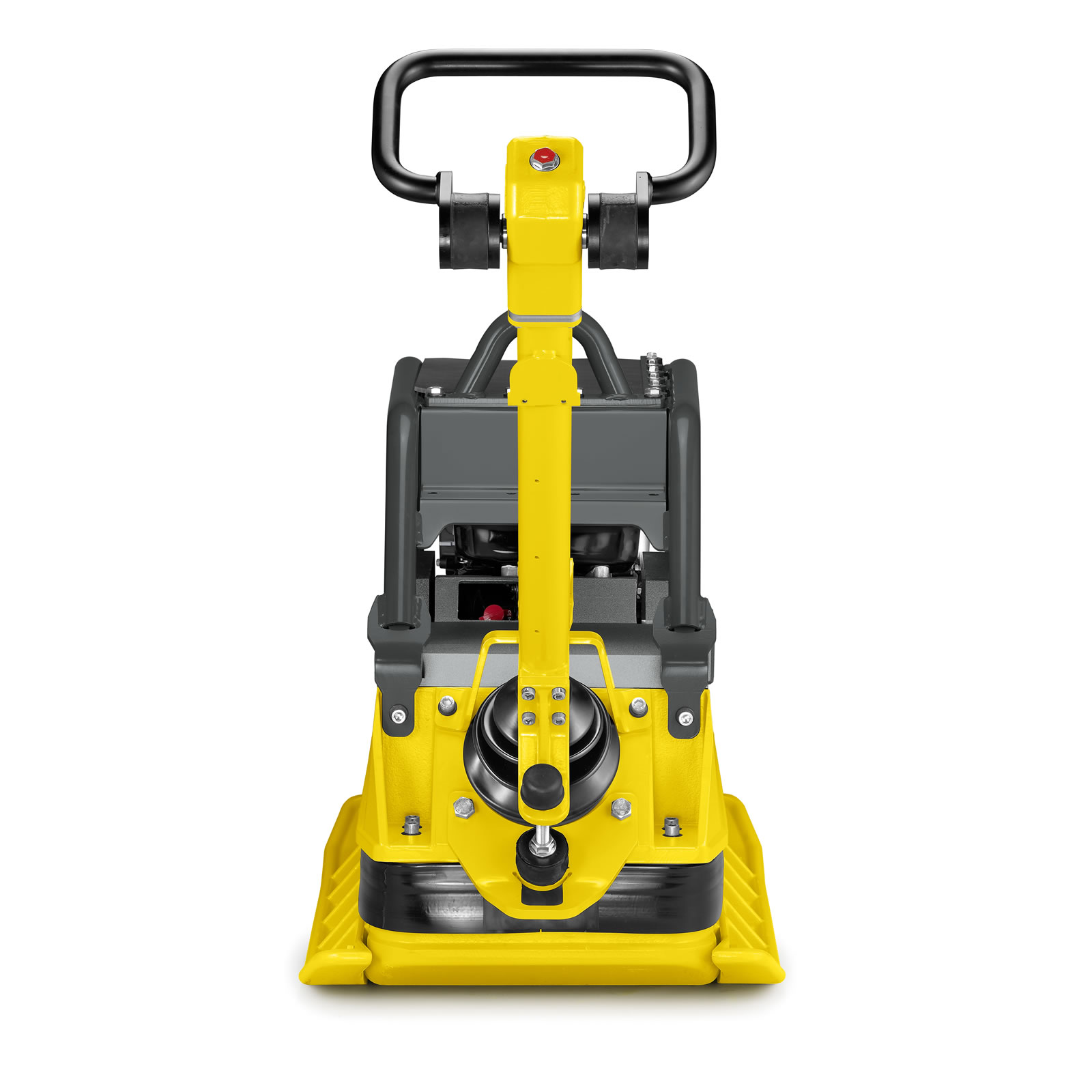

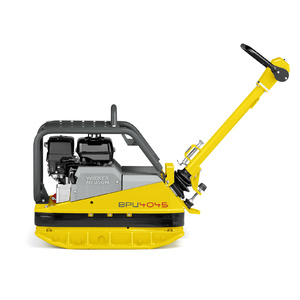

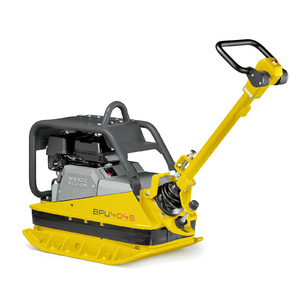

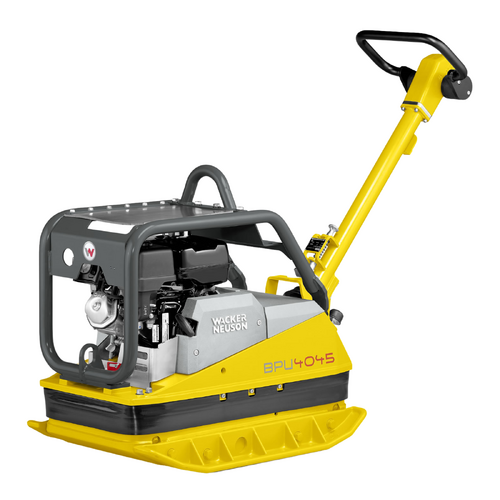

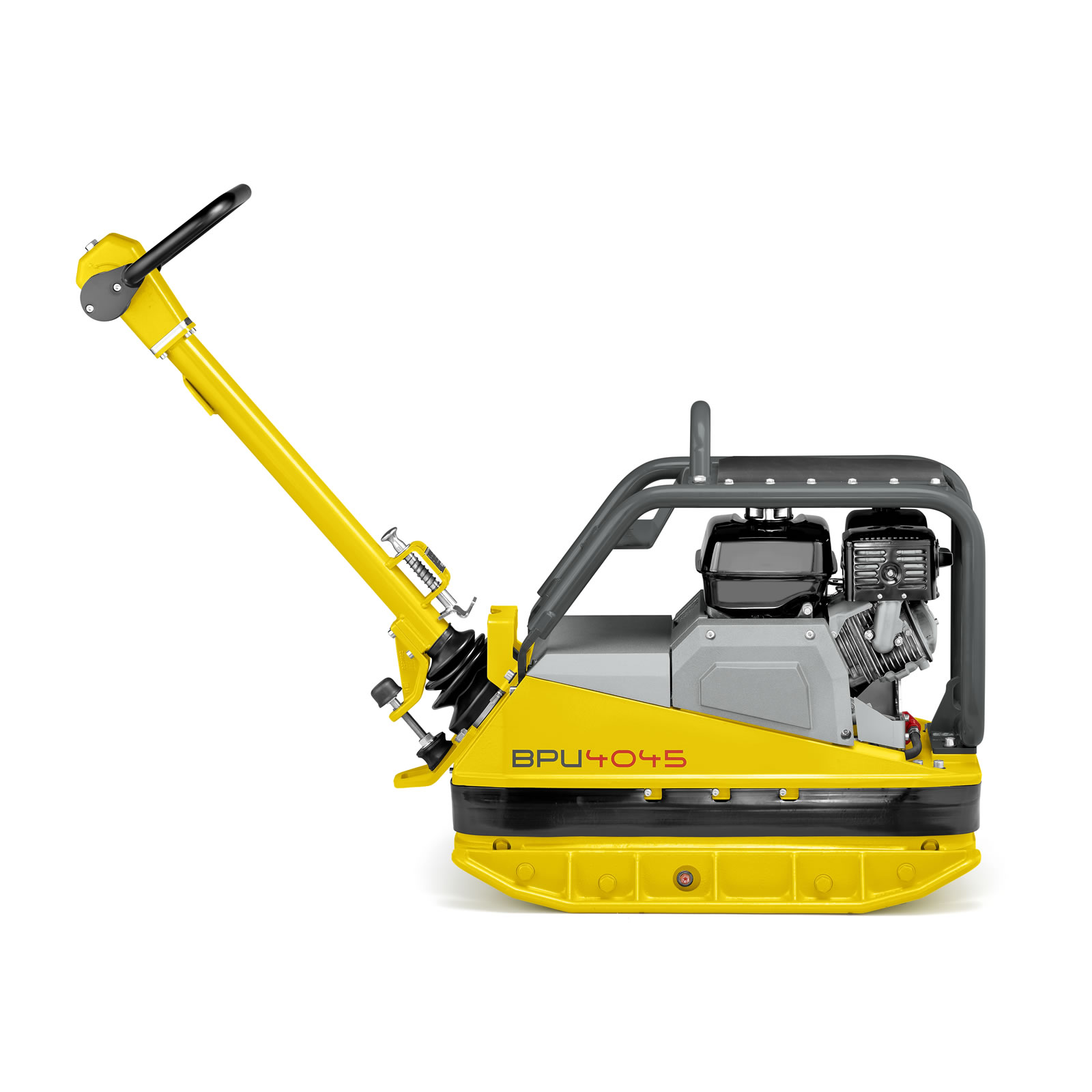

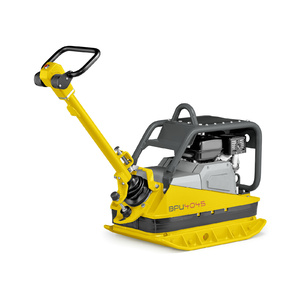

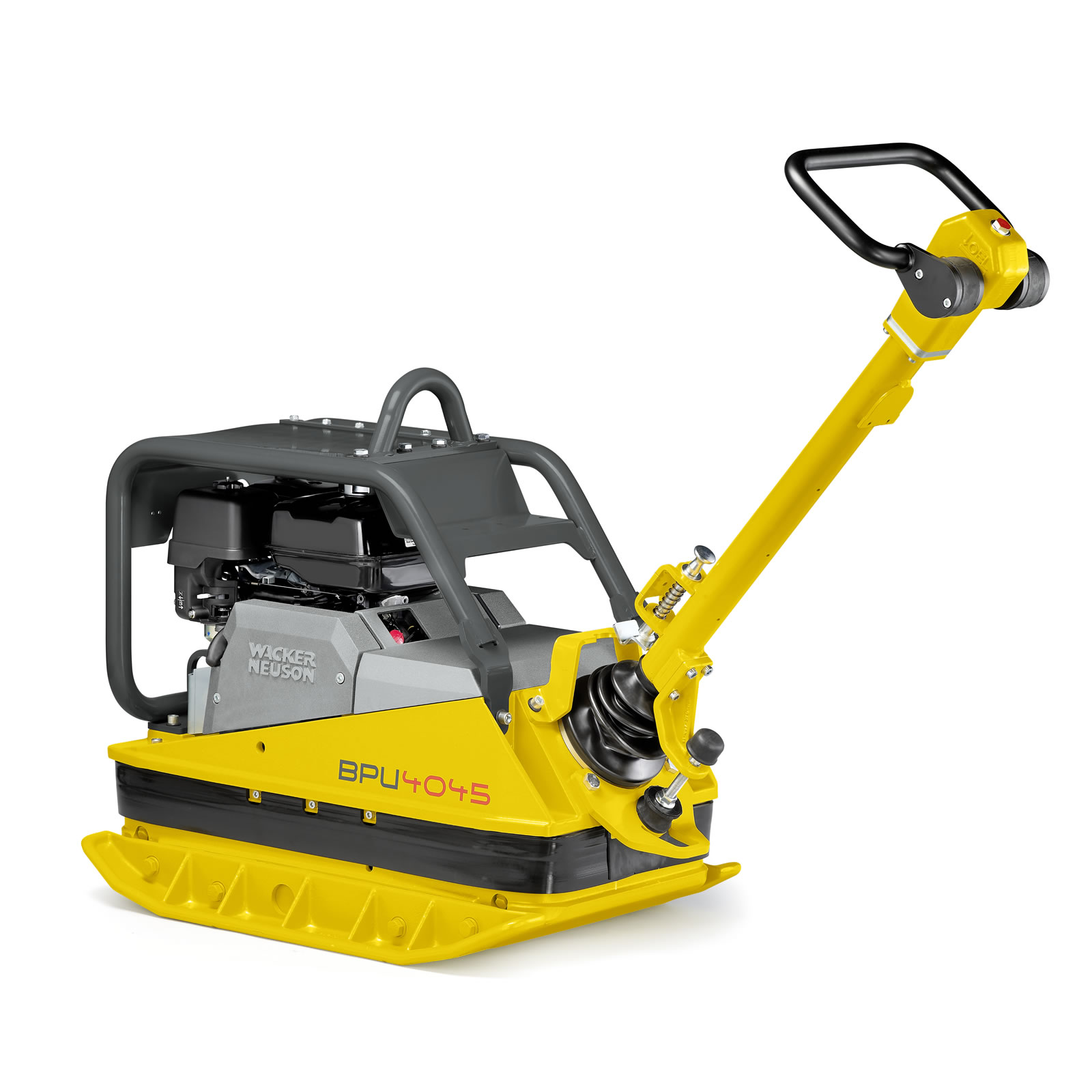

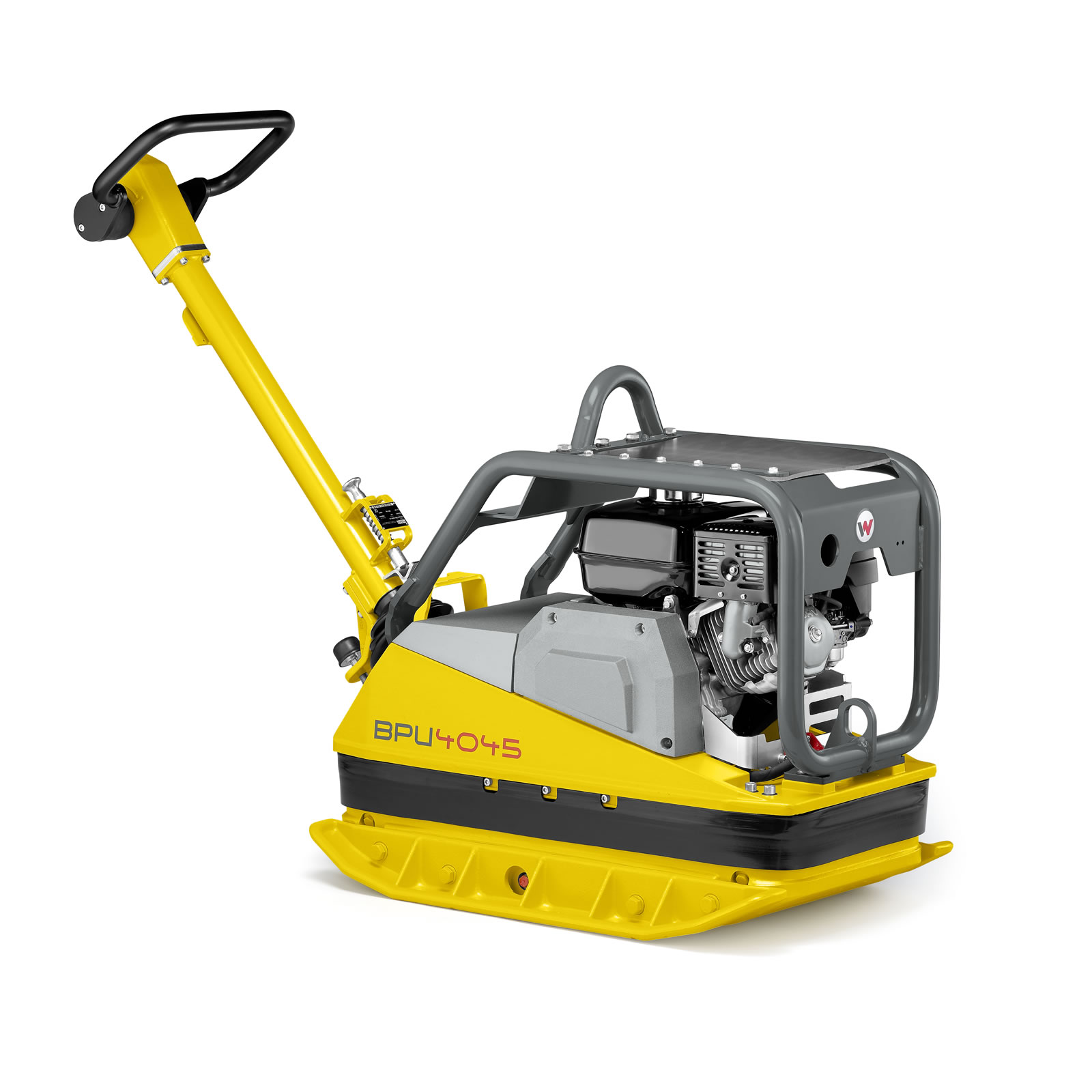

Wacker Neuson BPU4045A - Premium Reversible Vibe Plate

BPU4045 high power all rounder with great productivity. 69Hz frequency is suitable for all purposes, coupled with 40kN centrifugal force makes BPU4045 suitable for building backfill and road construction. New low hand arm vibration handle perfect for long continual use, far superior design to competition plates.

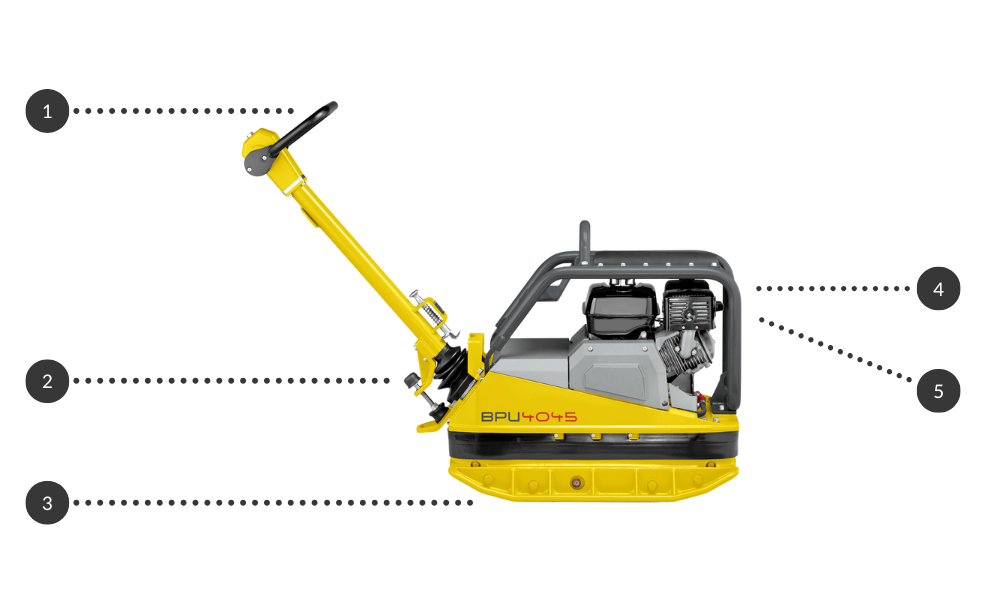

Key Features:

1.	Ease of use	Ergonomic control handle for extended use without fatigue. High travel speeds. Guide handle shock mount and integrated lateral guide. Forward / reverse easily operated from handle.
2.	Versatility	Compact design allows for easy use in tight spaces. Forward and reverse direction from handle. Removable side plate converting from 600mm width to 450mm trench width.
3.	Safety	Dampened operator handle for extended use. Less that 2.5 m/s vibrations on handle allowing for all day continuous use. Central lifting point for crane use. Starter rope is positioned so if the plate takes off on starting it will take off away from the operator. Automatic locking mechanism on handle.
4.	Ease of Use	Wacker Neuson has been making construction equipment for over 160 year with proven engineering experience. Powered by a Genuine Honda Petrol engine.
5.	Maintenance	Long life air filters fitted for low maintenance Specially designed exciter bearings for maintenance free service. Robust GJS-700 cast base plate.

(5100009663)

Operating Specifications:

Operating weight	240 kg
Centrifugal force	37 kN
Base plate size (W x L)	450/600 x 900 mm
Base plate thickness	12 mm
Height (without guide handle)	725 mm
Frequency	69 Hz
Advance travel (depending on soil)	24 m/min
Surface capacity (depending on soil)	864 m2/h

Engine:

Manufacturer	Honda
Model	GX270
Construction	Air-cooled, single-cylinder petrol
Displacement	270 cm3
Engine speed	3,600 rpm
Engine output according to ISO	6 kW (8 HP)
Fuel consumption	1.6 L/h
Tank capacity	5.3 L
