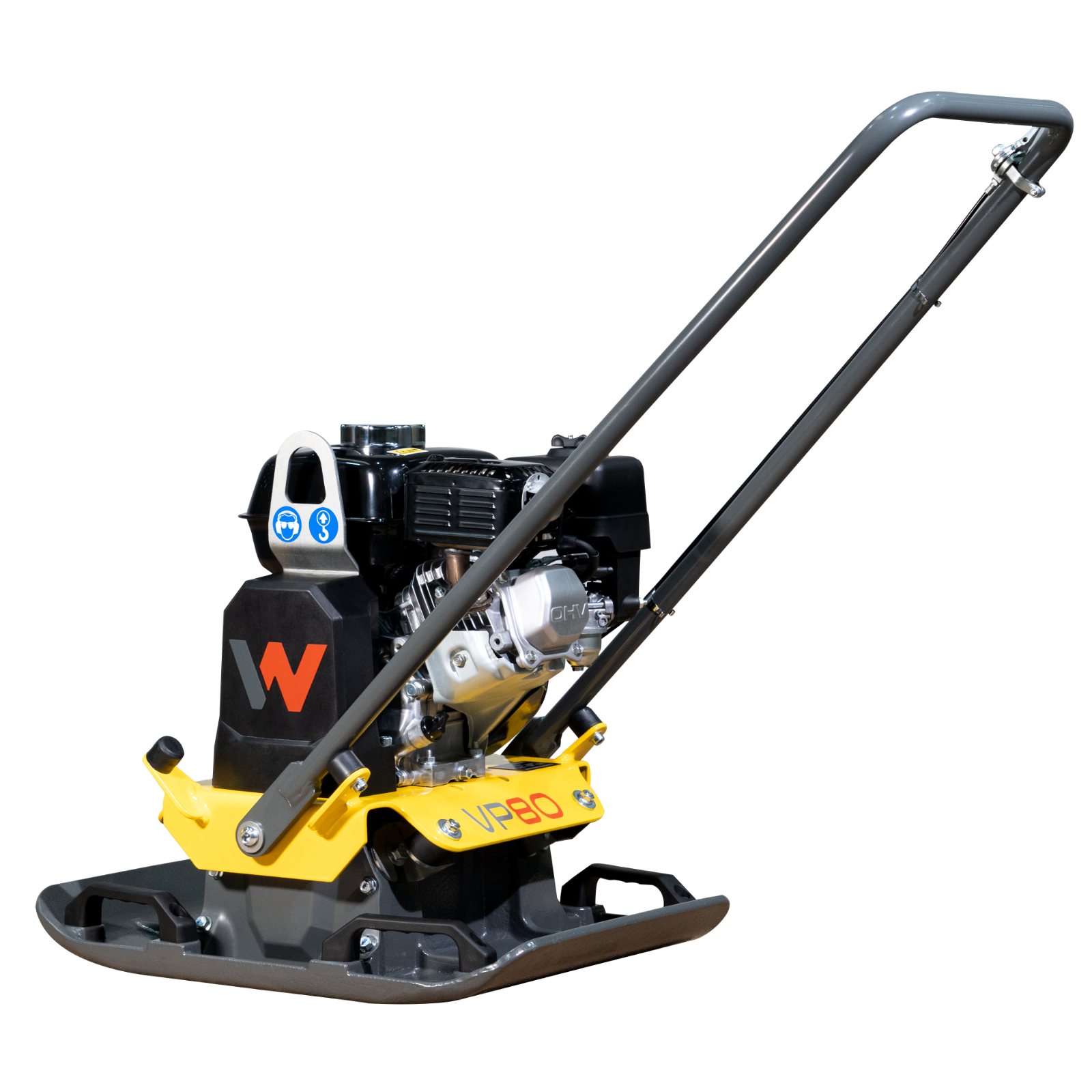

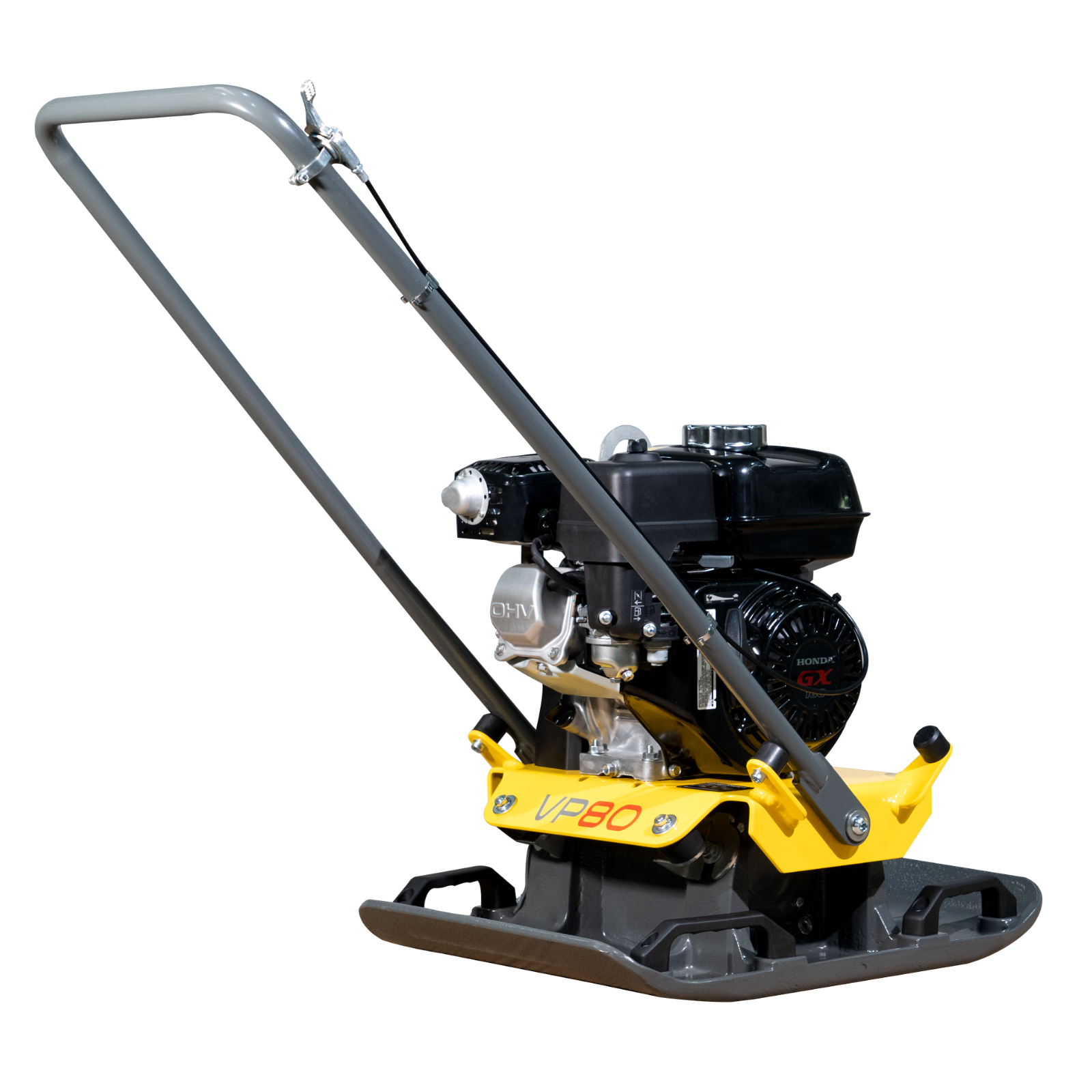

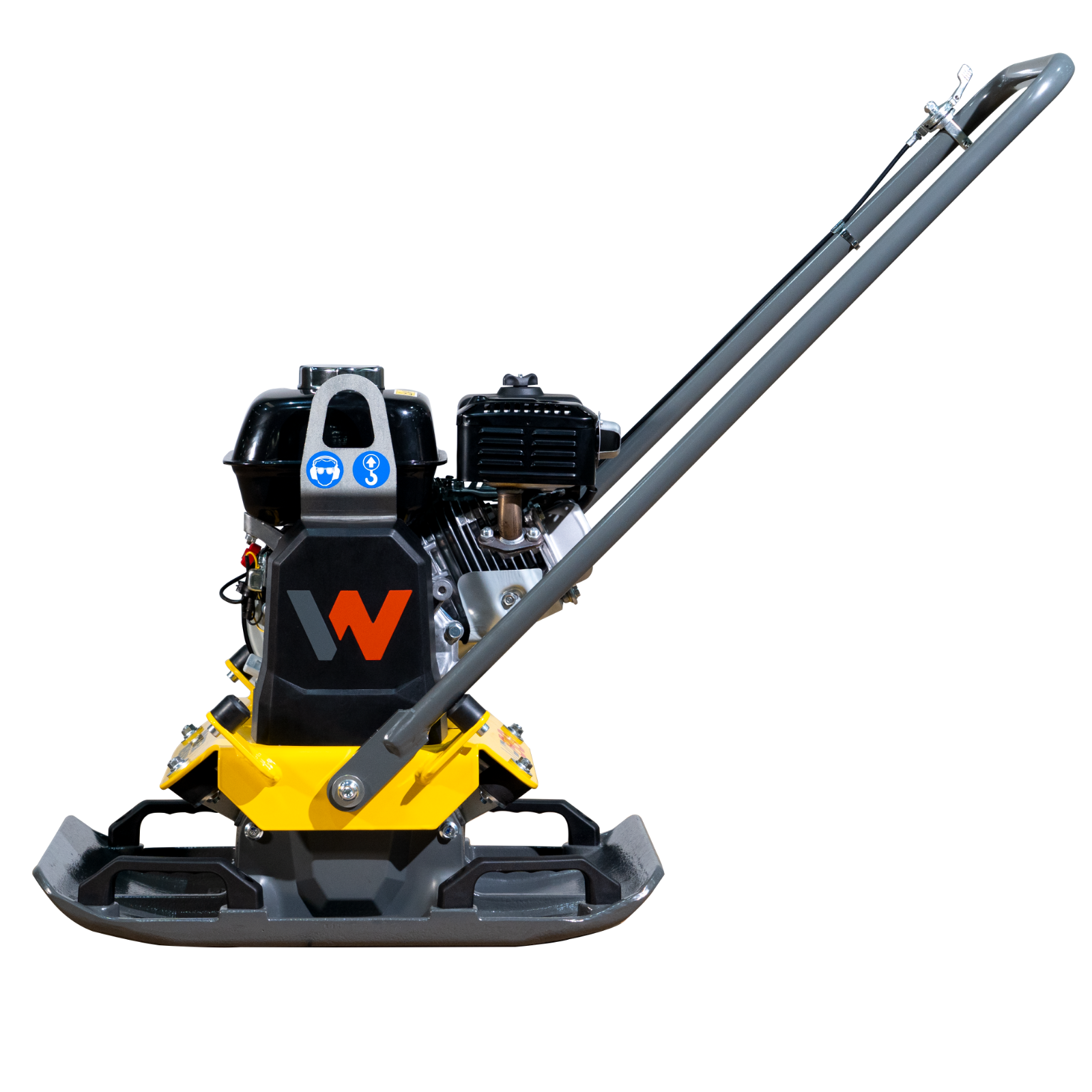

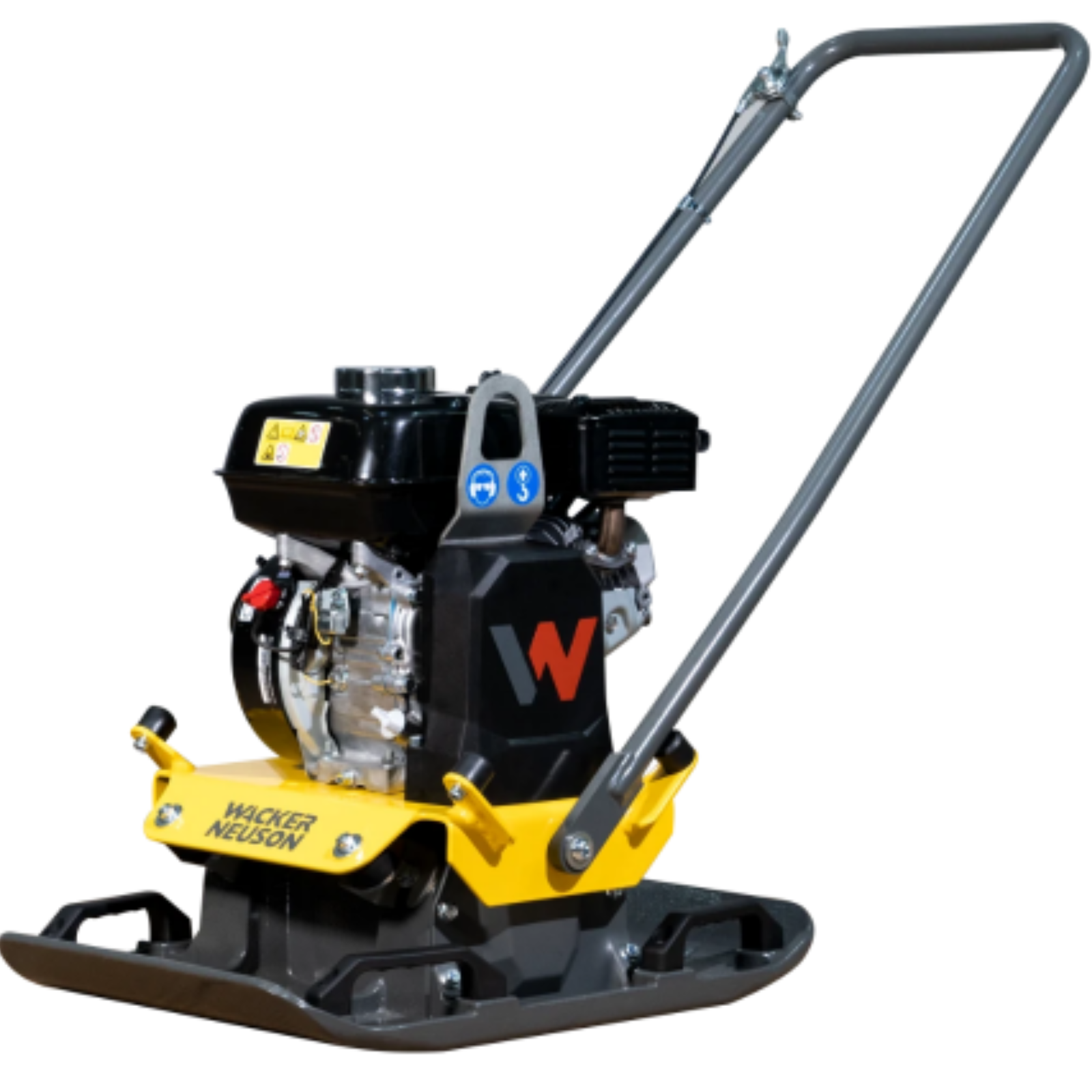

Wacker Neuson V80A - Premium Vibe Plate

Building on the success of the VPH70, the Wacker Neuson VP80A sets a new standard for centrally excited, single-direction vibratory plates. Its innovative design, including a newly engineered cast base plate with integrated exciter mount, delivers exceptional performance and reliability. There simply is no other plate on the market like the VP80A.

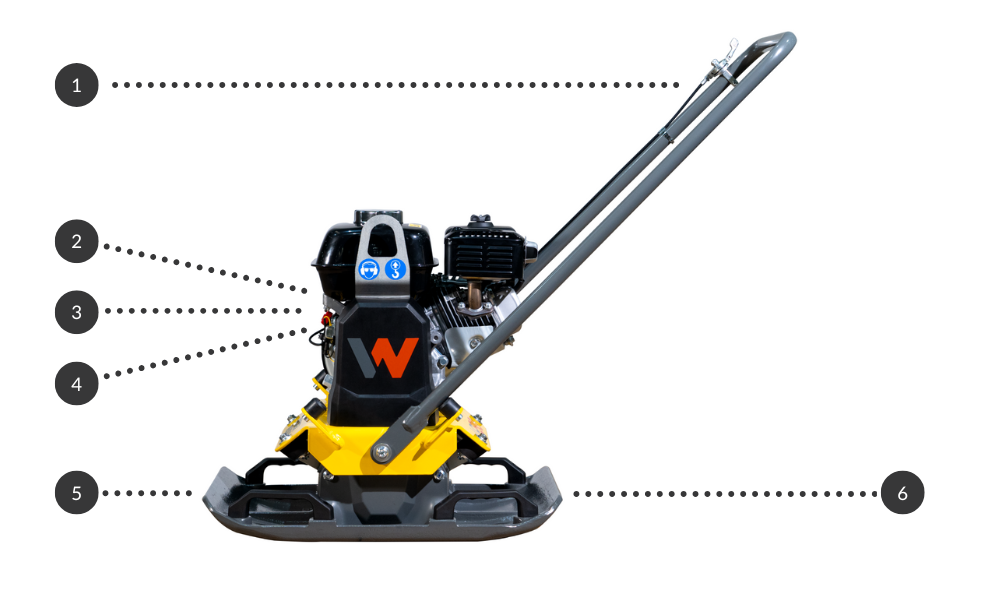

Key Features:

1.	Ease of Use	Ergonomic control handle for extended use without fatigue. Rated to 8h use with low HAV of < 2.5 m/s². Reversible handle for tight spaces. High travel speeds.
2.	Reliability	Wacker Neuson has been making construction equipment for over 160 years with proven engineering experience. Powered by a genuine Honda engine.

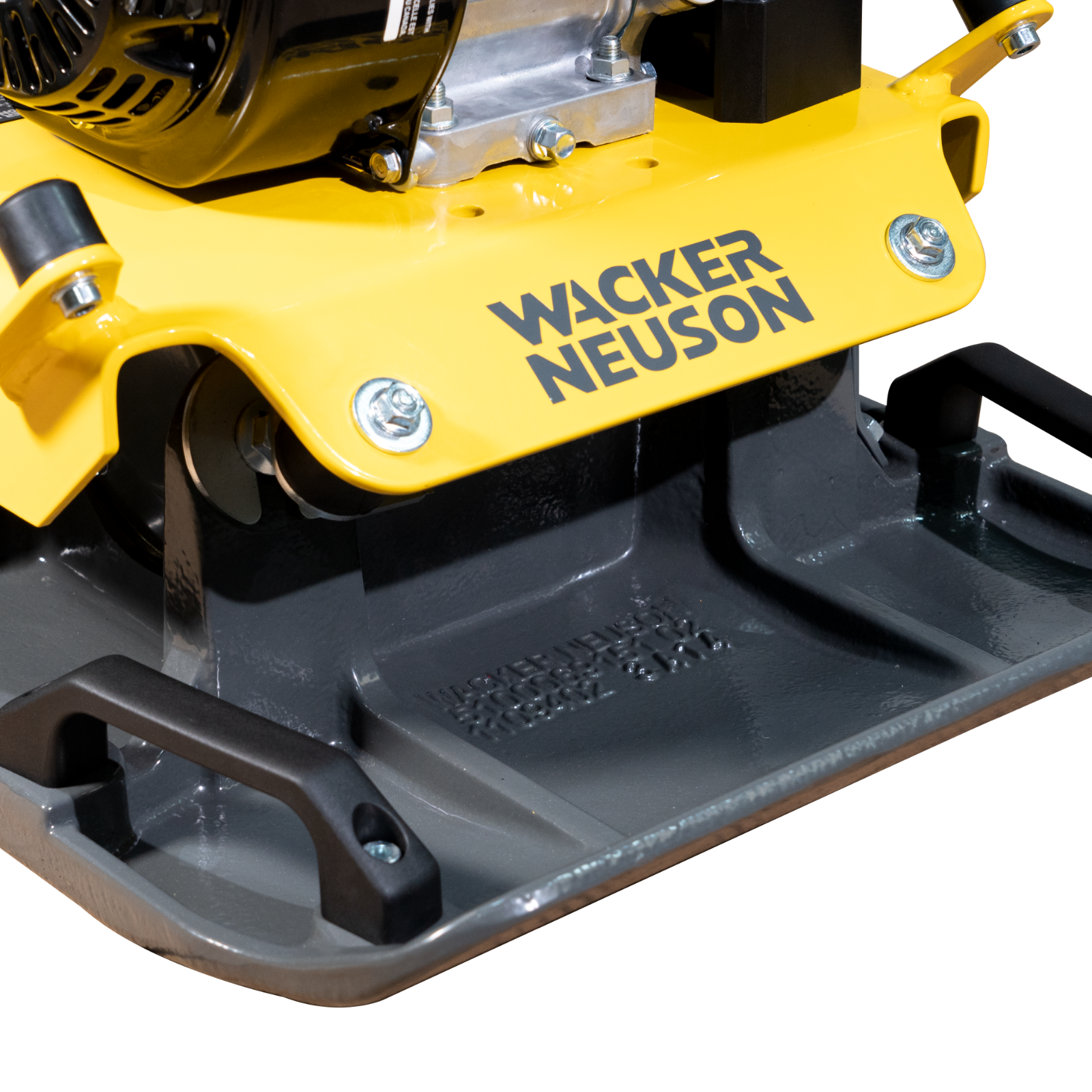

3.	Maintenance	Long life dual stage air filters fitted for low maintenance. Custom designed exciter bearings for maintenance-free service. Cast exciter. Robust cast base plate with integrated exciter mount.
4.	Accessories	Trolley available to suit both plate and rammer.

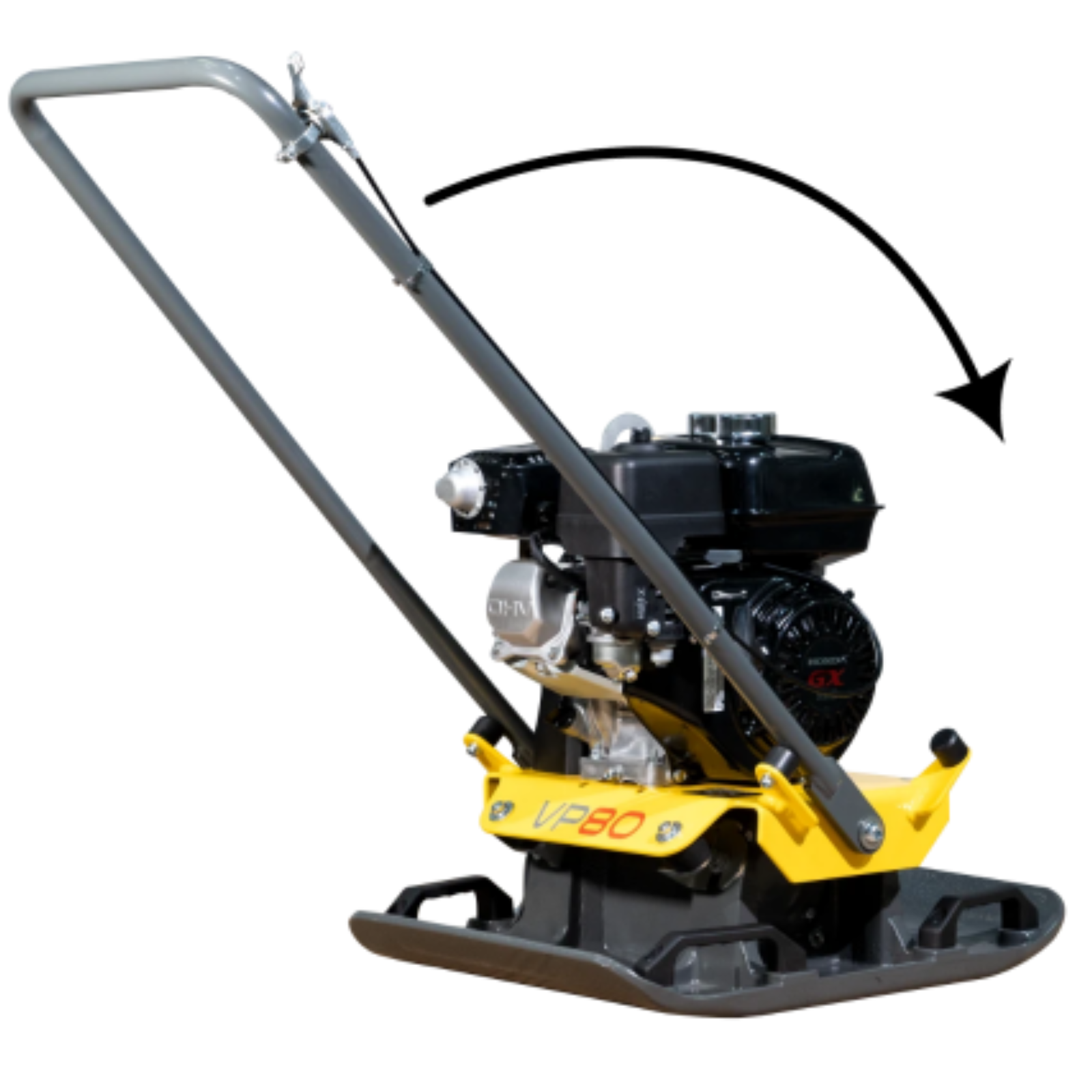

5.	Versatility	Compact design allows for easy use in tight spaces. Reversible handle. Throttle control on handle (optional)
6.	Safety	Dampened operator handle for extended use with low HAV rating. Central lifting point for crane use. Starter rope is positioned such that if plate takes off on starting, it will take off away from operator.

(5100069116)

Operating Specifications:

Operating weight	78 Kg
Centrifugal force	20 kN
Base plate size (W x L)	450mm x 590mm
Machine Width	450mm
Machine Height	840mm
Gradeability	35%
Forward Running	25-30 m/min
Area capacity (depending on soil)	800 m2/h

Engine:

Engine speed	3,550/min
Effective Power	4.4 KW

Specifications subject to change without notice due to continual product development
