Wacker Neuson DPU4045Ye Reversible Vibratory Plate / Compaction Plate

Enquiry/Quote

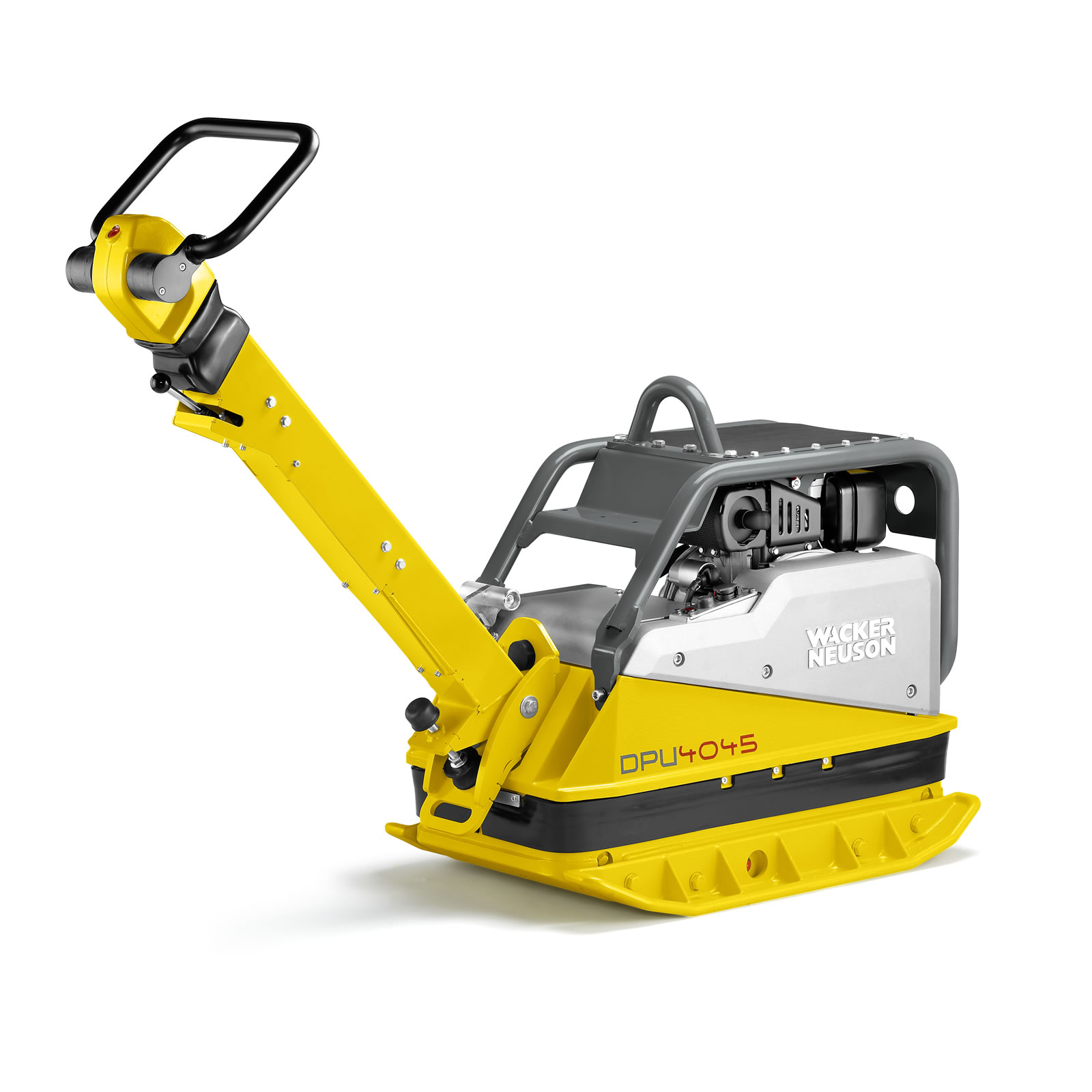

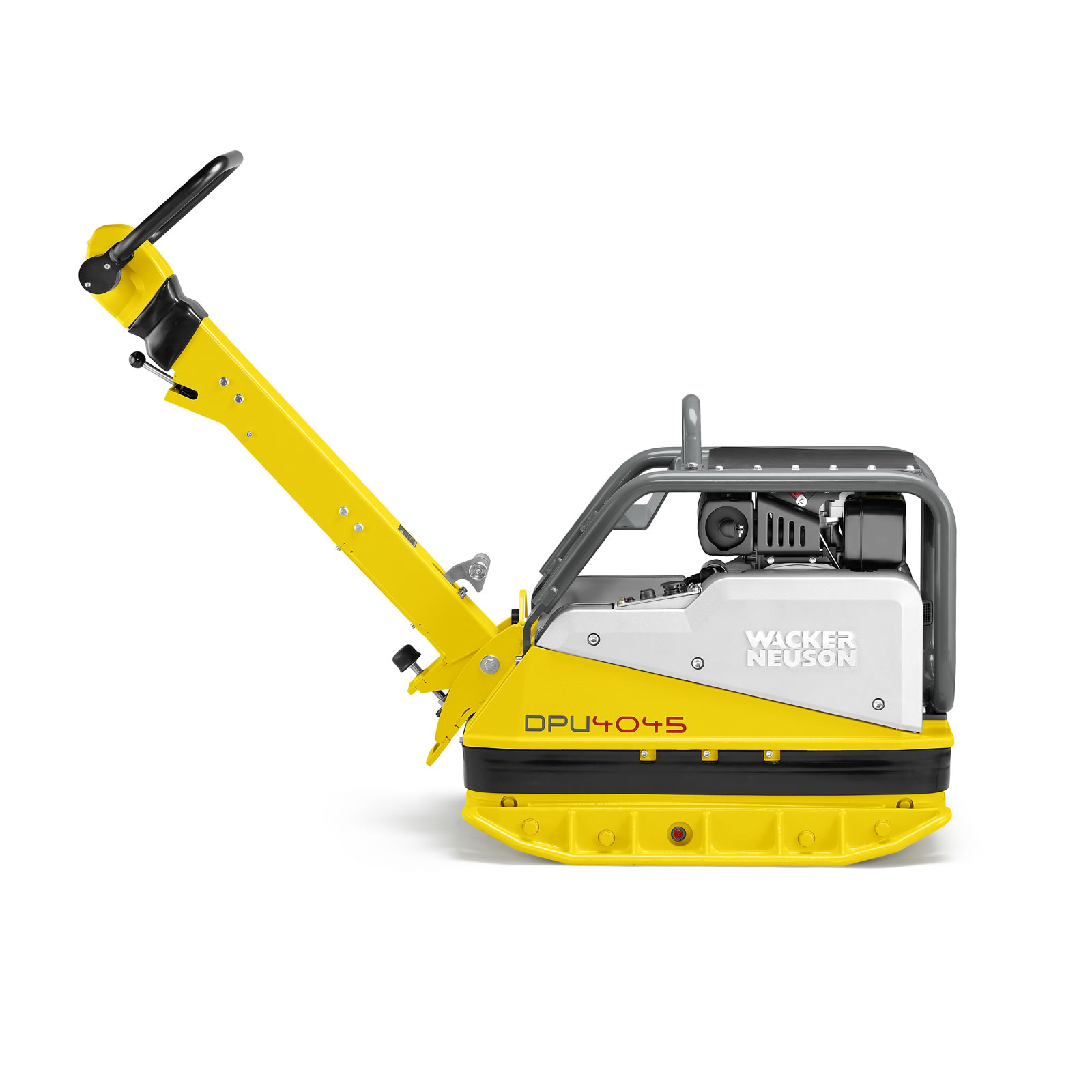

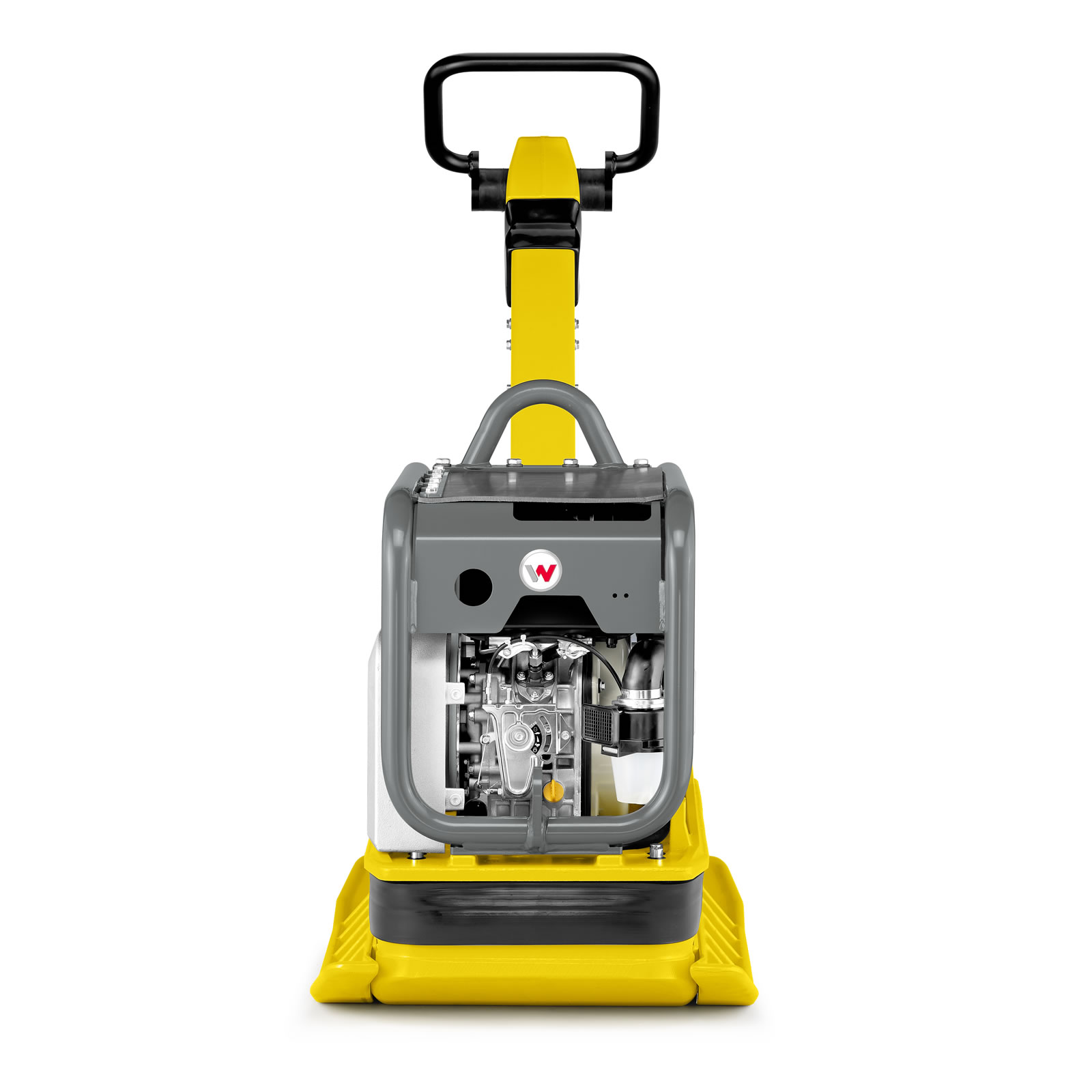

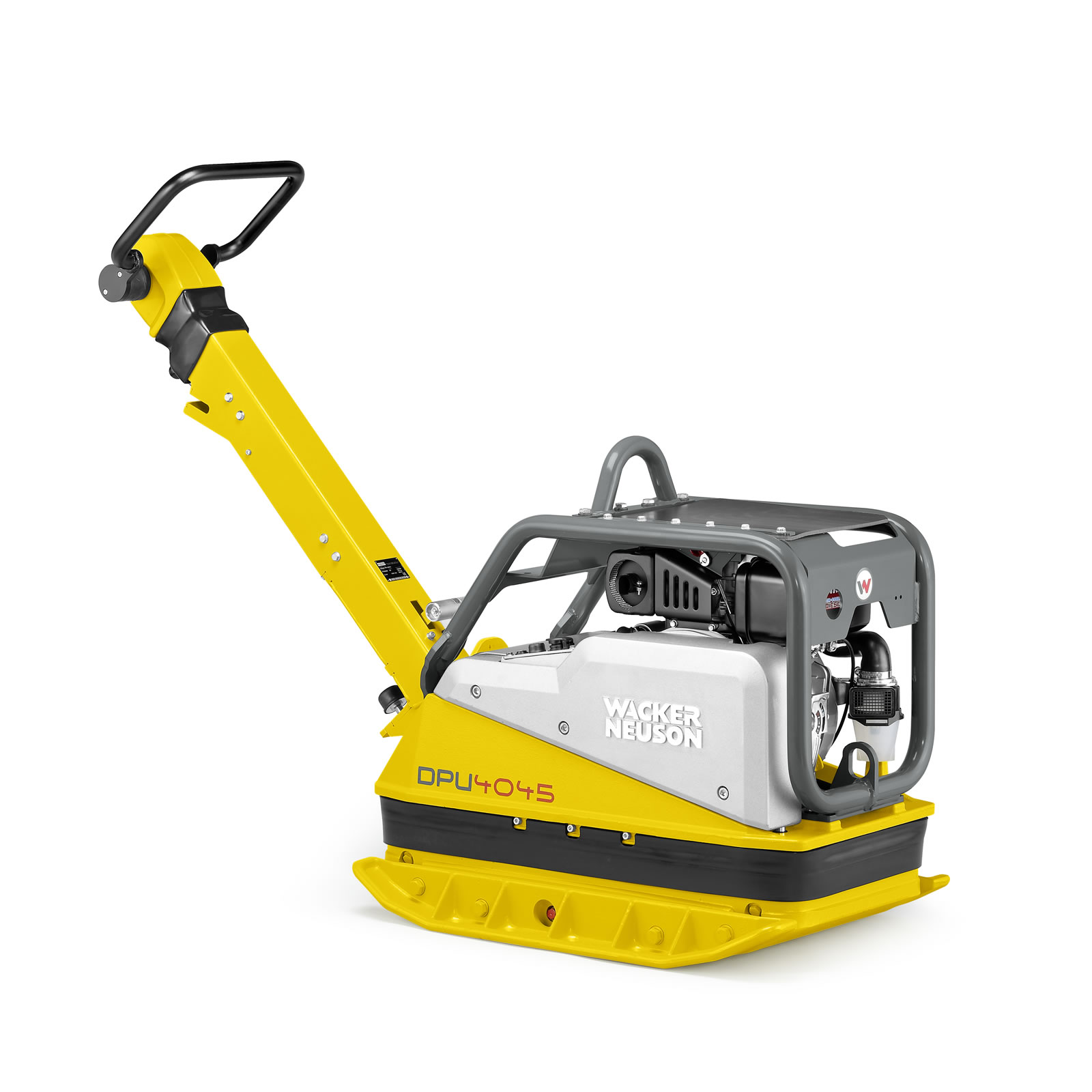

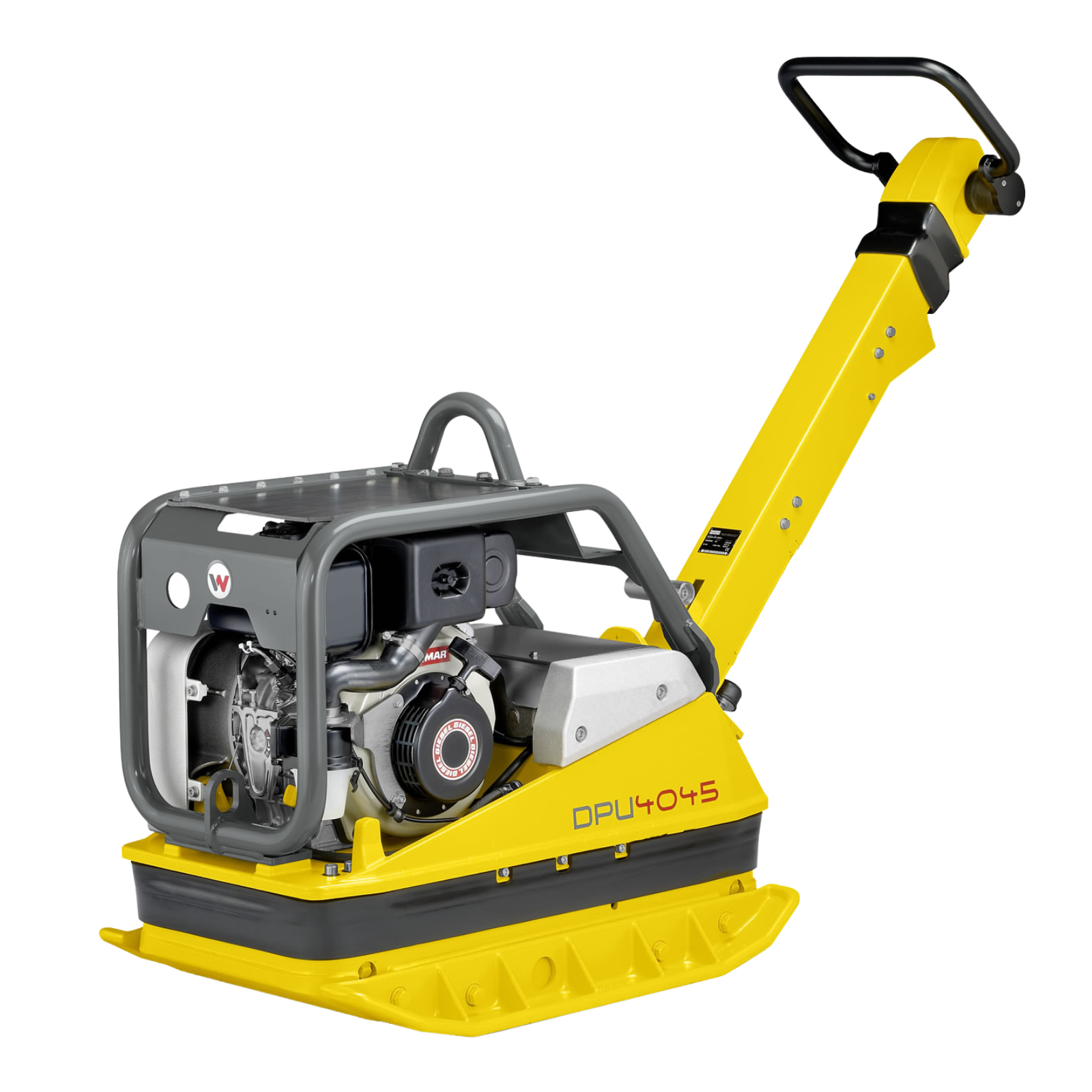

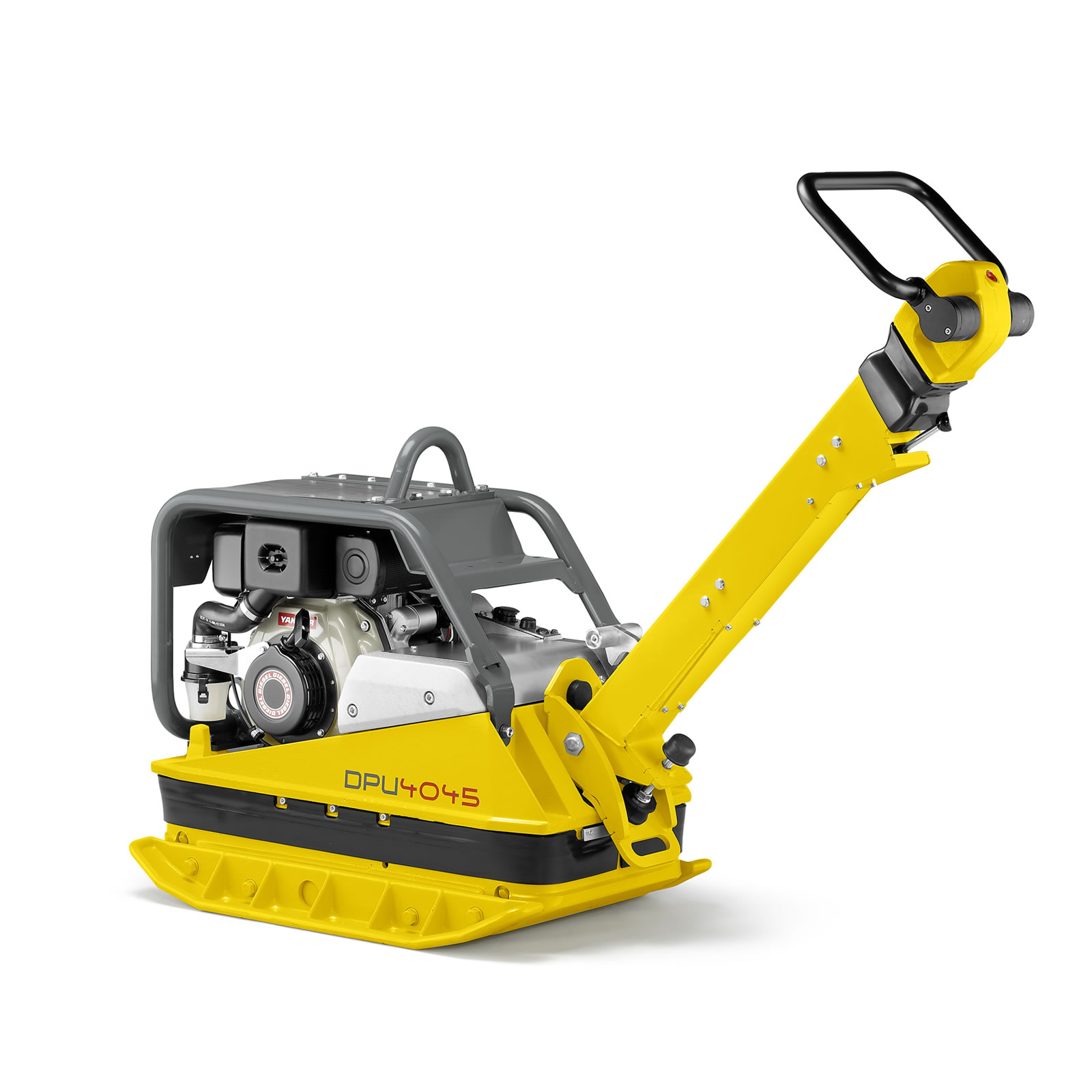

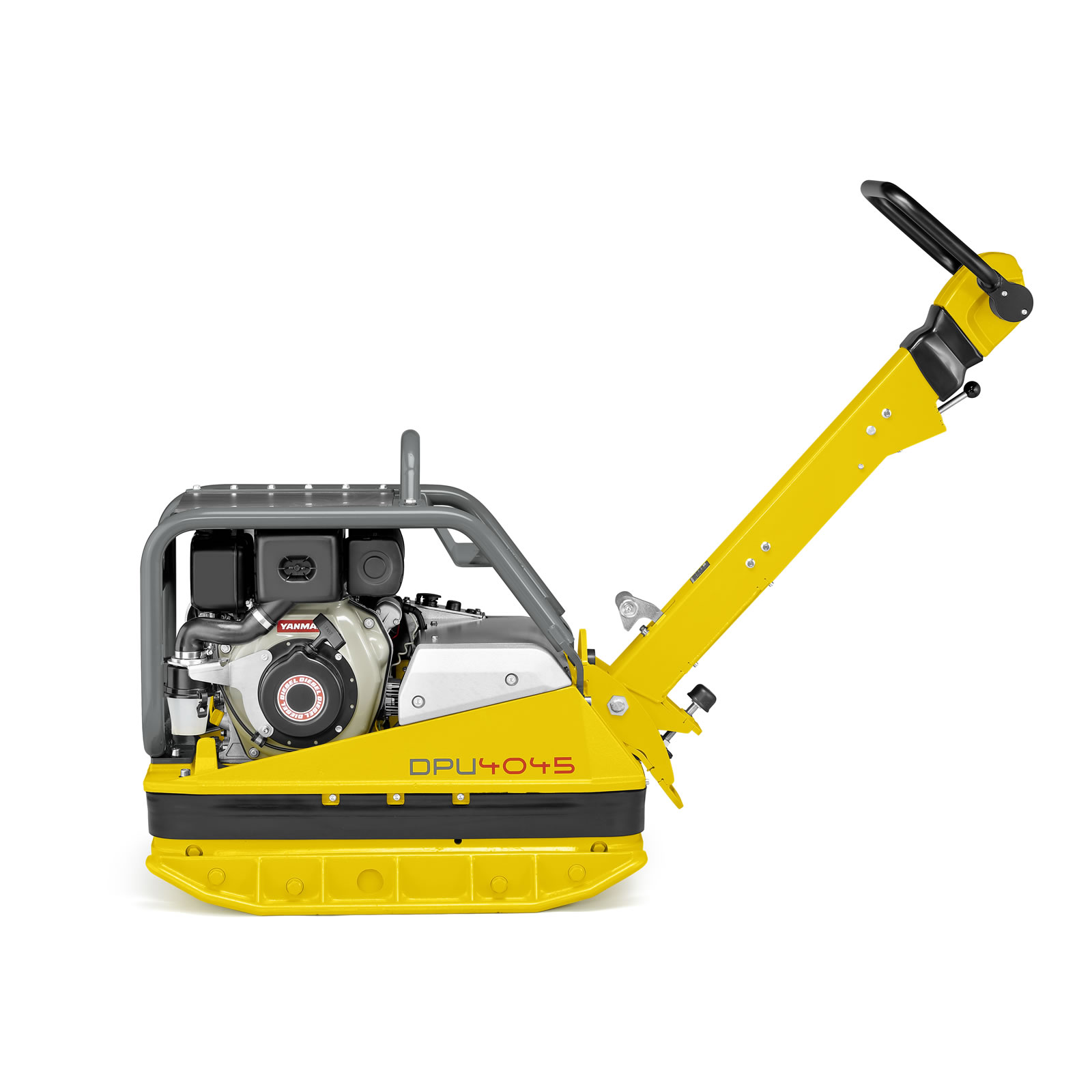

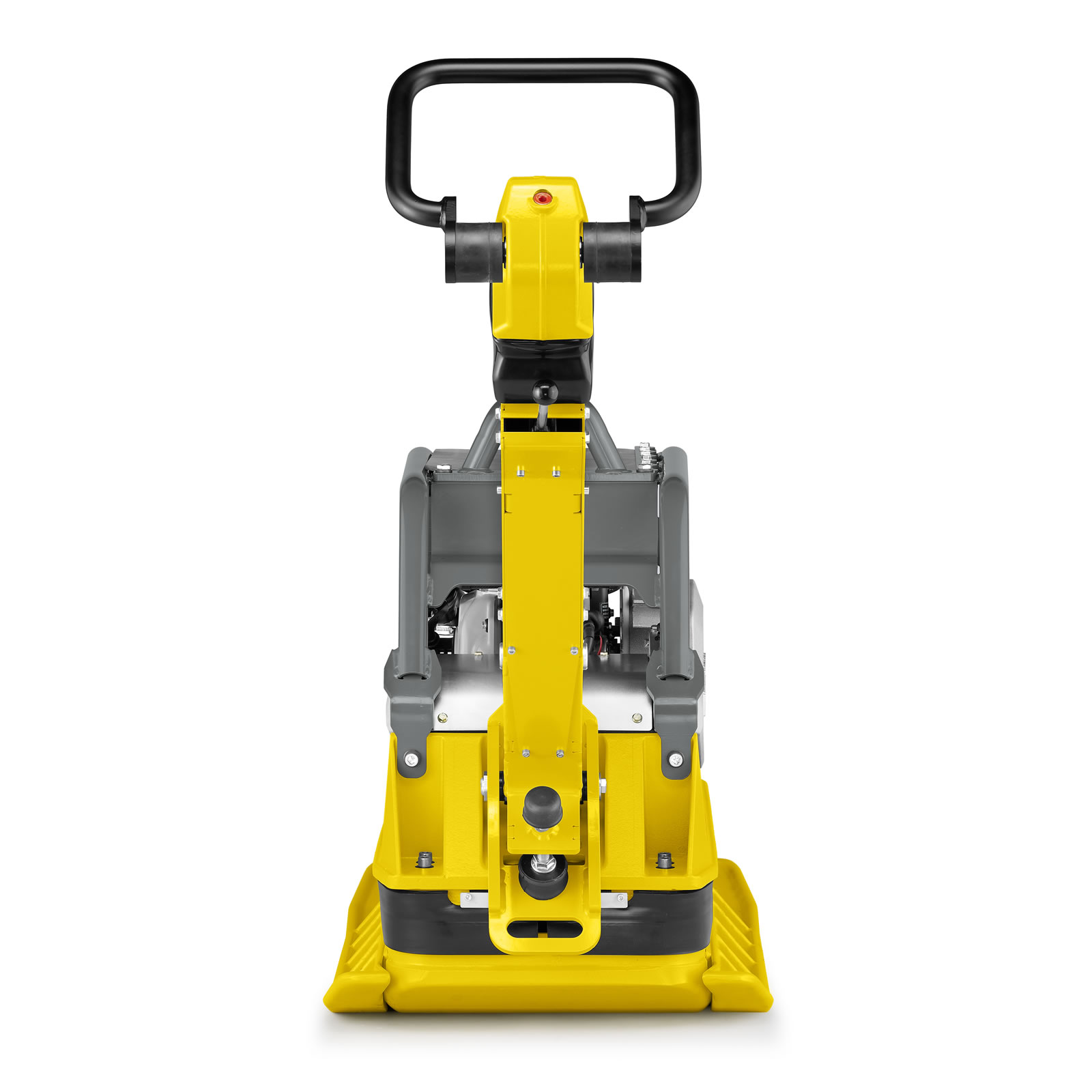

Wacker Neuson DPU4045Ye - Premium Reversible Vibe Plate

DPU4045 high power all rounder with great productivity. 69Hz frequency makes it suitable for all purposes and coupled with 40kN centrifugal force makes it suitable for building backfill and road construction. New low hand arm vibration handle makes DPU4045 perfect for long continual use, far superior design to competition plates.

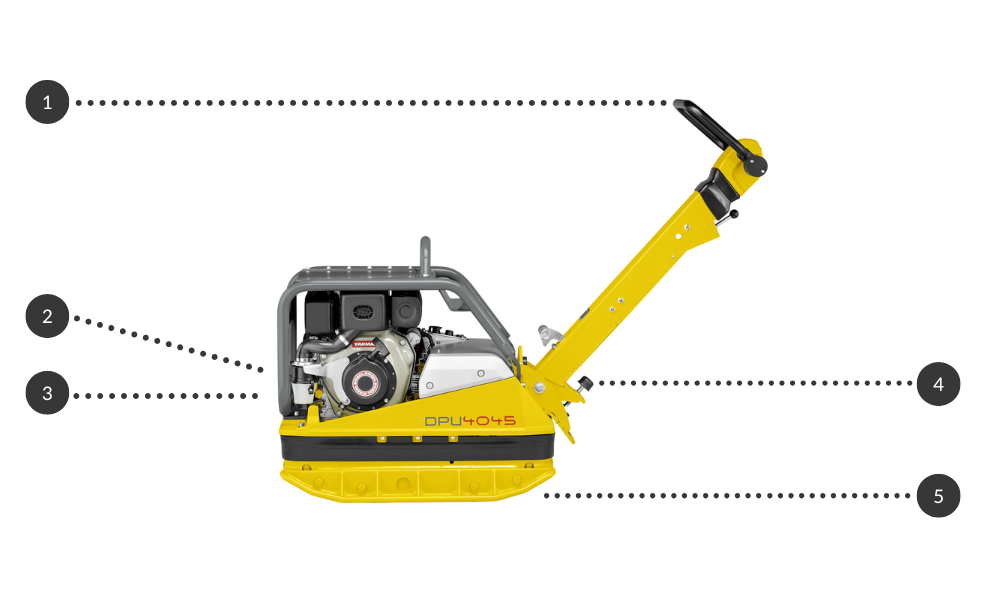

Key Features:

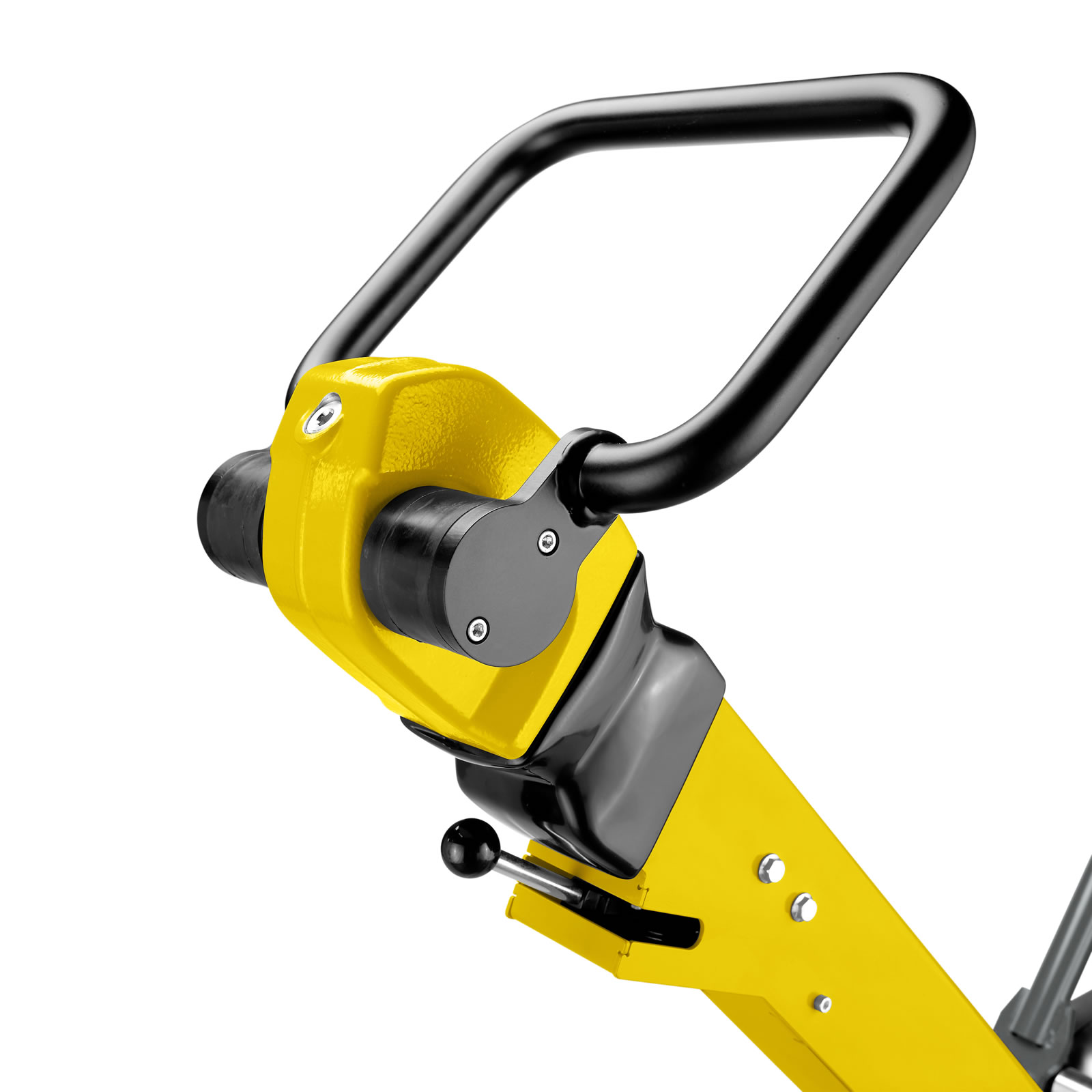

1.	Ease of use	Ergonomic control handle for extended use without fatigue. High travel speeds. Guide handle shock mount and integrated lateral guide. Forward / reverse easily operated from handle. Electric start engine.
2.	Ease of Use	Wacker Neuson has been making construction equipment for over 160 year with proven engineering experience. Powered by a Genuine Yanmar Diesel engine.
3.	Maintenance	Long life air filters fitted for low maintenance. Specially designed exciter bearings for maintenance free service.
4.	Versatility	Ergonomic control handle for extended use without fatigue. Compact design allows for easy use in tight spaces. Forward and reverse direction from handle. Integrated wheels for jobsite transport.

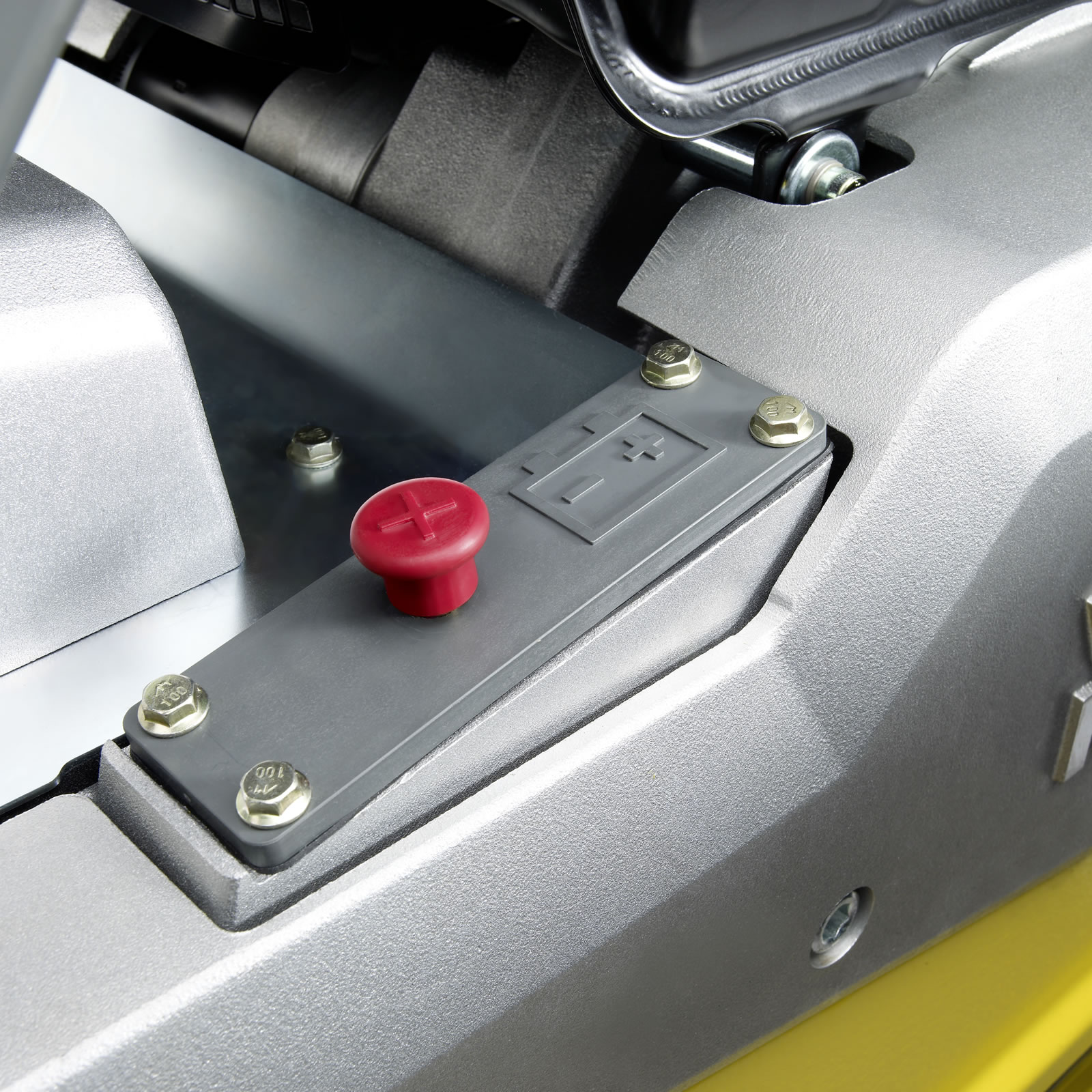

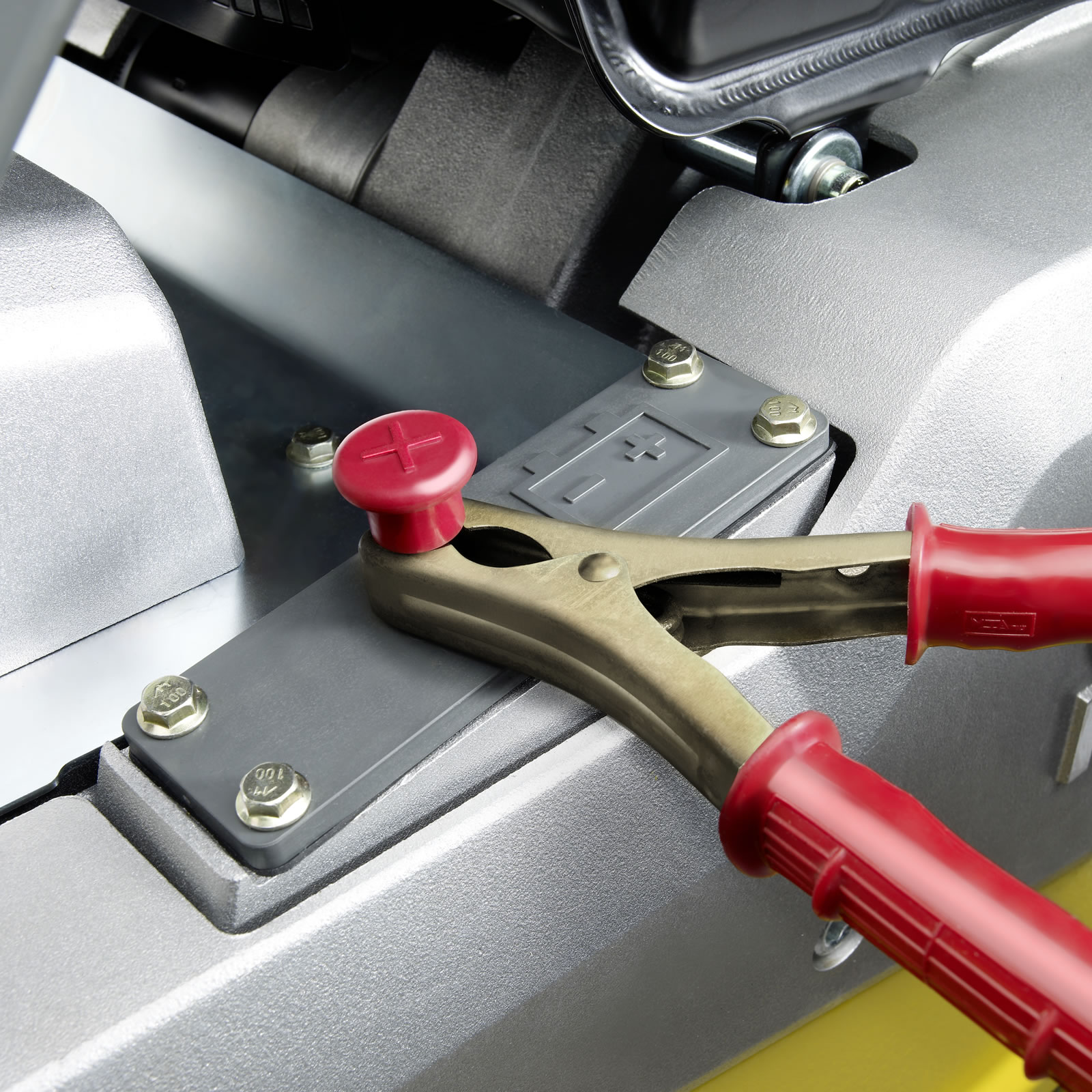

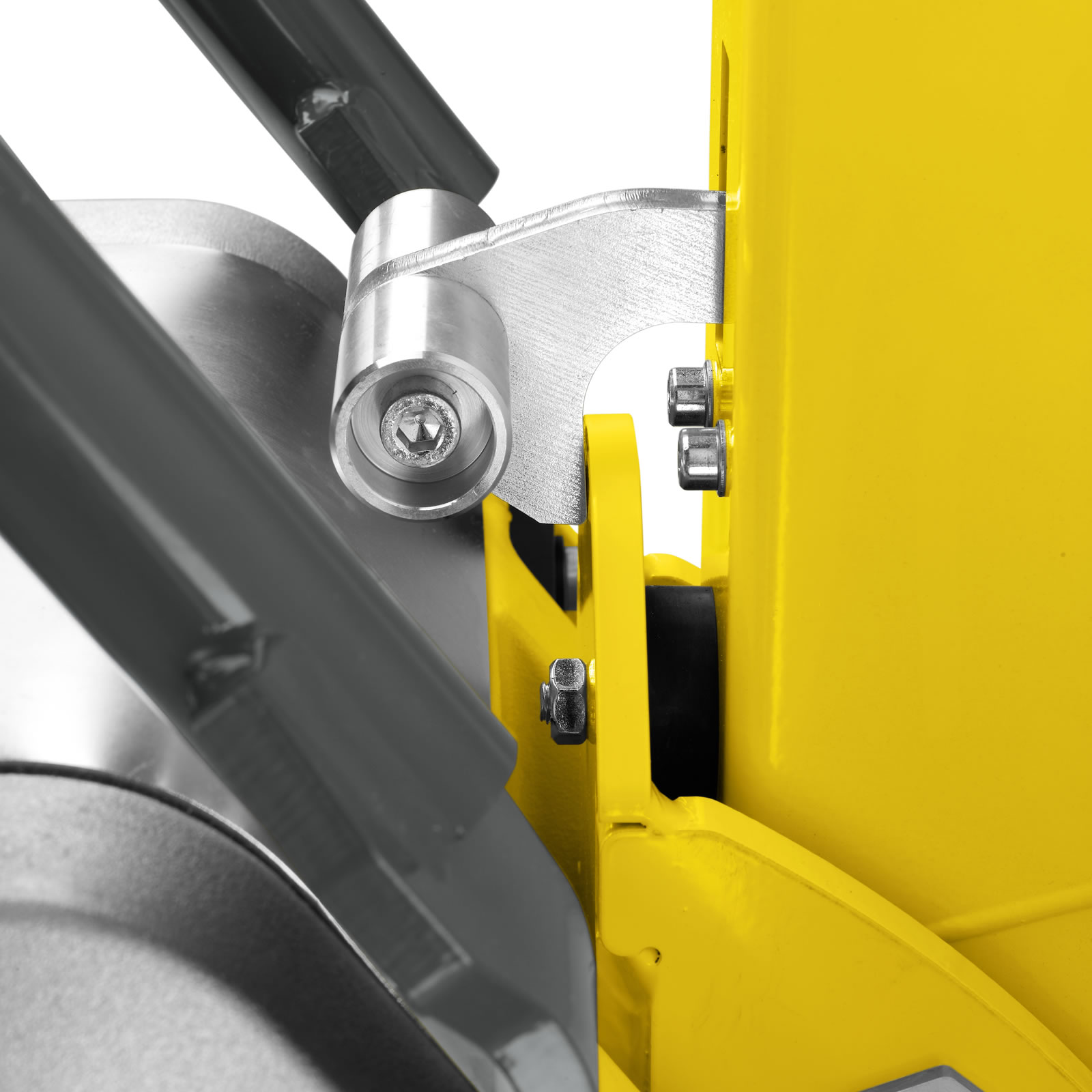

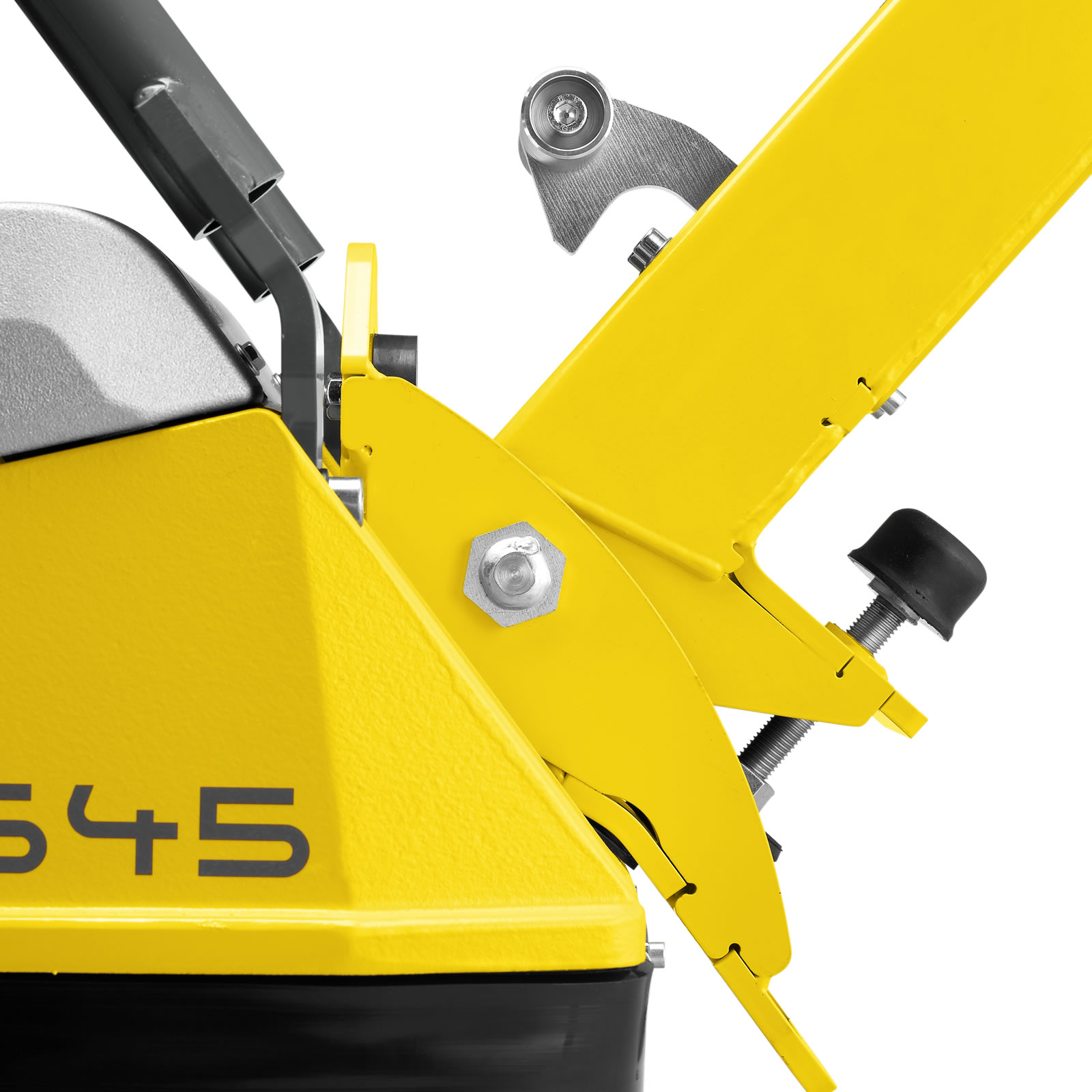

5.	Safety	Dampened low HAV operator handle for extended use. Less that 2.5 m/s vibrations on handle allowing for all day continuous use. Central lifting point for crane use. Electric start for low operator strain. Secondary starter - starter rope is positioned so if the plate takes off on starting it will take off away from the operator. Automatic locking mechanism on handle.

(5100063120)

Operating Specifications:

Operating weight	356 kg
Centrifugal force	40 kN
Base plate size (W x L)	450 x 900 mm (600 x 900 mm)
Base plate thickness	12 mm
Height (without guide handle)	725 mm
Frequency	69 Hz
Advance travel (depending on soil)	24 m/min
Surface capacity (depending on soil)	864 m2/h

Engine:

Manufacturer	Yanmar
Model	L70N
Construction	Air-cooled, single-cylinder diesel
Displacement	320 cm3
Engine speed	3,600 rpm
Engine output according to ISO	4.3 kW (5.7HP)
Fuel consumption	1.4 L/h
Tank capacity	3.3 L

Specifications subject to change without notice due to continual product development

SKU	5100063120
Shipping Weight	380.0000kg
Shipping Width	0.700m
Shipping Height	1.200m
Shipping Length	1.200m
Shipping Cubic	1.008000000m3
