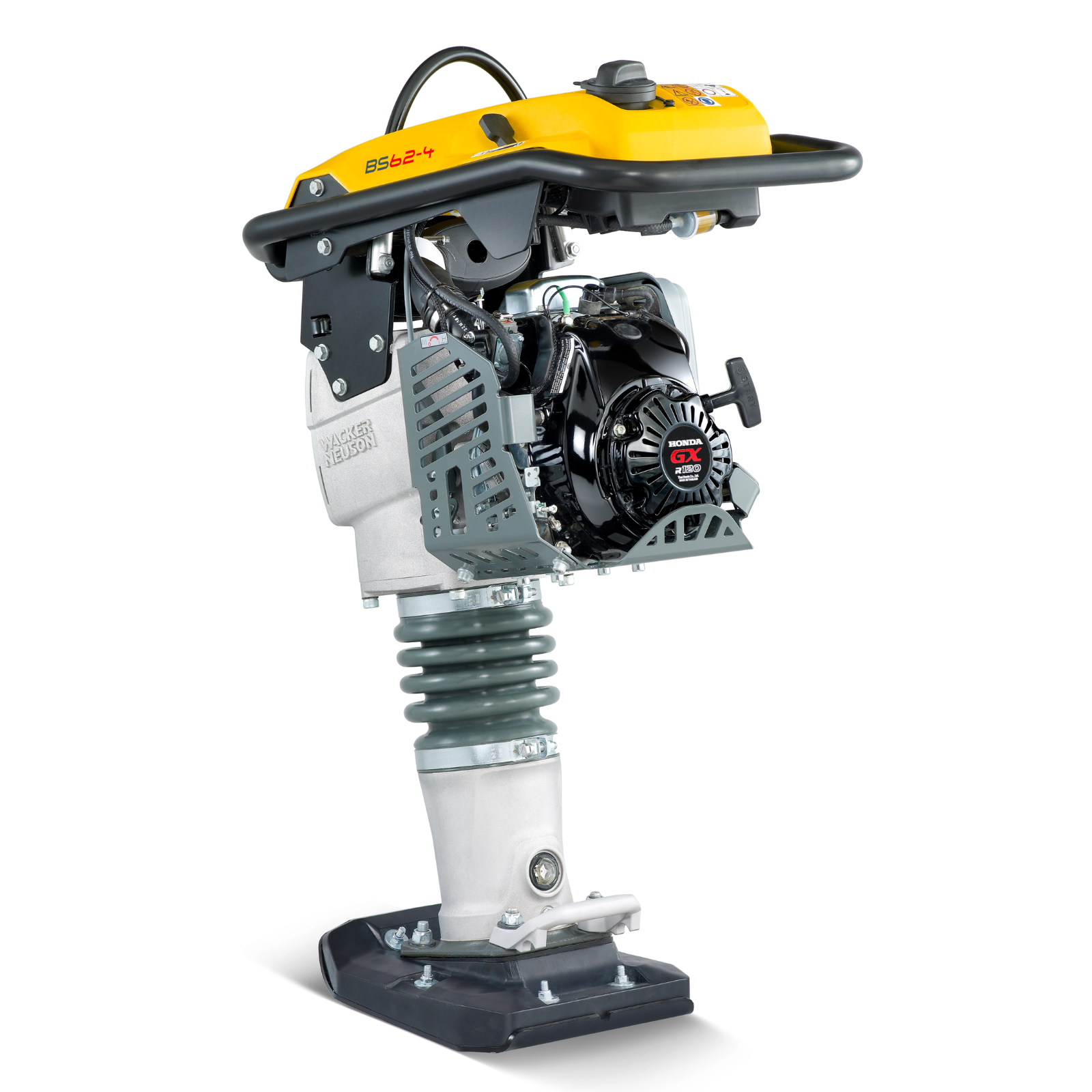

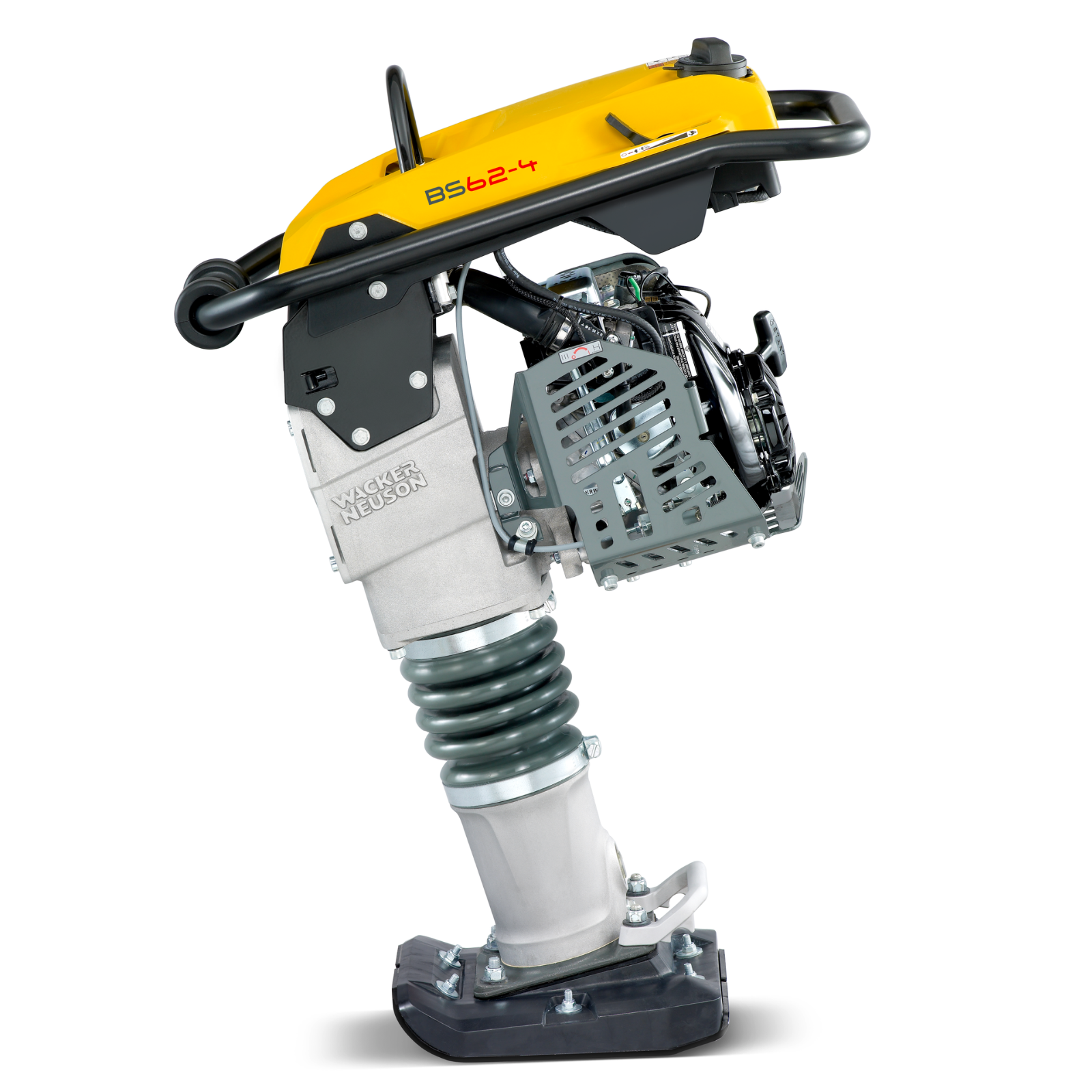

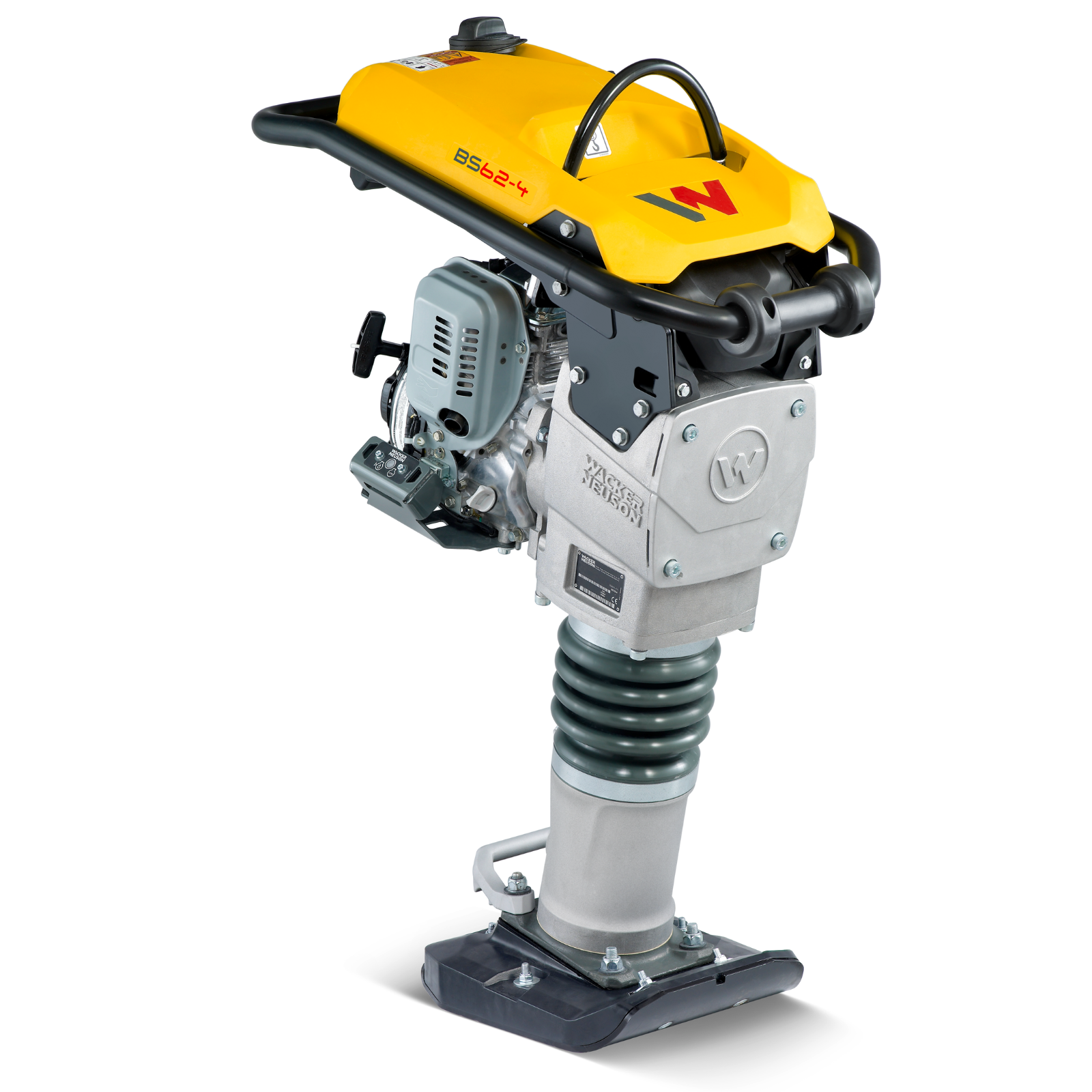

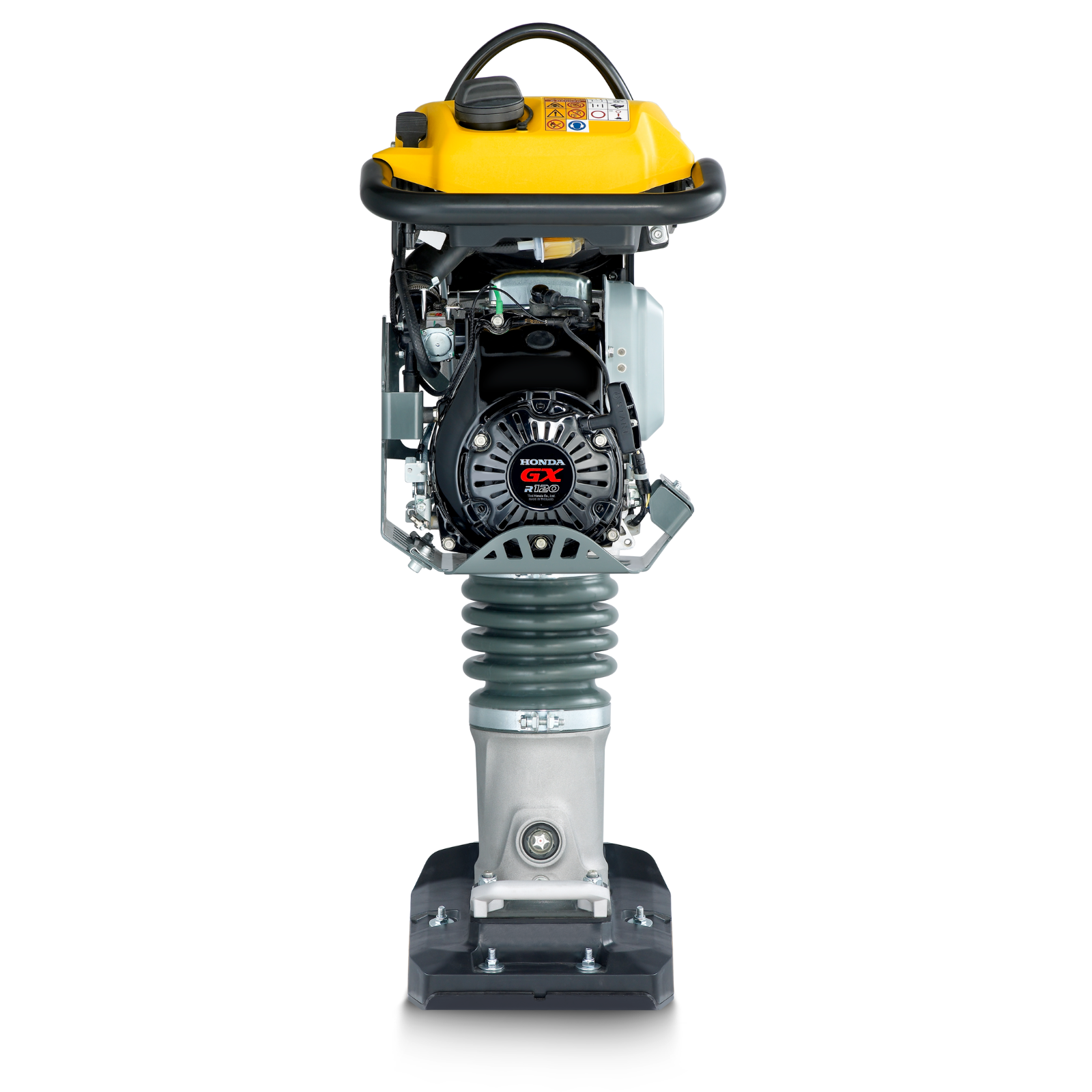

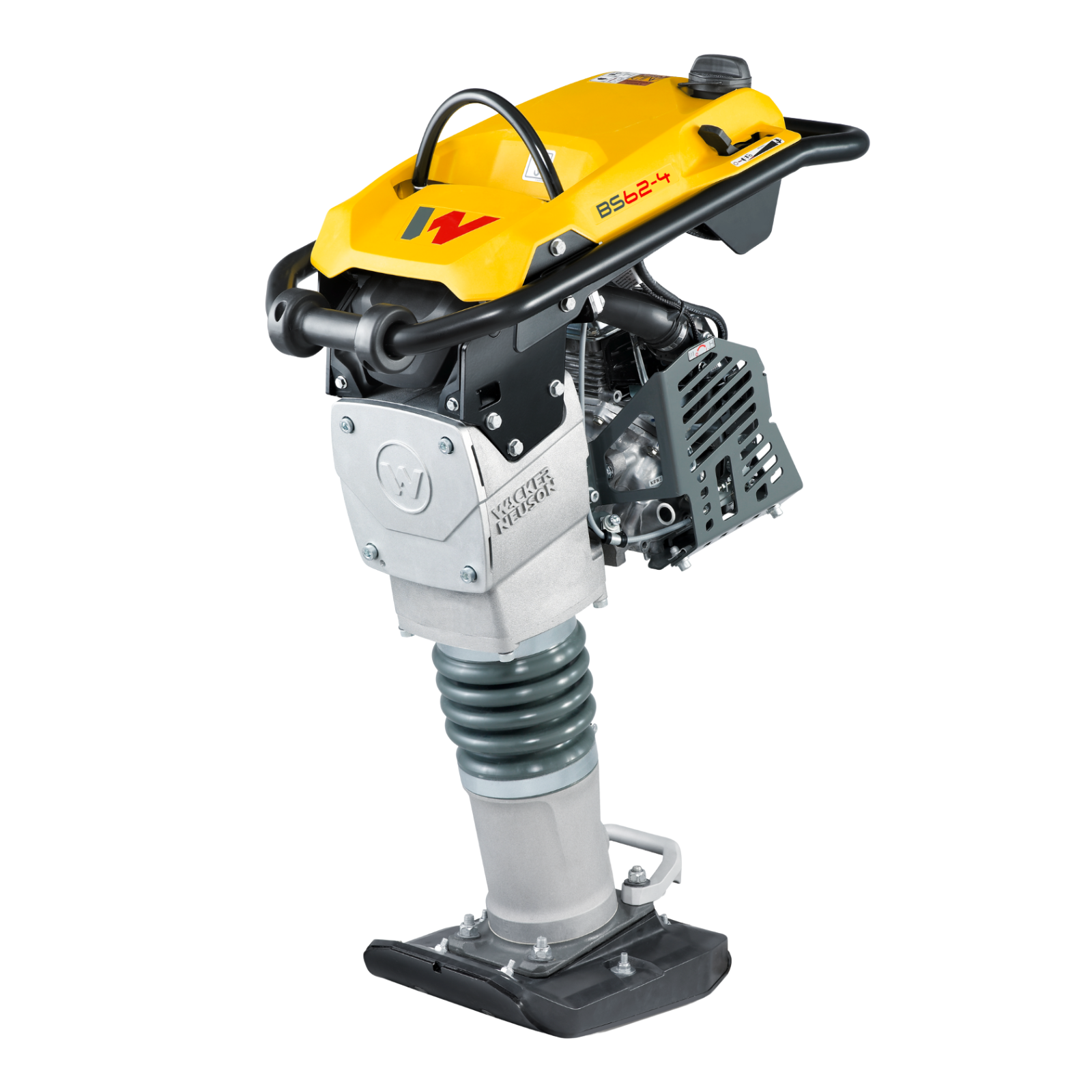

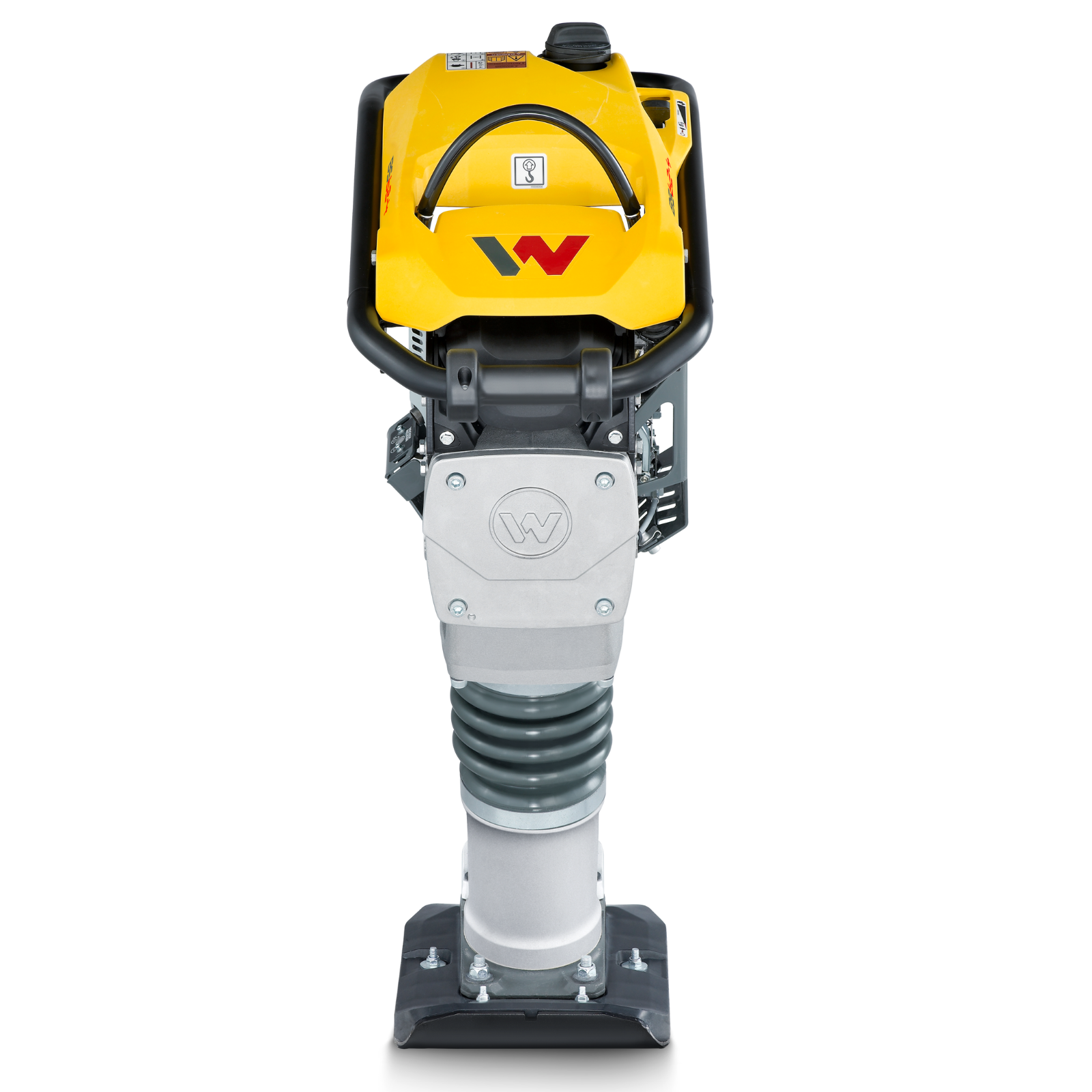

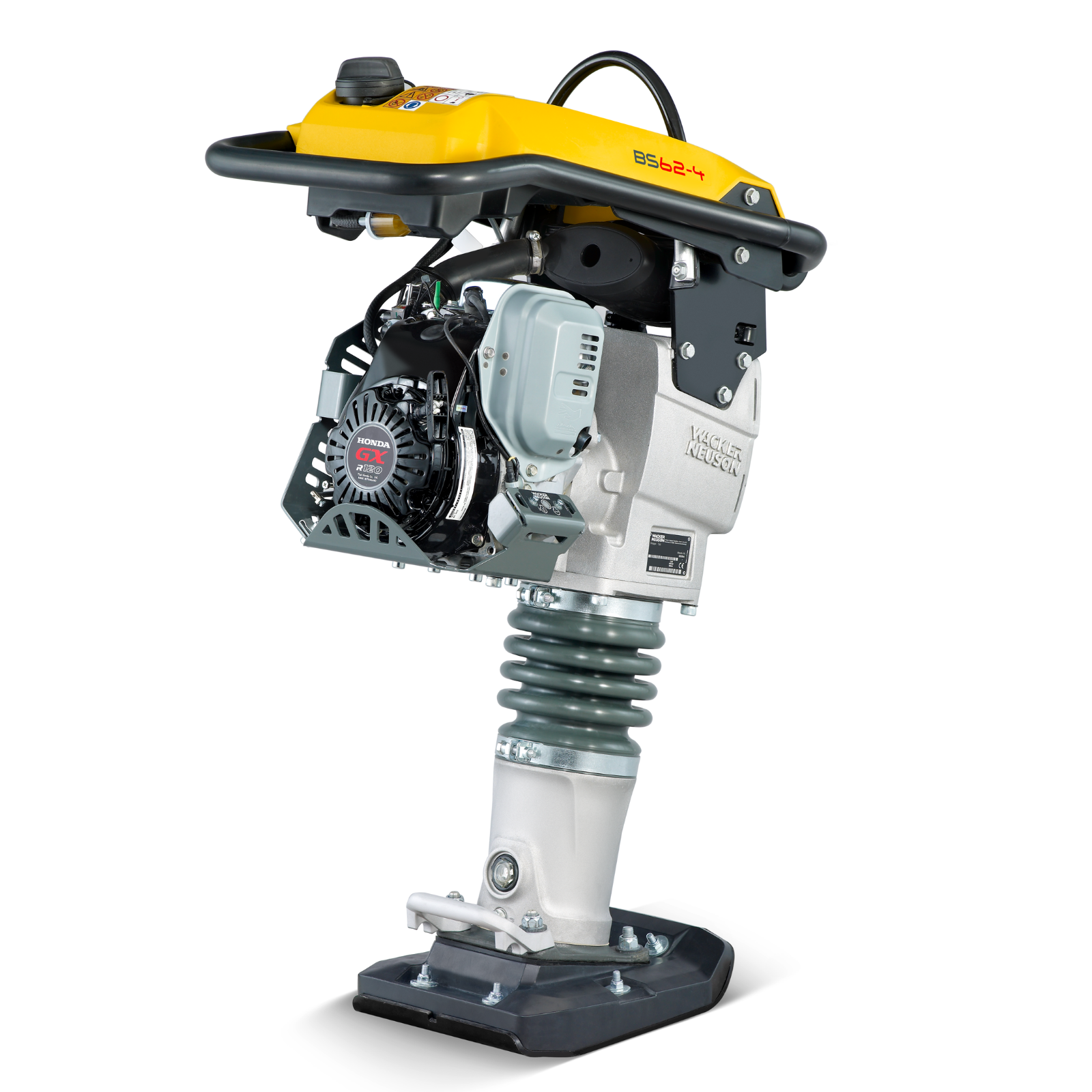

Wacker Neuson BS62-4Ab/28 - 4 Stroke Rammer

Wacker Neuson Rammers are known as the benchmark of Rammers in the construction industry. Available in 4 sizes, with 4 engine options, there simply is no better choice for a Rammer than a Wacker Neuson. The BS62-4Ab/28 is powered by a Honda GXR120 4-stroke engine, designed and manufactured for Wacker Neuson. The BS62-4Ab/28 is fitted standard with a 280mm shoe with optional 100mm and 165mm shoes available.

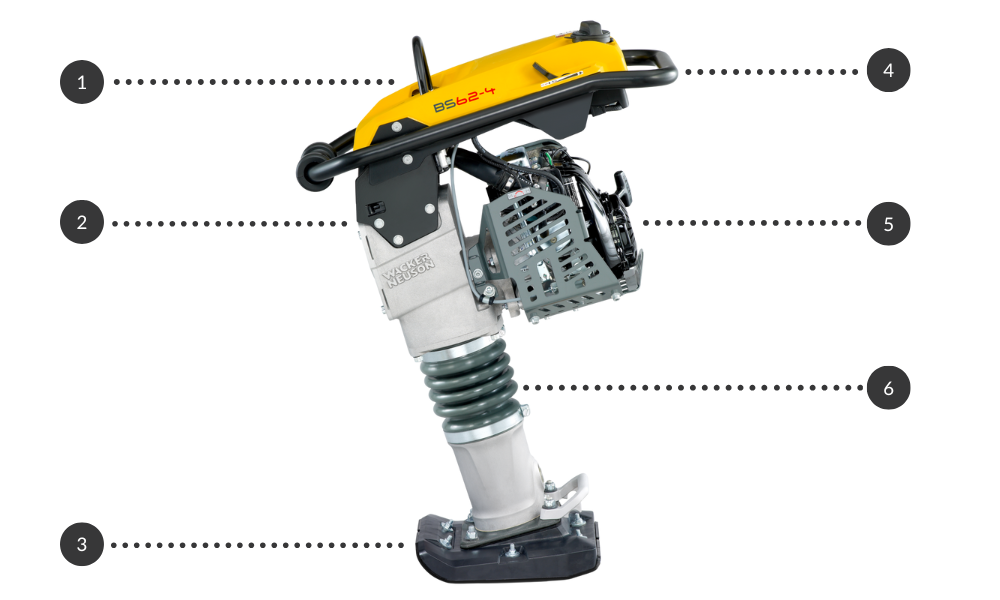

Key Features:

1.	Ease of Use	Throttle, start/stop and fuel shut off all controlled with one lever.
2.	Maintenance	Perfect air supply through cowling - ensures long filter service life. High impact plastic ramming shoe with reinforced steel plate - specifically designed for Wacker Neuson Rammers and for long life. Hour meter fitted.
3.	Reliability	Wacker Neuson invented the Trench Rammer and has been making them for over 80 years. Rammer is alerted when oil tank is low and will shut off before running out of oil, avoiding damage. Long life Honda GXR 120 designed for rammer use
4.	Safety	Central certified lifting point to lift rammer with a crane Lifting point attached directly to crank housing ensures no strain is put on handle or vibration dampeners.
5.	Versatility	Unique design ensures perfect blend of balance, impact and travel speed - vertical rammers lean forward for better travel speeds. Narrow design ensures Wacker Neuson rammers can be used in tight spaces. Honda GXR 120 engine custom designed for Rammers, not a one size fits all engine.
6.	Accessories	Narrow shoe kits available. Wheel Kit available. Trolley available.

(5100061966)

Operating Specifications:

Operating weight	64 Kg
Ramming shoe (W x L)	280 mm x 340 mm
L x W x H	662 mm x 347 mm x 920 mm
Number of blows	689 / min
Stroke at the ramming shoe	68 mm
Operating speed	12 m / min
Surface capacity	202 m2 / h
Impact Force	17 kN

Specifications subject to change without notice due to continual product development

SKU	5100061966
Shipping Weight	71.0000kg
Shipping Width	0.380m
Shipping Height	0.990m
Shipping Length	0.690m
Shipping Cubic	0.259578000m3
