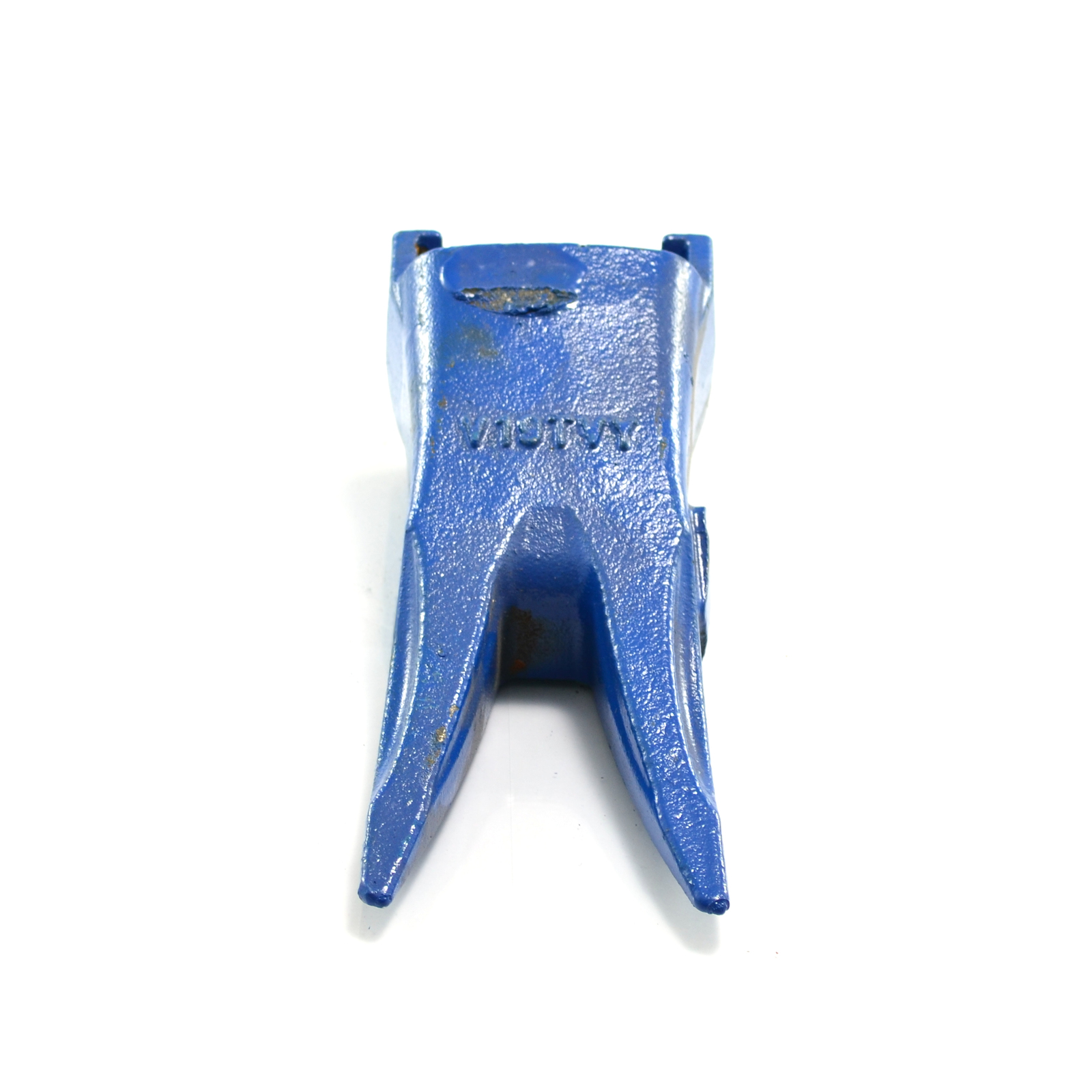

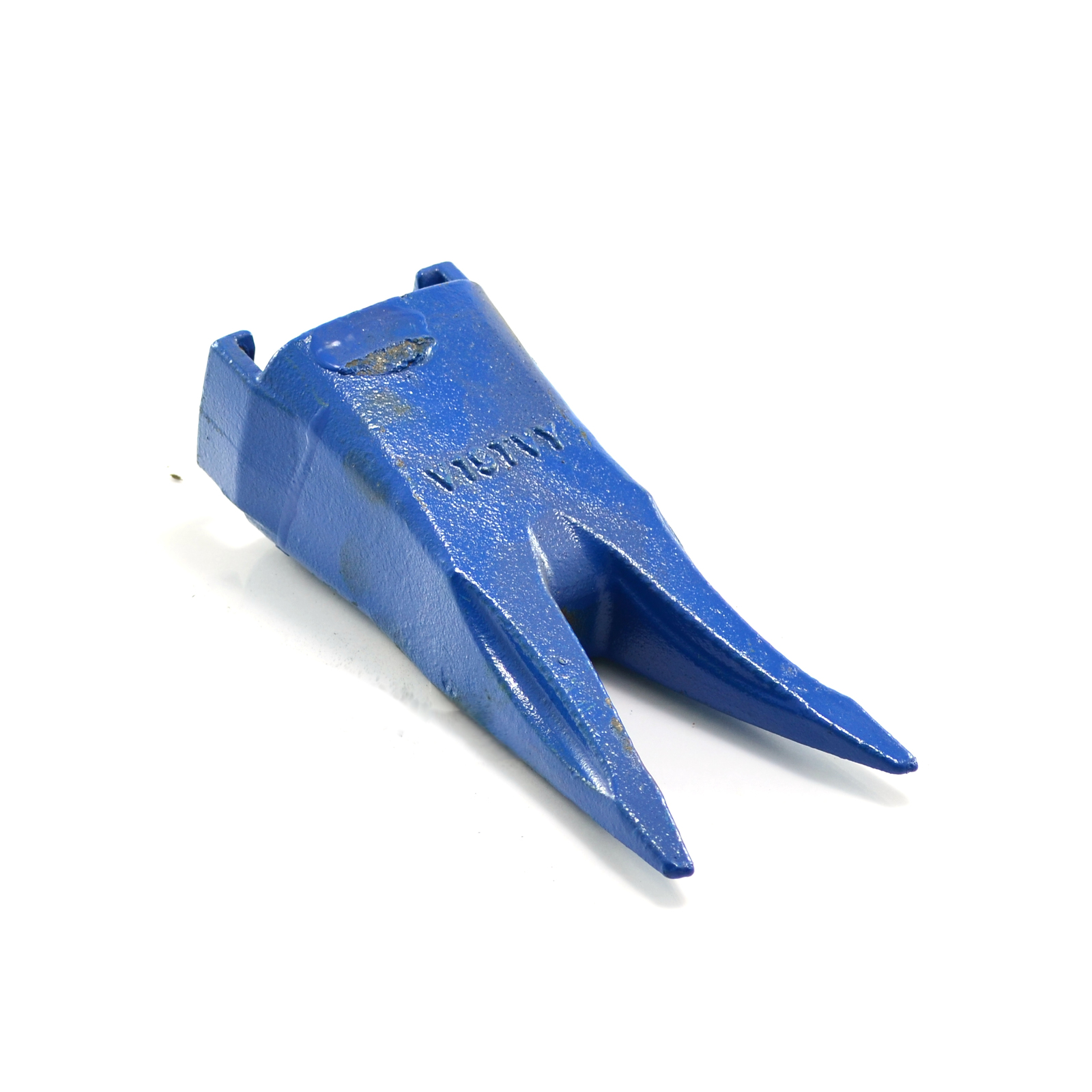

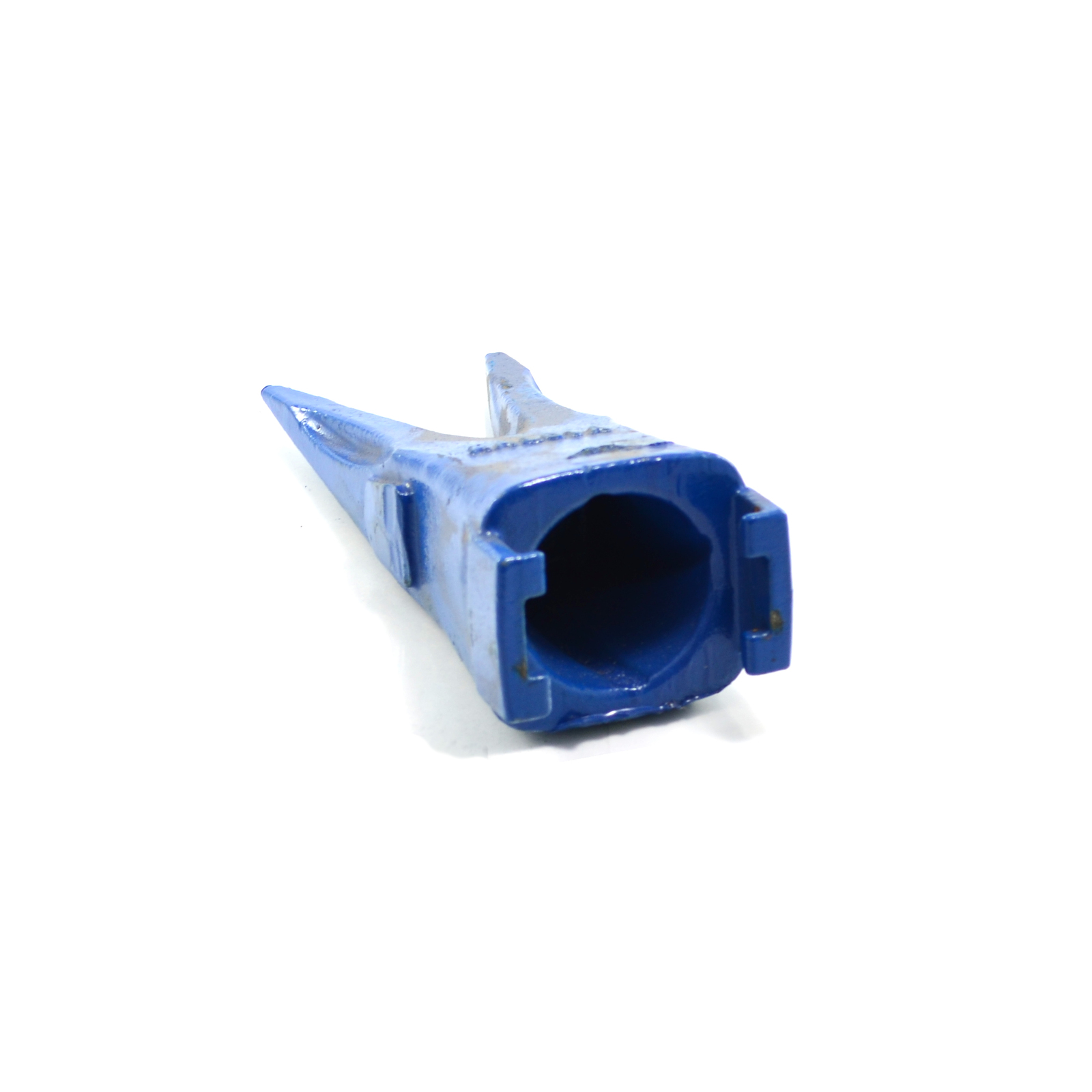

V19TVC Twin Tiger Tooth
V19 Esco "Super V" style teeth are very common in Australia for late model excavators from 6 to 9 tonne. They are fitted with a bonded steel and rubber pin which is punched in vertically from top to bottom on the left-hand-side of the tooth. These will most likely be the teeth fitted If you have a skid steer or mini excavator from 6 to 9 tonne and they are a "Super V" twist on tooth.
Blade or Twin Tiger?
Blade teeth are great for general purpose work and long life, the large wear area will last longer than twin tip tiger teeth. Twin tip tiger teeth will penetrate the ground much easier than blade teeth due to sharper points on the teeth, however they will wear faster than blade teeth due to the smaller wear area than blade teeth. The general rule of thumb is to use blades for normal work and tigers when the ground is too hard and the machine is struggling to dig.
ACES Teeth
Aces Teeth are manufactured to the highest quality standards available. All our teeth are manufactured using the Lost Wax Investment Casting process rather than the old fashioned sand casting process. This ensures higher tolerances on the teeth and adapters during casting. All teeth and adapters are made from high quality alloy steel to achieve an impact strength of greater than or equal to 20J. They are also hardened from 47-52 HRC for extremely long wear life.
(V19TVC)
Fitting Specifications:
Width | 65 mm |
Height | 57 mm |
Depth | 85 mm |
Shipping Specifications:
SKU | V19TVC |
Shipping Weight | 2.2000kg |
Shipping Width | 0.080m |
Shipping Height | 0.070m |
Shipping Length | 0.200m |
Shipping Cubic | 0.000325000m3 |
