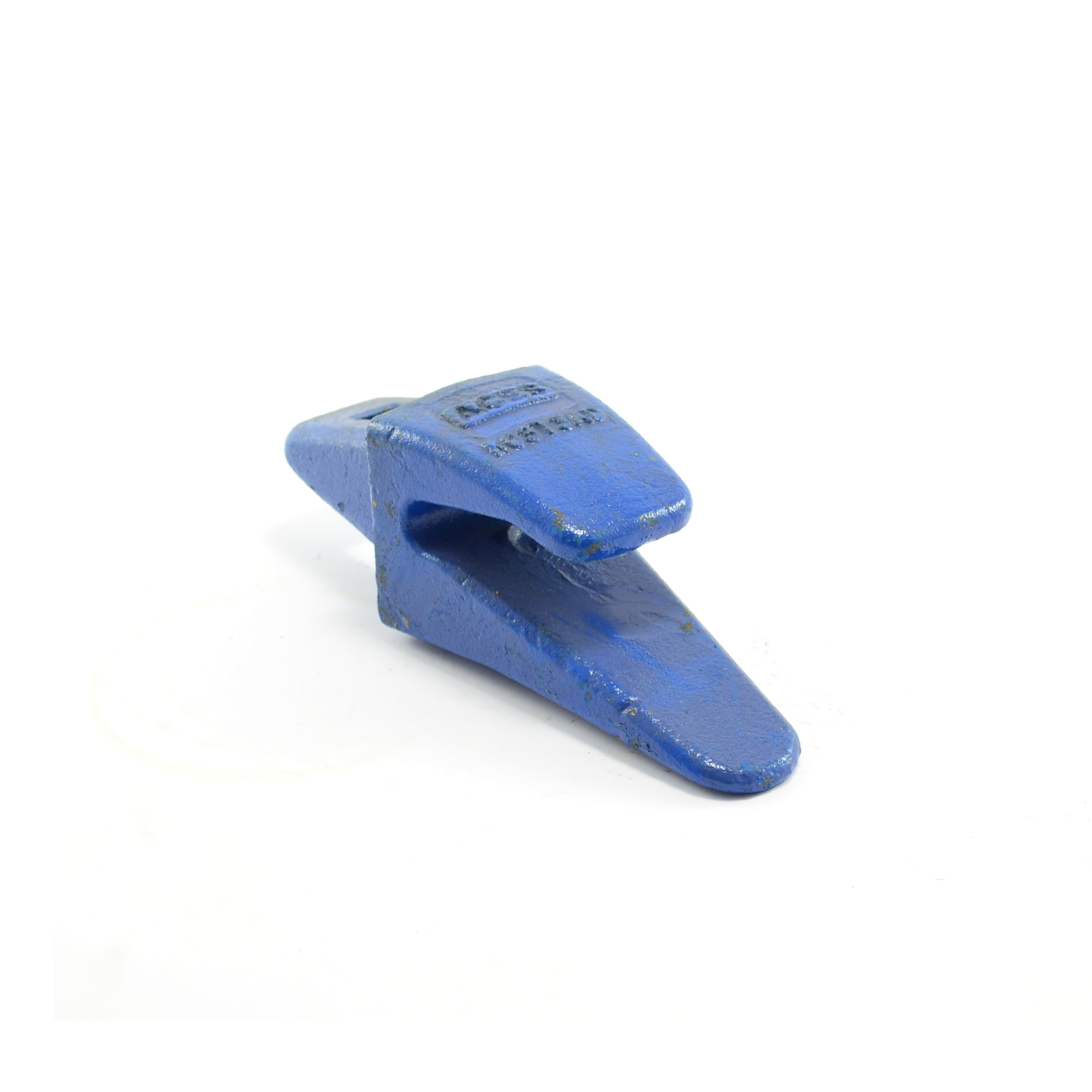

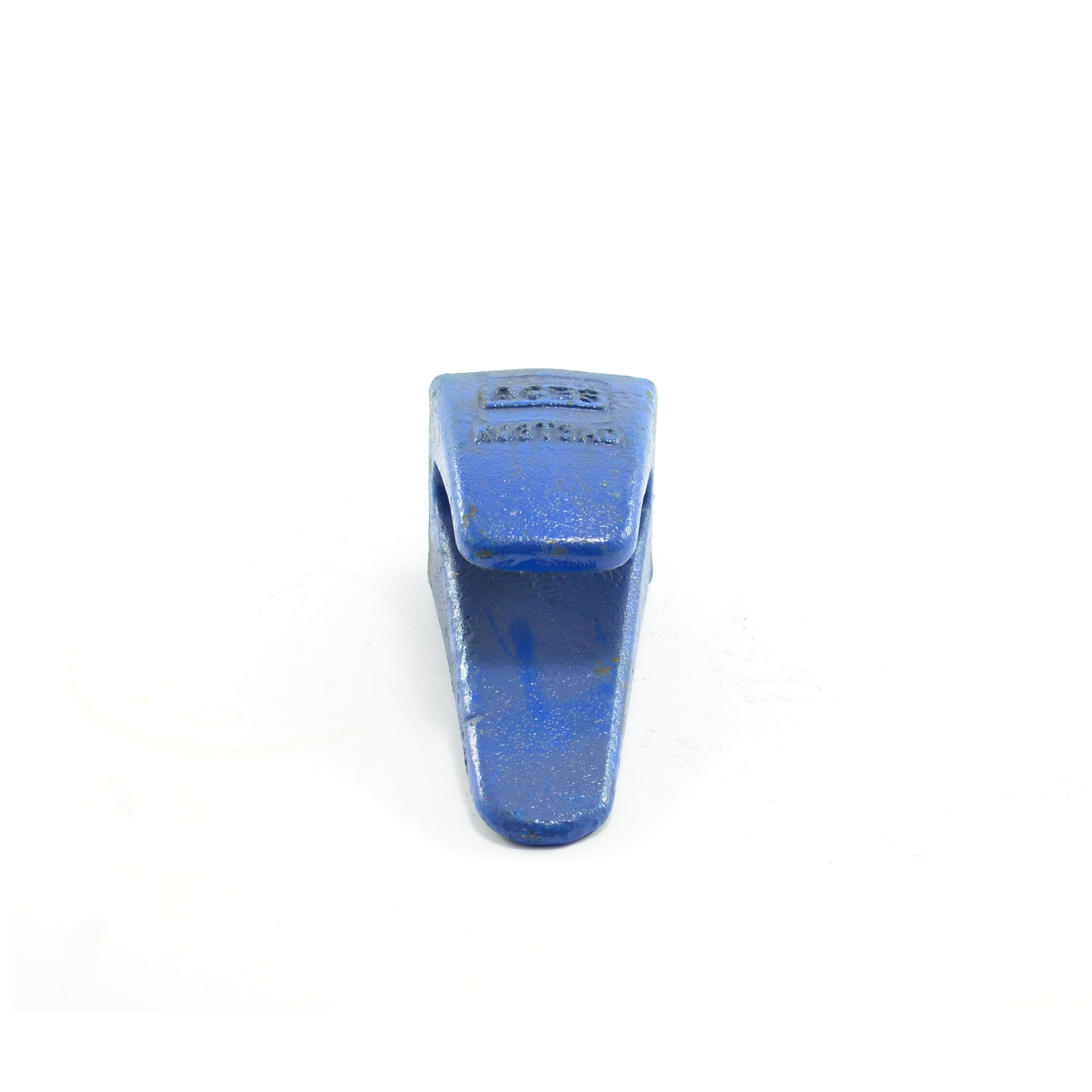

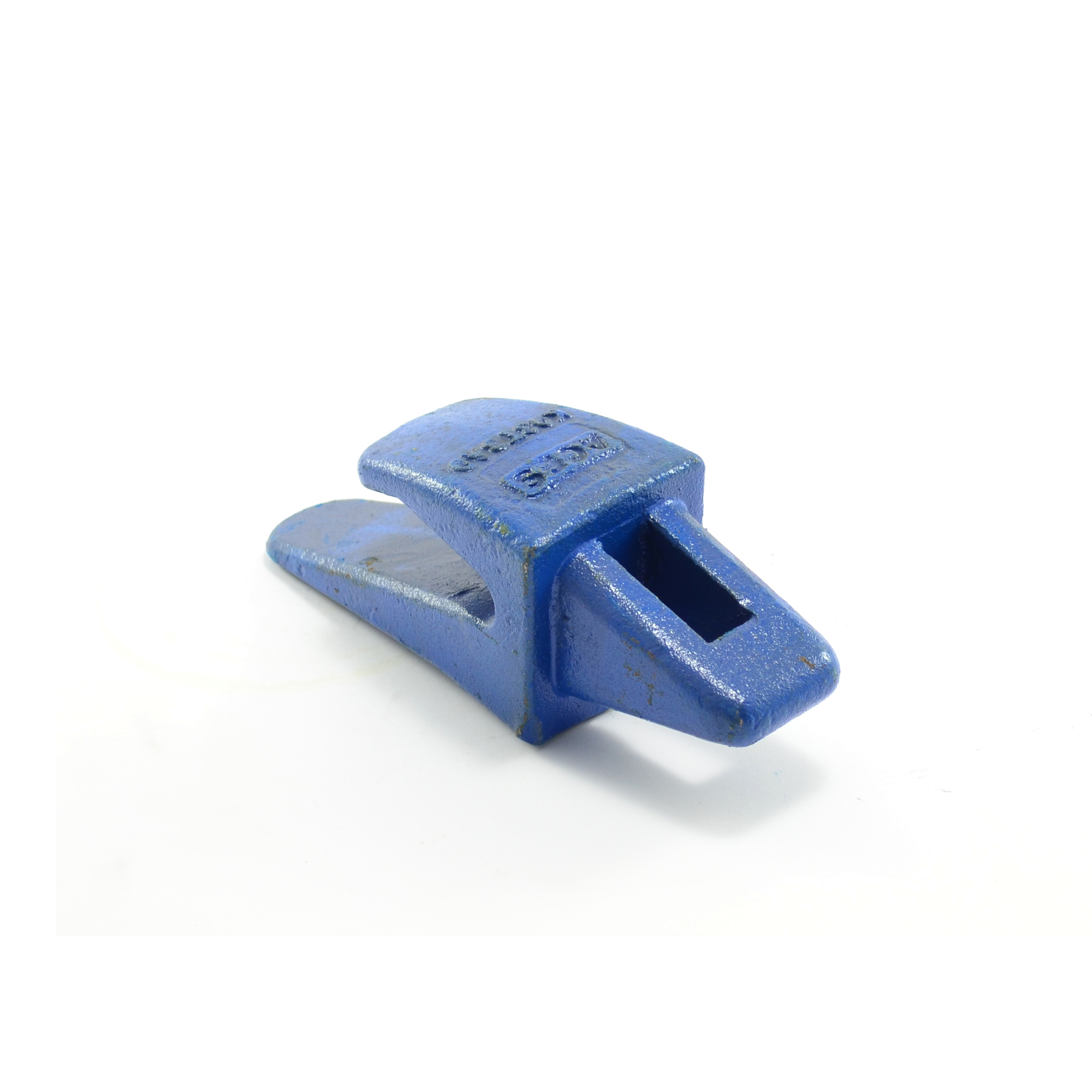

K03T3S Weld-On Double Strap Adapter
K03 Keech / Hitachi are common teeth on Hitachi excavators up to 3 tonne. They are fitted with a rectangular rubber lock inside the tooth and a heavy duty rectangular pin to secure the lock. These teeth are easily recognisable by the large steel retaining pin and the long rectangular slot on the adapter.
Blade or Twin Tiger?
Blade teeth are great for general purpose work and long life, the large wear area will last longer than twin tip tiger teeth. Twin tip tiger teeth will penetrate the ground much easier than blade teeth due to sharper points on the teeth, however they will wear faster than blade teeth due to the smaller wear area than blade teeth. The general rule of thumb is to use blades for normal work and tigers when the ground is too hard and the machine is struggling to dig.
ACES Teeth
Aces Teeth are manufactured to the highest quality standards available. All our teeth are manufactured using the Lost Wax Investment Casting process rather than the old fashioned sand casting process. This ensures higher tolerances on the teeth and adapters during casting. All teeth and adapters are made from high quality alloy steel to achieve an impact strength of greater than or equal to 20J. They are also hardened from 47-52 HRC for extremely long wear life.
(3K03T3AD)
Fitting Specifications:
Width | 45 mm |
Height | 43 mm |
Depth | 65 mm |
Shipping Specifications:
SKU | 3K03T3AD |
Shipping Weight | 1.9000kg |
Shipping Width | 0.070m |
Shipping Height | 0.060m |
Shipping Length | 0.200m |
Shipping Cubic | 0.000325000m3 |
