Wacker Neuson PT 3A

3" Petrol Trash Pump

In Stock

Calculate Shipping

Wacker Neuson PT 3A - 3" Petrol Trash Pump

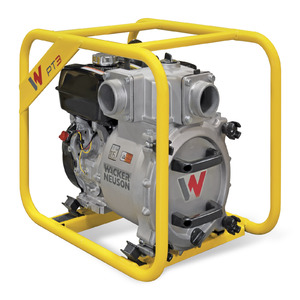

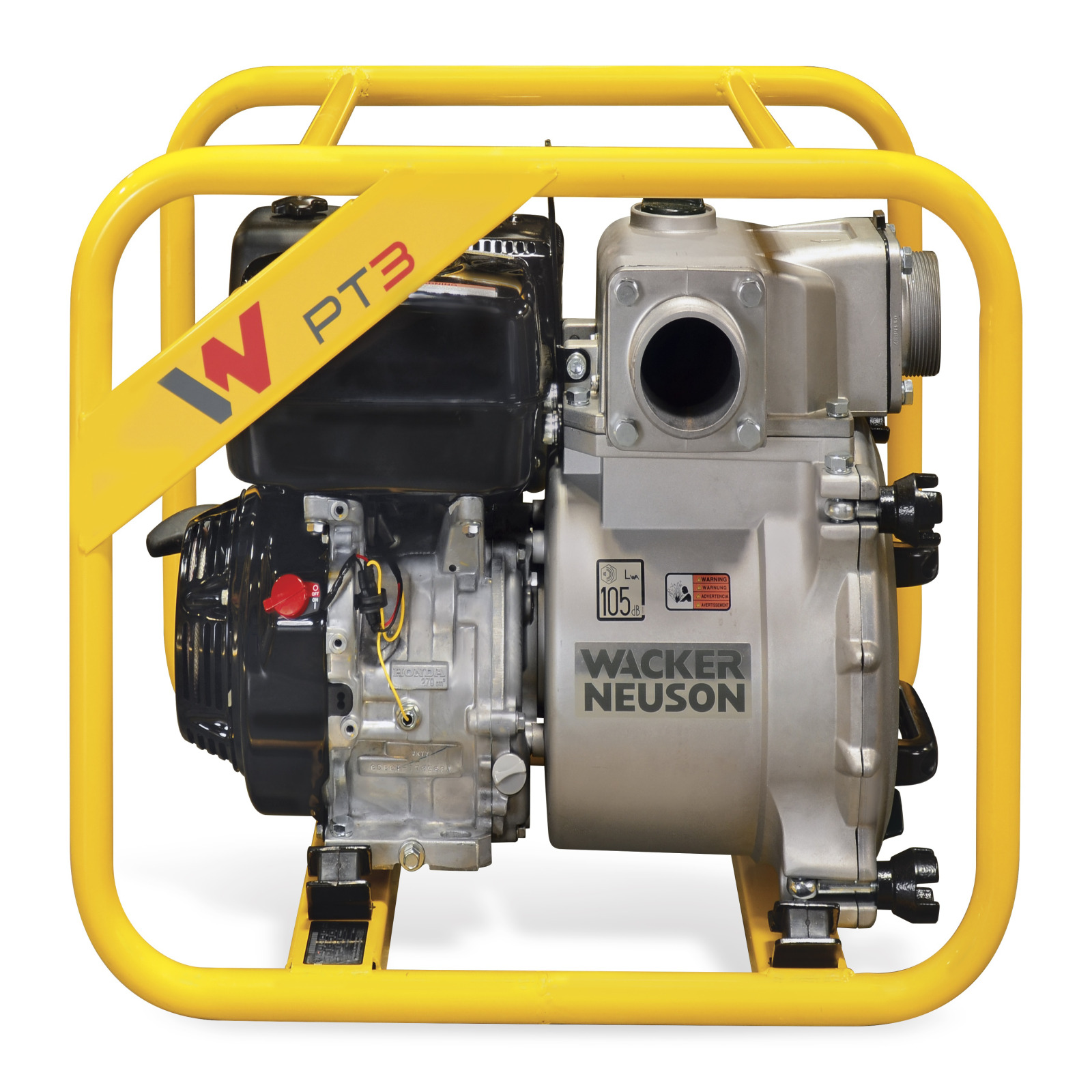

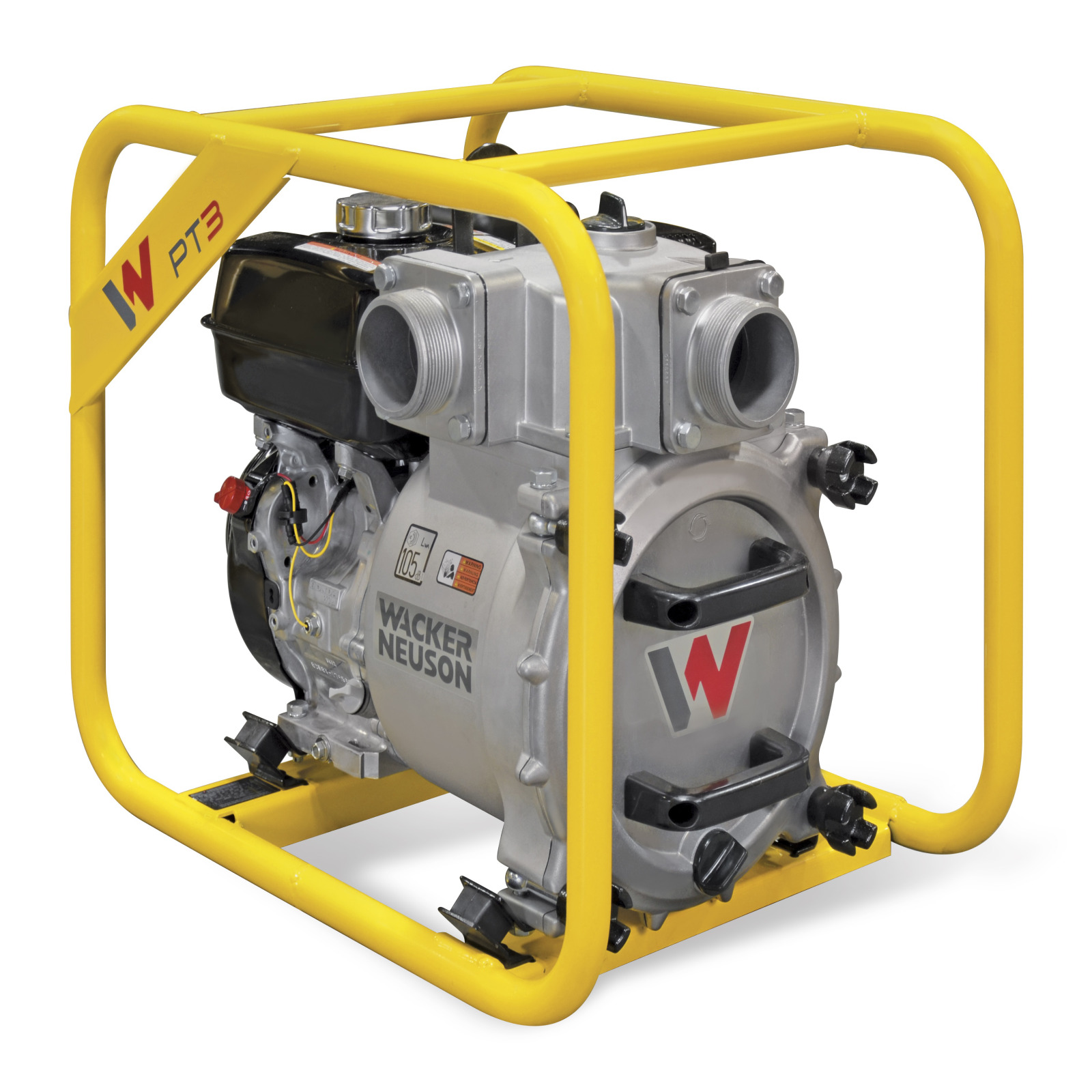

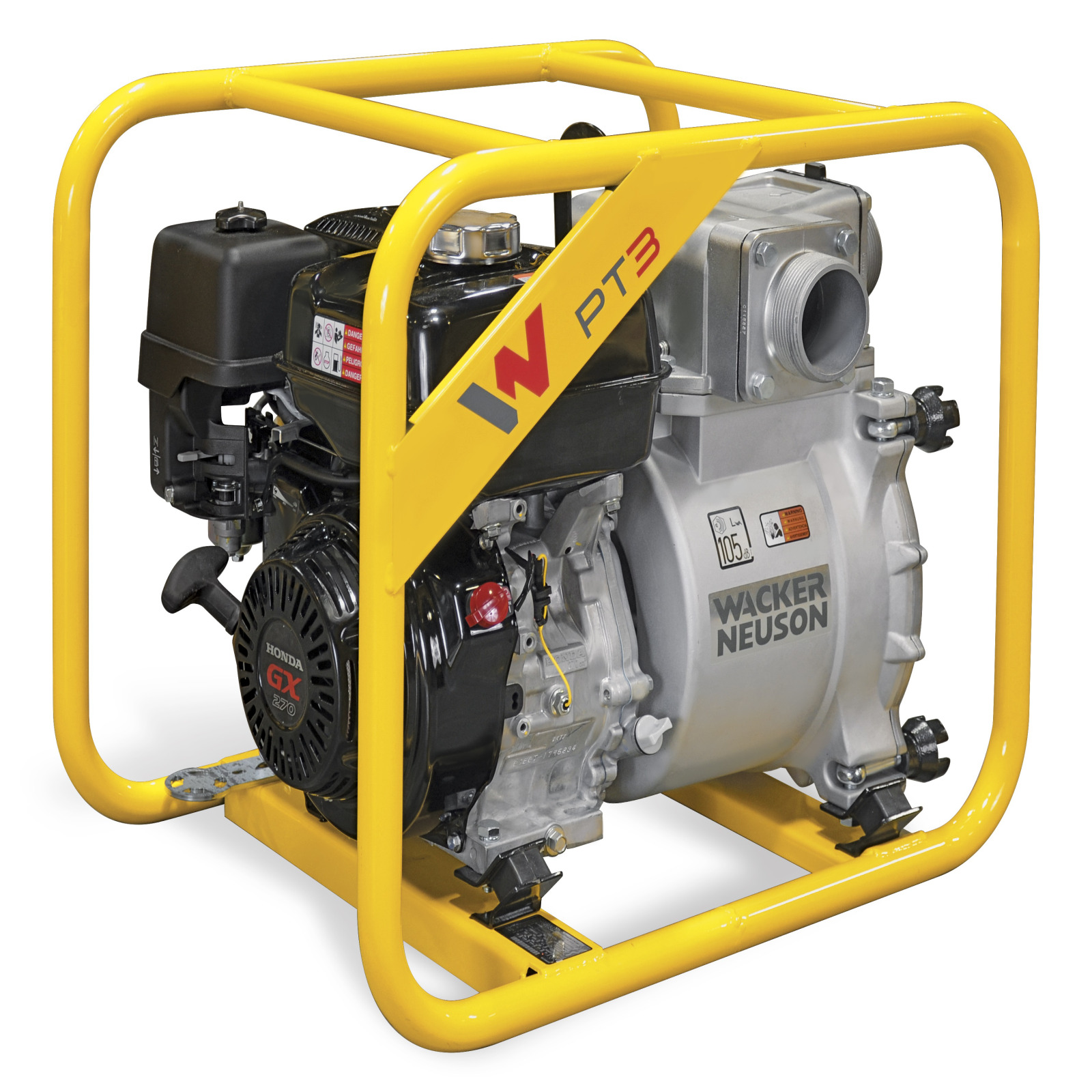

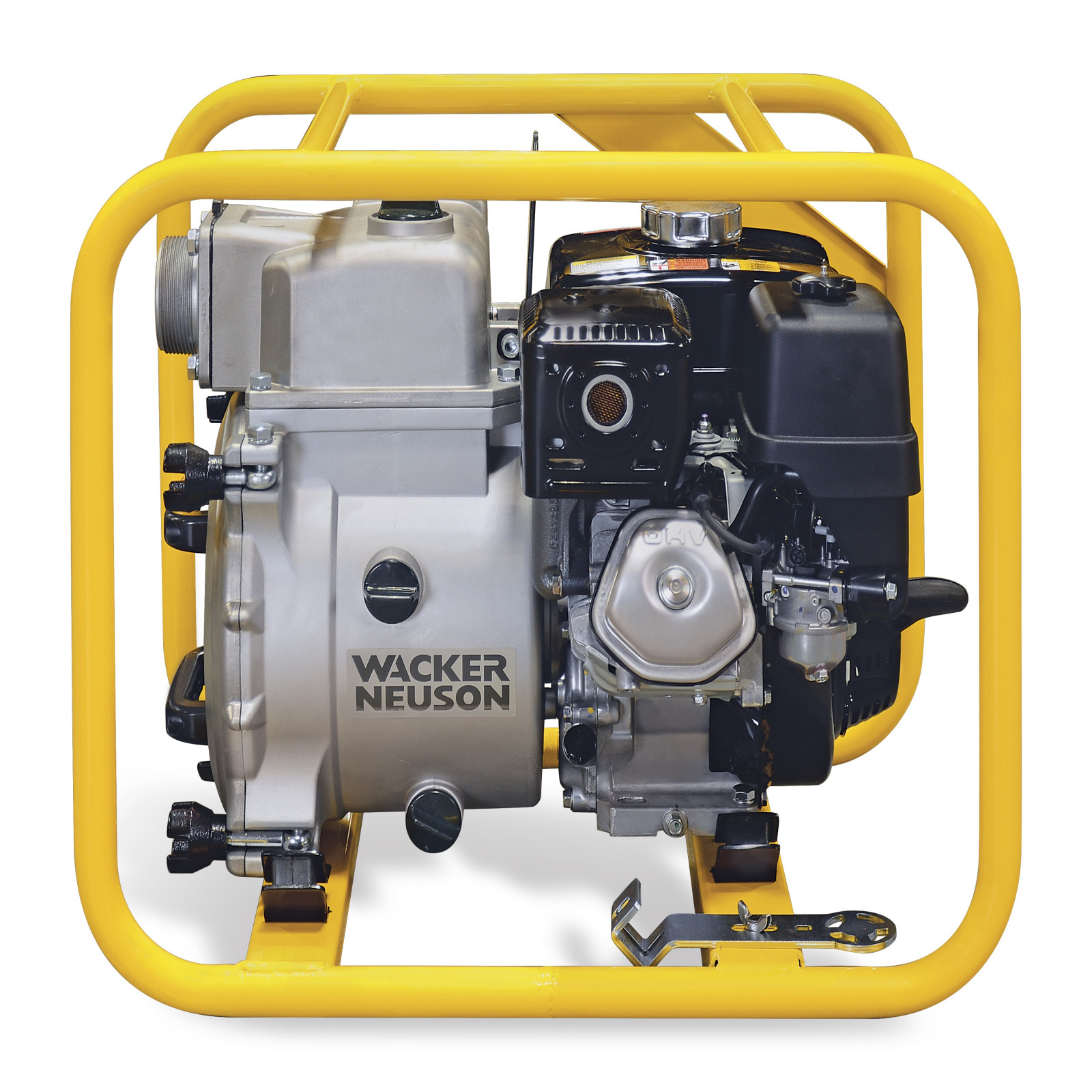

The PT 3A Honda powered self-priming, centrifugal trash pump has proven itself on job sites around the world and is known as the benchmark of compact petrol driven trash pumps in Australia. The high-performance, durable pump can move up to 400 gpm (1515 l/m) and solids up to 1.5 inches (38mm). With the radial flow design, quality components and built-in contractor friendly features these pumps have redefined the durability standards of a job site pump. The PT 3A pump is perfect for the following application: dewatering of excavations, flooded basements, manholes, utility vaults, mining work, swimming pools, lakes and barge holds or wherever there is unwanted water.

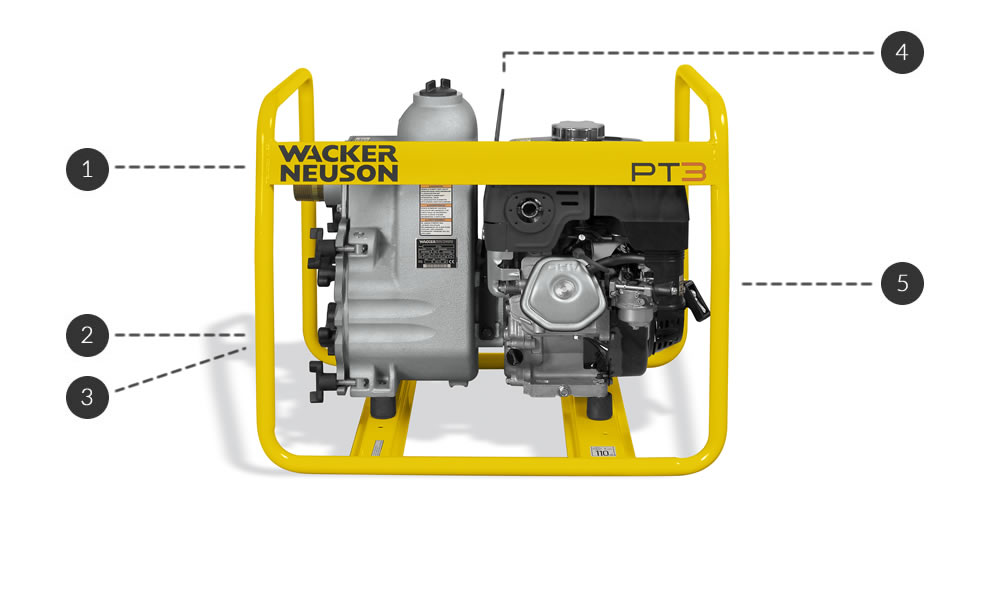

Key Features:

1. Reliability
  • Wacker Neuson has over 160 years of experience in designing and manufacturing equipment specifically for the construction industry.
  • Powered by a 4-Stroke Genuine Honda petrol Engine.
  • Cast aluminium housing for long-service life.
2. Maintenance
  • Hardened ductile iron impeller and volute for long service life.
  • Shim able volute wear plate for continual optimal performance.
  • Carbon Ceramic mechanical seal ensures optimum performance and engine protection.
  • 4 swing away latches for easy access to volute and impeller on the job site.
3. Performance
  • Discharge capacity of 91,000 Litres per hour or 1,515 per minute.
  • Capable of pumping 1.5” or 38mm solids.
  • Rubber shock mounts for smooth performance.
4. Versatility
  • Central crane lifting point for safe handling.
  • Strong steel frame designed for tough Australian job sites.
  • Self Priming.
5. Power

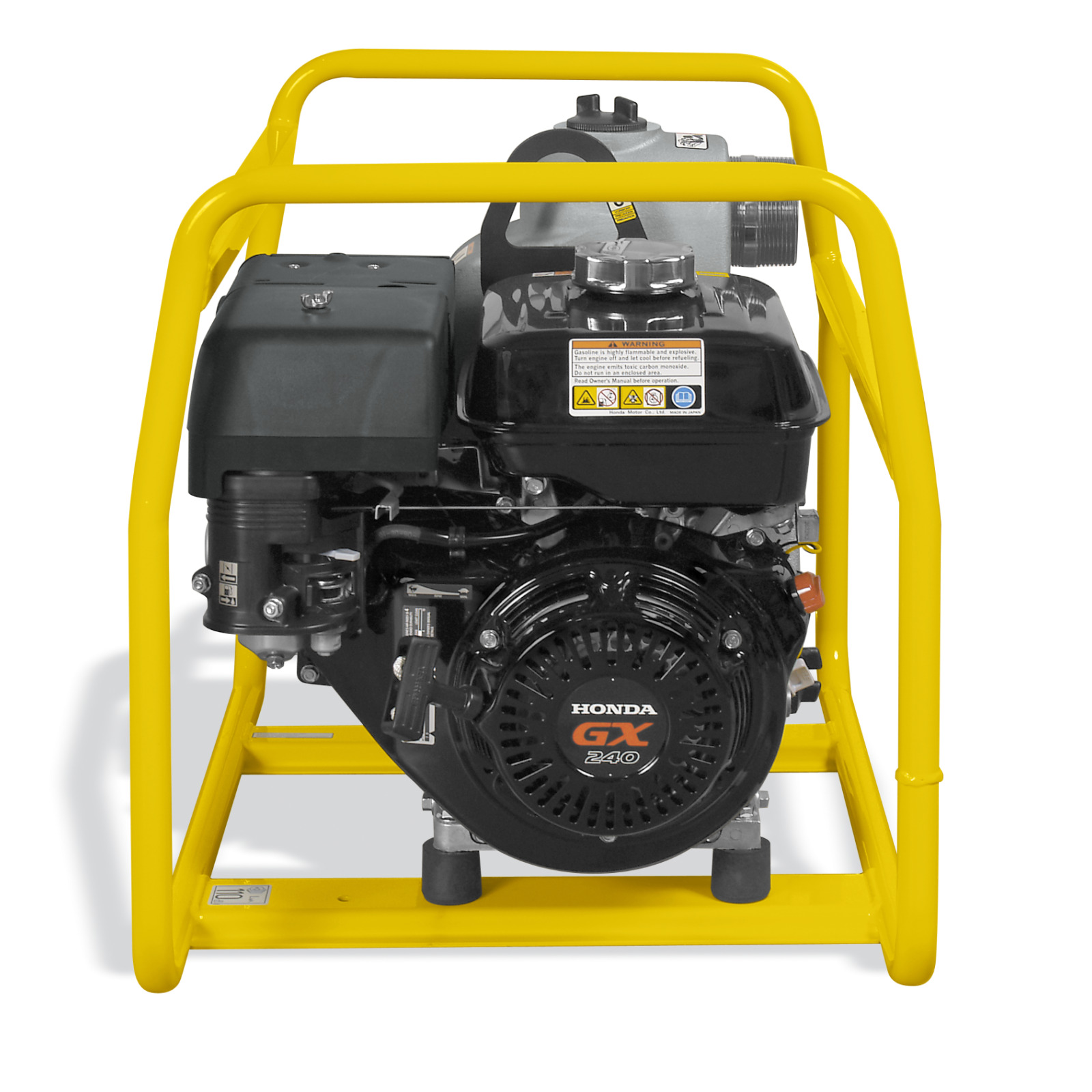

  • 7HP Honda petrol engine.


Operating Specifications:

Operating weight 68 kg
Size (W x L x H) 505 x 673 x 569 mm
Diameter (suction) 75 mm
Diameter (discharge) 75 mm


Manufacturer Honda
Model GX270
Construction Air-cooled, single-cylinder petrol
Displacement 163 cm3
Engine speed 3,500 rpm
Engine output according to ISO 5.9 kW (7.1HP)
Fuel consumption 2.2 L/h
Tank capacity 5.3 L

Operating Data:

Discharge head 28.3 m
Discharge capacity 1,350 l/min
Pressure 2.8 Bar
Suction height 7.62 m
Solids dia. 38 mm

Specifications subject to change without notice due to continual product development

SKU 5100042614
Shipping Weight 75.0000kg
Shipping Width 0.520m
Shipping Height 0.610m
Shipping Length 0.690m
Shipping Cubic 0.218868000m3
